Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W
Wattage 30W
Lumens 2100L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte Black
Beam Angle 36
Color Temperature Selectable Yes
Fixture Type Track Head

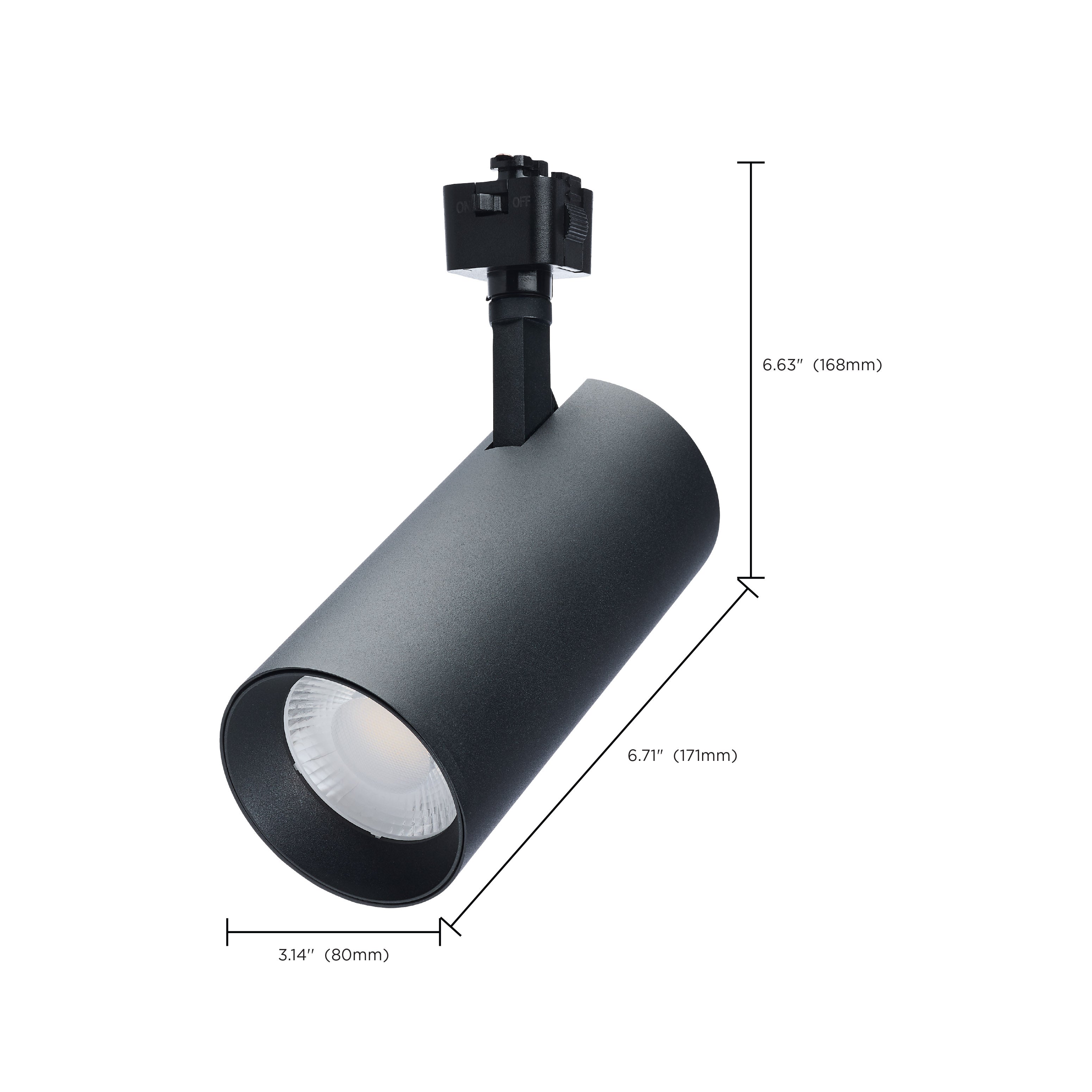

Length 6.71 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, 120V only
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear
Width 3.14 IN
Height 6.63 IN
Weight 1.57 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

30 Watt LED Track Head - 36 Degree Beam Spread - J-Style Track - 5 CCT Selectable - Matte Black Finish - J-Style is a track lighting intended for wall washing, artwork lighting, task illumination and focused room lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting track lighting for a specific room, fixture or property application.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. In practical terms, that makes this product relevant for retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. It also fits naturally into projects considering retail track lighting and track light fixture, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Makes it easier to aim light toward displays, artwork, counters or architectural features. For commercial and residential interiors where adjustable lighting helps direct attention, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

When it is time to order track lighting for residential or commercial projects, consider 30 Watt LED Track Head for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

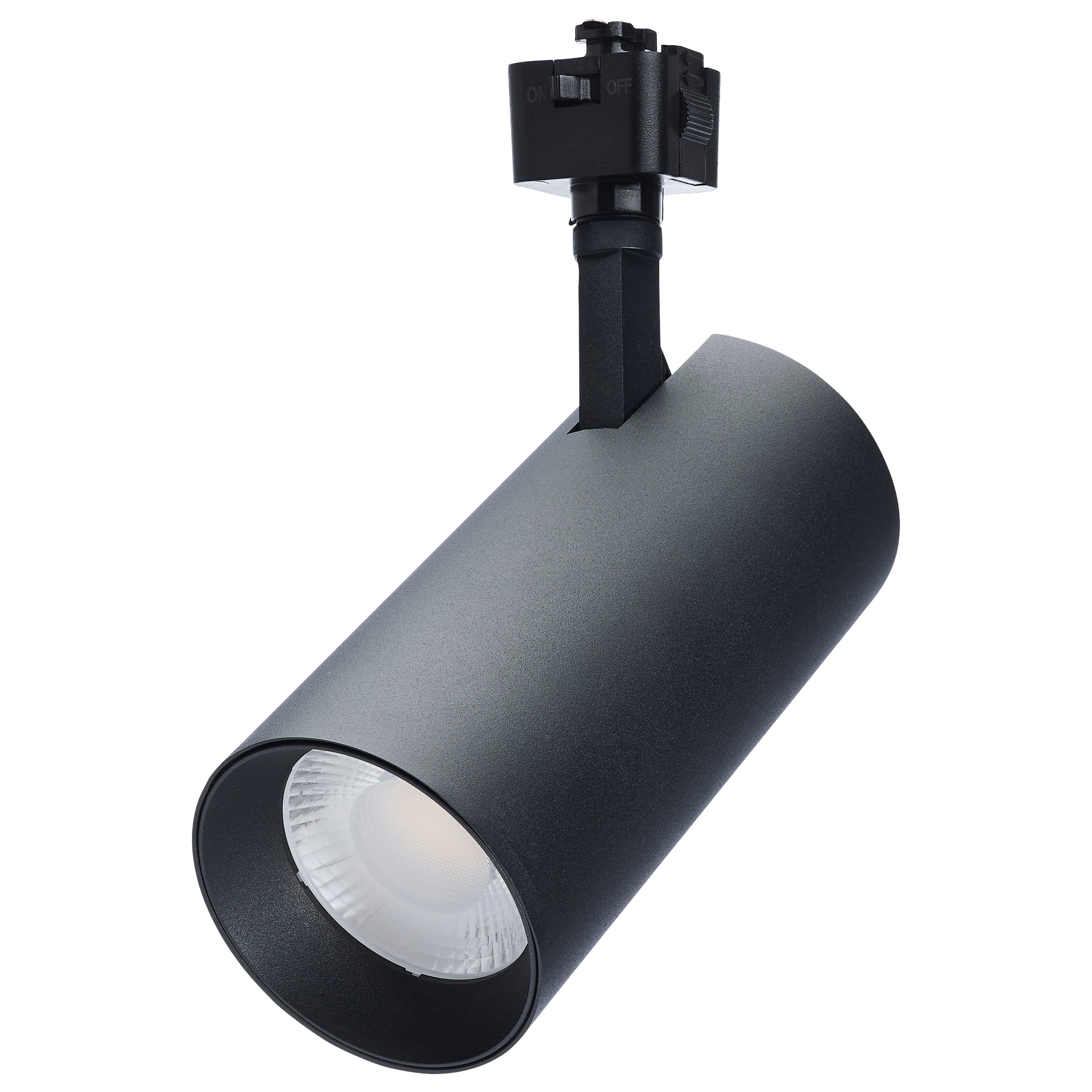

Finished in matte black, the 30-watt TH5022 LED CCT Selectable track head fixture from SATCO NUVO delivers a 36-degree beam angle, perfect for highlighting small spaces. It supports both Single Circuit and 2 Circuit J-Style track systems for maximum flexibility. Designed for both commercial and residential installations, J-Style track allows for clean, modular layouts. This fixture offers five CCT options at installation and boasts a 90 CRI rating for exceptional color accuracy, combining energy efficiency with contemporary appeal.

Features :-

  • J-Style Single and 2 Circuit Track Compatible
  • 36 Degree Beam Angle
  • 5 CCT Selectable
  • 90 CRI High Quality Light
  • Matte Black Finish
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
