Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 40W/35W/30W/25W/20W
Lumens 5000L/4375L/3750L/3125L/2500L
Color Temperature 3000K/3500K/4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Silver
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 20.87 IN
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Daylight
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 1KV
Features / Controls
Enclosed Fixture Rated Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum
Finish/Lens Frosted
Width 0.93 IN
Height 1.19 IN
Weight 1.1 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 40W/35W/30W/25W/20W Wattage Selectable LED Light Bar Retrofit Kit - 3000K/3500K/4000K/5000K/6500K CCT Selectable - 2-Bars - 2 Feet - 120-277 Volt - Silver Finish when your project calls for a commercial ceiling light suited to grid-ceiling and general commercial lighting projects. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial ceiling lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It also fits naturally into projects considering LED troffer light and drop ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. For renovations, tenant improvements and facility upgrades that need consistent overhead illumination, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to buy LED panel and troffer lights online, 40W/35W/30W/25W/20W Wattage Selectable LED Light Bar Retrofit Kit is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

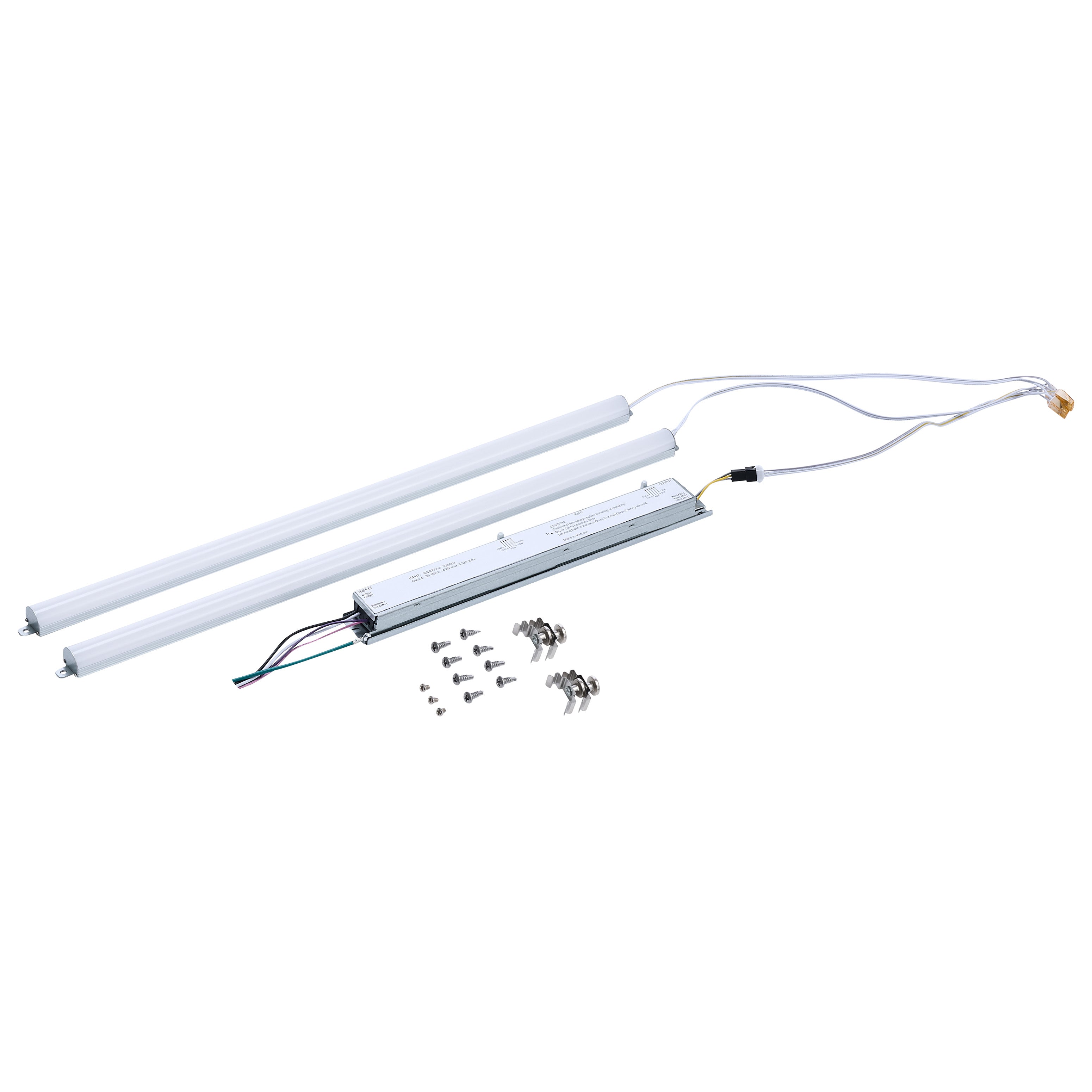

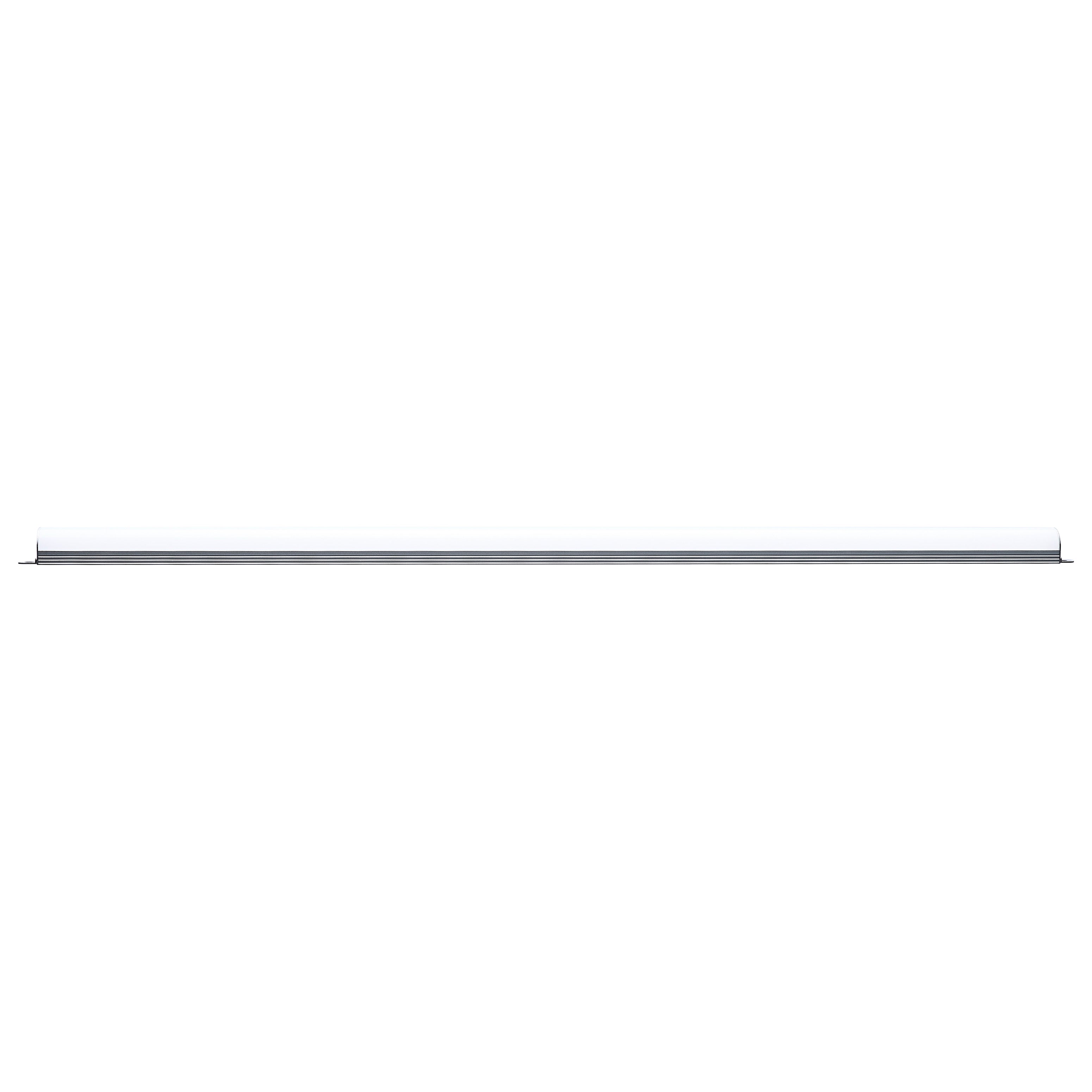

SATCO NUVO's 65-1330 2-foot Retrofit Lightbar Kit with two LED bars offers a flexible solution for upgrading existing fluorescent fixtures with efficient, modern LED performance. Designed to replace 2 x 17W T8 lamps, this kit delivers selectable wattages from 20W to 40W and selectable CCT from 3000K to 6500K for tailored illumination at installation. Ideal for retrofitting troffers, strips, wraps, and vapor tight fixtures, the durable aluminum construction and frosted polycarbonate lens provide lasting performance with smooth, even light distribution. 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty make this kit a dependable lighting upgrade.

Features :-

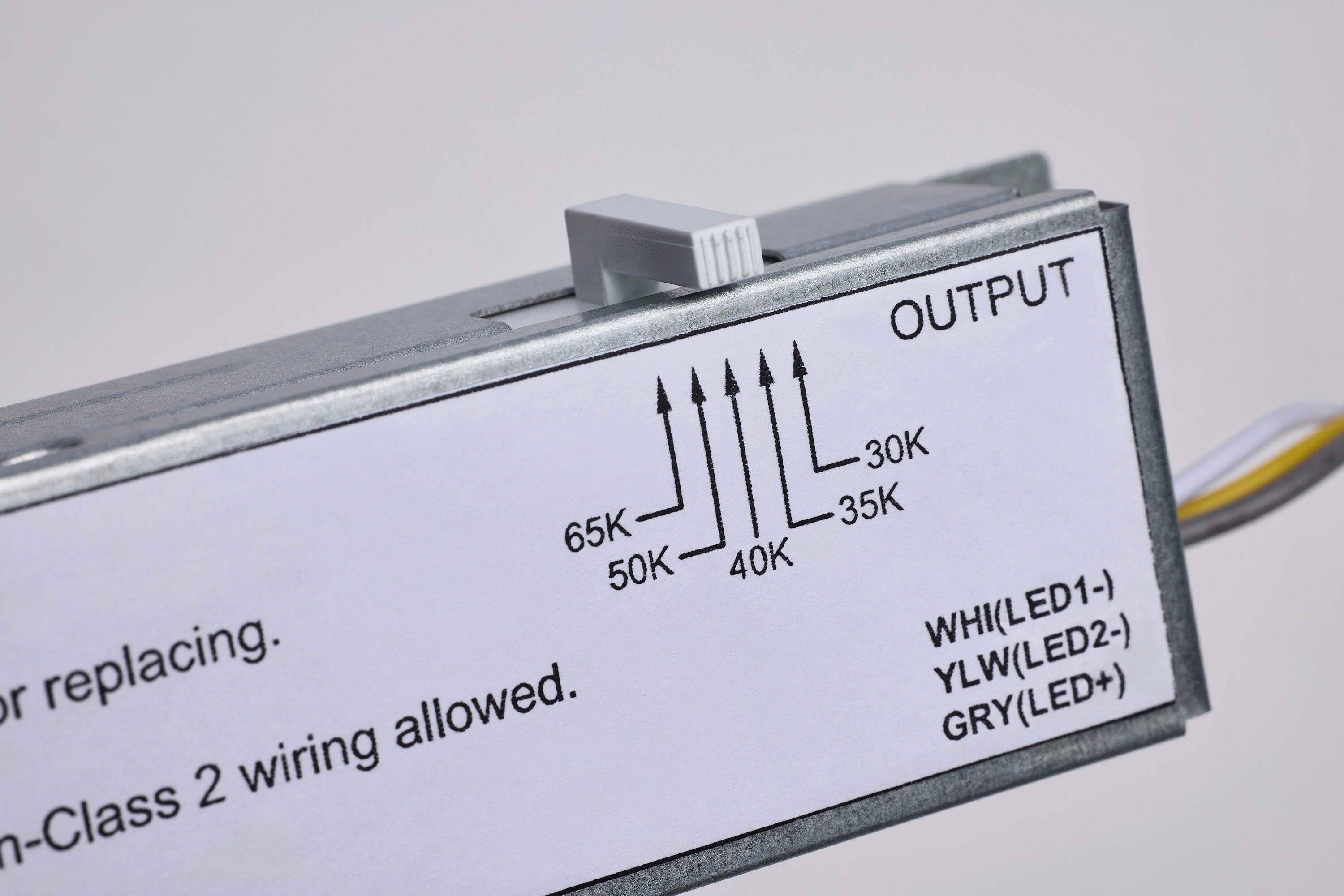

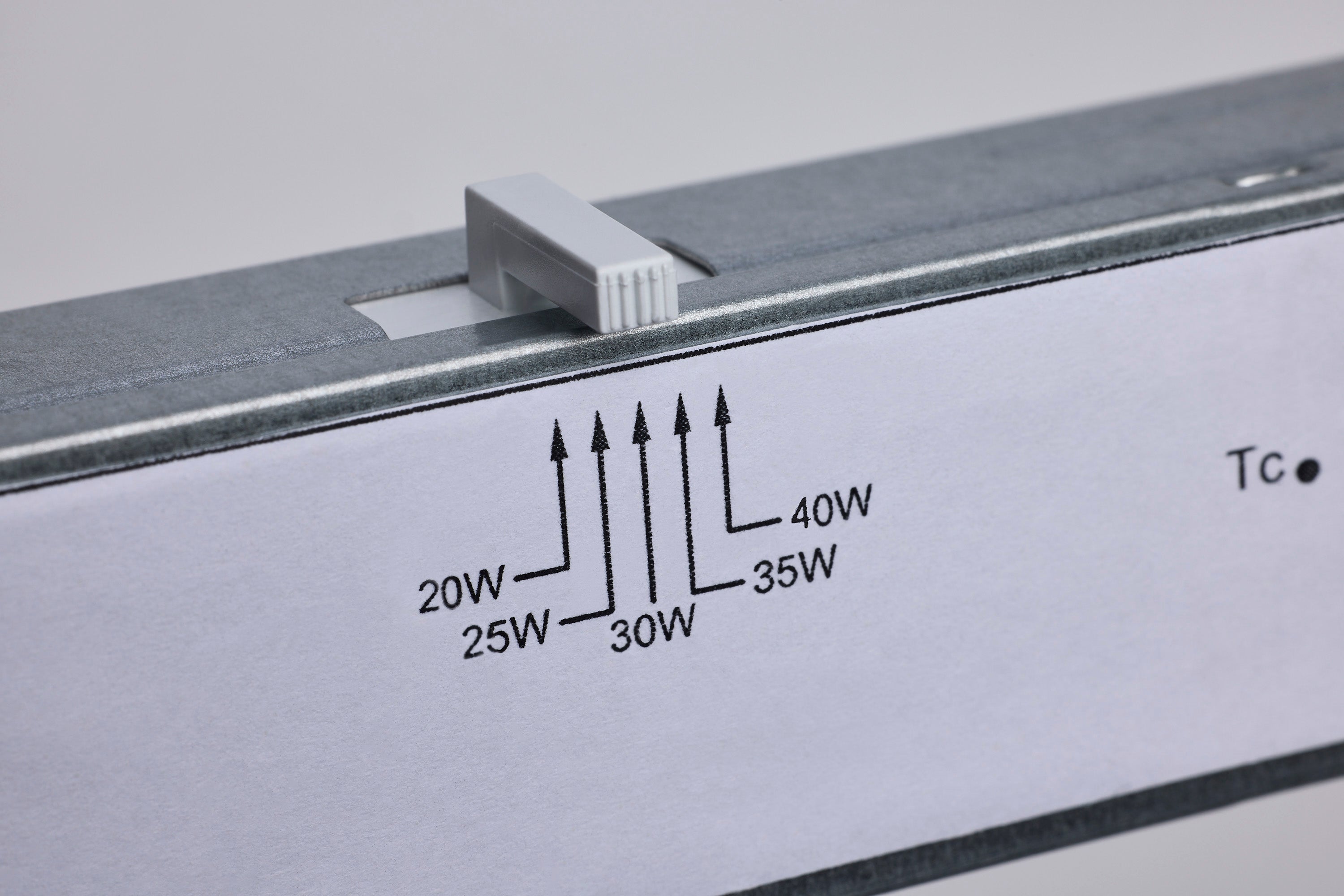

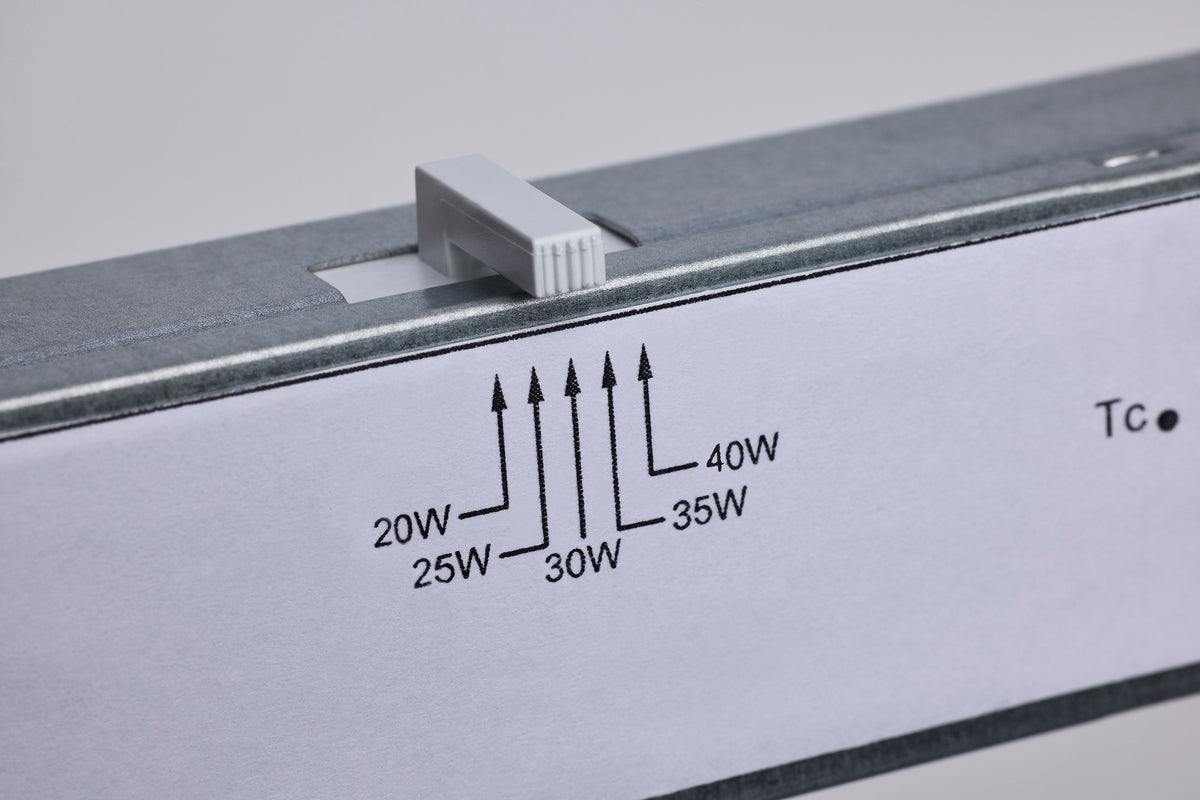

  • Field Selectable (5 wattages and 5 CCT)
  • Reduces Upgrade Material Waste

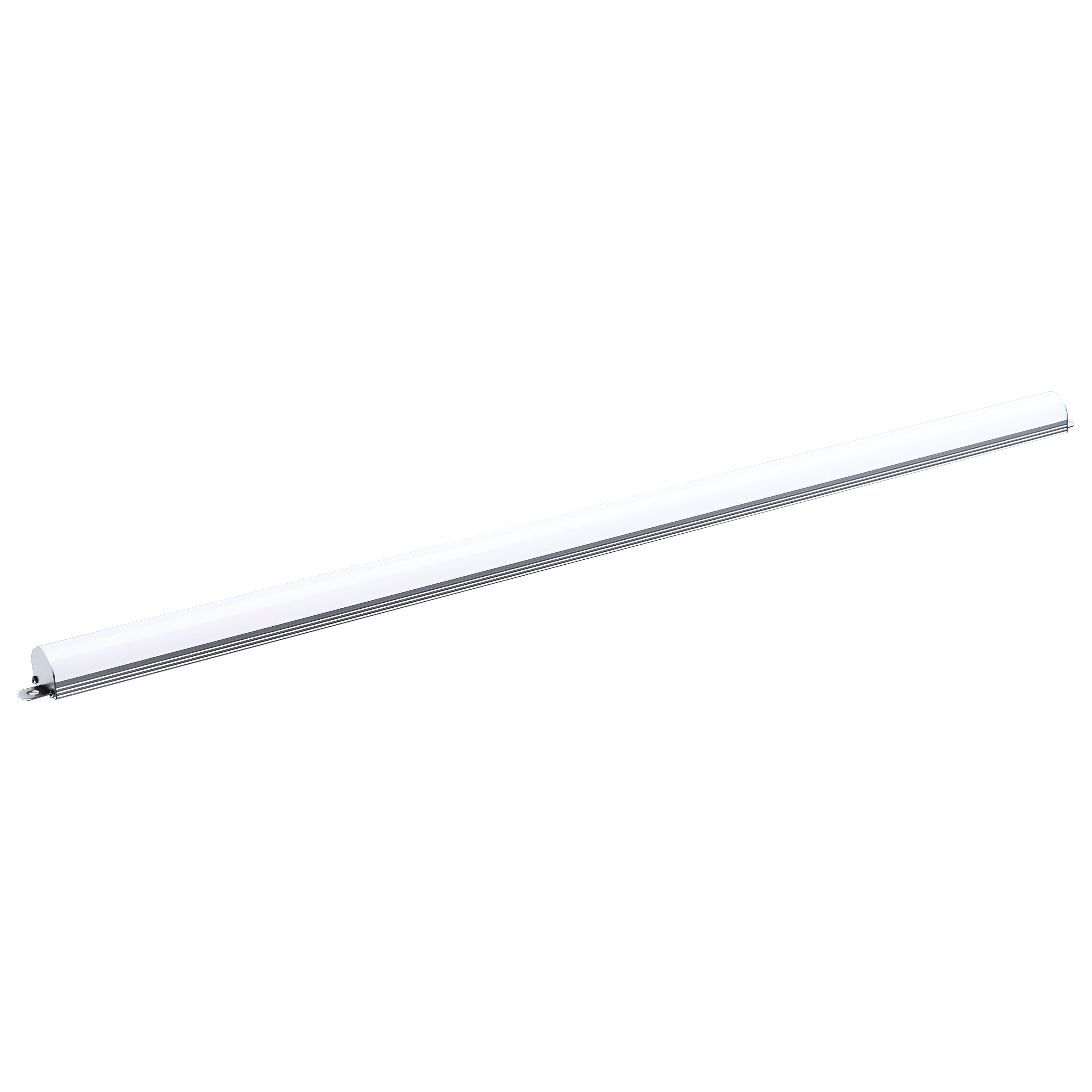

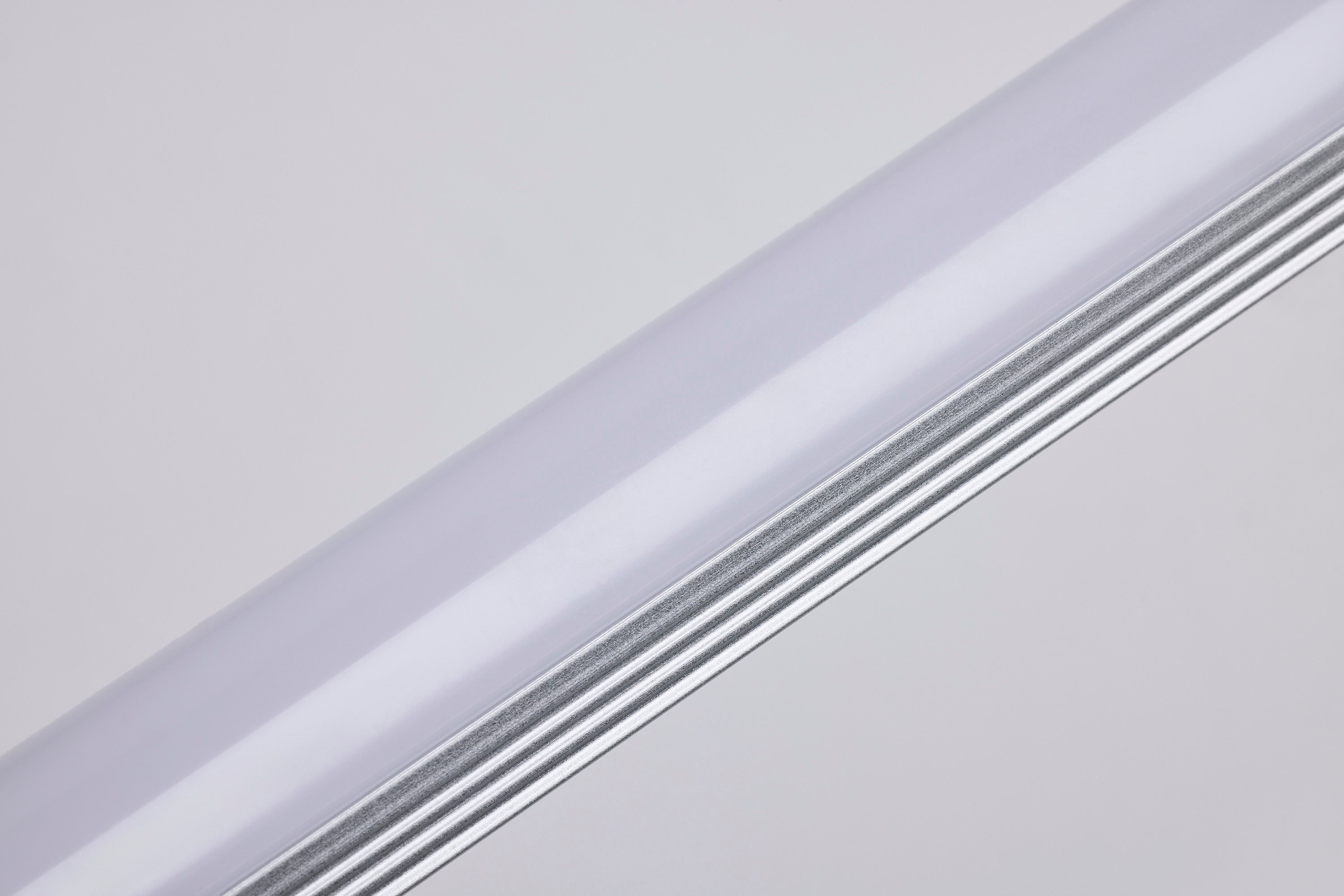

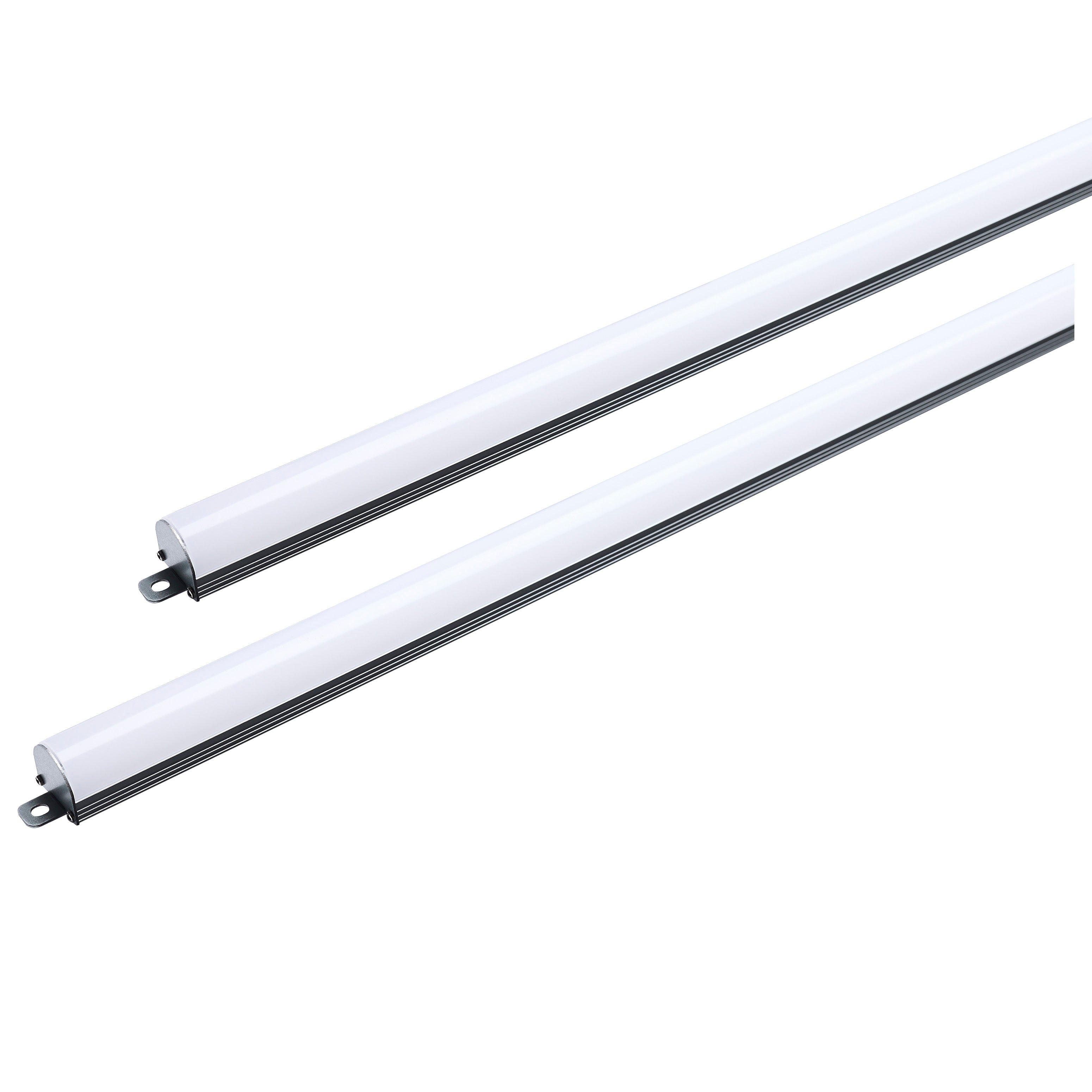

  • 2 Foot, 2 Light Bars Aluminum & PC Construction
  • 0-10V Dimmable

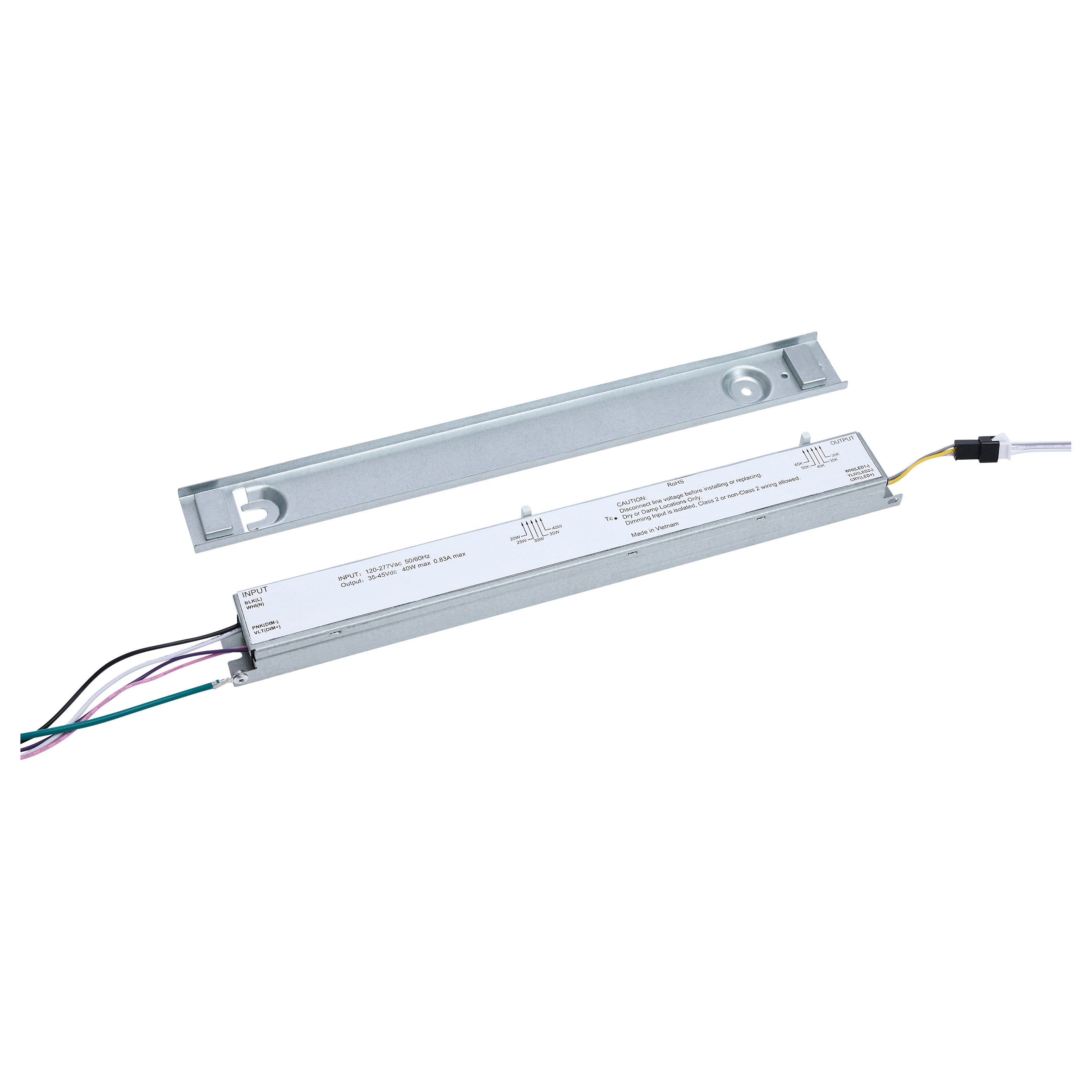

  • Fully Pre-Wired Driver
  • Quick & Easy Magnetic Installation
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
