Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 300W/400W/500W
Wattage 45W/60W/70W
Lumens 5625L-9450L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Bronze
Beam Angle 150
HID Equivalent 94W/125W/158W
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B3-U3-G3
Fixture Type Canopy
Length 10.06 IN
Photocell Has Motion Sensor
Mounting Type Ceiling, Pendant Hanging Surface
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 9.50%
Surge Protection Built-in surge protection - 4KV
Features / Controls
Sensor Capability Microwave
Motion / Occupancy Sensor Microwave
0-10V 0-10V Dimming, Bi-Level Dimmable
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Clear
Width 10.06 IN
Height 4.19 IN
Weight 5.03 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -22F to +113F (-30C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

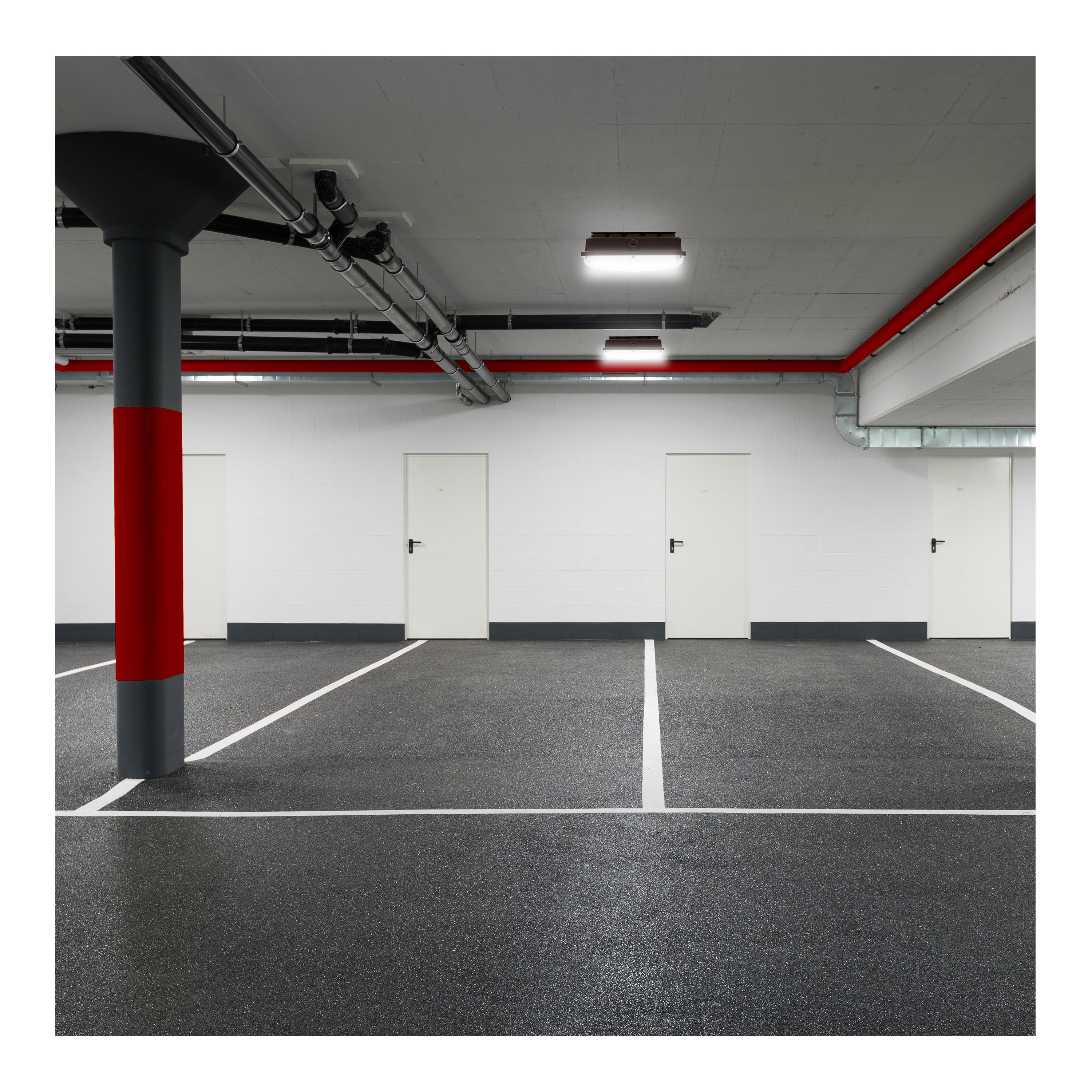

Choose 10 Inch LED Field Selectable Canopy Fixture With Sensor - 45/60/70 Watts - 3K/4K/5K CCT - 120-277 Range Voltage - Bronze Finish when your project calls for a commercial utility light suited to parking structures, covered entries, utility spaces, service areas and demanding commercial environments. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for vapor tight light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A strong fit for back-of-house and utility-focused projects requiring repeatable overhead or surface lighting. In practical terms, that makes this product relevant for maintenance areas, back-of-house spaces and locations that call for practical fixture construction. It also fits naturally into projects considering industrial light fixture and LED canopy light, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Supports functional lighting plans for spaces that experience regular traffic, maintenance or exposure. For commercial projects where dependable general lighting is more important than decorative styling, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

When it is time to shop canopy and vapor tight fixtures, consider 10 Inch LED Field Selectable Canopy Fixture With Sensor for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

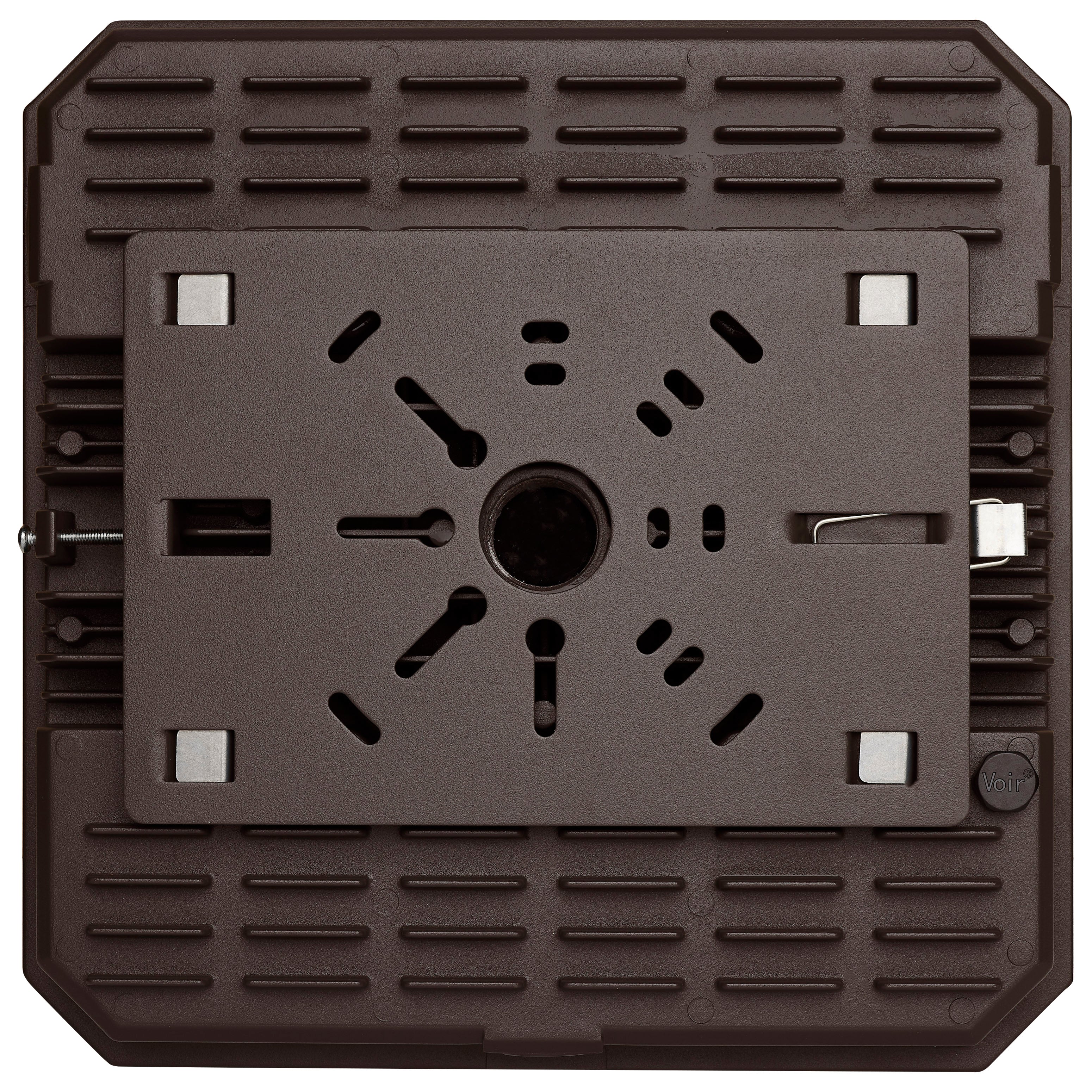

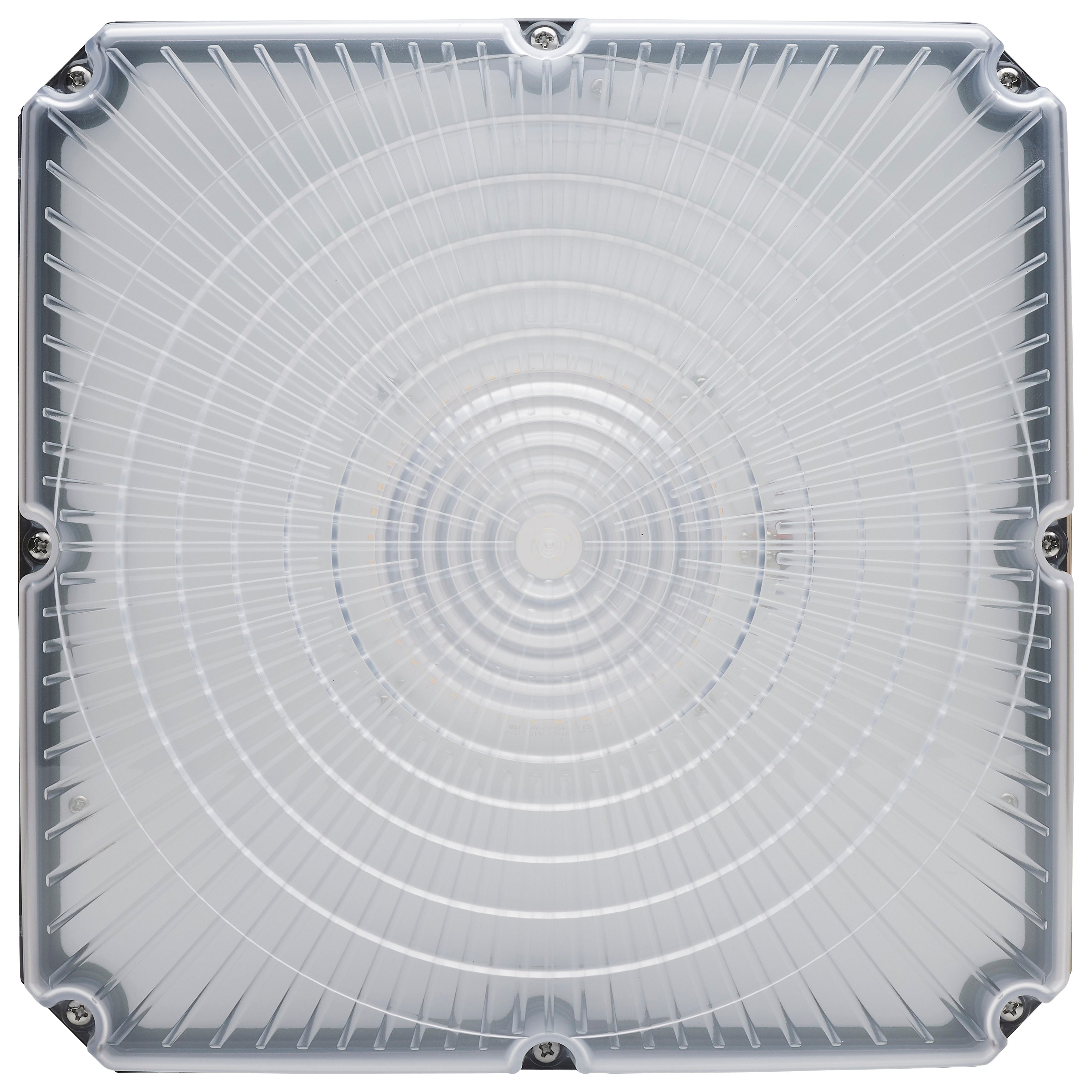

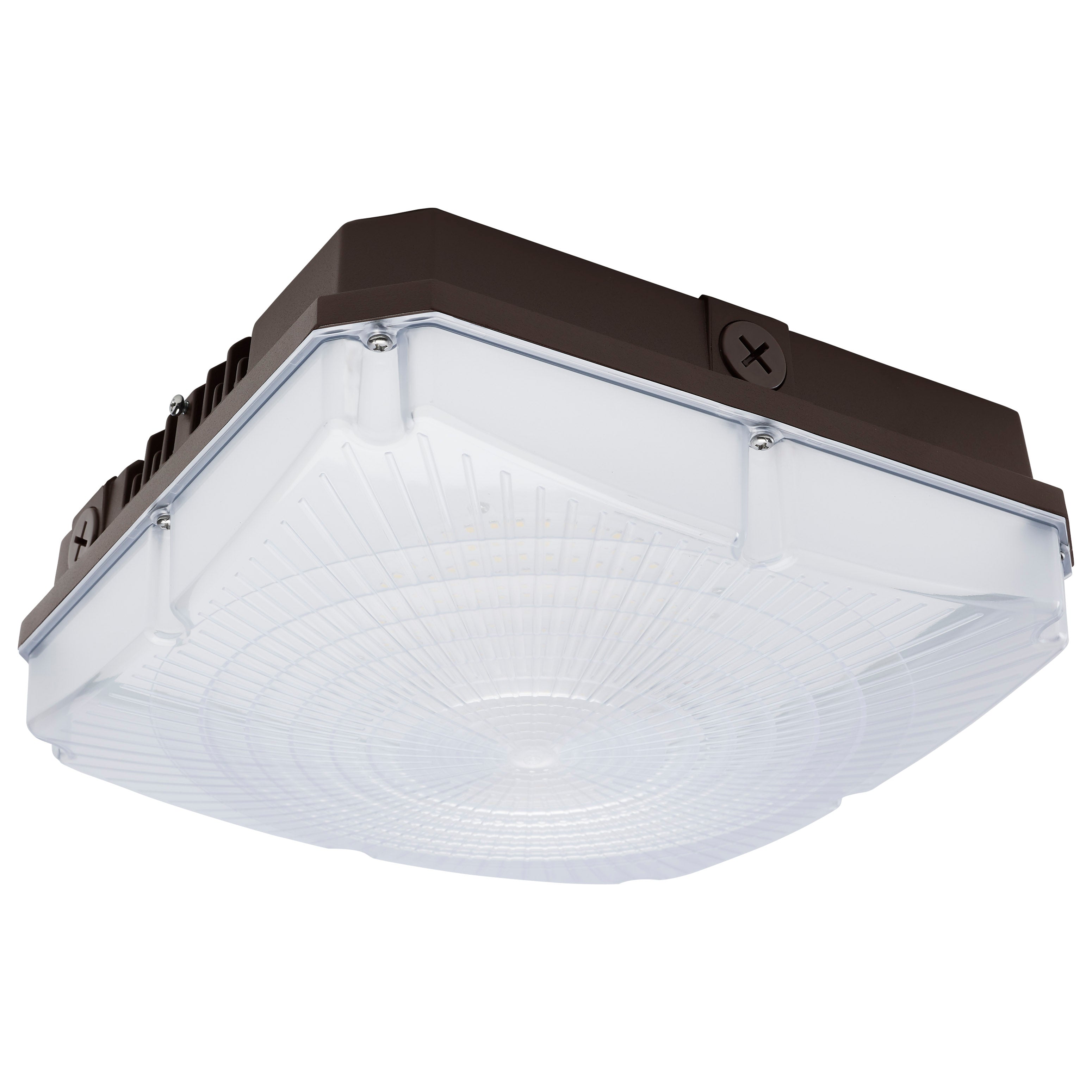

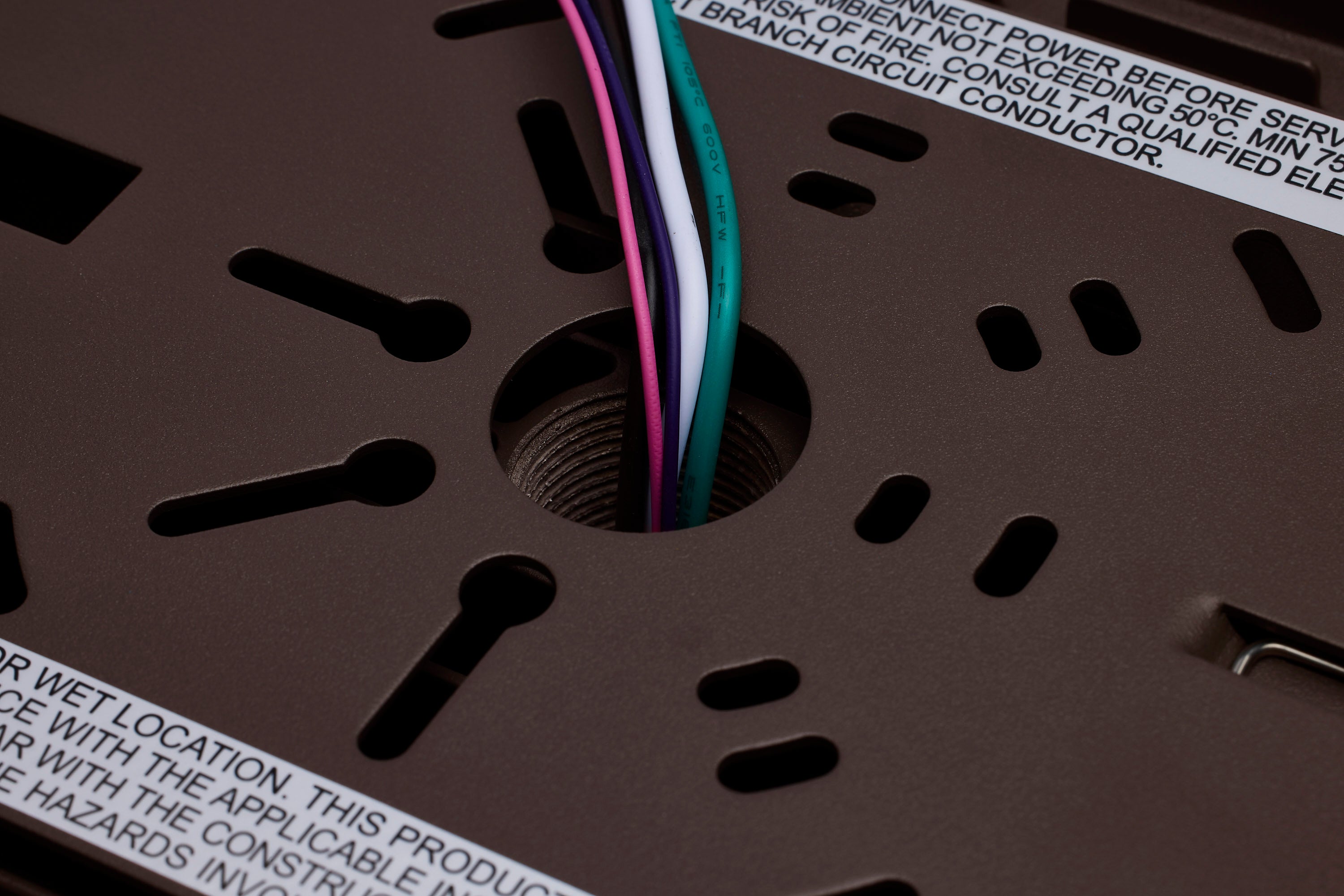

SATCO NUVO's 65-983 Field Selectable 10 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. It also features an integrated microwave sensor, enhancing energy efficiency and providing added functionality. With a choice of surface mounting using the hinged universal bracket or 3/4-inch pendant mounting, installation of this luminary is a breeze. The two side knockouts allow for wiring access to be fast and efficient. The sleek bronze die-cast aluminum housing, the IK08 impact-rated vandal-resistant polycarbonate lens, and the IP65 wet location rating ensure reliable illumination even in the most adverse weather conditions.

Features :-

  • CCT and Wattage Selectable
  • Ceiling or Pendant Mounting
  • Hinged Universal Mounting Bracket
  • 4kV Surge Protection
  • IP65 and IK08 Vandal Resistant
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 10 Inch Square with Integrated Microwave Sensor
  • B3-U3-G3 Rating
