Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 50W
Wattage 10W
Lumens 700L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte White
Beam Angle 36
Color Temperature Selectable Yes
Fixture Type Track Head
Length 5 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, 120V only
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear

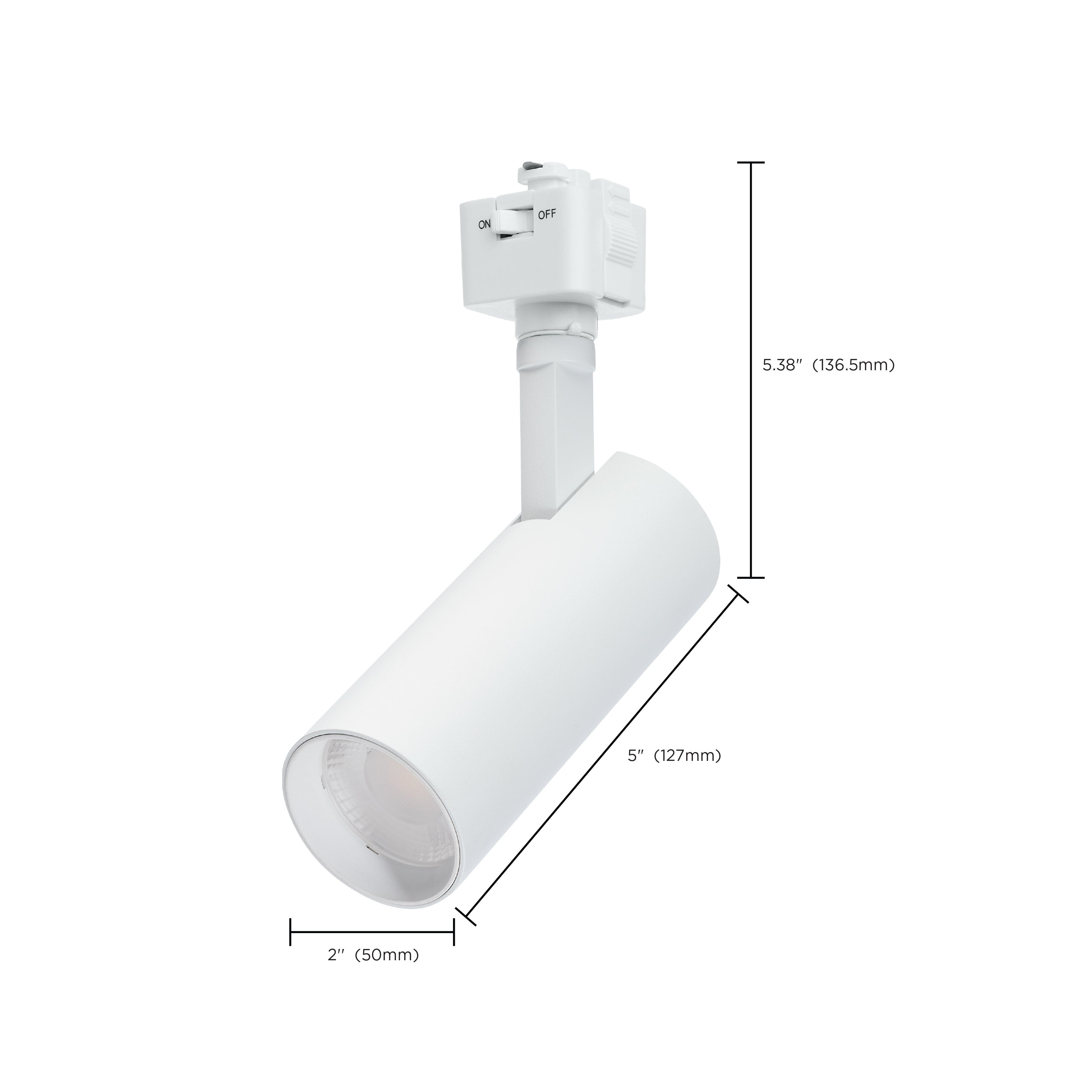

Width 2 IN
Height 5.38 IN
Weight 0.7 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

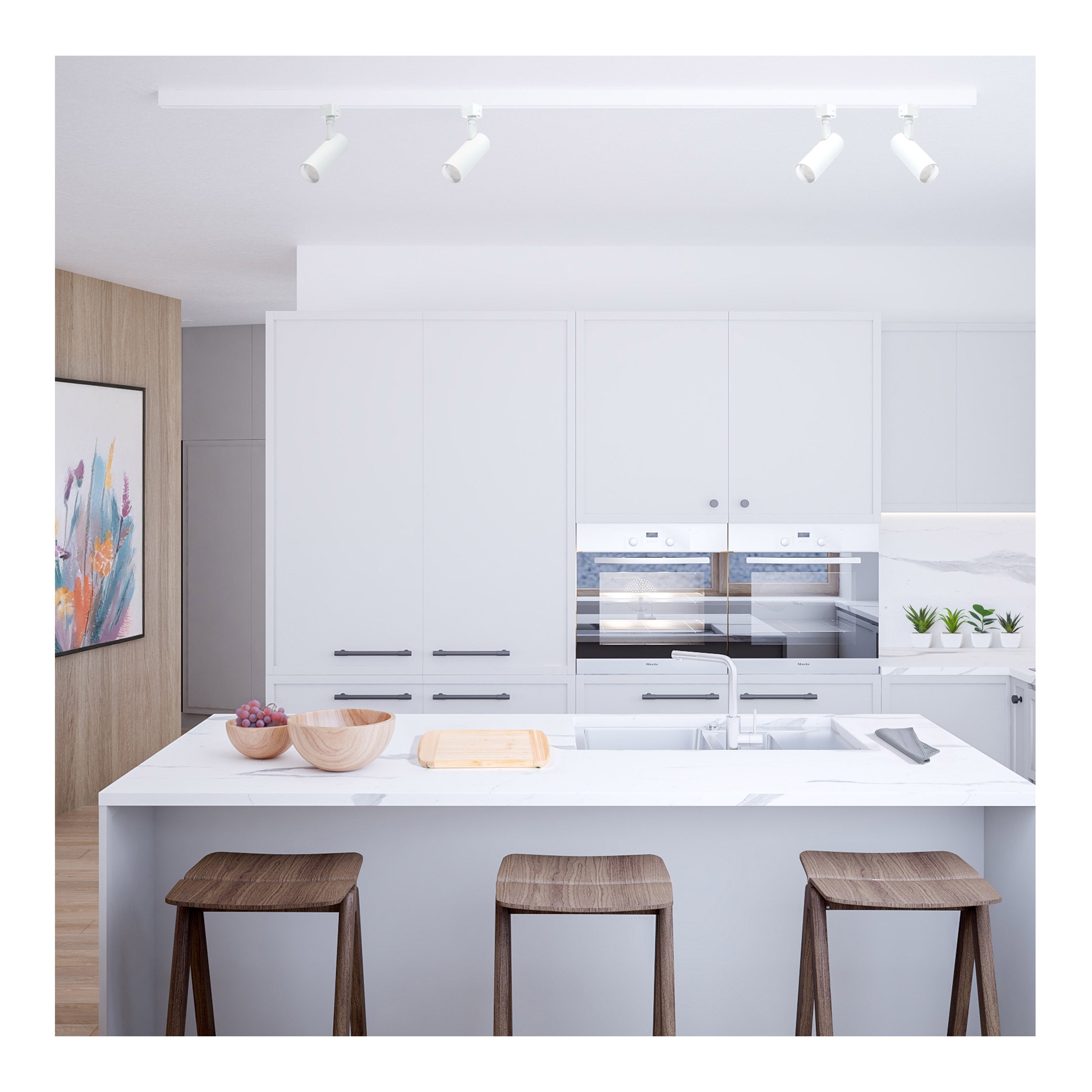

10 Watt LED Track Head - 36 Degree Beam Spread - J-Style Track - 5 CCT Selectable - Matte White Finish - J-Style is a track lighting intended for wall washing, artwork lighting, task illumination and focused room lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting retail track lighting for a specific room, fixture or property application.

Makes it easier to aim light toward displays, artwork, counters or architectural features. That is especially useful in retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a track lighting, this option is well suited to projects involving track light fixture, track lighting and other coordinated lighting upgrades.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. For commercial and residential interiors where adjustable lighting helps direct attention, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to buy track lighting online, 10 Watt LED Track Head offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

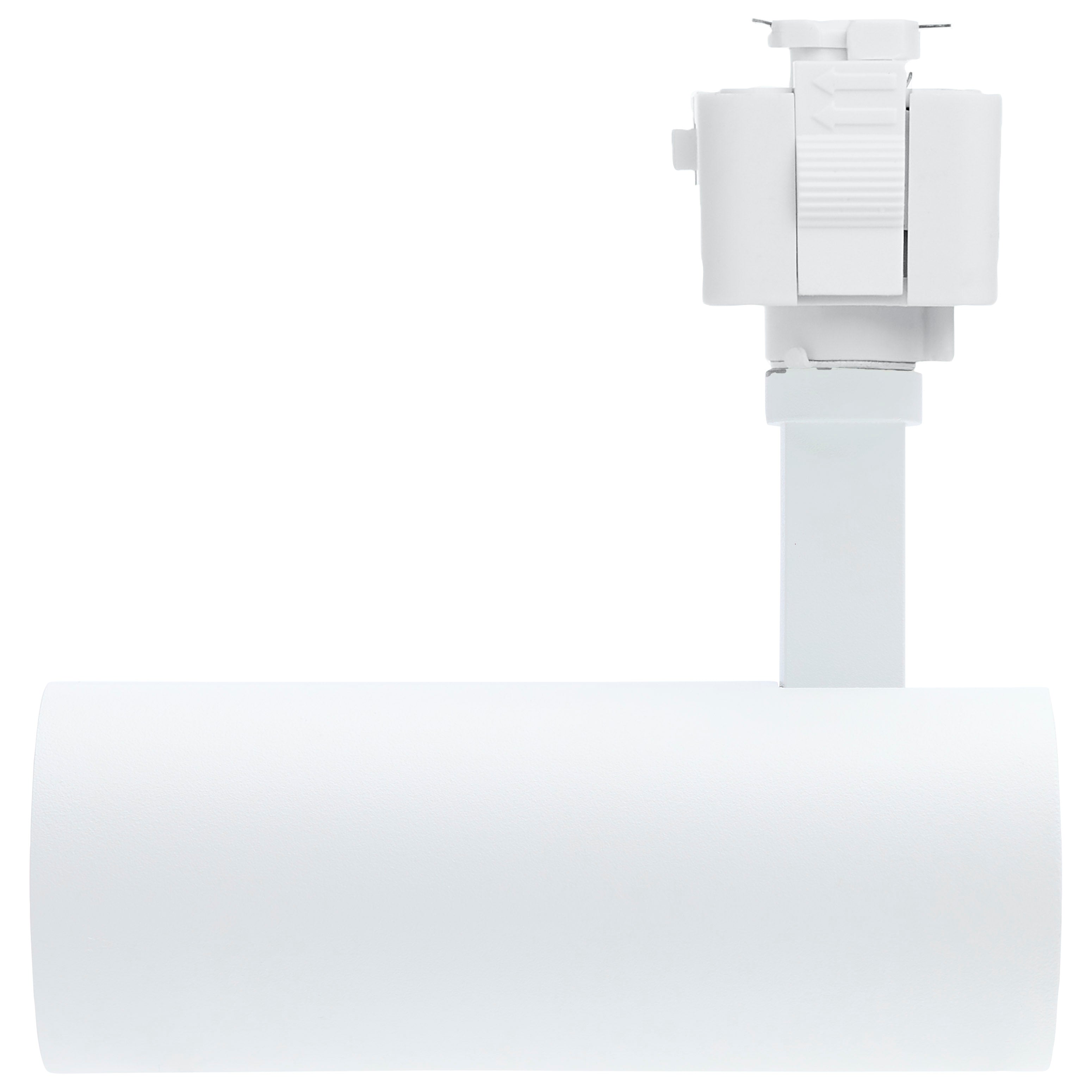

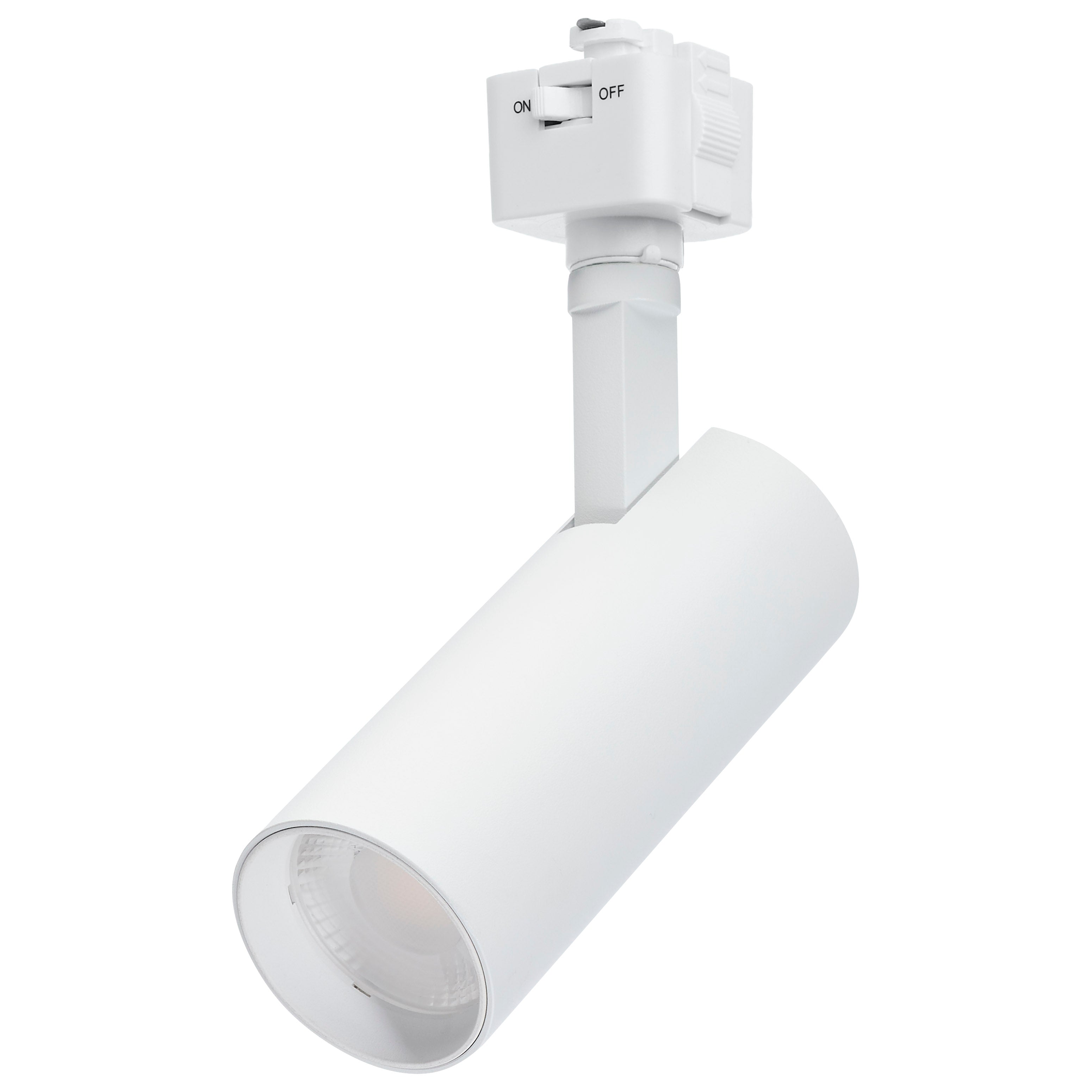

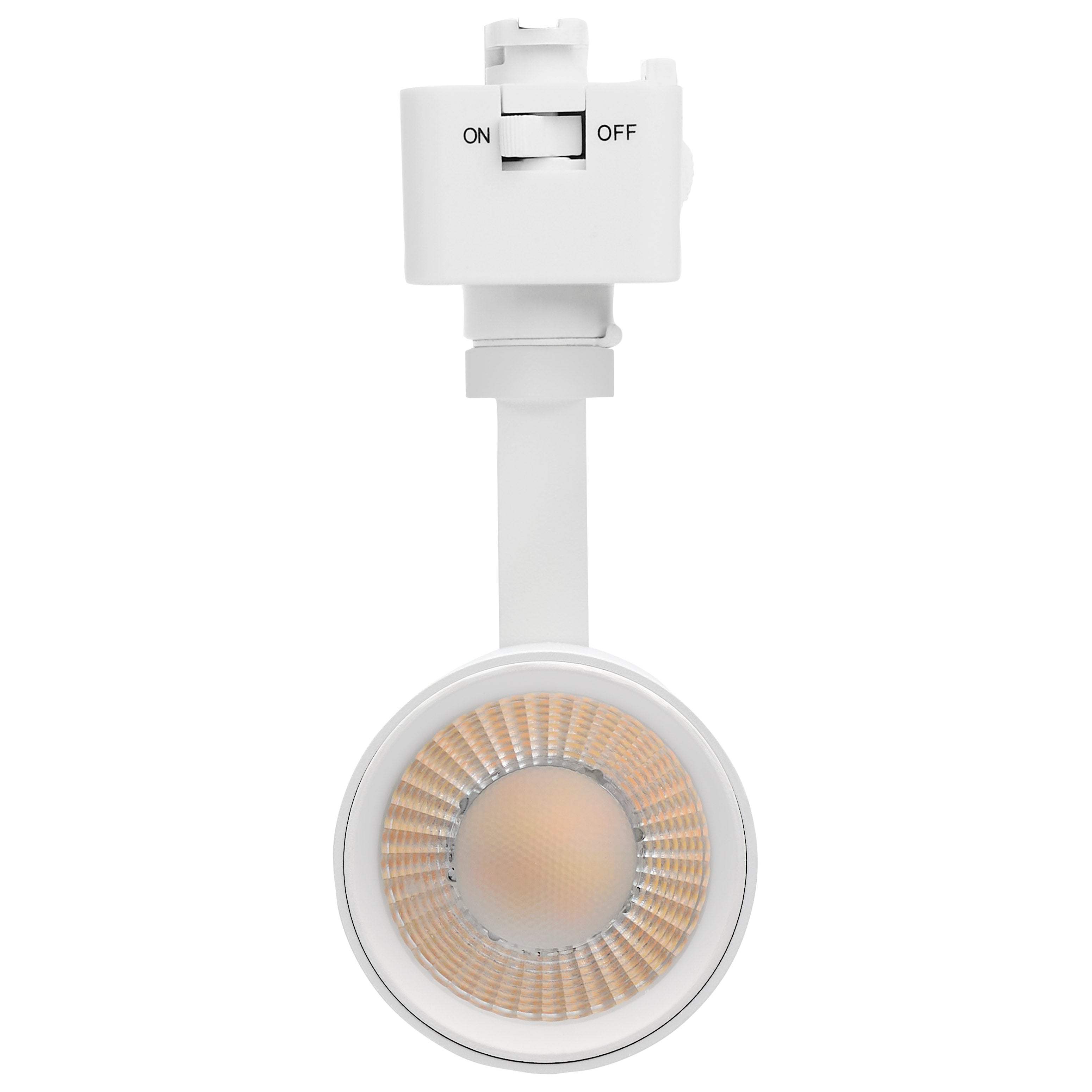

New to SATCO NUVO, the TH5001 LED CCT Selectable track head fixture is finished in matte white, operates at 10 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Circuit J-Style track systems, this fixture offers expanded versatility. J-Style track is widely used in residential and commercial settings for its simple, streamlined connector design. With five color temperature options selectable at installation and a high 90 CRI for true-to-life color rendering, the TH5001 delivers efficient, modern lighting with precise control.

Features :-

  • J-Style Single and 2 Circuit Track Compatible
  • 36 Degree Beam Angle
  • 5 CCT Selectable
  • 90 CRI High Quality Light
  • Matte White Finish
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
