Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 50W
Wattage 10W
Lumens 700L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte White
Beam Angle 48
Color Temperature Selectable Yes
Fixture Type Track Head

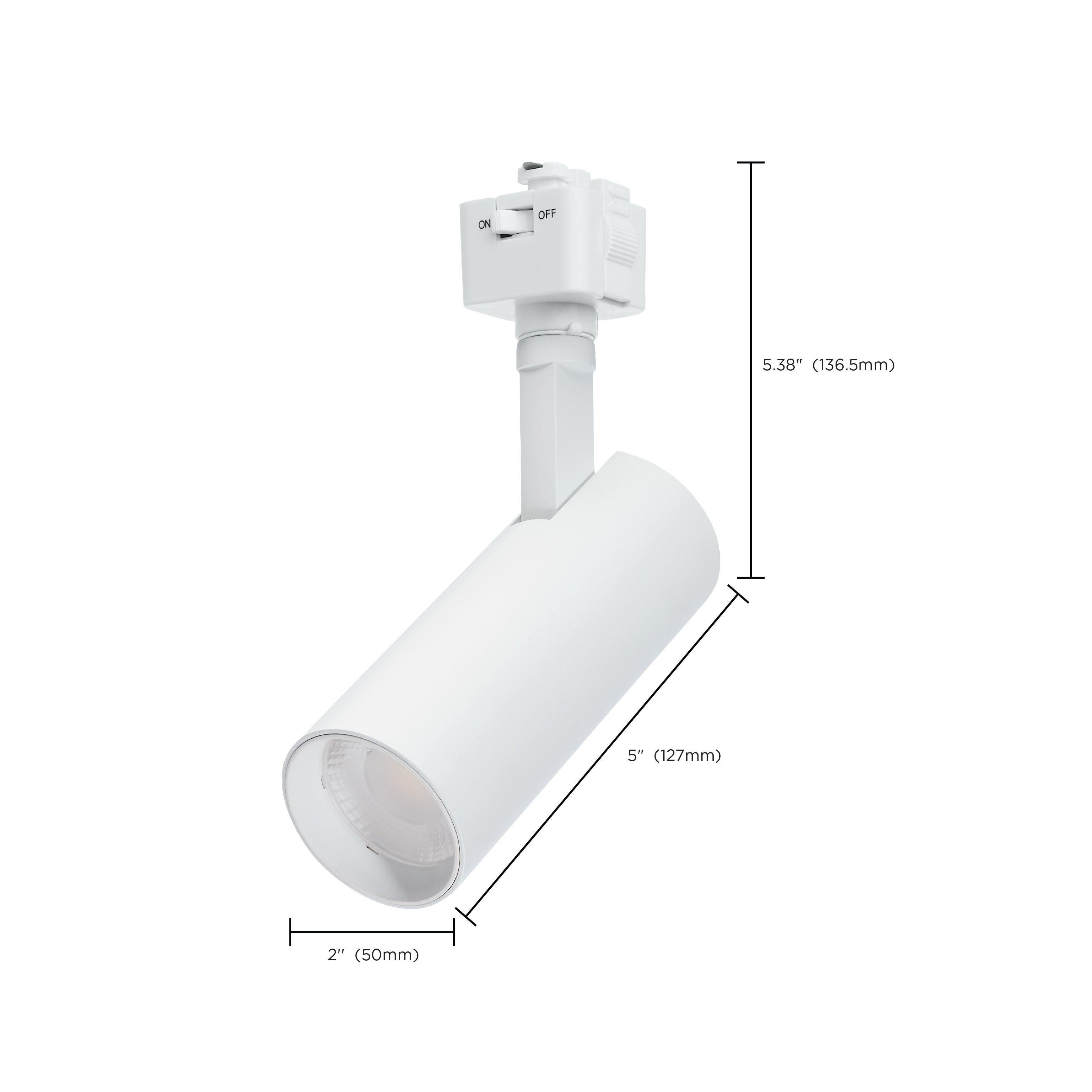

Length 5 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, 120V only
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear
Width 2 IN
Height 5.38 IN
Weight 0.7 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

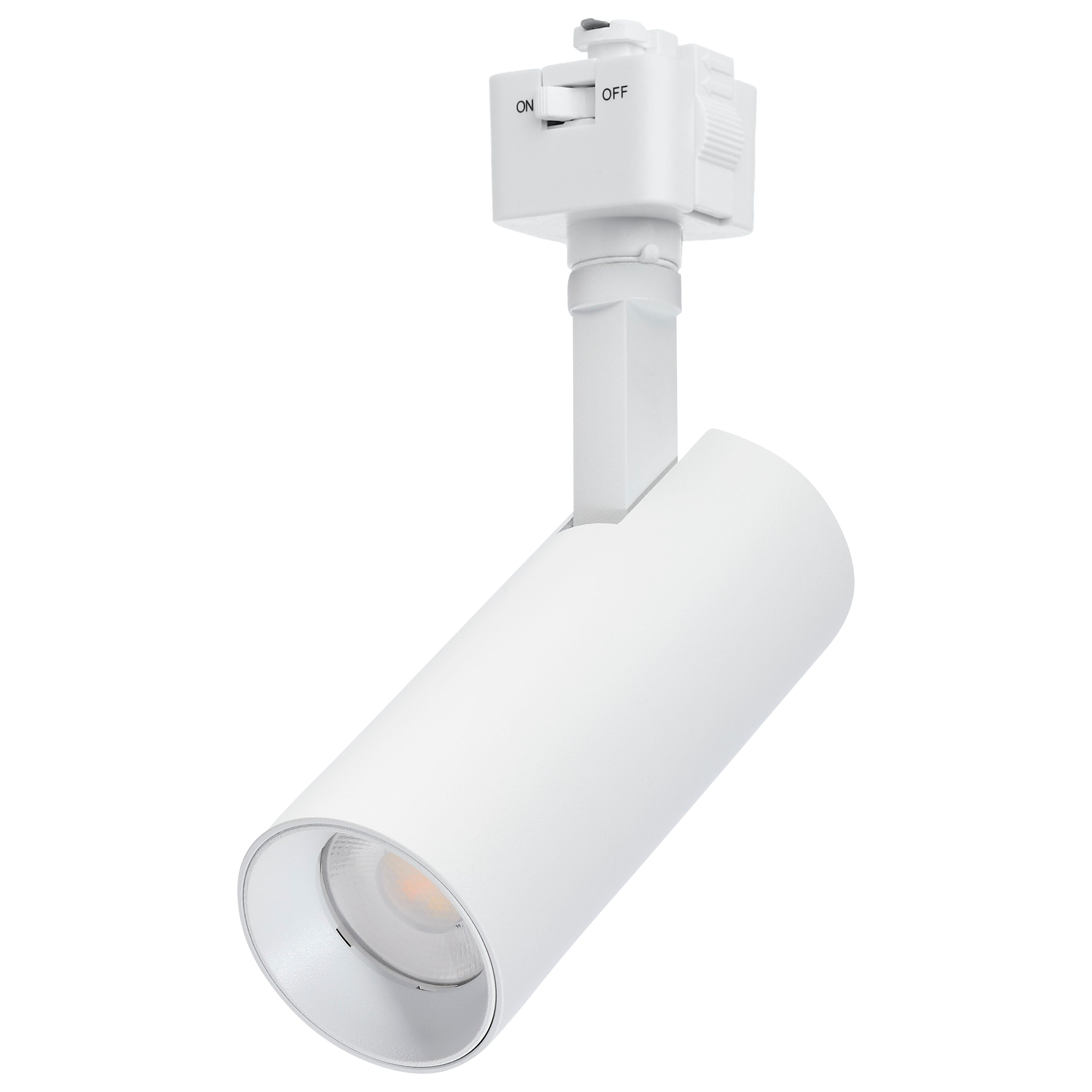

10 Watt LED Track Head - 48 Degree Beam Spread - J-Style Track - 5 CCT Selectable - Matte White Finish - J-Style is a track lighting intended for commercial and residential interiors where adjustable lighting helps direct attention. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting accent lighting fixture for a specific room, fixture or property application.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. In practical terms, that makes this product relevant for retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. It also fits naturally into projects considering track light fixture and LED track head, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. This is particularly helpful for wall washing, artwork lighting, task illumination and focused room lighting. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to buy track lighting online, 10 Watt LED Track Head is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

The TH5003 from SATCO NUVO is a 10-watt LED CCT Selectable track head in matte white with a wide 48-degree beam angle-ideal for broader illumination while maintaining targeted focus. It's compatible with Single and 2 Circuit J-Style track systems, making it a versatile solution for both commercial and residential settings. The fixture includes five selectable color temperatures and a high 90 CRI for accurate color rendering, offering efficient performance with a clean, modern design.

Features :-

  • J-Style Single and 2 Circuit Track Compatible
  • 48 Degree Beam Angle
  • 5 CCT Selectable
  • 90 CRI High Quality Light
  • Matte White Finish
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
