Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 16W/20W/24W
Lumens 1300L/1600L/2000L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Black
Beam Angle 40
Can Size 3 in.
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes

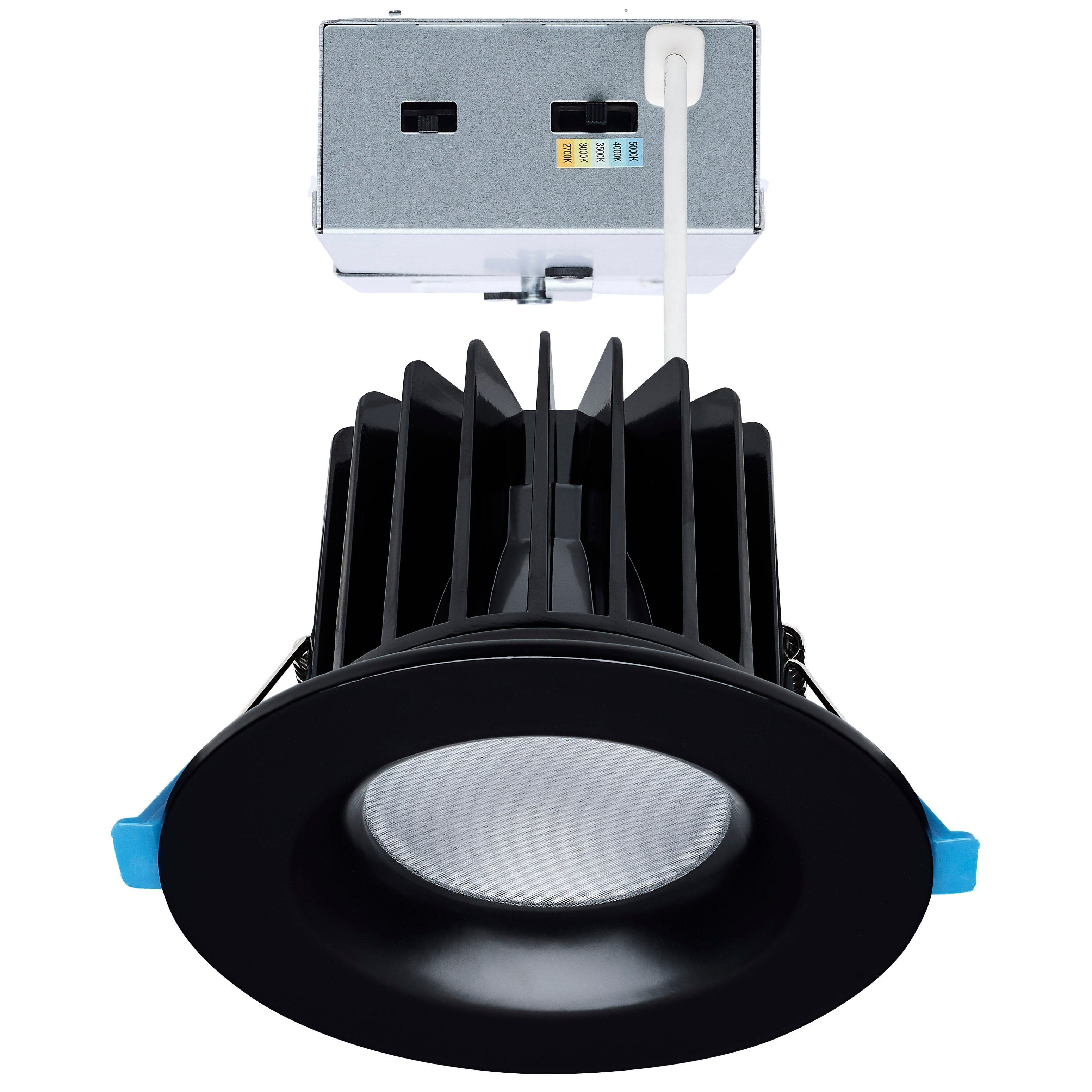

Fixture Type Remote Driver LED Downlight
Mounting Type Recessed Direct Wire
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Features / Controls
0-10V Dual Dimming: Forward or Reverse Phase and 0-10V
Triac/Elv/Mlv Dual Dimming: Forward or Reverse Phase and 0-10V
Construction / Installation
Material Aluminum
Finish/Lens Clear Prismatic
Width 5.2 IN
Height 3.62 IN
Diameter 5.2 IN
Weight 2.17 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Nfpa/Nec Claims Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Downloads / Pro Data
Warranty 5-Years

Choose 16/20/24 Watt LED Remote Driver Downlight - 27K/30K/35K/40K/50K CCT - Field Selectable - Round - Black Finish - Dual Dimming - 120-277 Volt when your project calls for a LED recessed downlight suited to kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED recessed downlight that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well in projects that need repeatable recessed fixtures across multiple rooms or units. In practical terms, that makes this product relevant for renovations and new construction where a clean recessed lighting layout is preferred. It also fits naturally into projects considering retrofit downlight and commercial downlight, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Supports a clean ceiling appearance while providing practical general or task illumination. For residential, multi-family and commercial ceiling-lighting projects, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to buy LED recessed lights online, 16/20/24 Watt LED Remote Driver Downlight is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

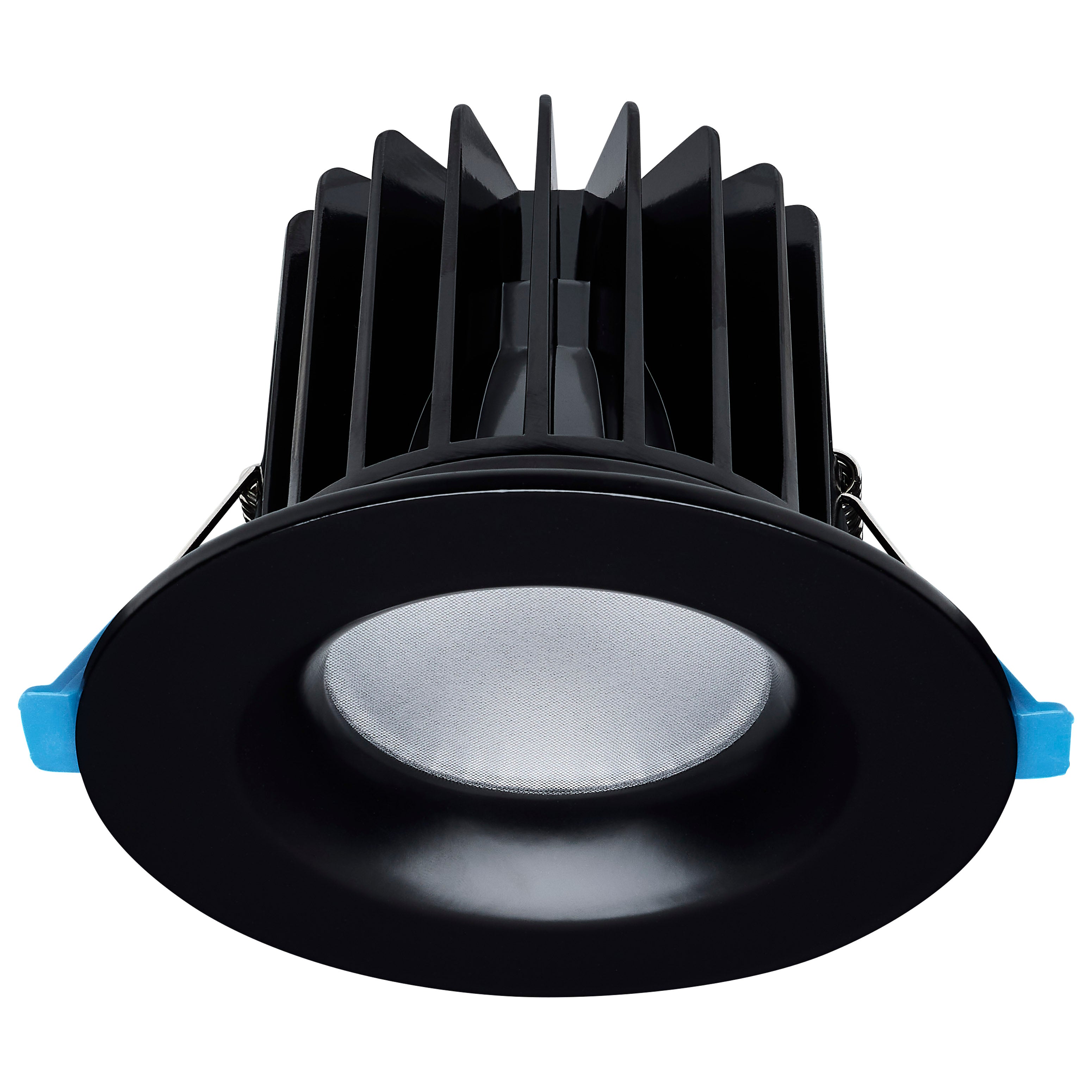

SATCO NUVO S11671 LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose from three wattages and five color temperatures at installation to create the desired ambient experience. Available in a variety of shapes and professional finishes.

Features :-

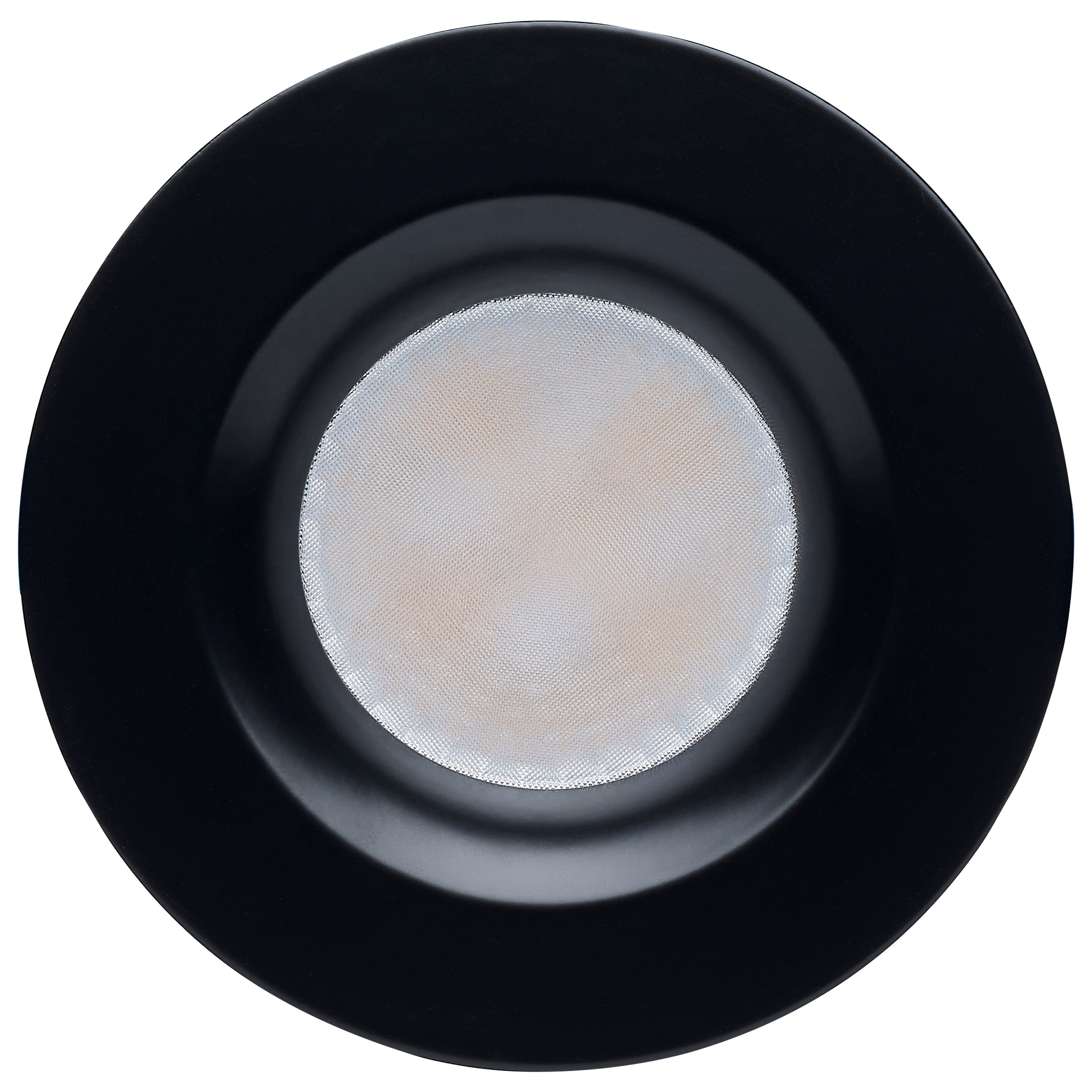

  • Round Trim, Black Finish
  • High Output: 1300/1600/2000 Lumens
  • 16W/20W/24W Wattage Selectable (125W Replacement)

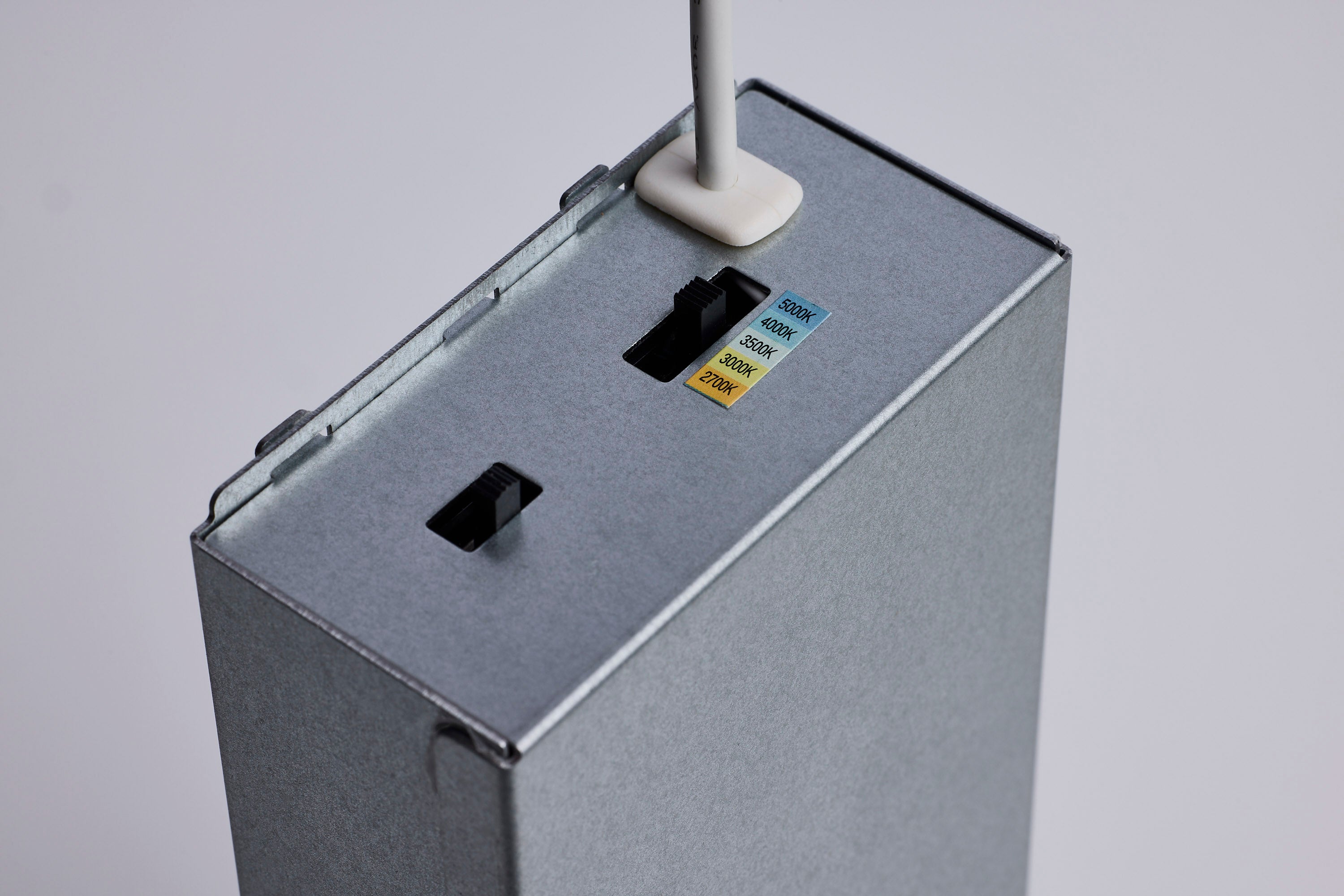

  • 2700K/3000K/3500K/4000K/5000K CCT Selectable
  • Dual-Dimming
  • 90 CRI
  • 40-Degree Beam Angle

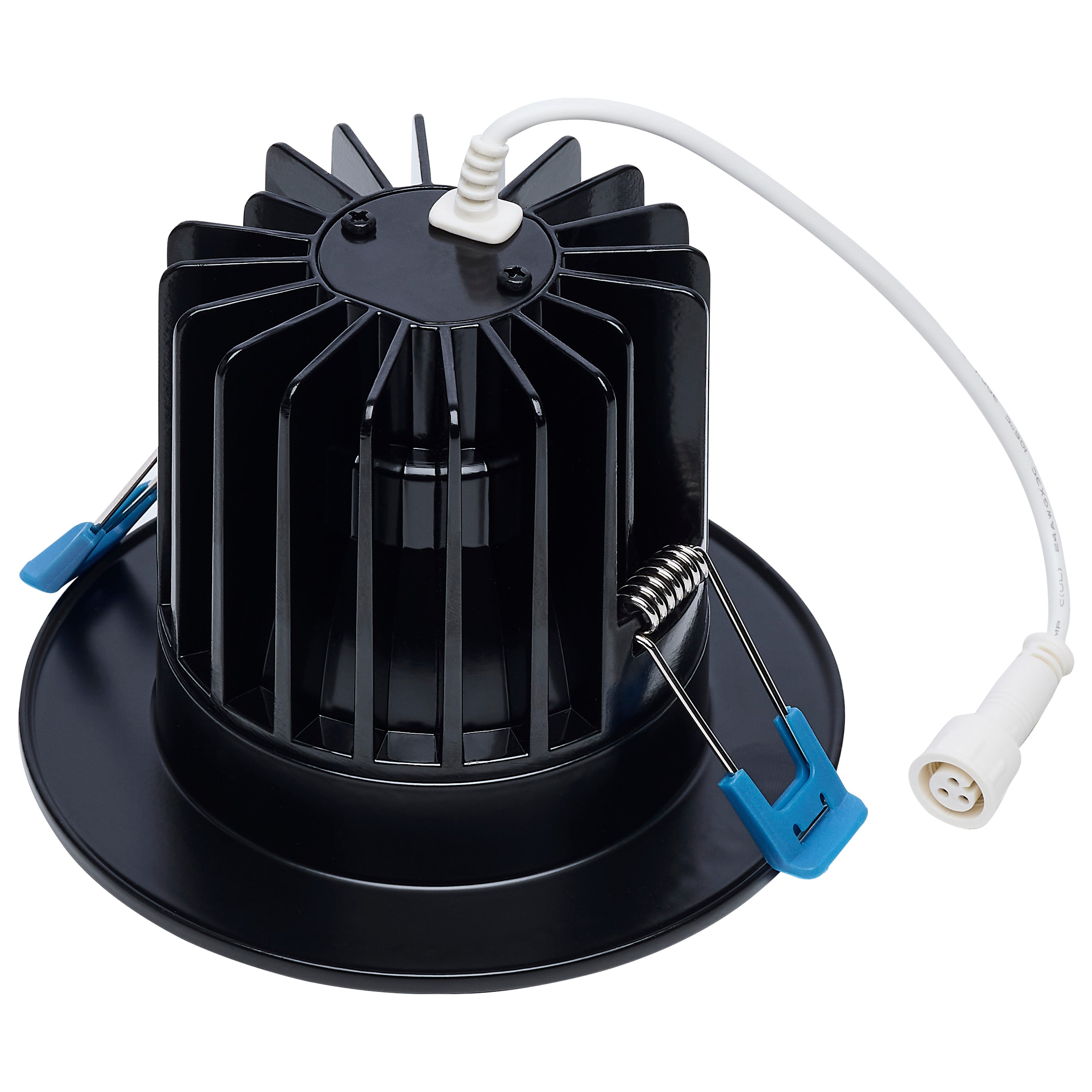

  • Aluminum Trim with Polycarbonate Lens
  • FT6 Cable Included for Commercial Plenums

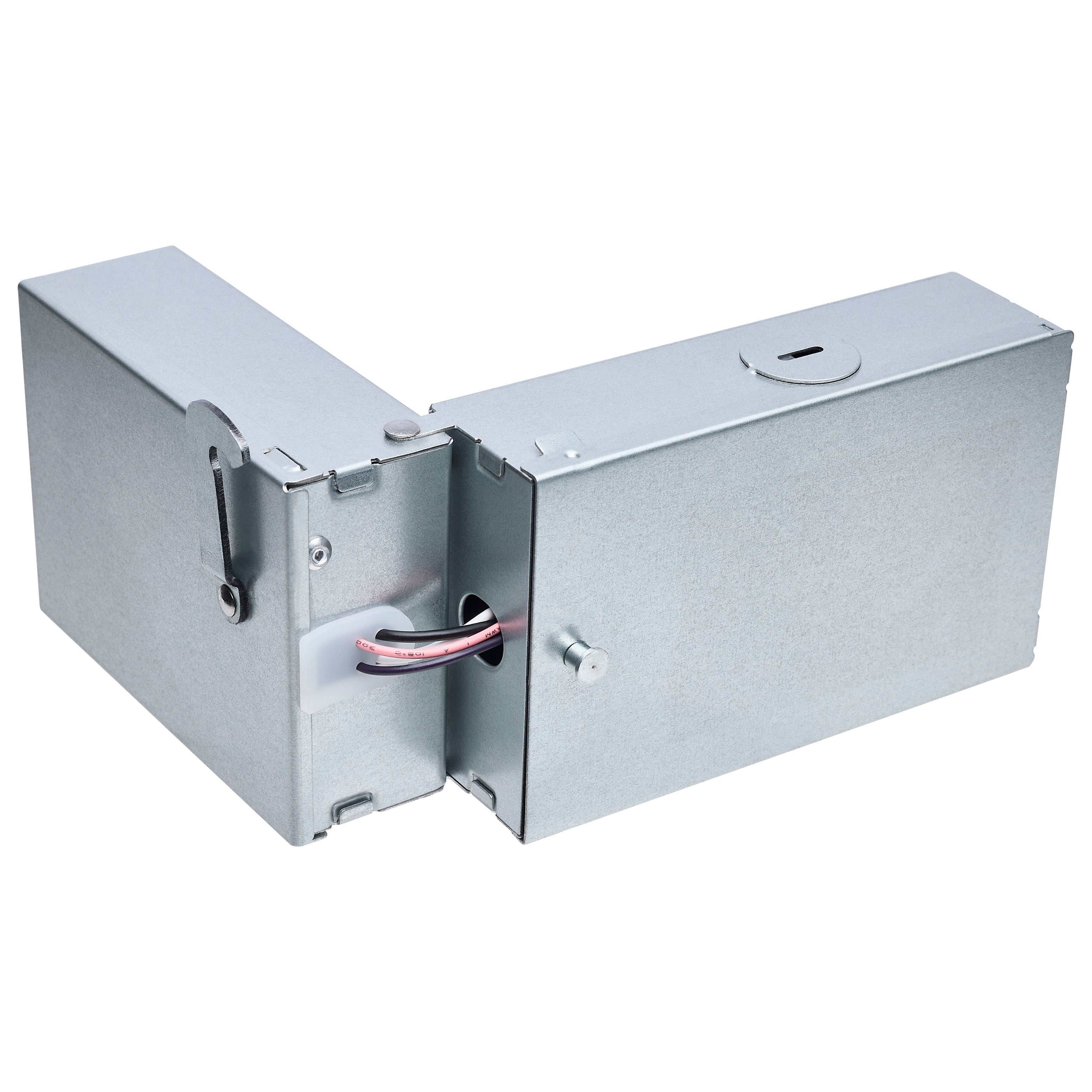

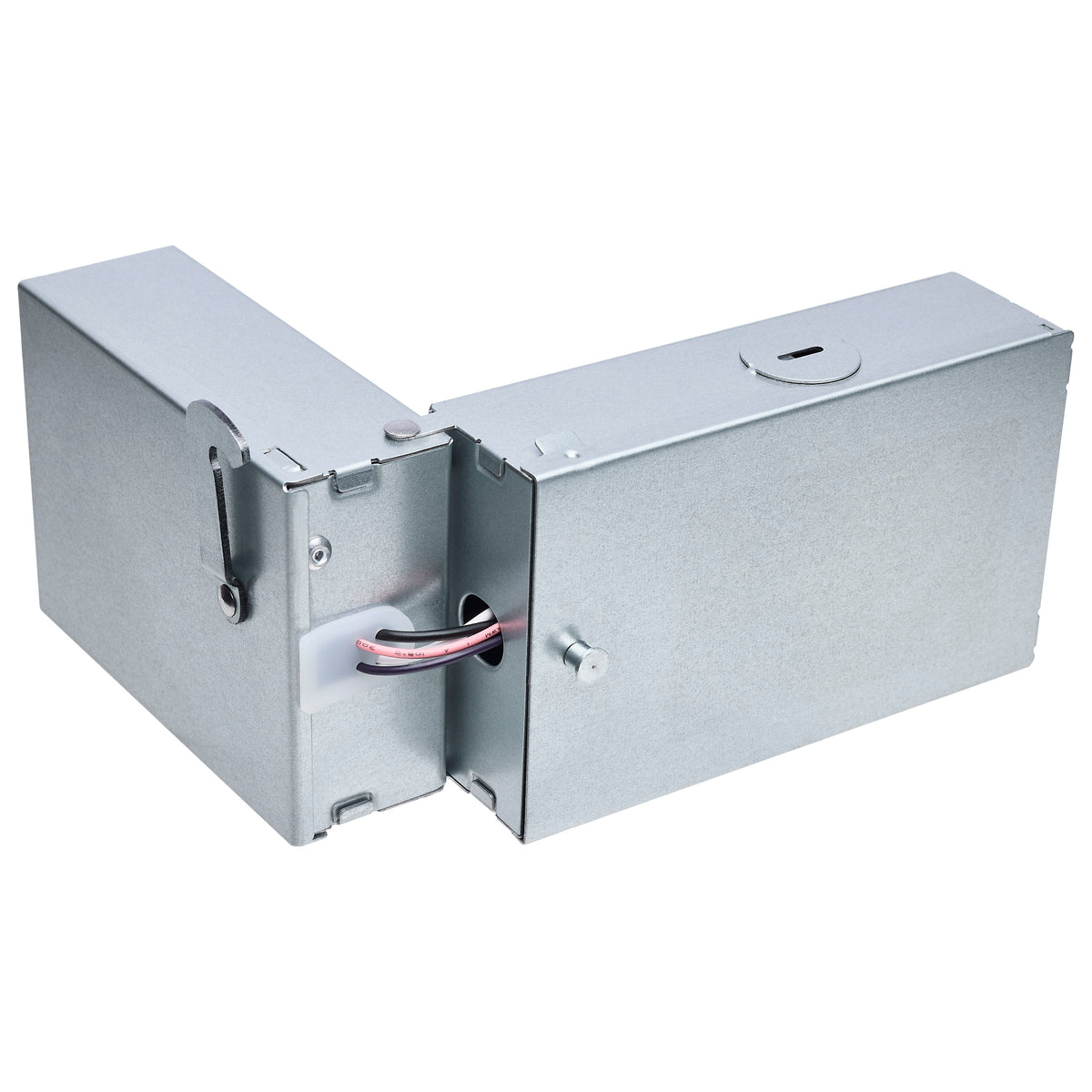

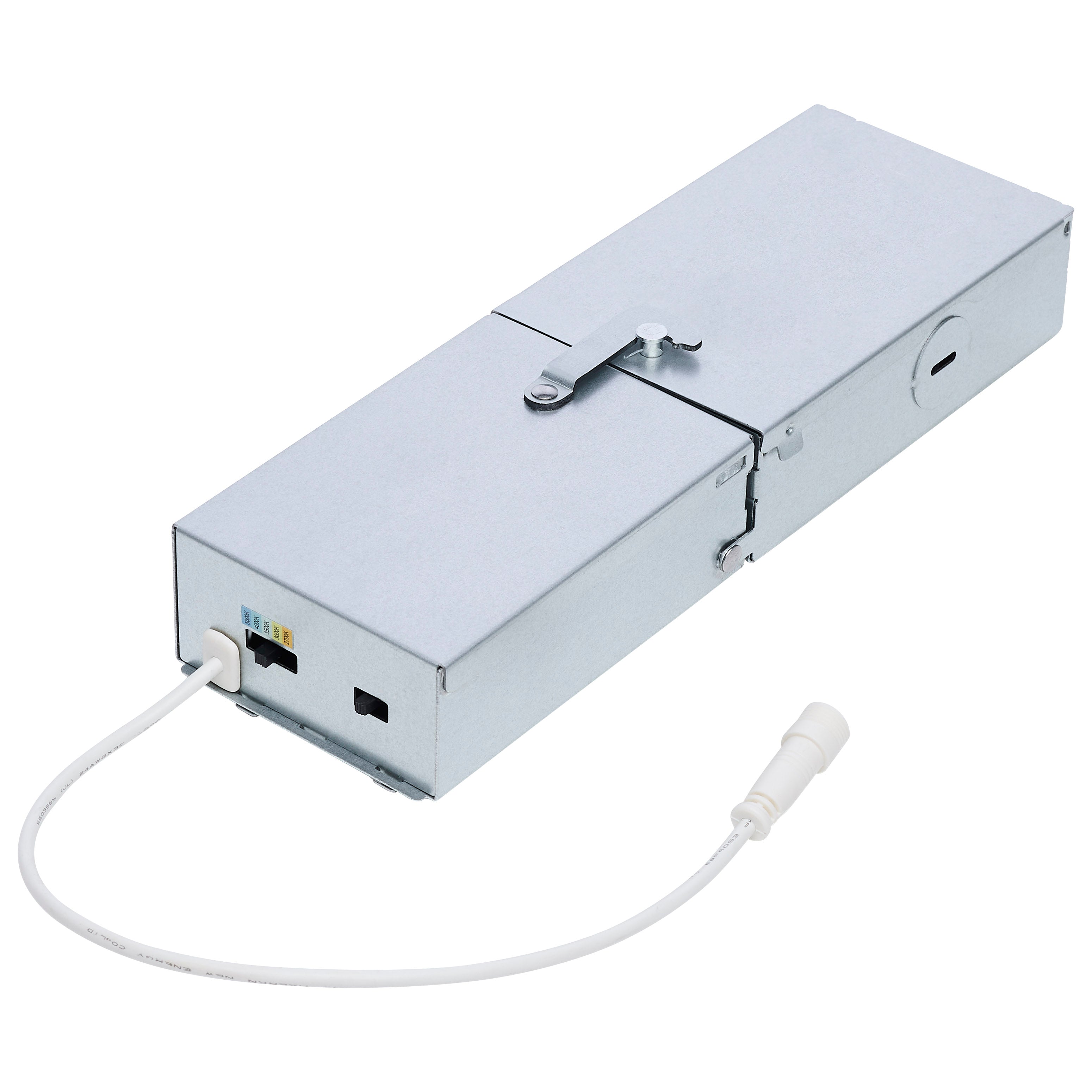

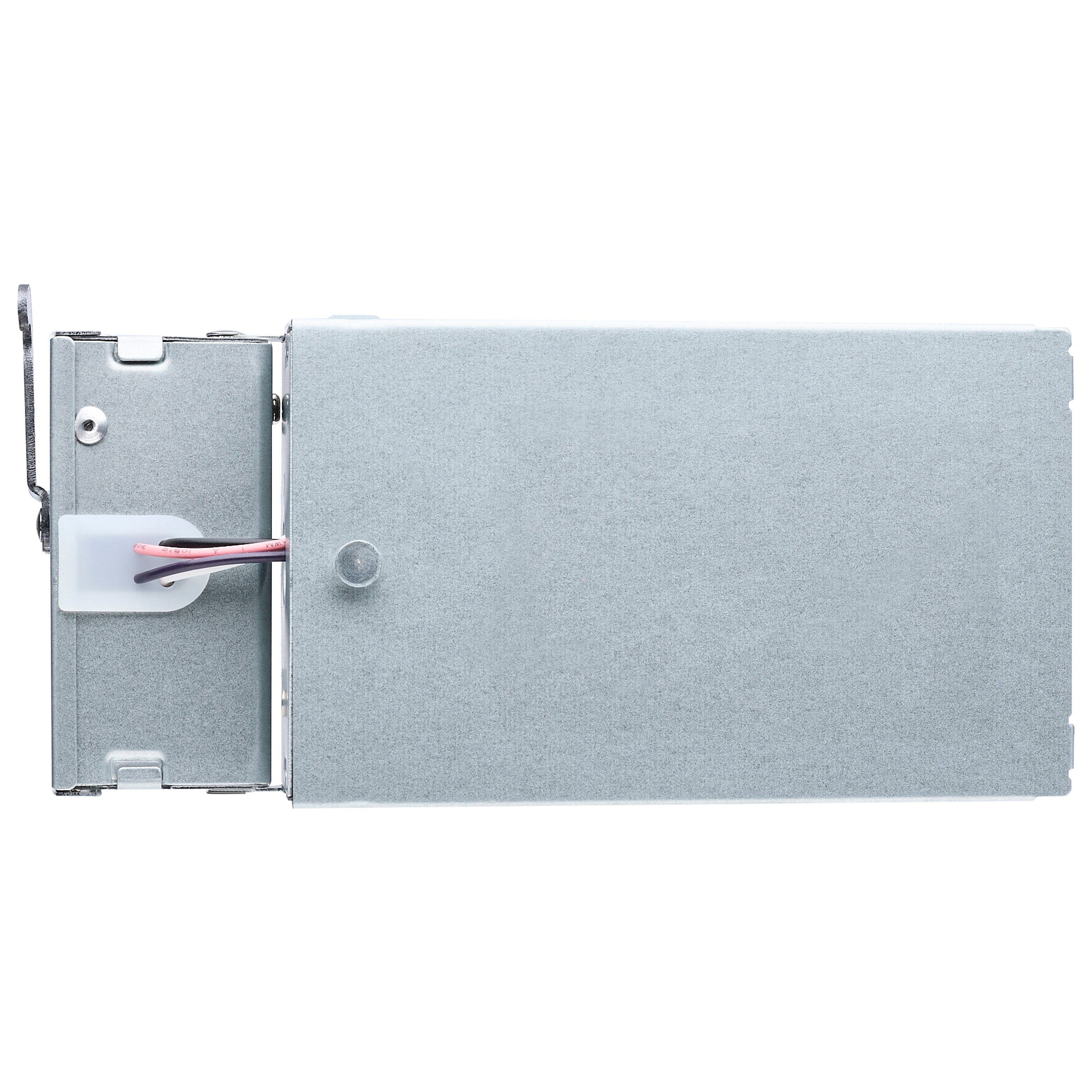

  • NEC Compliant Junction Box
