Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 80W
Wattage 17W
Lumens 1216L-1366L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Dark Bronze
Beam Angle 105
Shape Rectangle
Color Temperature Selectable Yes
Fixture Type Under Cabinet
Length 28 IN
Mounting Type Under Cabinet: Screws
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Features / Controls
Triac/Elv/Mlv Forward Phase or Reverse Phase or Phase Selectable
Construction / Installation
Material Aluminum
Finish/Lens Frosted White
Width 3.5 IN
Height 1 IN
Weight 1.58 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

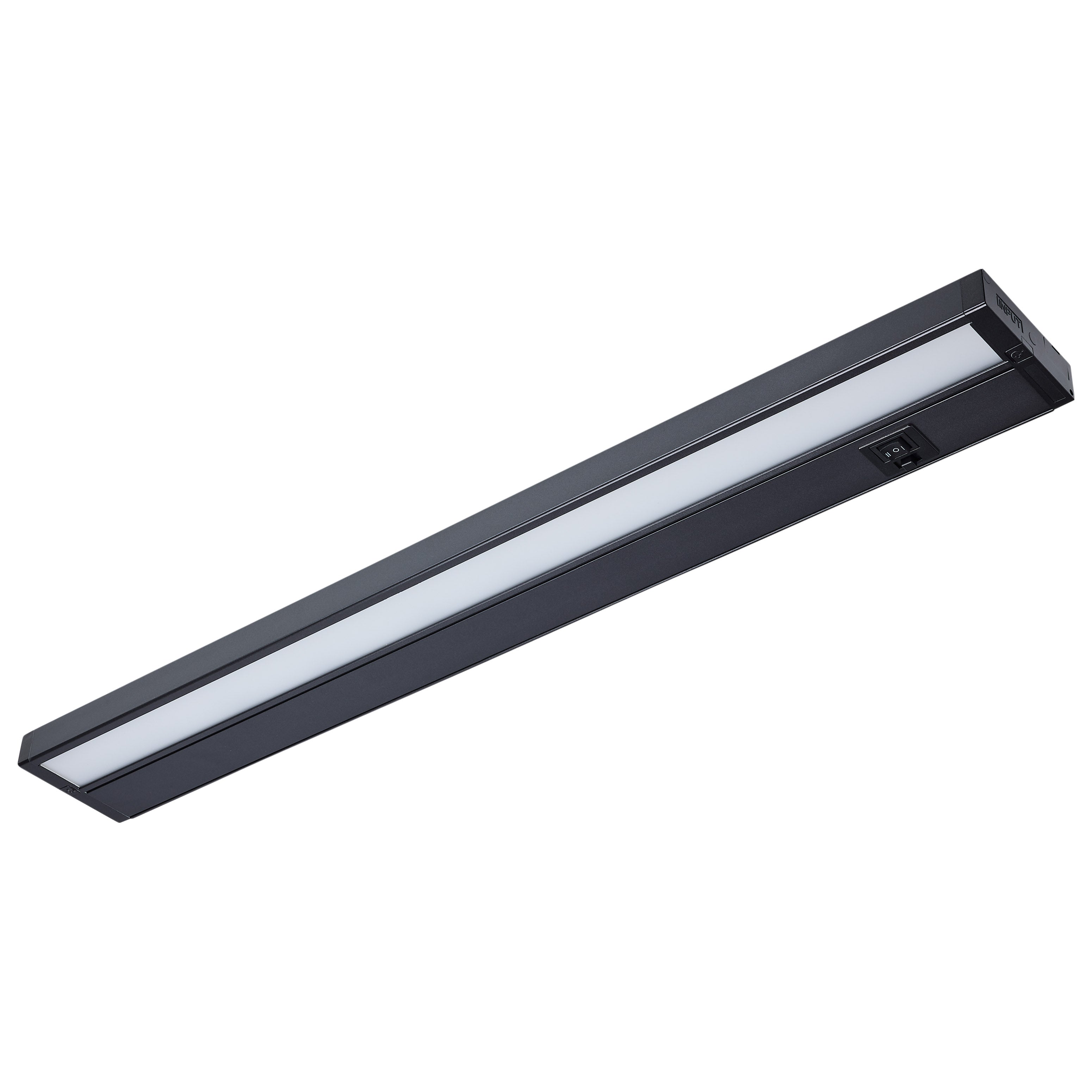

17 Watt 28-Inch LED Under Cabinet - 30K/40K/50K 3K/4K/5K CCT Selectable - Dark Bronze - 120 Volt is an under cabinet light intended for kitchens, work counters, shelving, display areas and other spaces that benefit from close-range task lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting kitchen cabinet lighting for a specific room, fixture or property application.

Works well for homeowners, designers and installers looking to improve visibility across counters and cabinets. It is well suited to residential, retail and light-commercial interiors, where lighting needs to support the space rather than distract from it. This makes the product a practical counter lighting choice for customers also considering under cabinet lighting as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Helps create layered lighting in kitchens and display areas. In renovation projects where an additional lighting layer is needed beneath cabinets or shelves, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to order under cabinet lighting for renovation projects, 17 Watt 28-Inch LED Under Cabinet offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-524 28-inch Dark Bronze Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, maintenance-free life. Plus, SKU-saving selectable CCT at the switch. It's that QUICK. It's that easy.

Features :-

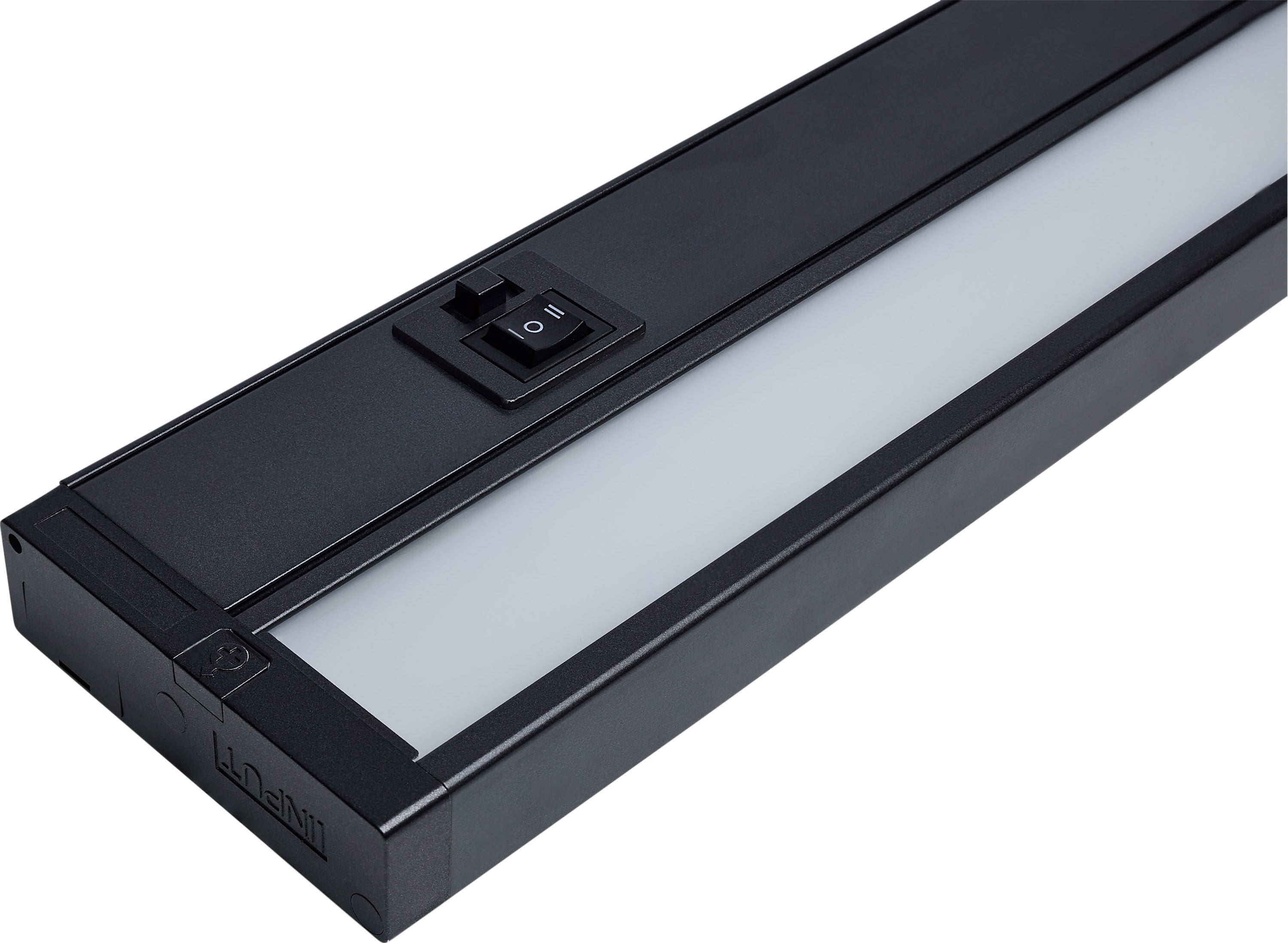

  • Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors

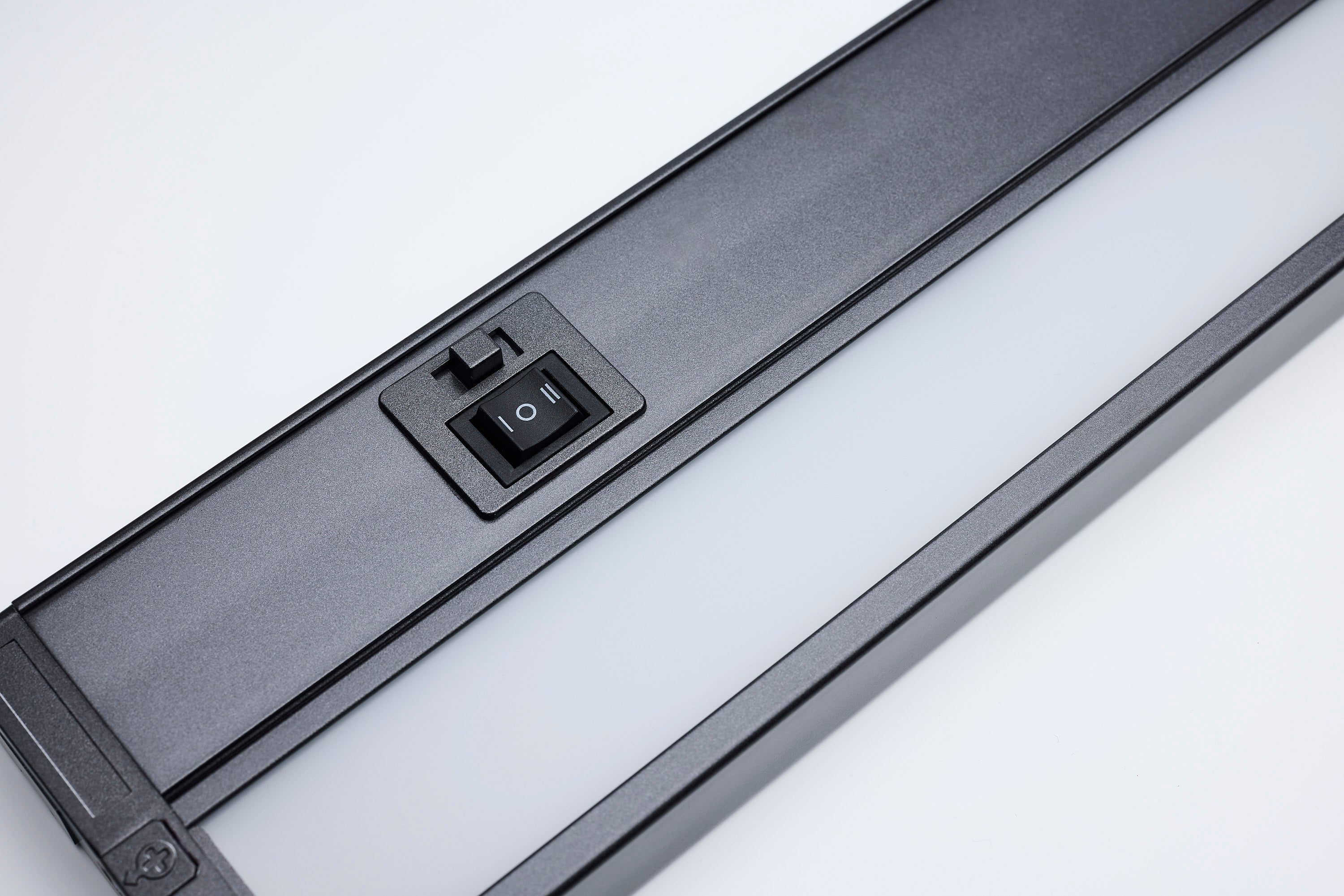

  • Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI

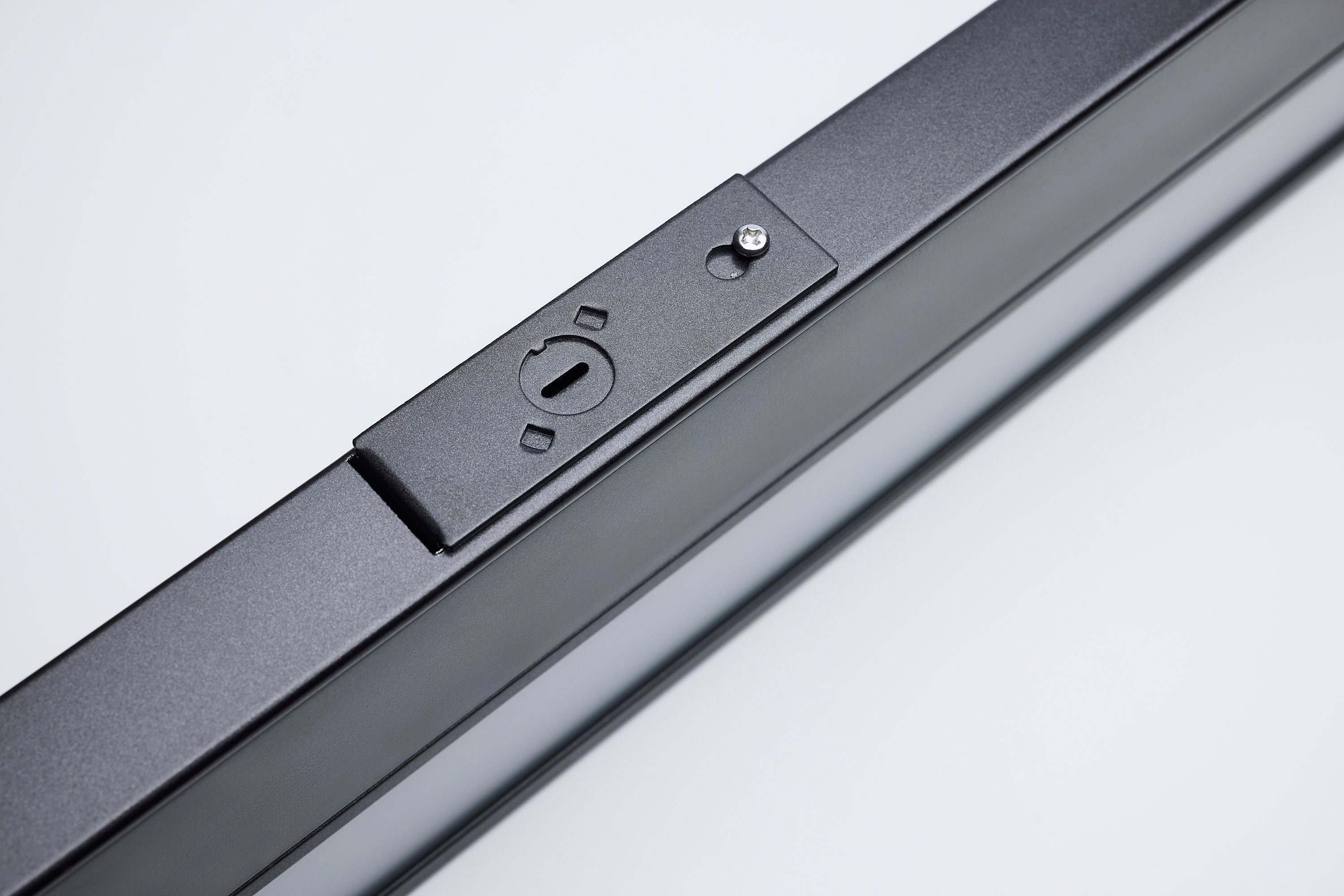

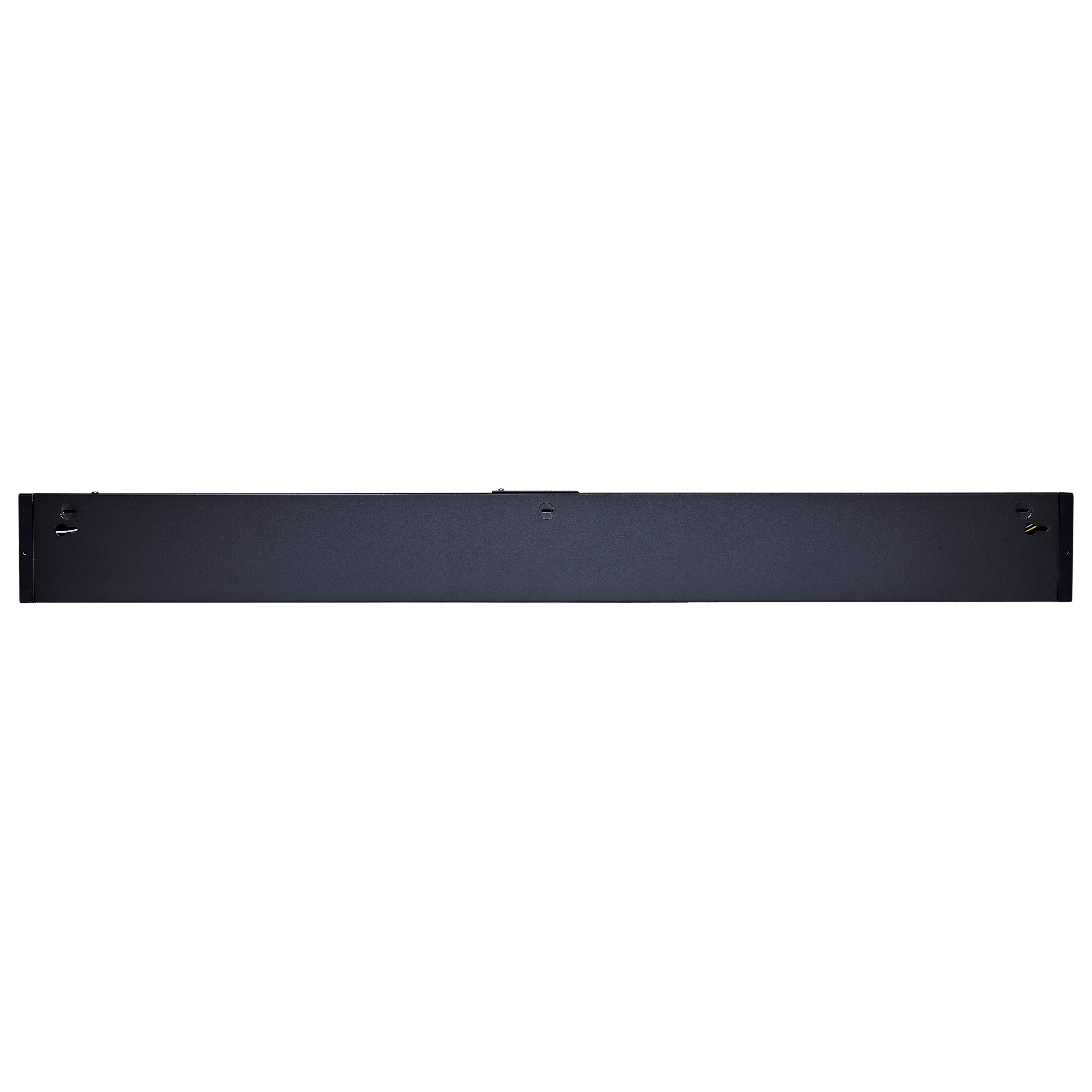

  • Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
  • Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
  • Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture
  • 17W, Dark Bronze Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution

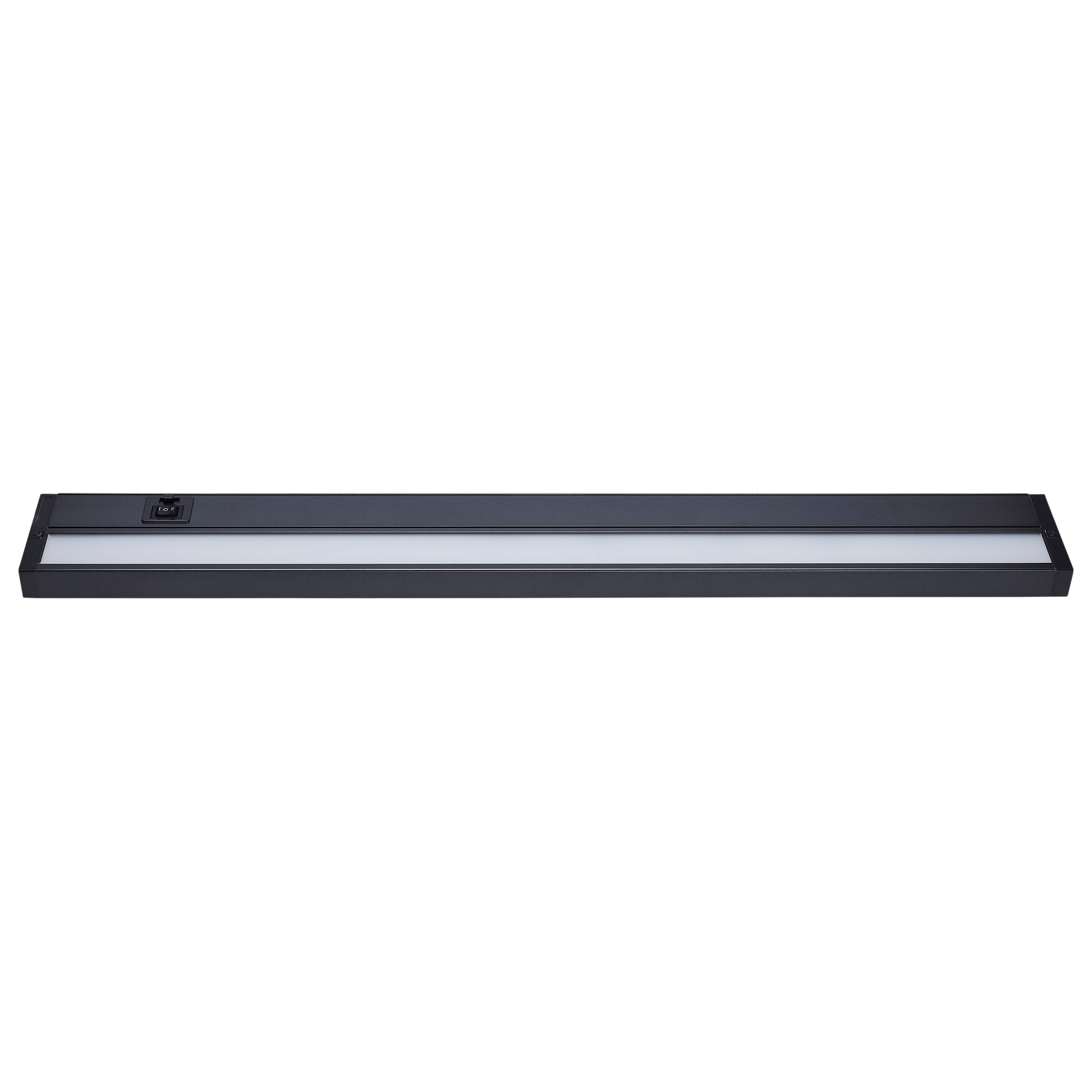

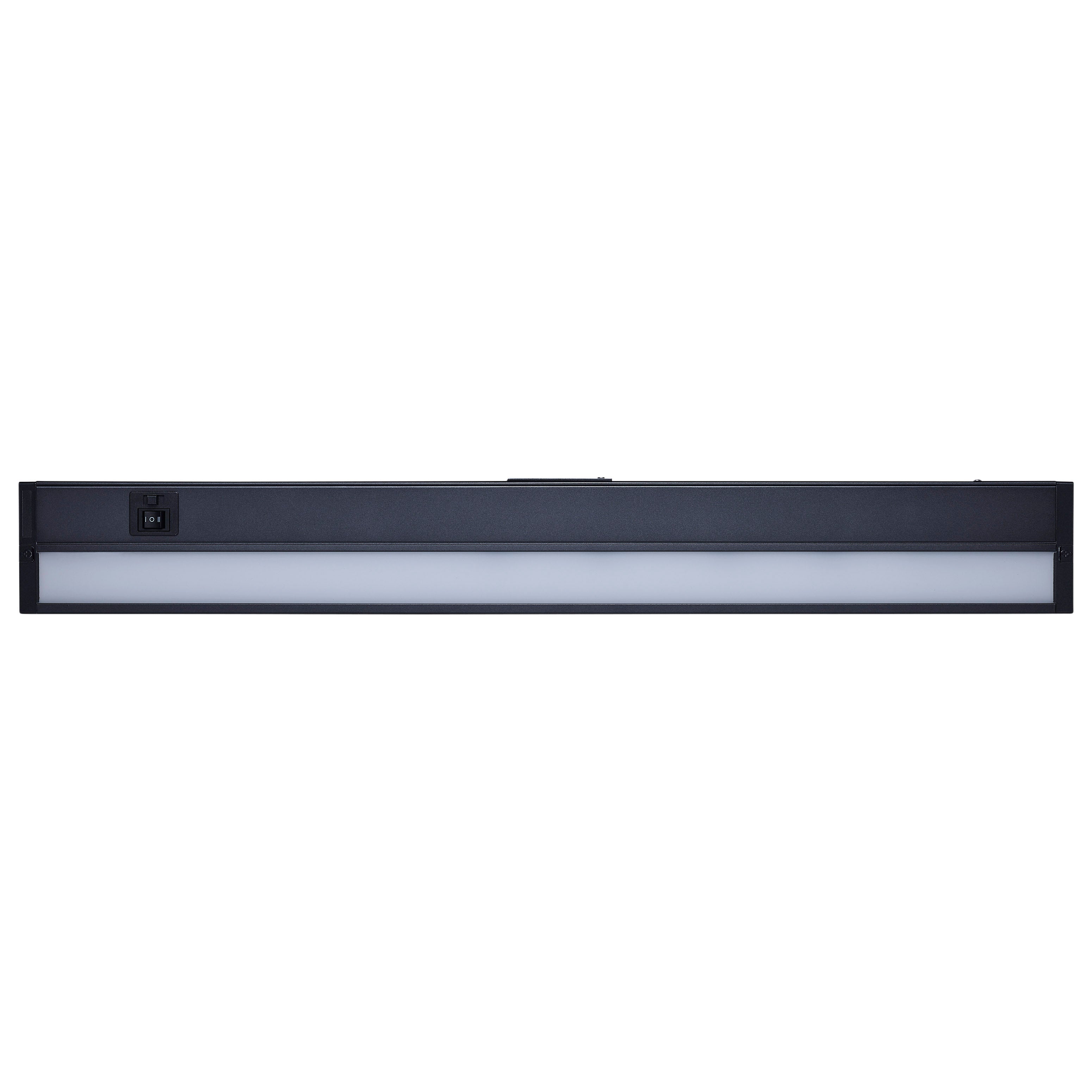

  • Low profile, slim design. Measures 28 in. Length x 3.5 in. Width x 1 in. Height
