Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 20W/30W/40W
Lumens 2500L/3750L/5000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Troffer
Length 23.74 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens White
Width 23.74 IN
Height 1.42 IN
Weight 3.86 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

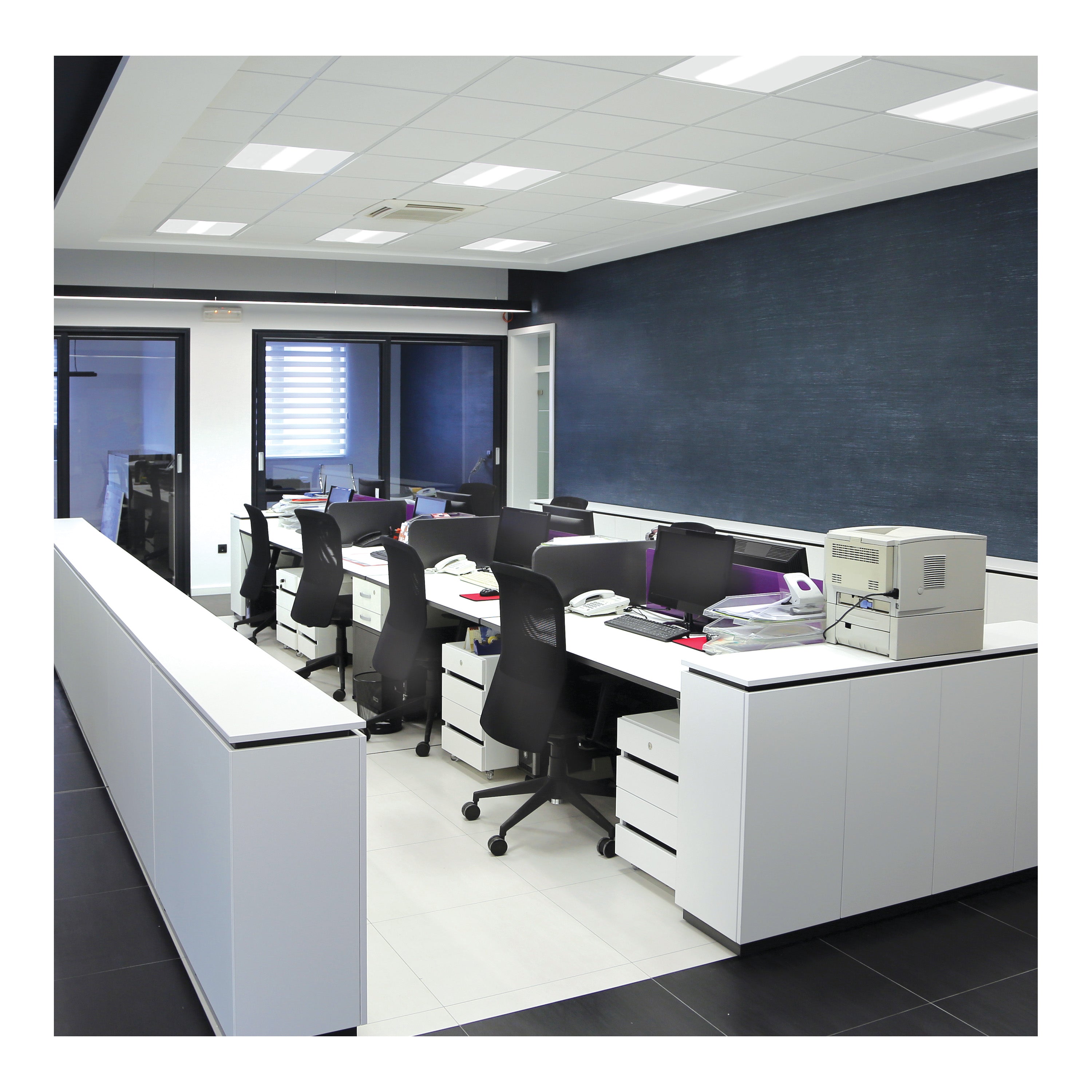

20/30/40 Watt - 35K/4K/5K CCT Selectable - 2X2 LED Single Basket Troffer - 120-277 Volt - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing office LED light fixture and drop ceiling lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. That is especially useful in grid-ceiling and general commercial lighting projects. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving drop ceiling lighting, commercial ceiling lighting and other coordinated lighting upgrades.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In renovations, tenant improvements and facility upgrades that need consistent overhead illumination, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to order office LED lighting for renovation projects, consider 20/30/40 Watt for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

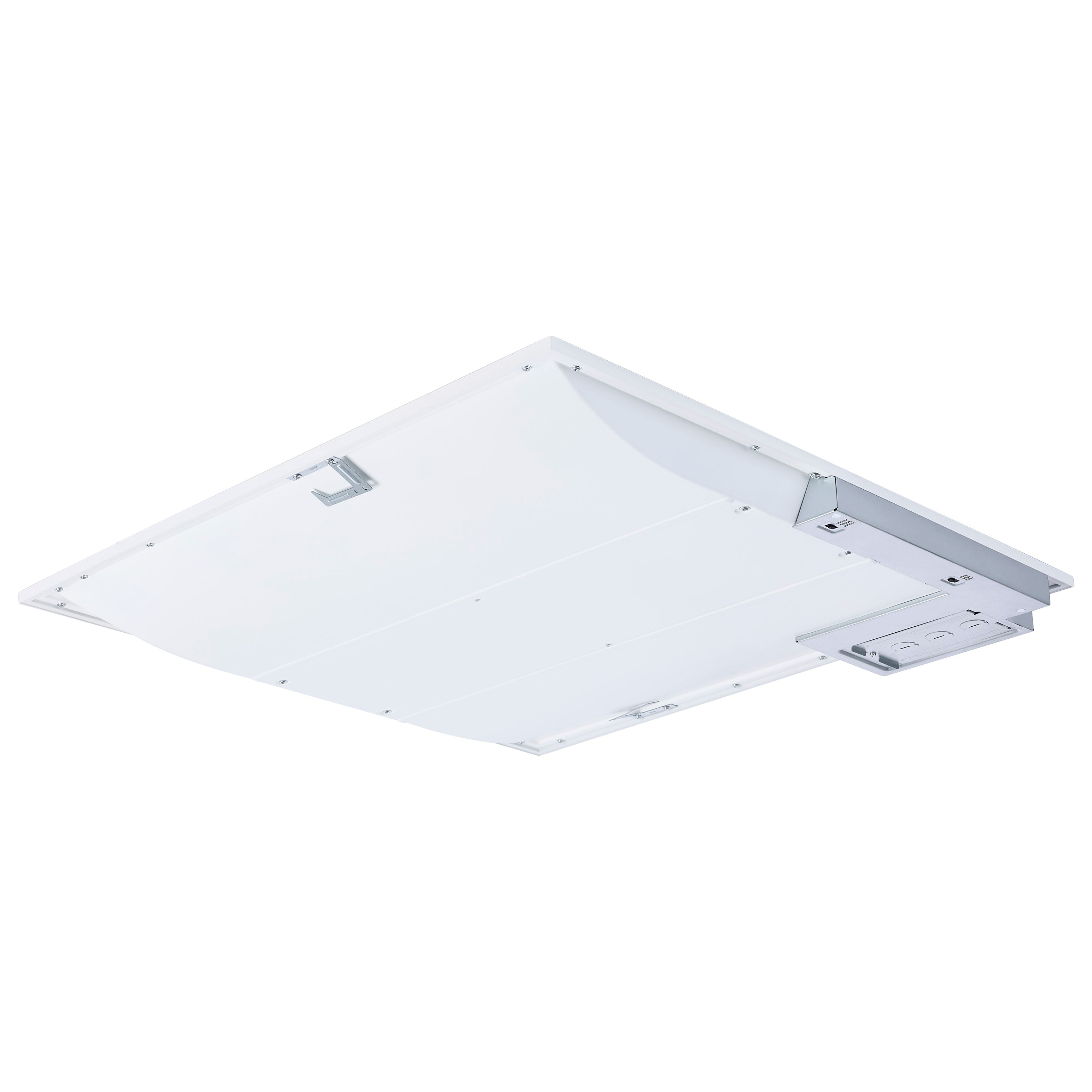

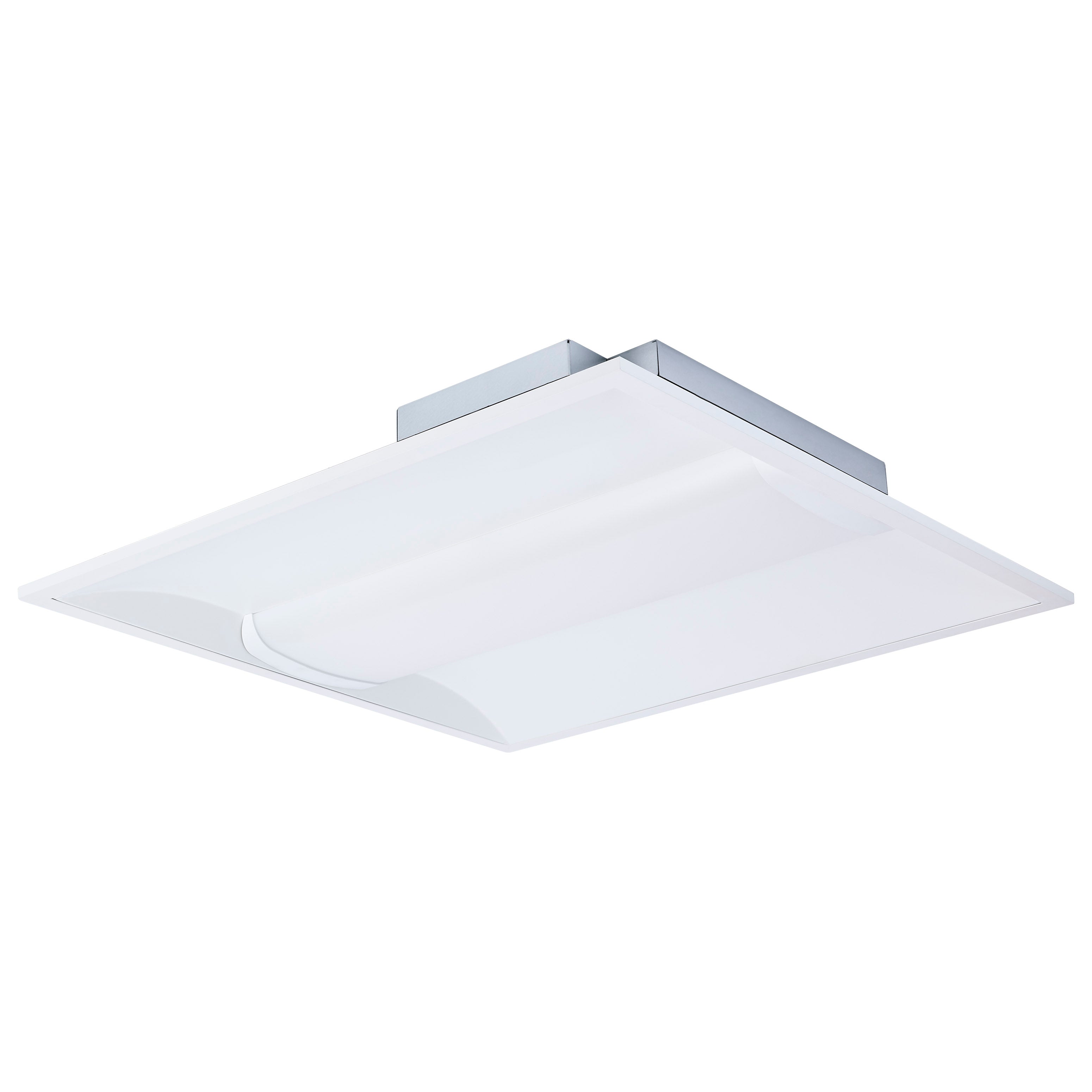

The SATCO NUVO 65-1600 Single Basket LED Troffer delivers dependable, configurable lighting in a compact 2x2 form factor. It features selectable wattage (20W/30W/40W) and selectable CCT (3500K/4000K/5000K), producing 2500 to 5000 lumens to suit a range of commercial lighting needs. Designed with a steel housing and polycarbonate lens, this fixture provides uniform illumination, 0���������������������������10V dimming to 10%, damp location rating (IP20), a 50,000-hour rated life, and a 5-year warranty.

Features :-

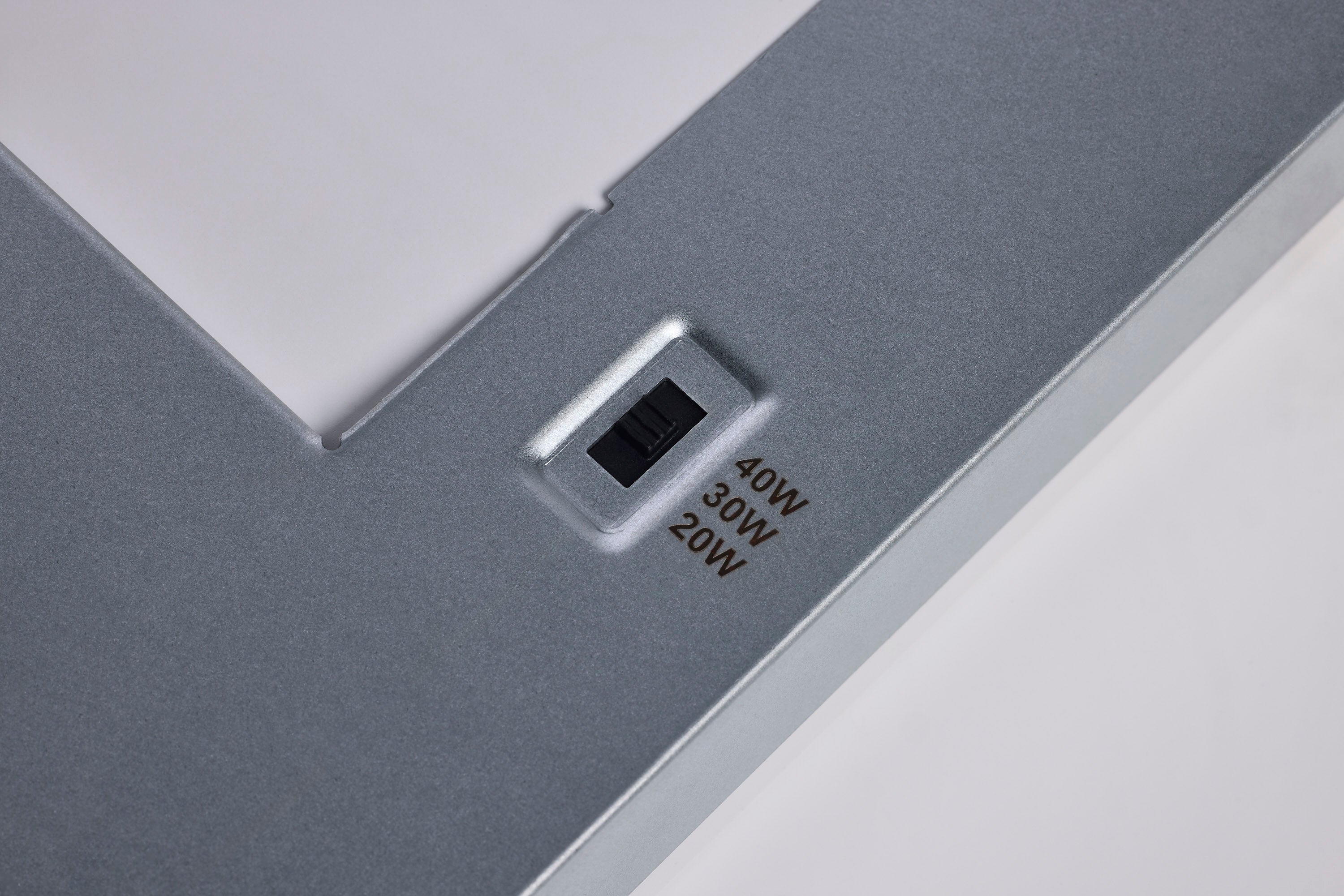

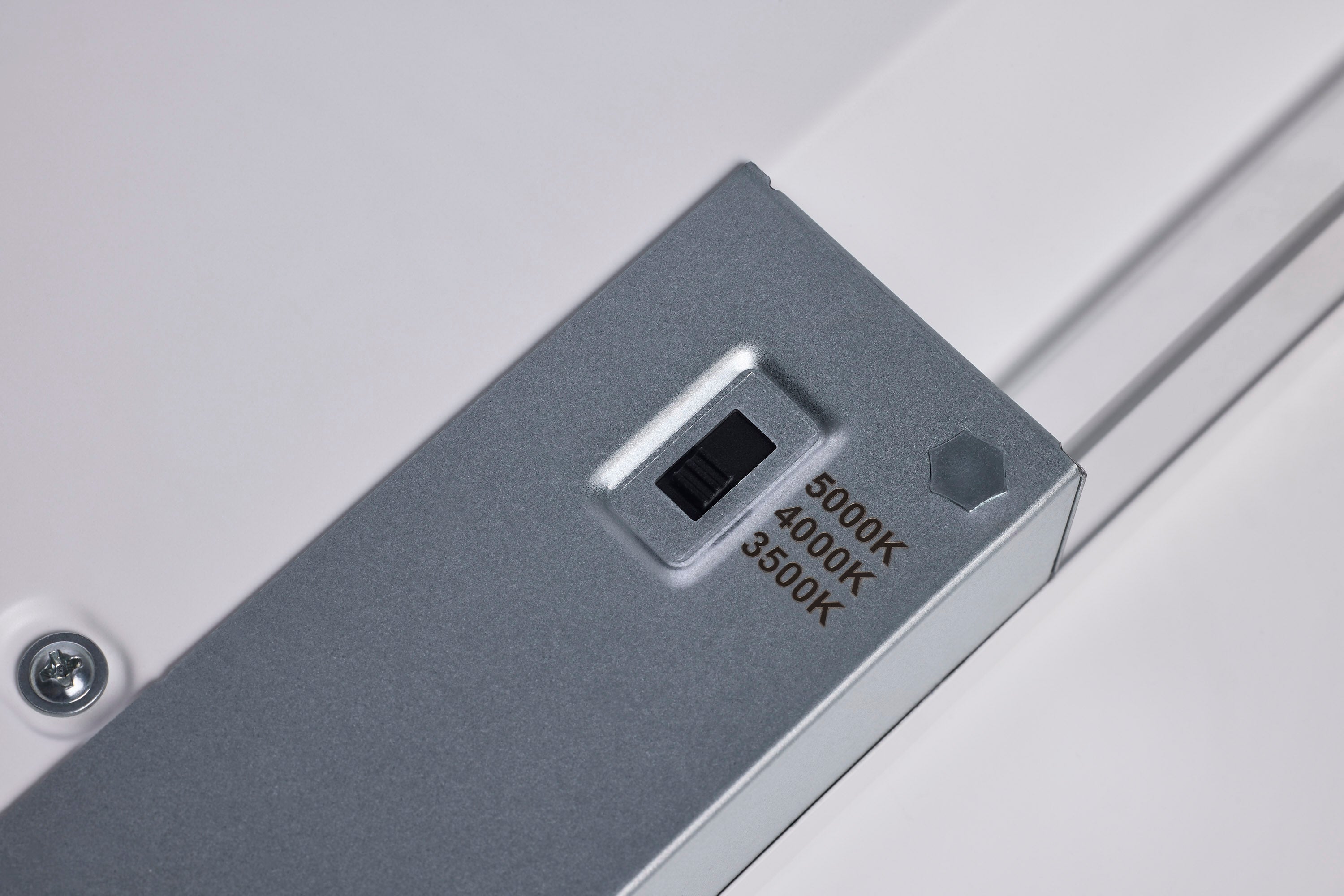

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X2 Standard Model
  • 0-10V Dimming
  • 120-277 Voltage
  • Steel Body with Polycarbonate Lens
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
