Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 20W/30W/40W
Lumens 2500L/3750L/5000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 1x4
Wattage Selectable Yes
Fixture Type Flat Panel
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 11.93 IN
Height 2.6 IN
Weight 6.39 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

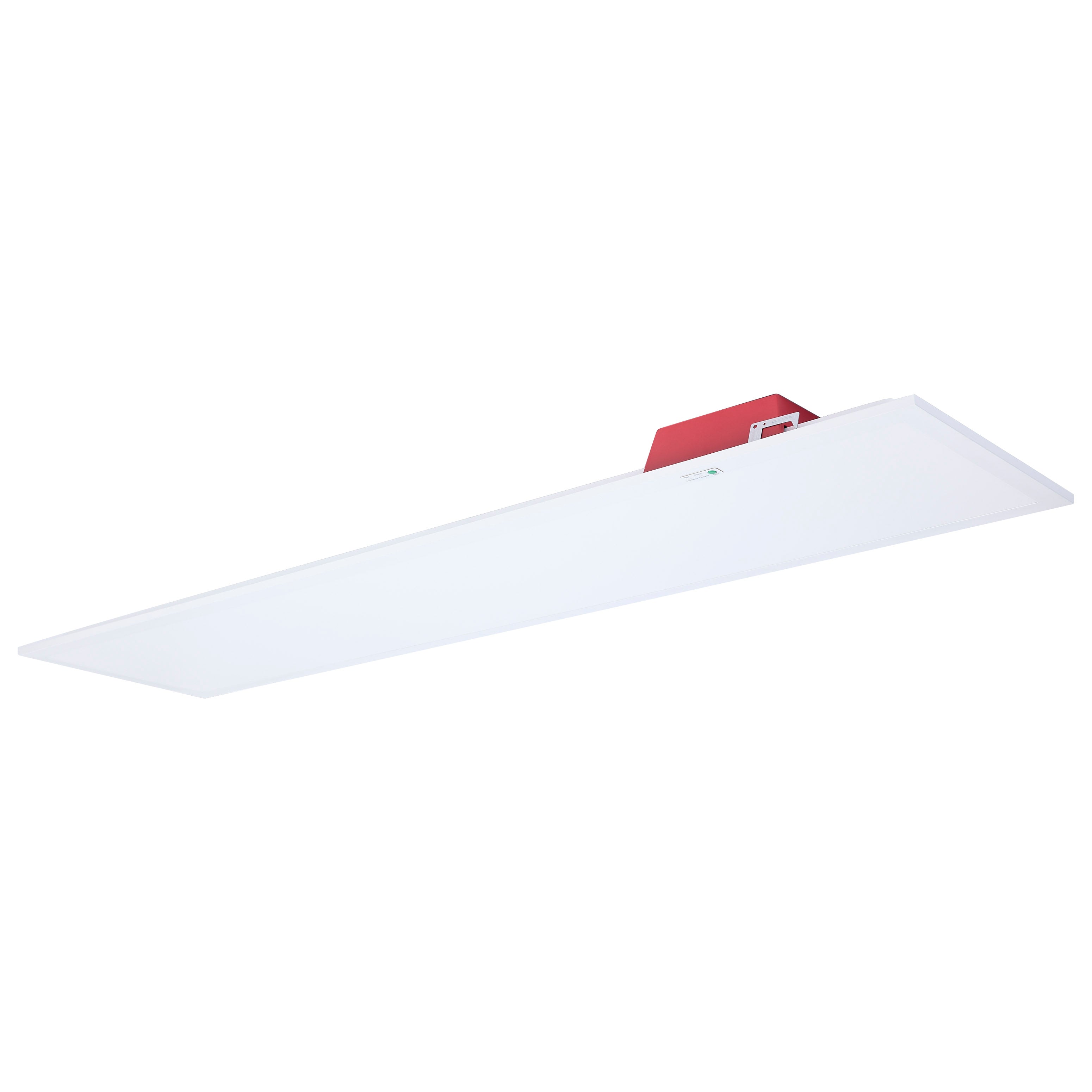

20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-347 Range Voltage - White Finish brings the familiar role of a commercial ceiling light to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It is a practical choice for customers comparing drop ceiling lighting and office LED light fixture for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Works well when project teams need repeatable fixtures throughout offices or public spaces. It is well suited to grid-ceiling and general commercial lighting projects, where lighting needs to support the space rather than distract from it. This makes the product a practical office LED light fixture choice for customers also considering LED panel light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

For buyers looking to order office LED lighting for renovation projects, 20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

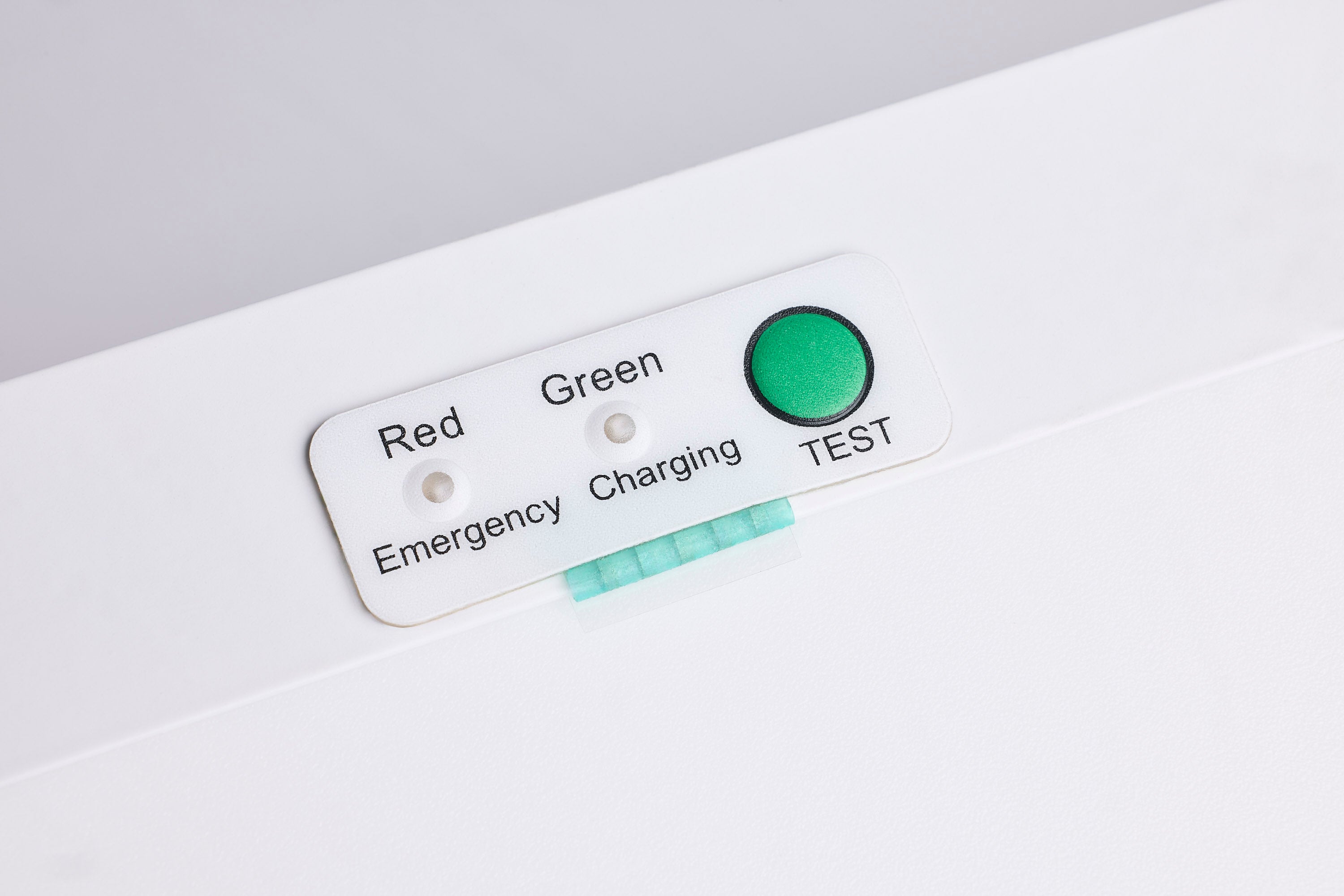

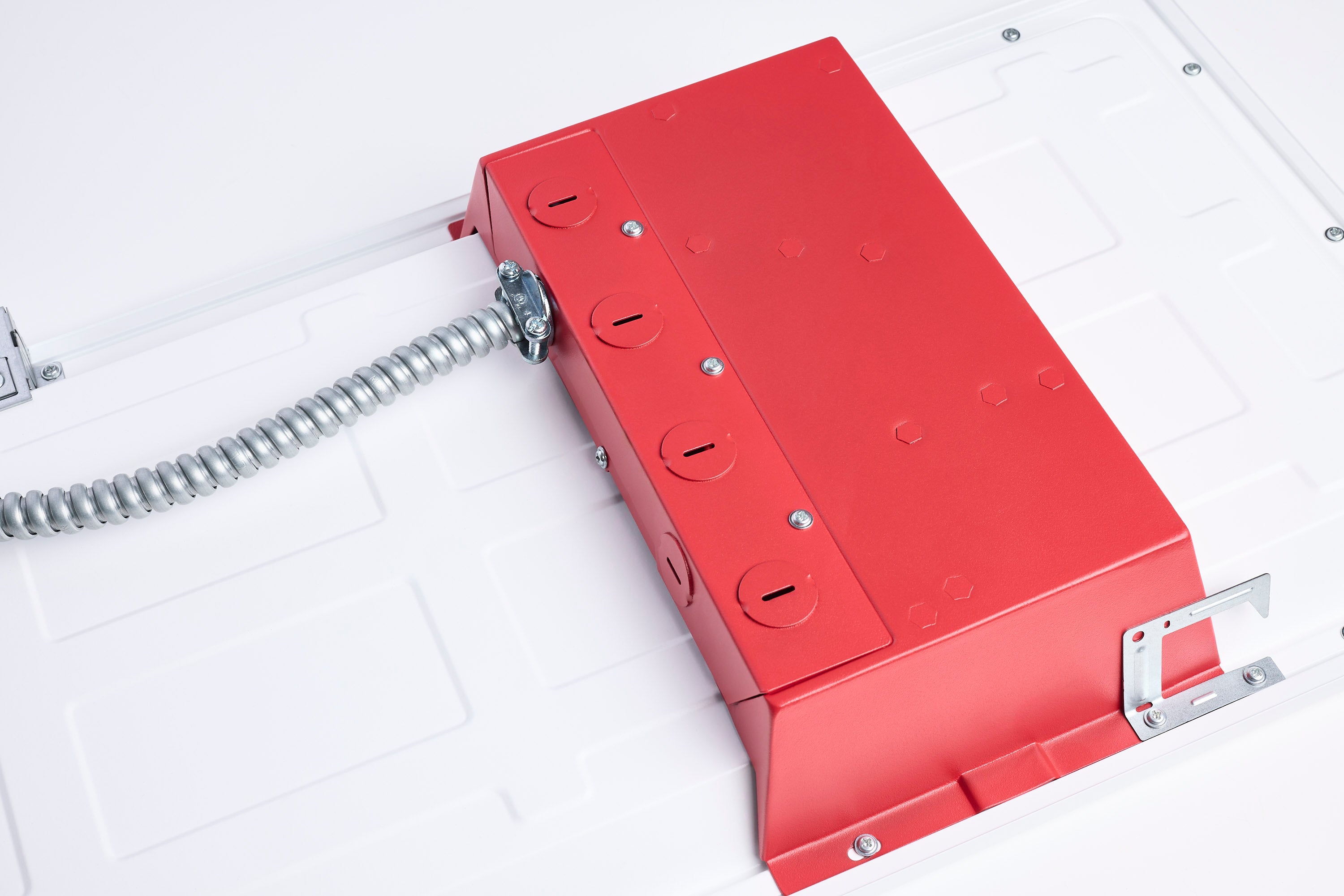

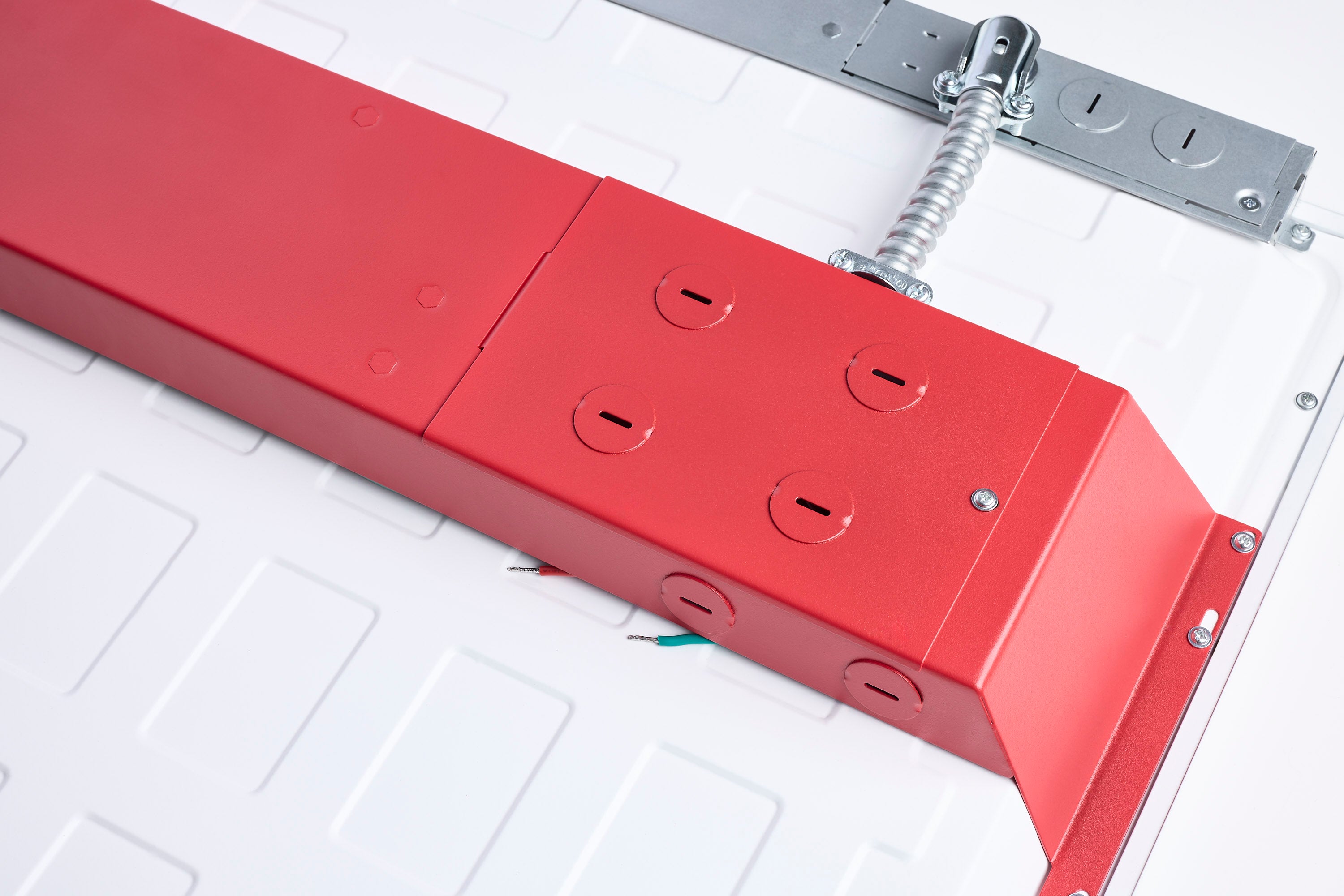

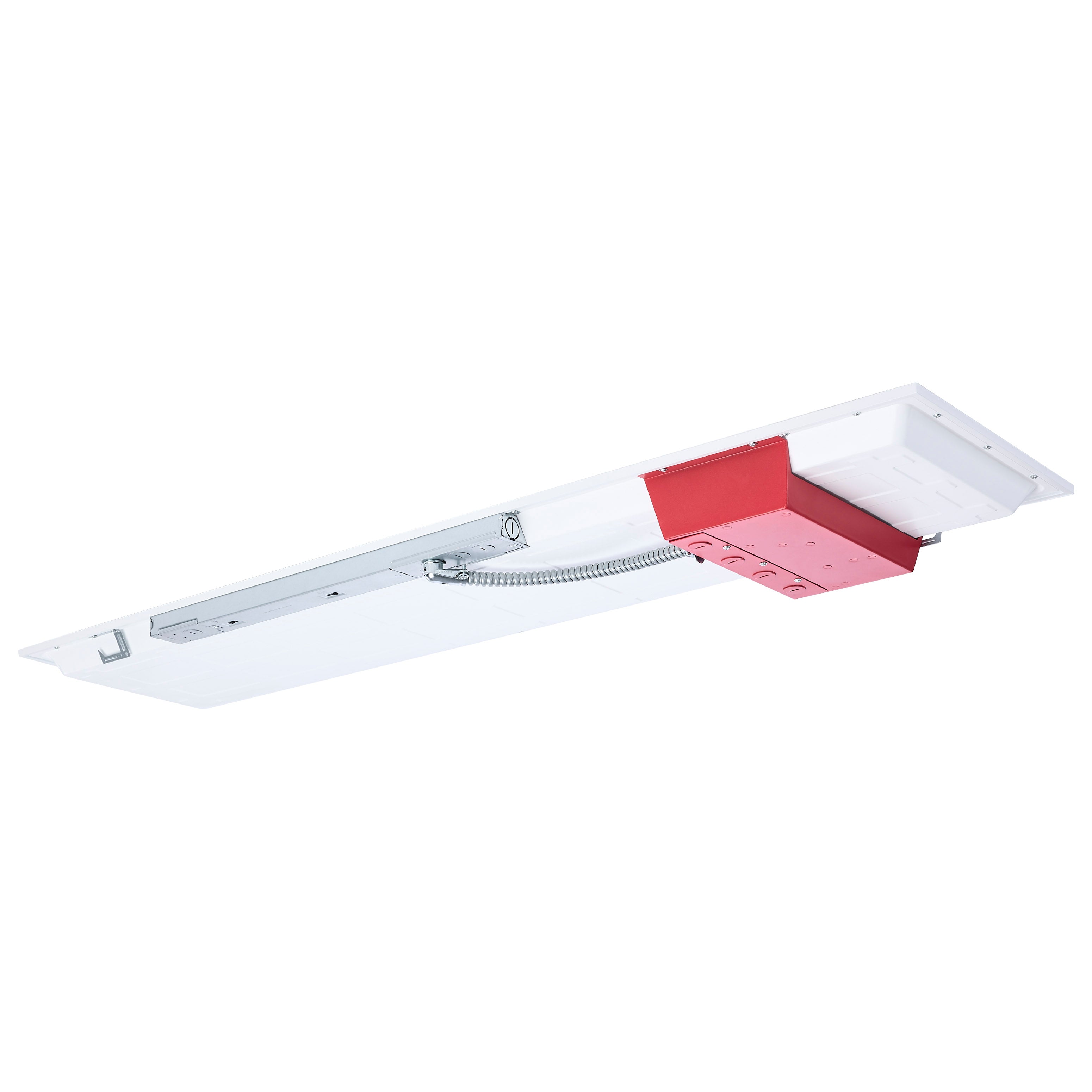

The SATCO NUVO 65-1677 Backlit Panel provides dependable illumination with selectable wattages of 20W, 30W, or 40W and universal voltage operation at 120���������������������������347V. This 1x4 model includes an integrated emergency battery that delivers 90 minutes of runtime, with a red battery backup and indicator light for added safety. Offering CCT selectability (3500K/4000K/5000K), the fixture features a steel body, die-cast aluminum trim with seamless corners, and a polystyrene lens for even light distribution. Designed with 0���������������������������10V dimming to 10%, it carries an IP20 rating for damp locations. DLC listed, 50,000-hour rated, and supported by a 5-year warranty, this panel ensures efficiency, safety, and lasting value.

Features :-

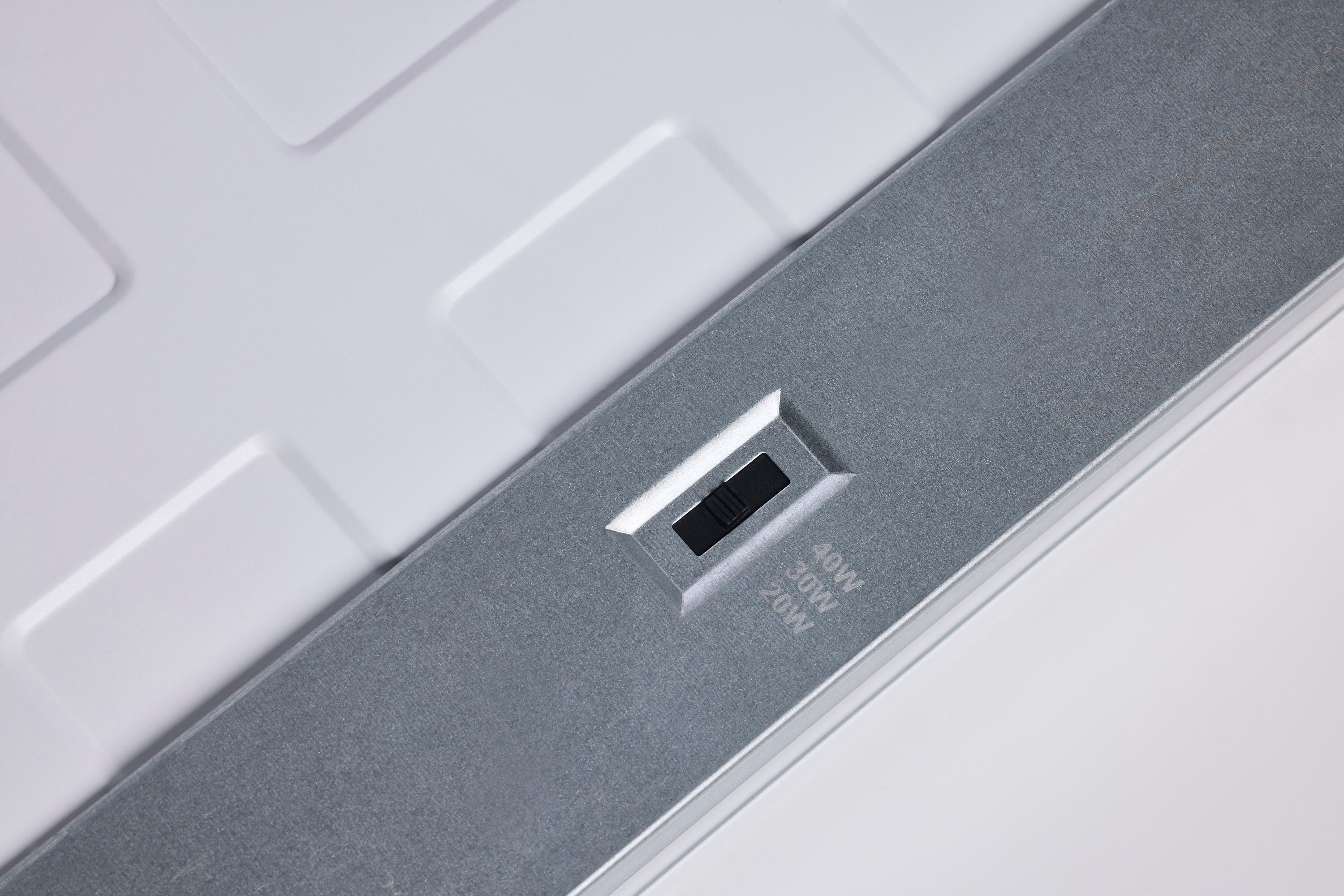

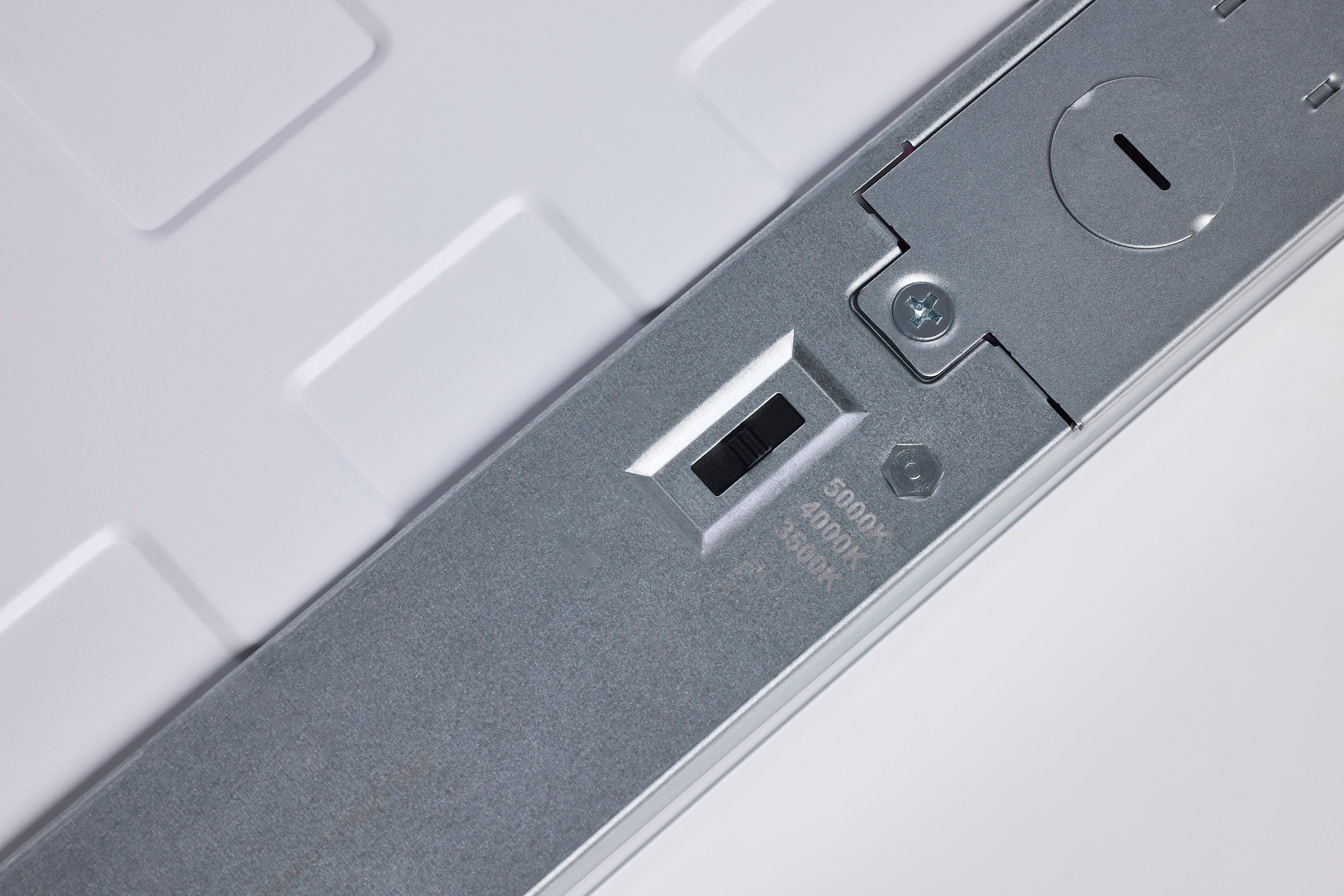

  • Field Selectable - 3 CCT and 3 Wattage
  • 1X4 Panel
  • Emergency Battery Backup Model
  • 120-347 Voltage
  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the 20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-347 Range Voltage - White Finish

What applications suit this NUVO flat panel with 120V-347V/white finish specifications during lighting upgrades, replacements, or installations?

How should installers check 120V-347V/white finish compatibility before connecting this flat panel to lighting components or controls?

What should installers verify about 120V-347V/IP20 before connecting this flat panel within a compatible lighting system?

Where should contractors purchase this flat panel with 120V-347V/L:47.76inW:11.93inH:2.60in specifications for upcoming lighting project requirements online?
