Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 20W/30W/40W
Lumens 2500L/3750L/5000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Flat Panel
Length 23.74 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 23.74 IN
Height 1.38 IN
Weight 4.12 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel - 35K/4K/5K CCT Selectable - 120-277 Range Voltage - White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED panel light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. That is especially useful in grid-ceiling and general commercial lighting projects. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving commercial ceiling lighting, LED troffer light and other coordinated lighting upgrades.

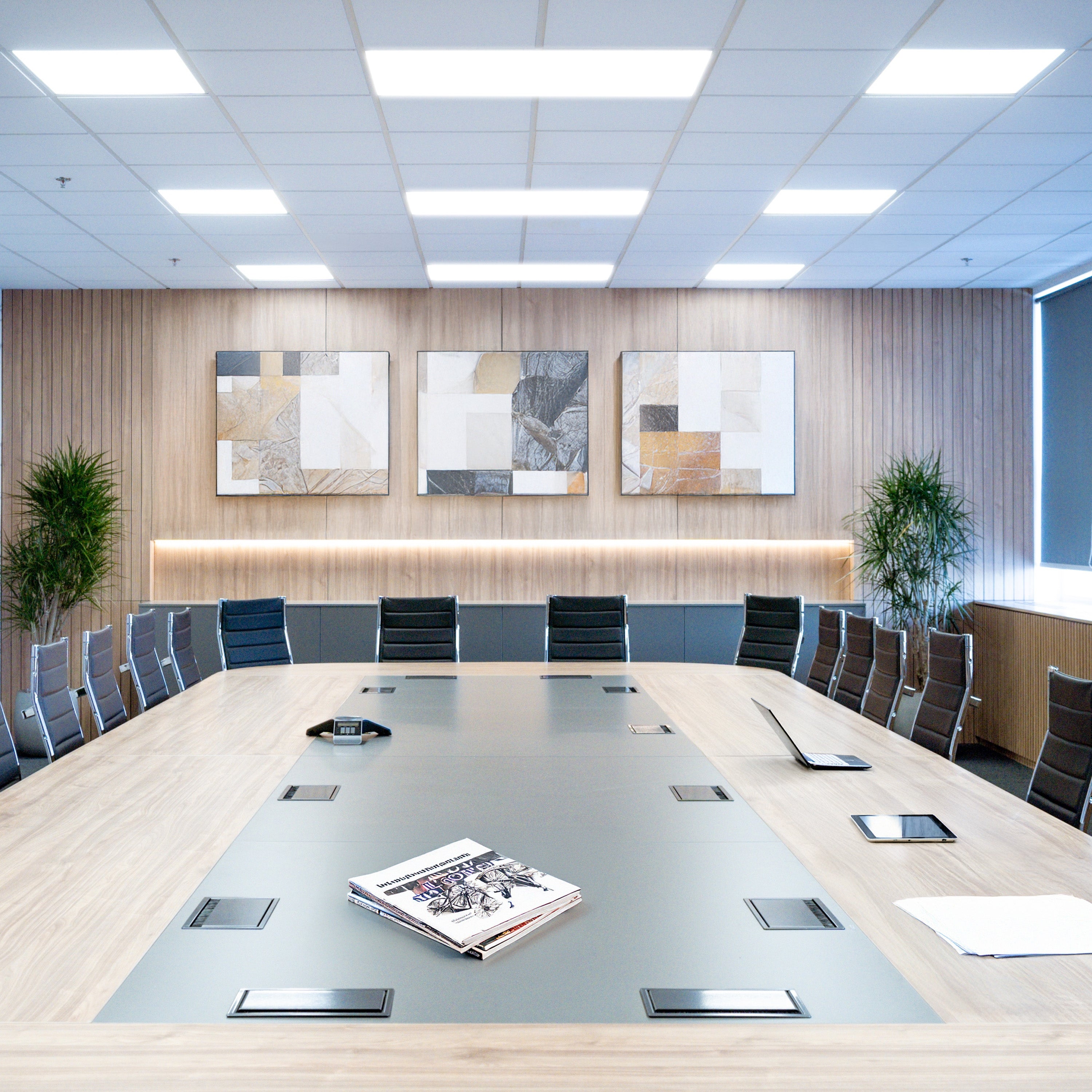

Works well when project teams need repeatable fixtures throughout offices or public spaces. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to order office LED lighting for renovation projects, 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

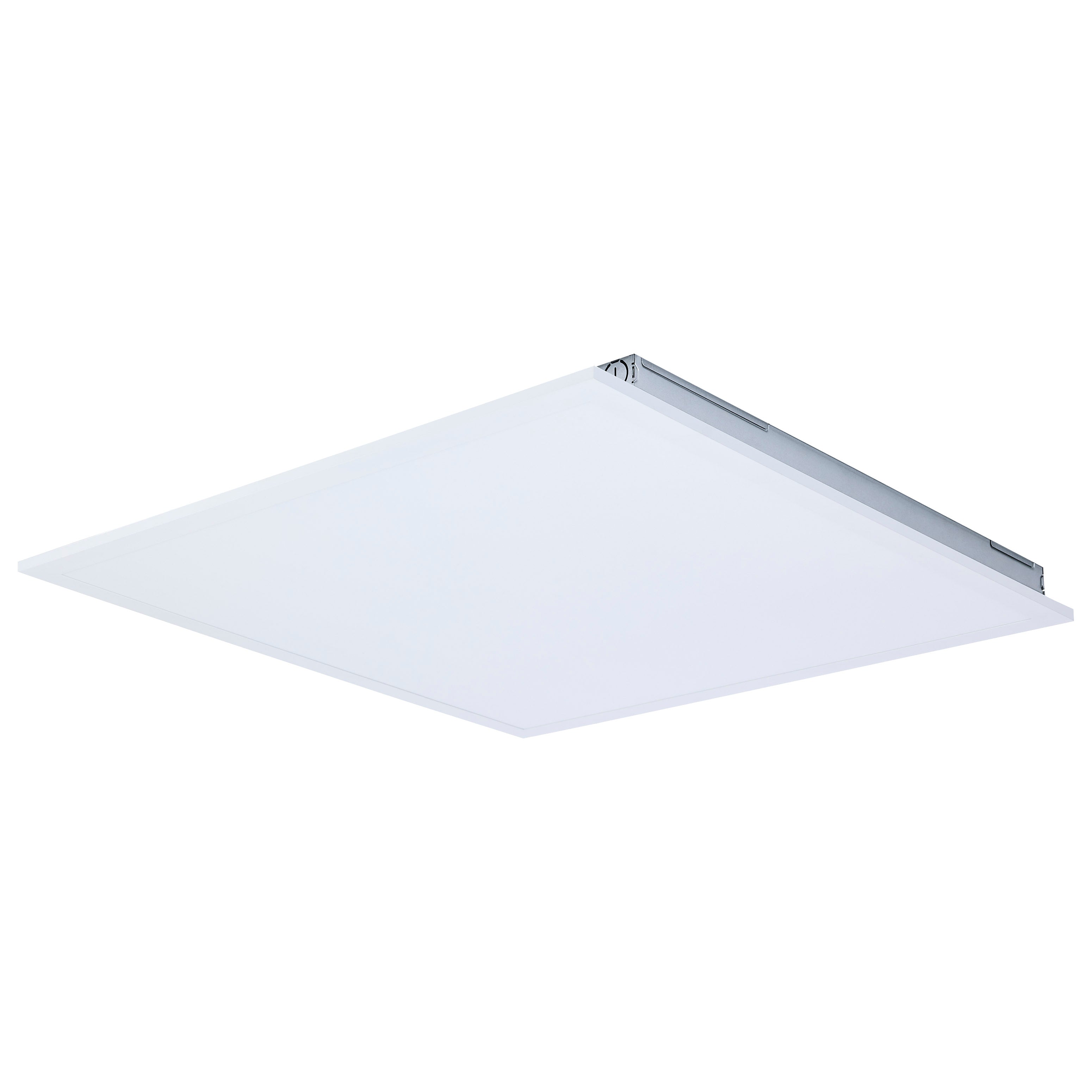

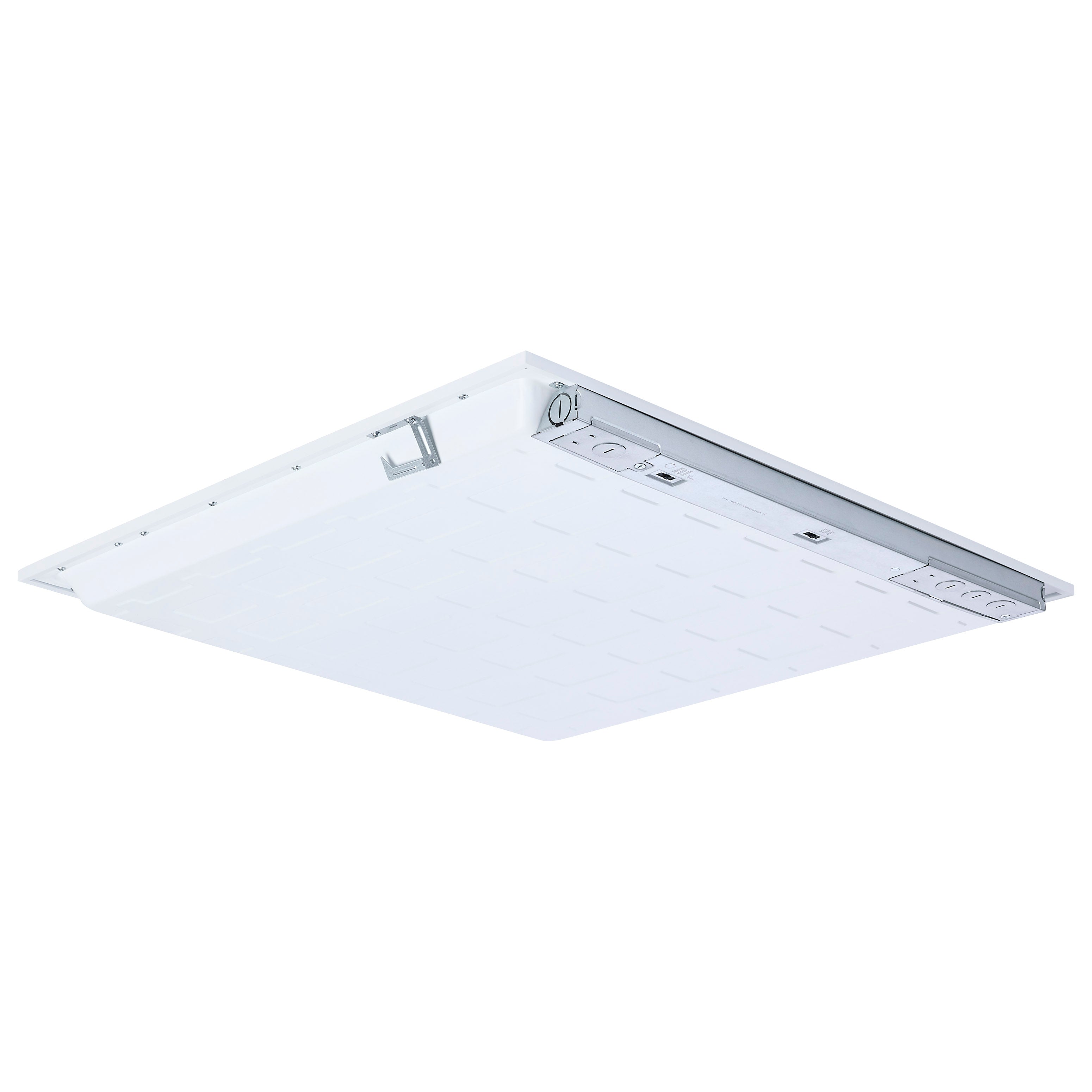

The SATCO NUVO 65-1661 Backlit Panel delivers reliable performance with selectable wattages of 20W, 30W, or 40W and universal voltage operation at 120���������������������������277V. This 2x2 standard model offers CCT selectability (3500K/4000K/5000K) to adapt to project requirements. Built with a steel body and die-cast aluminum trim, the fixture ensures seamless corners with no light leakage, while the polystyrene lens provides uniform illumination. Designed with 0���������������������������10V dimming down to 10%, it is rated for damp locations with an IP20 designation. DLC listed, 50,000-hour rated, and backed by a 5-year warranty, this panel is built for efficiency, durability, and lasting value.

Features :-

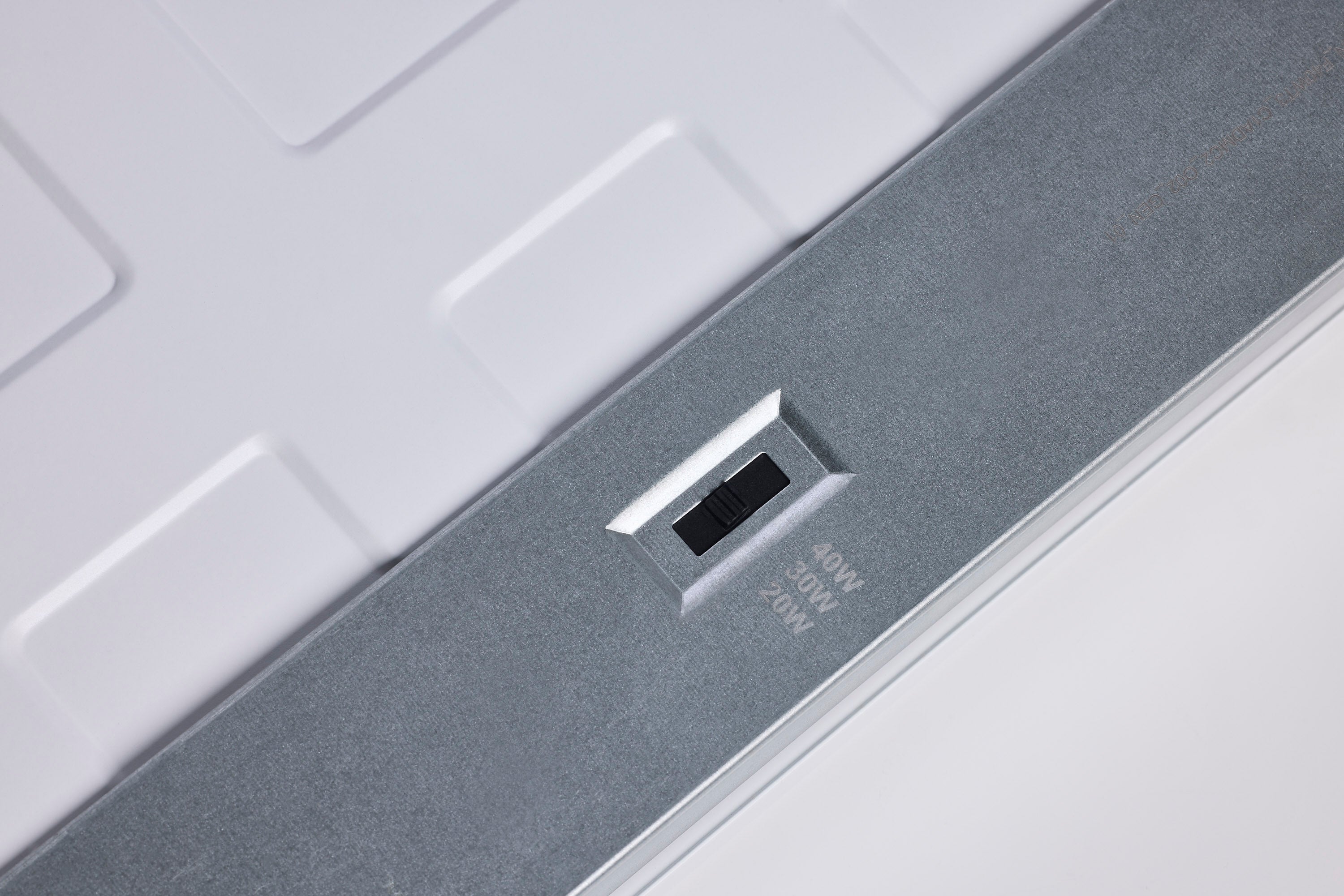

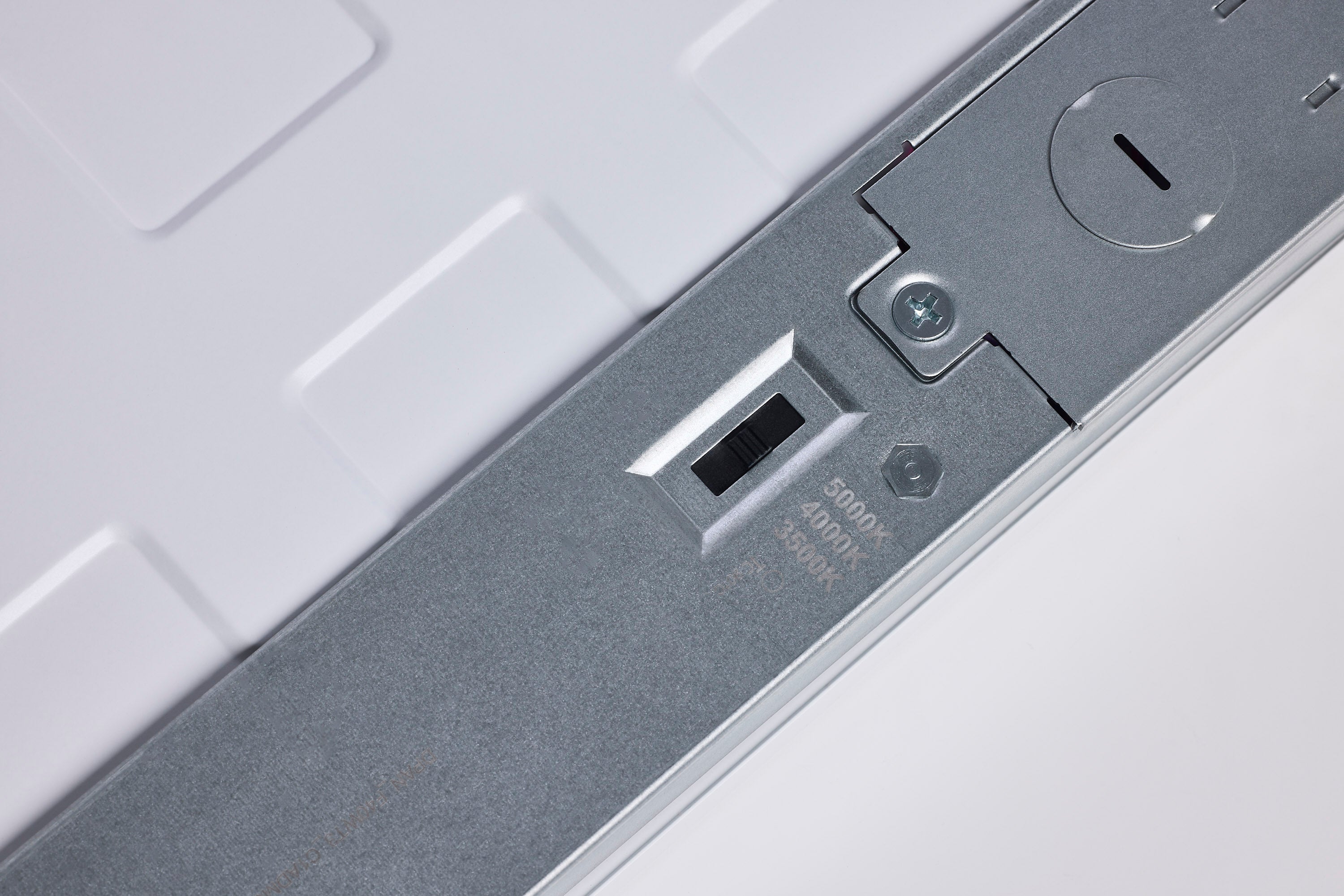

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X2 Panel
  • Standard Model
  • 120-277 Voltage
  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
