Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 20W/30W/40W
Lumens 2500L/3750L/5000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Flat Panel
Length 23.74 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 23.74 IN
Height 2.6 IN
Weight 6.5 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

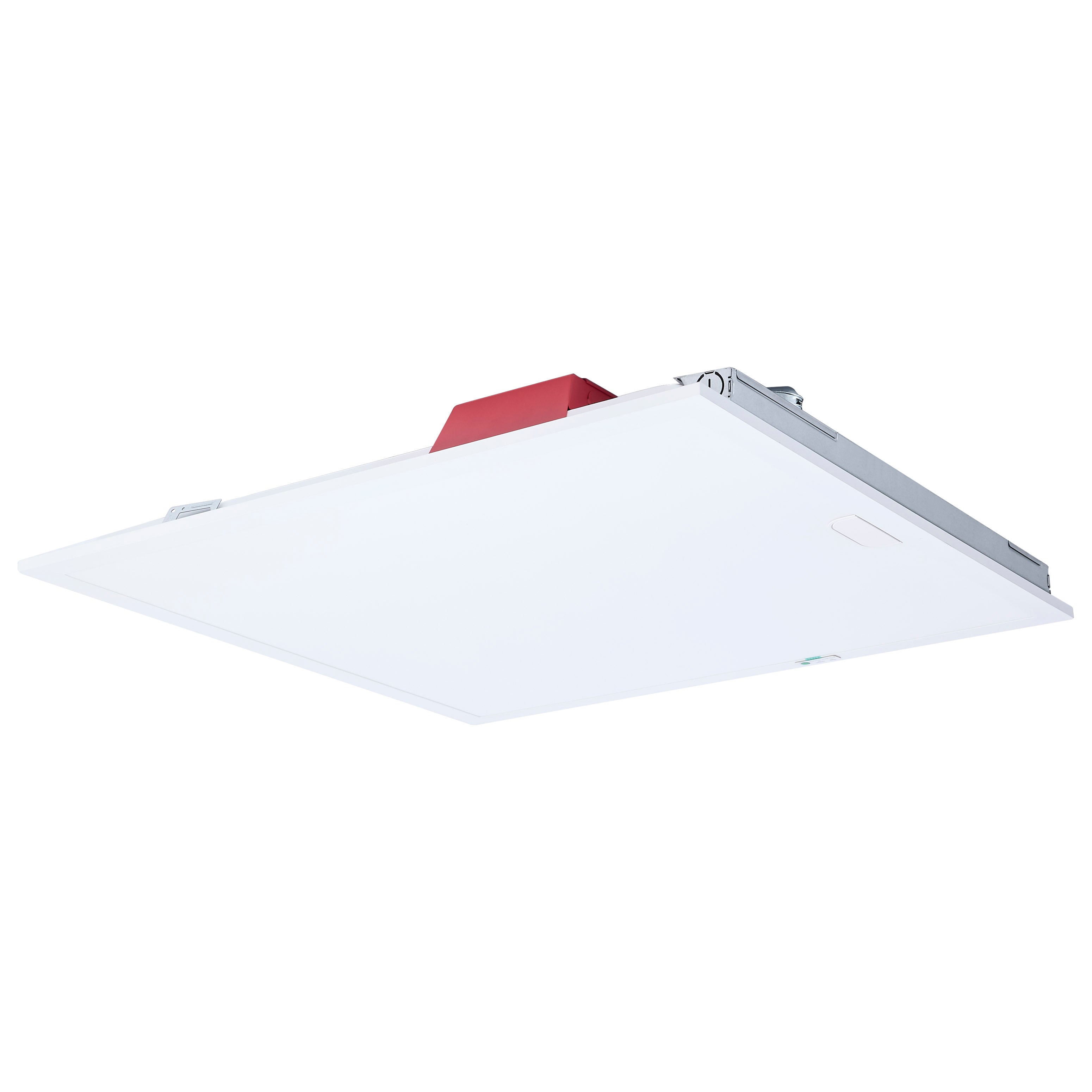

20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-277 Range Voltage - White Finish is a commercial ceiling light intended for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting commercial ceiling lighting for a specific room, fixture or property application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. It is well suited to grid-ceiling and general commercial lighting projects, where lighting needs to support the space rather than distract from it. This makes the product a practical drop ceiling lighting choice for customers also considering LED panel light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In renovations, tenant improvements and facility upgrades that need consistent overhead illumination, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to shop commercial ceiling fixtures, 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

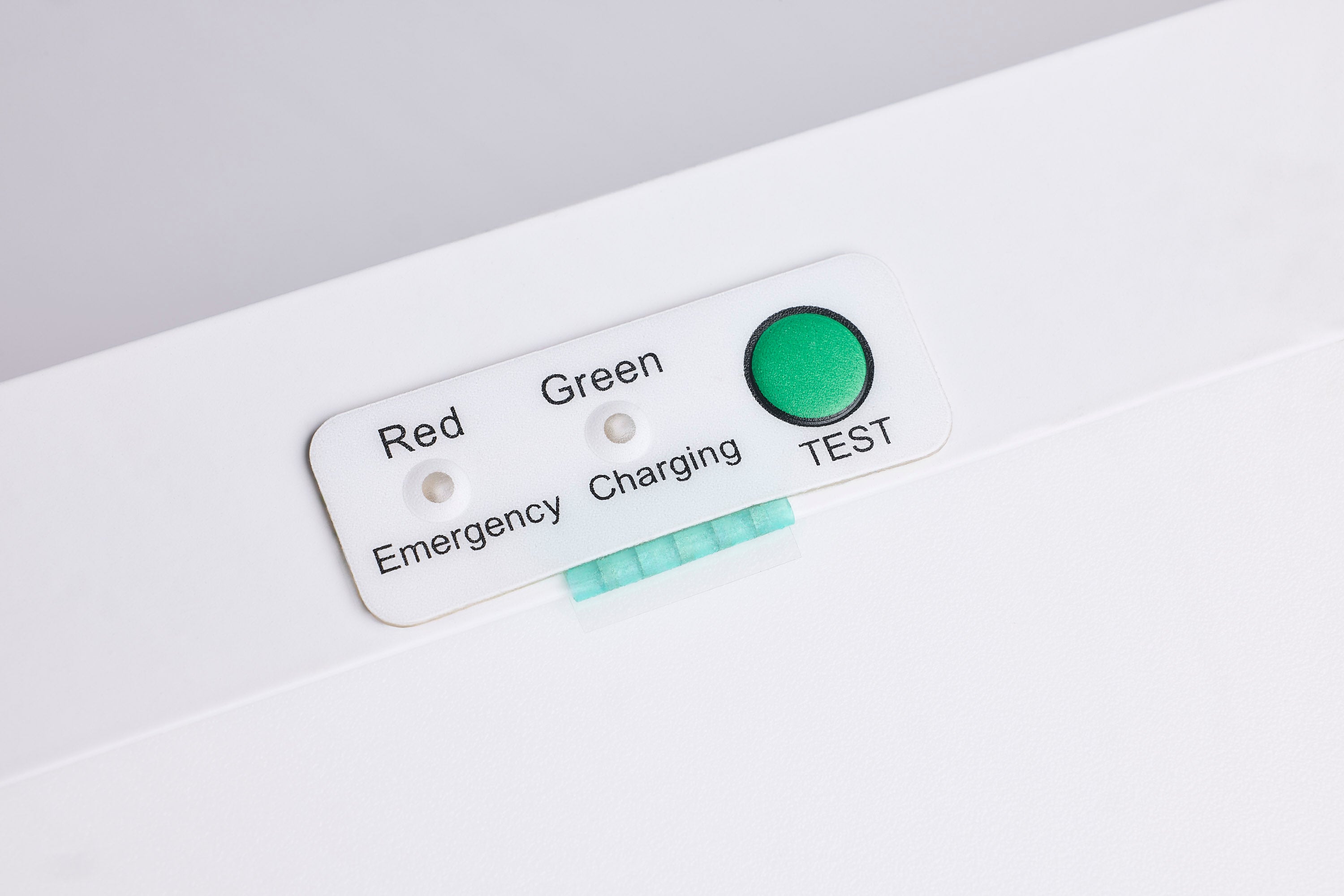

The SATCO NUVO 65-1665 Backlit Panel provides dependable illumination with selectable wattages of 20W, 30W, or 40W and universal voltage operation at 120���������������������������277V. This 2x2 model includes an integrated emergency battery that delivers 90 minutes of runtime, with a red battery backup and indicator light for added safety. Offering CCT selectability (3500K/4000K/5000K), the fixture features a steel body, die-cast aluminum trim with seamless corners, and a polystyrene lens for even light distribution. Designed with 0���������������������������10V dimming to 10%, it carries an IP20 rating for damp locations. DLC listed, 50,000-hour rated, and supported by a 5-year warranty, this panel ensures efficiency, safety, and lasting value.

Features :-

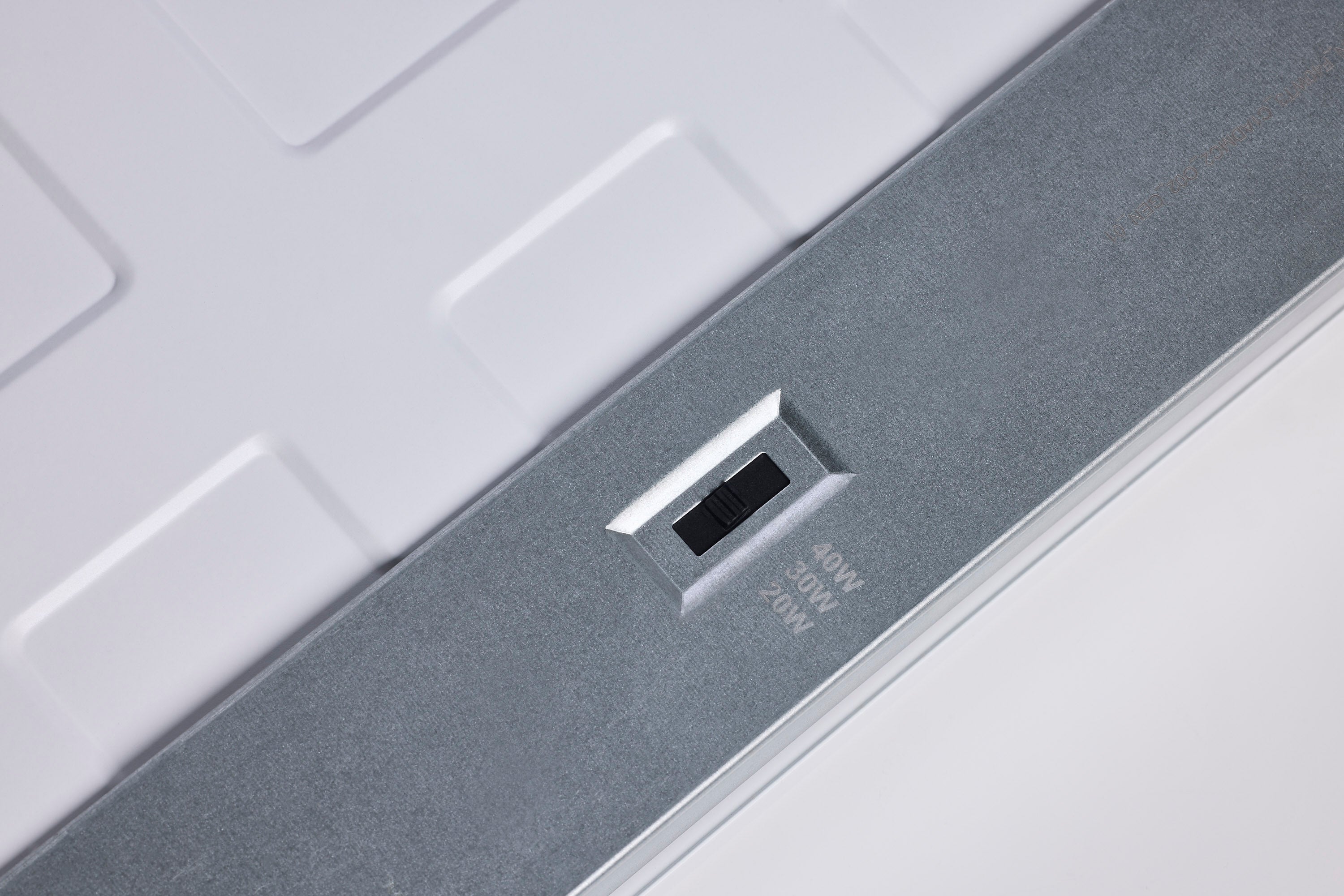

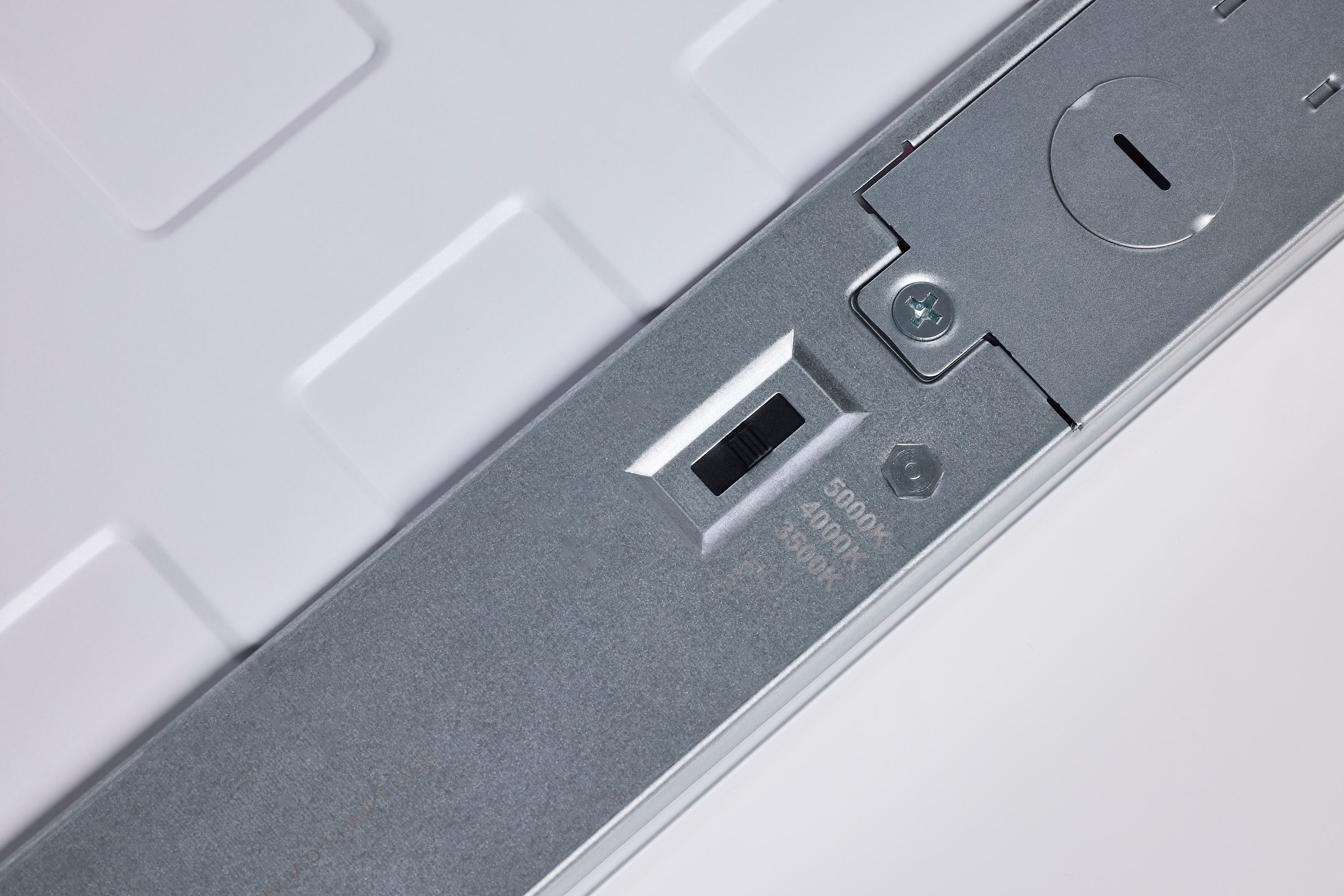

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X2 Panel

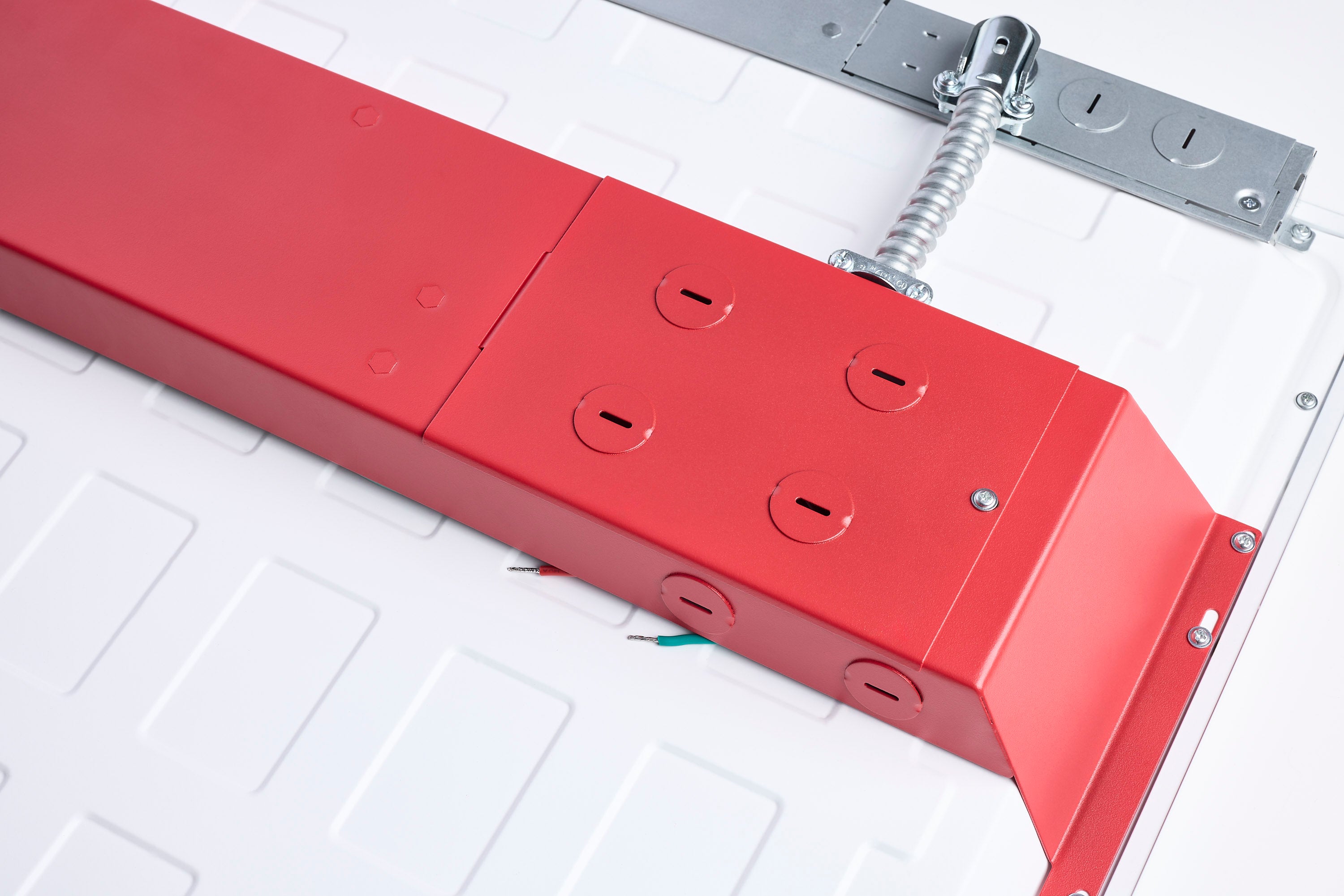

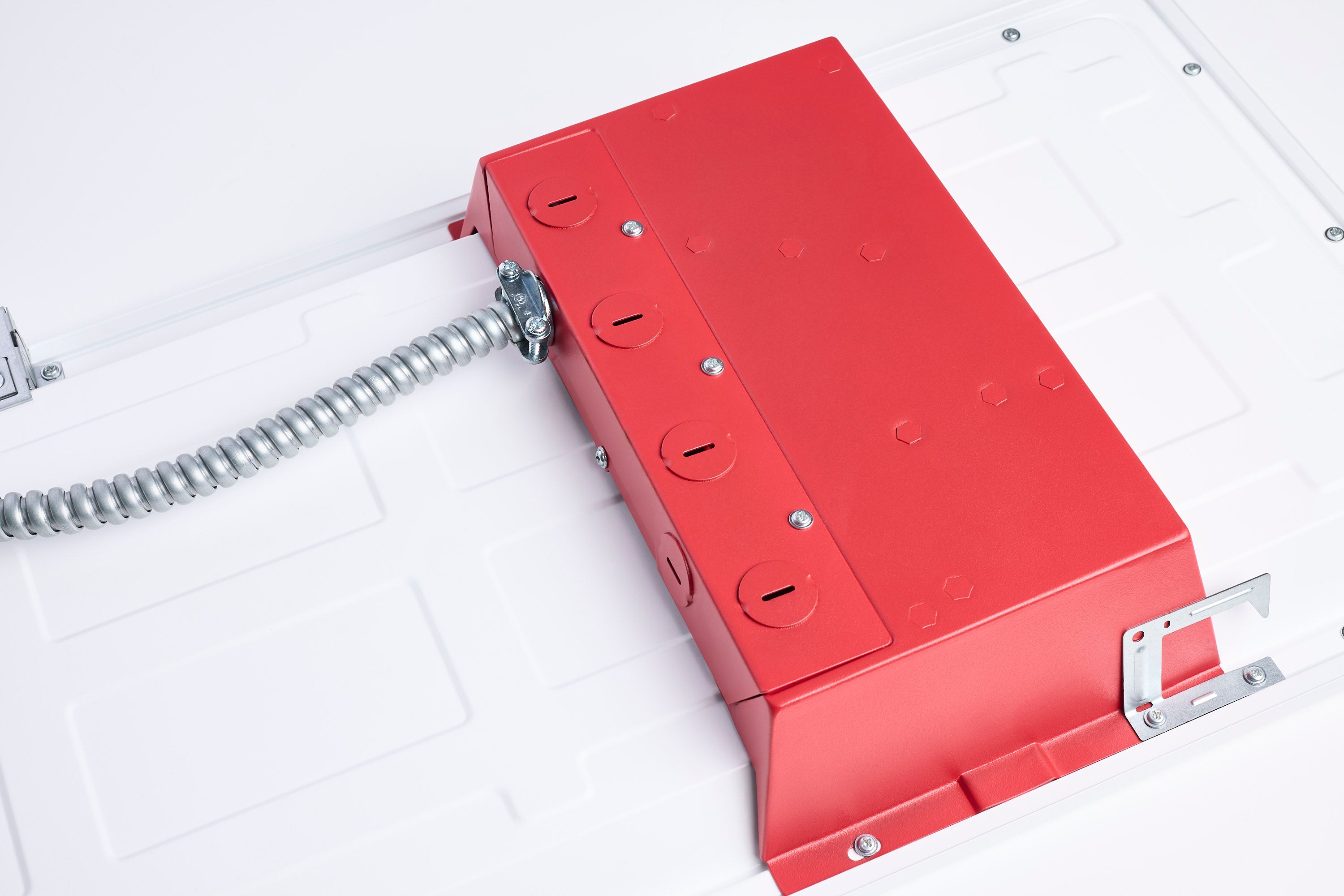

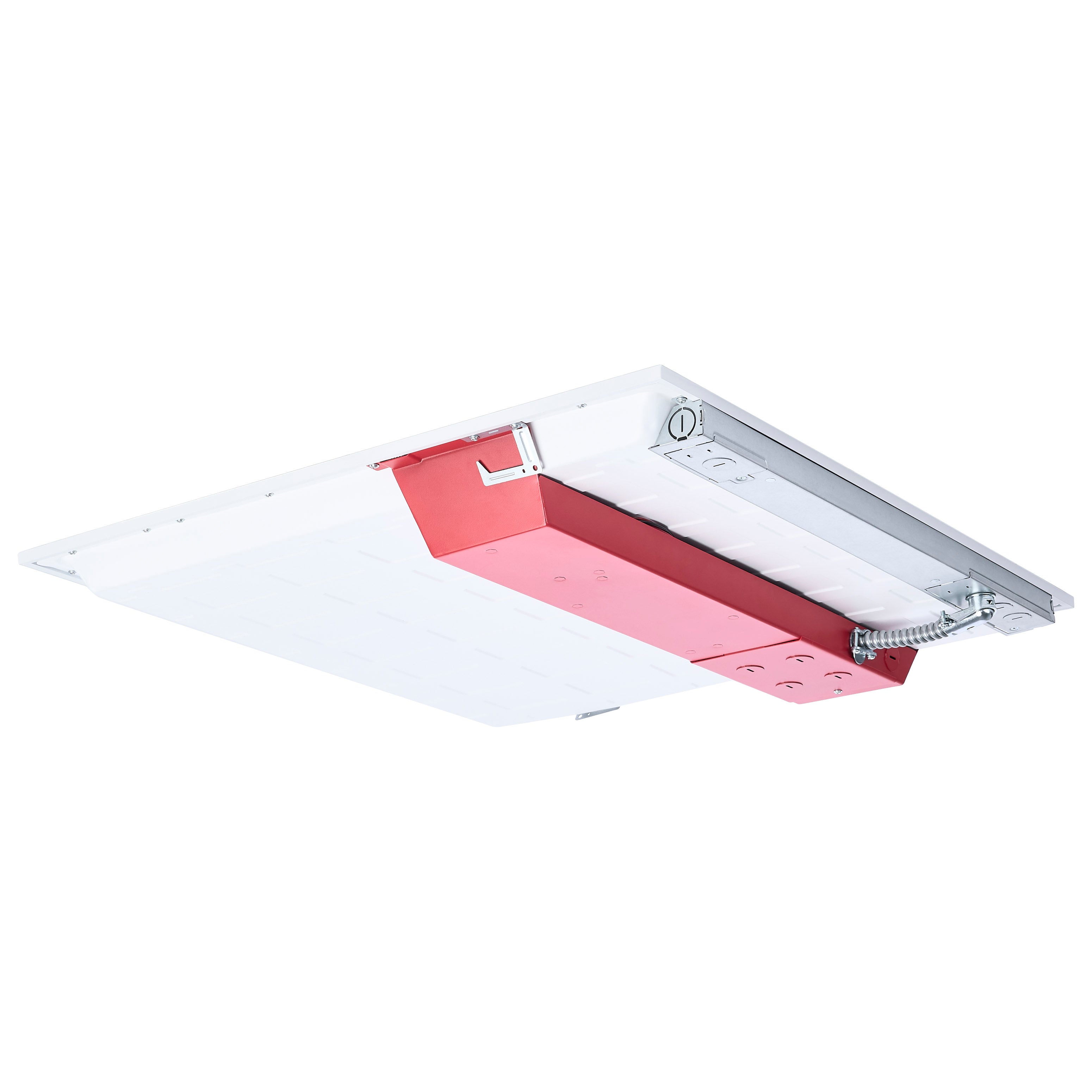

  • Emergency Battery Backup Model
  • 120-277 Voltage
  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-277 Range Voltage - White Finish

Where can this flat panel with 3500K/4000K/5000K specifications deliver useful performance across common lighting applications and replacements?

How should buyers interpret 2500/3750/5000 lumens with the 120-degree beam on this flat panel before installation?

What installation planning matters for this flat panel with ceiling mounting and L:23.74inW:23.74inH:2.60in dimensions before final placement?

Can contractors shop this flat panel online with IP20 details for planned lighting upgrades or installations?
