Specifications :-

Key Specifications

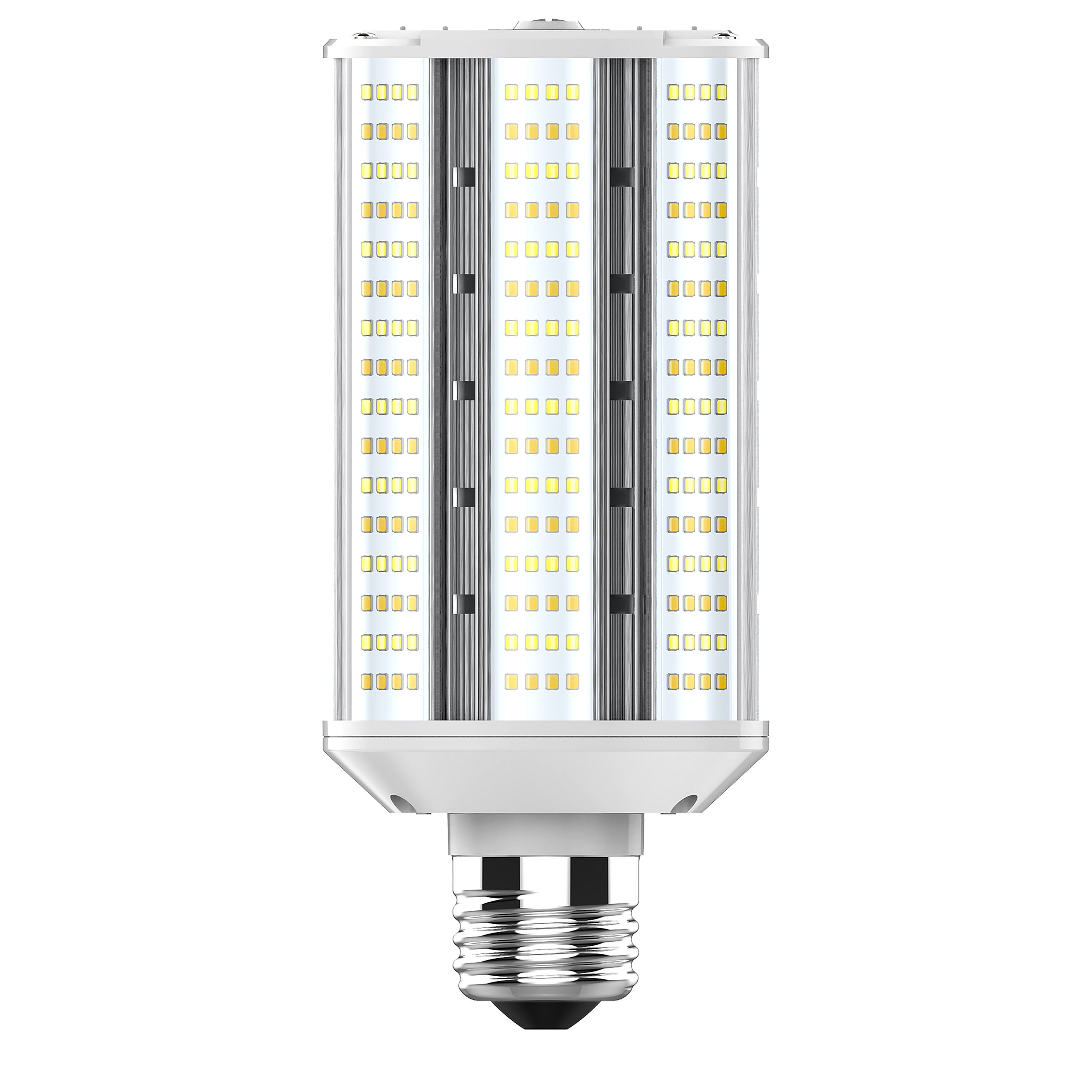

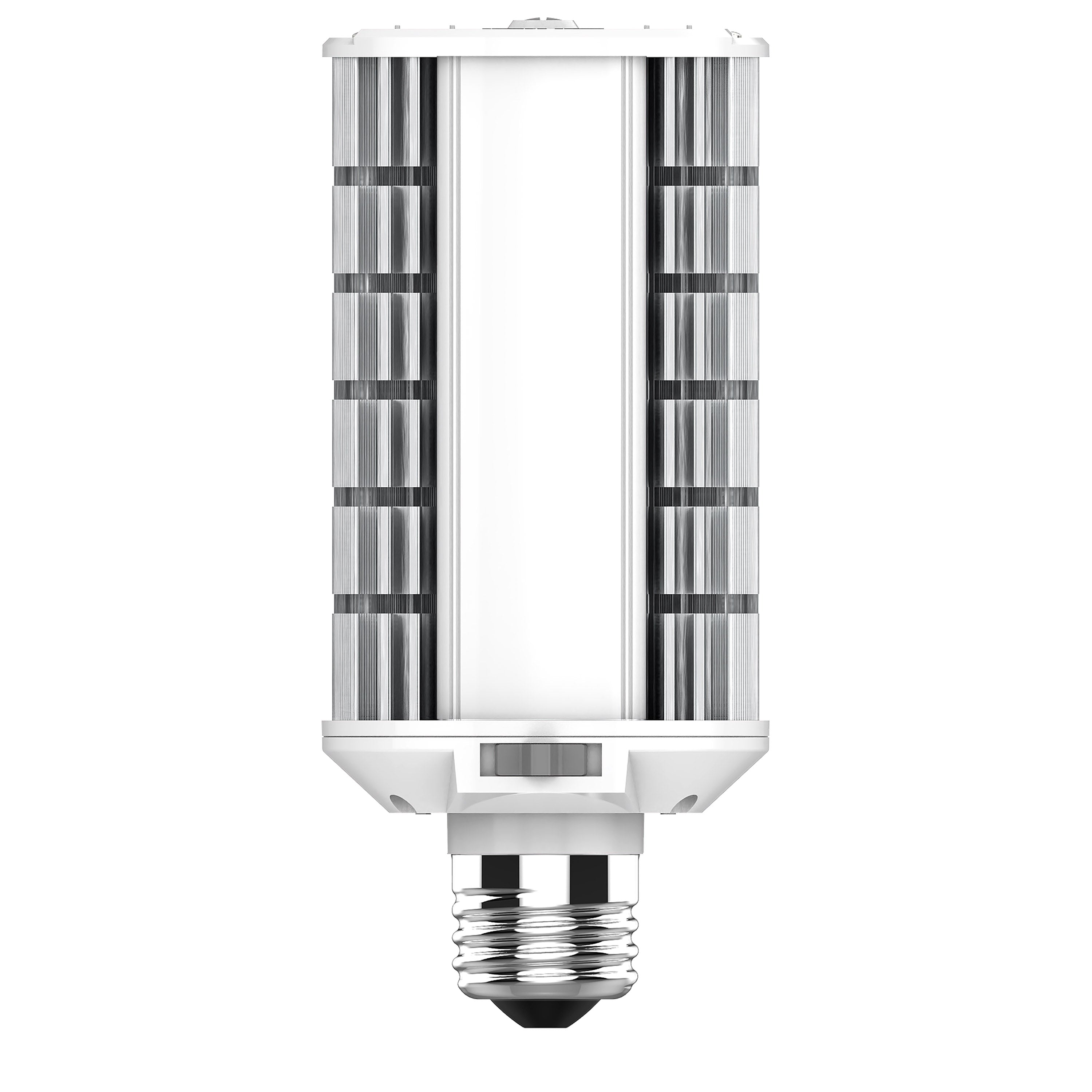

Bulb Shape / Type Corncob
Base Medium
ANSI Base E26
Incandescent Equivalent 100W
Wattage 20W/30W/40W
Lumens 3200L/4700L/6000L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 180
Lamp Type Corncob
HID Equivalent 175W
Wiring / Ballast Type Type B
Operating Position Horizontal

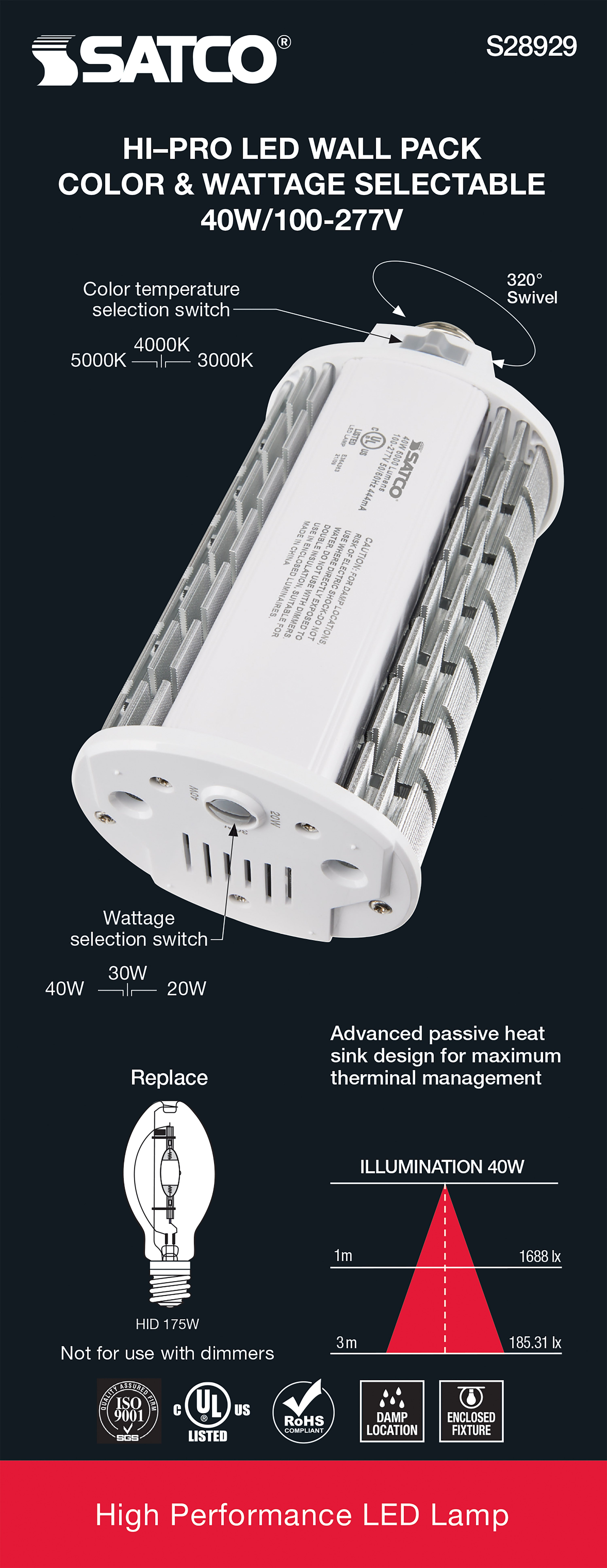

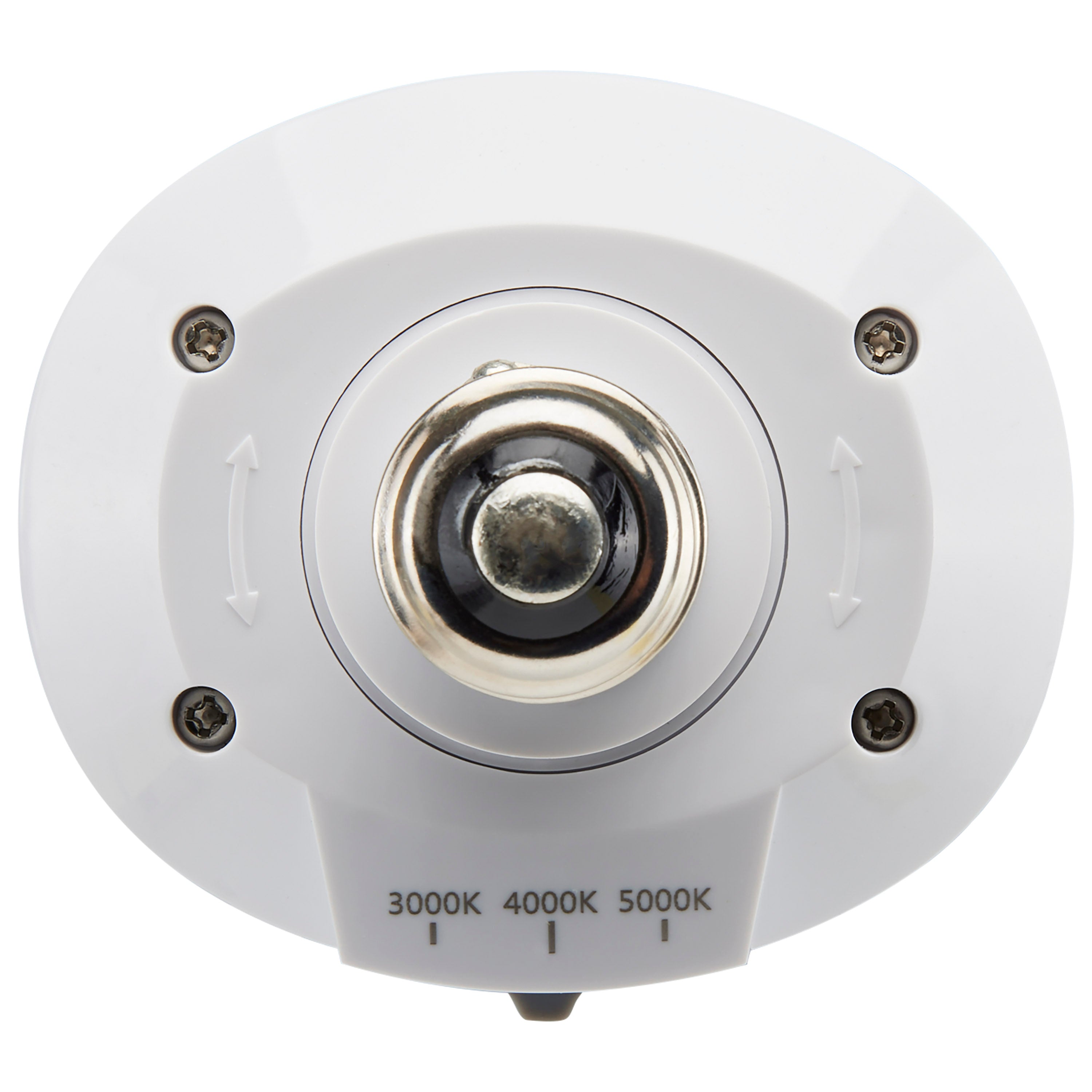

Color Temperature Selectable Yes

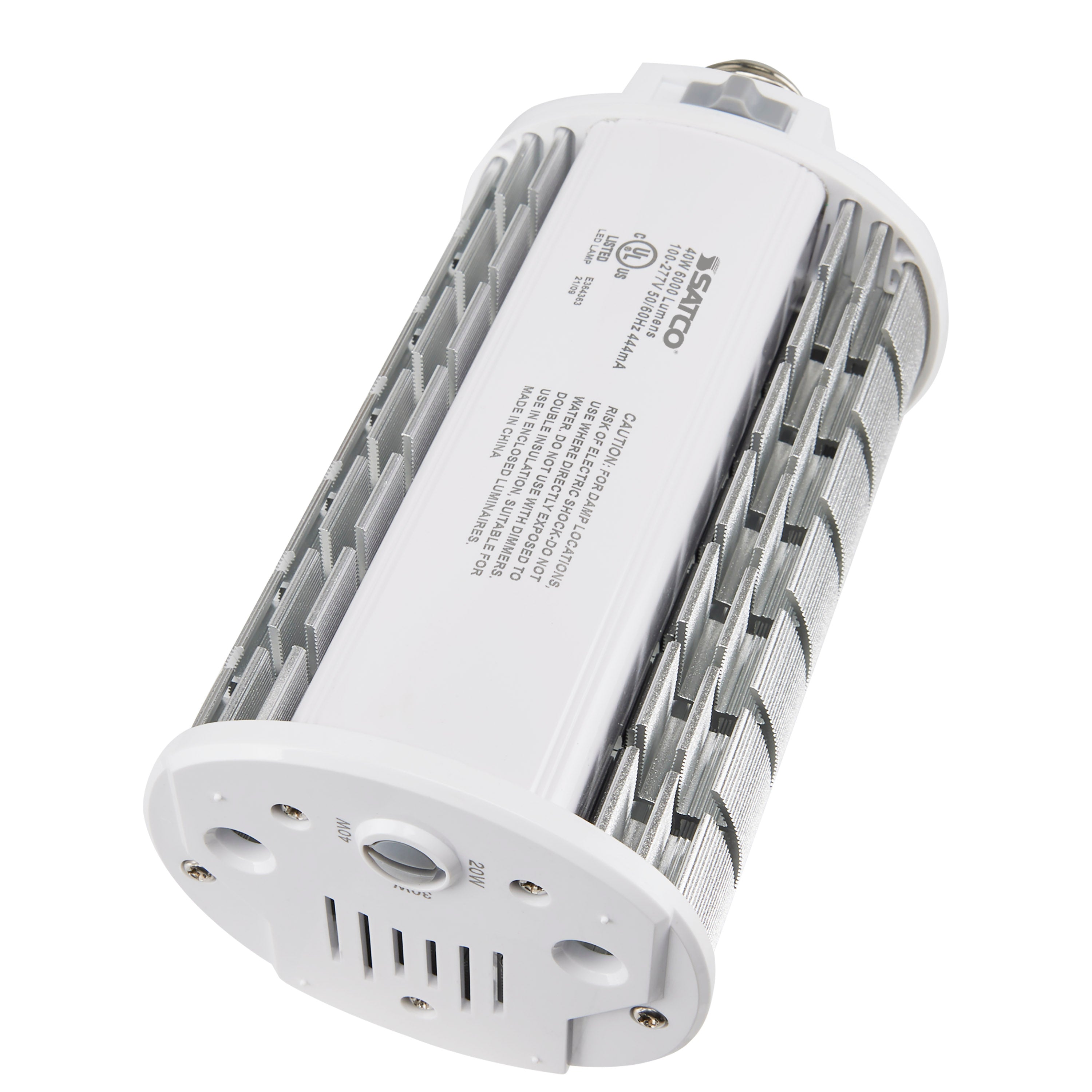

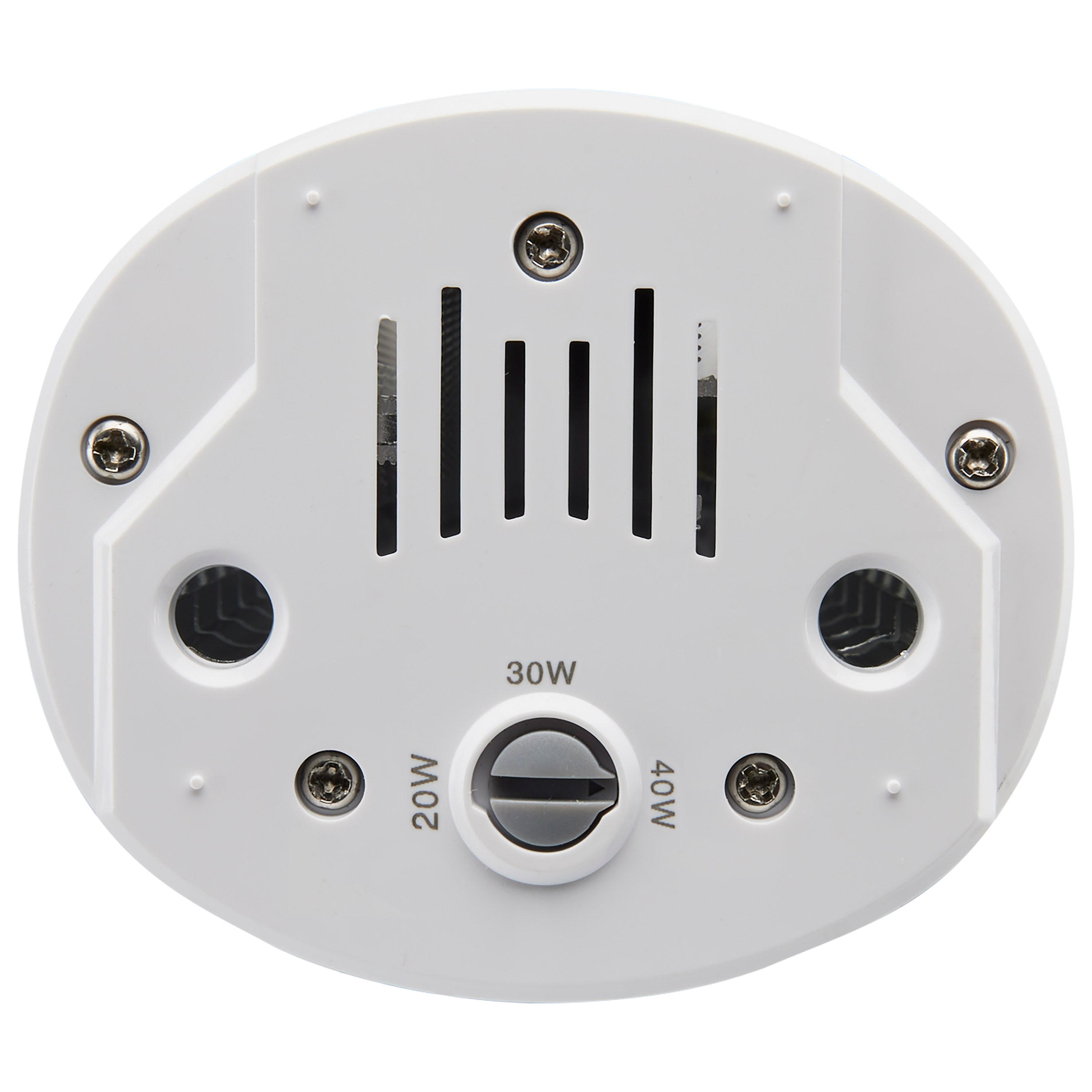

Wattage Selectable Yes
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Filament Type LED
Electrical
Amperage 0.200-0.072/0.300-0.108/0.400-0.144A
Frequency 50-60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 4KV
Driver/Ballast Ballast Bypass
Features / Controls
Enclosed Fixture Rated Yes
Ballast Bypass/Direct Wire Ballast Bypass
Construction / Installation
Material Aluminum / Plastic
Maximum Overall Length 7.8 IN
Maximum Overall Diameter 3.62 IN
Weight 1.65 lbs
Lens / Diffuser Plastic
Environment / Ratings
Application Indoor, Outdoor
Location Rating Damp
Operating Temperature -22F to +113F (-30C to +45C)
Enclosed Fixture Enclosed Rated Lamp
IP Rating IP64
Certifications / Compliance
Safety Listing cULus, cULus - Classified
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

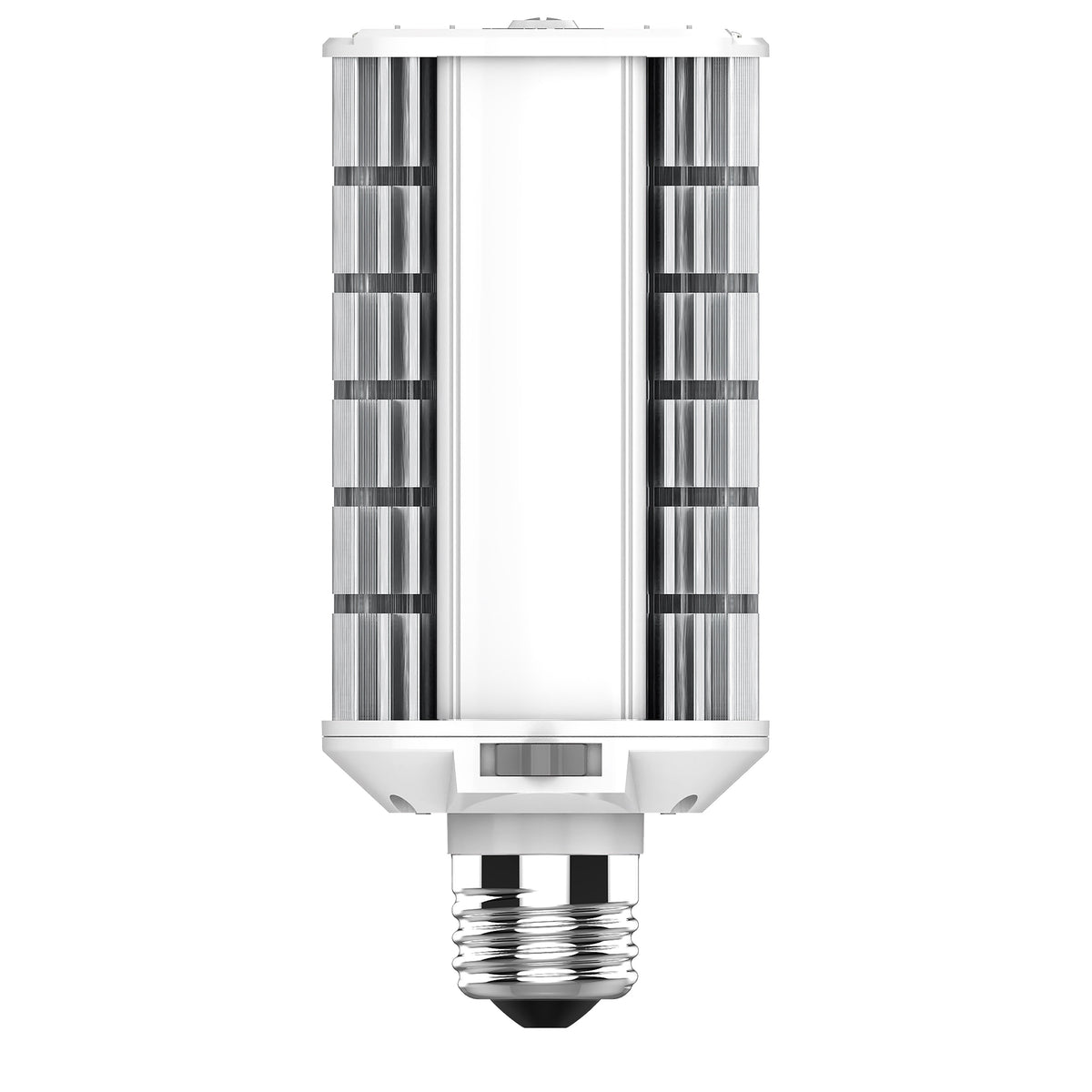

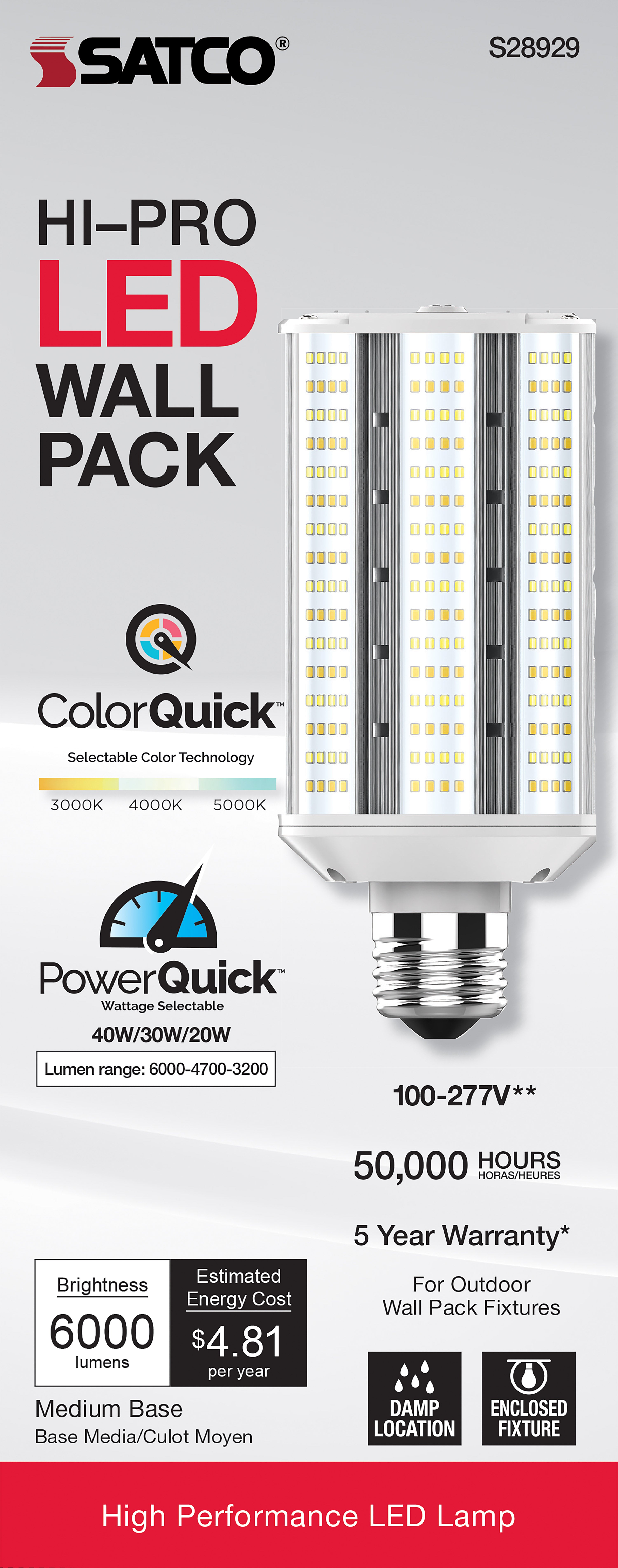

20/30/40 Wattage Selectable - LED Hi-Pro Wall Pack - CCT Selectable 3K/4K/5K - Type B - Ballast Bypass - Medium base - 120-277 Volt - ColorQuick Technology - PowerQuick Technology is a LED HID retrofit lamp intended for commercial and municipal relamping programs focused on updating existing HID fixtures. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting commercial LED retrofit lamp for a specific room, fixture or property application.

Supports retrofit projects that seek a lamp-based upgrade instead of a full fixture replacement. That is especially useful in parking areas, pathways, building exteriors and facility retrofit projects. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED HID retrofit lamp, this option is well suited to projects involving LED corn bulb replacement, LED HID retrofit lamp and other coordinated lighting upgrades.

Helps extend the usefulness of compatible existing fixtures during an LED conversion. In post-top fixtures, area lighting, shoebox fixtures and compatible commercial HID housings, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to shop commercial HID replacement LED bulbs, 20/30/40 Wattage Selectable offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.
