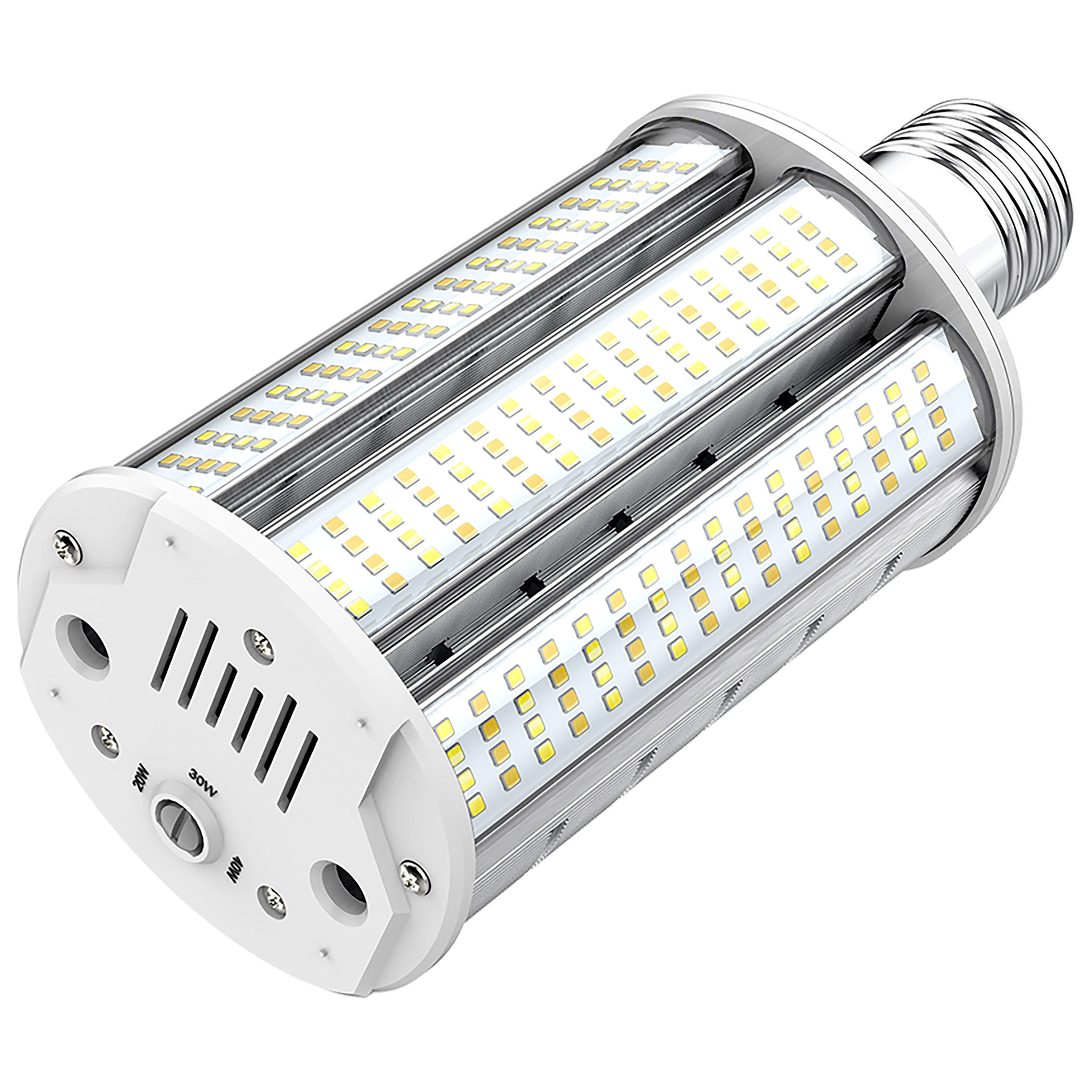

Specifications :-

Key Specifications
Bulb Shape / Type Corncob
Base Mogul Extended
ANSI Base EX39
Incandescent Equivalent 100W
Wattage 20W/30W/40W
Lumens 3200L/4700L/6000L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Voltage 120V-277V
Finish White
Beam Angle 180
Lamp Type Corncob
HID Equivalent 175W
Wiring / Ballast Type Type B
Operating Position Horizontal

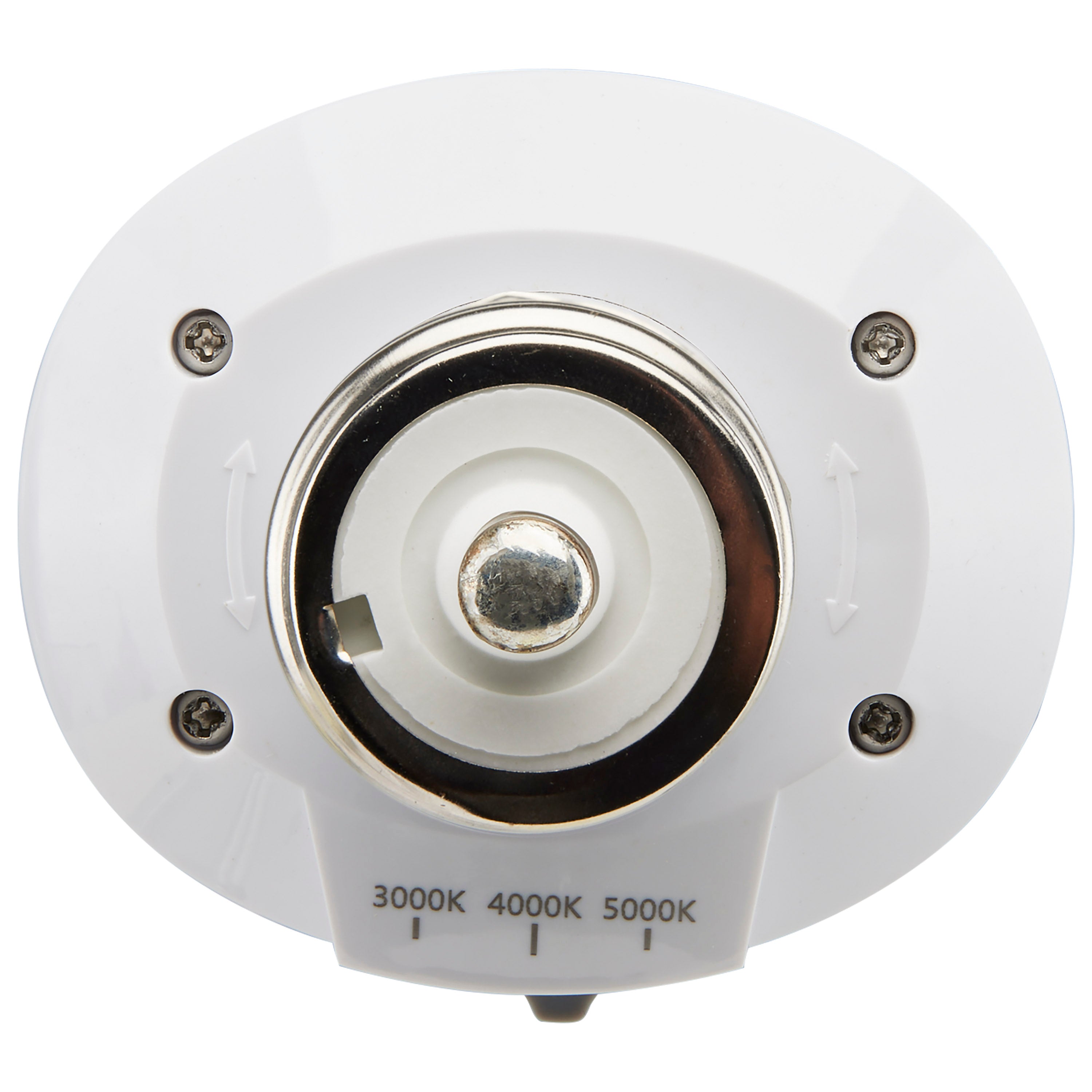

Color Temperature Selectable Yes

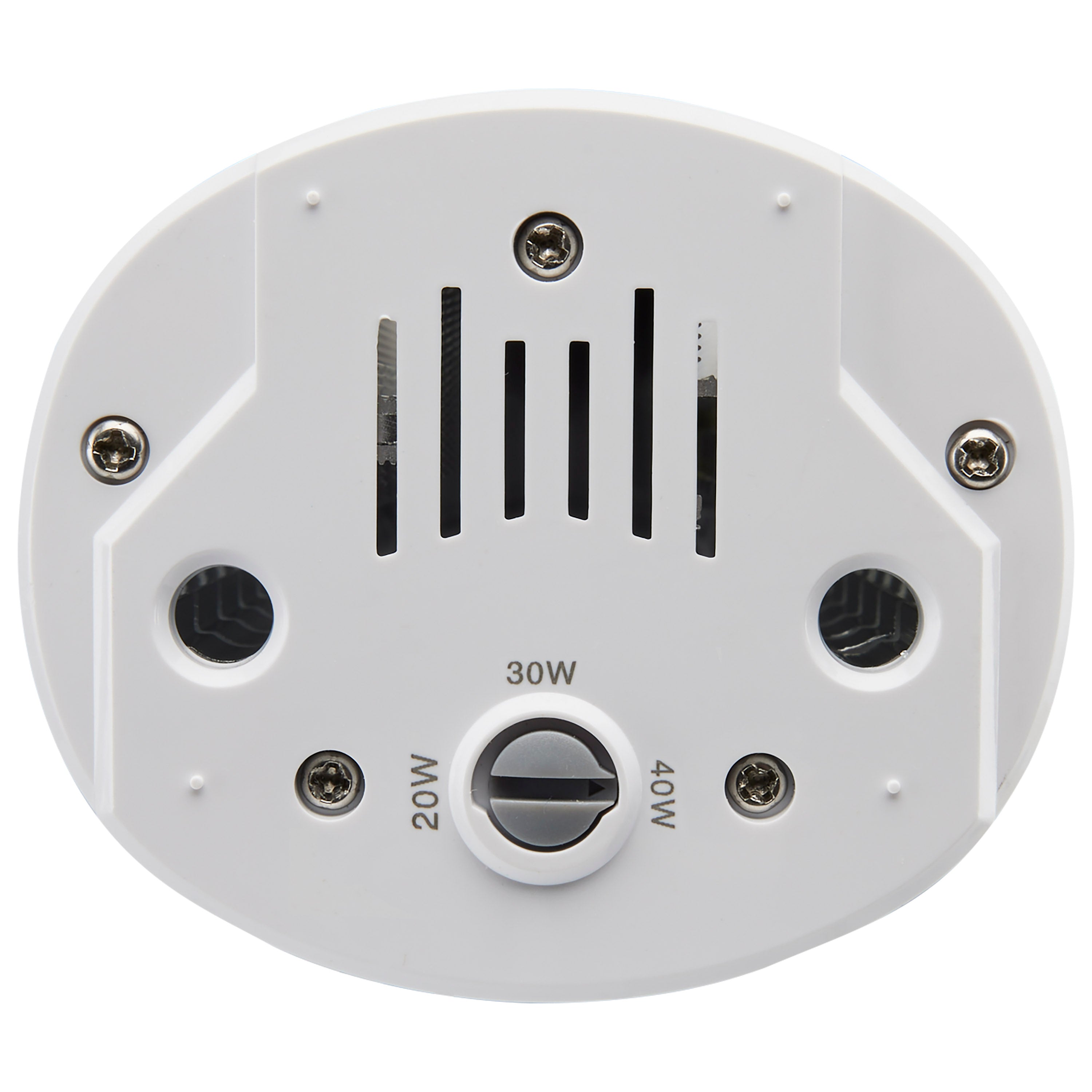

Wattage Selectable Yes
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Filament Type LED
Electrical
Amperage 0.200-0.072/0.300-0.108/0.400-0.144A
Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 4KV
Driver/Ballast Ballast Bypass
Features / Controls
Enclosed Fixture Rated Yes
Ballast Bypass/Direct Wire Ballast Bypass
Construction / Installation
Material Aluminum / Plastic
Maximum Overall Length 8.43 IN
Maximum Overall Diameter 3.62 IN
Weight 1.65 lbs
Lens / Diffuser Plastic
Environment / Ratings
Application Indoor, Outdoor
Location Rating Damp
Operating Temperature -22F to +113F (-30C to +45C)
Enclosed Fixture Enclosed Rated Lamp
IP Rating IP64
Certifications / Compliance
Safety Listing cULus, cULus - Classified
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Choose 20/30/40 Wattage Selectable - LED Hi-Pro Wall Pack - CCT Selectable 3K/4K/5K - Type B - Ballast Bypass - Extended Mogul base - 120-277 Volt - ColorQuick Technology - PowerQuick Technology when your project calls for a LED HID retrofit lamp suited to parking areas, pathways, building exteriors and facility retrofit projects. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED HID retrofit lamp that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports retrofit projects that seek a lamp-based upgrade instead of a full fixture replacement. It is well suited to post-top fixtures, area lighting, shoebox fixtures and compatible commercial HID housings, where lighting needs to support the space rather than distract from it. This makes the product a practical commercial LED retrofit lamp choice for customers also considering post top LED retrofit as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Helps extend the usefulness of compatible existing fixtures during an LED conversion. For commercial and municipal relamping programs focused on updating existing HID fixtures, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

If you are ready to order LED retrofit lamps for facility projects, 20/30/40 Wattage Selectable offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the 20/30/40 Wattage Selectable - LED Hi-Pro Wall Pack - CCT Selectable 3K/4K/5K - Type B - Ballast Bypass - Extended Mogul base - 120-277 Volt - ColorQuick Technology - PowerQuick Technology

What installation settings make this wall pack with 3200/4700/6000-lumen/120V-277V/white finish details for replacement or new lighting projects?

What should installers verify about 120V-277V input and EX39 base before using this wall pack correctly?

What does the damp rating with IP64 protection mean when placing this wall pack in suitable environments?

Where should customers order this wall pack featuring 3000K/4000K/5000K specifications for renovation, replacement, or new lighting projects?
