Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 20W/40W/60W
Lumens 3056L-8421L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish Bronze
Beam Angle 108
HID Equivalent 250W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B2-U0-G2
Fixture Type Wall Pack
Photocell Yes - Bypassable
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
Sensor Capability PIR
Motion / Occupancy Sensor PIR
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Opaque

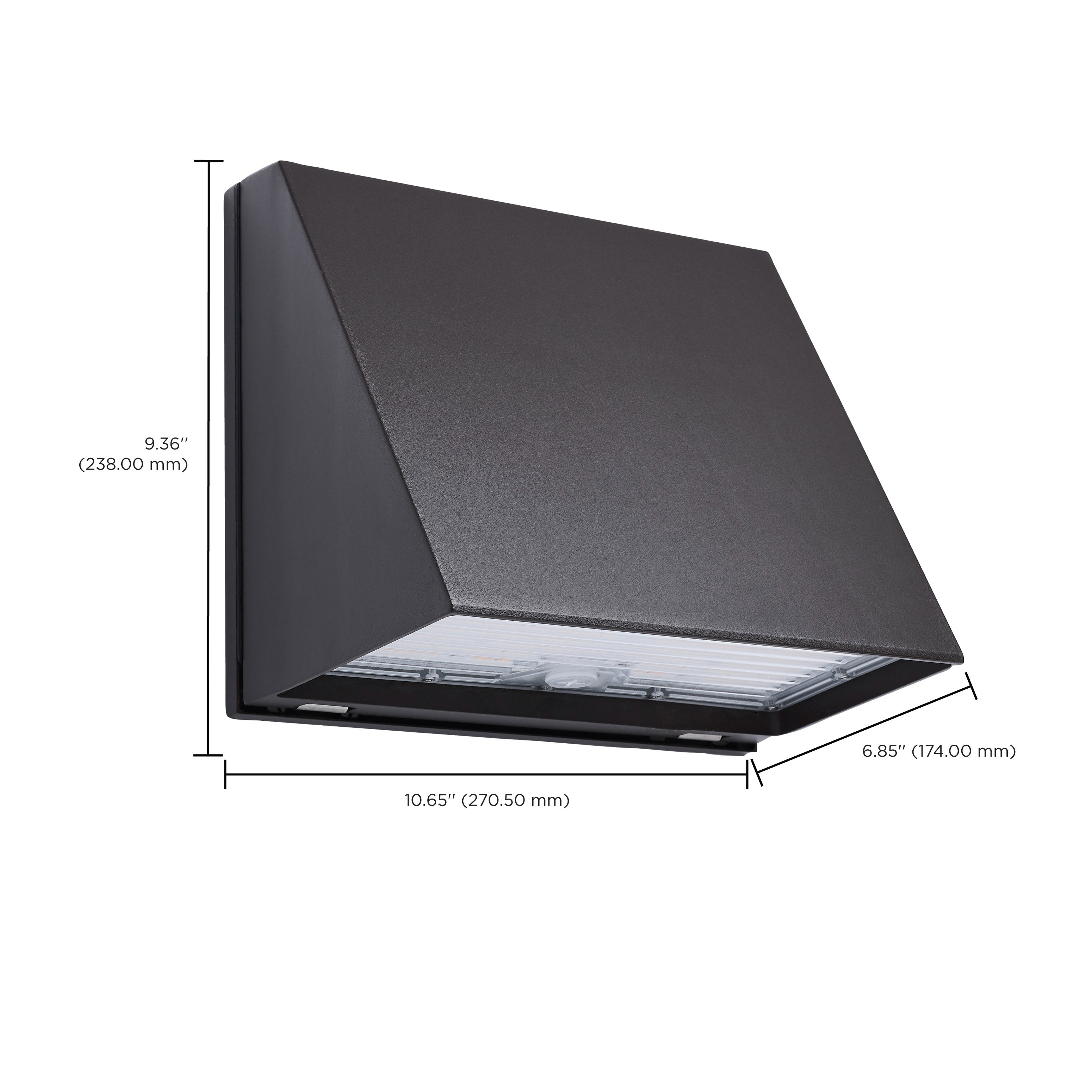

Width 10.65 IN
Height 9.36 IN
Weight 7.94 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +122F (-40C to +50C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 20/40/60 Watt LED Cutoff Wall Pack - 3K/4K/5K CCT - Field Selectable - Bronze - 120-347 Volt when your project calls for a LED wall pack suited to warehouses, retail buildings and other properties needing wall-mounted exterior lighting. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED wall pack that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Helps organize exterior lighting without requiring pole-mounted fixtures in every location. That is especially useful in replacement and new-installation projects where wall-mounted site lighting is preferred. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED wall pack, this option is well suited to projects involving commercial wall pack light, perimeter lighting fixture and other coordinated lighting upgrades.

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. This is particularly helpful for building perimeters, loading areas, walkways, parking areas and commercial entrances. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to order wall pack lighting for building projects, 20/40/60 Watt LED Cutoff Wall Pack is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

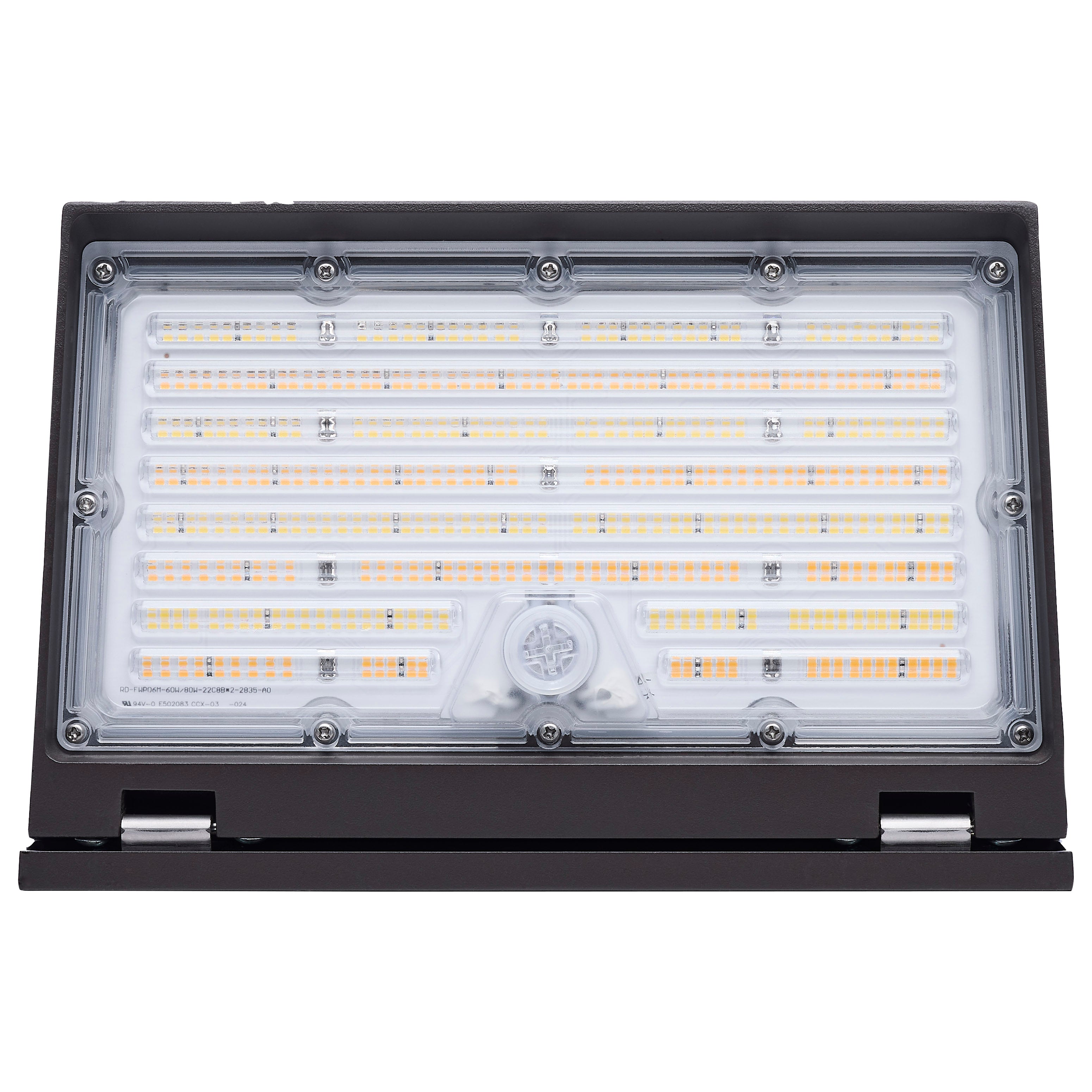

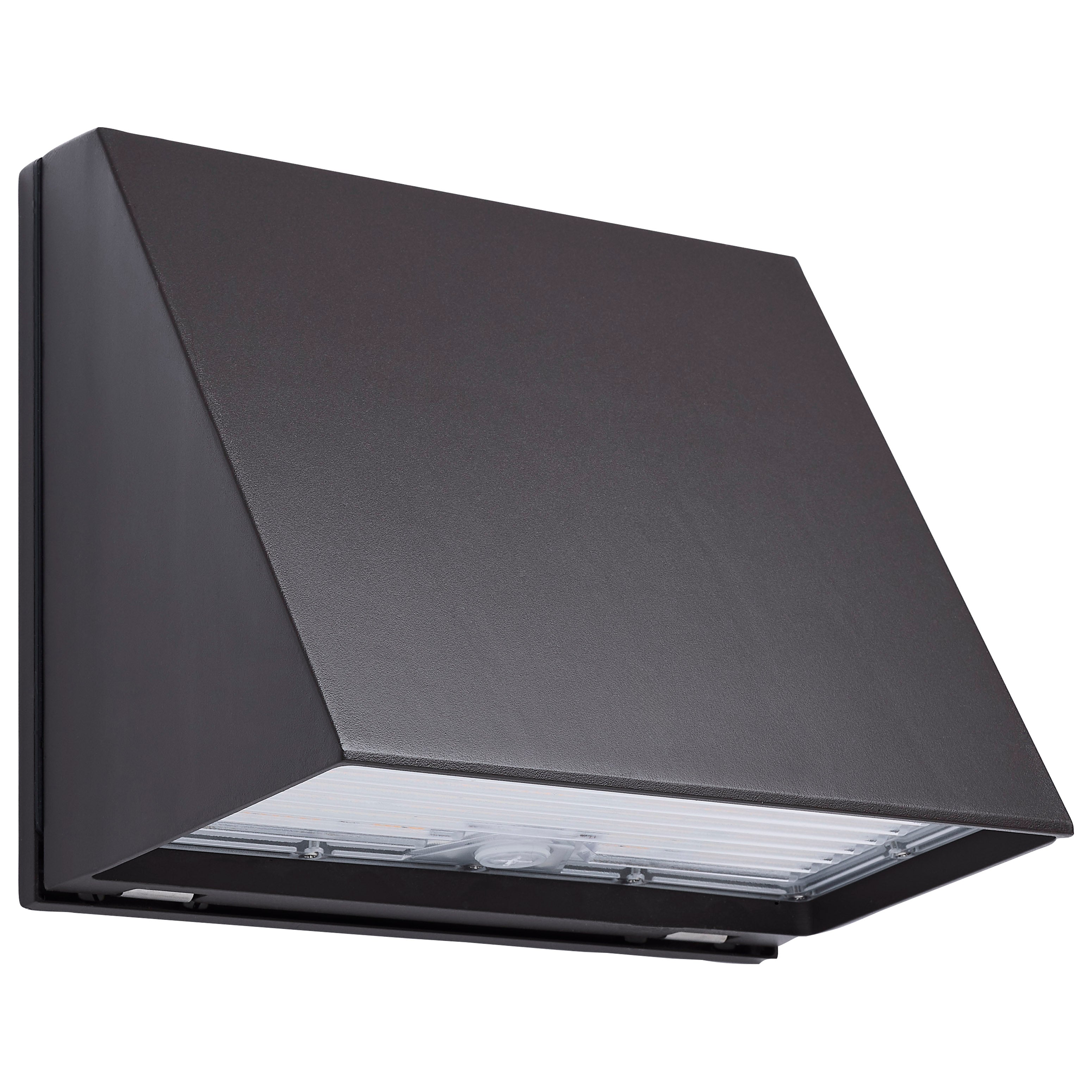

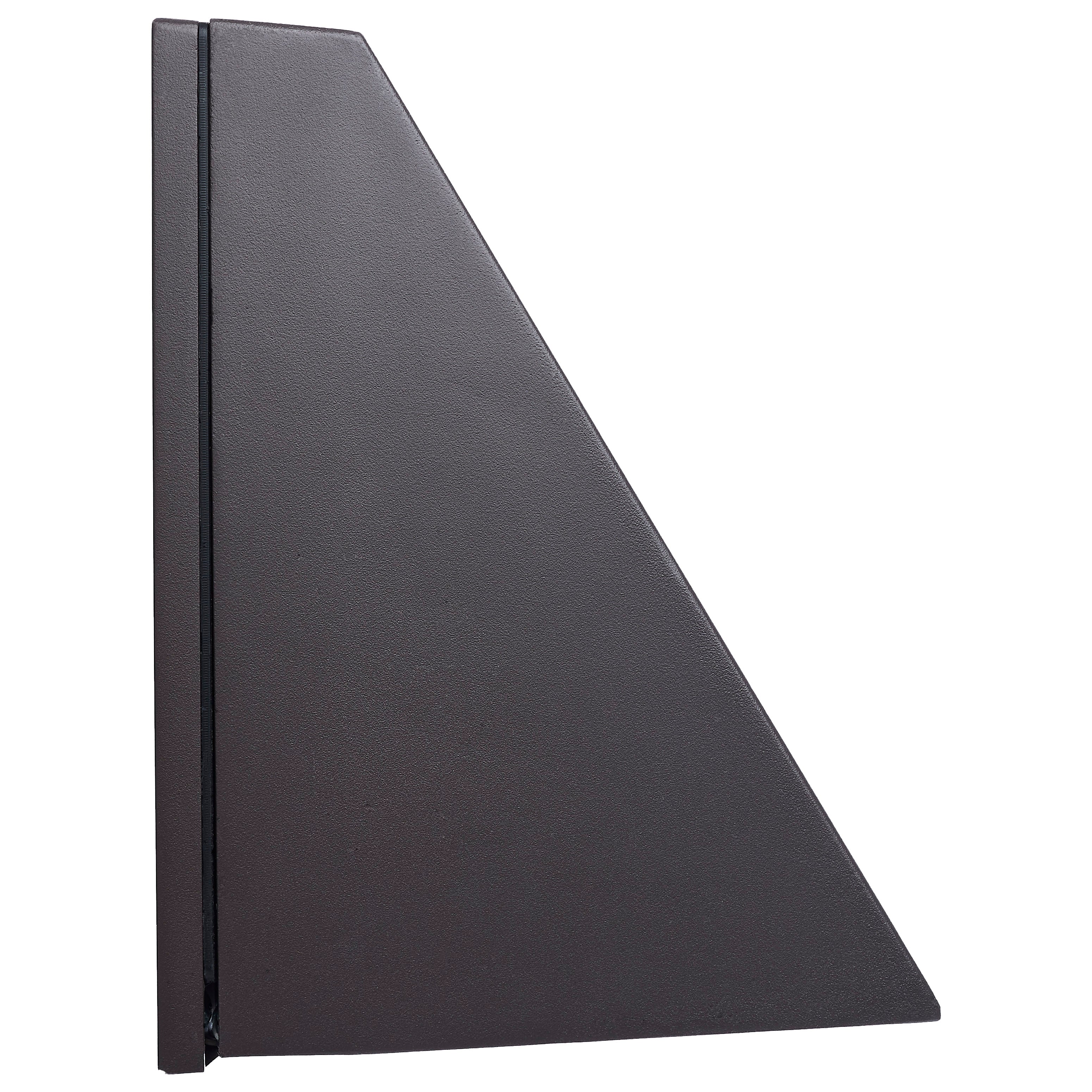

Illuminate outdoor spaces with SATCO NUVO's 65-555 architecturally styLED LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 20W, 40W, and 60W, delivering a maximum output of 8,421 lumens-equivalent to a 250W traditional source. A by-passable photocell and built-in sensor port provide added control, with optional sensors (sold separately) for customizable detection. The durable bronze die-cast aluminum housing complements building exteriors, while field-selectable CCT offers additional flexibility. Designed for longevity, it is wet-location rated, IP65 rated, and lasts 50,000 hours. Backed by DLC Premium certification and a 5-year warranty, this wall pack delivers reliable, adaptable illumination.

Features :-

  • Full Cutoff with Zero Uplight
  • B2-U0-G2 Rating
  • CCT and Wattage Selectable

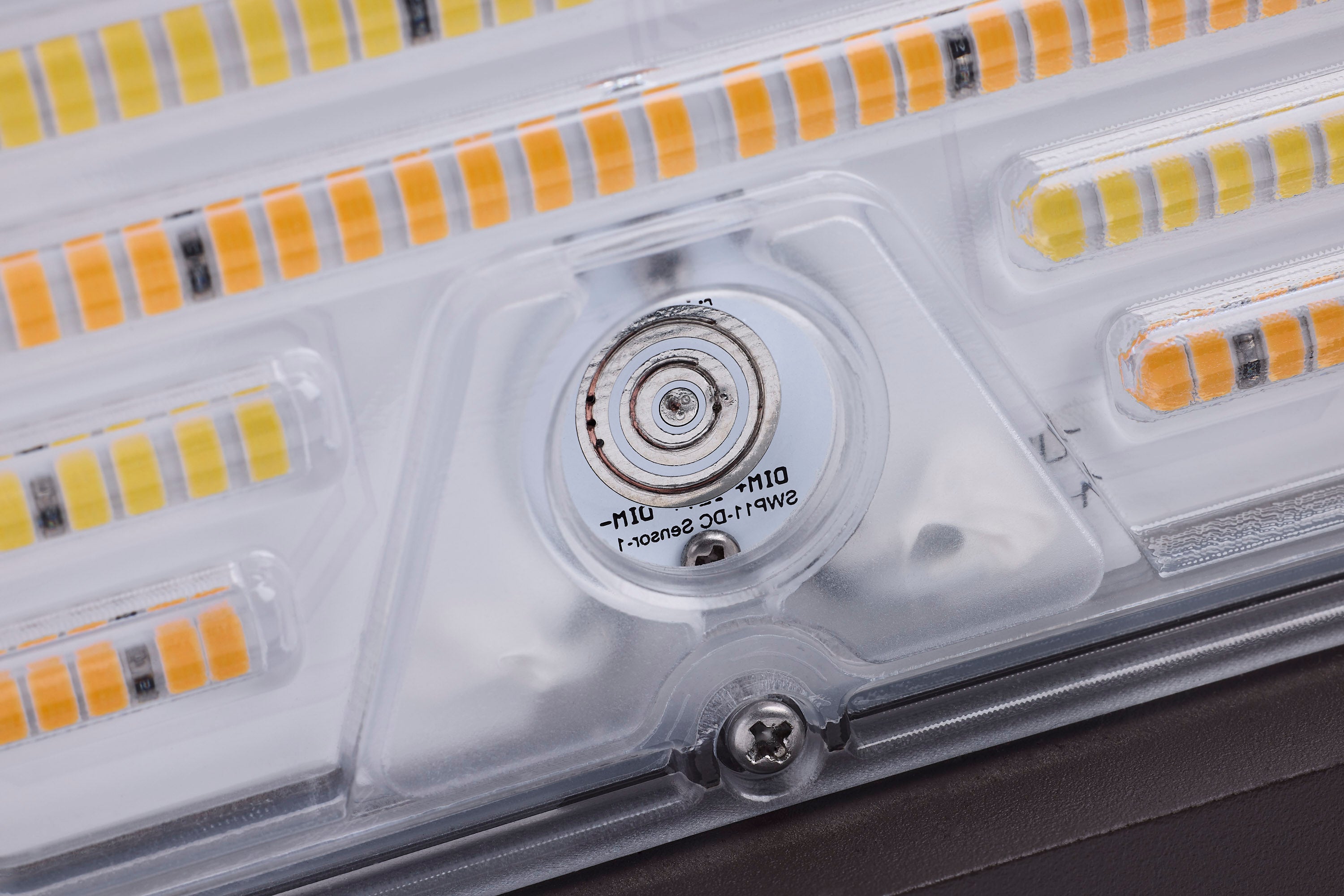

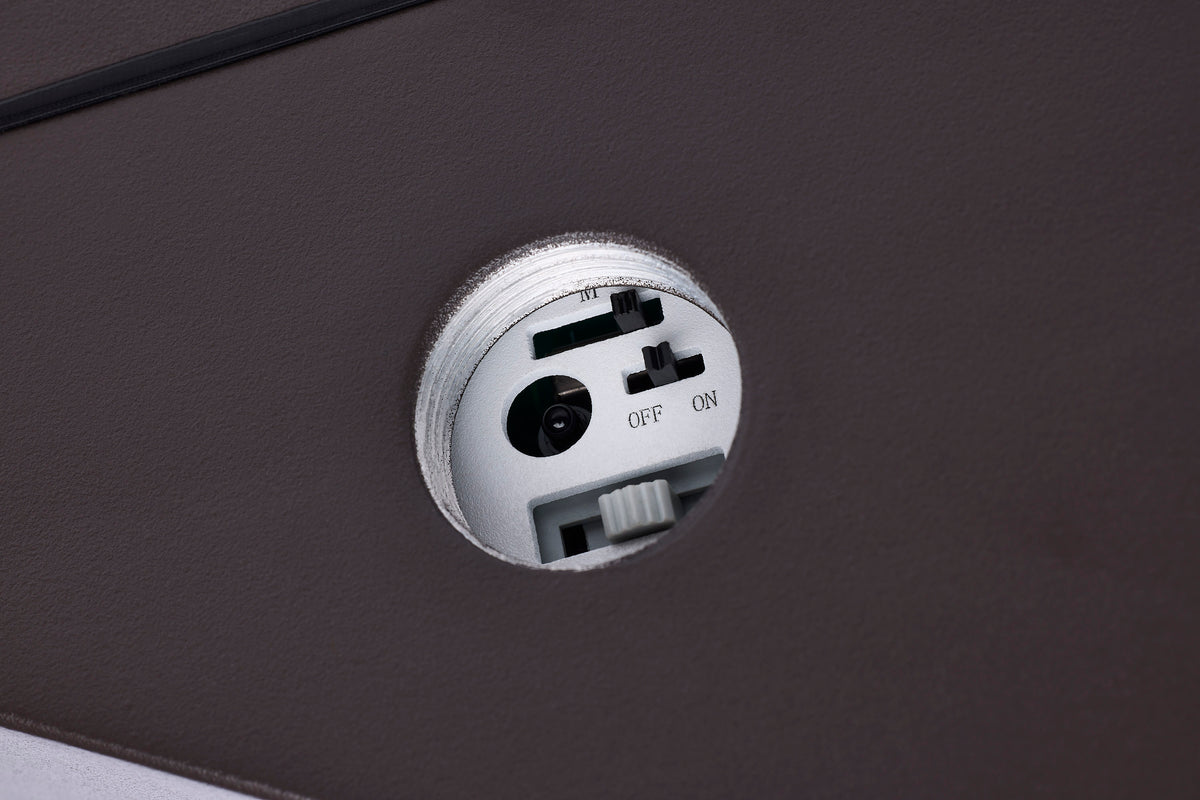

  • Integrated Sensor Port

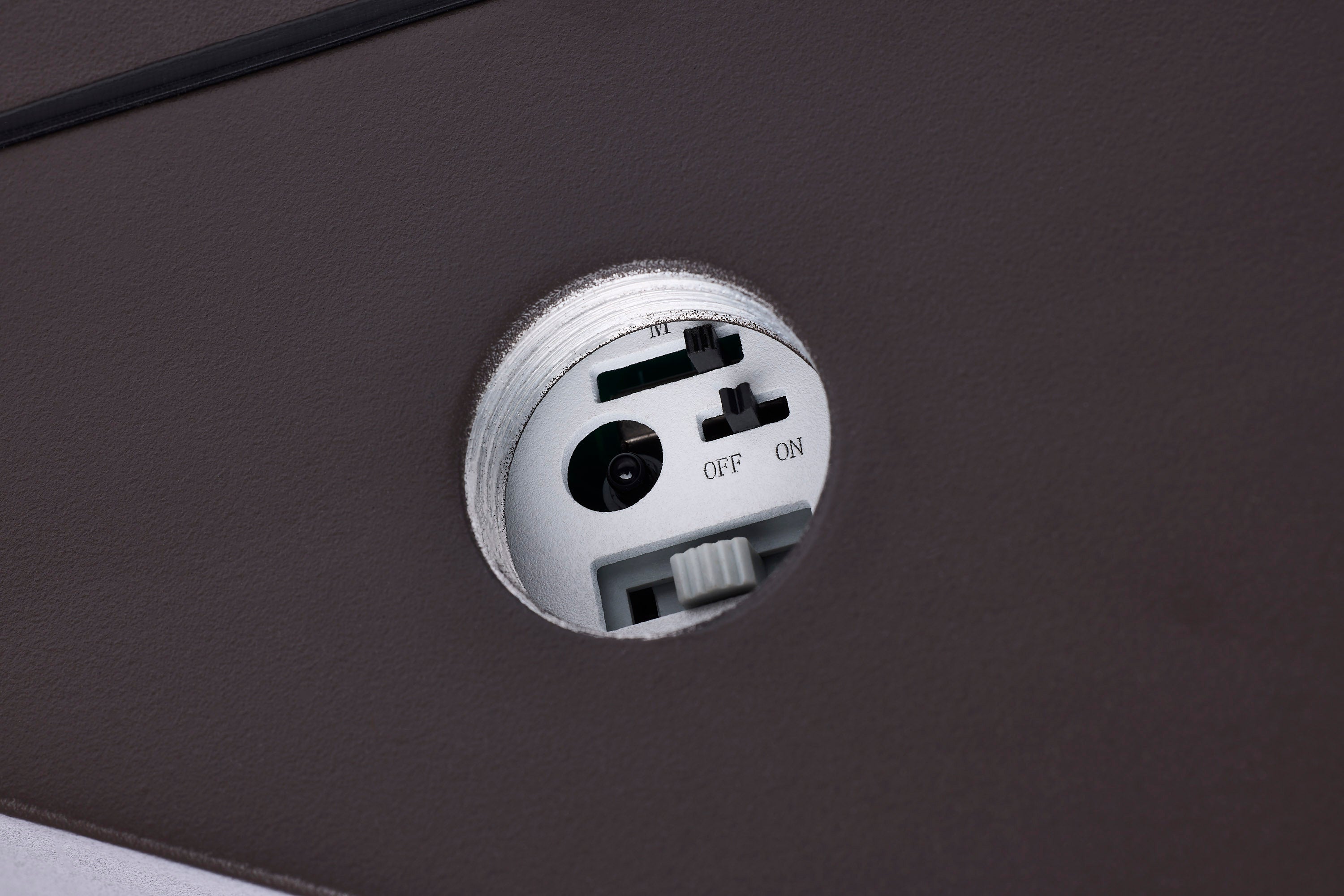

  • Integrated By-passable Photocell
  • Range Voltage 120-347V
  • IP65 Rated
  • Bronze Die-Cast Aluminum Housing
  • 50,000 Hour Functional Life
  • 5 Year Warranty
