Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 20W
Lumens 1500L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish White
Beam Angle 105
Shape Rectangle
Color Temperature Selectable Yes
Fixture Type Under Cabinet
Length 34 IN
Mounting Type Under Cabinet: Screws
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Features / Controls
Triac/Elv/Mlv Forward Phase or Reverse Phase or Phase Selectable
Construction / Installation
Material Aluminum
Finish/Lens Frosted White
Width 3.5 IN
Height 1 IN
Weight 1.88 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

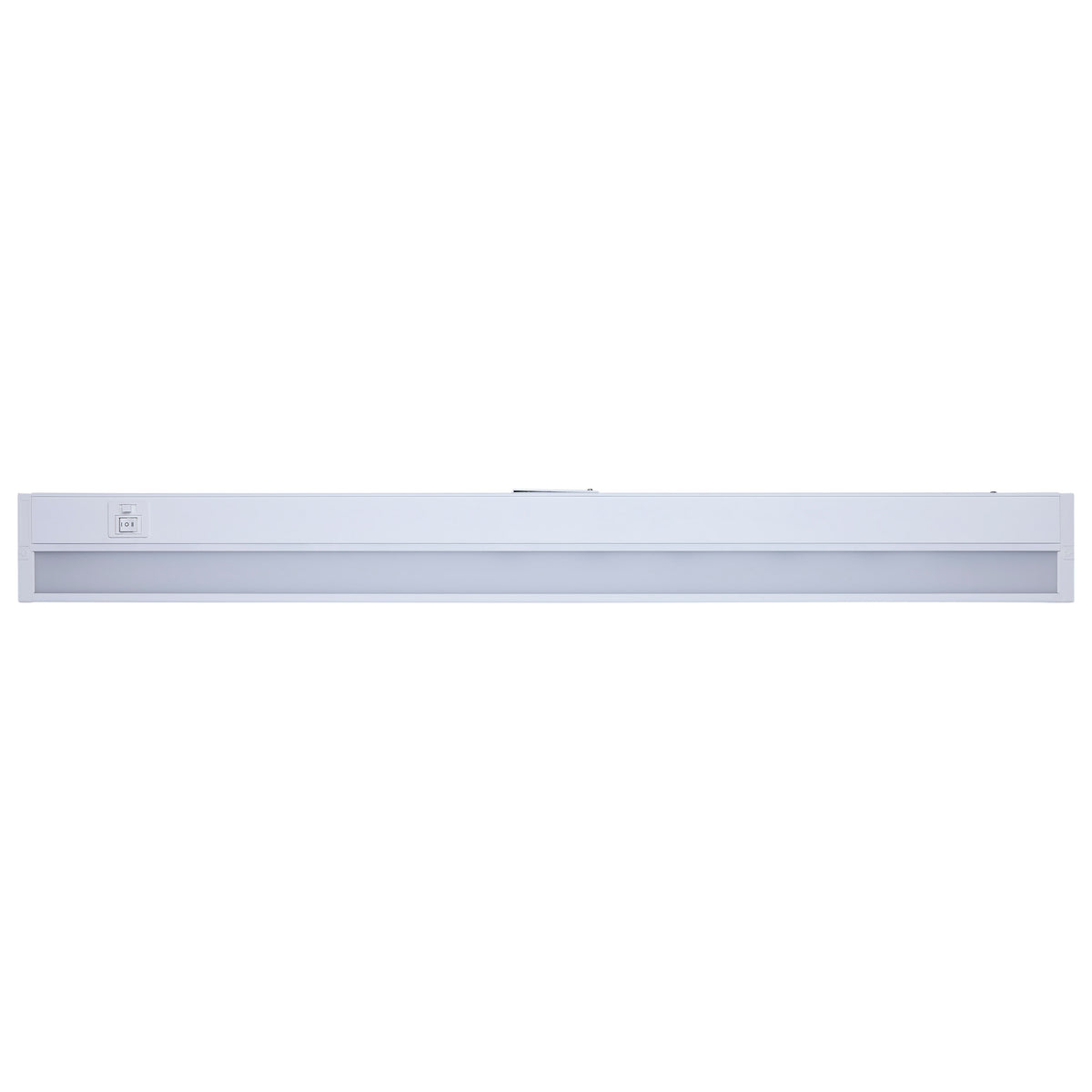

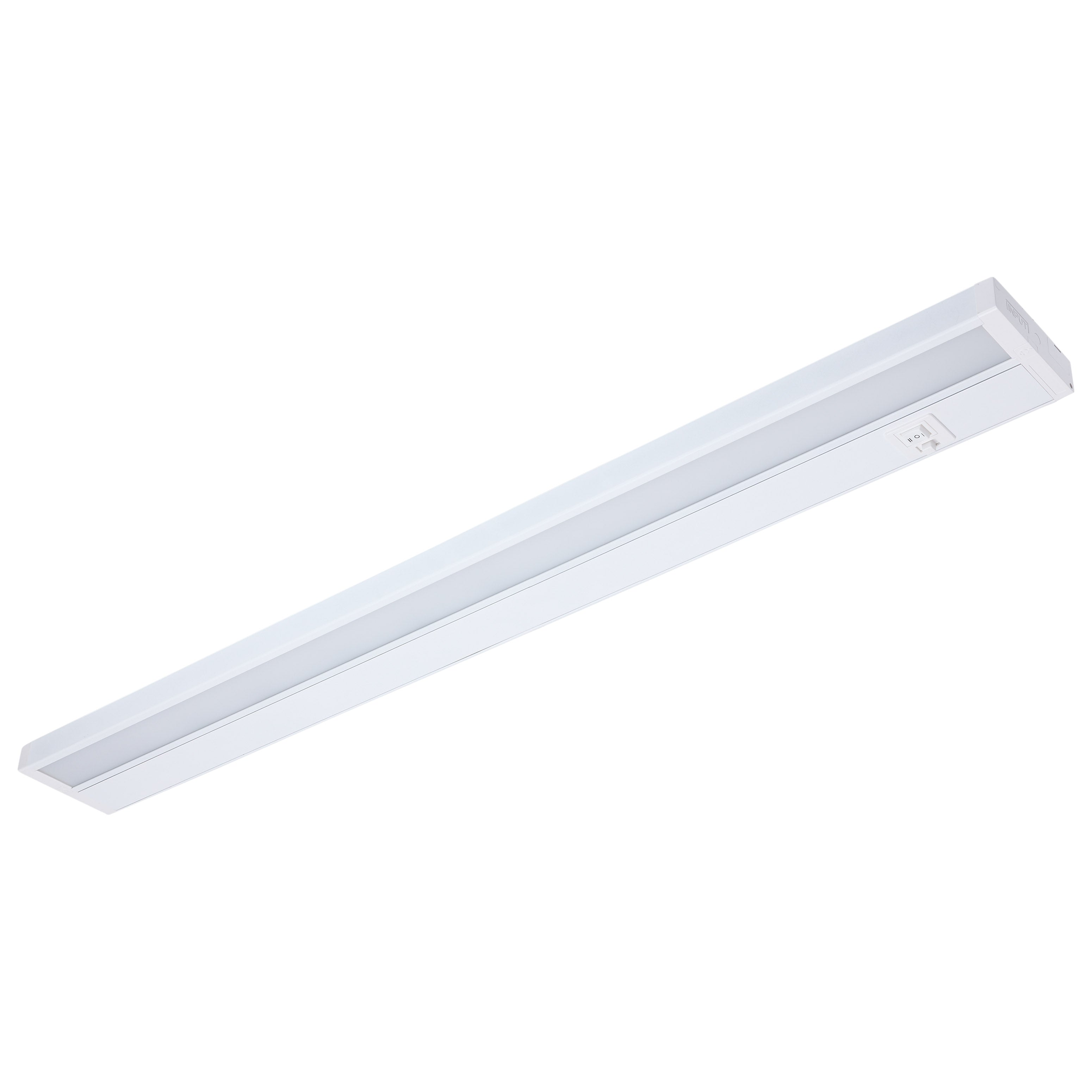

20 Watt - 34 Inch LED White Under Cabinet Light - 3K/4K/5K CCT Selectable - White Finish is an under cabinet light intended for renovation projects where an additional lighting layer is needed beneath cabinets or shelves. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting kitchen cabinet lighting for a specific room, fixture or property application.

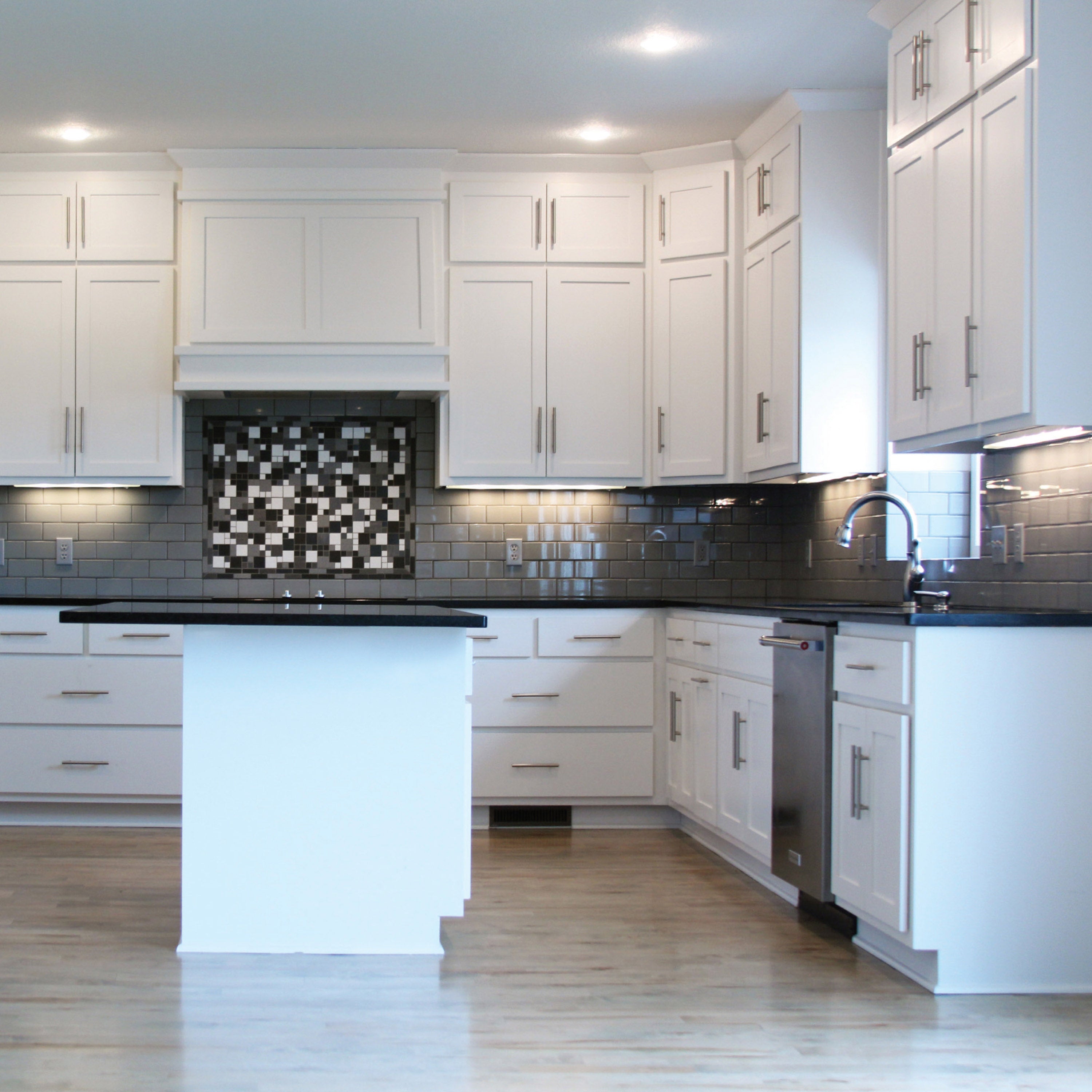

Works well for homeowners, designers and installers looking to improve visibility across counters and cabinets. That is especially useful in residential, retail and light-commercial interiors. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As an under cabinet light, this option is well suited to projects involving counter lighting, task lighting fixture and other coordinated lighting upgrades.

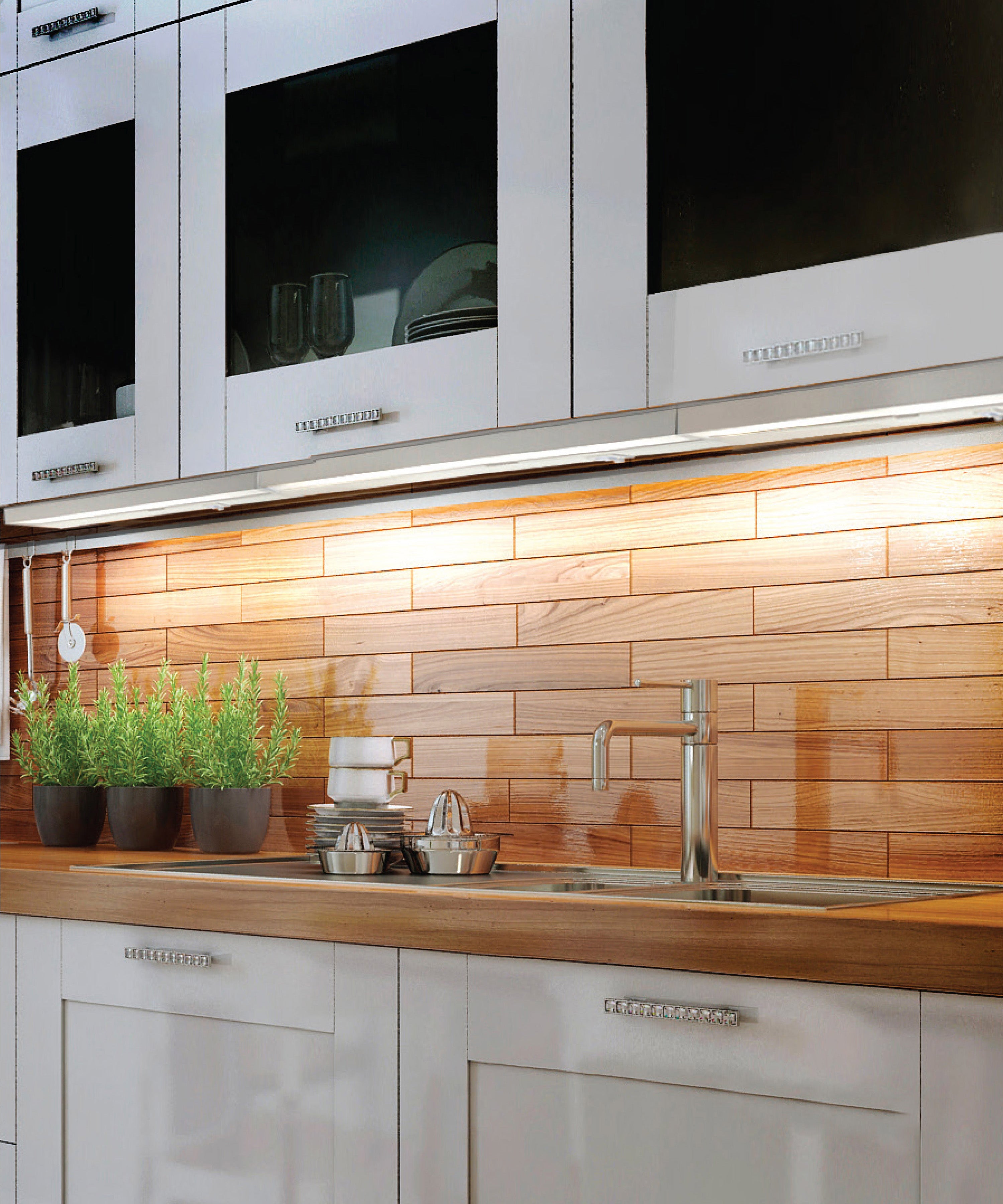

Brings useful task lighting closer to work surfaces without relying only on ceiling fixtures. For kitchens, work counters, shelving, display areas and other spaces that benefit from close-range task lighting, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to order under cabinet lighting for renovation projects, 20 Watt - 34 Inch LED White Under Cabinet Light - 3K/4K/5K CCT Selectable - White Finish is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

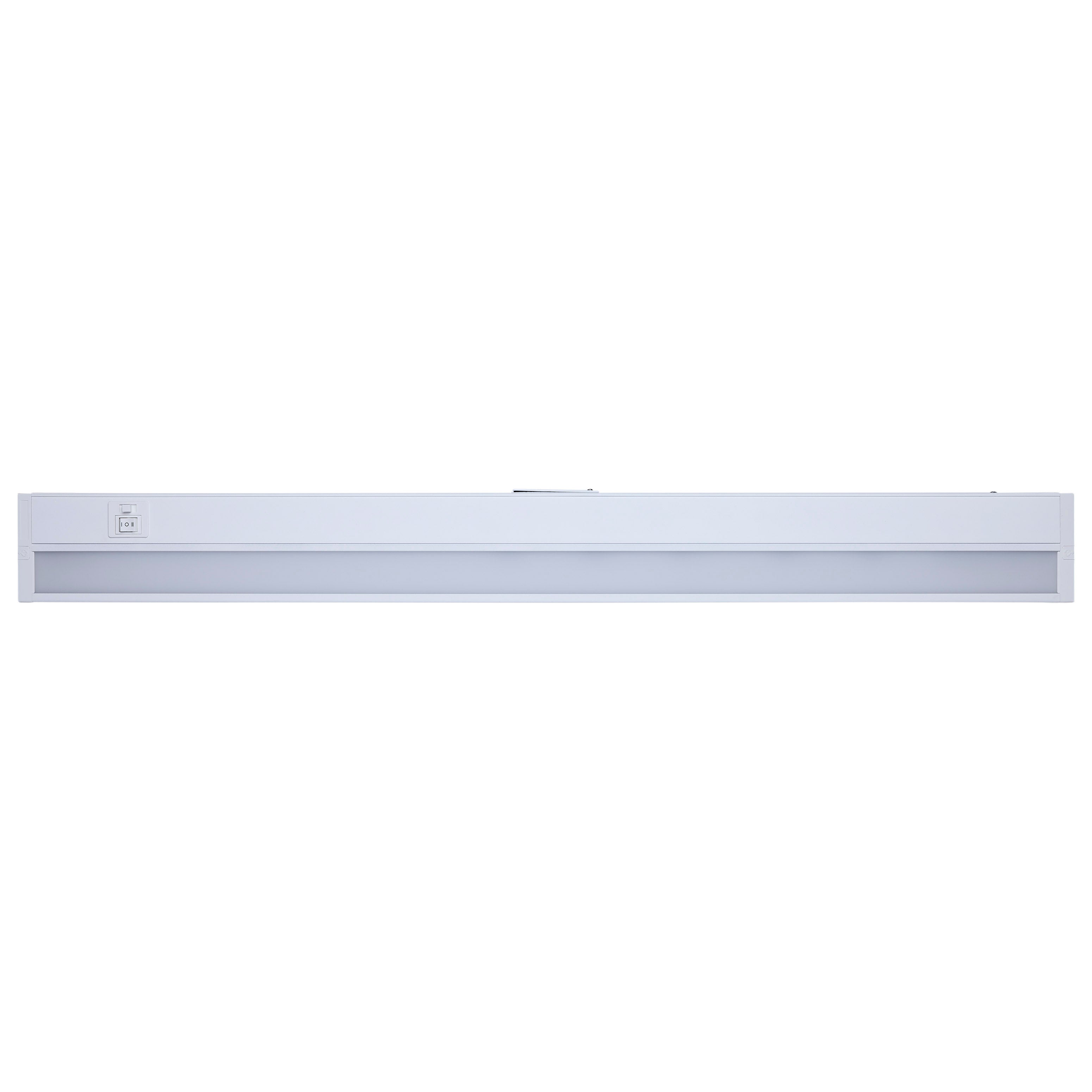

No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-505 34 inch White Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, maintenance-free life. Plus, selectable CCT at the switch. It's that QUICK. It's that easy.

Features :-

  • Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors

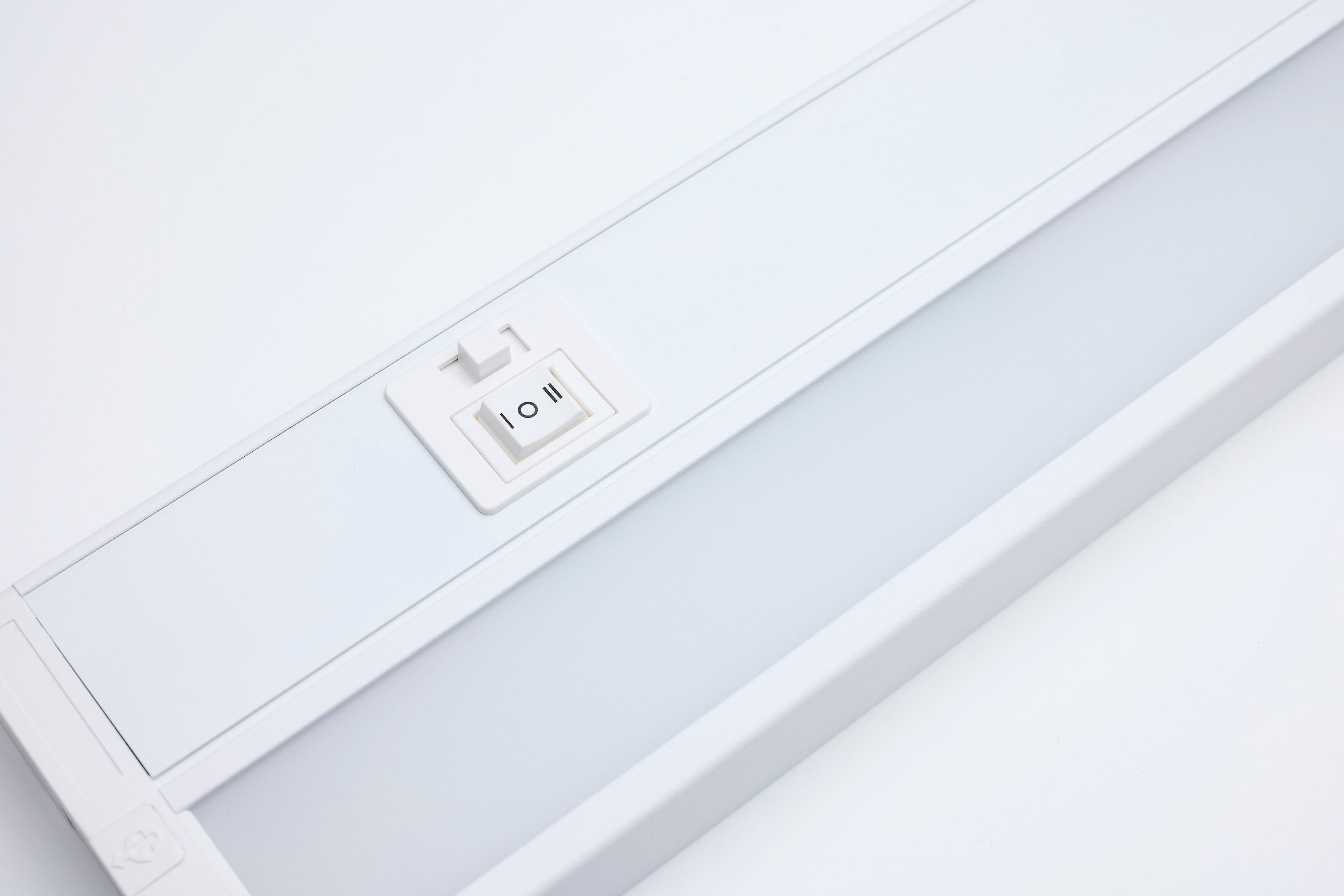

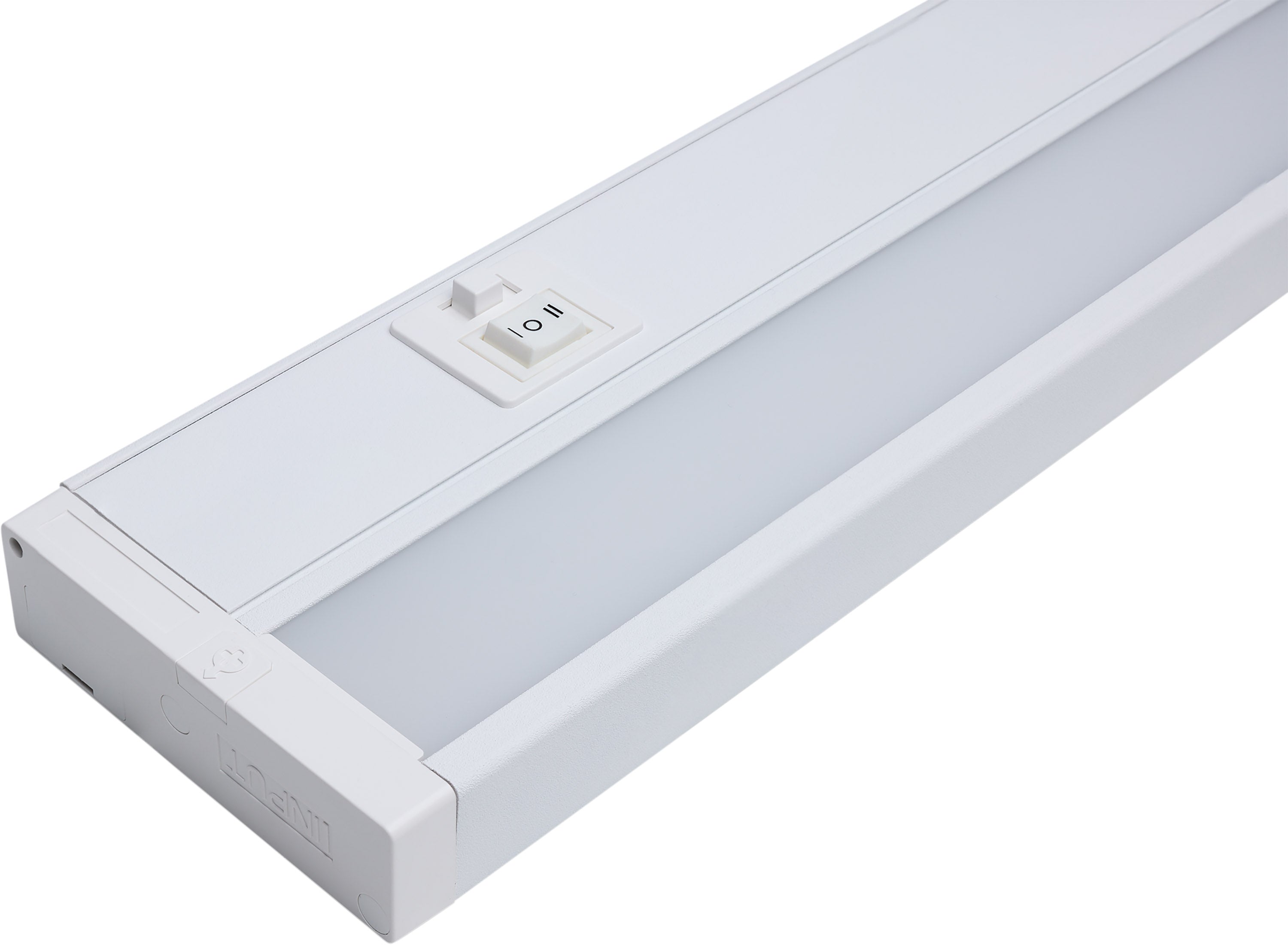

  • Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI

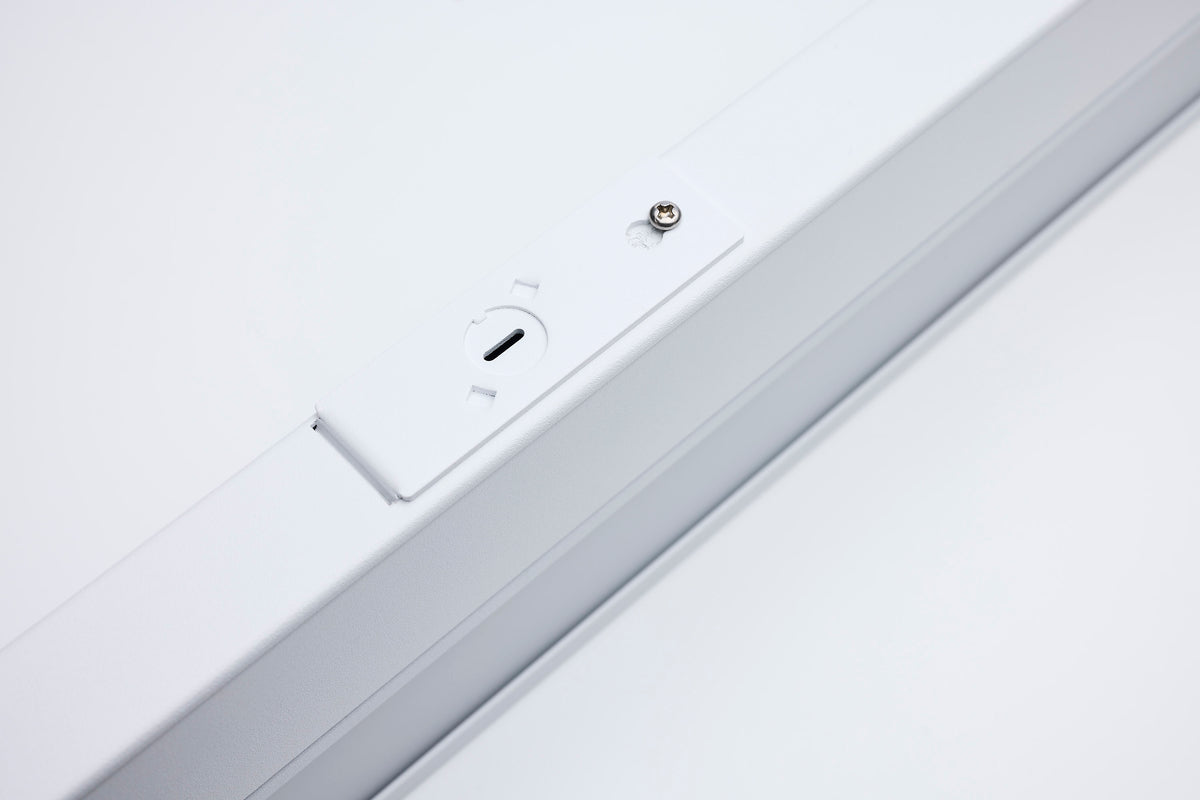

  • Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
  • Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)

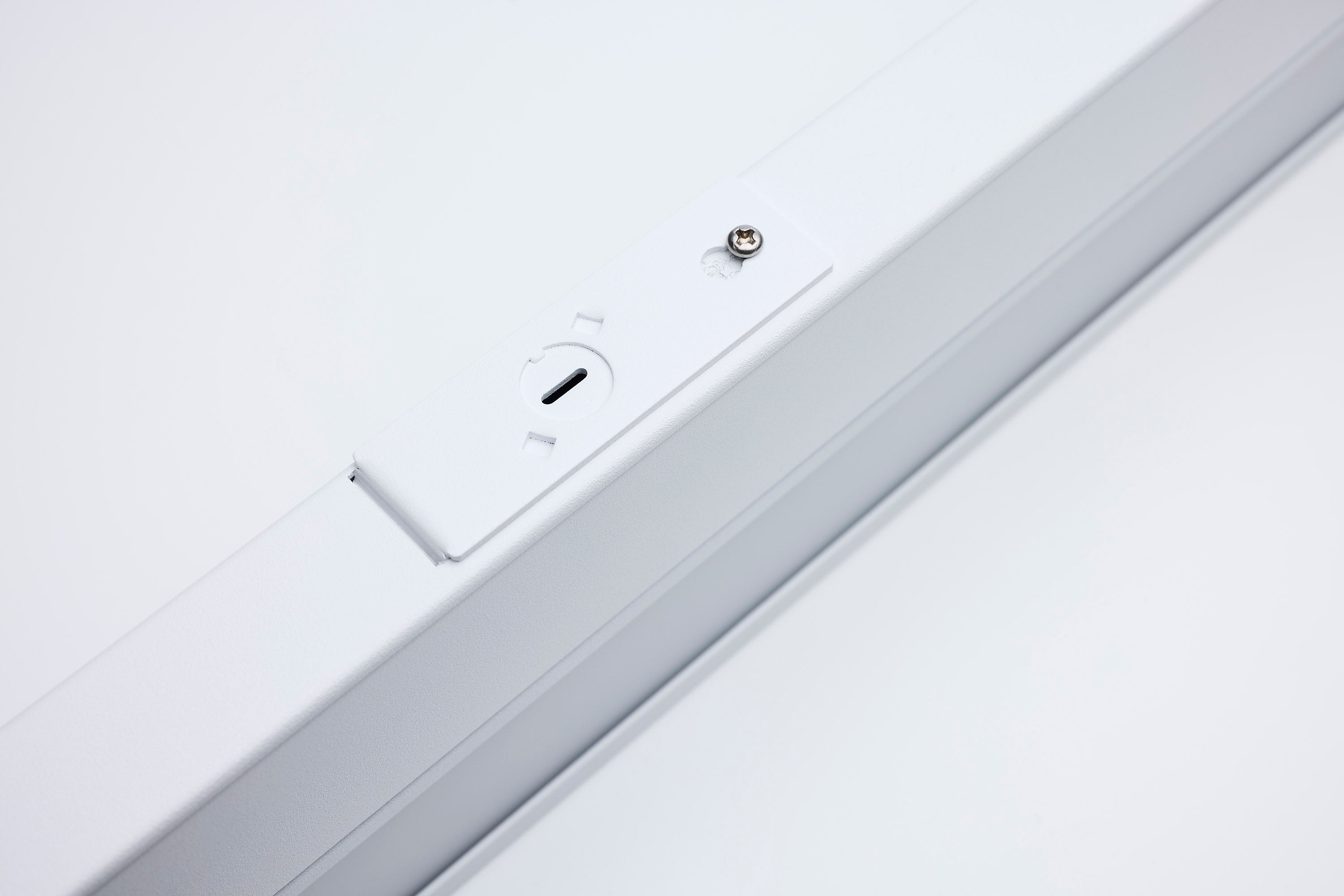

  • Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture
  • 20W, White Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution

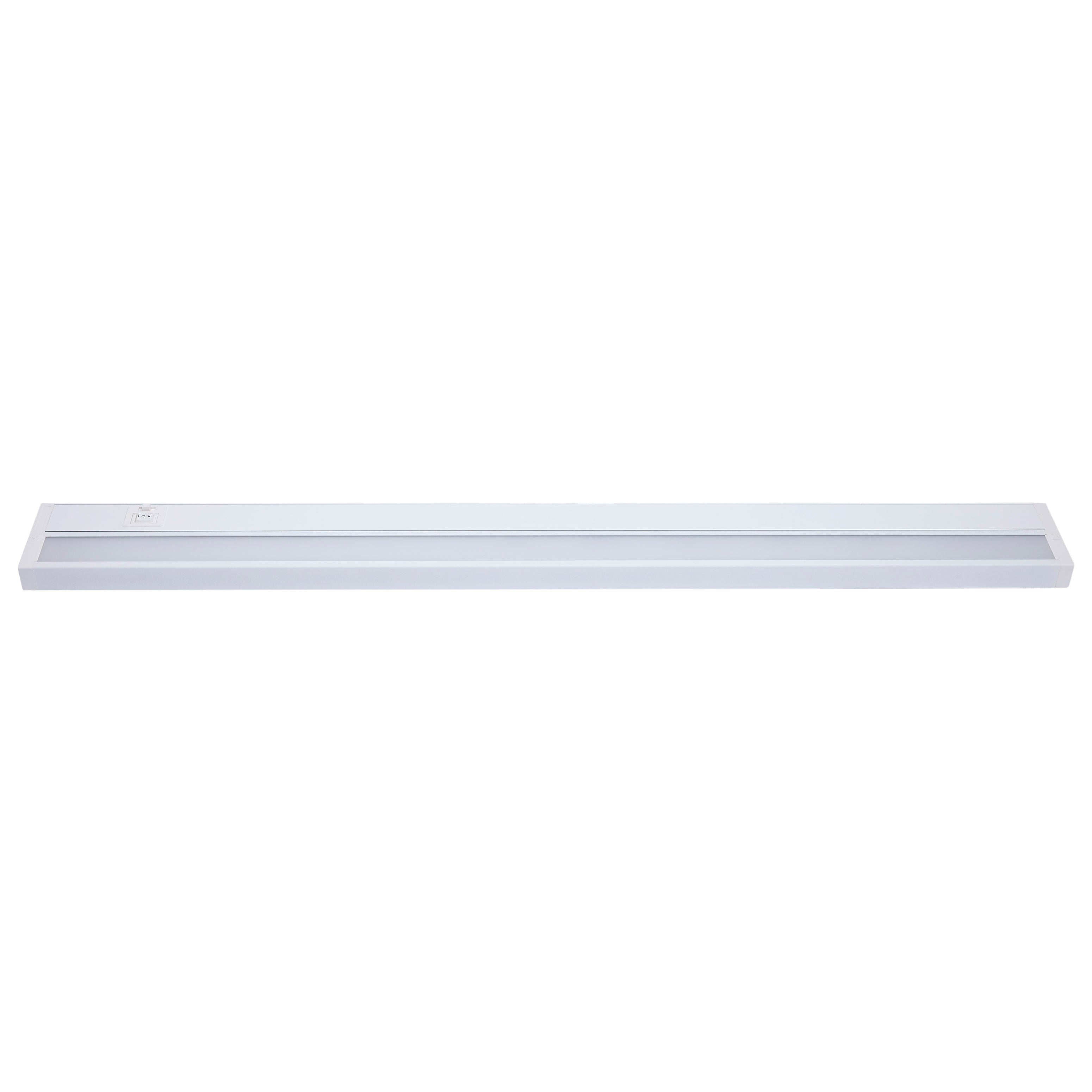

  • Low profile, slim design. Measures 34 in. Length x 3.5 in. Width x 1 in. Height
