Specifications :-

Key Specifications
Bulb Shape / Type AP23
Base Medium
ANSI Base E26
Incandescent Equivalent 150W
Wattage 20W
Lumens 2400L/2700L/2600L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 280
Lamp Type Type A
HID Equivalent 70W-100W
Wiring / Ballast Type Type B
Operating Position Universal

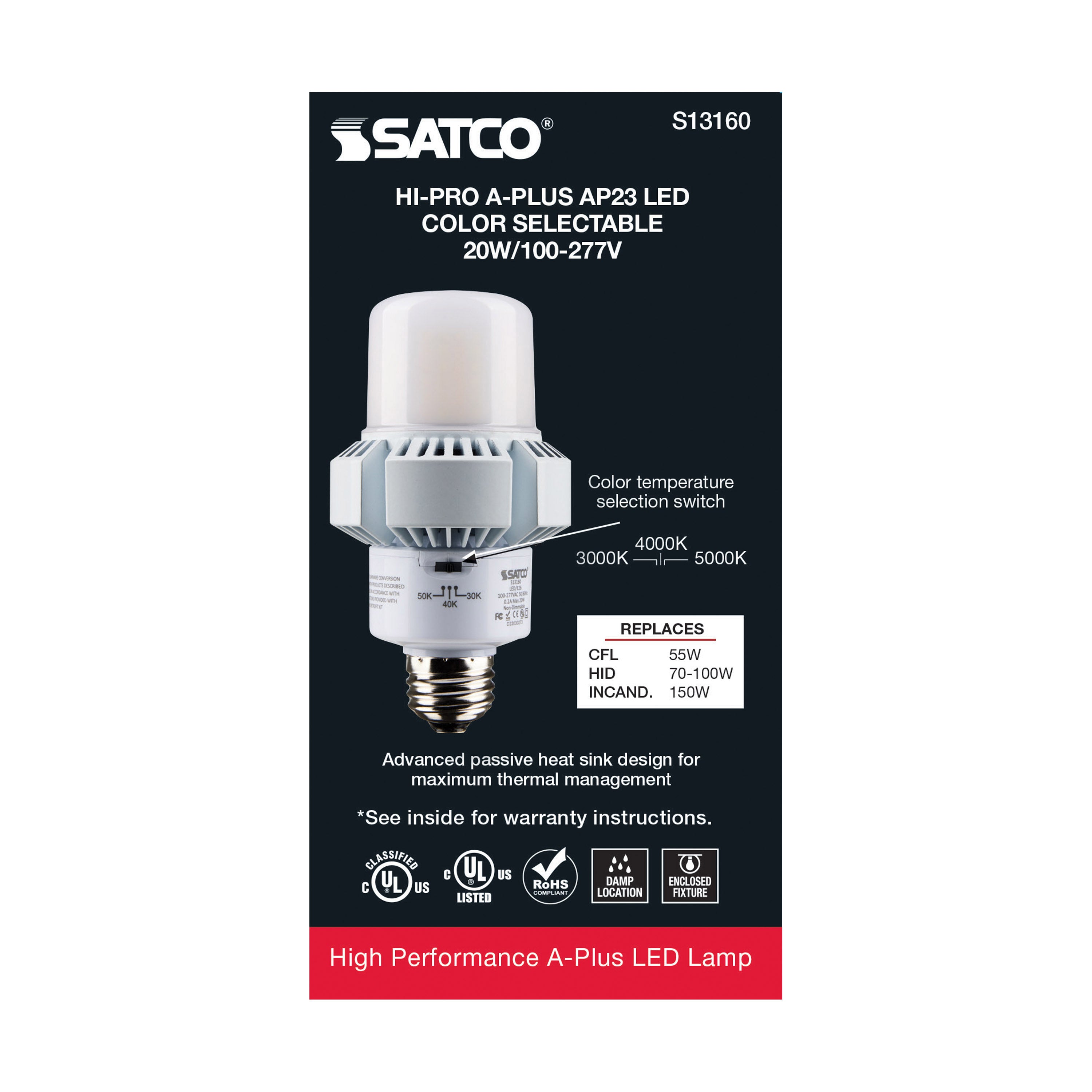

Color Temperature Selectable Yes
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Filament Type LED
Electrical
Amperage 0.200-0.0722A
Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 1KV
Driver/Ballast Ballast Bypass
Features / Controls
Enclosed Fixture Rated Yes
Ballast Bypass/Direct Wire Ballast Bypass
Construction / Installation
Material Aluminum

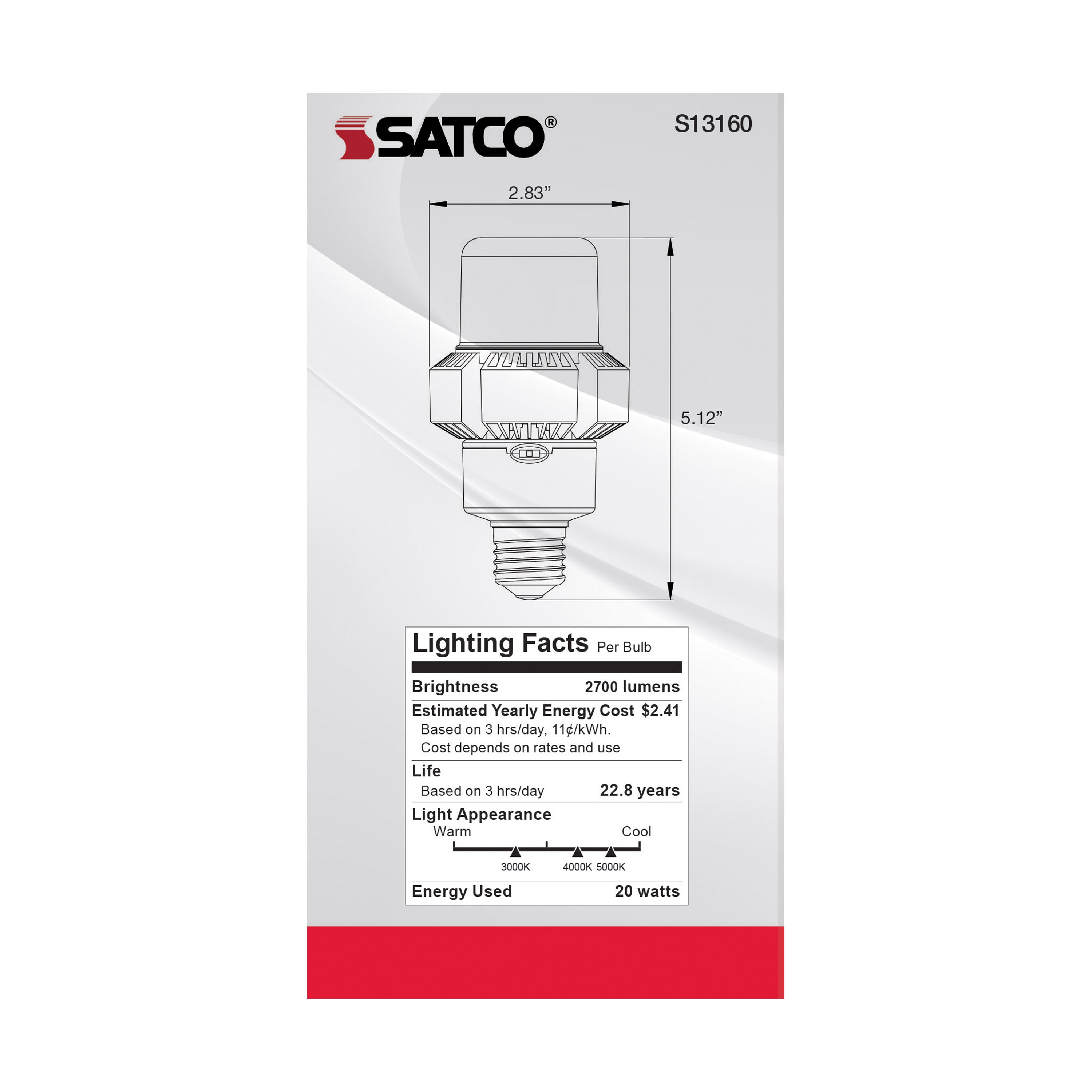

Maximum Overall Length 5.12 IN
Maximum Overall Diameter 2.83 IN
Finish/Lens Frost
Weight 0.48 lbs
Lens / Diffuser Polycarbonate (PC)
Environment / Ratings
Application Indoor, Outdoor
Location Rating Damp
Operating Temperature -30F to +113F (-22C to +45C)
Enclosed Fixture Enclosed Rated Lamp
IP Rating IP64
Certifications / Compliance
Safety Listing cULus, cULus - Classified
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

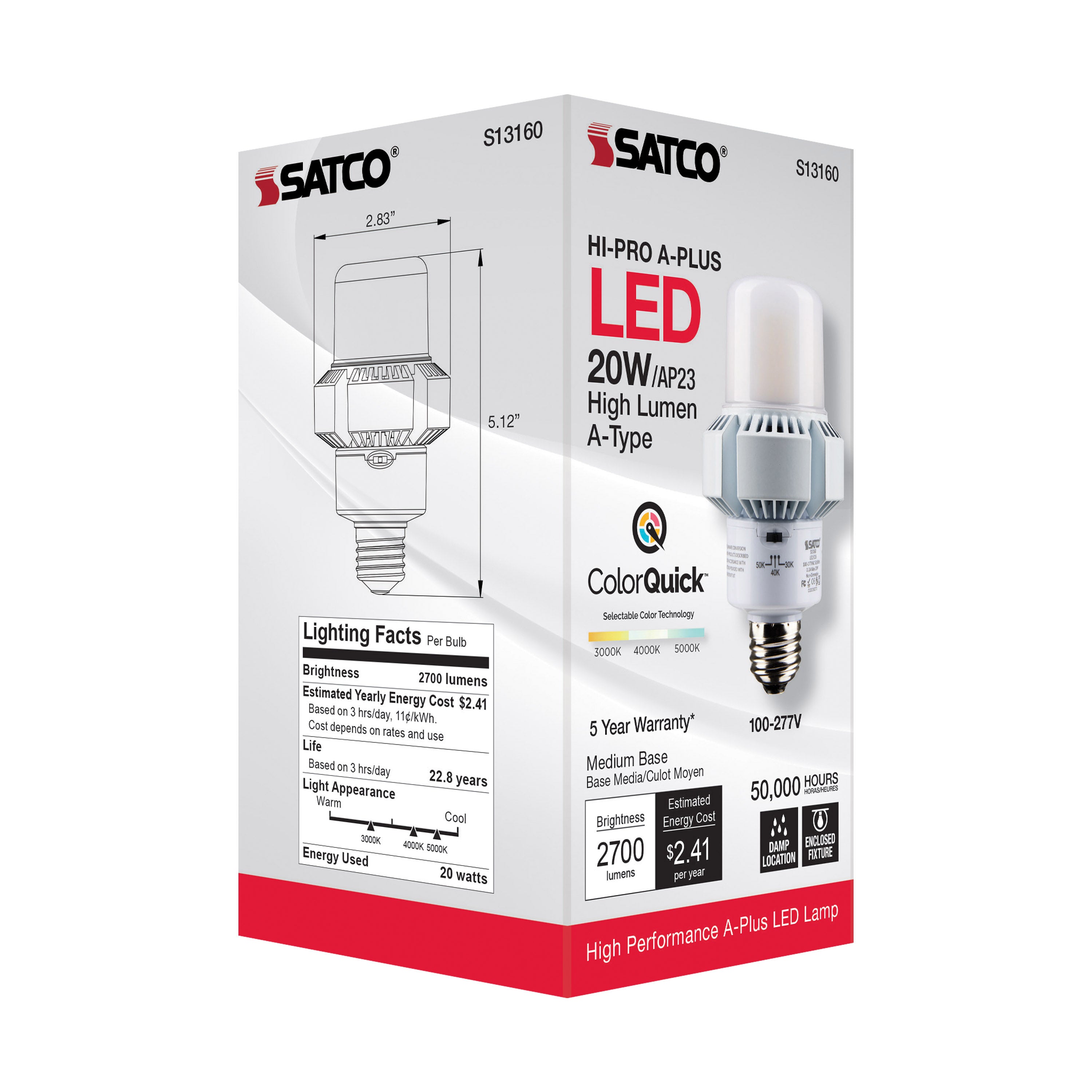

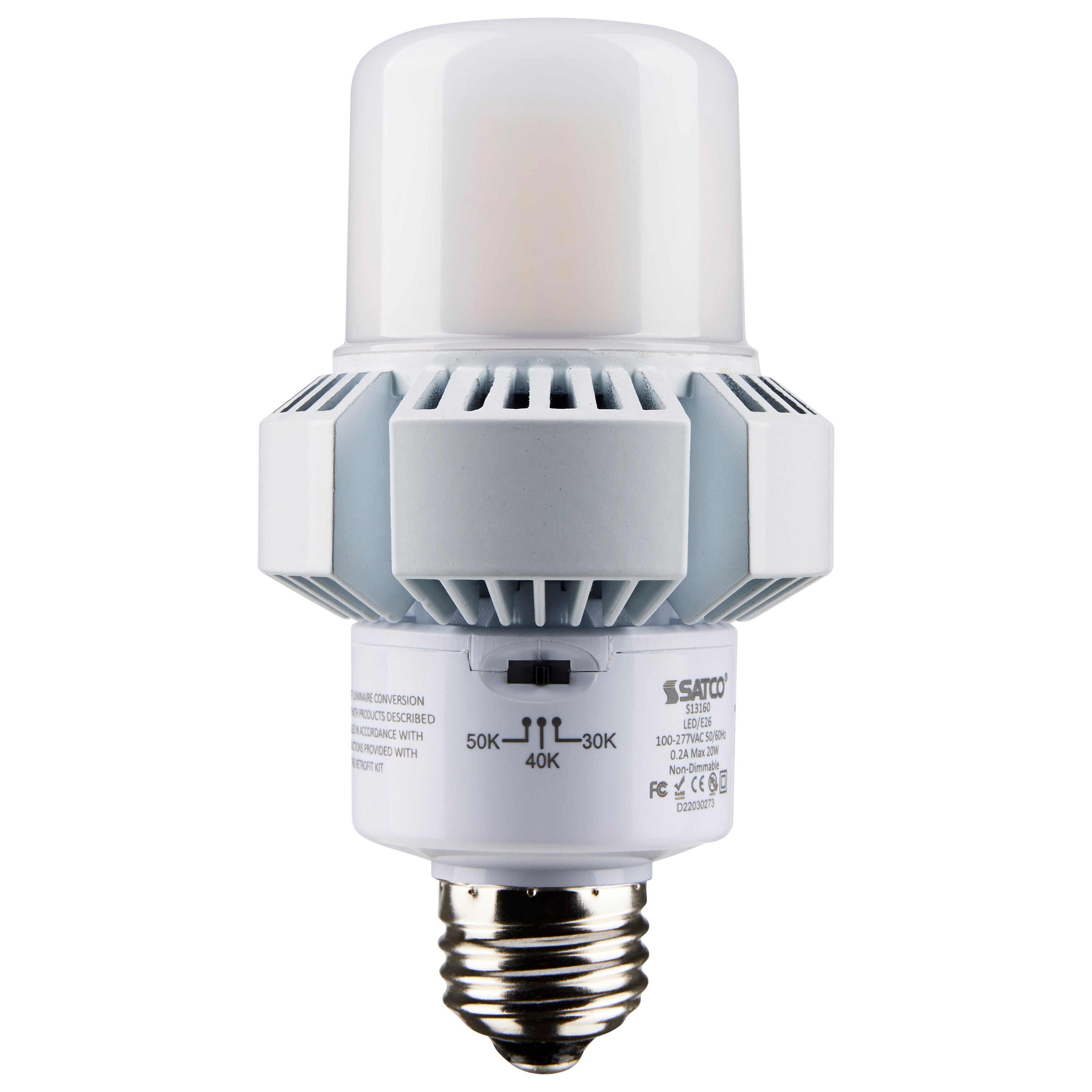

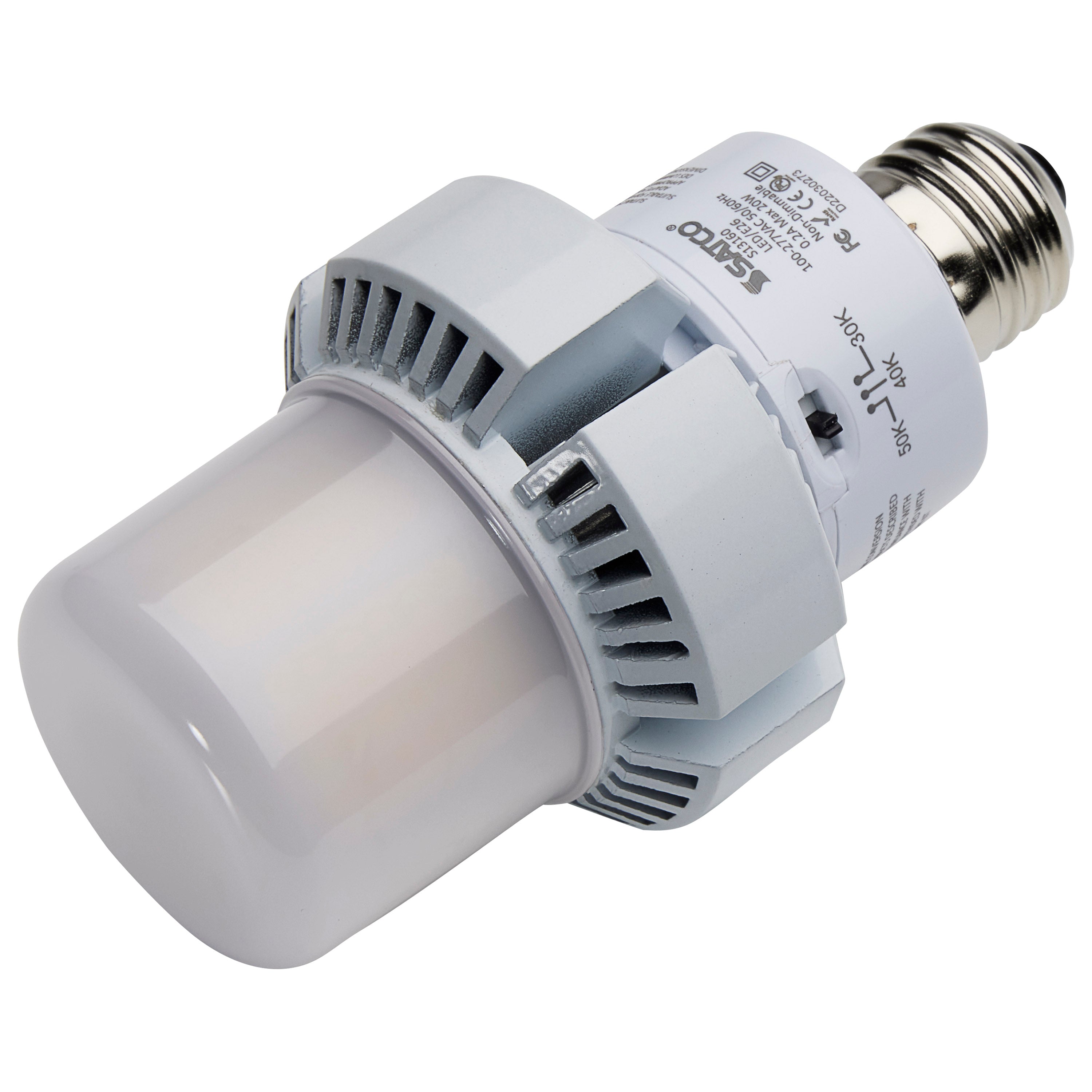

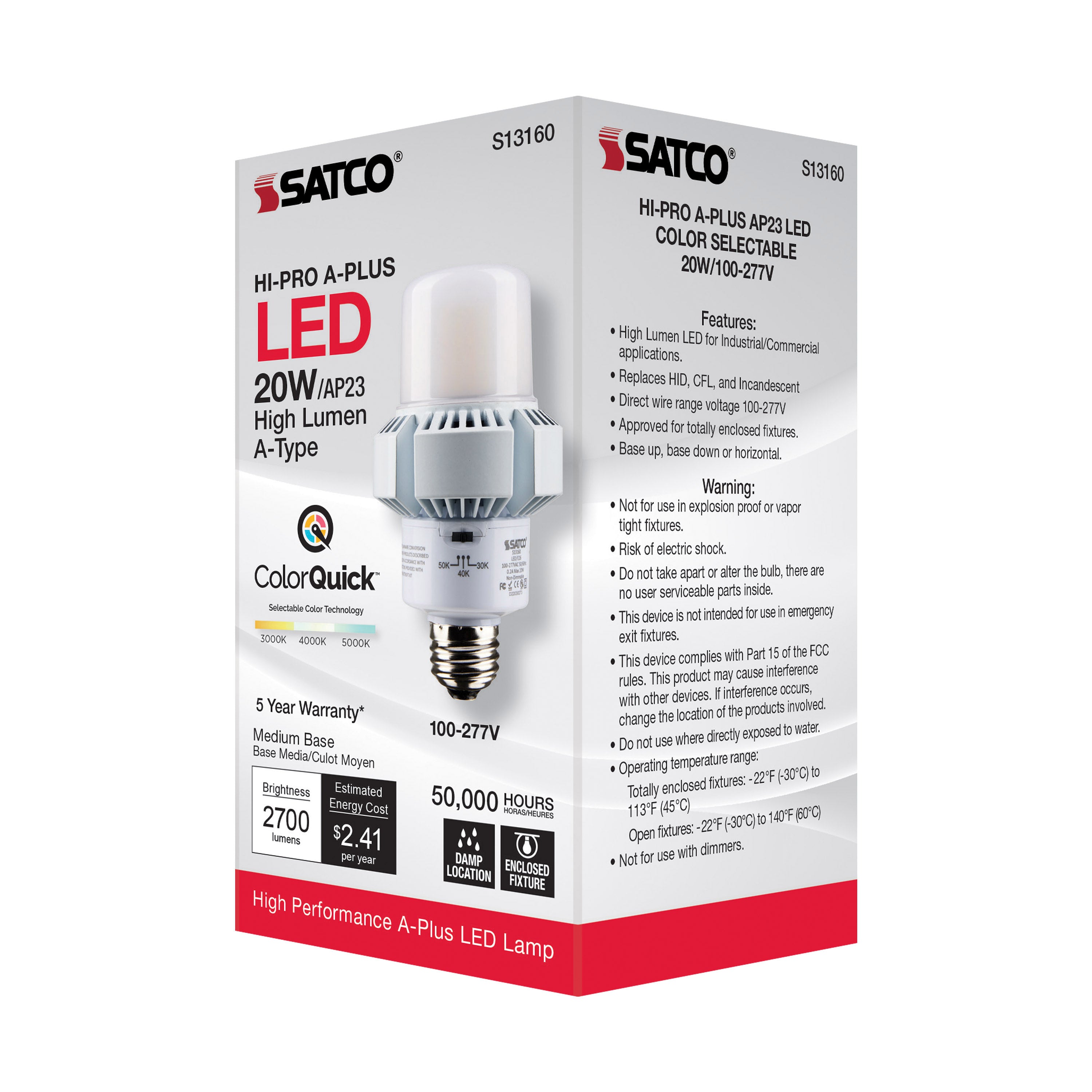

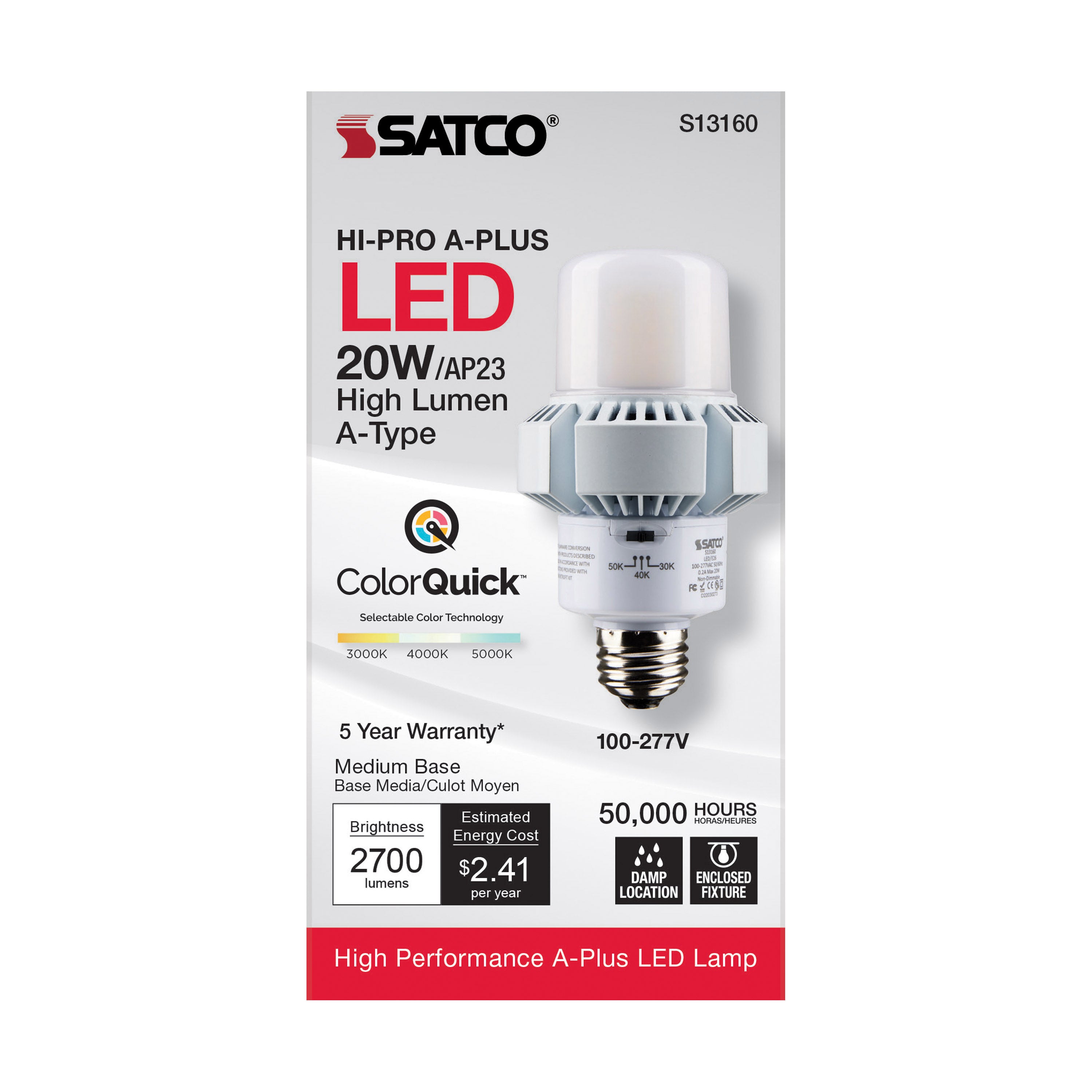

Choose 20 Watt - A-Plus 23 - LED - CCT Selectable 3K/4K/5K - Medium base - Type B - Ballast Bypass - 120-277 Volt - ColorQuick Technology when your project calls for a LED HID retrofit lamp suited to commercial and municipal relamping programs focused on updating existing HID fixtures. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial LED retrofit lamp that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Helps extend the usefulness of compatible existing fixtures during an LED conversion. It is well suited to parking areas, pathways, building exteriors and facility retrofit projects, where lighting needs to support the space rather than distract from it. This makes the product a practical post top LED retrofit choice for customers also considering LED corn bulb replacement as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports retrofit projects that seek a lamp-based upgrade instead of a full fixture replacement. For post-top fixtures, area lighting, shoebox fixtures and compatible commercial HID housings, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

For buyers looking to shop commercial HID replacement LED bulbs, 20 Watt - A-Plus 23 - LED - CCT Selectable 3K/4K/5K - Medium base - Type B - Ballast Bypass - 120-277 Volt - ColorQuick Technology is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the 20 Watt - A-Plus 23 - LED - CCT Selectable 3K/4K/5K - Medium base - Type B - Ballast Bypass - 120-277 Volt - ColorQuick Technology

What installation settings make this A-shape bulb with 120V-277V/white finish/IP64 details for replacement or new lighting projects?

What should buyers know about 3000K/4000K/5000K color temperature and 80+ CRI when evaluating this A-shape bulb?

How do 120V-277V voltage and E26 base requirements affect compatibility for this A-shape bulb installation project?

Where should customers order this A-shape bulb featuring E26 specifications for renovation, replacement, or new lighting projects?
