Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 20W
Lumens 1200L
Color Temperature 3000K
Color Rendering Index (CRI) 93+
Dimmable Yes-Dimmable
Voltage 120V
Finish White
Beam Angle 36
Fixture Type Track Head

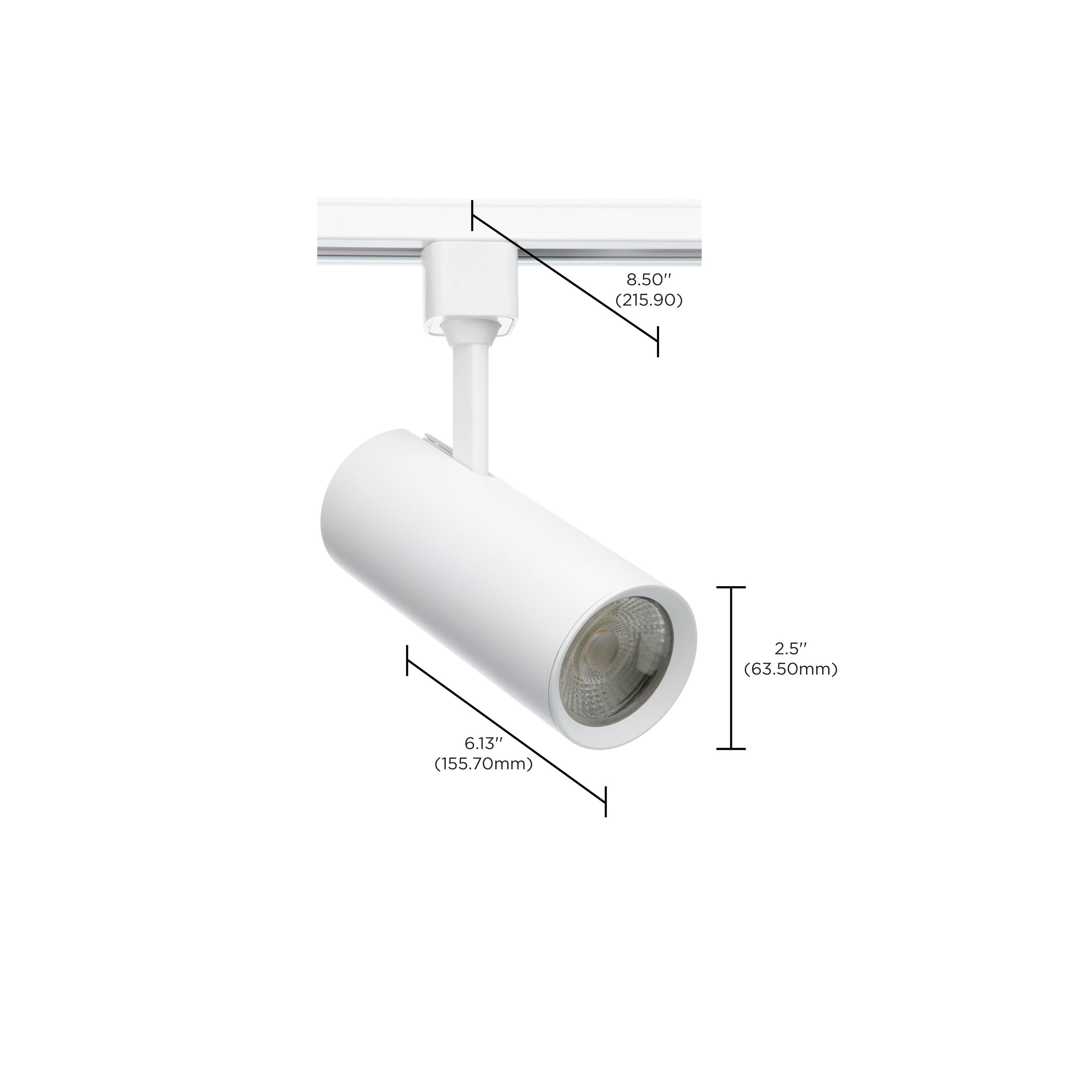

Length 6.13 IN
Mounting Type Track
Performance
Rated Life 50000 hrs
Light Color Description Warm White
Safety Listing cETLus
Electrical
Frequency 60Hz
Power Factor 0.92
Surge Protection Built-in surge protection - 1KV
Construction / Installation
Material Die-Cast Aluminum
Width 2.5 IN
Height 2.5 IN
Weight 0.87 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

20 Watt - LED Commercial Track Head - White - Cylinder - 36 Degree Beam Angle - H-Style brings the familiar role of a track lighting to wall washing, artwork lighting, task illumination and focused room lighting. It is a practical choice for customers comparing accent lighting fixture and LED track head for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

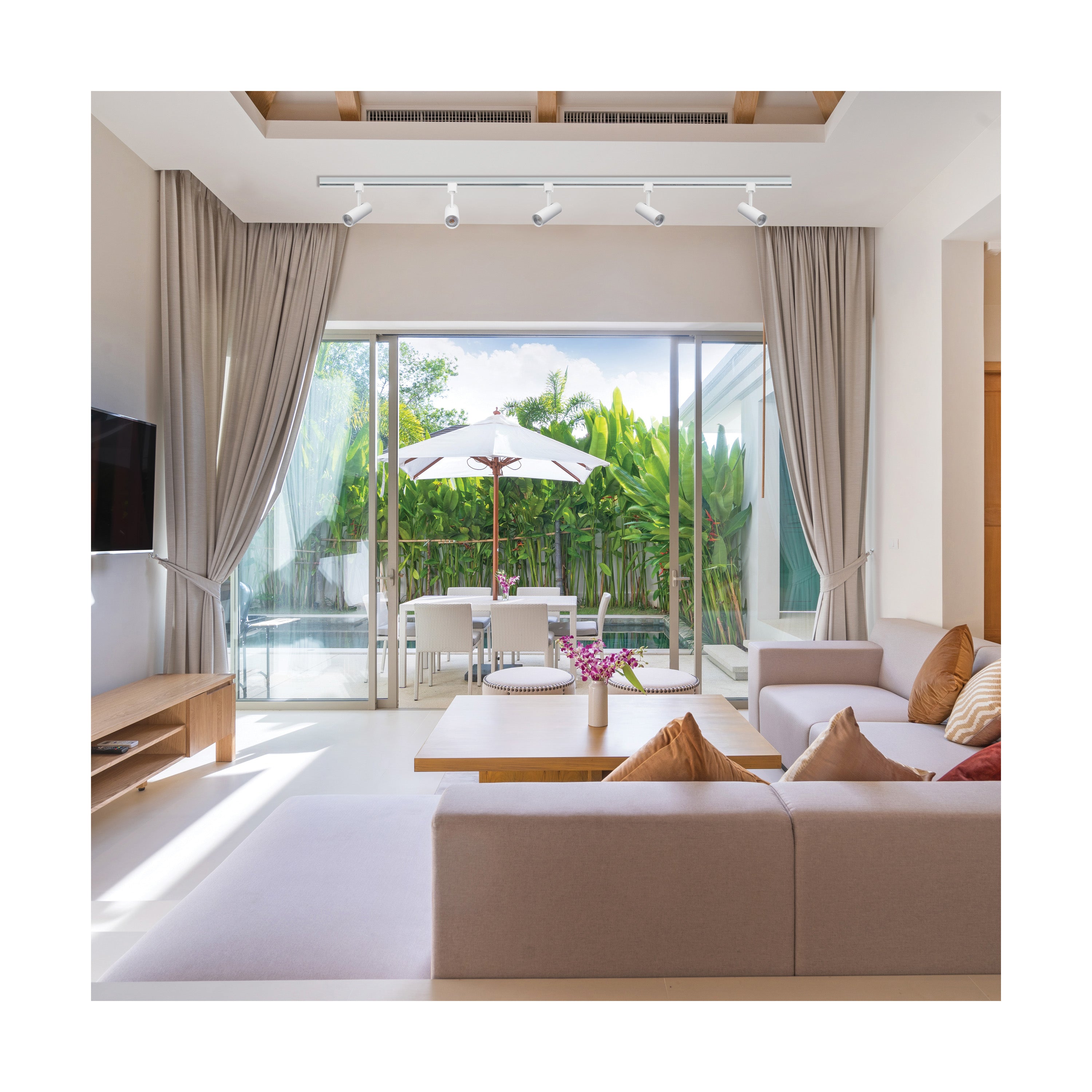

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. That is especially useful in retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a track lighting, this option is well suited to projects involving LED track head, retail track lighting and other coordinated lighting upgrades.

Makes it easier to aim light toward displays, artwork, counters or architectural features. For commercial and residential interiors where adjustable lighting helps direct attention, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

When it is time to order track lighting for residential or commercial projects, consider 20 Watt - LED Commercial Track Head - White - Cylinder - 36 Degree Beam Angle - H-Style for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

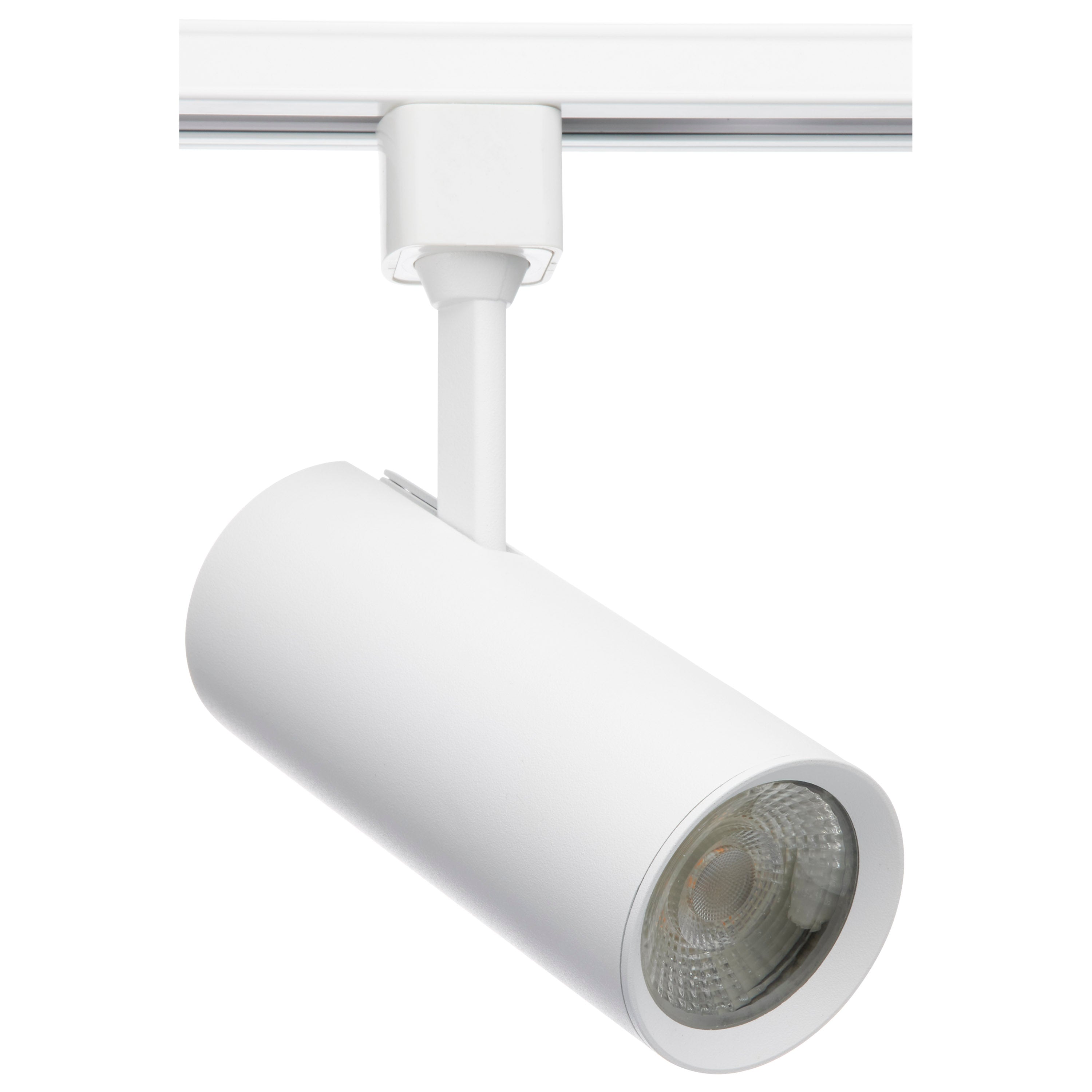

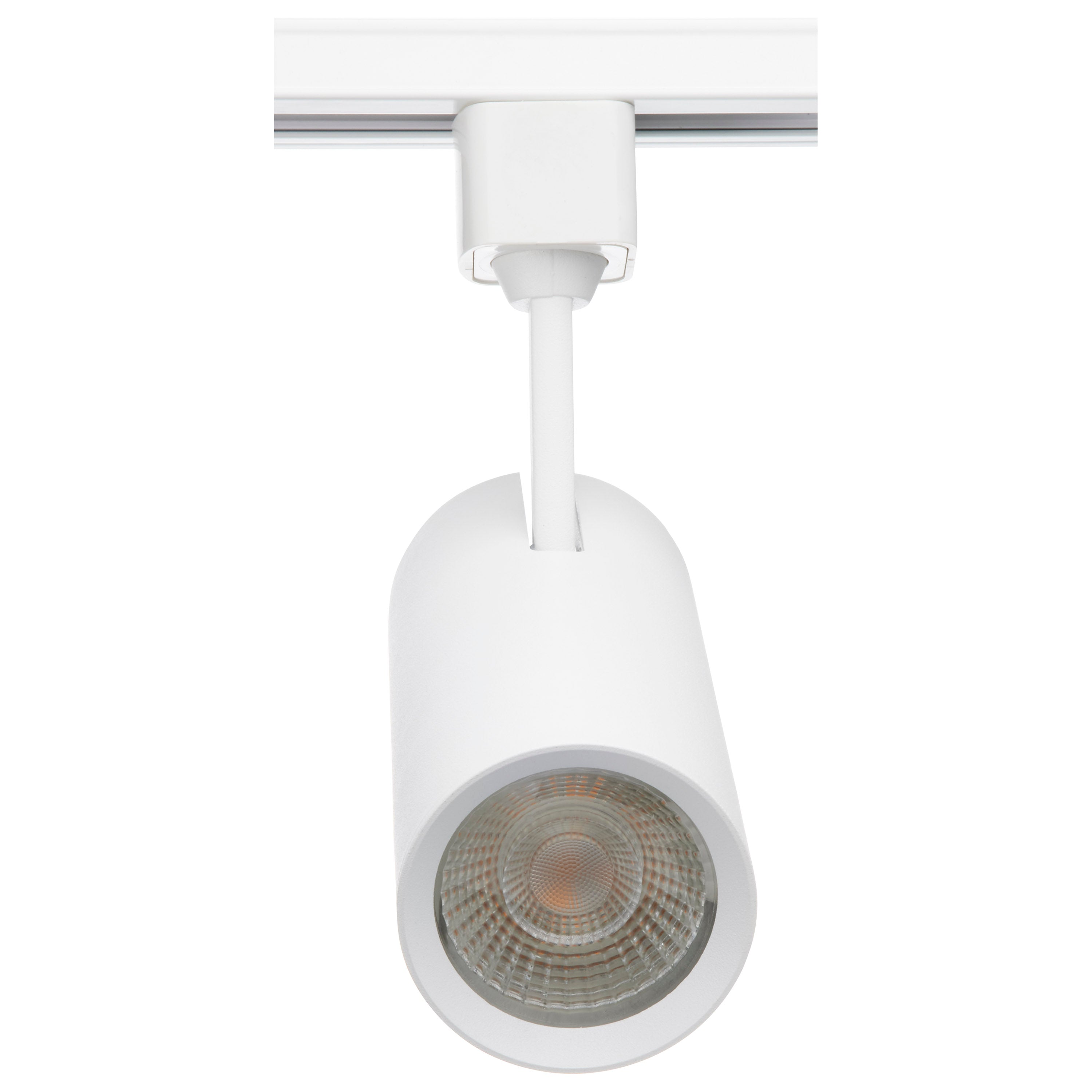

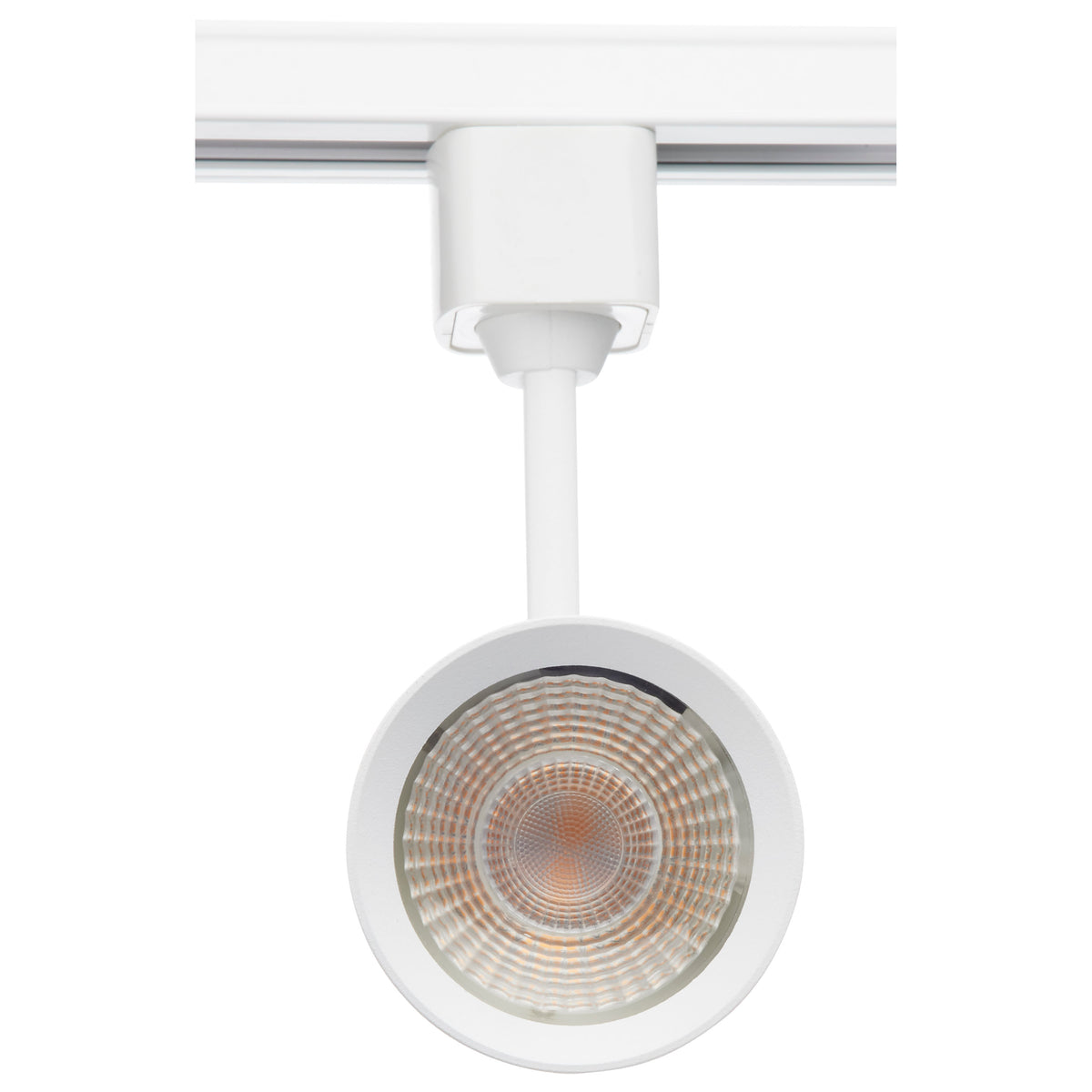

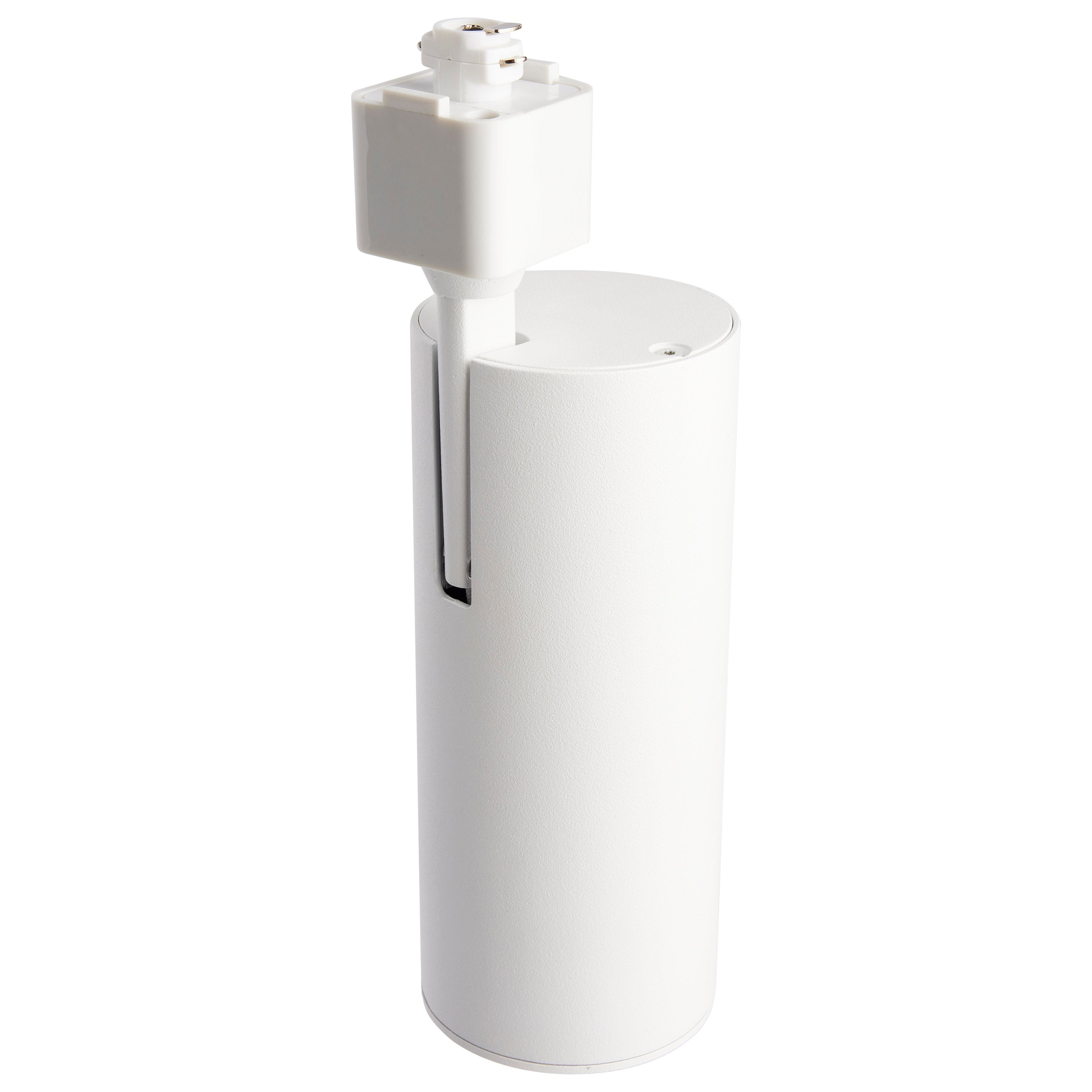

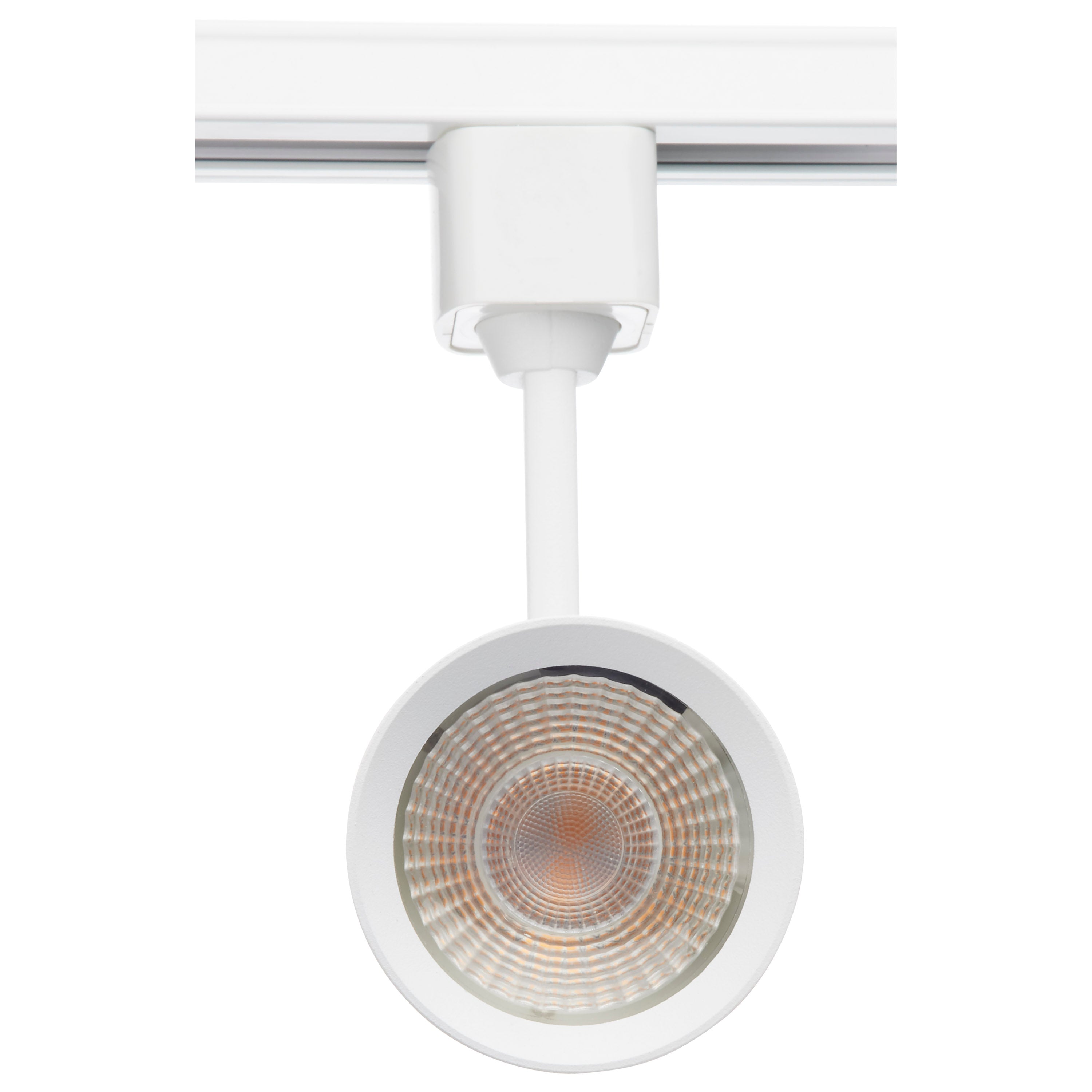

The new SATCO NUVO shotgun-style Pro Series LED track head offers a distinct look while providing superior illumination for high-demand applications. Built to withstand the demanding, everyday operation that comes with use in commercial settings while maintaining a consistent look and feel, this cylindrical style track light distributes exceptional, high lumen, LED light for larger spaces which may be problematic for lesser fixtures. The TH613 option offers 20 watts with a 36-degree beam angle in a white finish and delivers elevated CRI and R9 values for up to 50,000 hours. This track head is perfect for commercial, retail, and hospitality applications.

Features :-

  • Sleek design, Rugged Construction
  • White textured aluminum finish
  • 20W, 36 deg. Beam angle
  • High CRI and R9 Values
  • Superior LED performance
  • Precise Beam Control
  • Smooth Dimming Control
