Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 20W
Lumens 1400L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte White
Beam Angle 36
Color Temperature Selectable Yes
Fixture Type Track Head

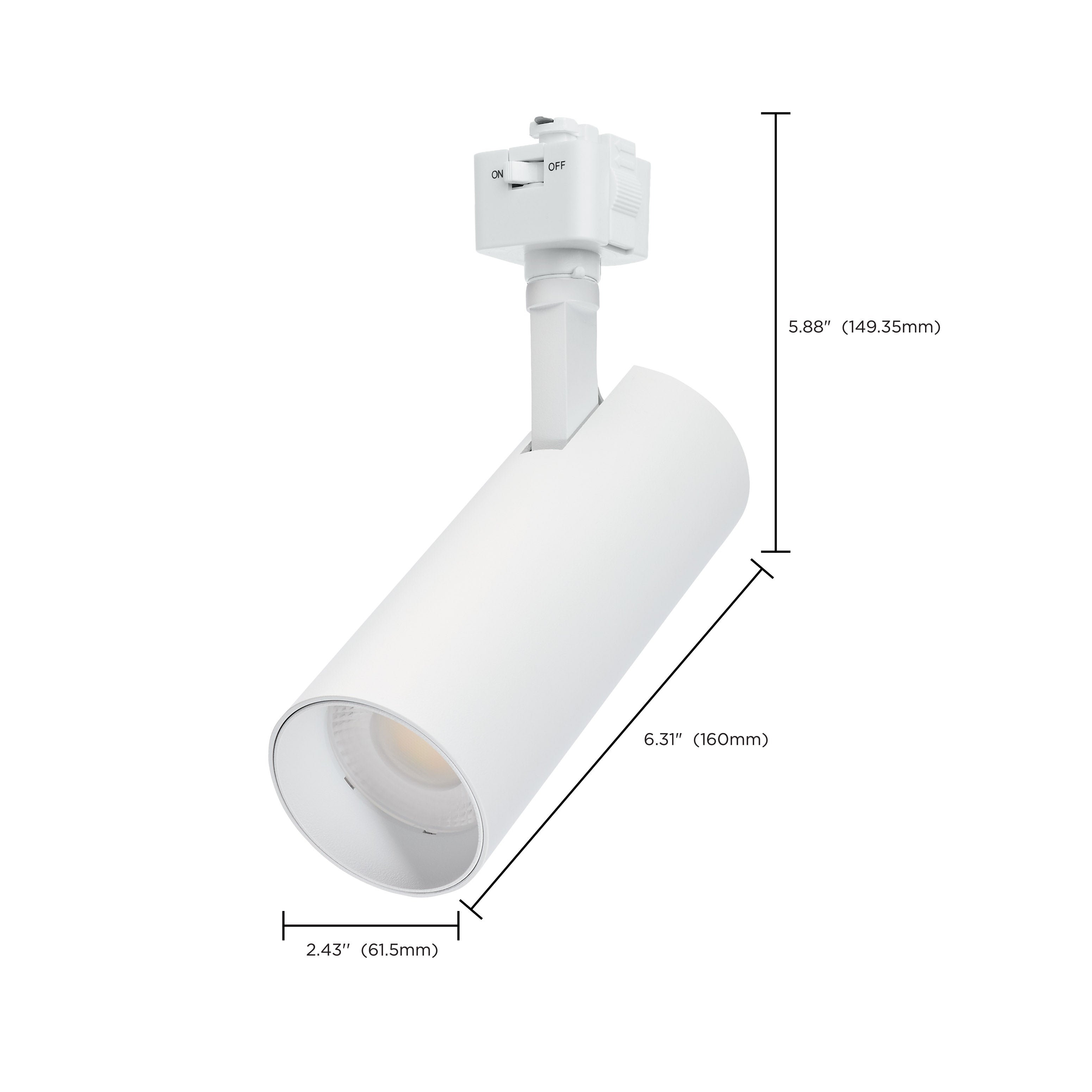

Length 6.31 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, 120V only
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear
Width 2.43 IN
Height 5.88 IN
Weight 1.02 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

20 Watt LED Track Head - 36 Degree Beam Spread - J-Style Track - 5 CCT Selectable - Matte White Finish - J-Style is a track lighting intended for wall washing, artwork lighting, task illumination and focused room lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting retail track lighting for a specific room, fixture or property application.

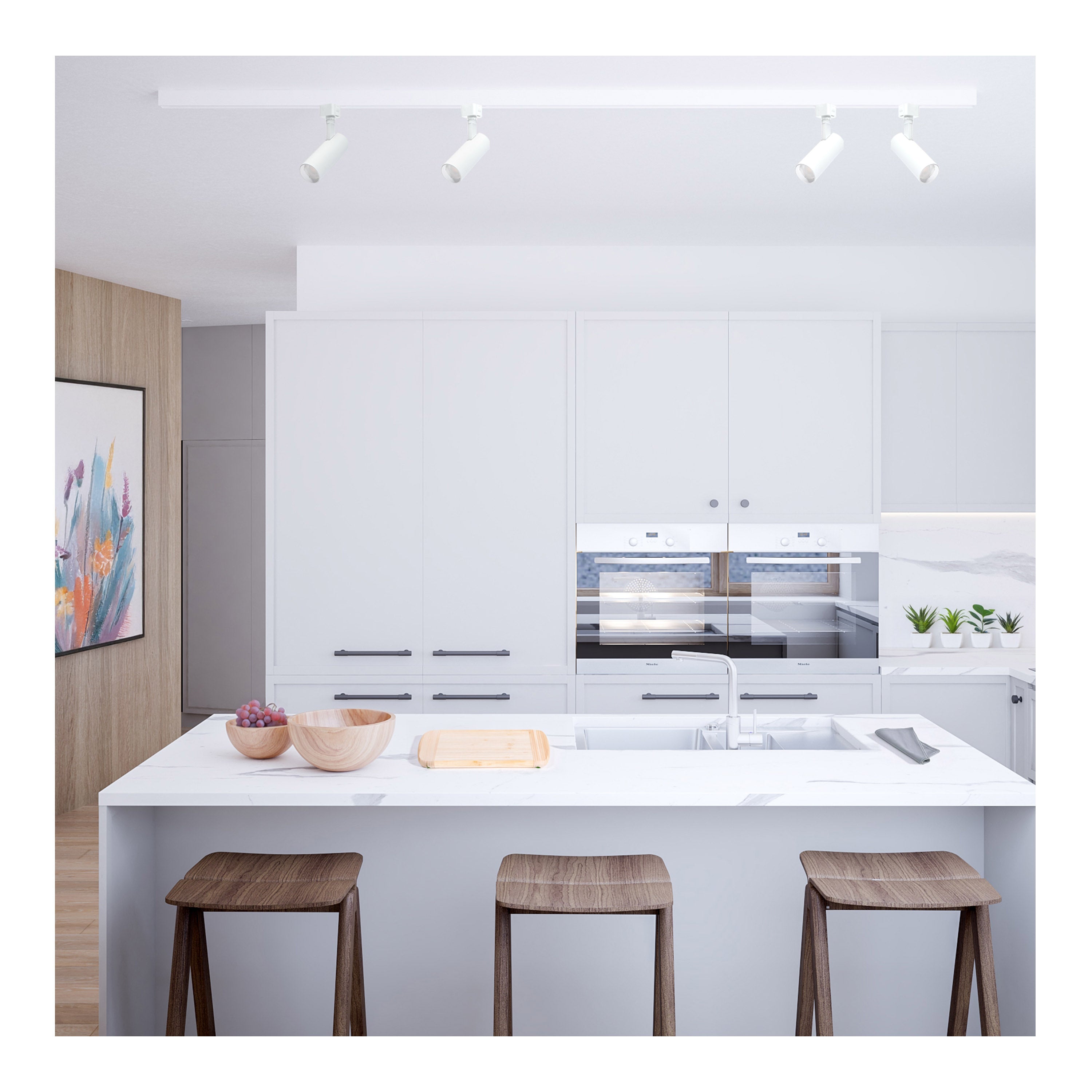

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. It is well suited to retail displays, restaurants, galleries, hospitality interiors and residential accent lighting, where lighting needs to support the space rather than distract from it. This makes the product a practical track light fixture choice for customers also considering accent lighting fixture as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Makes it easier to aim light toward displays, artwork, counters or architectural features. In commercial and residential interiors where adjustable lighting helps direct attention, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to order track lighting for residential or commercial projects, consider 20 Watt LED Track Head for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

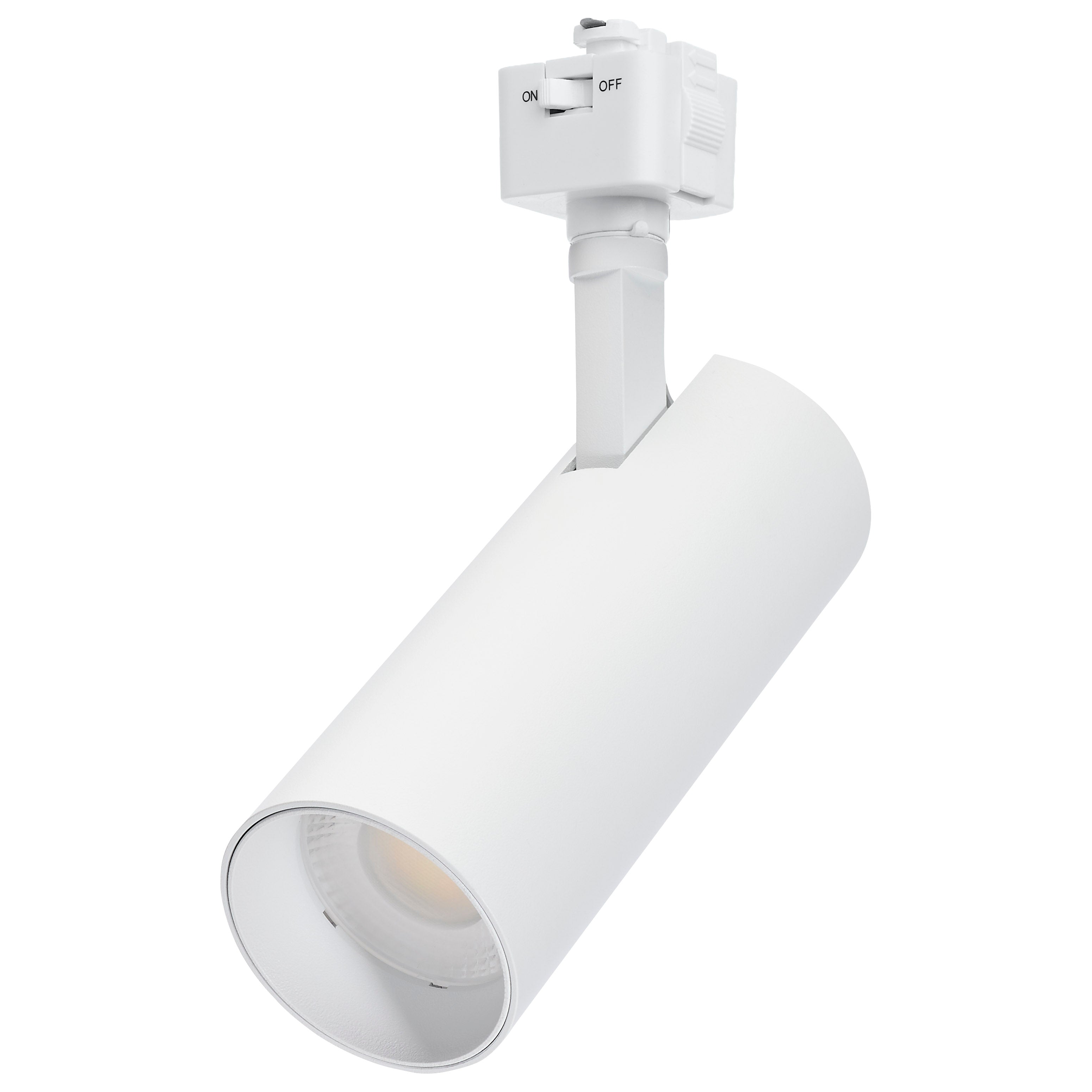

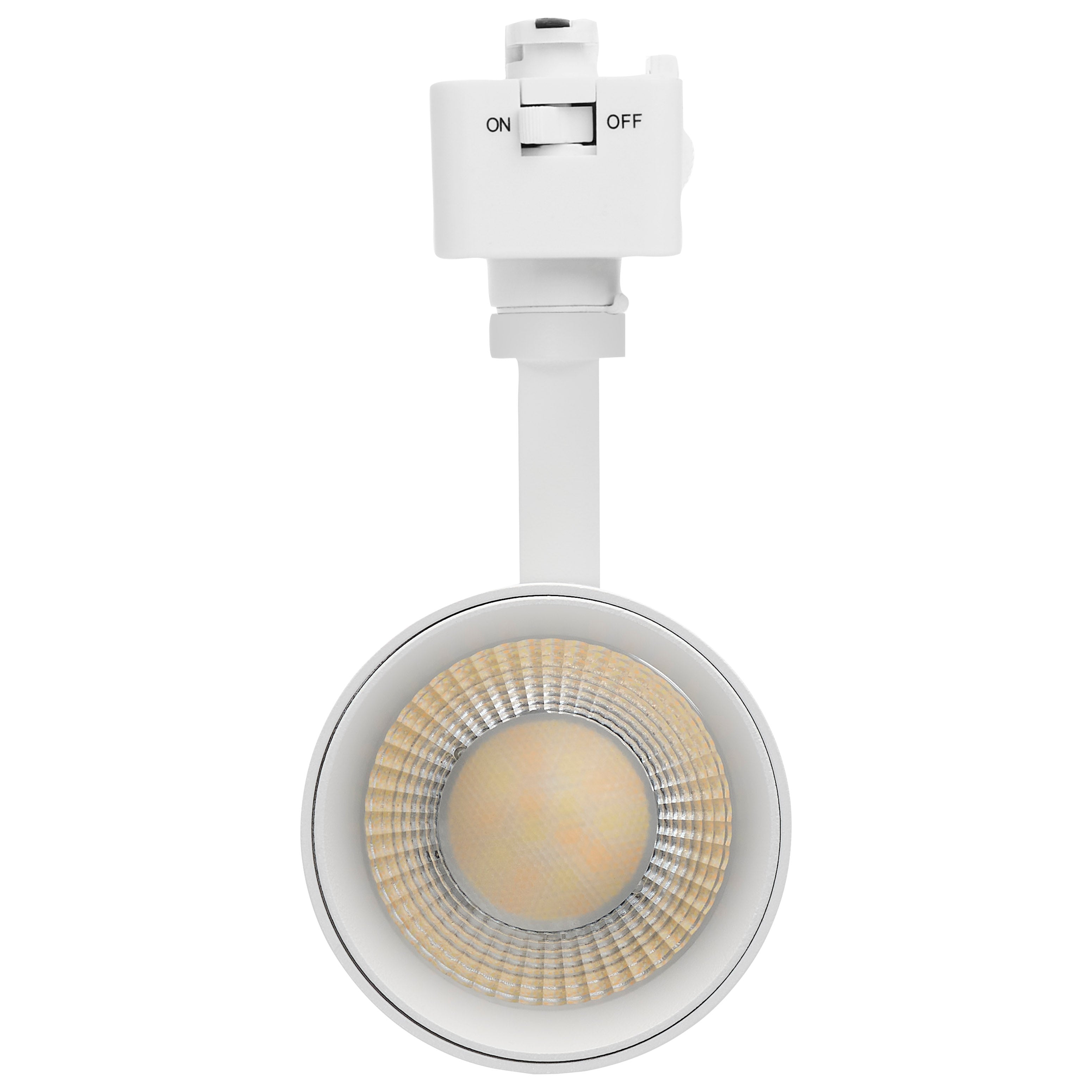

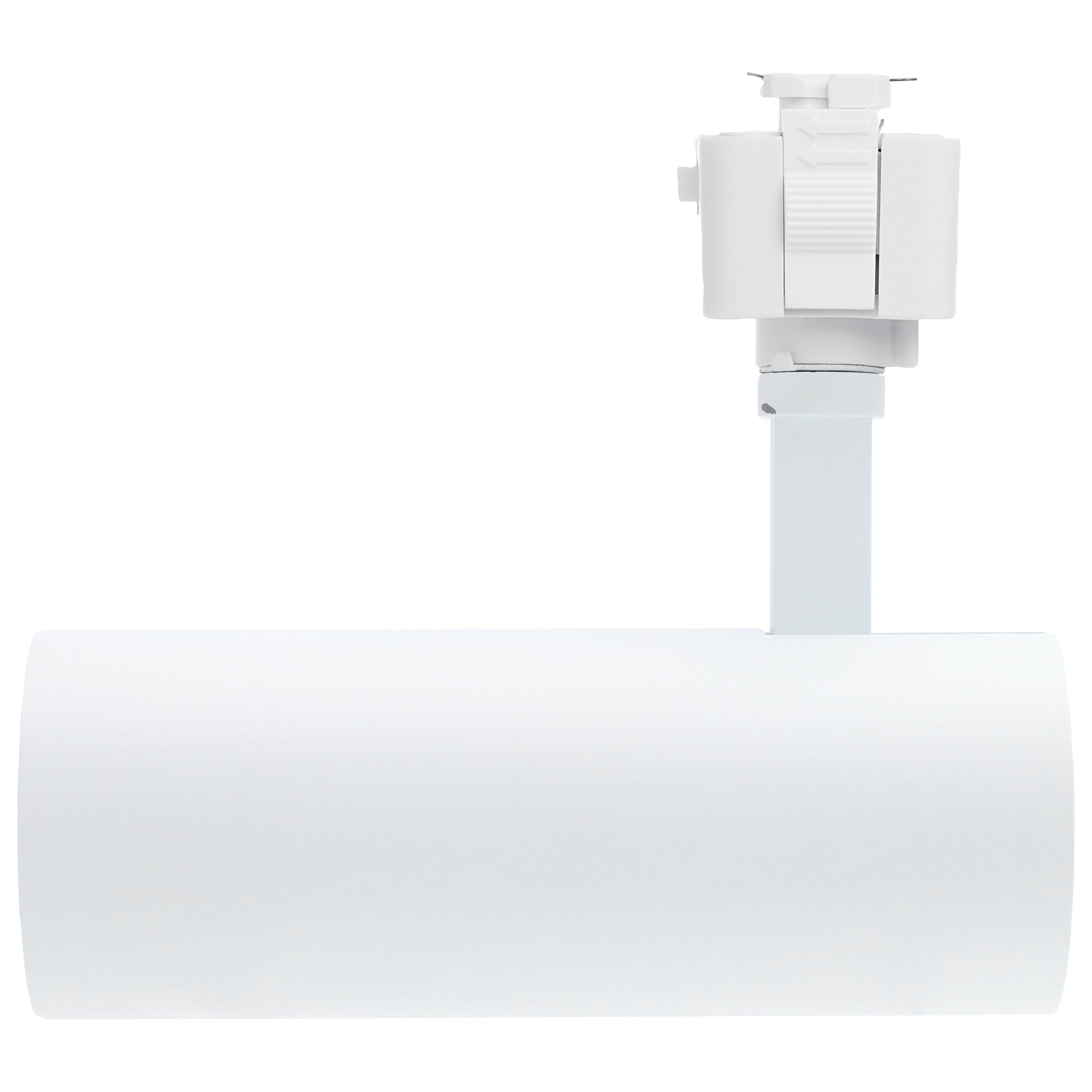

New to SATCO NUVO, the TH5011 LED CCT Selectable track head fixture is finished in matte white, operates at 20 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Circuit J-Style track systems, this fixture offers expanded versatility. J-Style track is widely used in residential and commercial settings for its simple, streamlined connector design. With five color temperature options selectable at installation and a high 90 CRI for true-to-life color rendering, the TH5011 delivers efficient, modern lighting with precise control.

Features :-

  • J-Style Single and 2 Circuit Track Compatible
  • 36 Degree Beam Angle
  • 5 CCT Selectable
  • 90 CRI High Quality Light
  • Matte White Finish
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
