Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 20W
Lumens 1400L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte Black
Beam Angle 48
Shape Cylinder

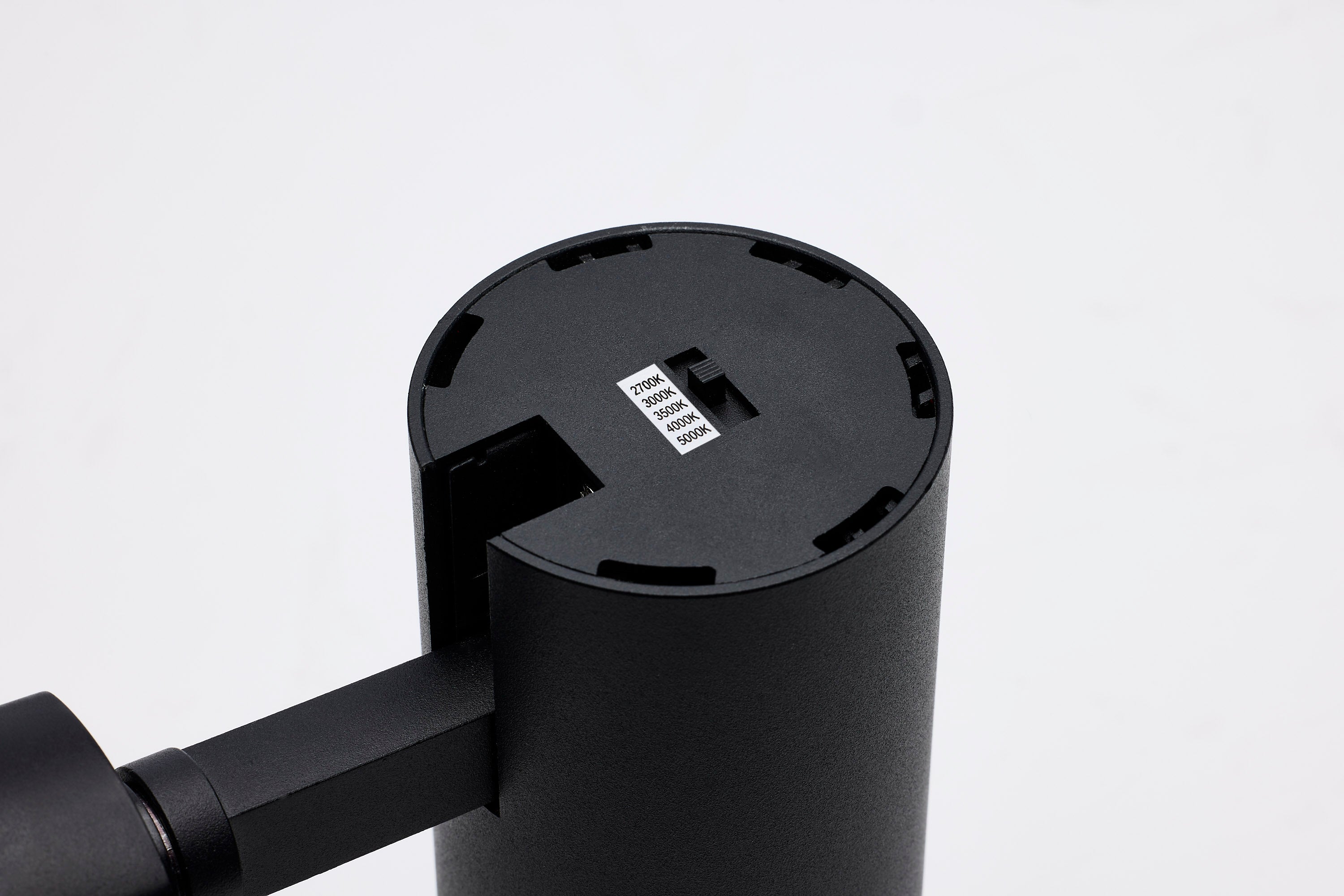

Color Temperature Selectable Yes
Fixture Type Track Head

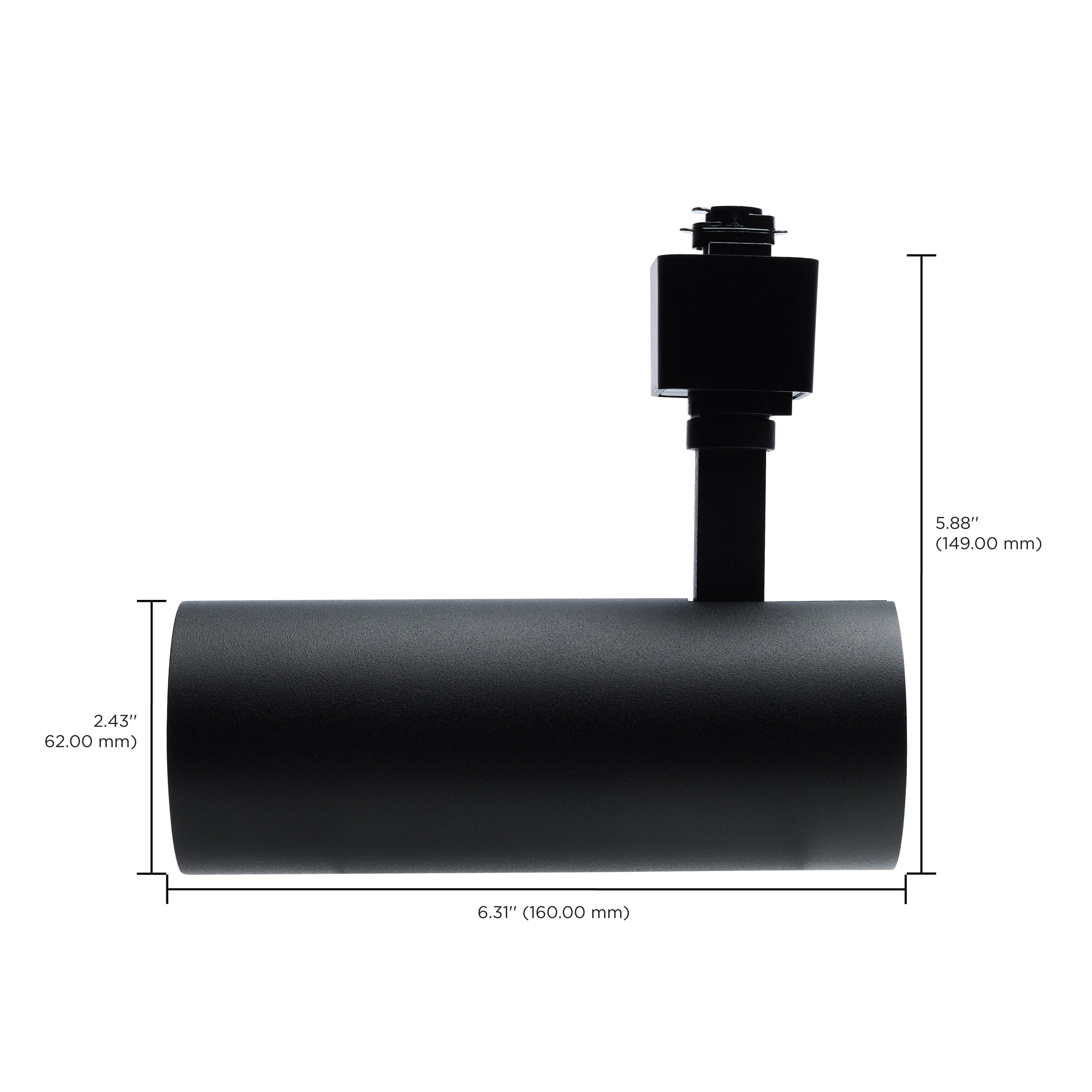

Length 6.31 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear
Width 2.43 IN
Height 5.88 IN
Weight 1.02 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

Choose 20 Watt LED Track Head - 48 Degree Beam Spread - 5 CCT Selectable - Matte Black Finish - H-Style when your project calls for a track lighting suited to wall washing, artwork lighting, task illumination and focused room lighting. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for track lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Makes it easier to aim light toward displays, artwork, counters or architectural features. It is well suited to commercial and residential interiors where adjustable lighting helps direct attention, where lighting needs to support the space rather than distract from it. This makes the product a practical LED track head choice for customers also considering accent lighting fixture as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

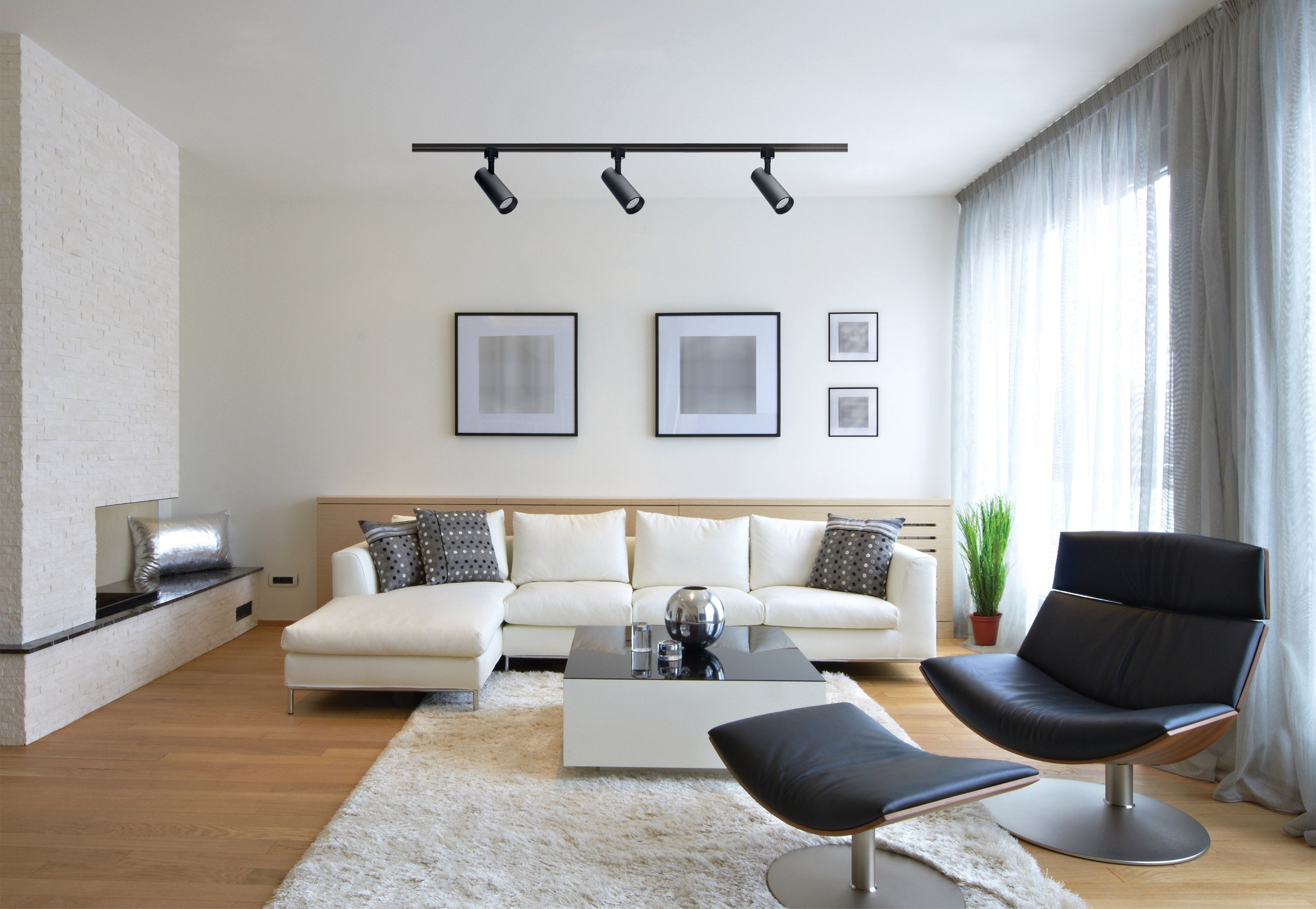

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. For retail displays, restaurants, galleries, hospitality interiors and residential accent lighting, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to order track lighting for residential or commercial projects, 20 Watt LED Track Head offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

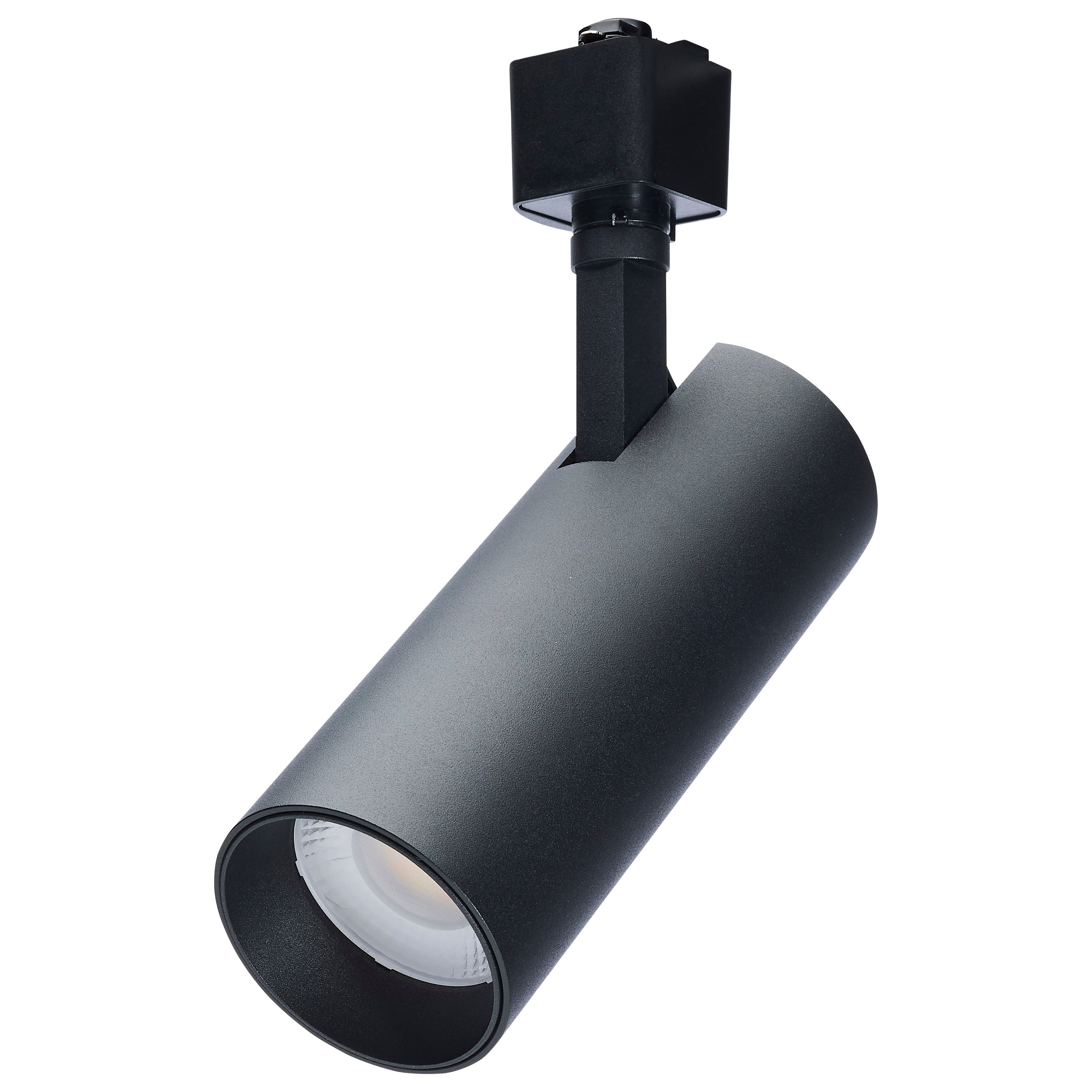

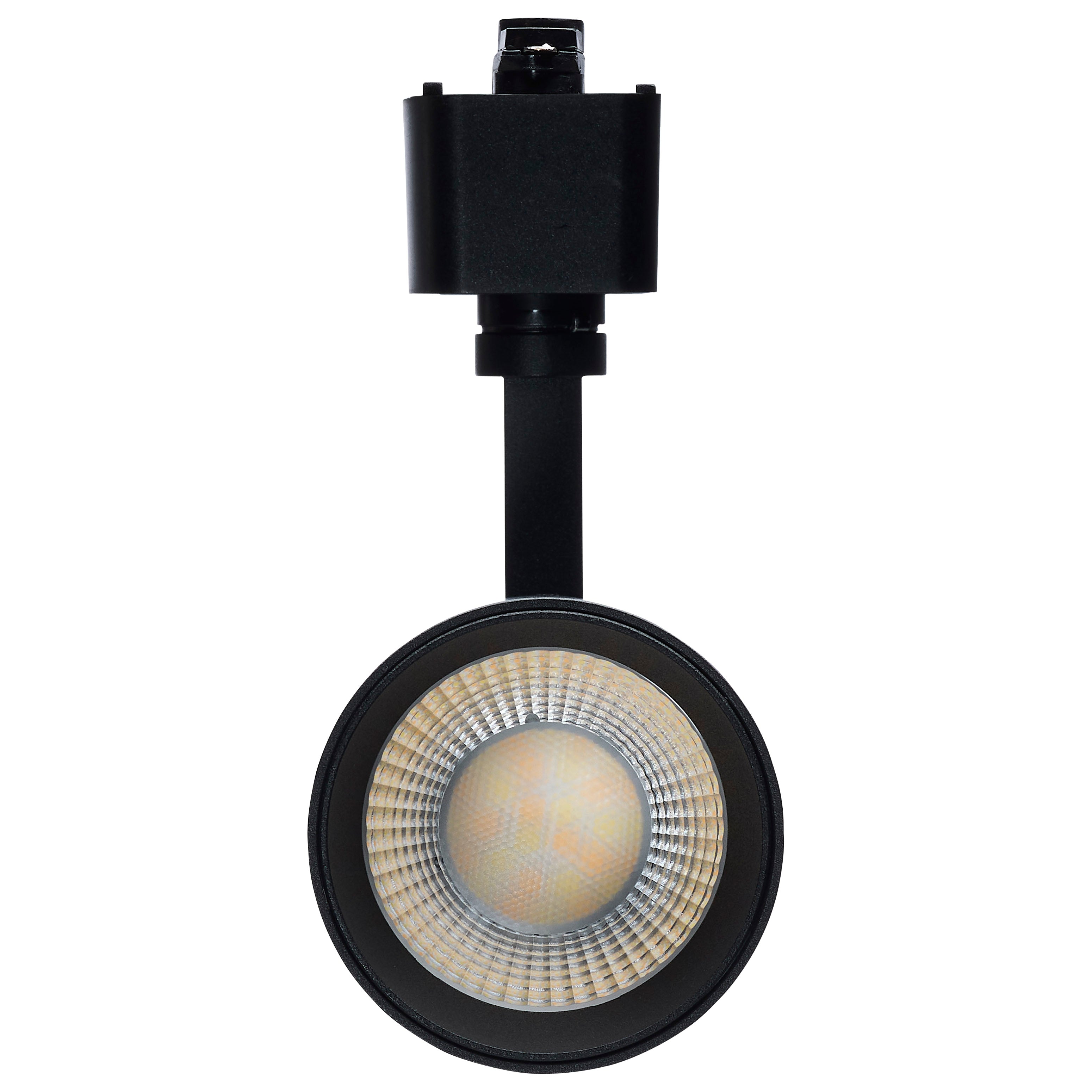

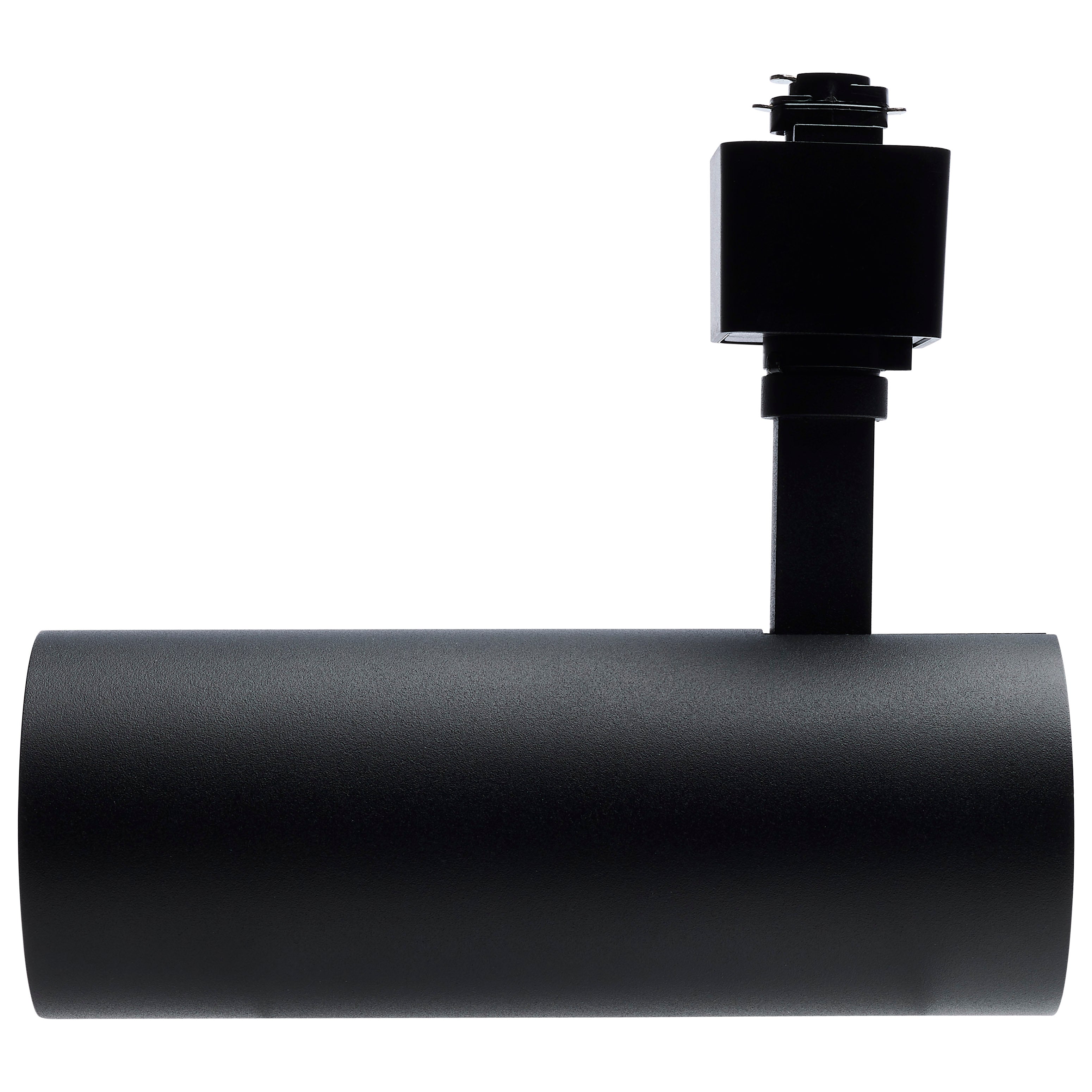

SATCO NUVO's TH714 LED track head fixture with a 48 degree beam spread, combines functionality and style for all of your lighting projects. This track head is designed to provide direct lighting in compact spaces and is CCT selectable, offering five different color temperature options. With an impressive CRI rating of 90, it delivers crisp, true-to-life white light. Compatible with SATCO H-Track systems and various accessories (sold separately), this fixture is versatile enough to meet numerous lighting requirements. Available in 20 watts with a matte black finish, this track head provides both aesthetic appeal and energy efficiency, enhancing any space it illuminates.

Features :-

  • 90 CRI High Quality Light
  • 48 Degree Beam Angle
  • Satco H-Track Compatible
  • Matte Black Finish
  • 5 CCT Selectable
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
