Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 20W
Lumens 1400L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish Matte White
Beam Angle 48
Color Temperature Selectable Yes
Fixture Type Track Head

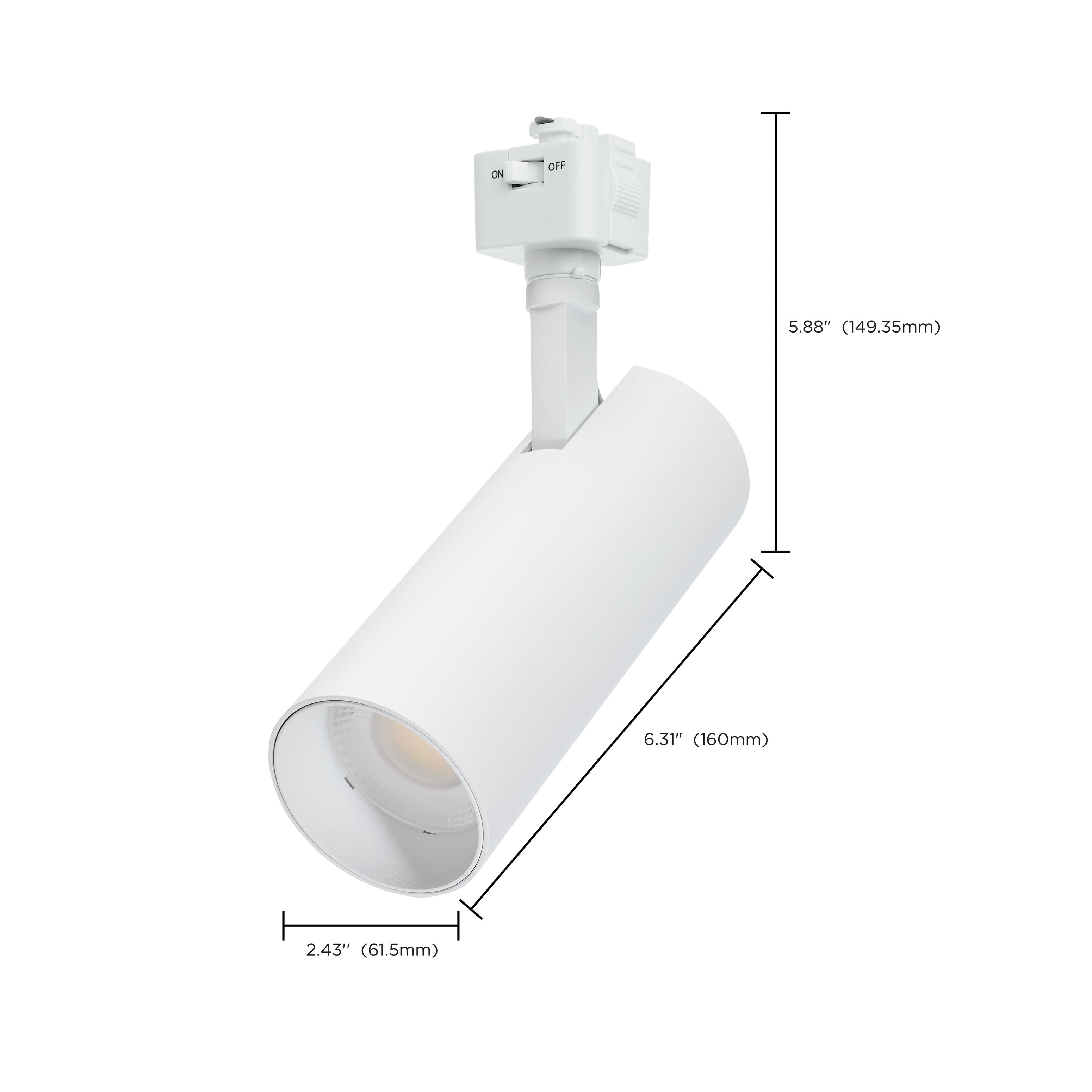

Length 6.31 IN
Mounting Type Track
Performance
Rated Life 30000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, 120V only
Construction / Installation
Material Aluminum / Steel
Finish/Lens Clear
Width 2.43 IN
Height 5.88 IN
Weight 1.02 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

Choose 20 Watt LED Track Head - 48 Degree Beam Spread - J-Style Track - 5 CCT Selectable - Matte White Finish - J-Style when your project calls for a track lighting suited to retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for track light fixture that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. That is especially useful in commercial and residential interiors where adjustable lighting helps direct attention. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a track lighting, this option is well suited to projects involving accent lighting fixture, retail track lighting and other coordinated lighting upgrades.

Makes it easier to aim light toward displays, artwork, counters or architectural features. In wall washing, artwork lighting, task illumination and focused room lighting, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to shop track heads and track lighting fixtures, 20 Watt LED Track Head is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

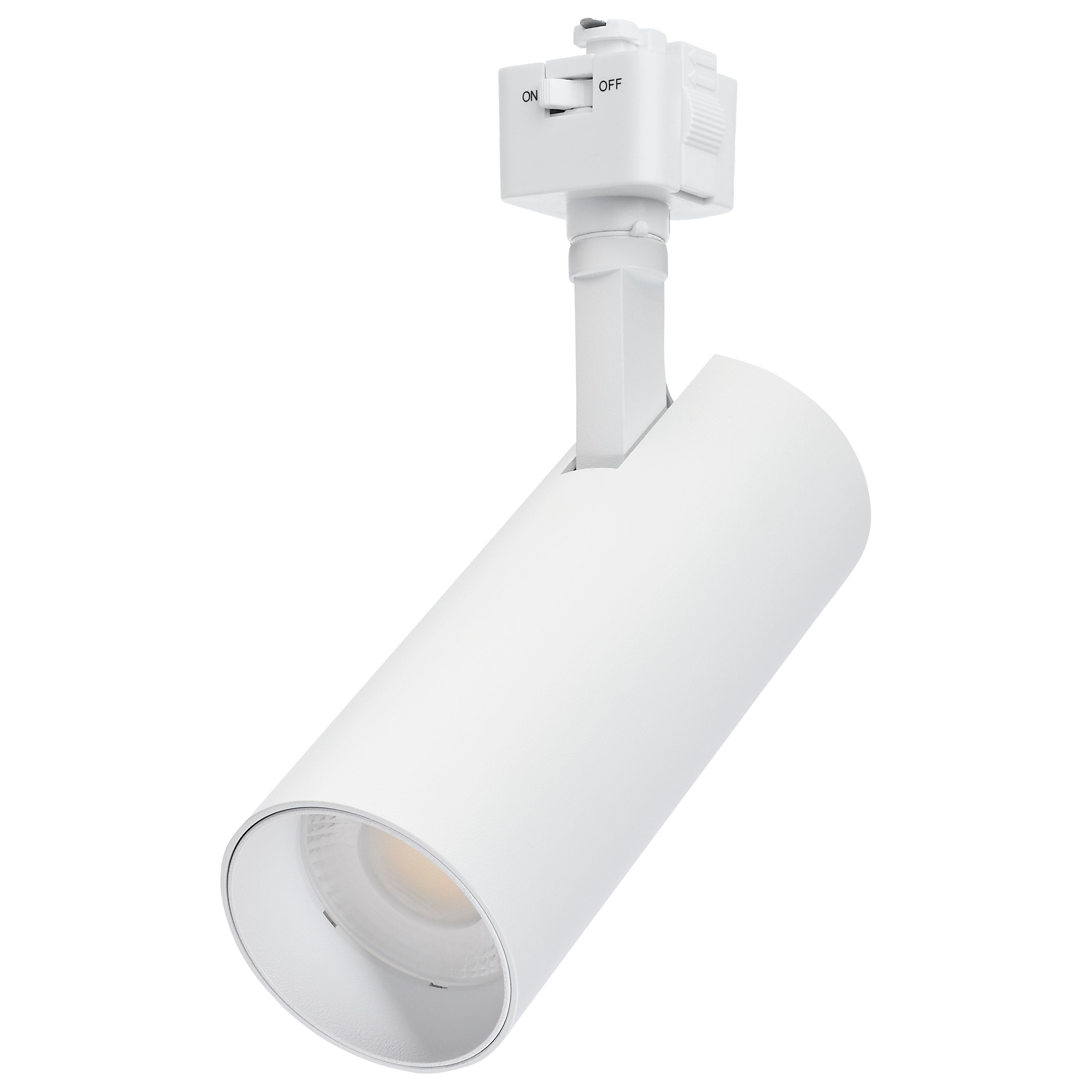

The TH5013 from SATCO NUVO is a 20-watt LED CCT Selectable track head in matte white with a wide 48-degree beam angle-ideal for broader illumination while maintaining targeted focus. It's compatible with Single and 2 Circuit J-Style track systems, making it a versatile solution for both commercial and residential settings. The fixture includes five selectable color temperatures and a high 90 CRI for accurate color rendering, offering efficient performance with a clean, modern design.

Features :-

  • J-Style Single and 2 Circuit Track Compatible
  • 48 Degree Beam Angle
  • 5 CCT Selectable
  • 90 CRI High Quality Light
  • Matte White Finish
  • Dimmable
  • T24 Compliant
  • 30,000 Life Hours
  • 3 Year Warranty
