Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 200W/150W/100W
Lumens 30000L/22500L/15000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 200W-450W
Shape Linear
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Linear Hi-Bay
Length 45.83 IN
Mounting Type Surface: Bracket, Suspension: CablesChain
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens White
Width 12.59 IN
Height 2.8 IN
Weight 17 lbs
Lens / Diffuser Polystyrene (PS)

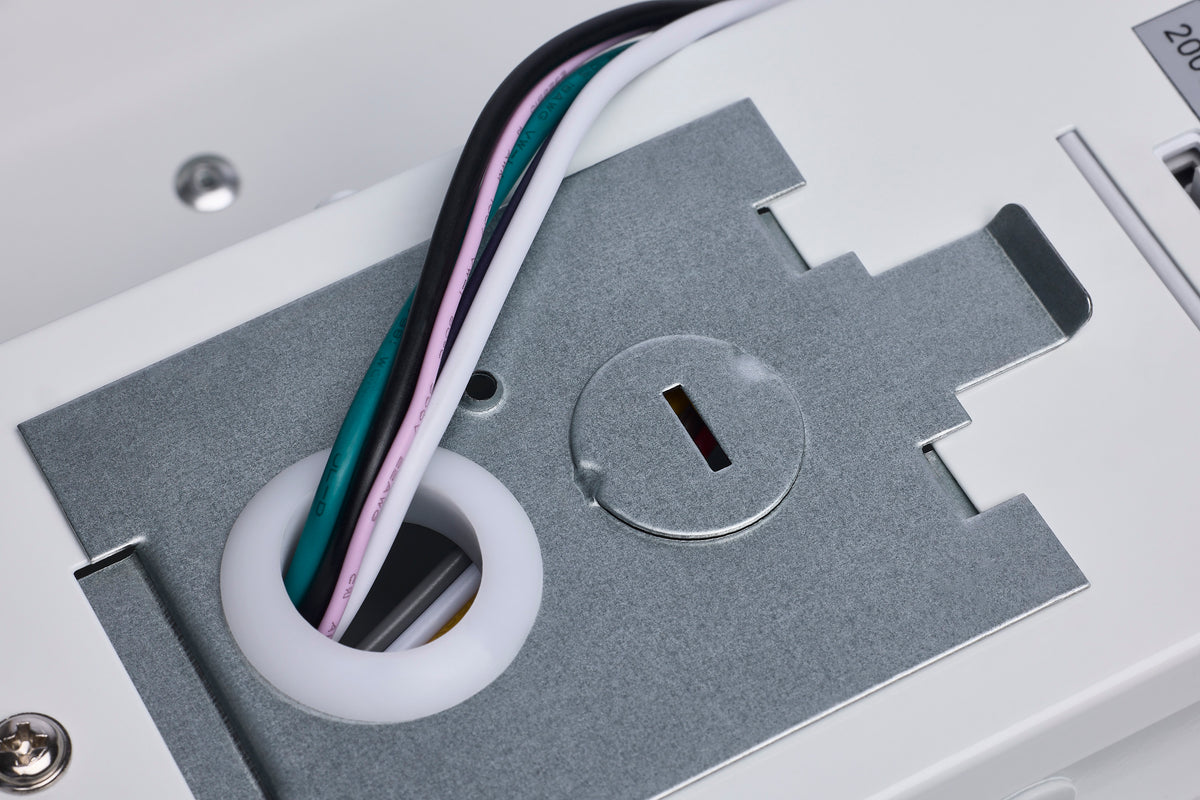

Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

200/150/100 Watt LED 4-Foot Linear High Bay - 3500K/4000K/5000K CCT - 120-277 Volt - White Finish brings the familiar role of a LED high bay light to new installations and lighting upgrades across large open work areas. It is a practical choice for customers comparing warehouse lighting fixture and shop high bay light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports consistent overhead illumination across wide workspaces and high-ceiling environments. That is especially useful in commercial and industrial facilities that need durable overhead lighting layouts. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED high bay light, this option is well suited to projects involving shop high bay light, LED high bay light and other coordinated lighting upgrades.

A practical choice for facility managers and contractors planning warehouse or industrial lighting projects. For warehouses, distribution areas, manufacturing floors, workshops and other high-ceiling interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

When it is time to buy LED high bay lights online, consider 200/150/100 Watt LED 4-Foot Linear High Bay for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

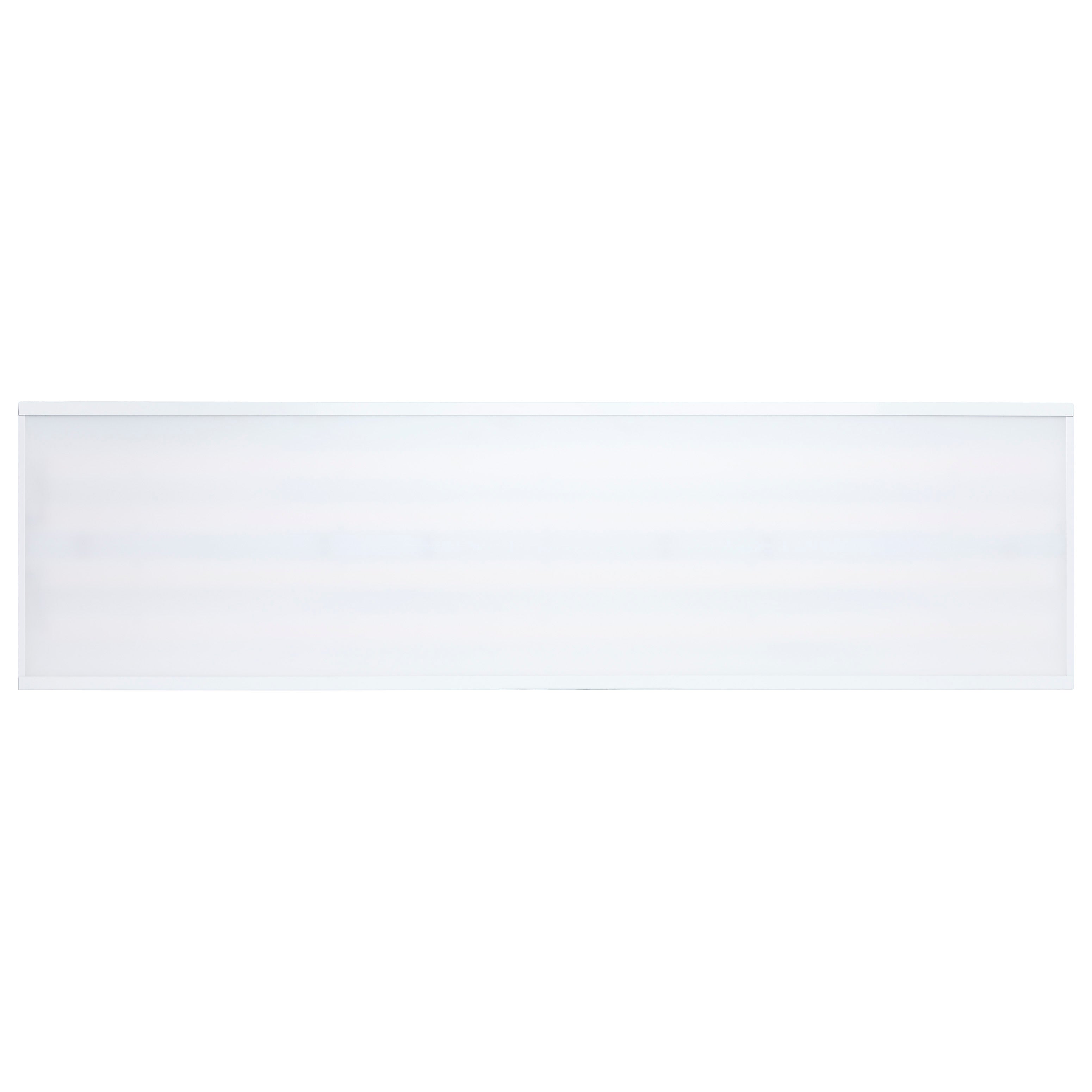

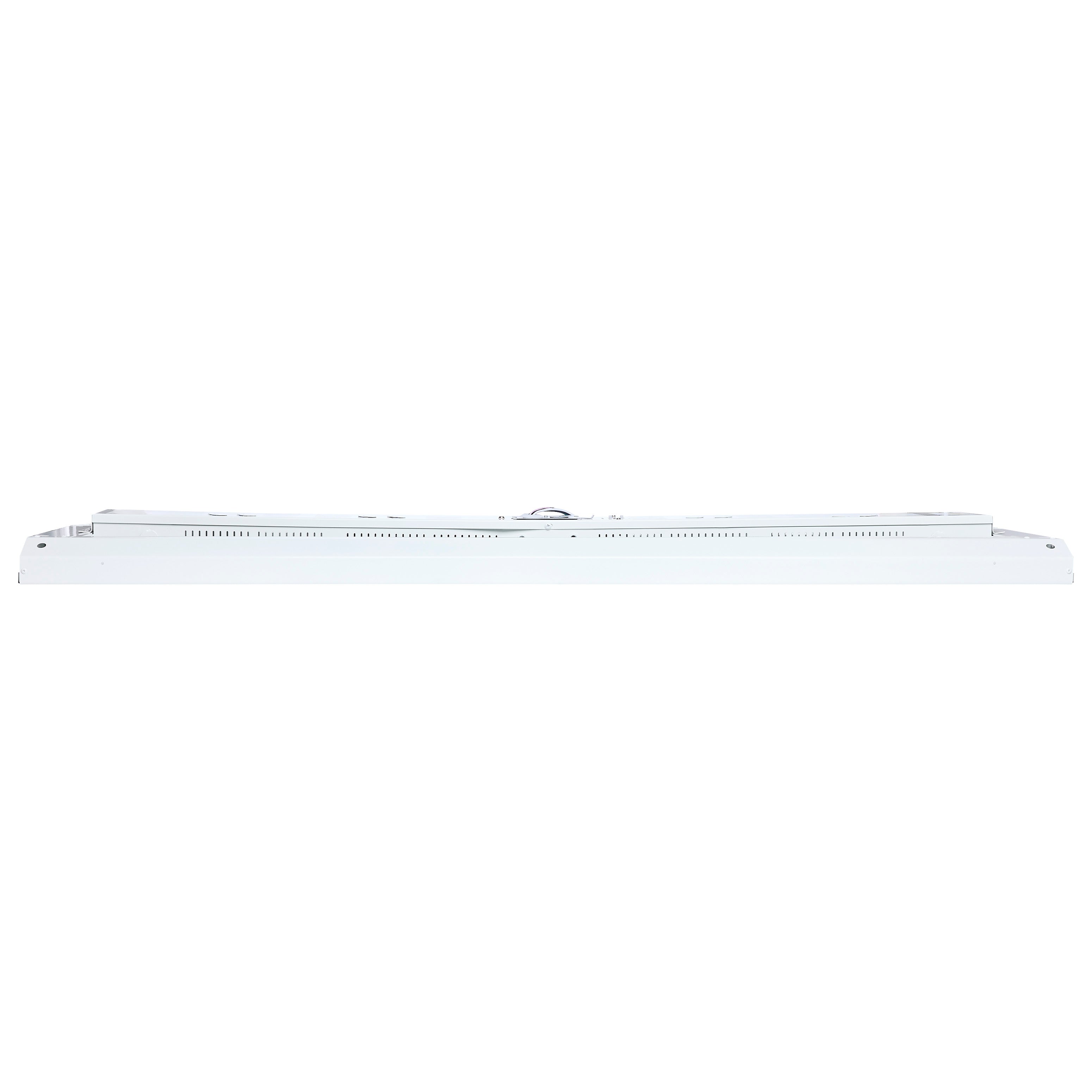

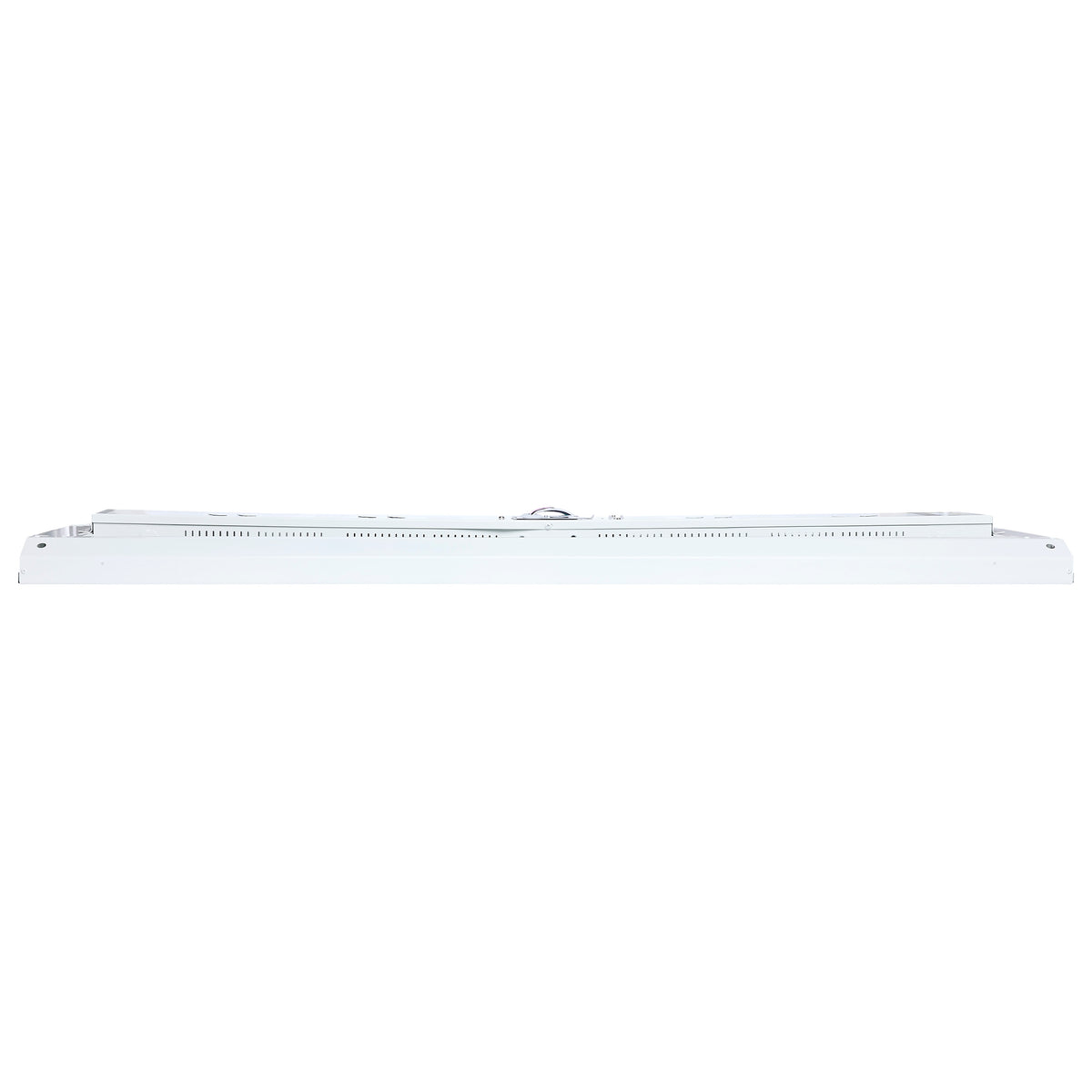

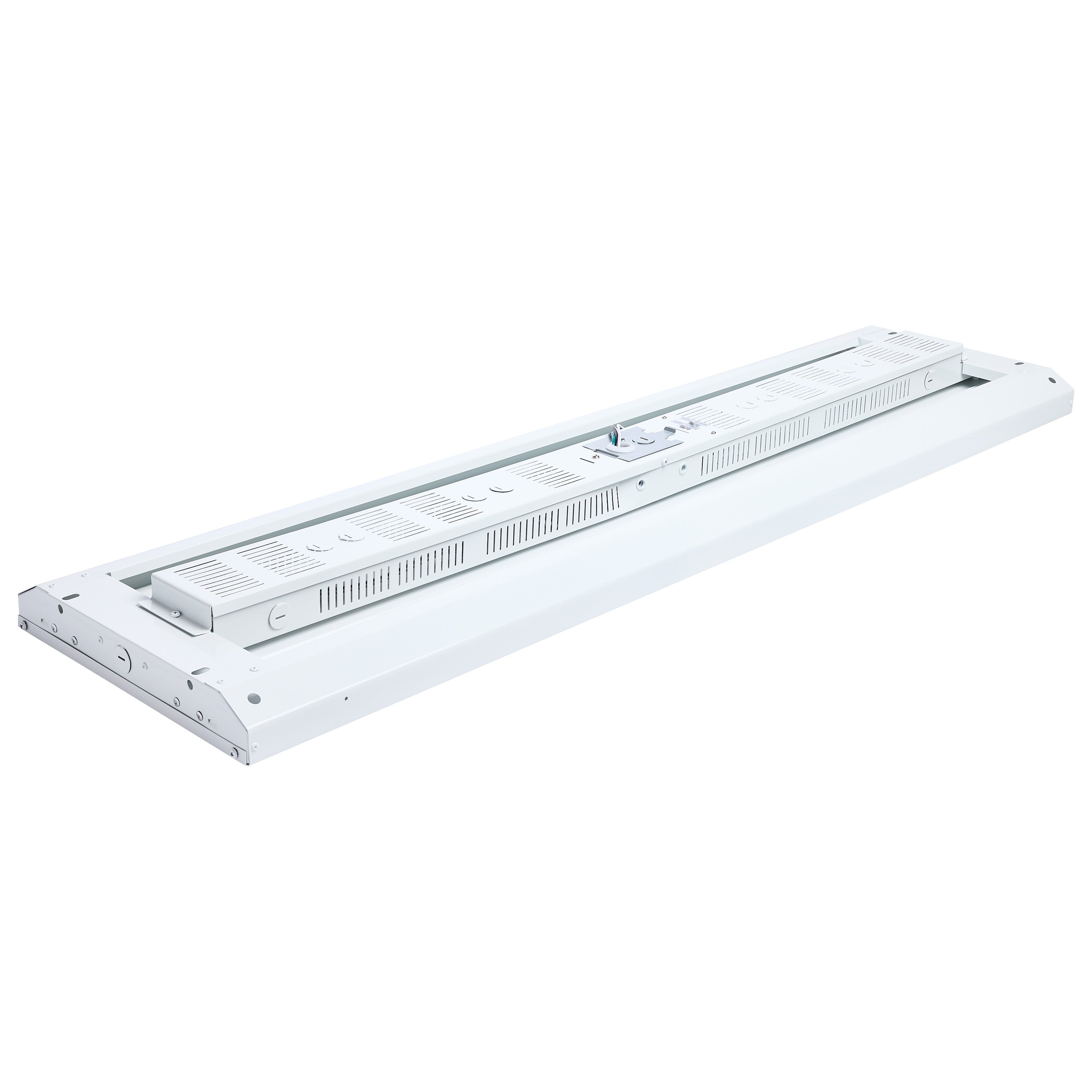

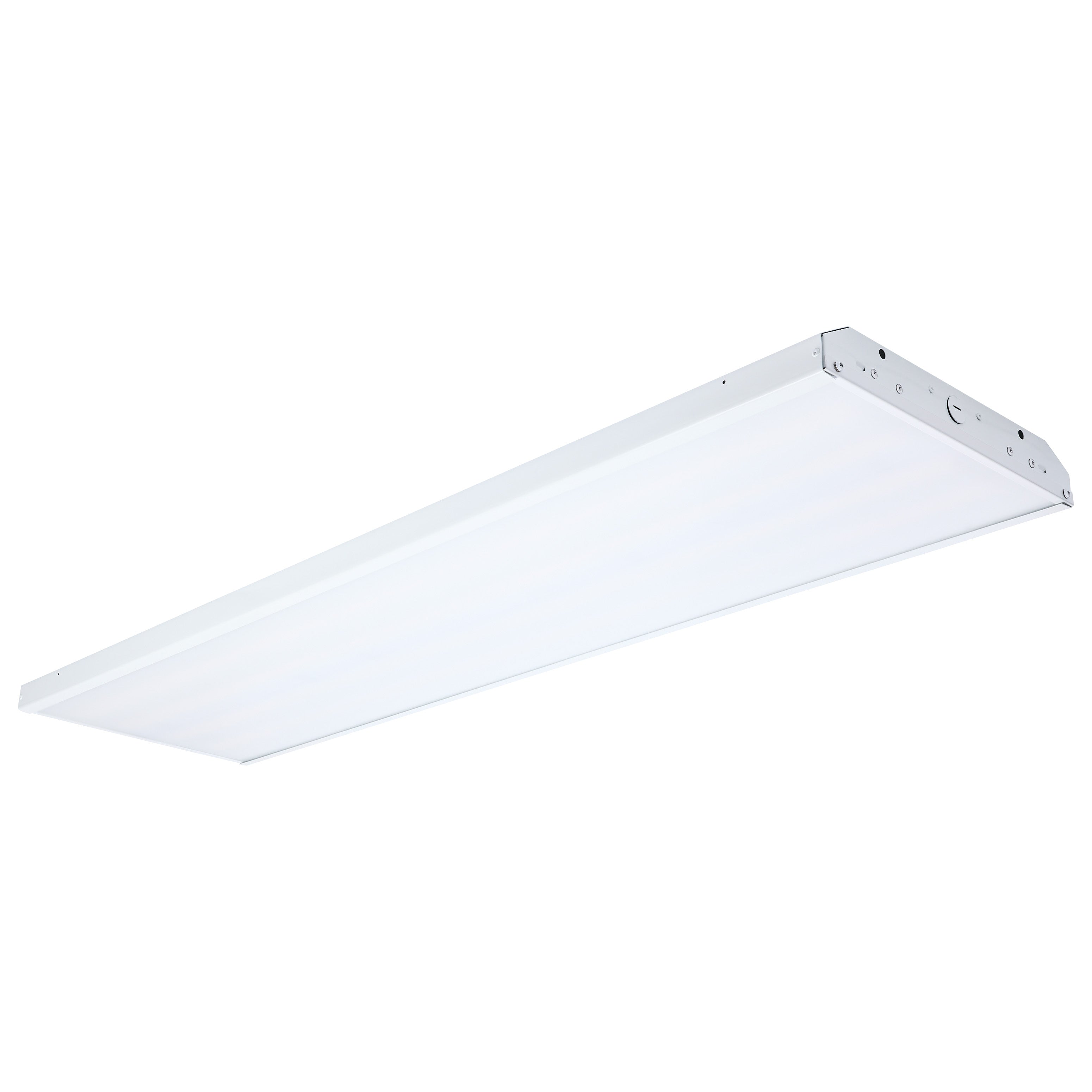

Engineered for high-performance illumination and on-site versatility, the SATCO NUVO 65-1040 4-foot LED Linear High Bay delivers powerful lighting for commercial and industrial environments. Selectable wattage (200W/150W/100W) and CCT options (3500K/4000K/5000K) allow installers to easily adjust light levels and color temperature to suit the application. Producing up to 30,000 lumens with a wide 120-Degrees beam angle, the fixture provides bright, uniform illumination across large interior spaces. The durable steel housing is damp-location rated and designed for long-lasting operation with a 50,000-hour lifespan backed by a 5-year warranty. Standard features include 0���������������������������10V dimming and 6kV surge protection for dependable performance. Each fixture includes a 4-foot suspension kit and V-clips for straightforward installation, with optional PIR and microwave sensors available to support enhanced lighting control.

Features :-

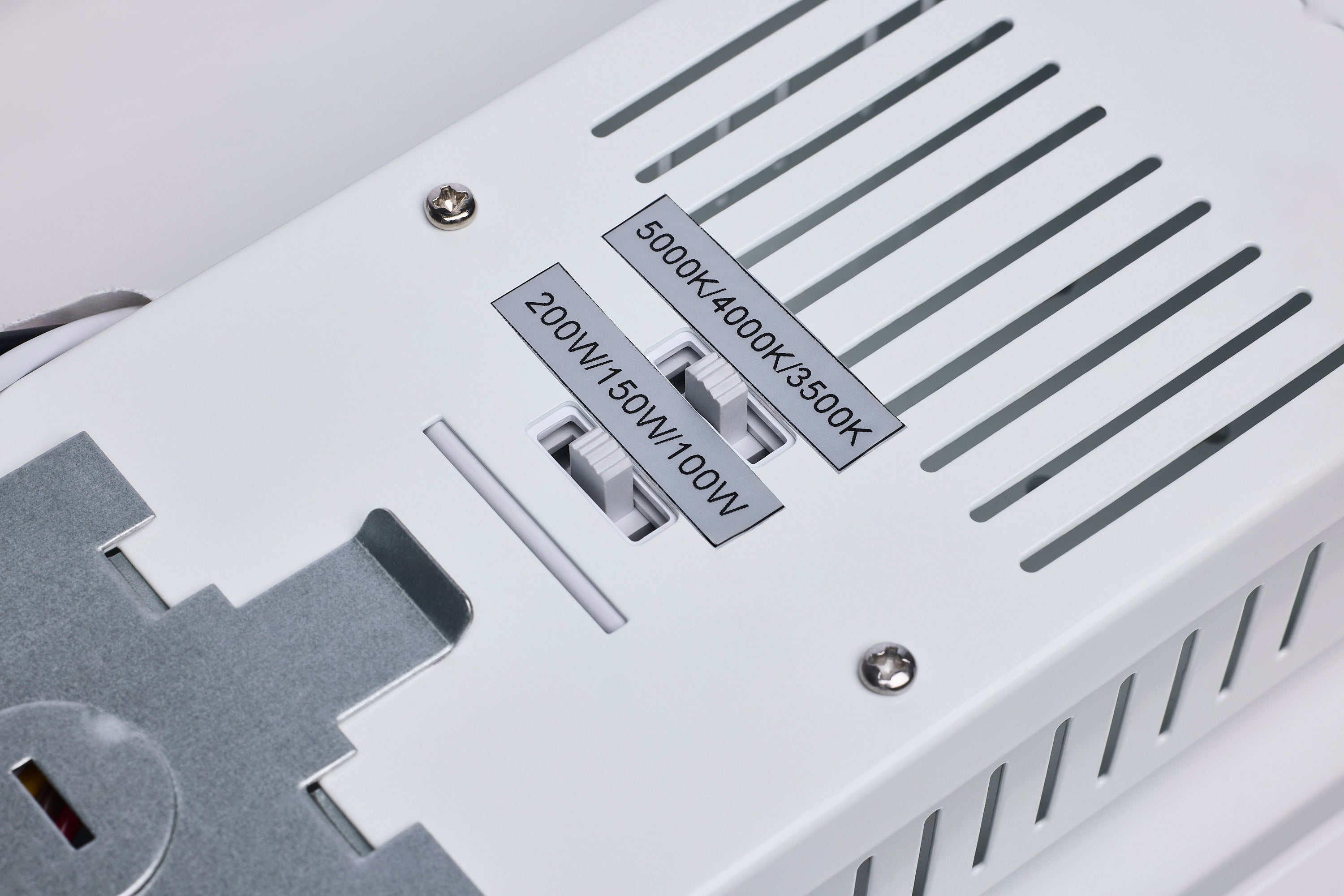

  • 3 Wattage Selectable (200W/150W/100W)
  • 3 CCT Selectable (3500K/4000K/5000K)
  • 6kV Surge Protection
  • Steel Construction with Polystyrene Lens
  • 120-277V Range Voltage
  • 0-10V Dimmable
  • 4' Suspension Kit and V-Clips Included
  • 50,000 Life Hours
  • 5 Year Warranty
