Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 20W/30W/40W
Lumens 2500L/3750L/5000L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Troffer
Length 23.74 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens White
Width 23.74 IN
Height 1.62 IN
Weight 9.48 lbs
Lens / Diffuser Polycarbonate (PC)

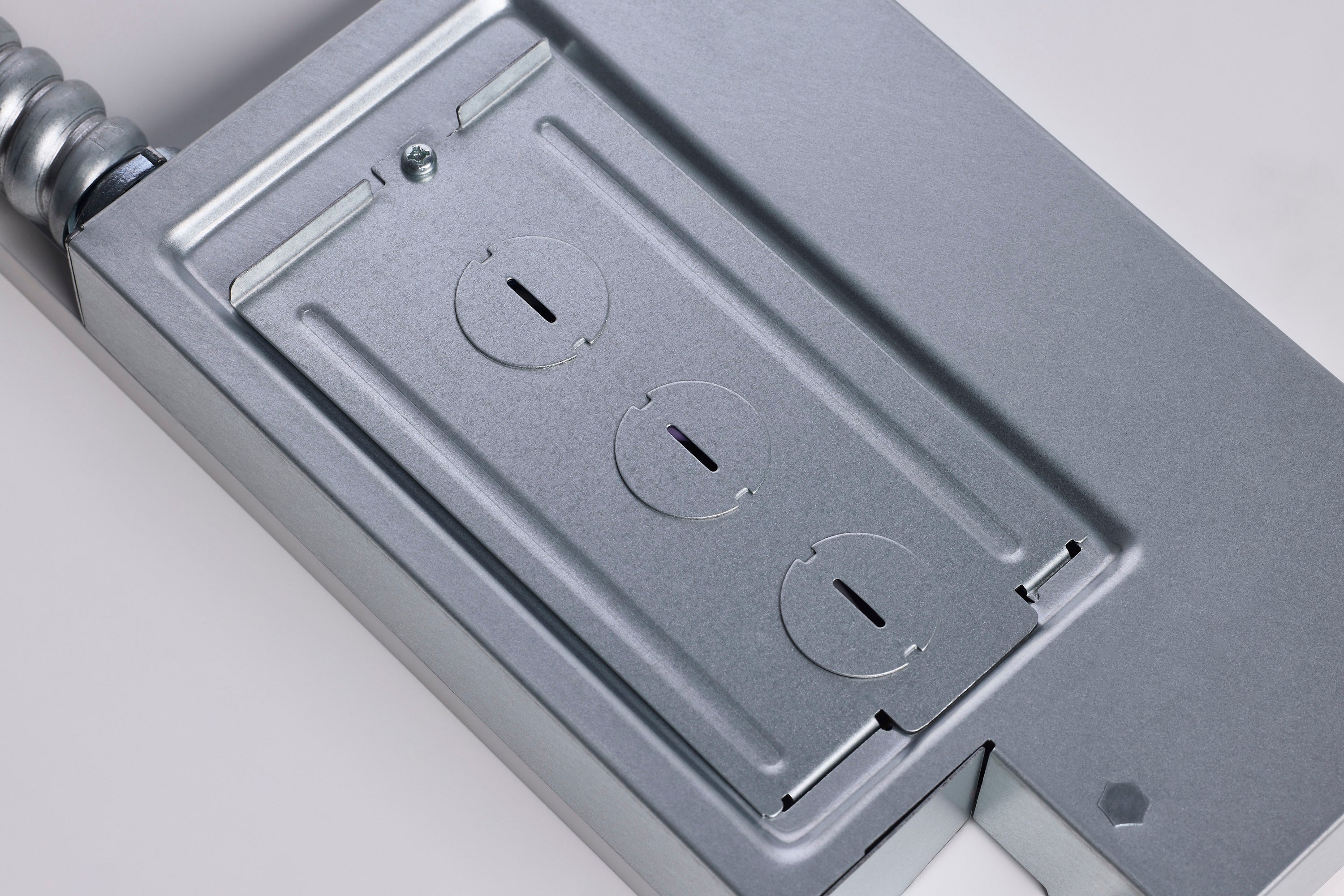

Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 2X2 LED Single Basket Troffer - Emergency Battery - Field Selectable - 120-277 Volt - White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED troffer light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

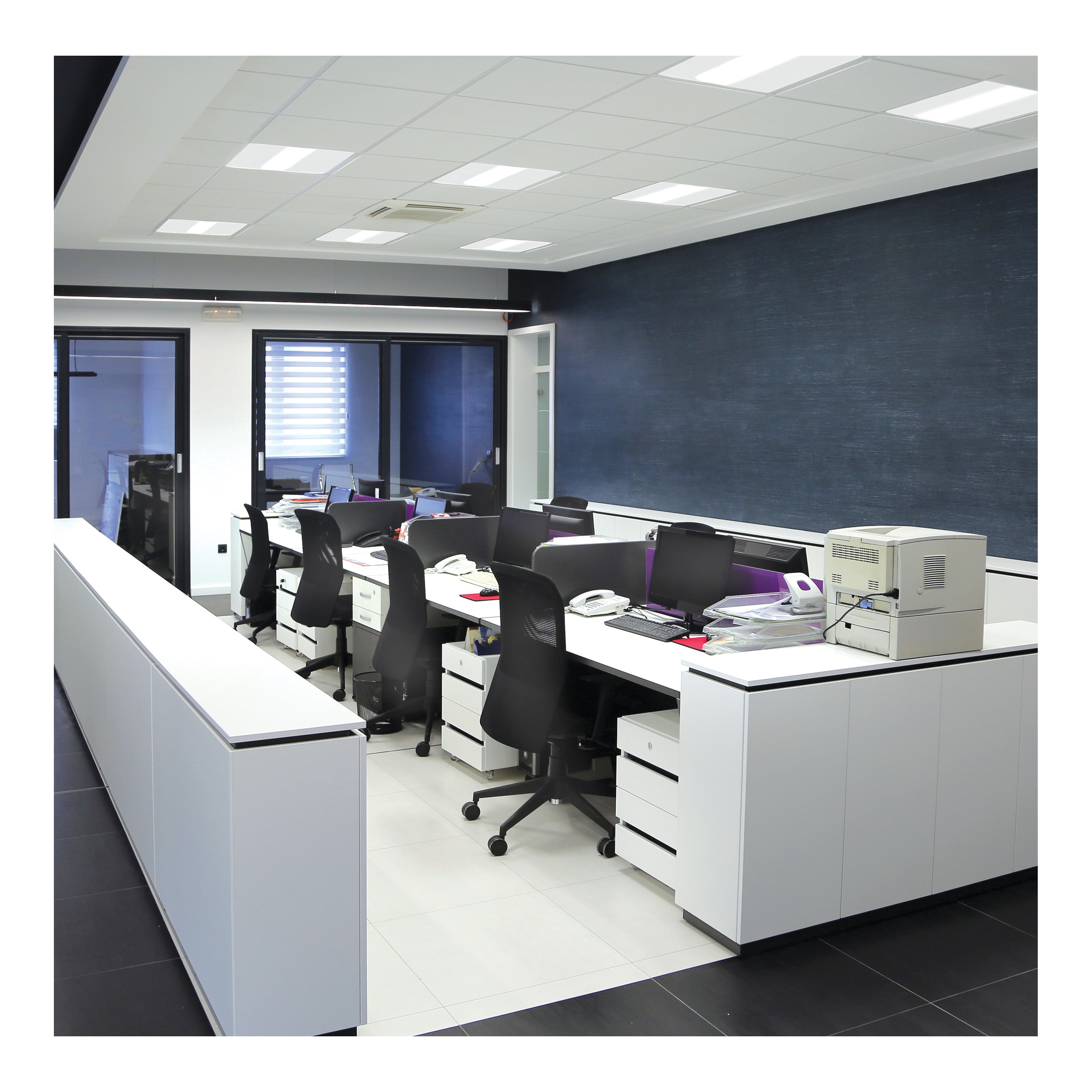

Works well when project teams need repeatable fixtures throughout offices or public spaces. It is well suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors, where lighting needs to support the space rather than distract from it. This makes the product a practical office LED light fixture choice for customers also considering drop ceiling lighting as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports a clean, organized ceiling layout across larger commercial interiors. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to order office LED lighting for renovation projects, 2X2 LED Single Basket Troffer is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

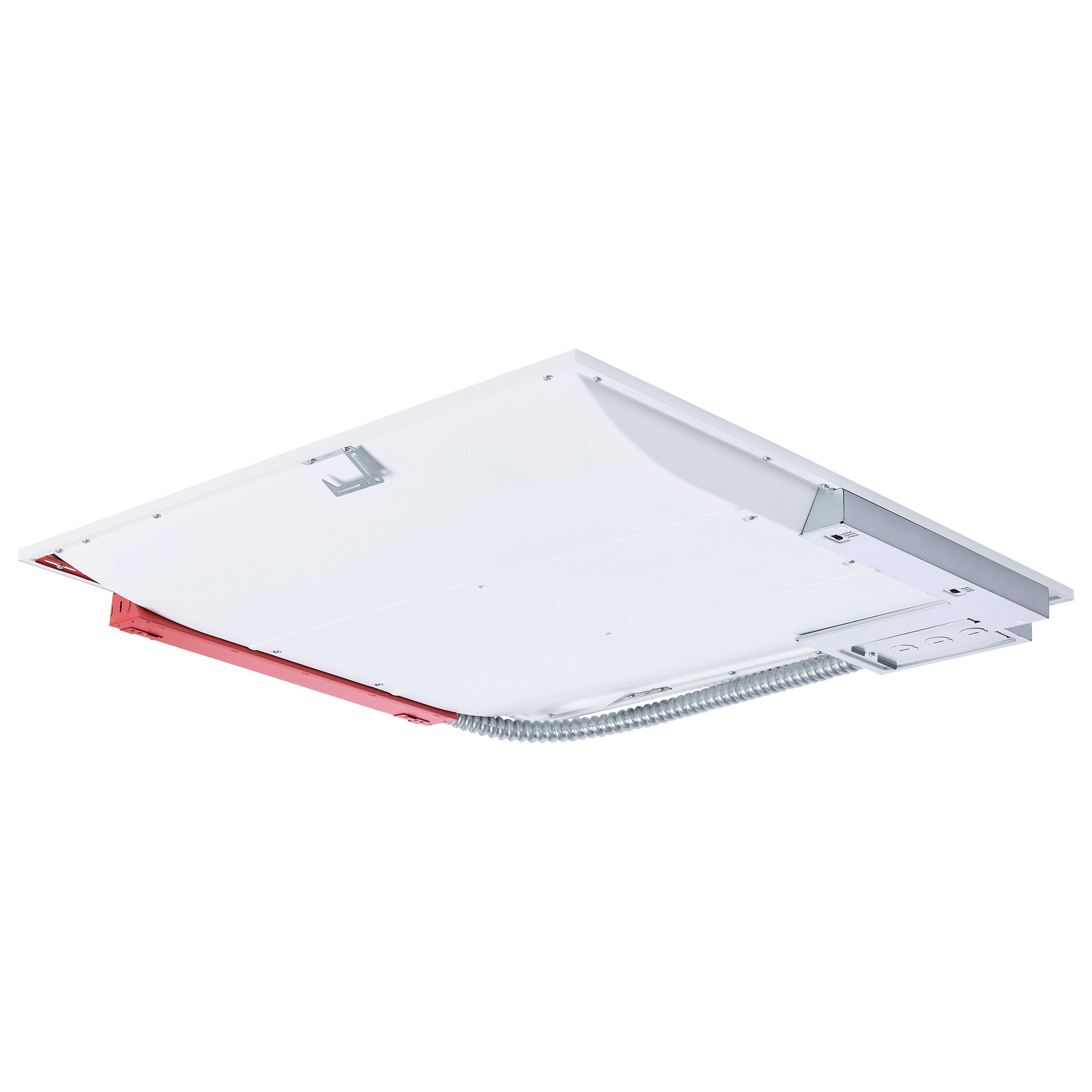

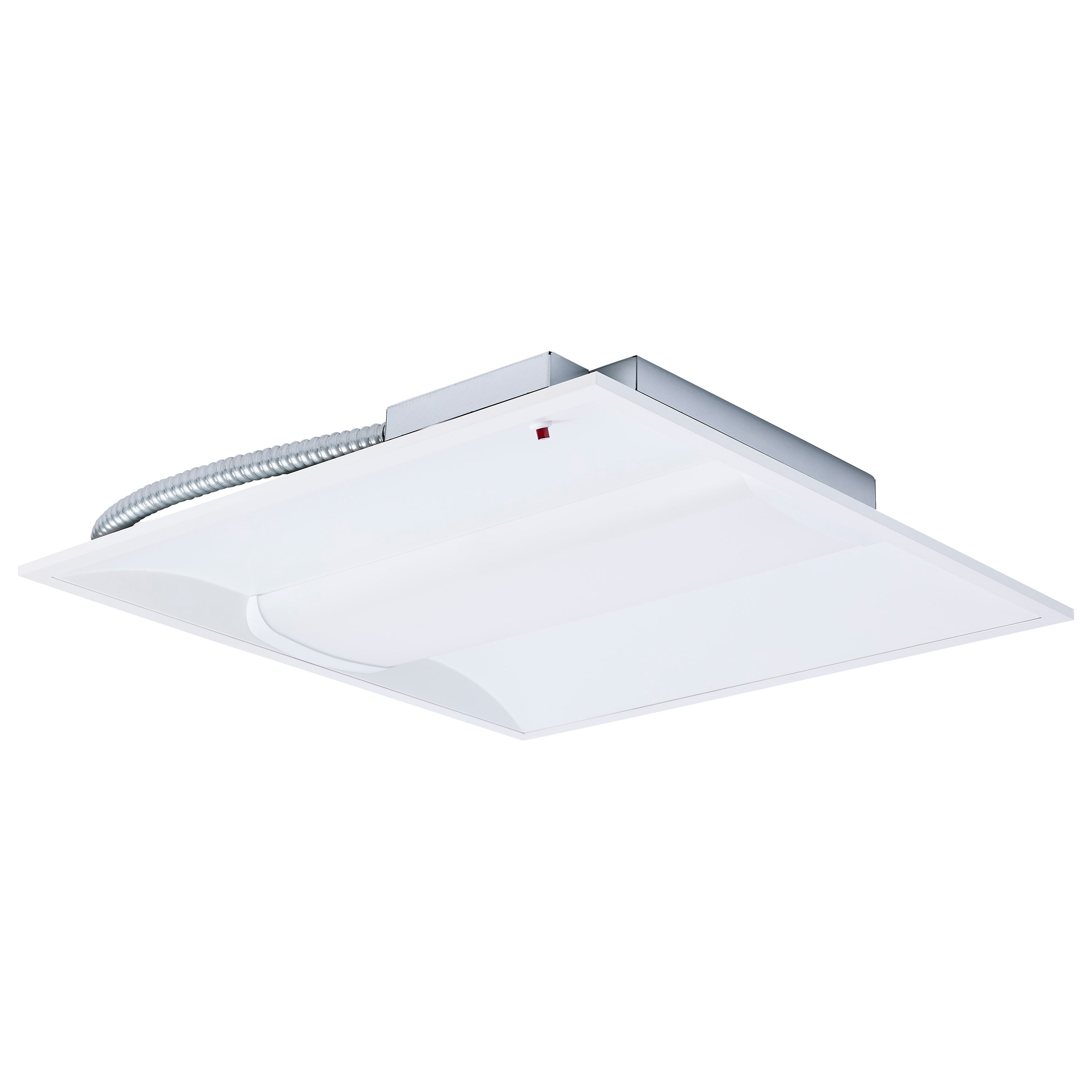

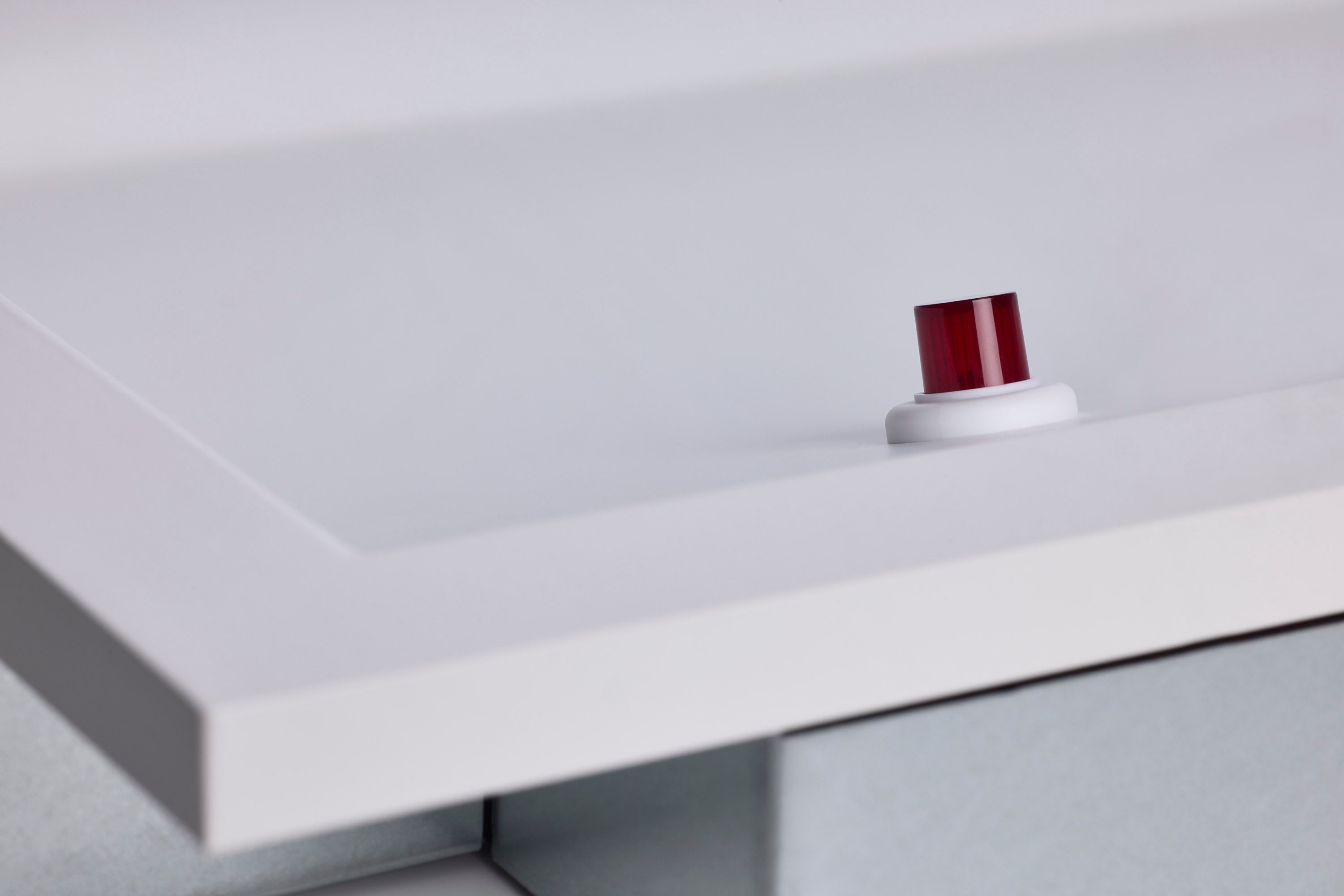

The SATCO NUVO 65-1603 Single Basket LED Troffer combines configurable performance with integrated emergency capability in a 2x2 design. Featuring selectable wattage (20W/30W/40W) and selectable CCT (3500K/4000K/5000K), it delivers 2500 to 5000 lumens during normal operation. An integrated LiFePO4 emergency battery provides 90 minutes of backup power and includes a test button and indicator light. Additional features include a steel housing, polycarbonate lens, 0���������������������������10V dimming to 10%, IP20 damp location rating, 50,000-hour rated life, and 5-year warranty.

Features :-

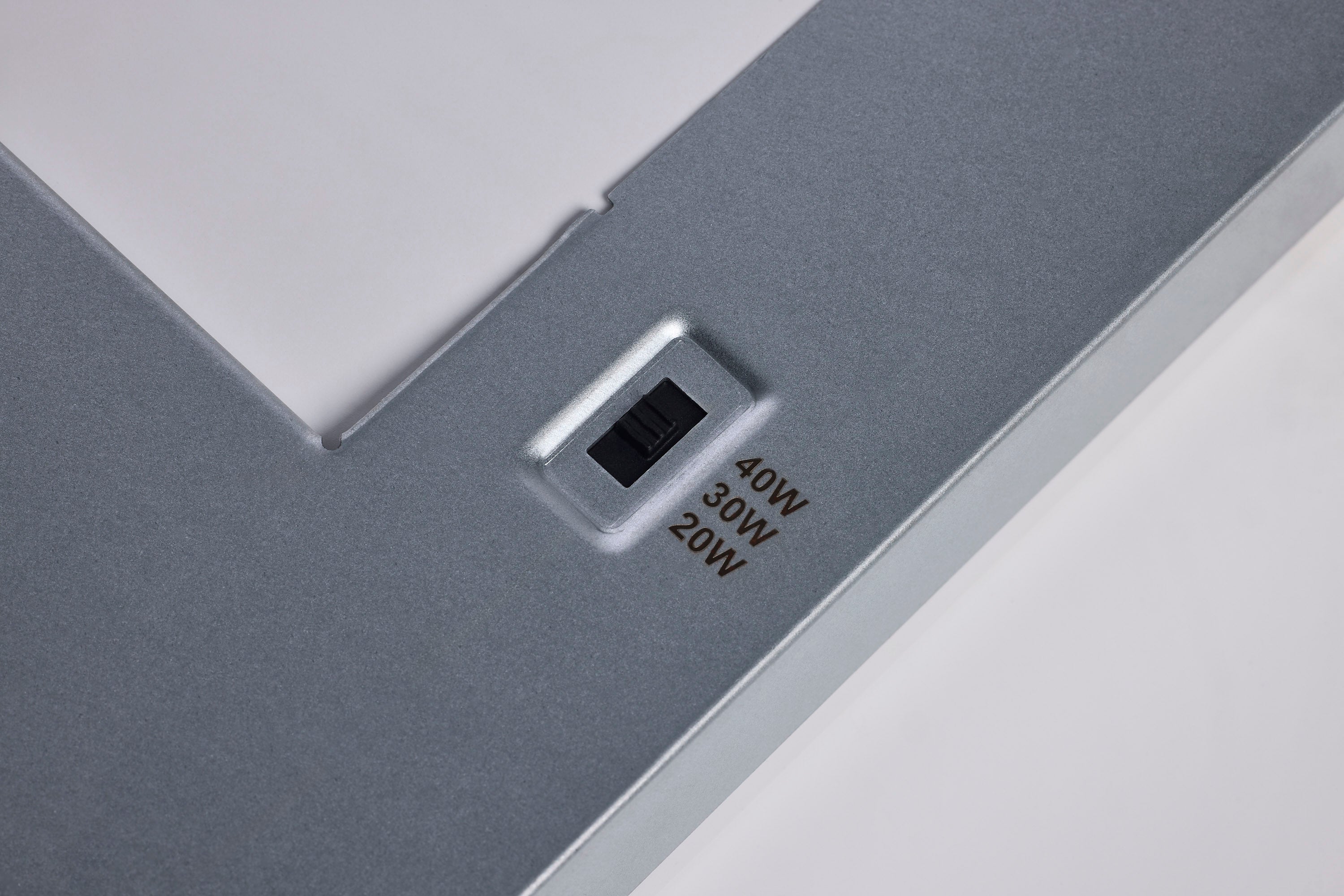

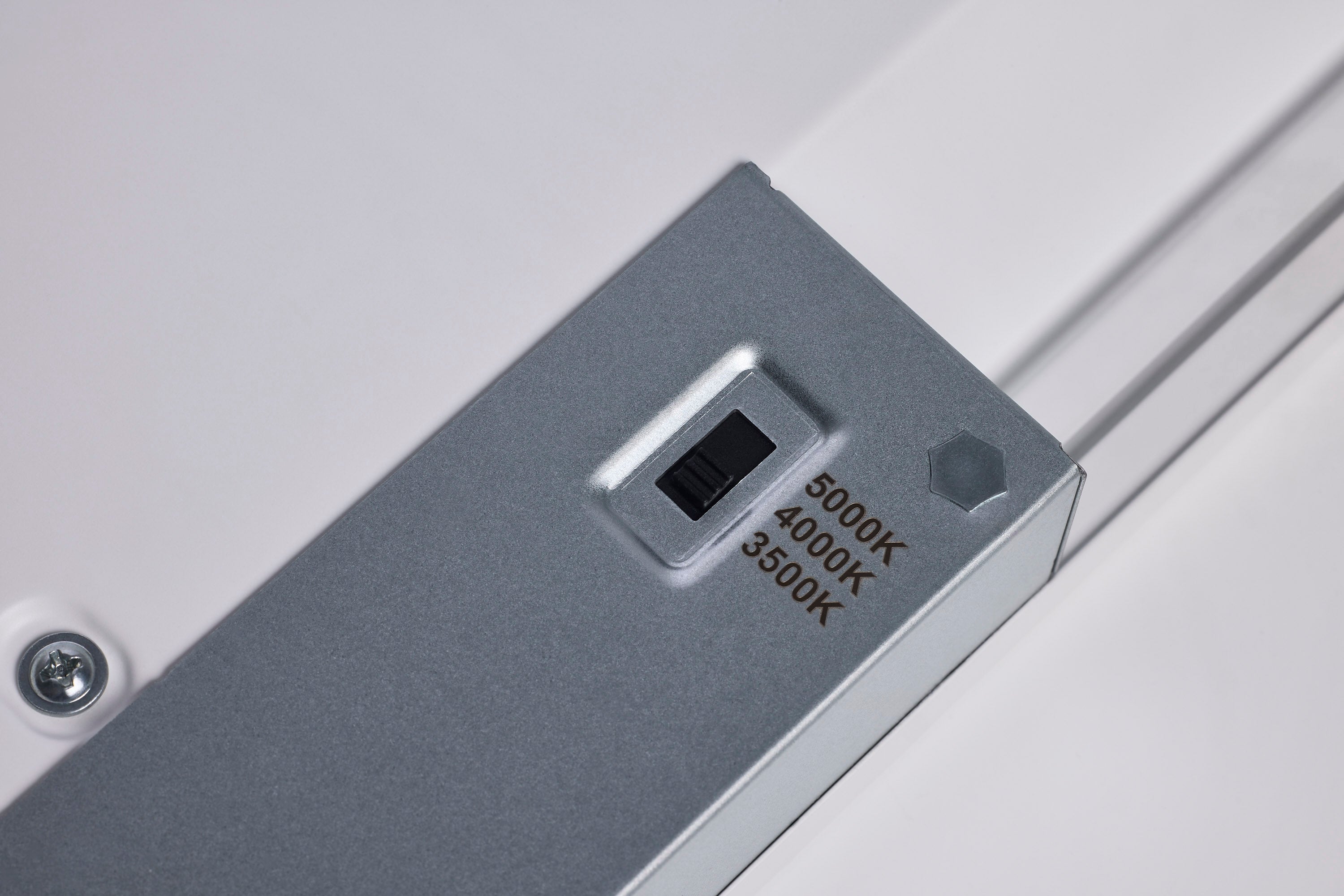

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X2 Emergency Battery Backup Model
  • 0-10V Dimming
  • 120-277 Voltage
  • Steel Body with Polycarbonate Lens
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
