Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 30W/35W/40W
Lumens 3300L-4400L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 70W-100W
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Troffer

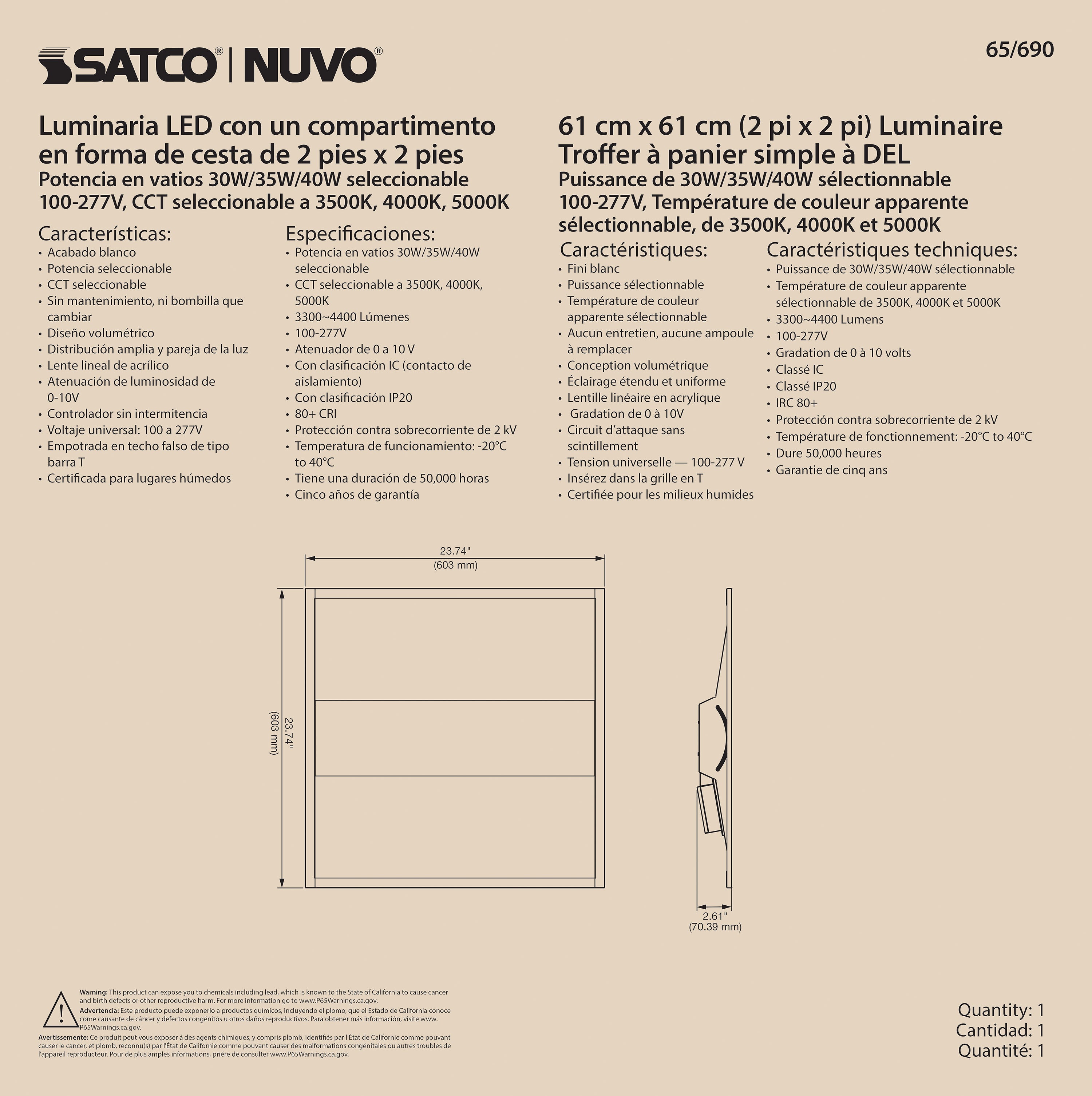

Length 23.74 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Width 23.74 IN
Height 2.61 IN
Weight 6.06 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

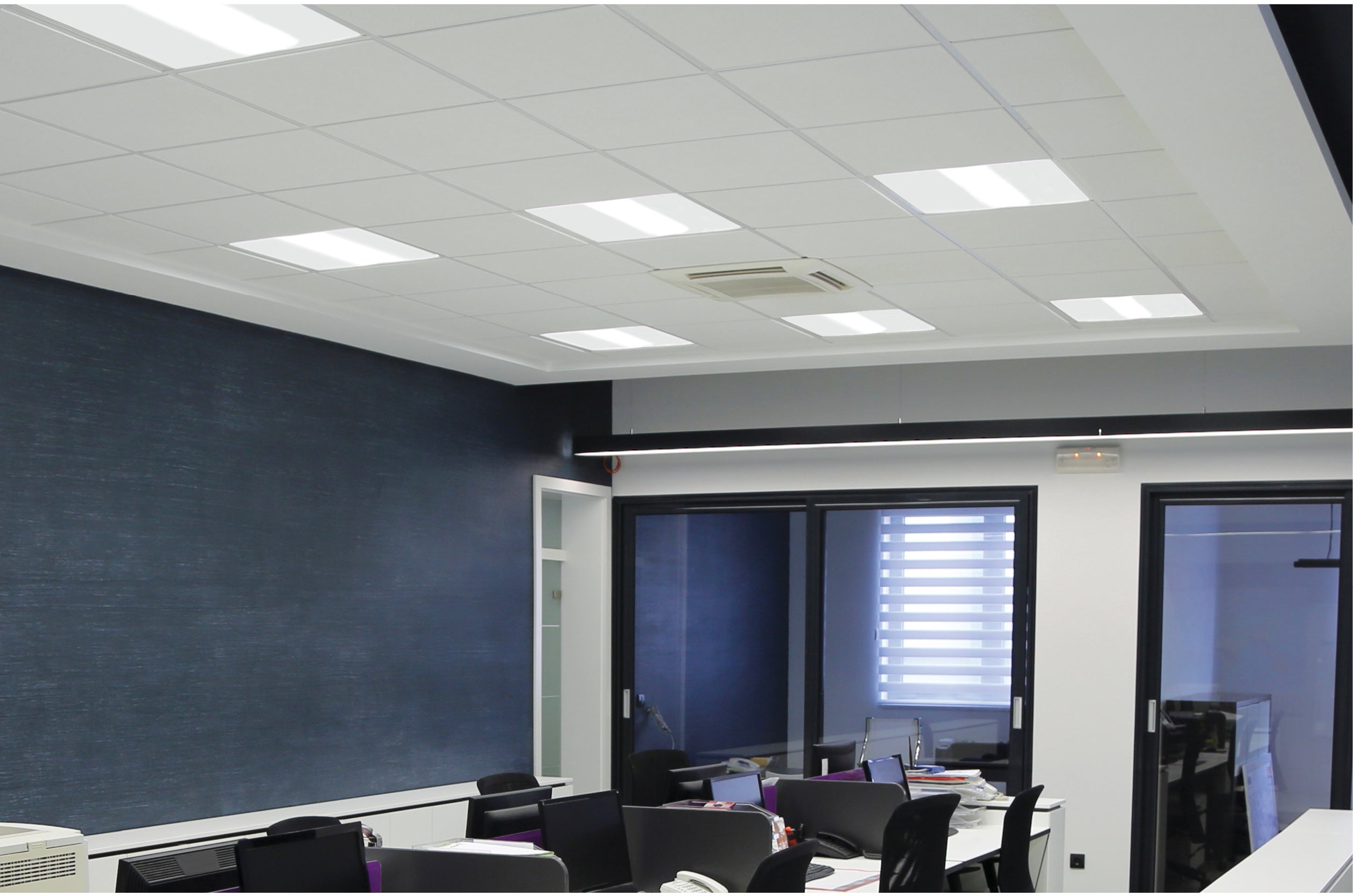

Choose 2X2 Single Basket LED Troffer Fixture - Wattage Selectable - CCT Selectable - Lumens Selectable - 100-277V - White Finish when your project calls for a commercial ceiling light suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED troffer light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. That is especially useful in renovations, tenant improvements and facility upgrades that need consistent overhead illumination. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving commercial ceiling lighting, LED panel light and other coordinated lighting upgrades.

Supports a clean, organized ceiling layout across larger commercial interiors. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to order office LED lighting for renovation projects, 2X2 Single Basket LED Troffer Fixture offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

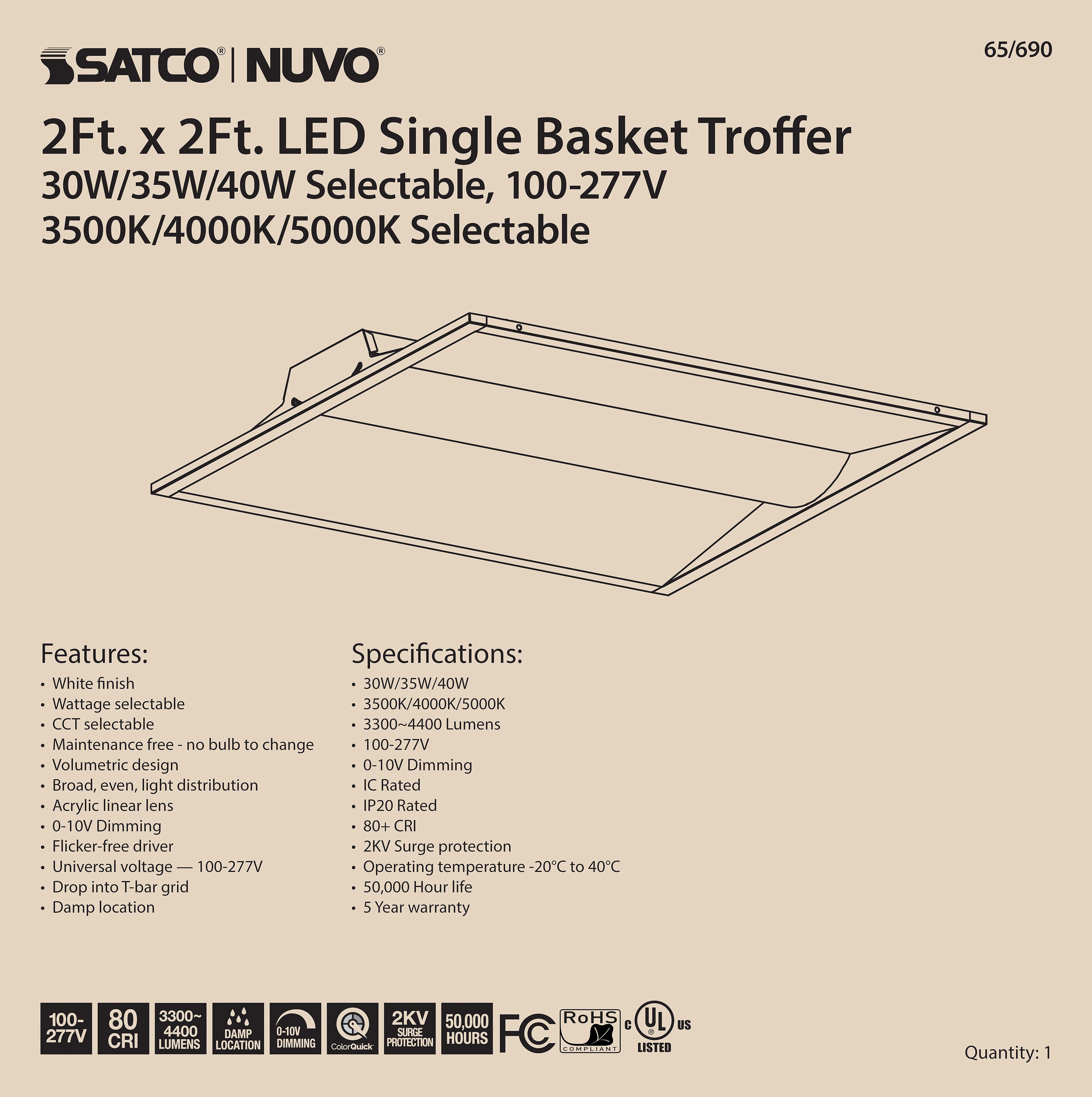

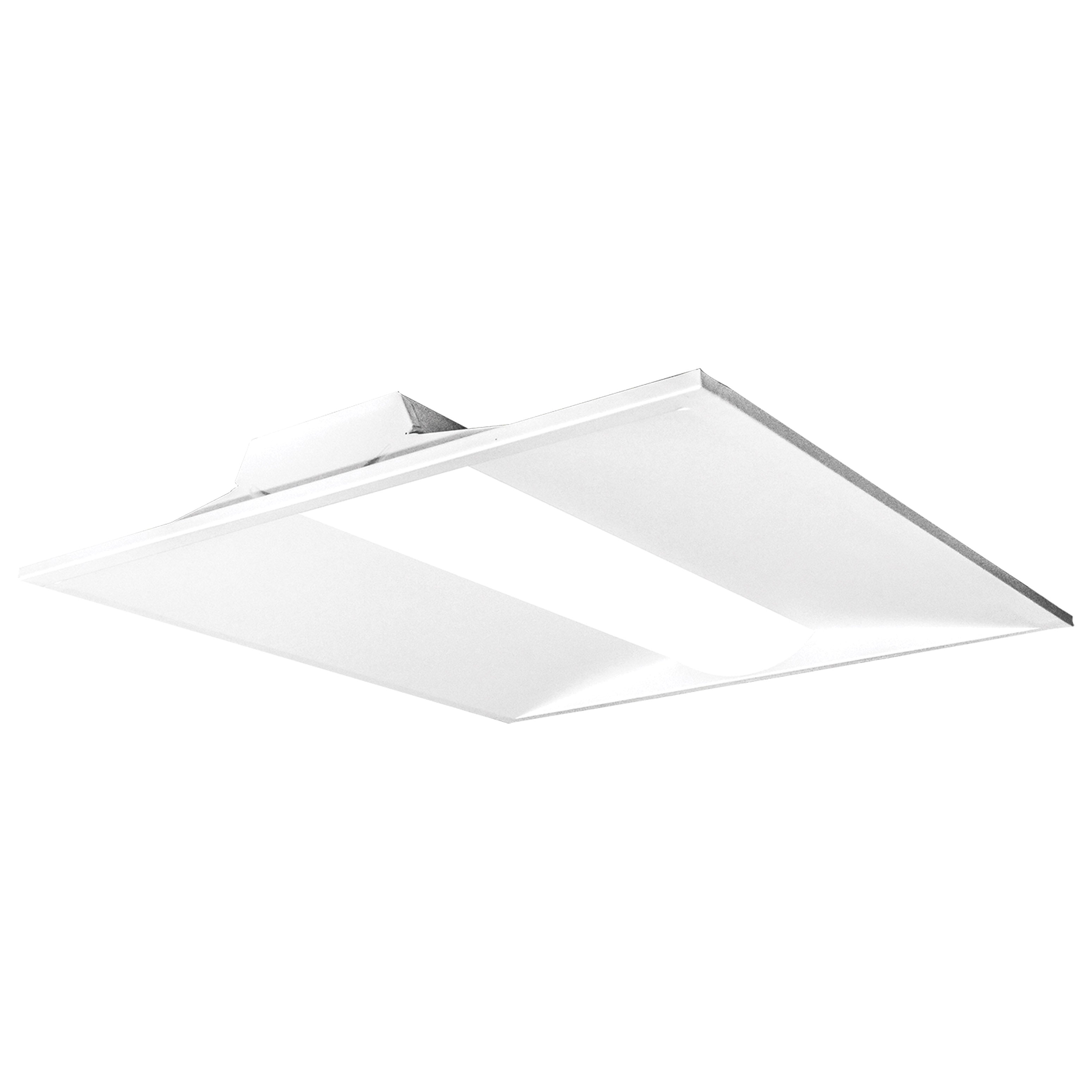

SATCO NUVO's 65-690 is a two foot by two foot single basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.

Features :-

  • Volumetric design
  • Watts: 30W - 35W - 40W
  • Lumens: 3300L - 4400L
  • Color temperature: 3500K/4000K/5000K
  • Operating temperature: -20C (-4F) to a maximum of 40C (104F)
