Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 30W/40W/50W
Lumens 3300L-5750L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 70W-125W
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Double Basket Troffer

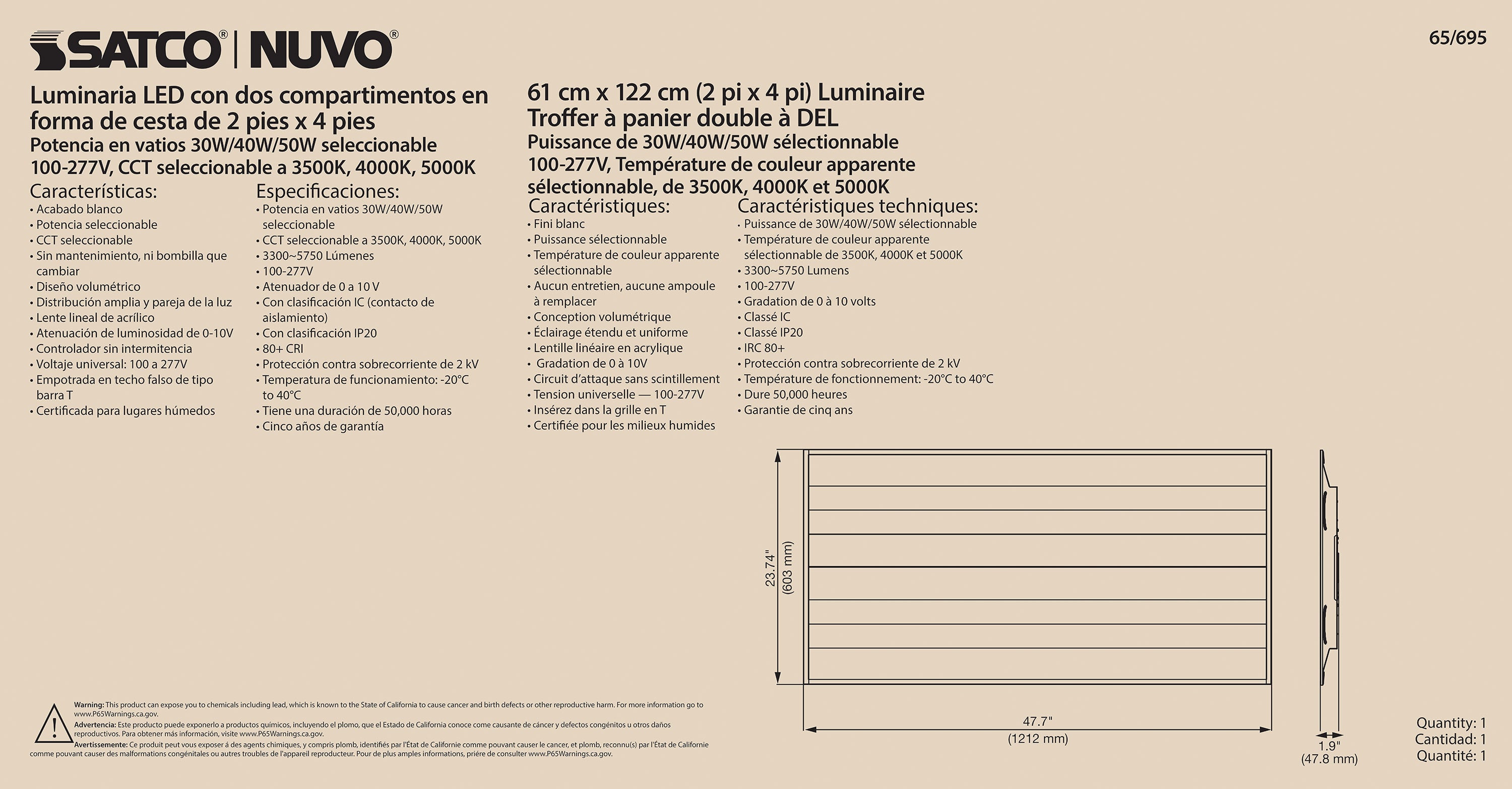

Length 47.72 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Width 23.74 IN
Height 2.61 IN
Weight 12.46 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

2X4 Double Basket LED Troffer Fixture - Wattage Selectable - CCT Selectable - Lumens Selectable - 100-277V - White Finish is a commercial ceiling light intended for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting drop ceiling lighting for a specific room, fixture or property application.

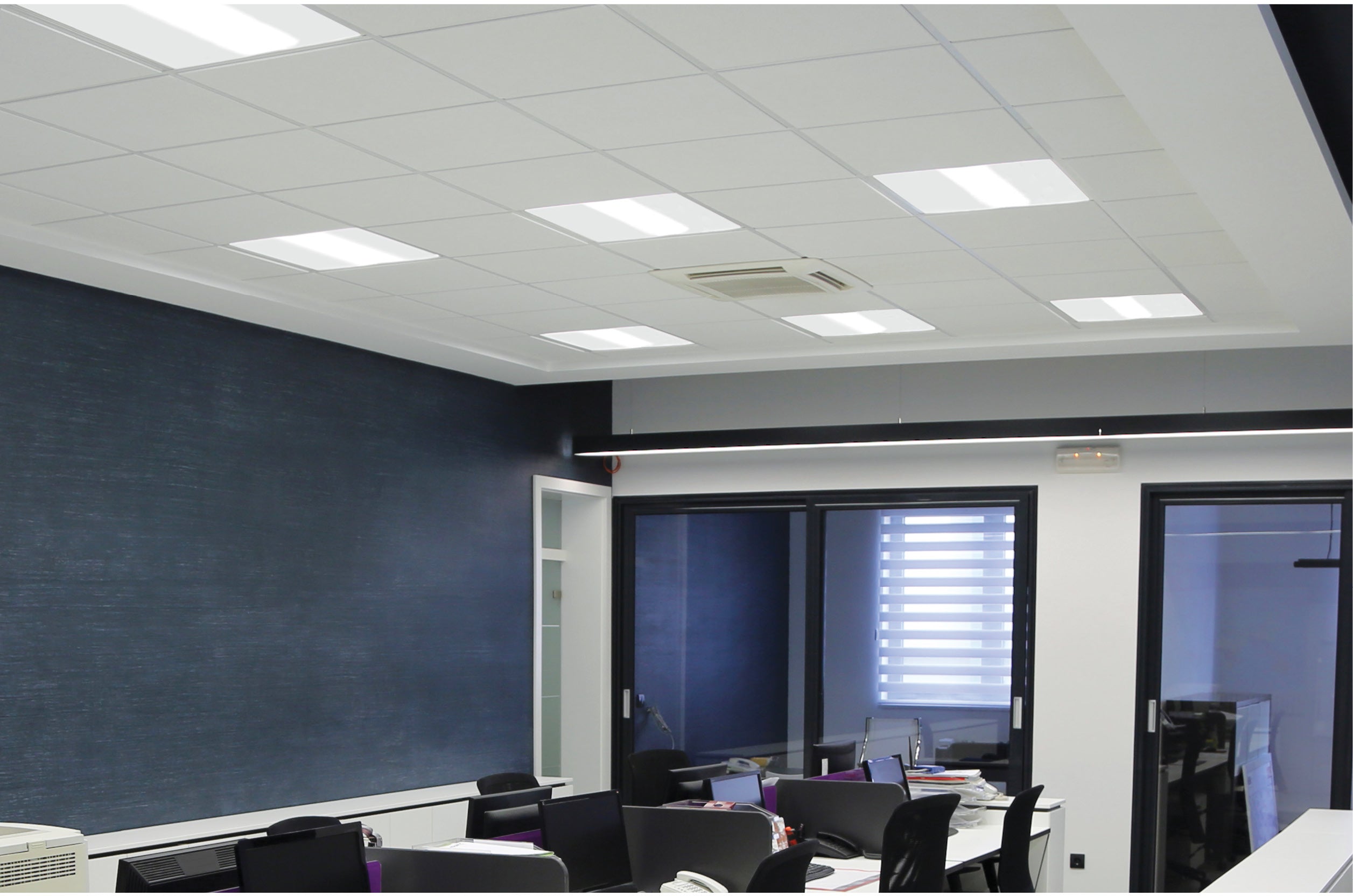

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It also fits naturally into projects considering LED troffer light and commercial ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. This is particularly helpful for grid-ceiling and general commercial lighting projects. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to shop commercial ceiling fixtures, 2X4 Double Basket LED Troffer Fixture is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

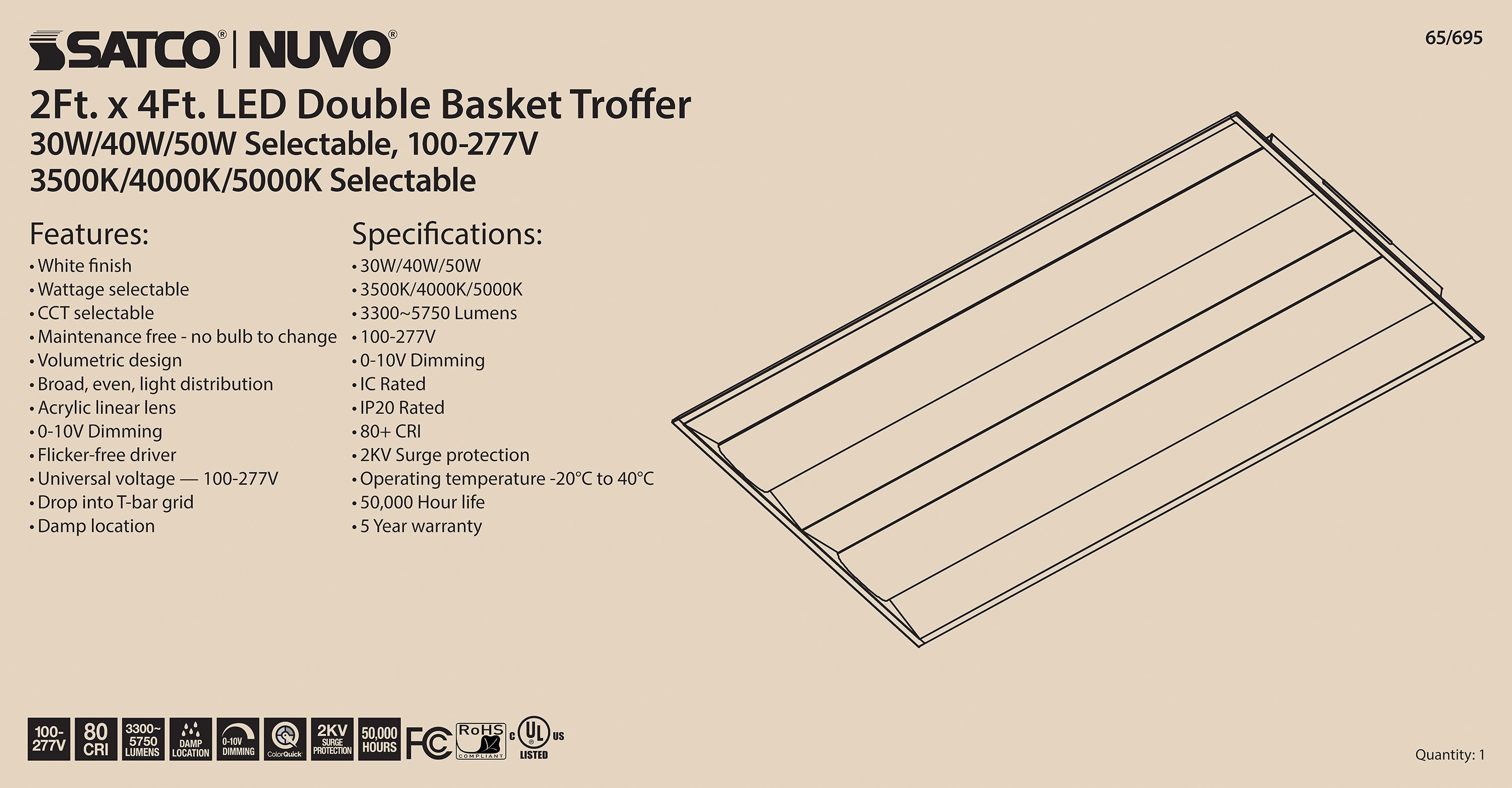

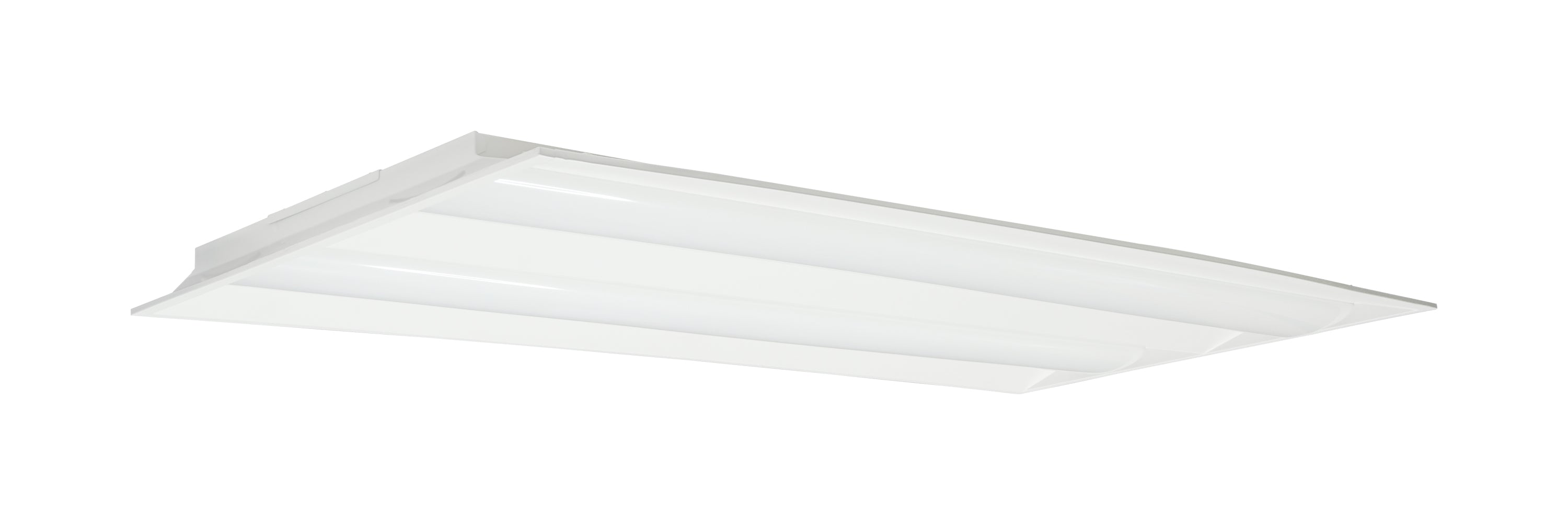

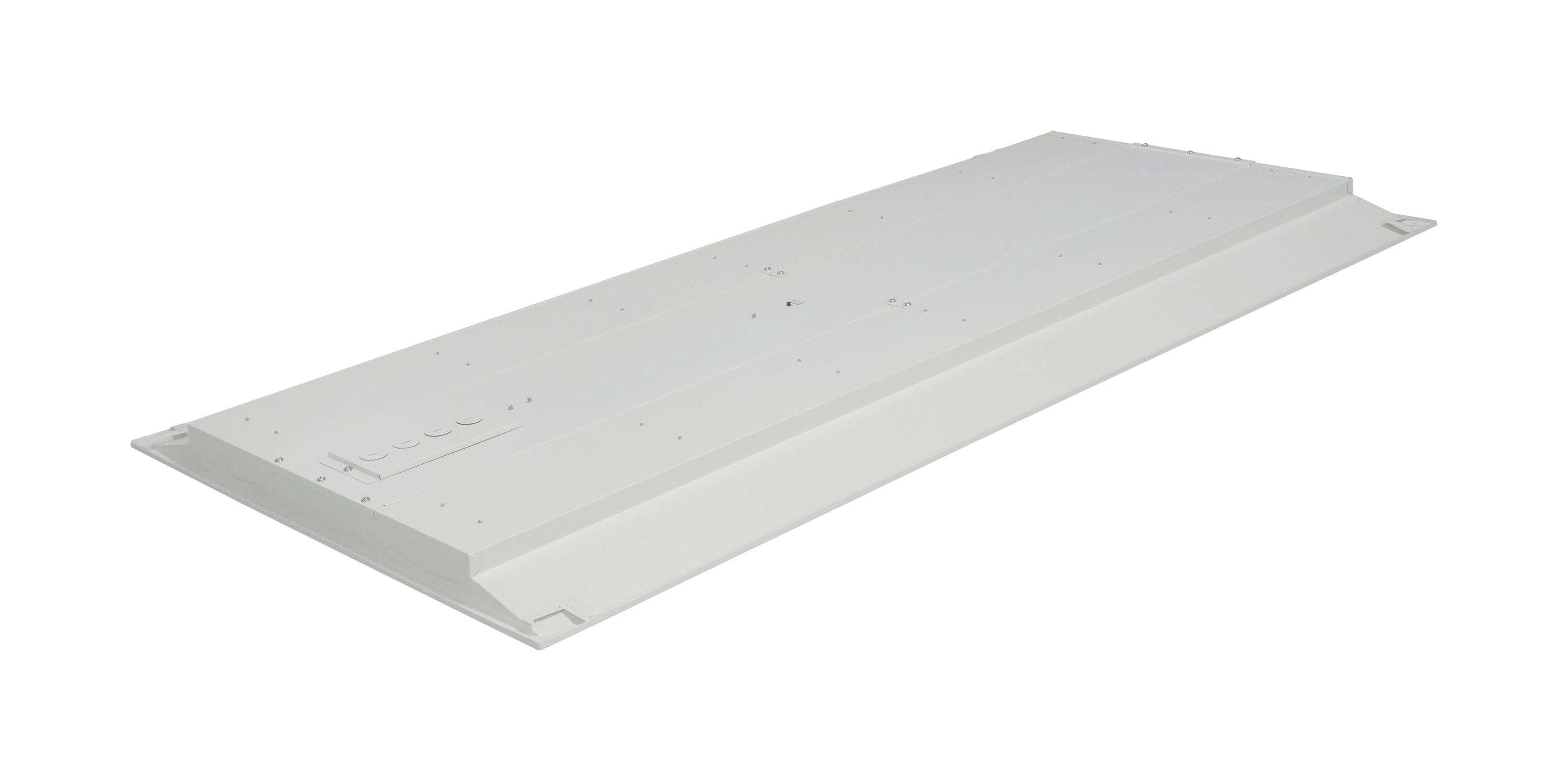

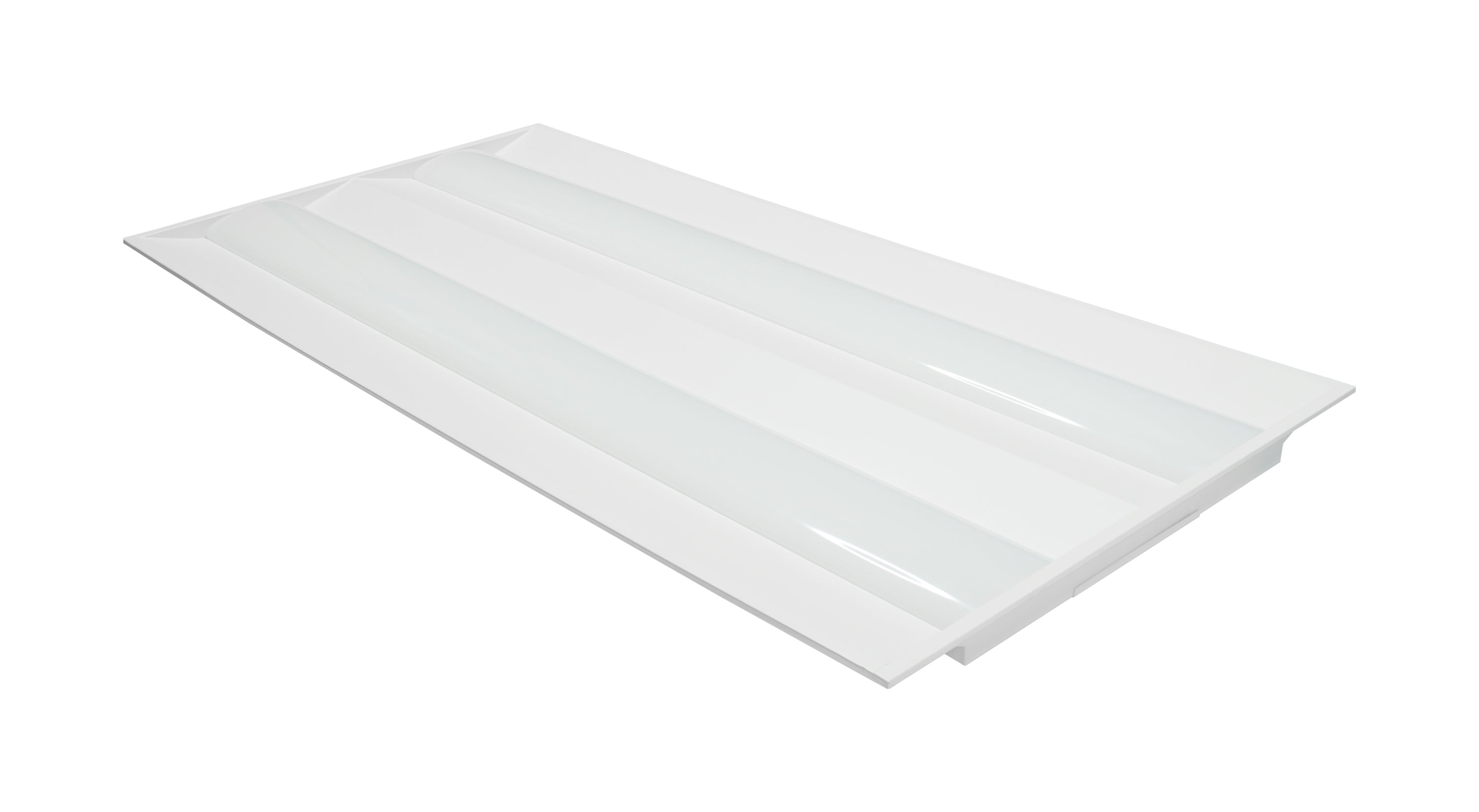

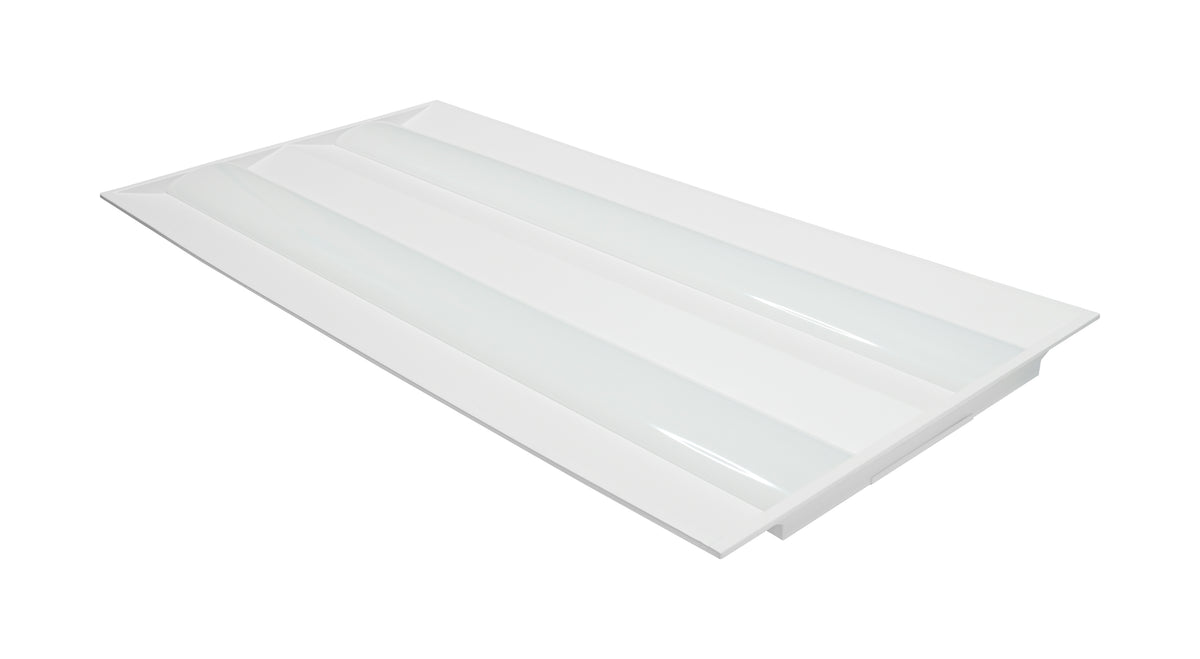

SATCO NUVO's 65-695 is a two foot by four foot double basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.

Features :-

  • Volumetric design
  • Watts: 30W - 40W - 50W
  • Lumens: 3300L - 5750L
  • Color temperature: 3500K/4000K/5000K
  • Operating temperature: -20C (-4F) to a maximum of 40C (104F)
