Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 30W/40W/50W
Lumens 3300L-5500L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 70W-125W
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Single Basket Troffer
Length 47.72 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Width 23.74 IN
Height 3.02 IN
Weight 12.9 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

2X4 Emergency Backup - Single Basket LED Troffer Fixture - Wattage Selectable - CCT Selectable - Lumens Selectable - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing office LED light fixture and drop ceiling lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports a clean, organized ceiling layout across larger commercial interiors. That is especially useful in grid-ceiling and general commercial lighting projects. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving drop ceiling lighting, LED panel light and other coordinated lighting upgrades.

Works well when project teams need repeatable fixtures throughout offices or public spaces. For renovations, tenant improvements and facility upgrades that need consistent overhead illumination, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to order office LED lighting for renovation projects, 2X4 Emergency Backup offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

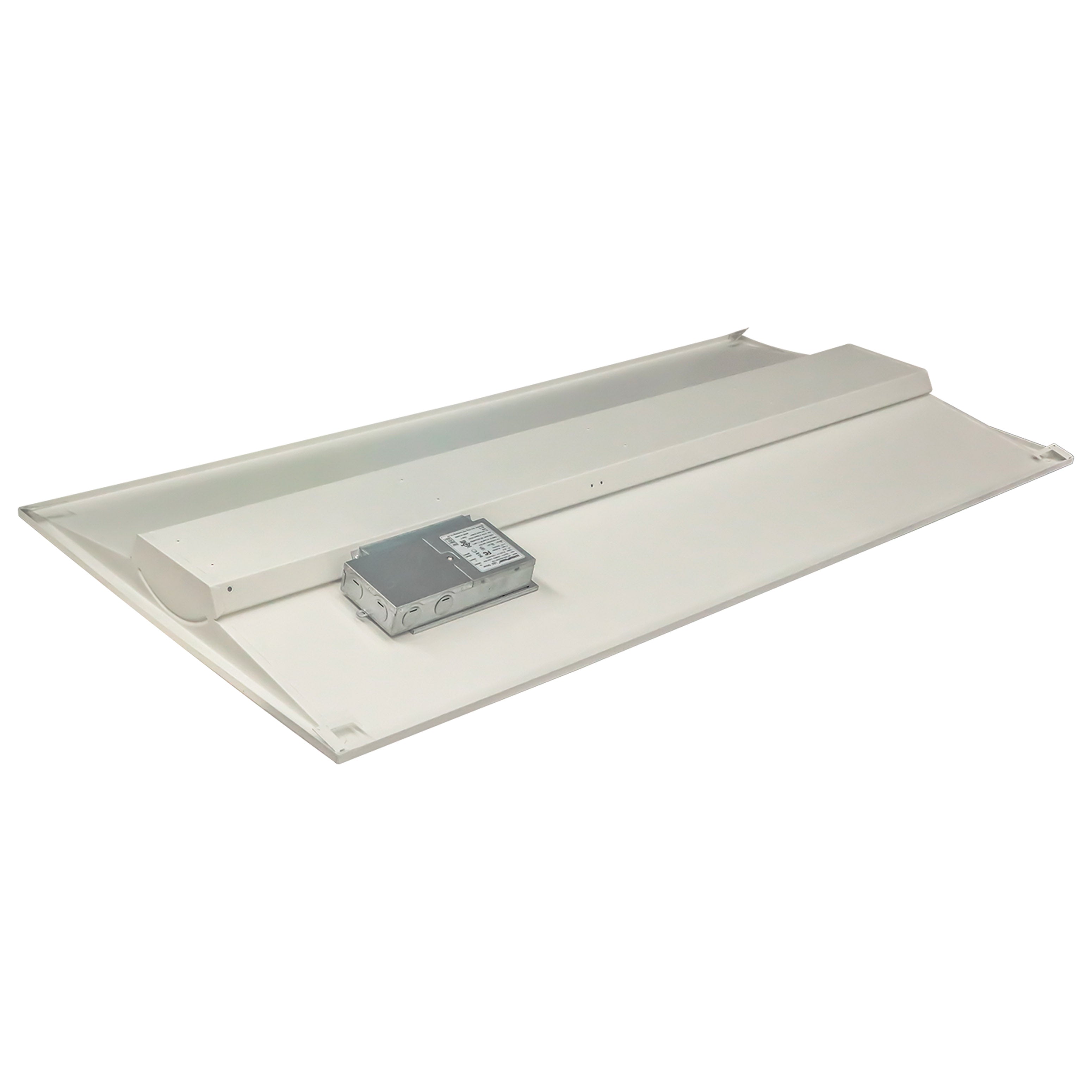

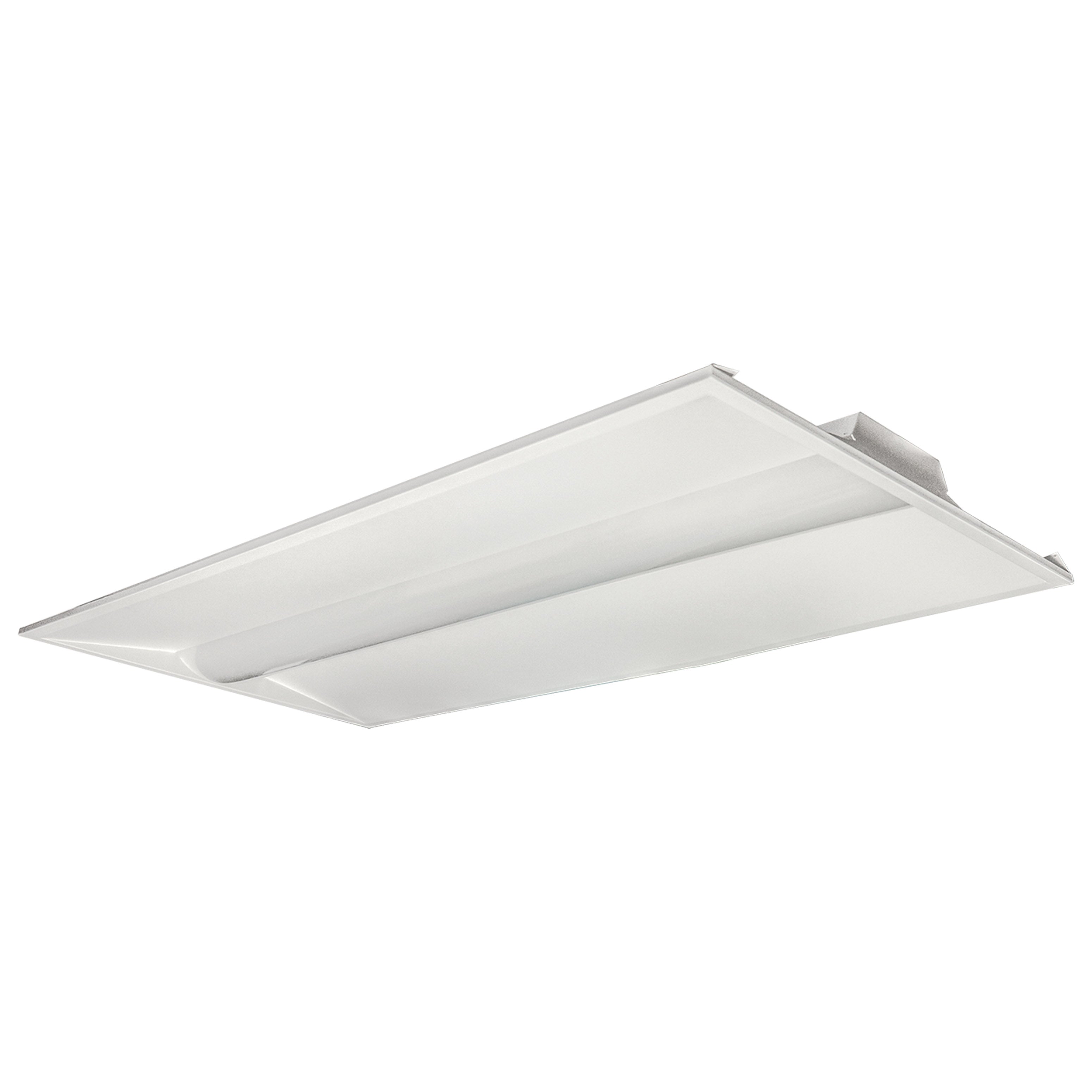

SATCO NUVO's 65-693 2x4 Emergency Backup Single Basket rectangular troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, this durable rectangular troffer is rated for 50,000 hours of illumination.

Features :-

  • 3 CCT Selectable ( 3500K, 4000K, 5000K)
  • 3 Wattage Selectable (30W, 40W, 50W)
  • 0-10V Dimmable
  • DLC Listed
  • Length: 47.72 inches X Width: 23.74 inches X Height: 3.02 inches
