Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 250W
Wattage 30W/40W/50W
Lumens 3750L/4500L/6250L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Troffer
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls

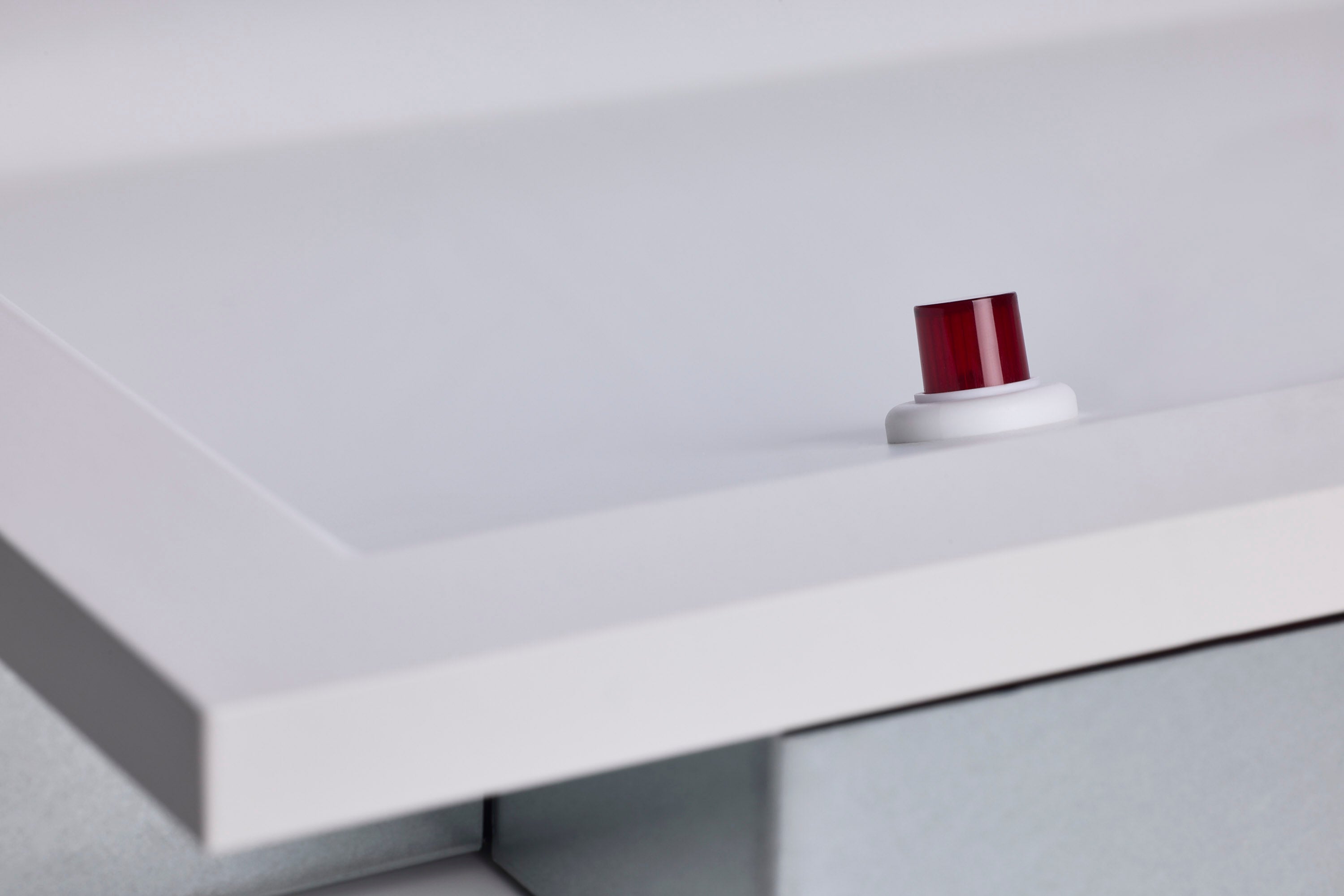

Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens White
Width 23.74 IN
Height 1.55 IN
Weight 16.48 lbs
Lens / Diffuser Polycarbonate (PC)

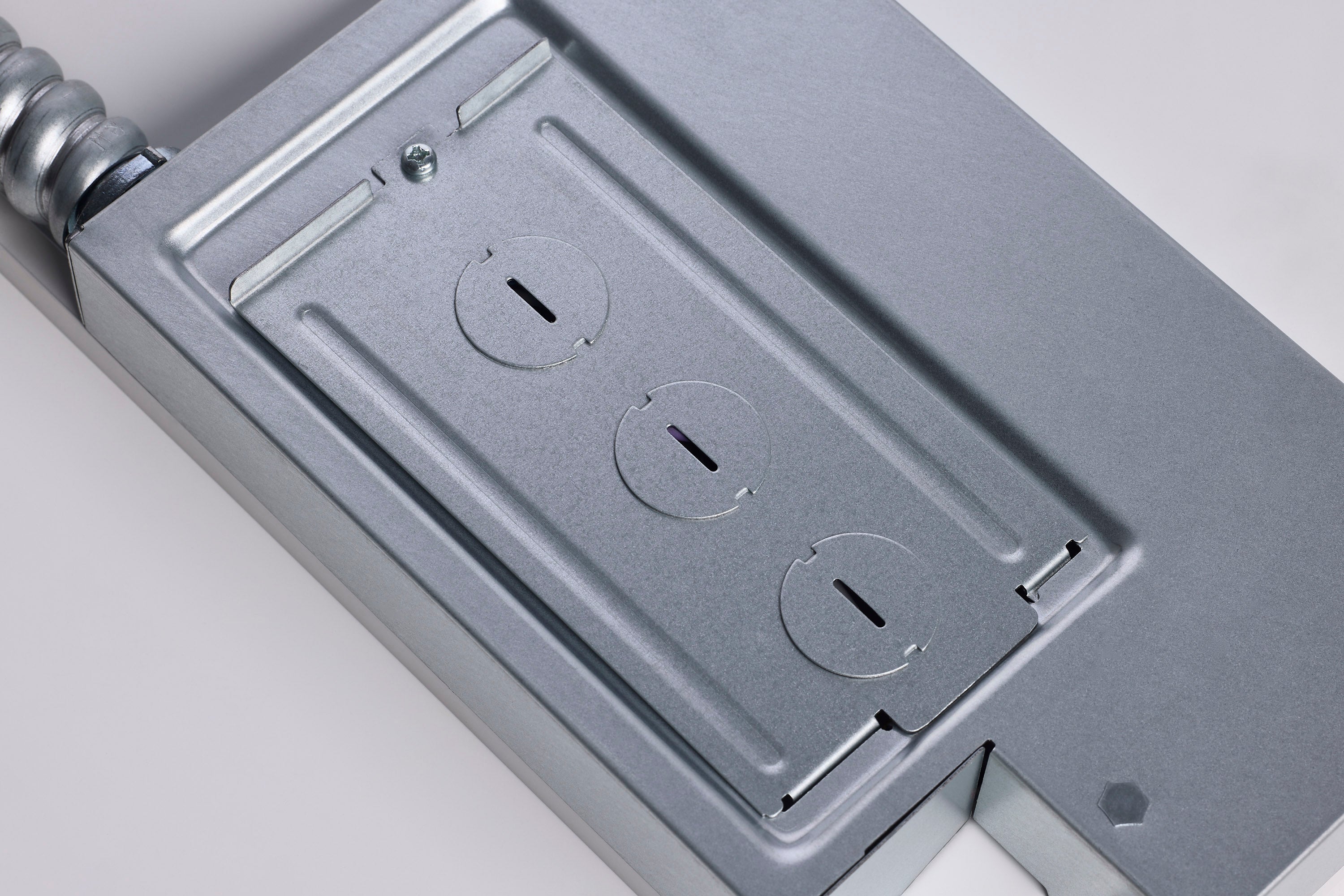

Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

2X4 LED Single Basket Troffer - Emergency Battery - Field Selectable - 120-277 Volt - White Finish is a commercial ceiling light intended for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting LED panel light for a specific room, fixture or property application.

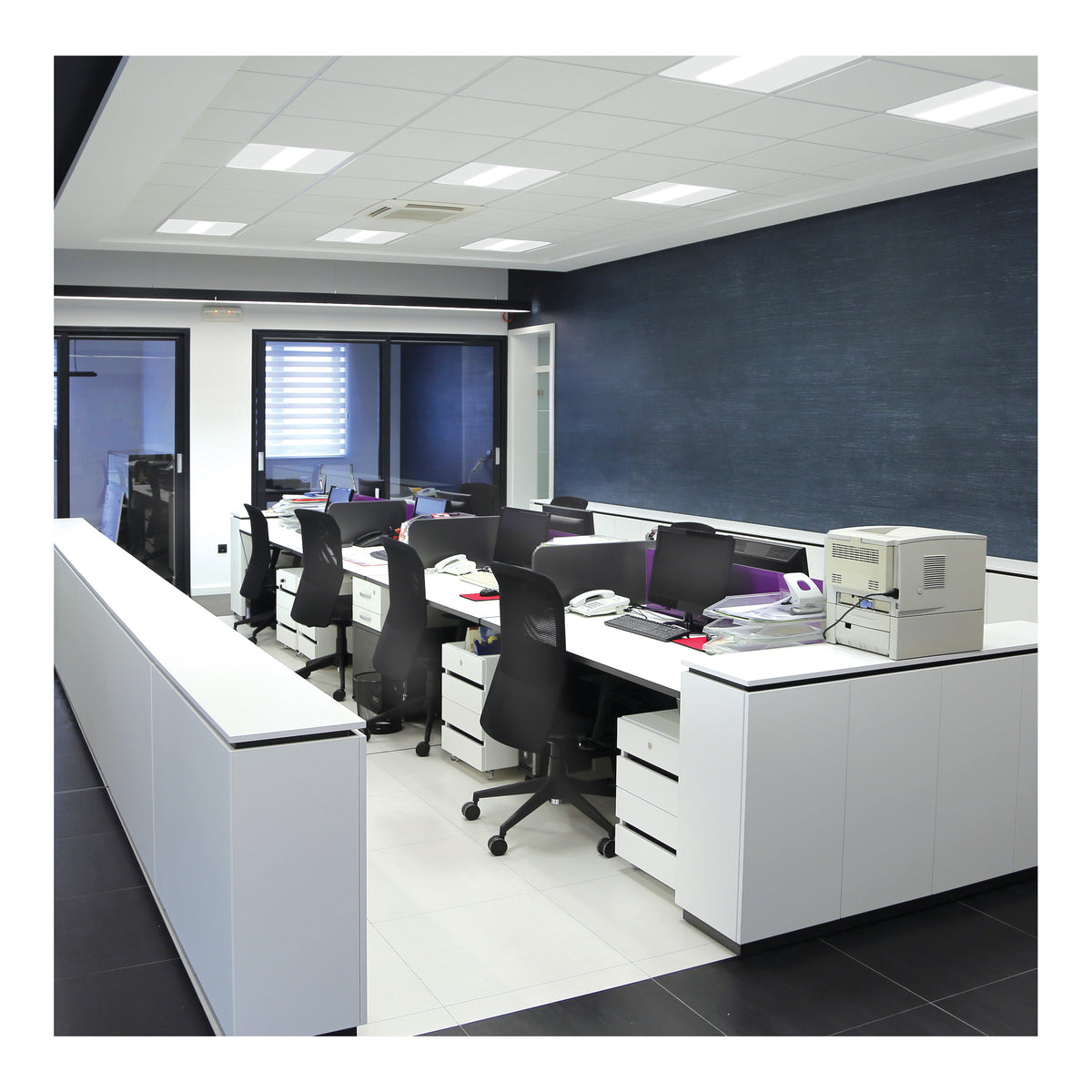

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It also fits naturally into projects considering drop ceiling lighting and commercial ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to shop commercial ceiling fixtures, consider 2X4 LED Single Basket Troffer for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

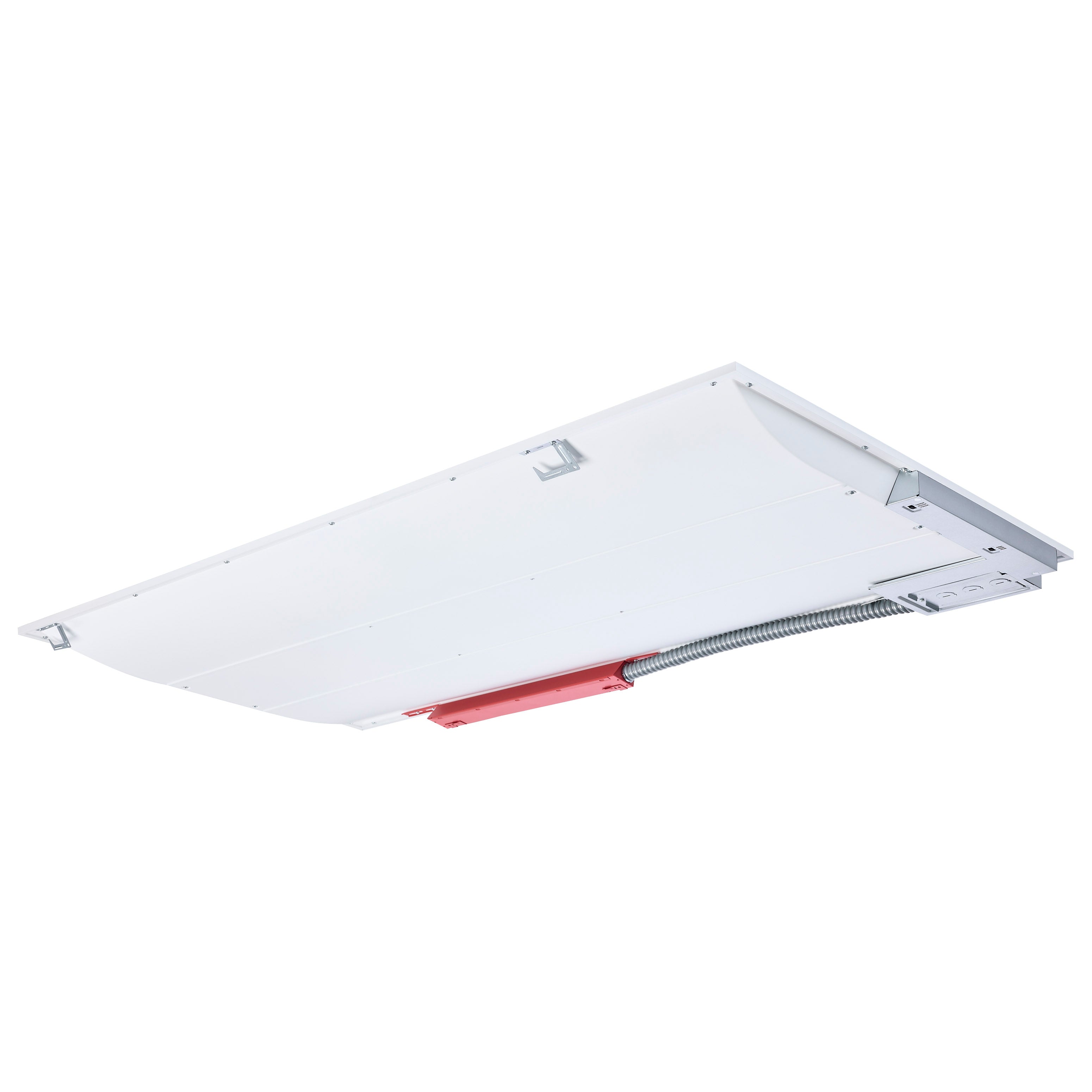

The SATCO NUVO 65-1604 Single Basket LED Troffer delivers high-output illumination with integrated emergency functionality in a 2x4 form factor. Selectable wattage (30W/40W/50W) and selectable CCT (3500K/4000K/5000K) provide 3750 to 6250 lumens during standard operation. In the event of power loss, the integrated LiFePO4 battery supplies 90 minutes of emergency runtime. This fixture also features a steel housing, polycarbonate lens, 0���������������������������10V dimming to 10%, IP20 damp location rating, a 50,000-hour rated life, and a 5-year warranty.

Features :-

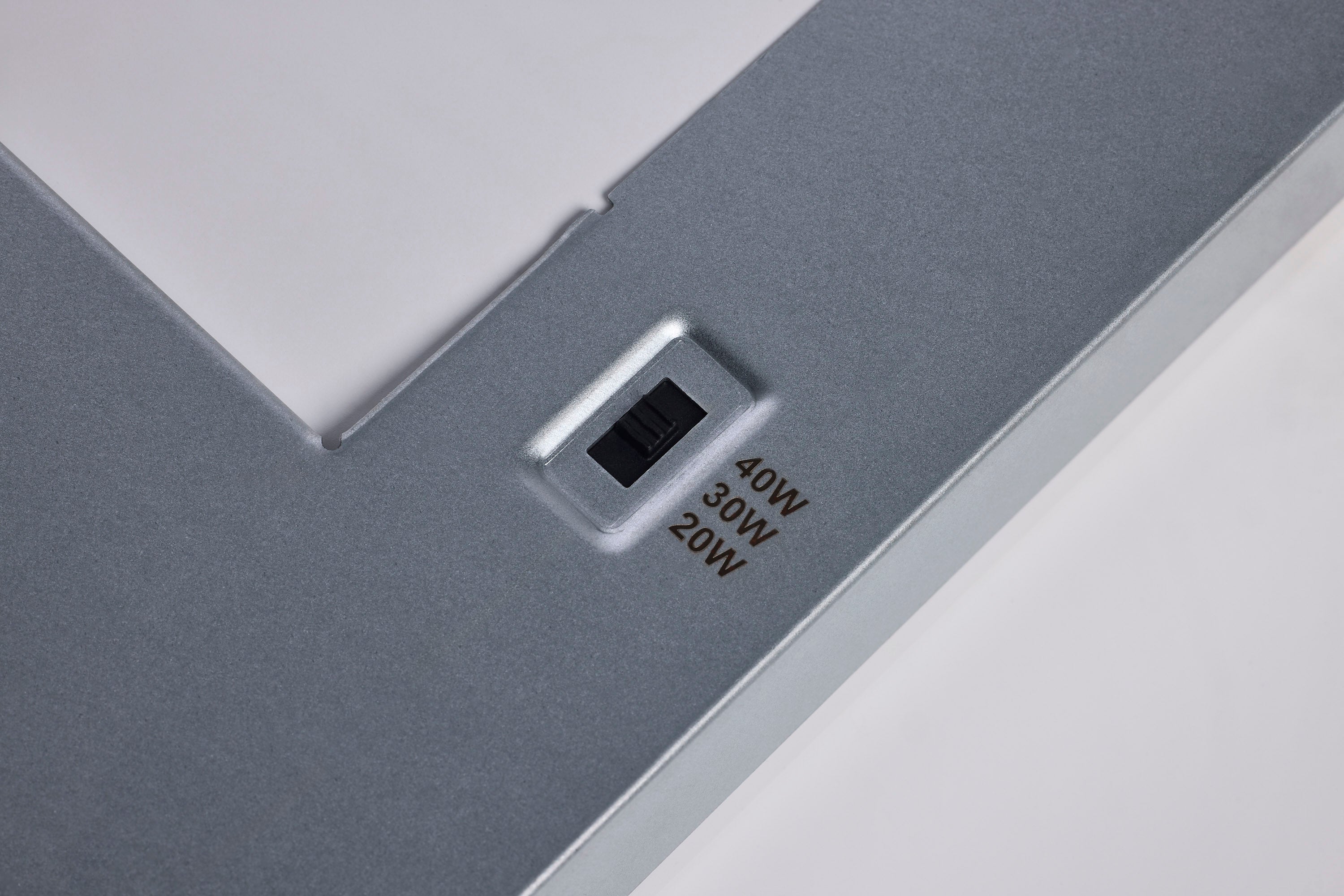

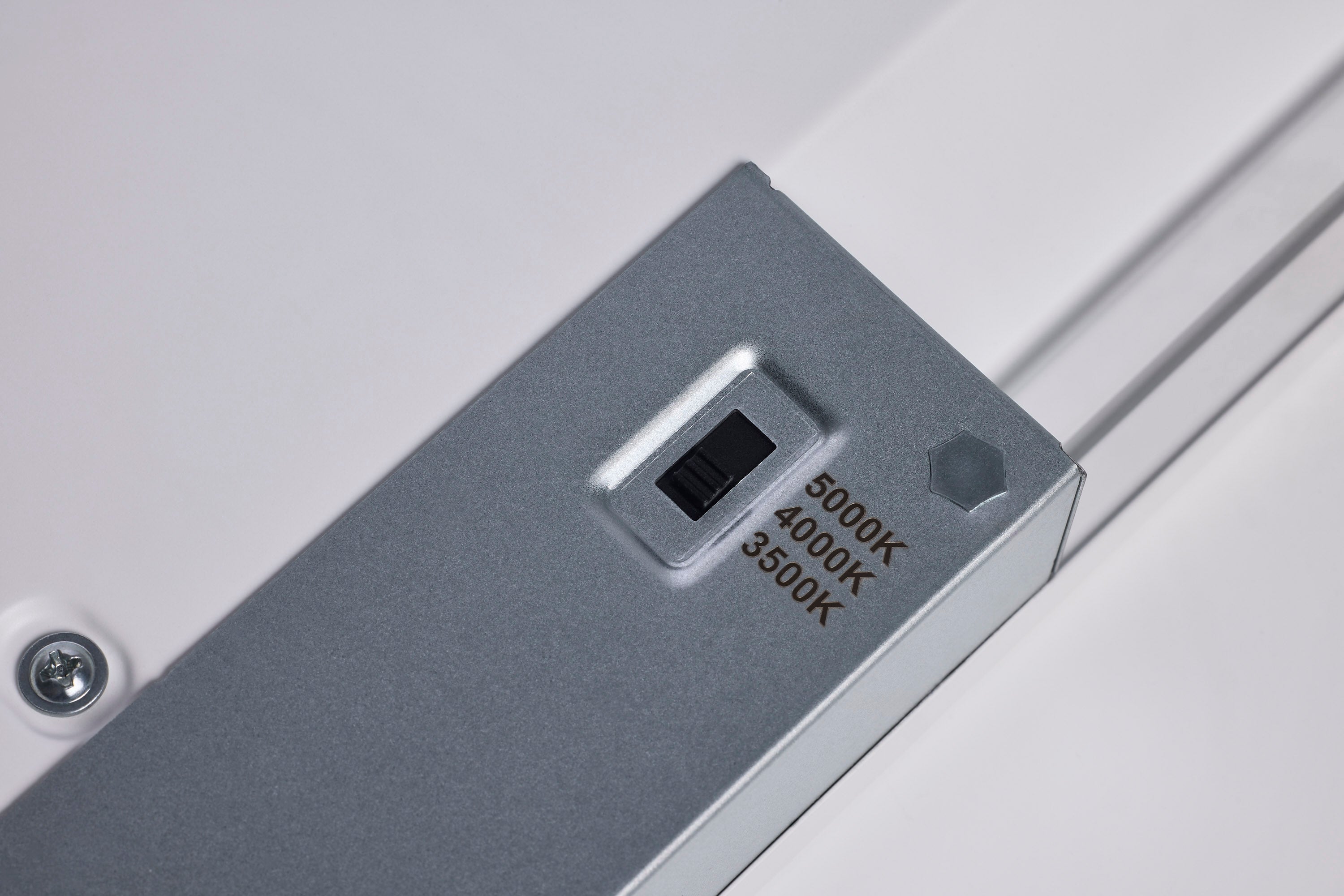

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X4 Emergency Battery Backup Model
  • 0-10V Dimming
  • 120-277 Voltage
  • Steel Body with Polycarbonate Lens
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
