Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 30W/40W/50W
Lumens 3300L-5500L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 70W-125W
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Troffer
Length 47.72 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Width 23.74 IN
Height 2.61 IN
Weight 11.24 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 2X4 Single Basket LED Troffer Fixture - Wattage Selectable - CCT Selectable - Lumens Selectable - 100-277V - White Finish when your project calls for a commercial ceiling light suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED troffer light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports a clean, organized ceiling layout across larger commercial interiors. That is especially useful in renovations, tenant improvements and facility upgrades that need consistent overhead illumination. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving commercial ceiling lighting, drop ceiling lighting and other coordinated lighting upgrades.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to order office LED lighting for renovation projects, 2X4 Single Basket LED Troffer Fixture is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

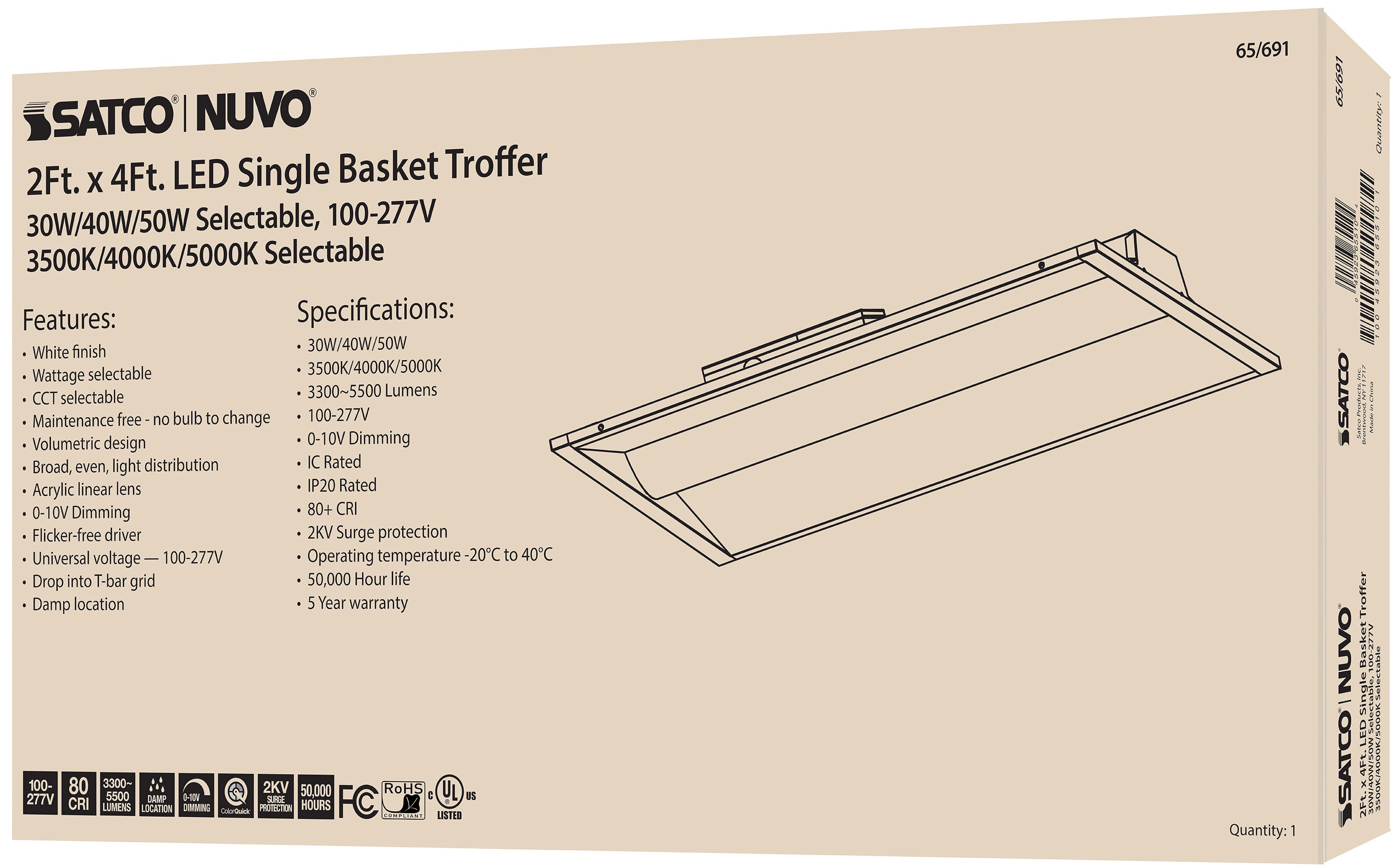

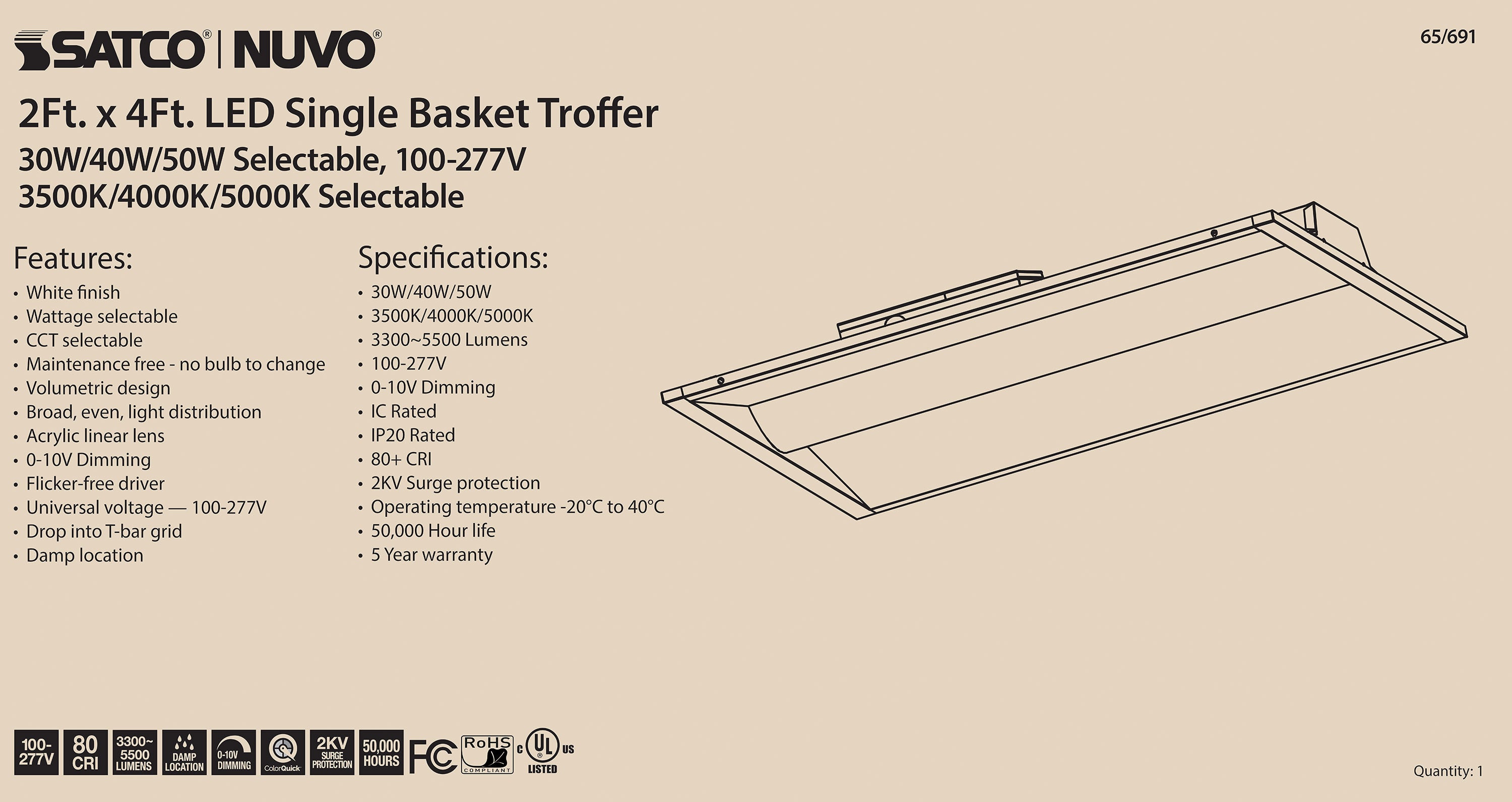

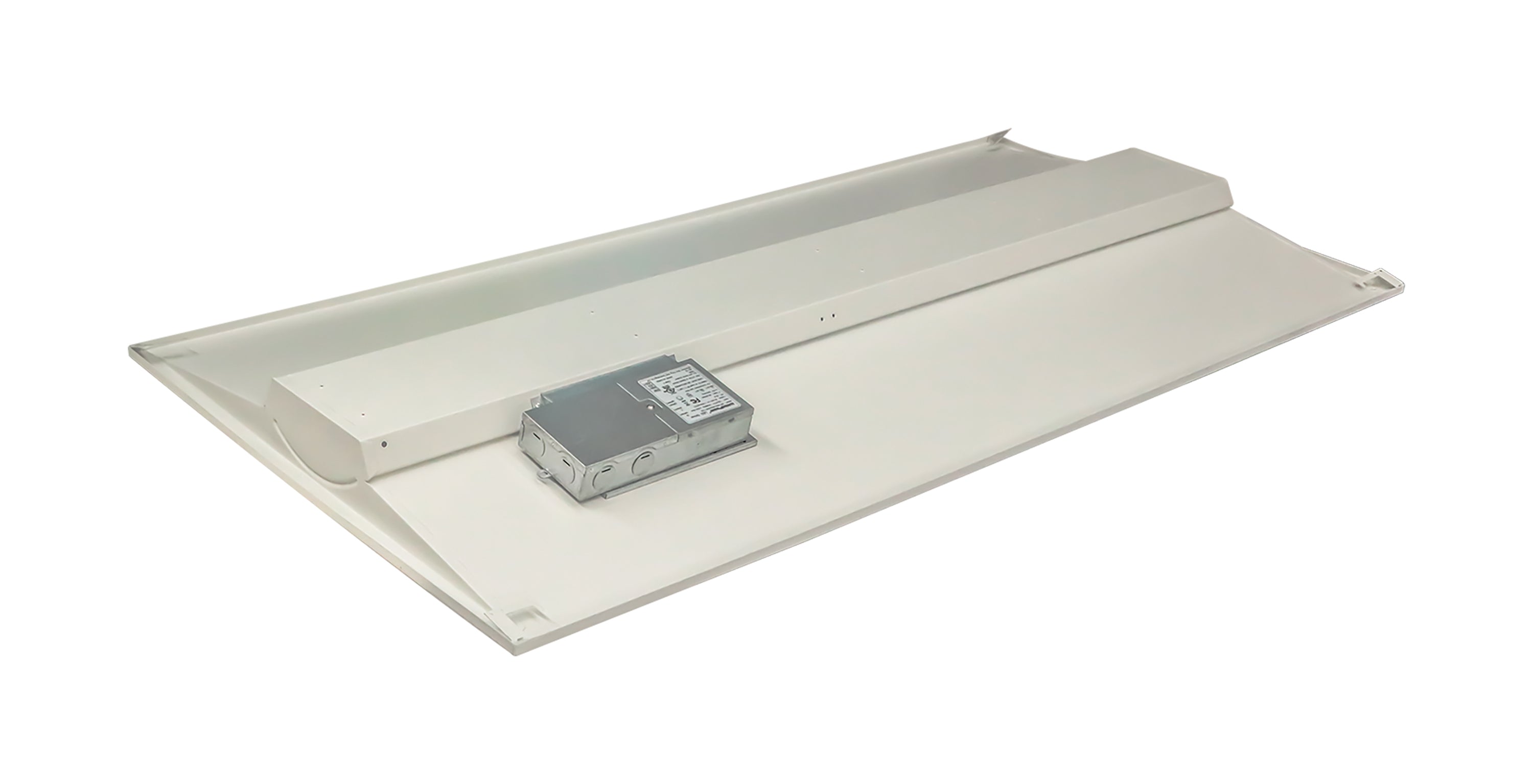

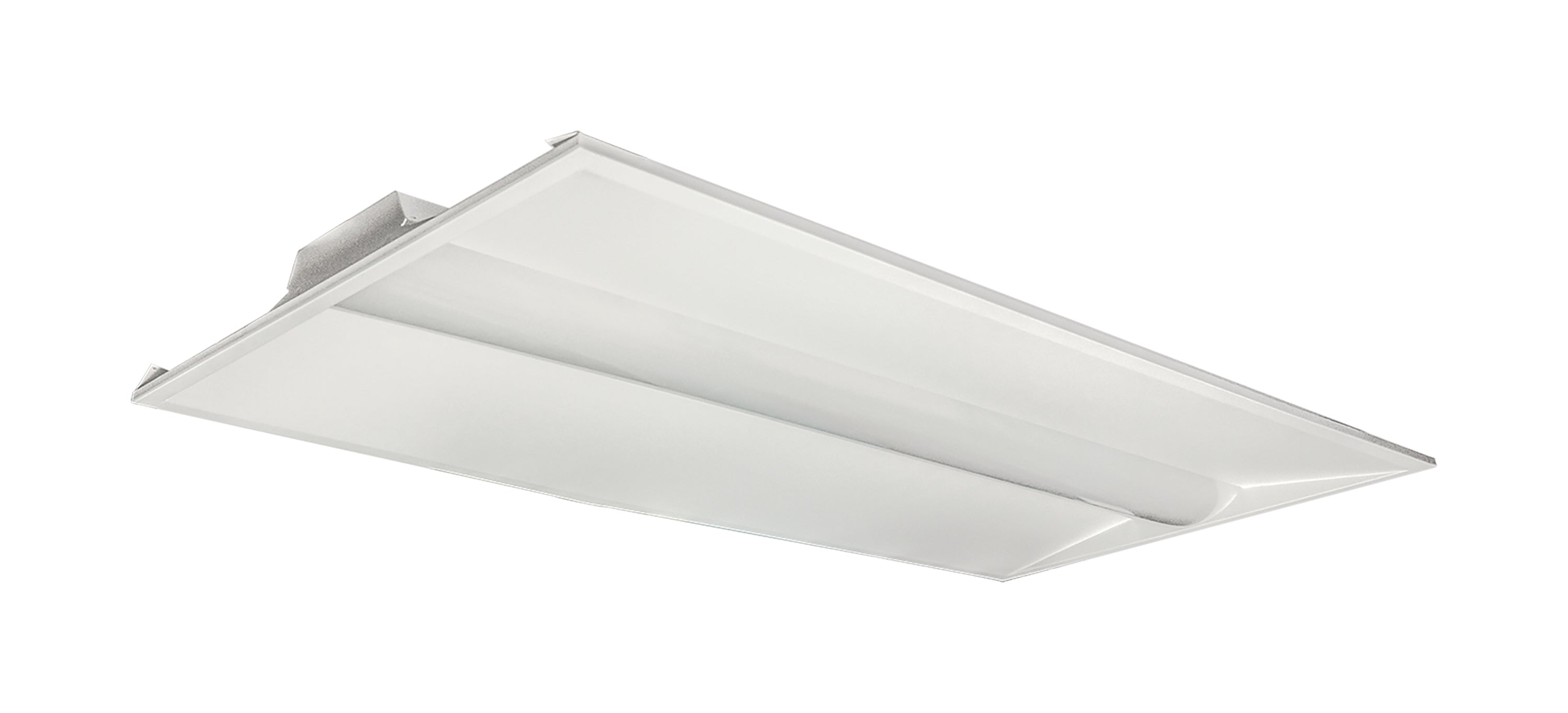

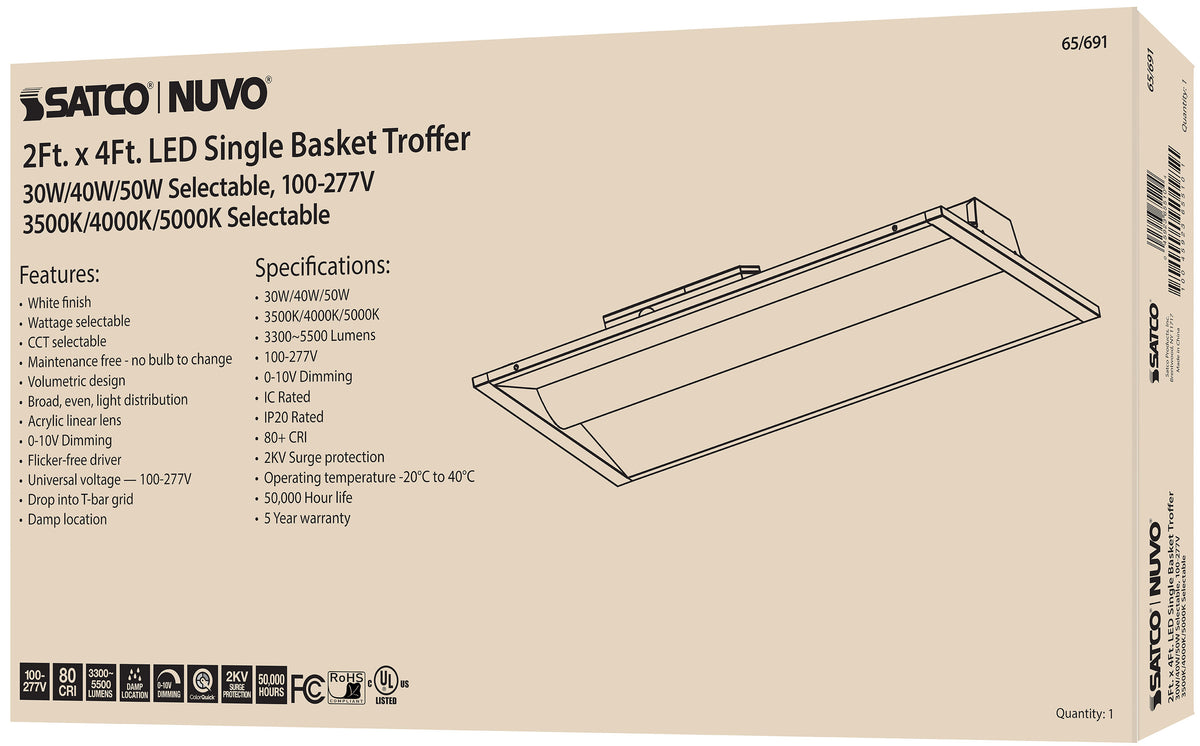

SATCO NUVO's 65-691 is a foot by four foot single basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.

Features :-

  • Volumetric design
  • Watts: 30W - 40W - 50W
  • Lumens: 3300L - 5500L
  • Color temperature: 3500K/4000K/5000K
  • Operating temperature: -20C (-4F) to a maximum of 40C (104F)
