Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 250W
Wattage 30W/40W/50W
Lumens 3750L/4500L/6250L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Troffer
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens White
Width 23.74 IN
Height 1.42 IN
Weight 7.36 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 30/40/50 Watt - 35K/4K/5K CCT Selectable - 2X4 LED Single Basket Troffer - 120-277 Volt - White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for drop ceiling lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In practical terms, that makes this product relevant for grid-ceiling and general commercial lighting projects. It also fits naturally into projects considering LED panel light and office LED light fixture, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

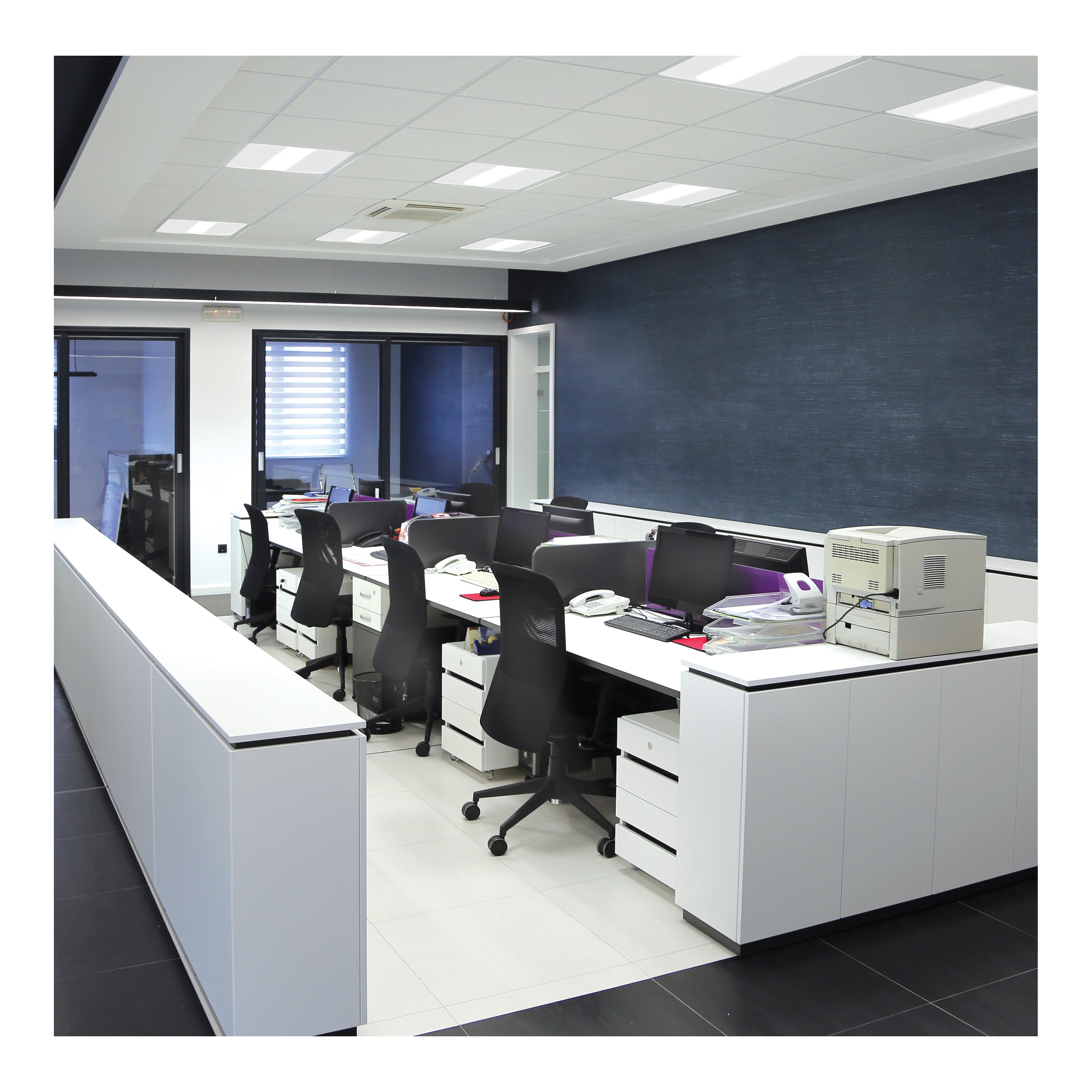

Supports a clean, organized ceiling layout across larger commercial interiors. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to buy LED panel and troffer lights online, 30/40/50 Watt is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

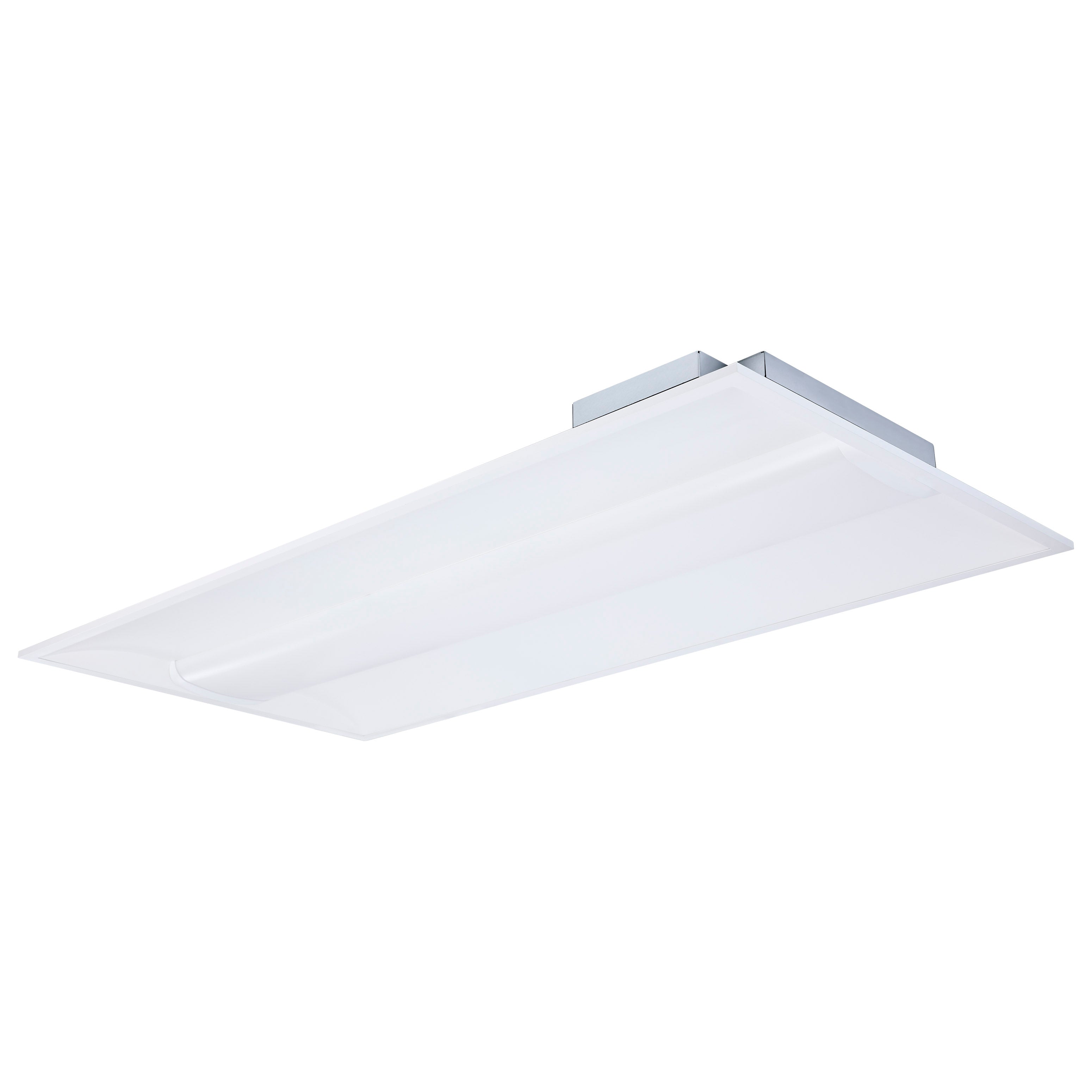

The SATCO NUVO 65-1601 Single Basket LED Troffer offers high-output performance in a versatile 2x4 size. With selectable wattage (30W/40W/50W) and selectable CCT (3500K/4000K/5000K), it delivers 3750 to 6250 lumens for adaptable illumination across commercial environments. A durable steel housing, polycarbonate lens, smooth 0���������������������������10V dimming to 10%, IP20 damp location rating, 50,000-hour lifespan, and 5-year warranty ensure long-term reliability.

Features :-

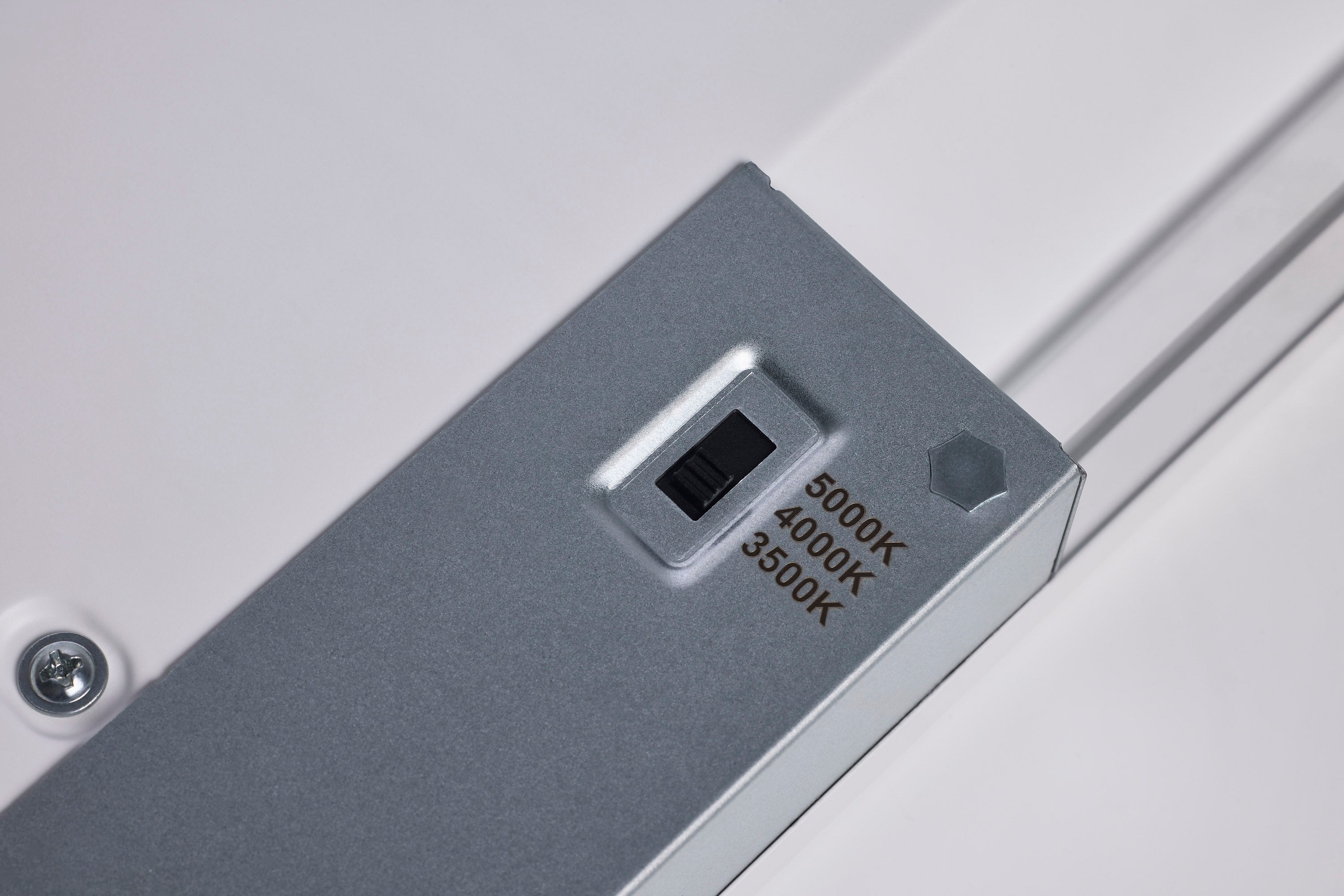

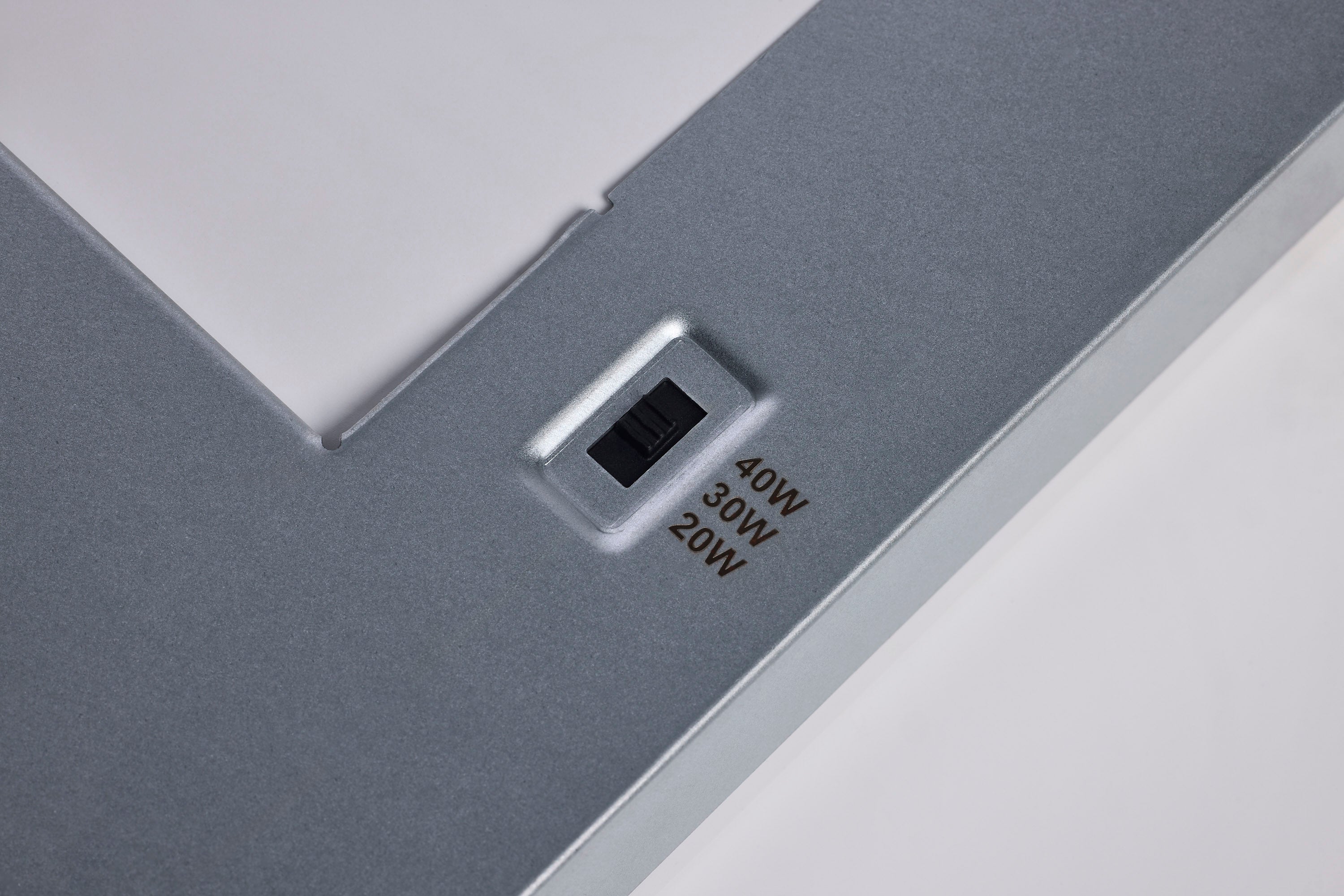

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X4 Standard Model
  • 0-10V Dimming
  • 120-277 Voltage
  • Steel Body with Polycarbonate Lens
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
