Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 250W
Wattage 30W/40W/50W
Lumens 3750L/4500L/6250L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Flat Panel
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 23.74 IN
Height 2.6 IN
Weight 10.69 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-277 Range Voltage - White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for drop ceiling lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. It is well suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors, where lighting needs to support the space rather than distract from it. This makes the product a practical office LED light fixture choice for customers also considering commercial ceiling lighting as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. This is particularly helpful for grid-ceiling and general commercial lighting projects. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to buy LED panel and troffer lights online, 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

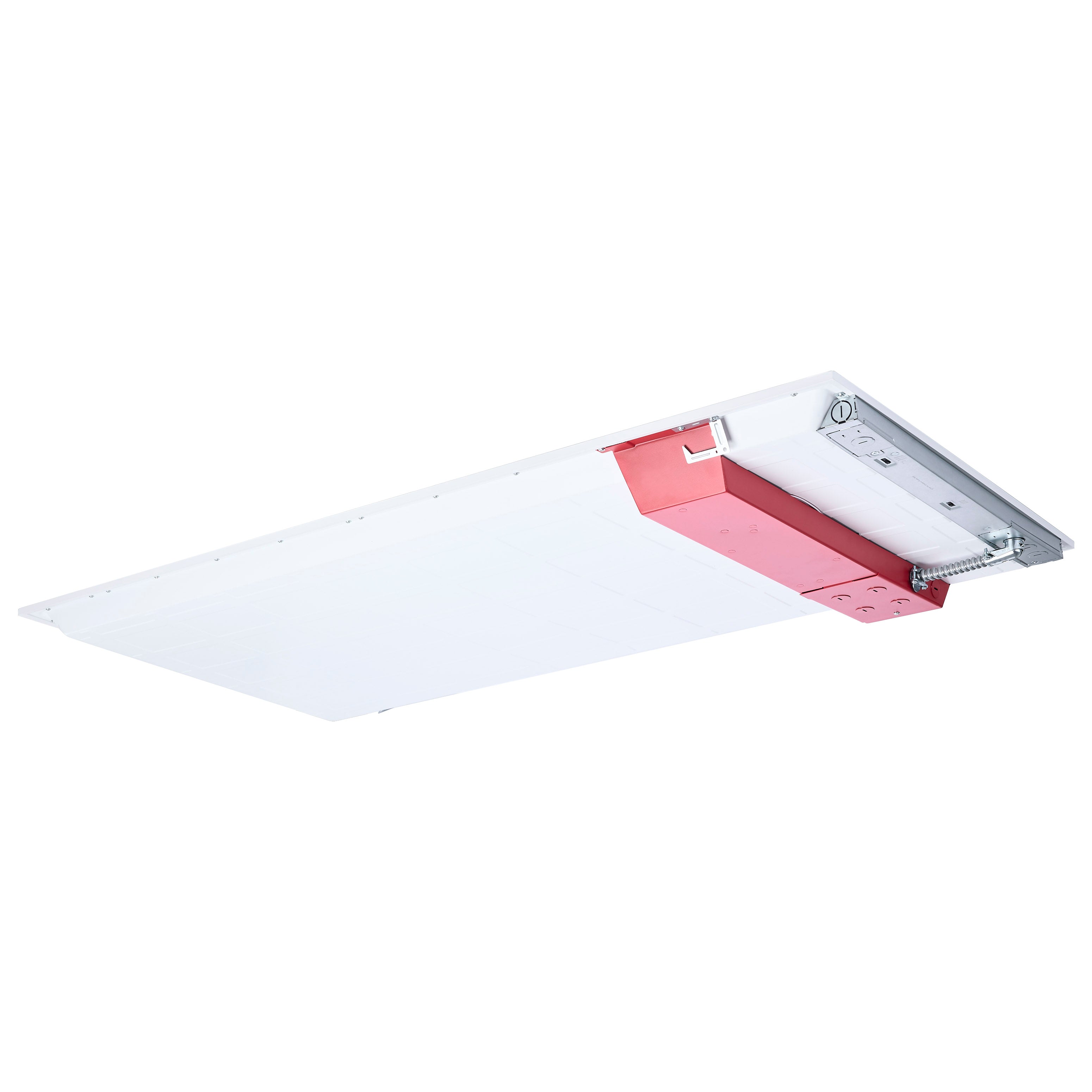

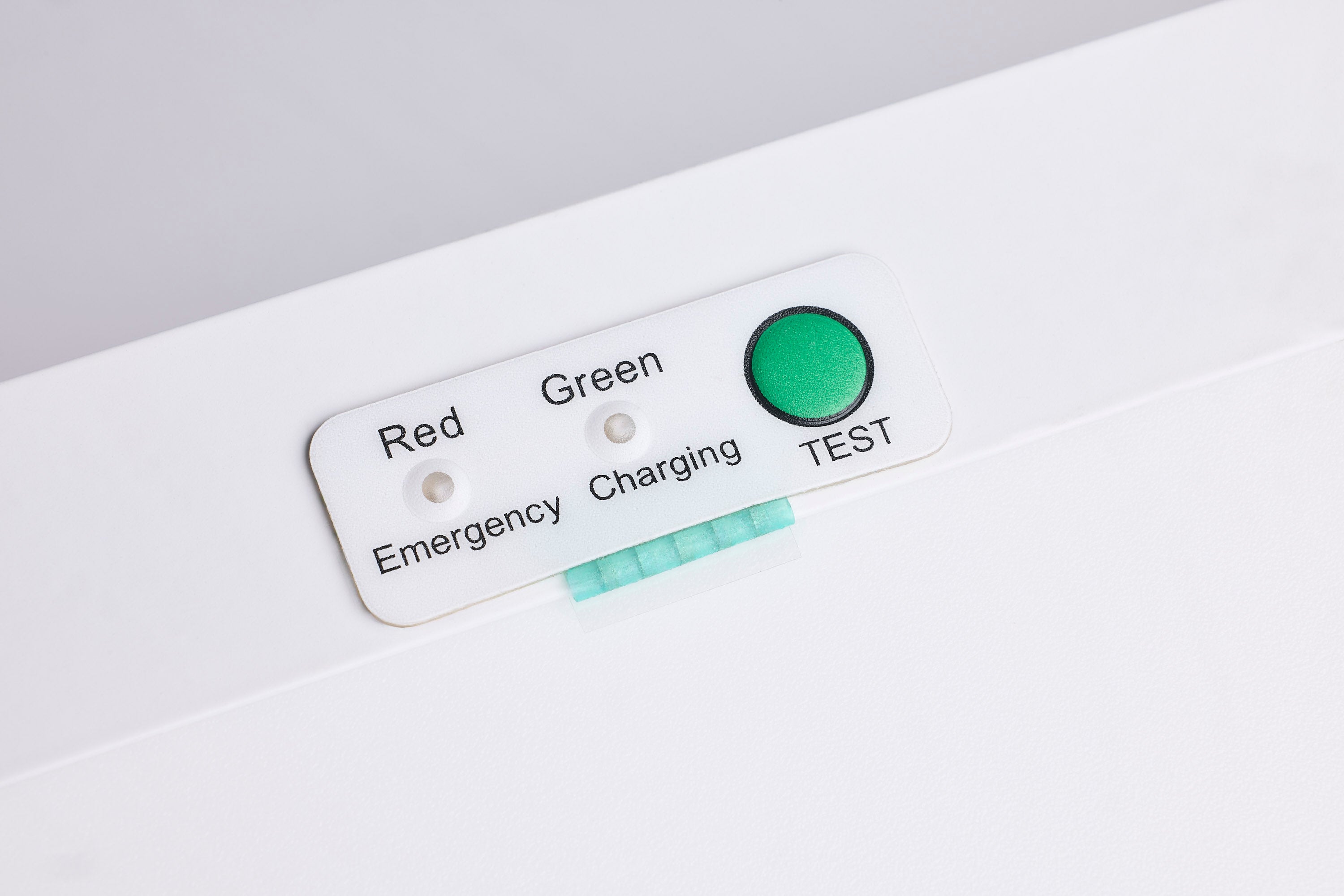

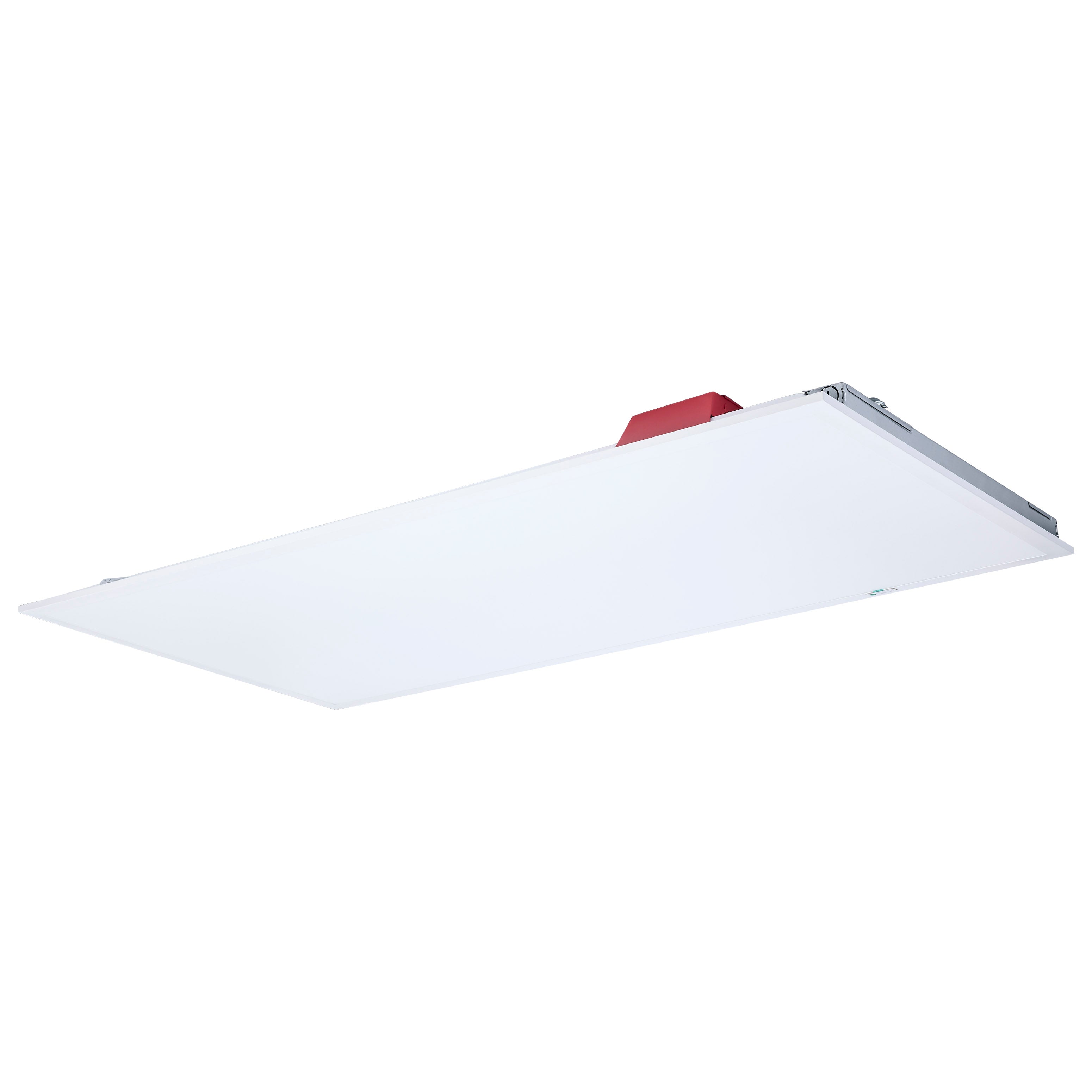

The SATCO NUVO 65-1666 Backlit Panel provides dependable illumination with selectable wattages of 30W, 40W, or 50W and universal voltage operation at 120���������������������������277V. This 2x4 model includes an integrated emergency battery that delivers 90 minutes of runtime, with a red battery backup and indicator light for added safety. Offering CCT selectability (3500K/4000K/5000K), the fixture features a steel body, die-cast aluminum trim with seamless corners, and a polystyrene lens for even light distribution. Designed with 0���������������������������10V dimming to 10%, it carries an IP20 rating for damp locations. DLC listed, 50,000-hour rated, and supported by a 5-year warranty, this panel ensures efficiency, safety, and lasting value.

Features :-

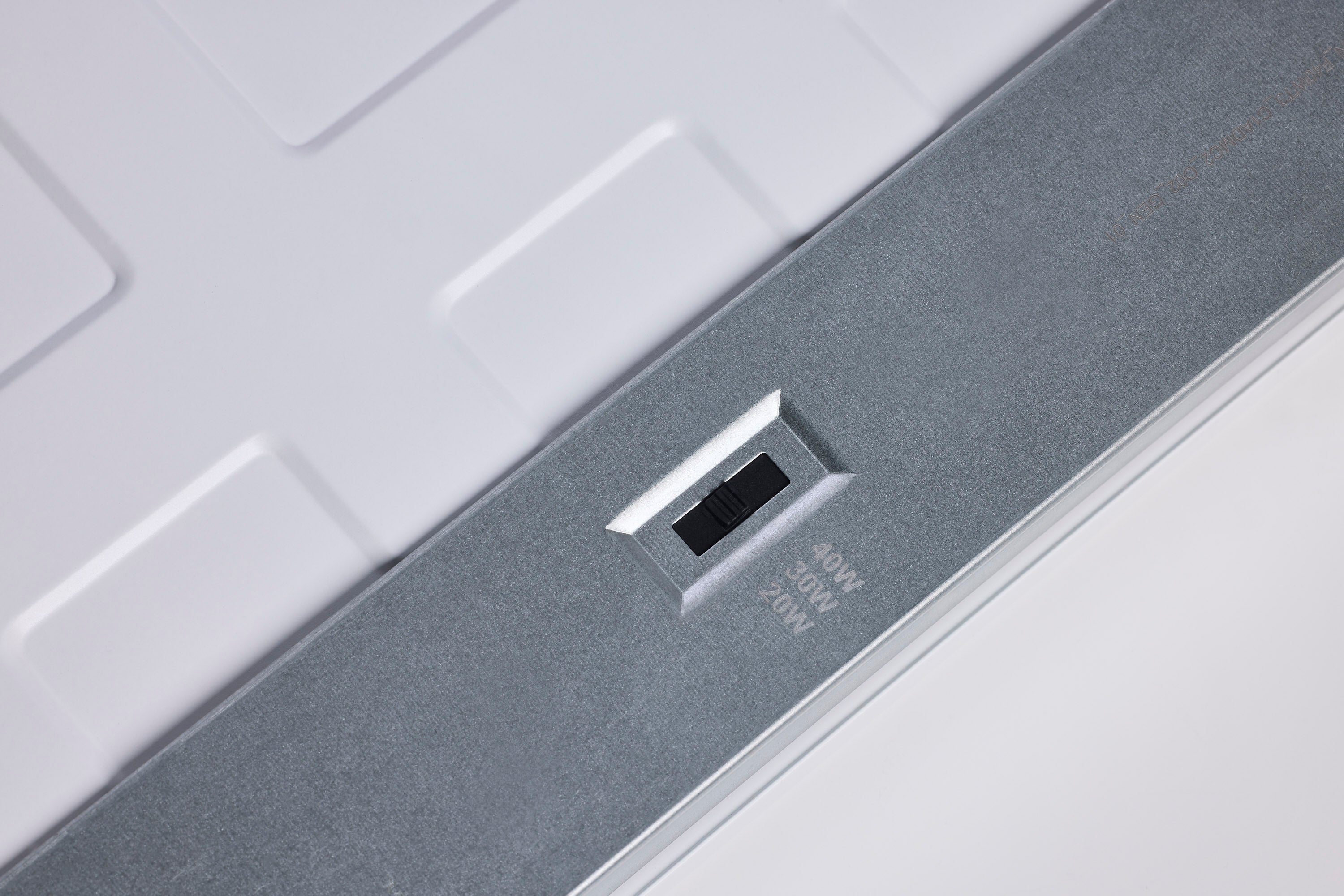

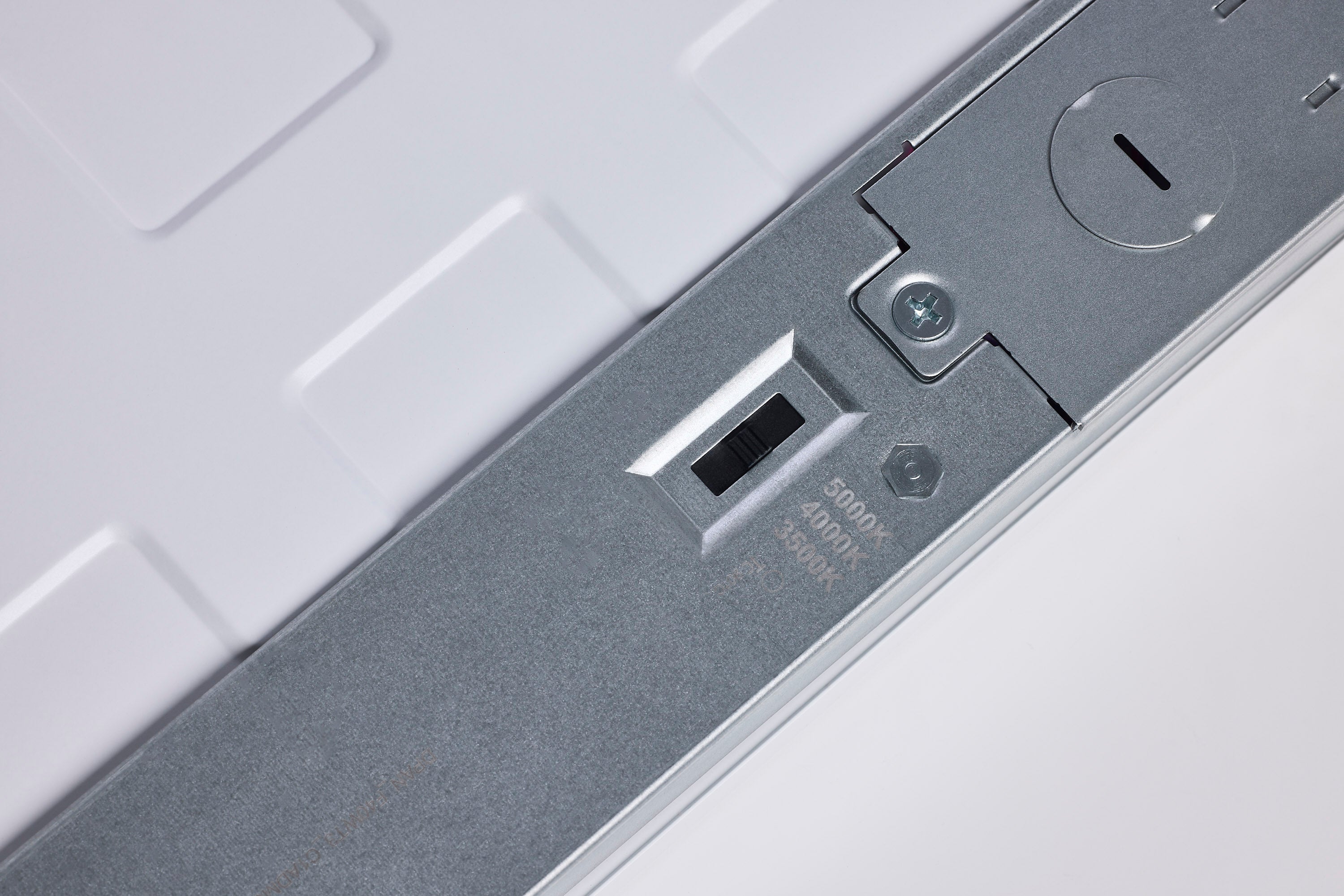

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X4 Panel

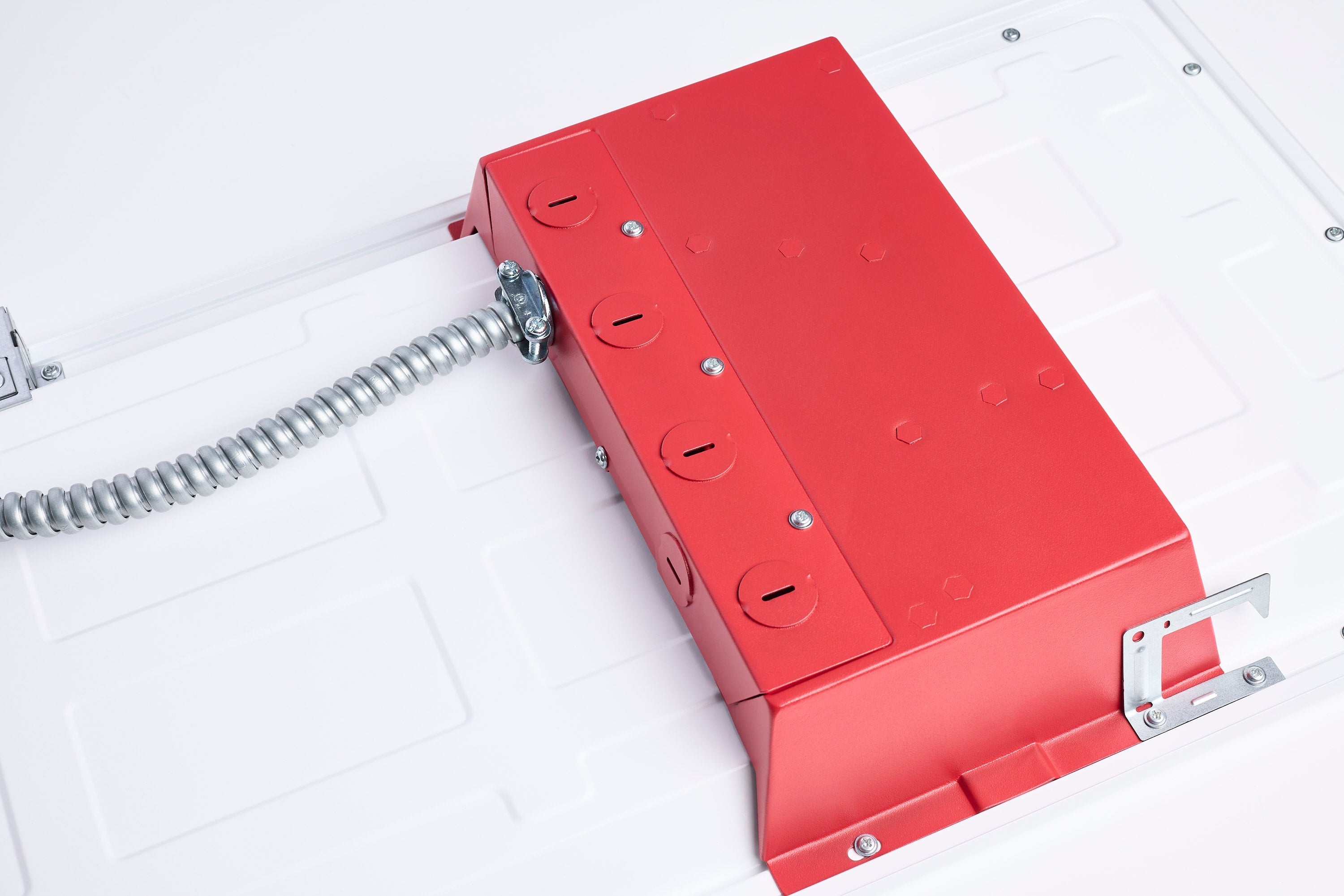

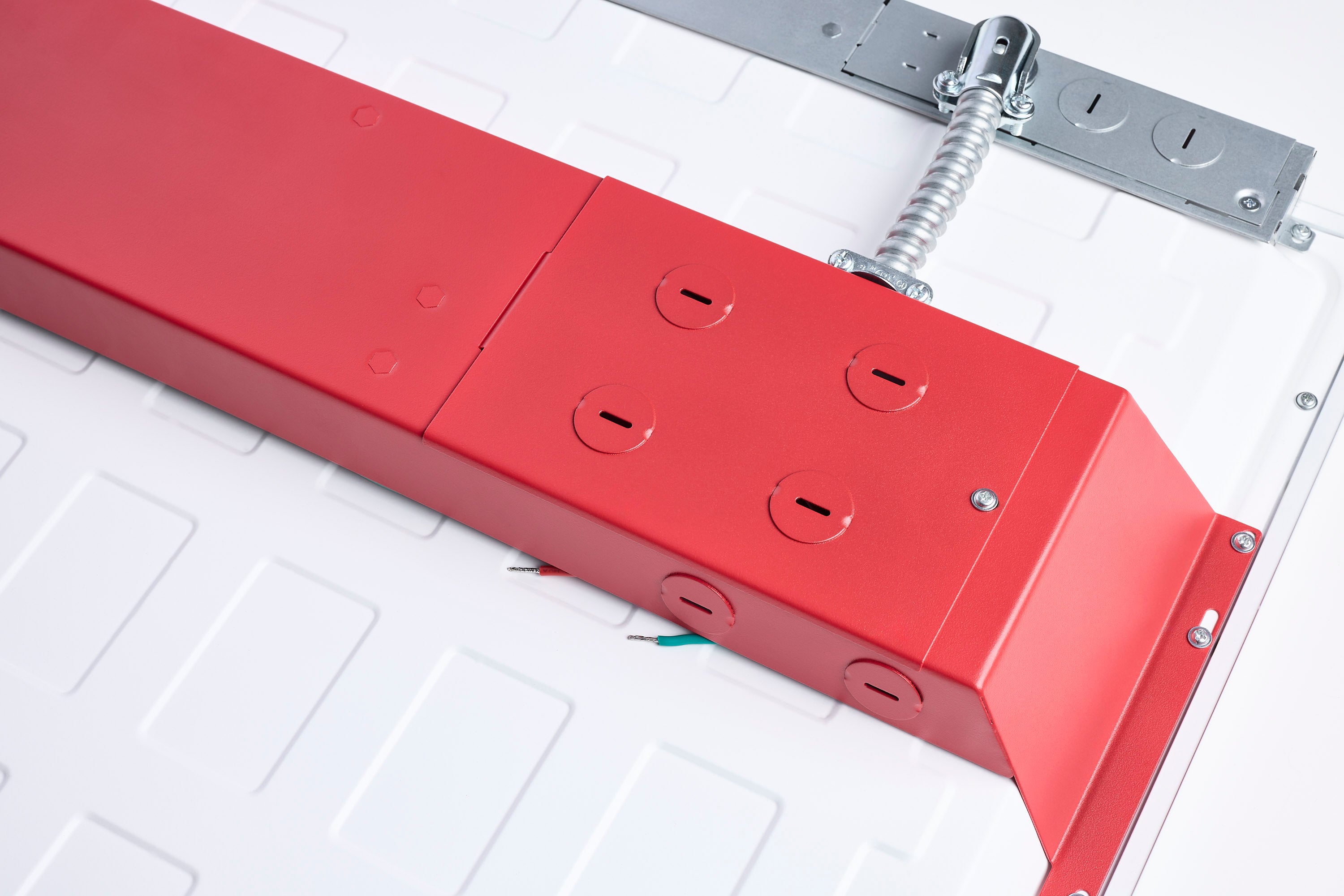

  • Emergency Battery Backup Model
  • 120-277 Voltage
  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
