Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 250W
Wattage 30W/40W/50W
Lumens 3750L/4500L/6250L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Flat Panel
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 23.74 IN
Height 1.38 IN
Weight 8.03 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

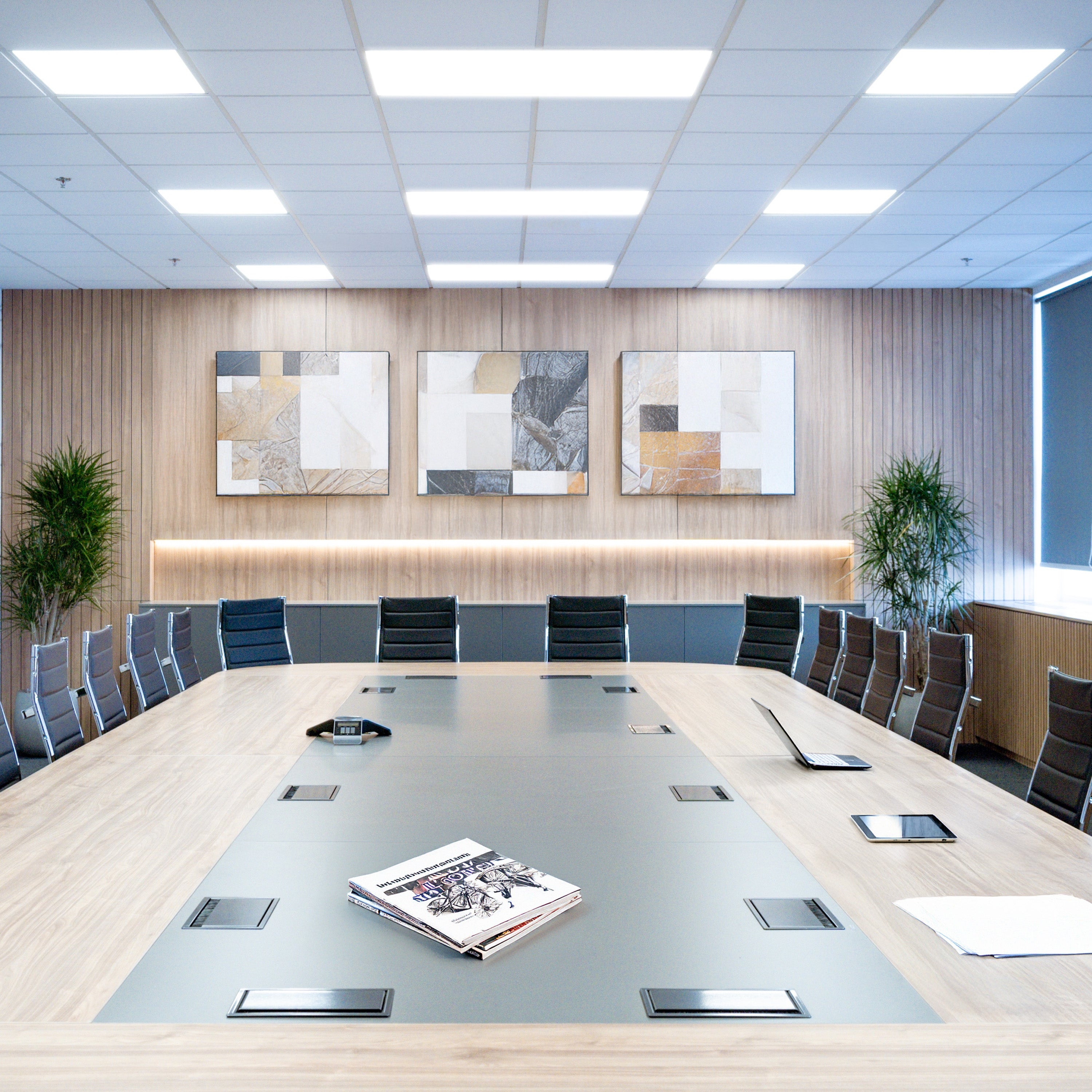

30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel - 35K/4K/5K CCT Selectable - 120-347 Range Voltage - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing commercial ceiling lighting and office LED light fixture for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports a clean, organized ceiling layout across larger commercial interiors. It is well suited to grid-ceiling and general commercial lighting projects, where lighting needs to support the space rather than distract from it. This makes the product a practical office LED light fixture choice for customers also considering LED panel light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. For renovations, tenant improvements and facility upgrades that need consistent overhead illumination, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to shop commercial ceiling fixtures, 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

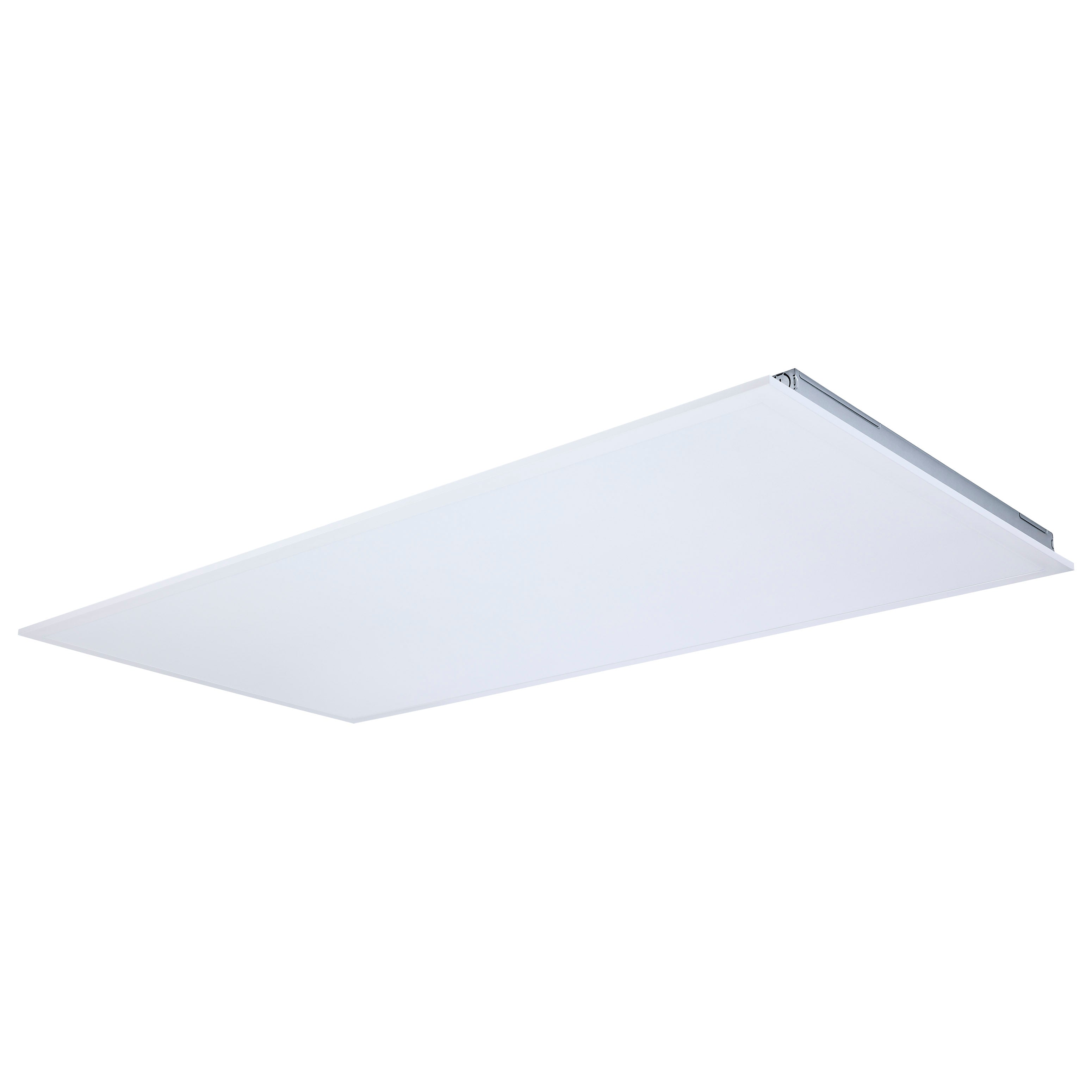

The SATCO NUVO 65-1672 Backlit Panel delivers reliable performance with selectable wattages of 30W, 40W, or 50W and universal voltage operation at 120���������������������������347V. This 2x4 standard model offers CCT selectability (3500K/4000K/5000K) to adapt to project requirements. Built with a steel body and die-cast aluminum trim, the fixture ensures seamless corners with no light leakage, while the polystyrene lens provides uniform illumination. Designed with 0���������������������������10V dimming down to 10%, it is rated for damp locations with an IP20 designation. DLC listed, 50,000-hour rated, and backed by a 5-year warranty, this panel is built for efficiency, durability, and lasting value.

Features :-

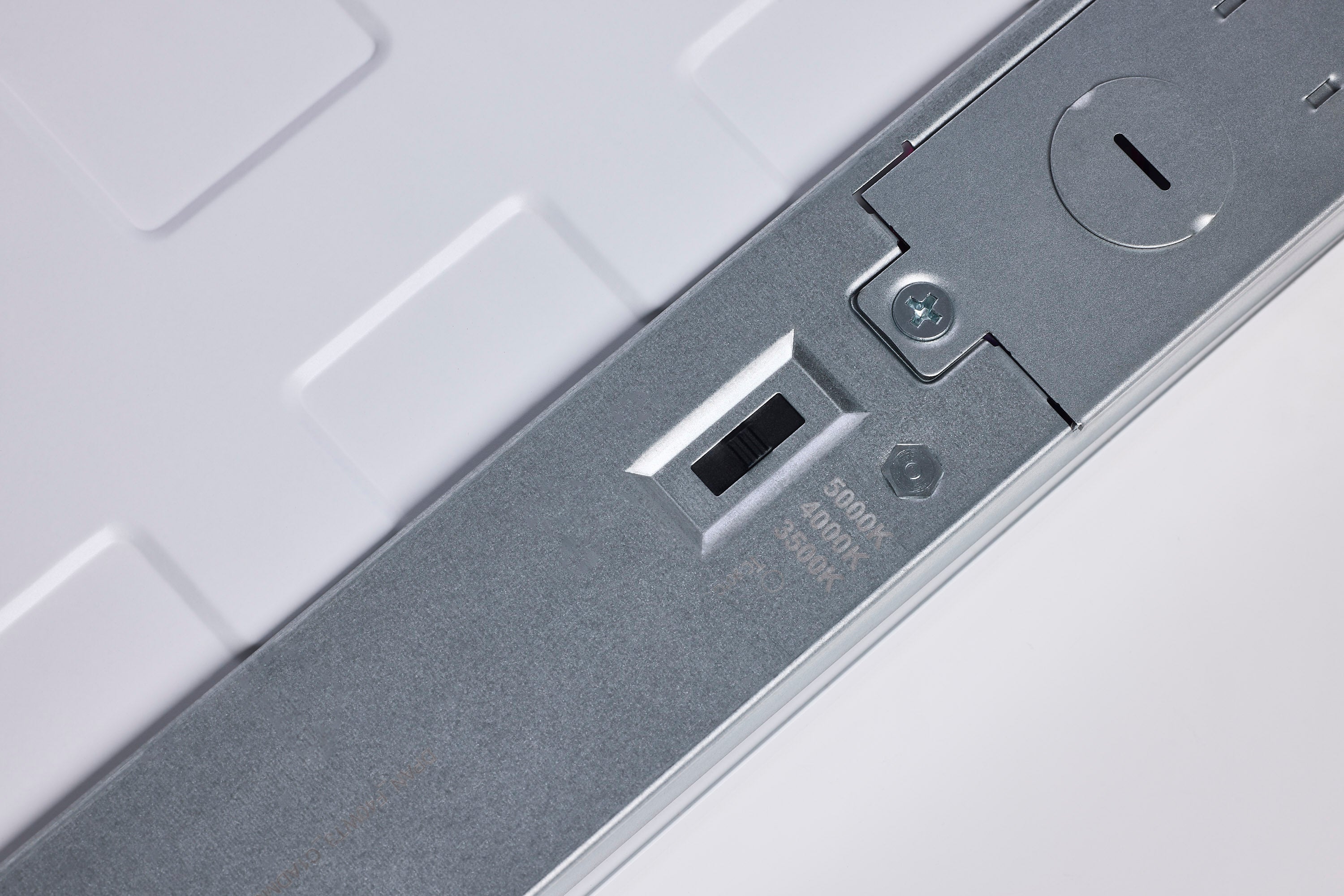

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X4 Panel
  • Standard Model
  • 120-347 Voltage

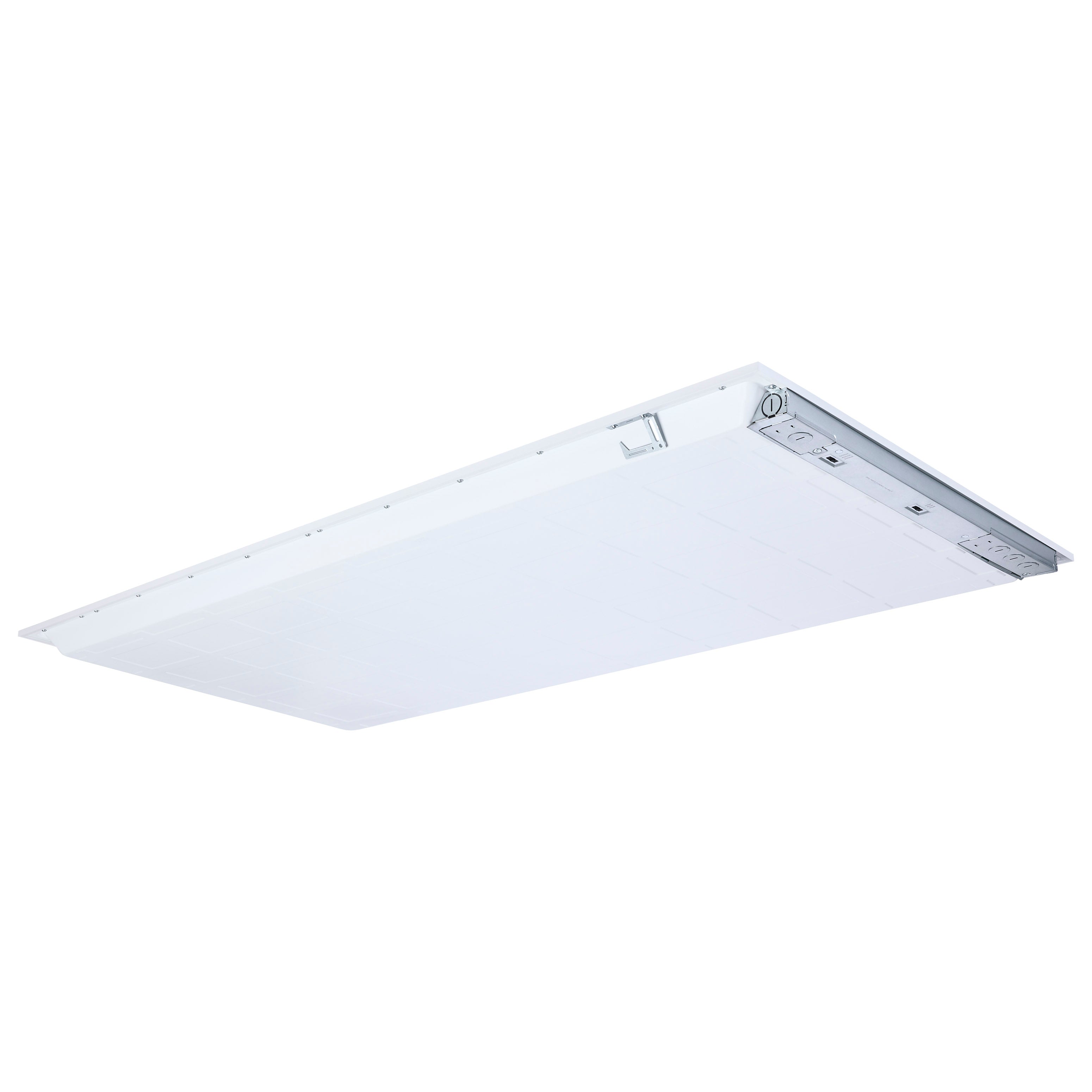

  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
