Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 250W
Wattage 30W/40W/50W
Lumens 3750L/4500L/6250L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Flat Panel
Length 47.76 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry LiFePO4
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens White
Width 23.74 IN
Height 2.6 IN
Weight 10.69 lbs
Lens / Diffuser Polystyrene (PS)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel - 35K/4K/5K CCT Selectable - Emergency Battery - 120-347 Range Voltage - White Finish when your project calls for a commercial ceiling light suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for drop ceiling lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It also fits naturally into projects considering LED troffer light and commercial ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to shop commercial ceiling fixtures, consider 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

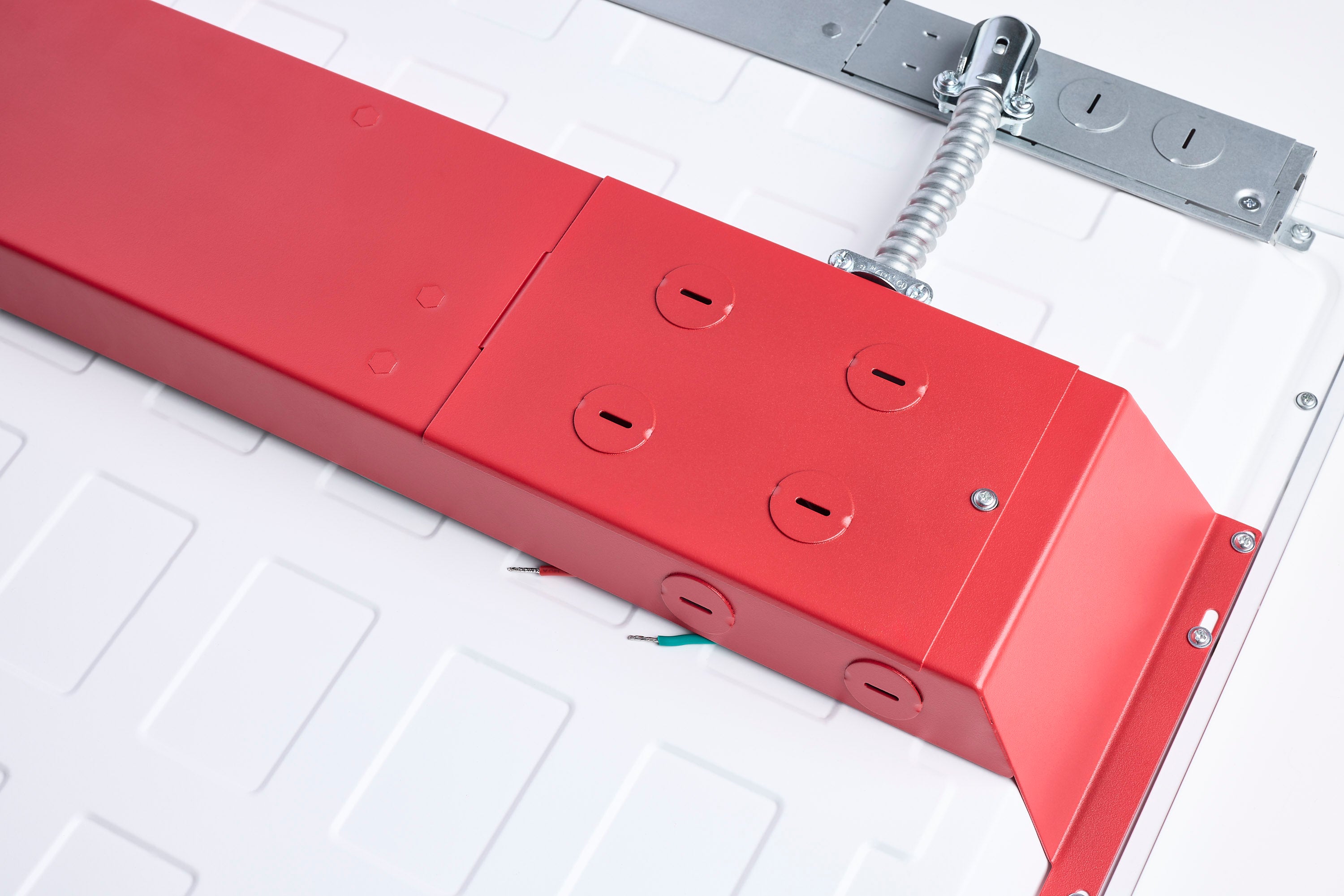

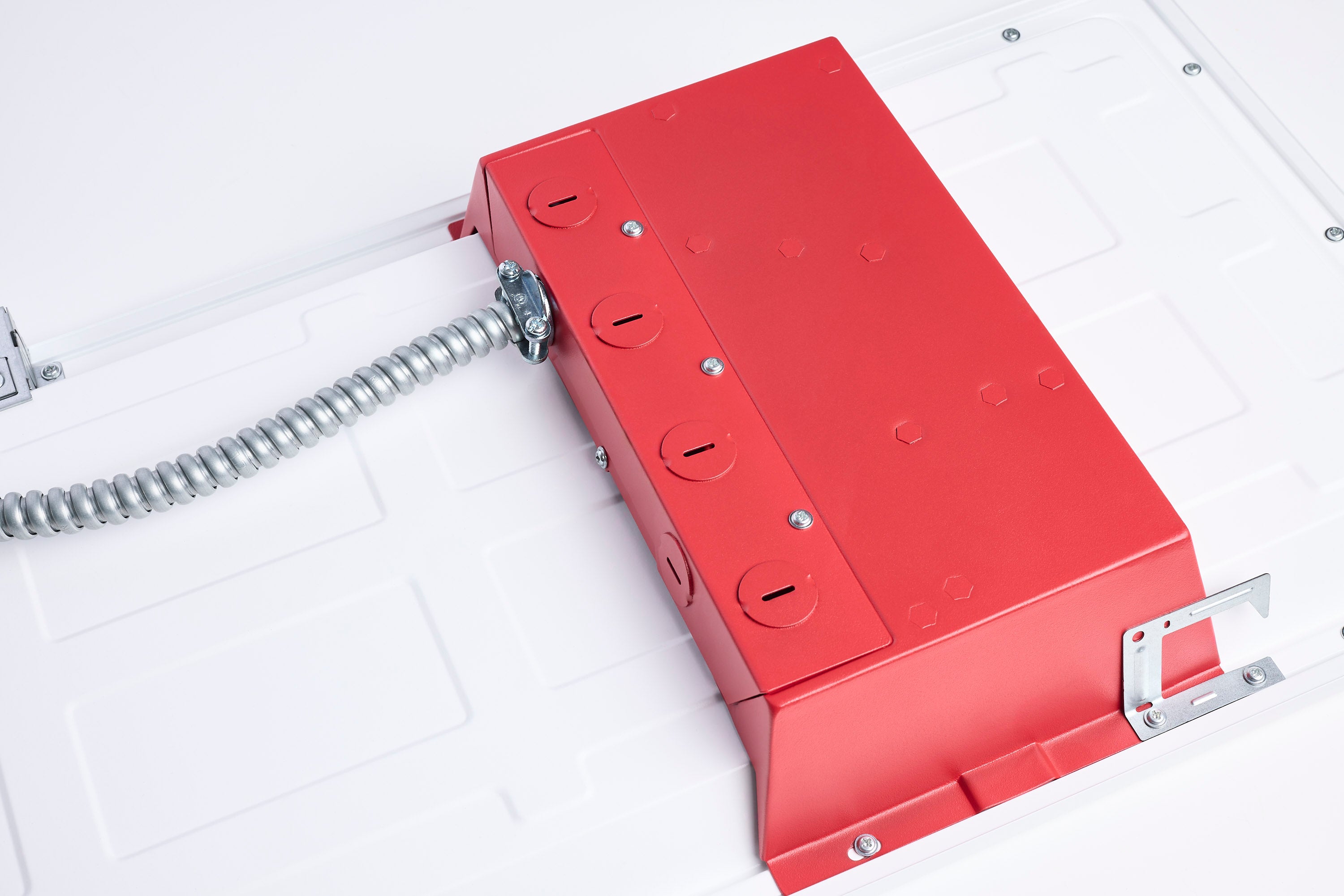

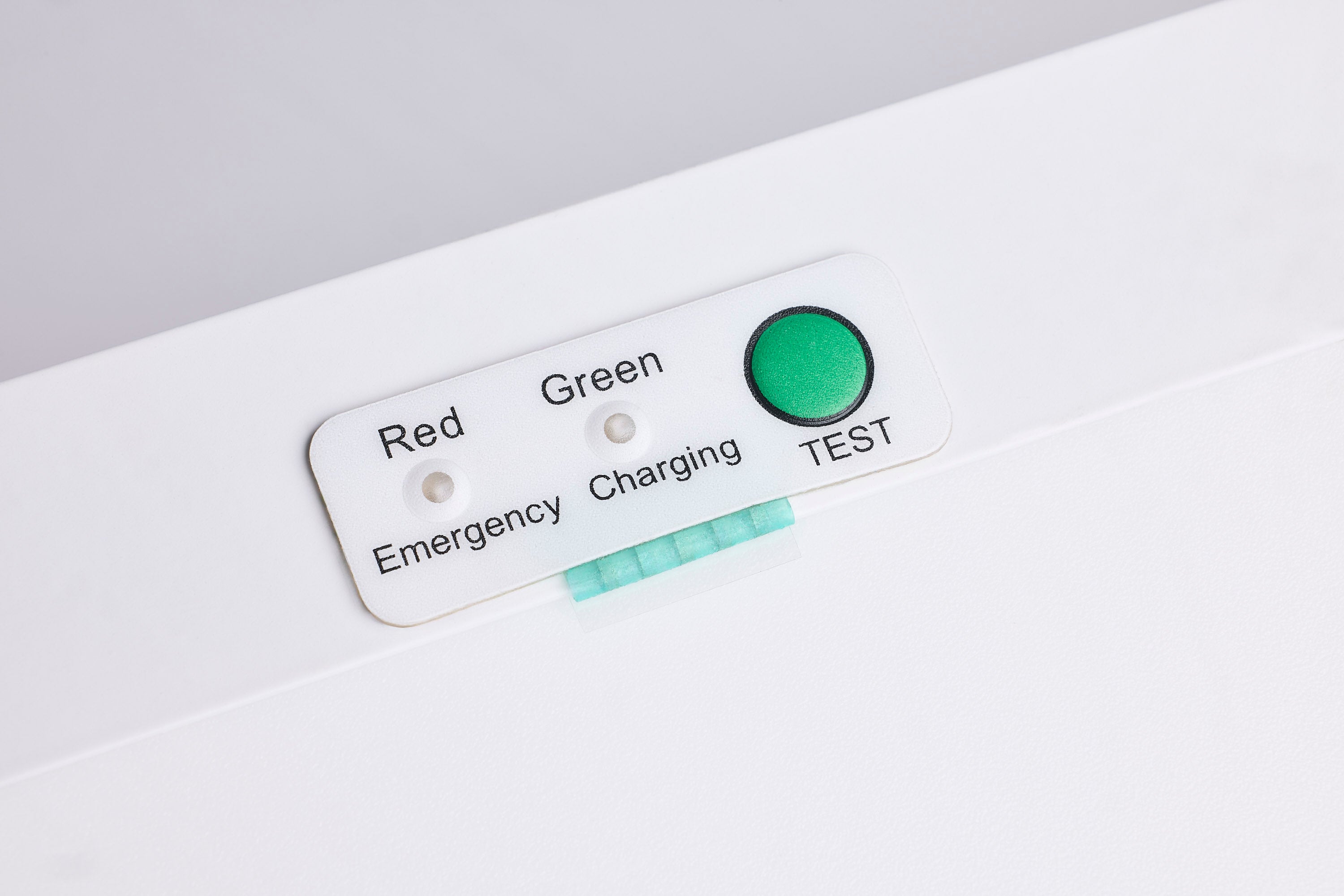

The SATCO NUVO 65-1676 Backlit Panel provides dependable illumination with selectable wattages of 30W, 40W, or 50W and universal voltage operation at 120���������������������������347V. This 2x4 model includes an integrated emergency battery that delivers 90 minutes of runtime, with a red battery backup and indicator light for added safety. Offering CCT selectability (3500K/4000K/5000K), the fixture features a steel body, die-cast aluminum trim with seamless corners, and a polystyrene lens for even light distribution. Designed with 0���������������������������10V dimming to 10%, it carries an IP20 rating for damp locations. DLC listed, 50,000-hour rated, and supported by a 5-year warranty, this panel ensures efficiency, safety, and lasting value.

Features :-

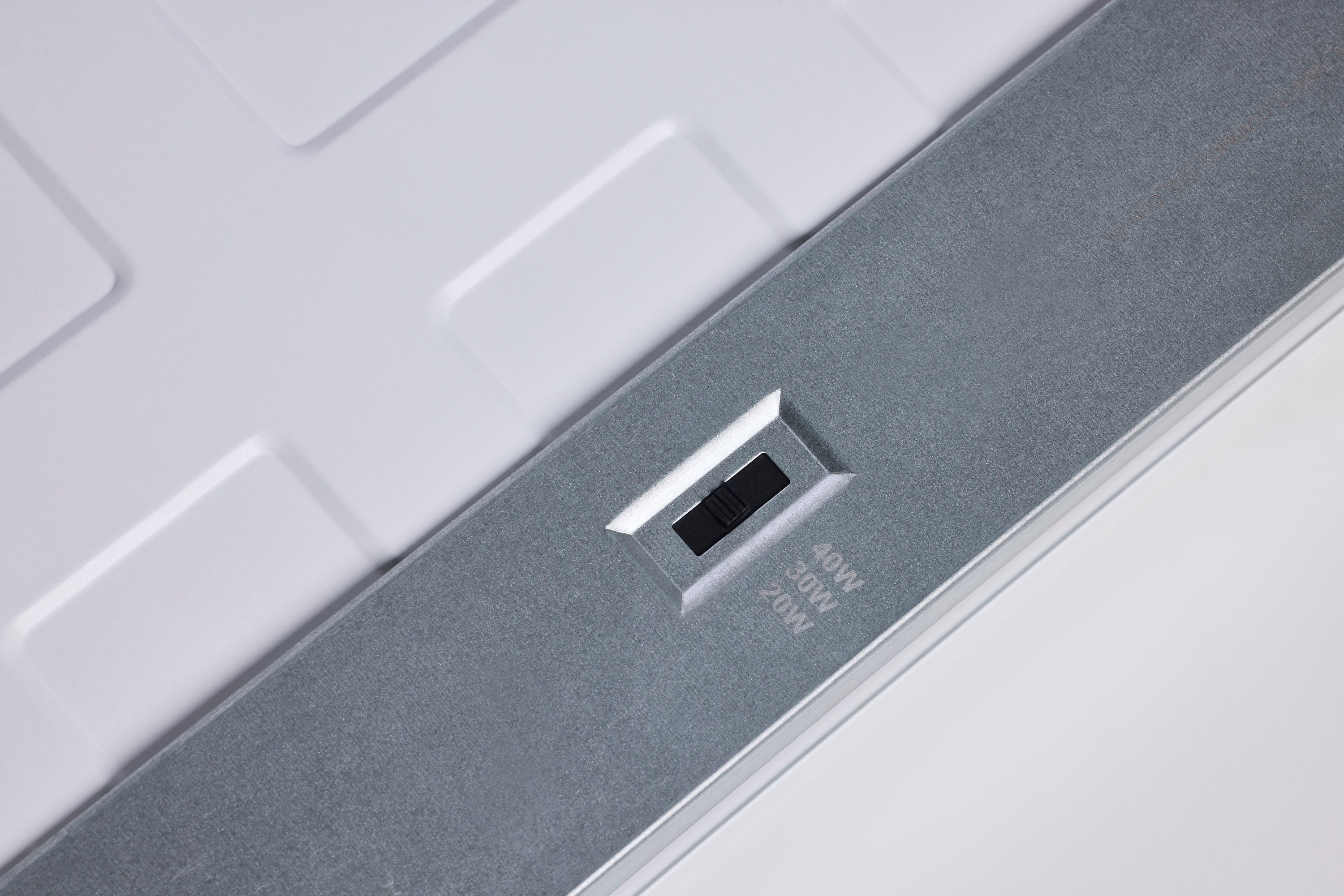

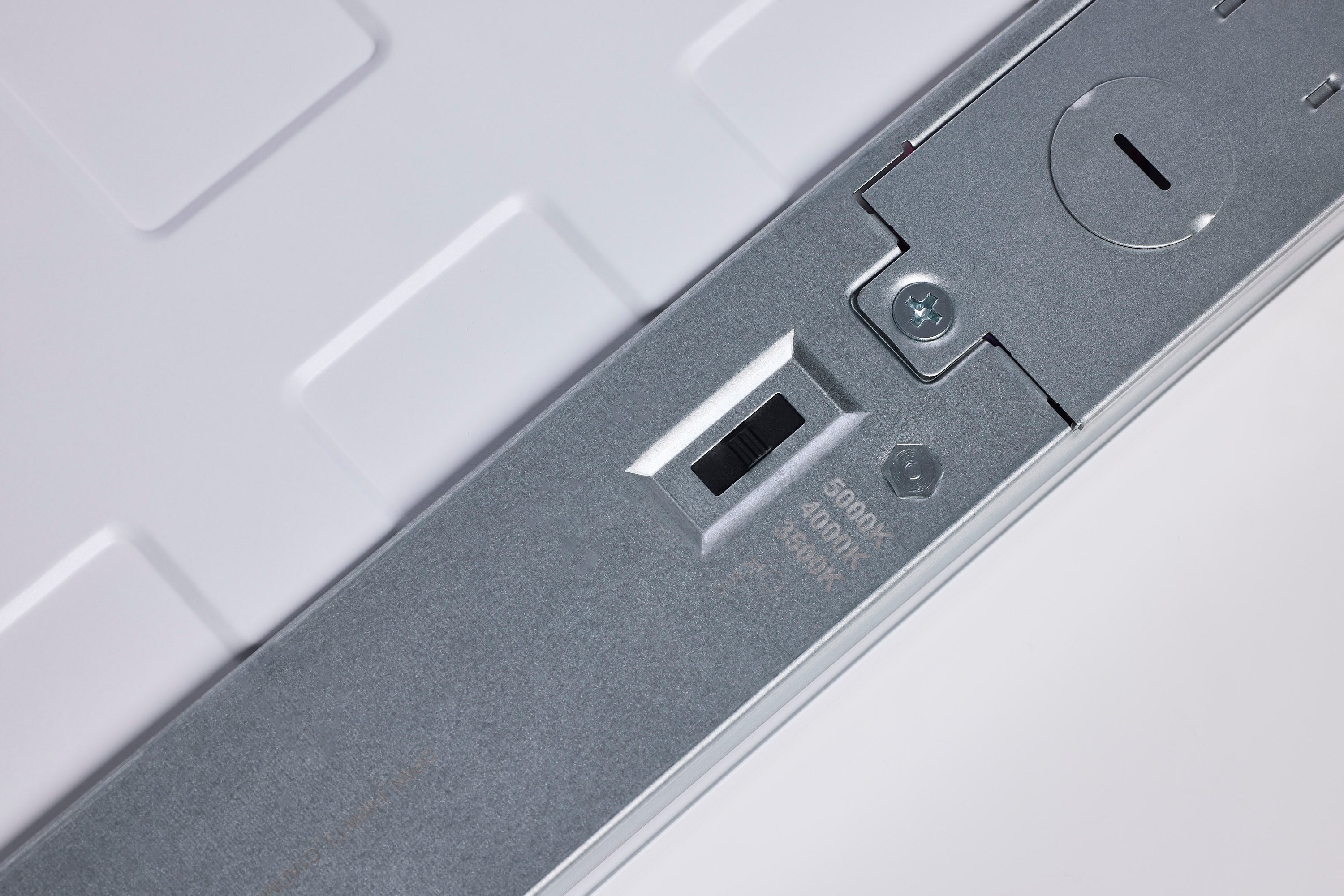

  • Field Selectable - 3 CCT and 3 Wattage
  • 2X4 Panel
  • Emergency Battery Backup Model
  • 120-347 Voltage
  • Steel Body with Die-cast Aluminum Trim for Seamless Corners
  • TAA Compliant
  • Damp Location Rated
  • 5 Year Warranty
  • 50,000 Hour Functional Life
