Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 40W/35W/30W/25W/20W
Lumens 5000L/4375L/3750L/3125L/2500L
Color Temperature 3000K/3500K/4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Silver
Beam Angle 120
Shape Rectangle

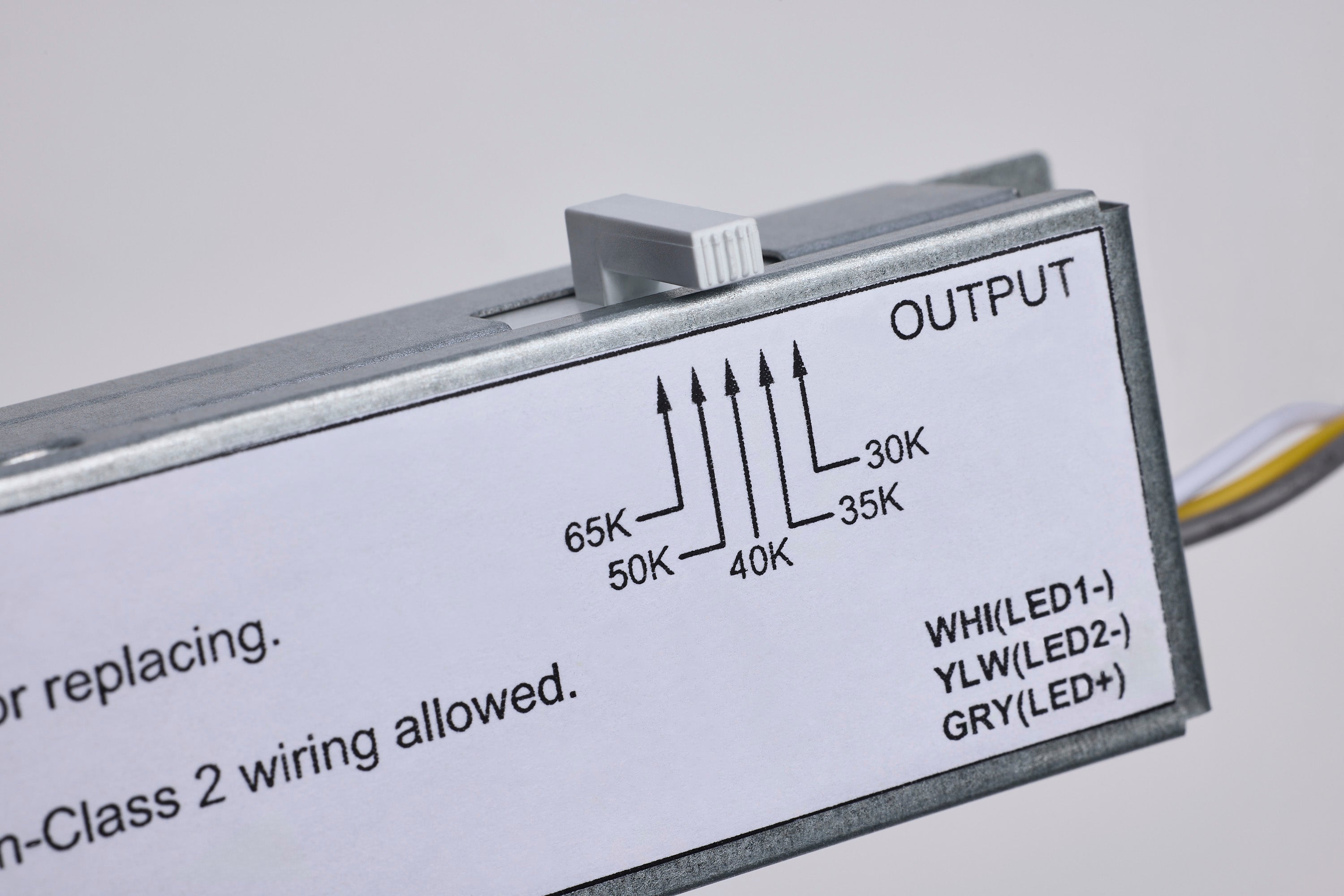

Color Temperature Selectable Yes
Panel Type 3x2

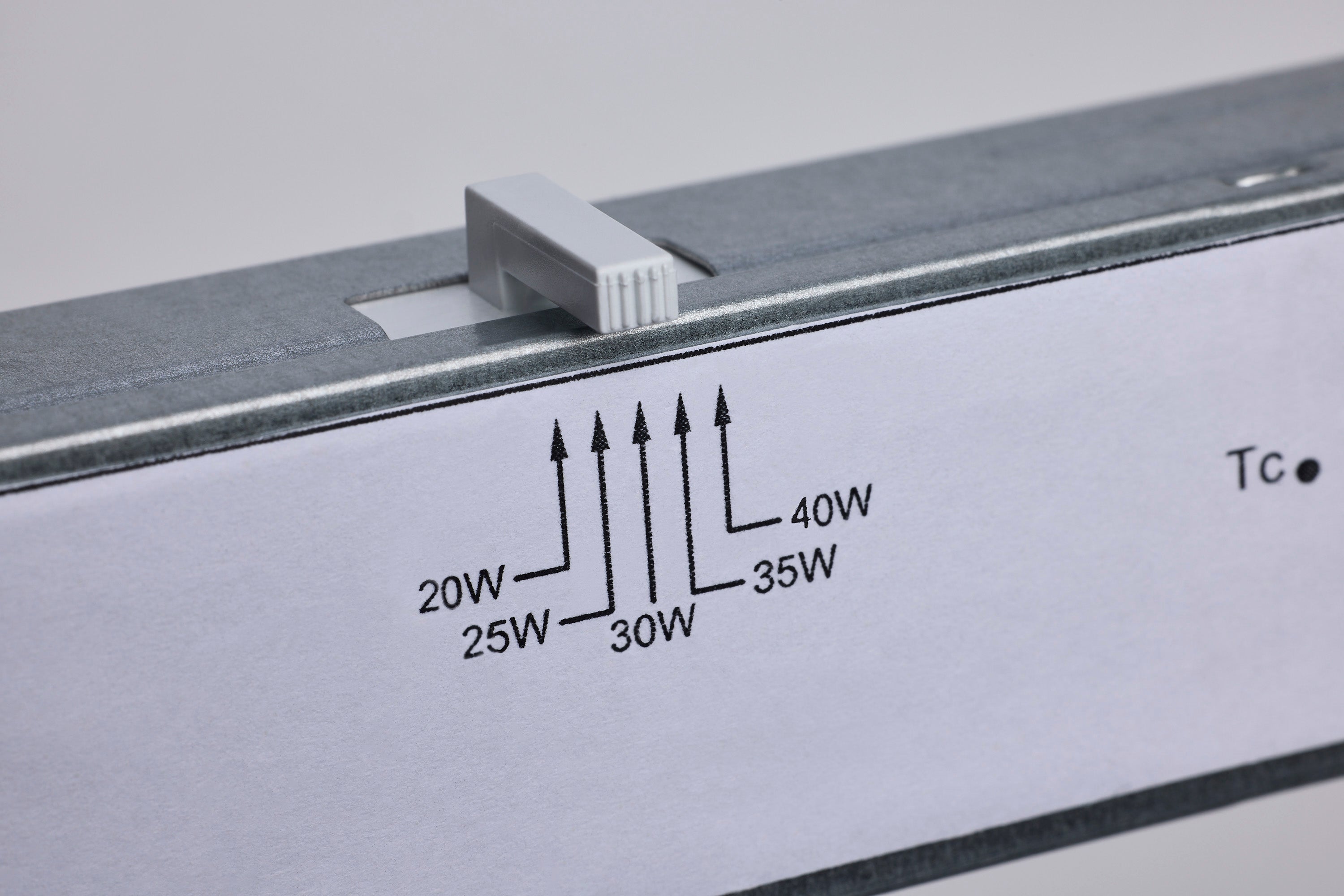

Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 20.87 IN
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Daylight
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 1KV
Features / Controls
Enclosed Fixture Rated Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum
Finish/Lens Frosted
Width 0.93 IN
Height 1.19 IN
Weight 1.4 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 40W/35W/30W/25W/20W Wattatage Selectable LED Light Bar Retrofit Kit - 3000K/3500K/4000K/5000K/6500K CCT Selectable - 3-Bars - 2 Feet - 120-277 Volt - Silver Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED troffer light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. That is especially useful in offices, classrooms, retail spaces, healthcare environments and other commercial interiors. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving drop ceiling lighting, LED panel light and other coordinated lighting upgrades.

Supports a clean, organized ceiling layout across larger commercial interiors. For grid-ceiling and general commercial lighting projects, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

If you are ready to shop commercial ceiling fixtures, 40W/35W/30W/25W/20W Wattatage Selectable LED Light Bar Retrofit Kit offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

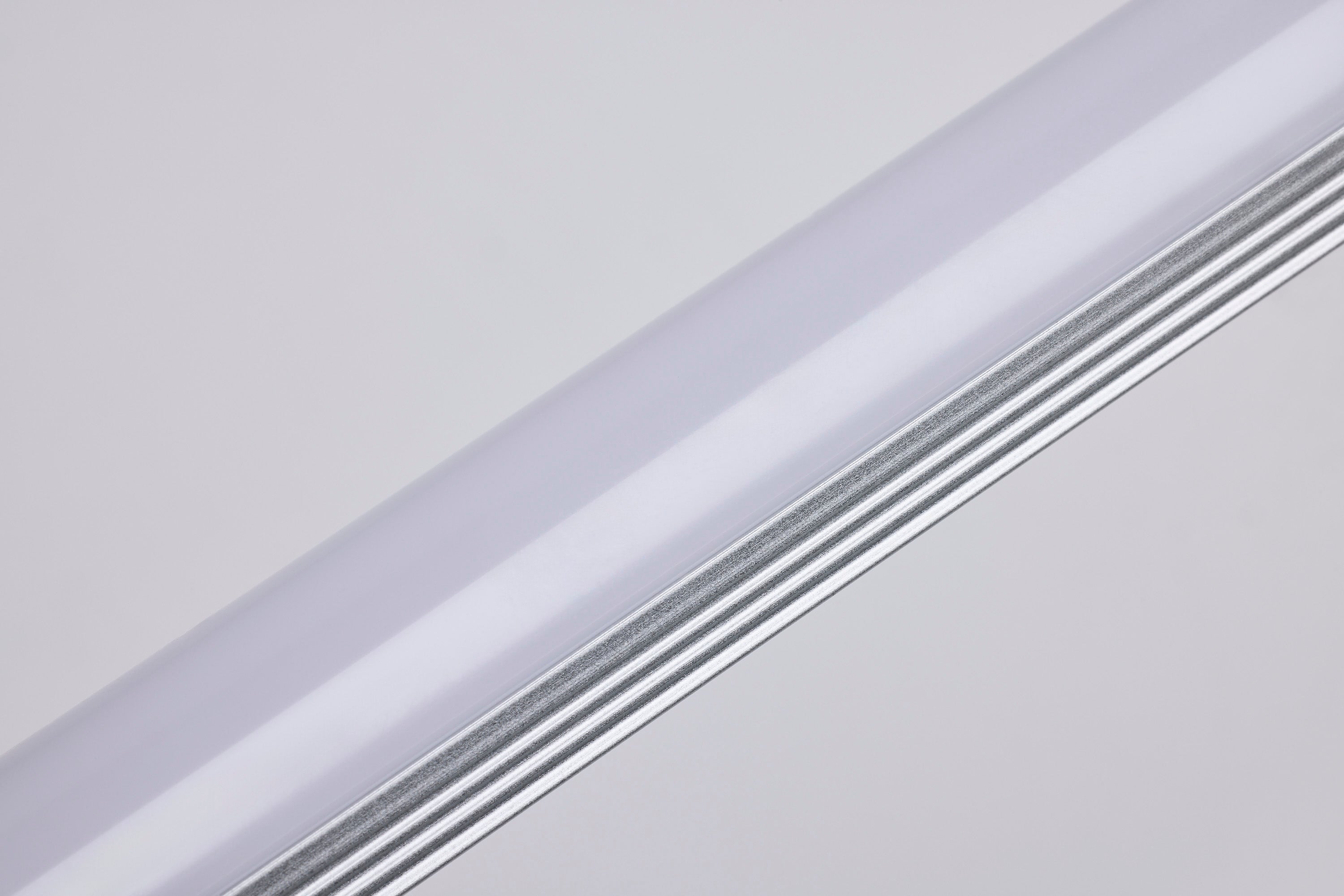

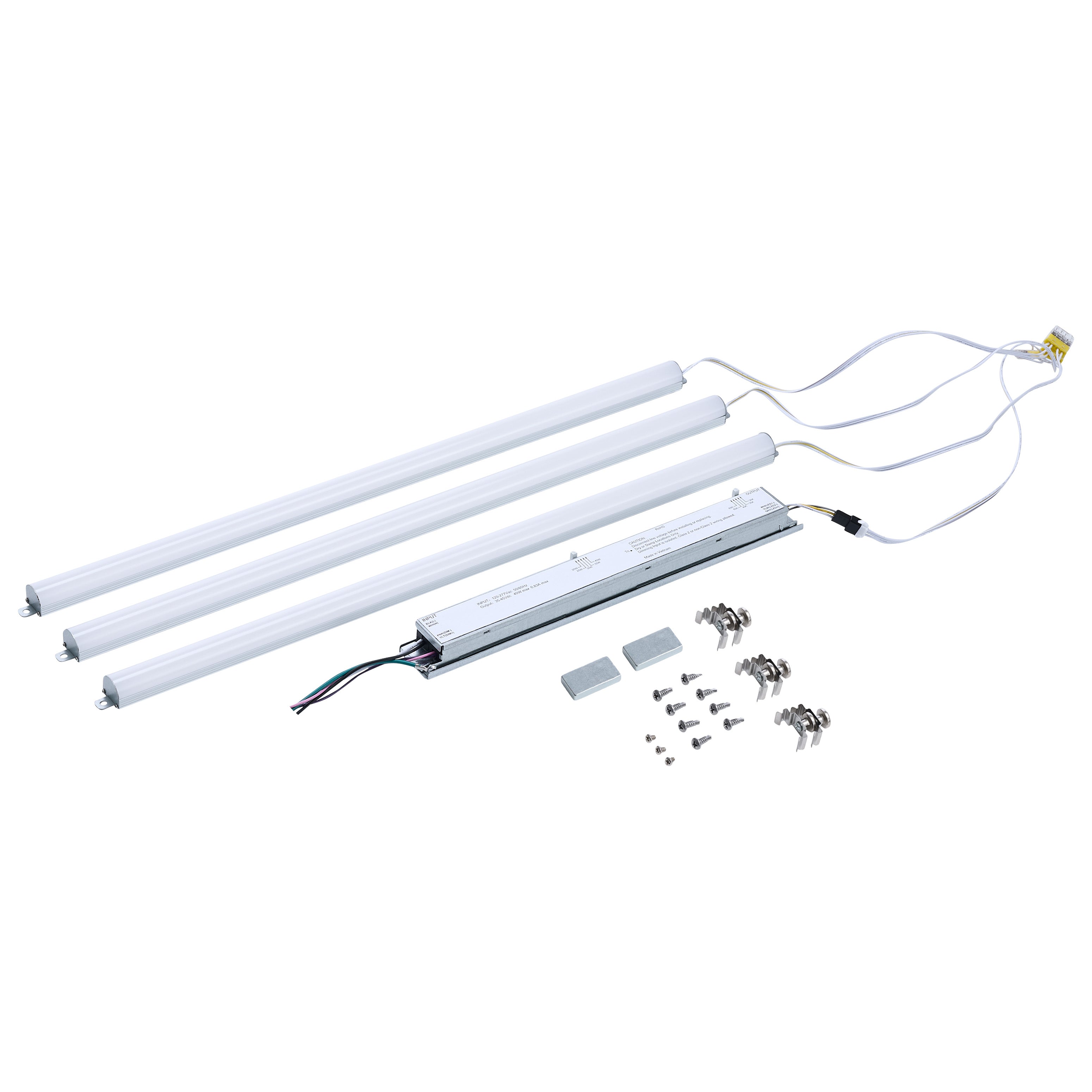

SATCO NUVO's 65-1332 2-foot Retrofit Lightbar Kit with three LED bars delivers a versatile and energy-efficient solution for converting existing fluorescent fixtures to LED technology. Designed to replace 3 x 17W T8 lamps, this kit features selectable wattages from 20W to 40W and selectable CCT from 3000K to 6500K to customize light output for the application. Compatible with a wide range of existing troffers, strips, wraps, and vapor tight fixtures, the kit combines durable aluminum construction with a frosted polycarbonate lens for reliable operation and even illumination. Complete with 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this retrofit kit offers long-lasting performance and flexibility.

Features :-

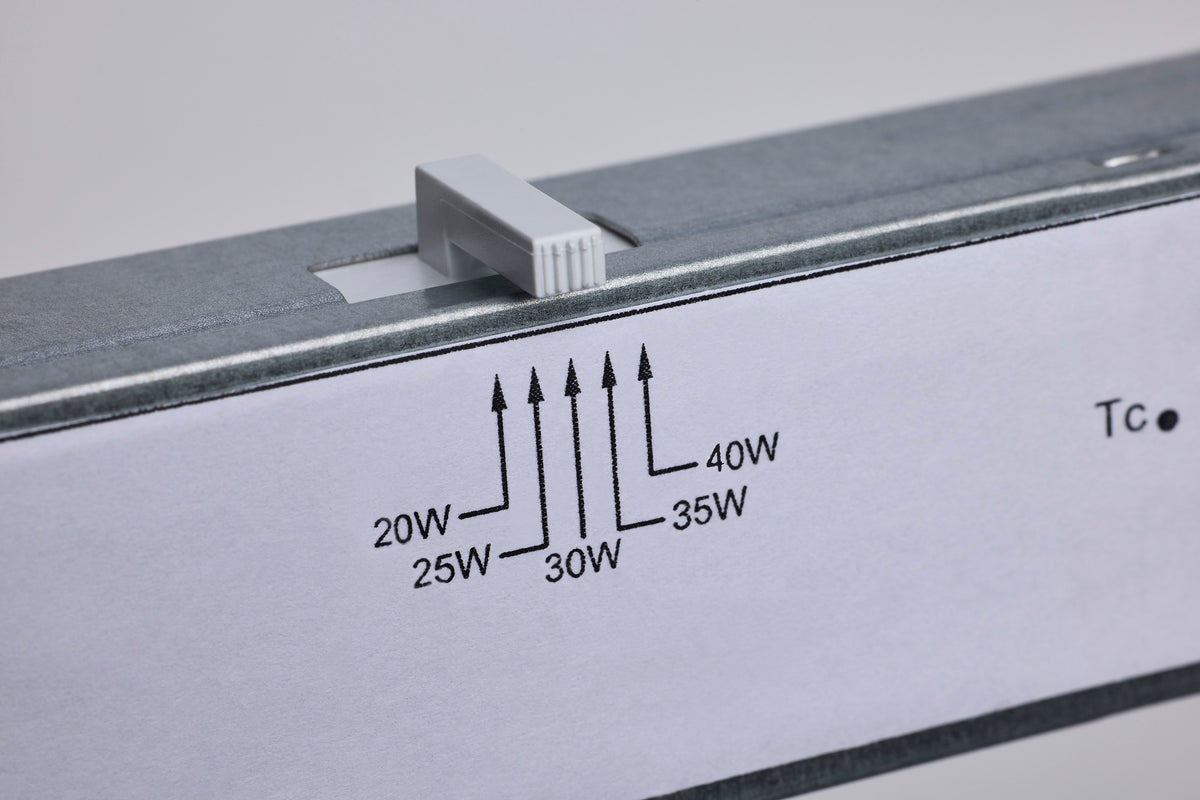

  • Field Selectable (5 wattages and 5 CCT)
  • Reduces Upgrade Material Waste

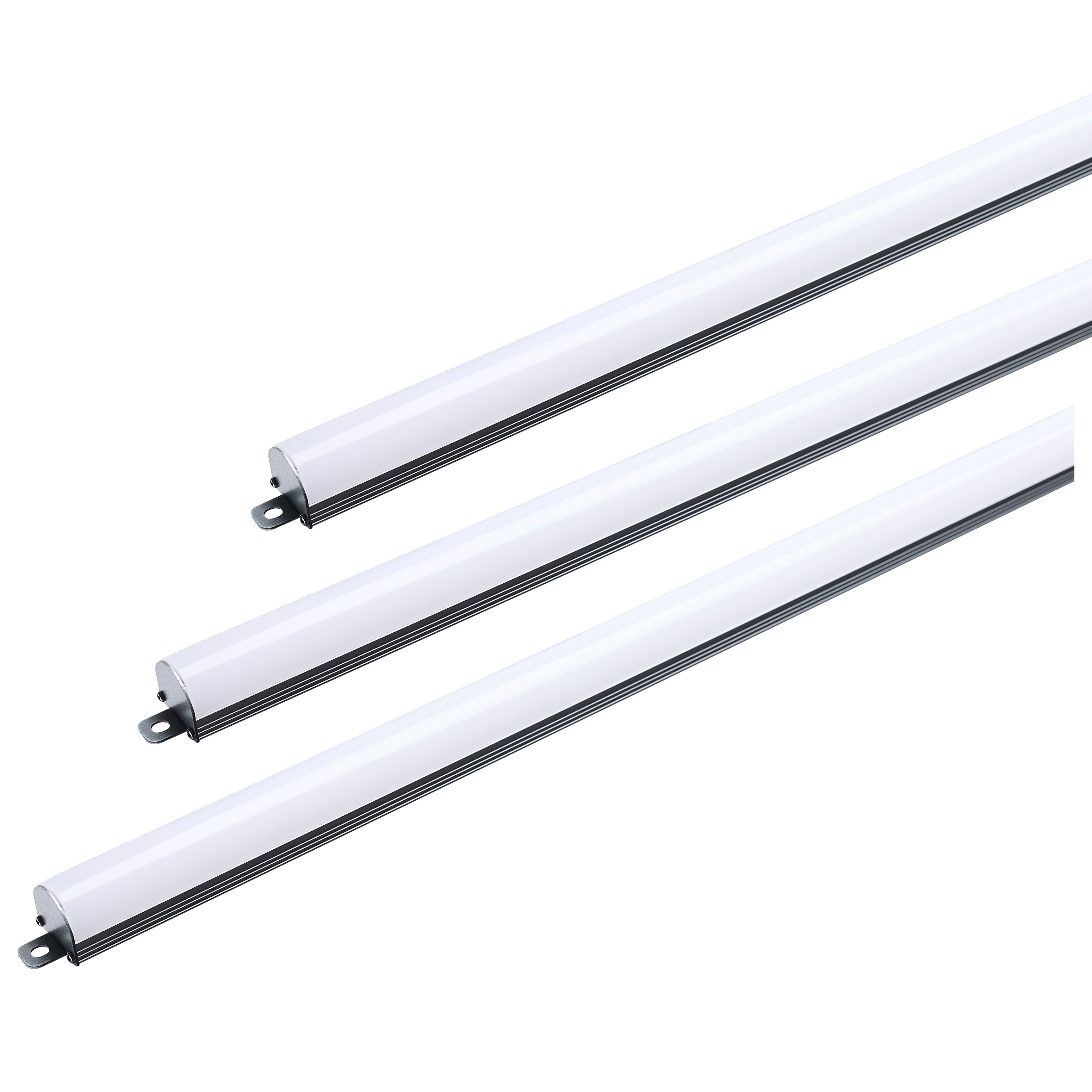

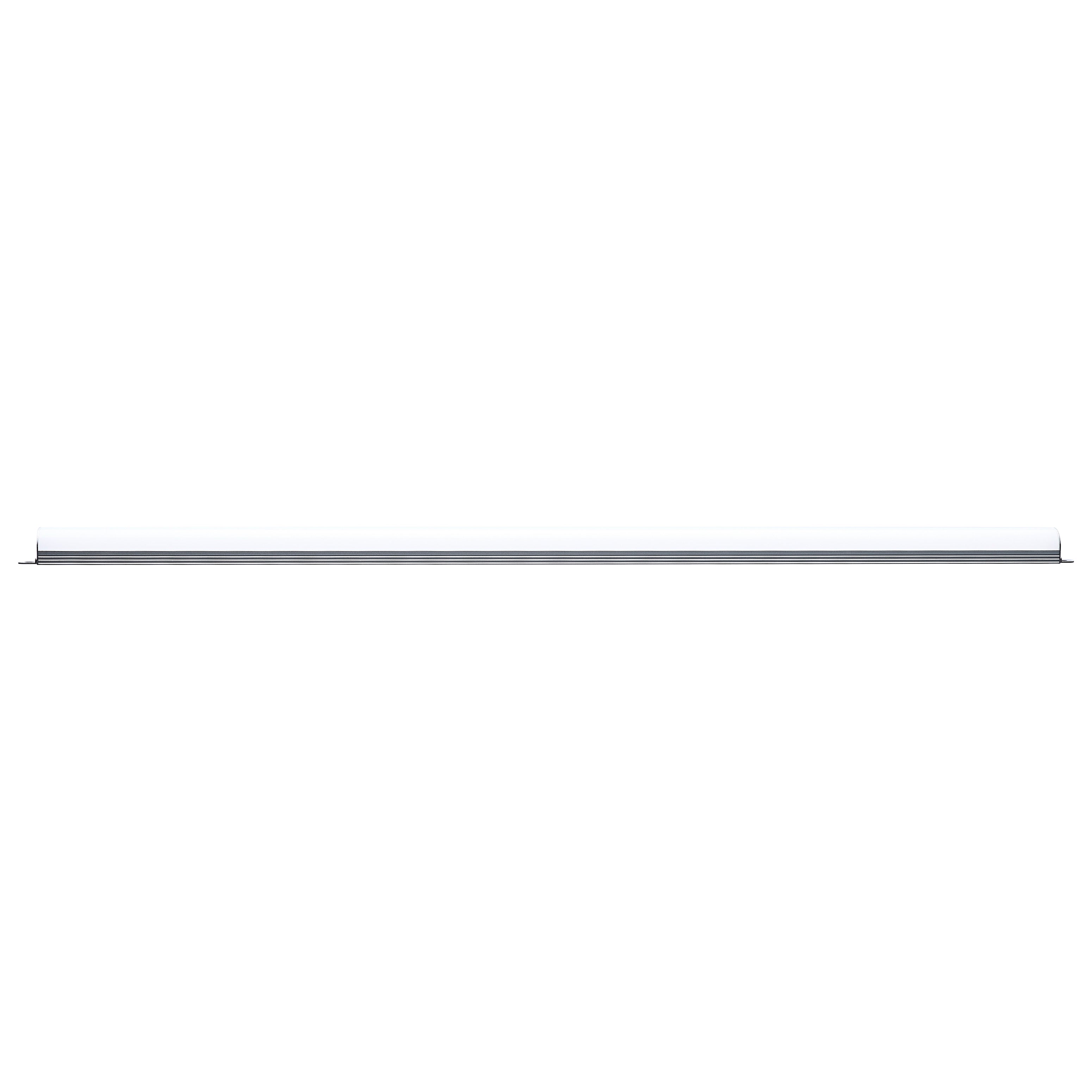

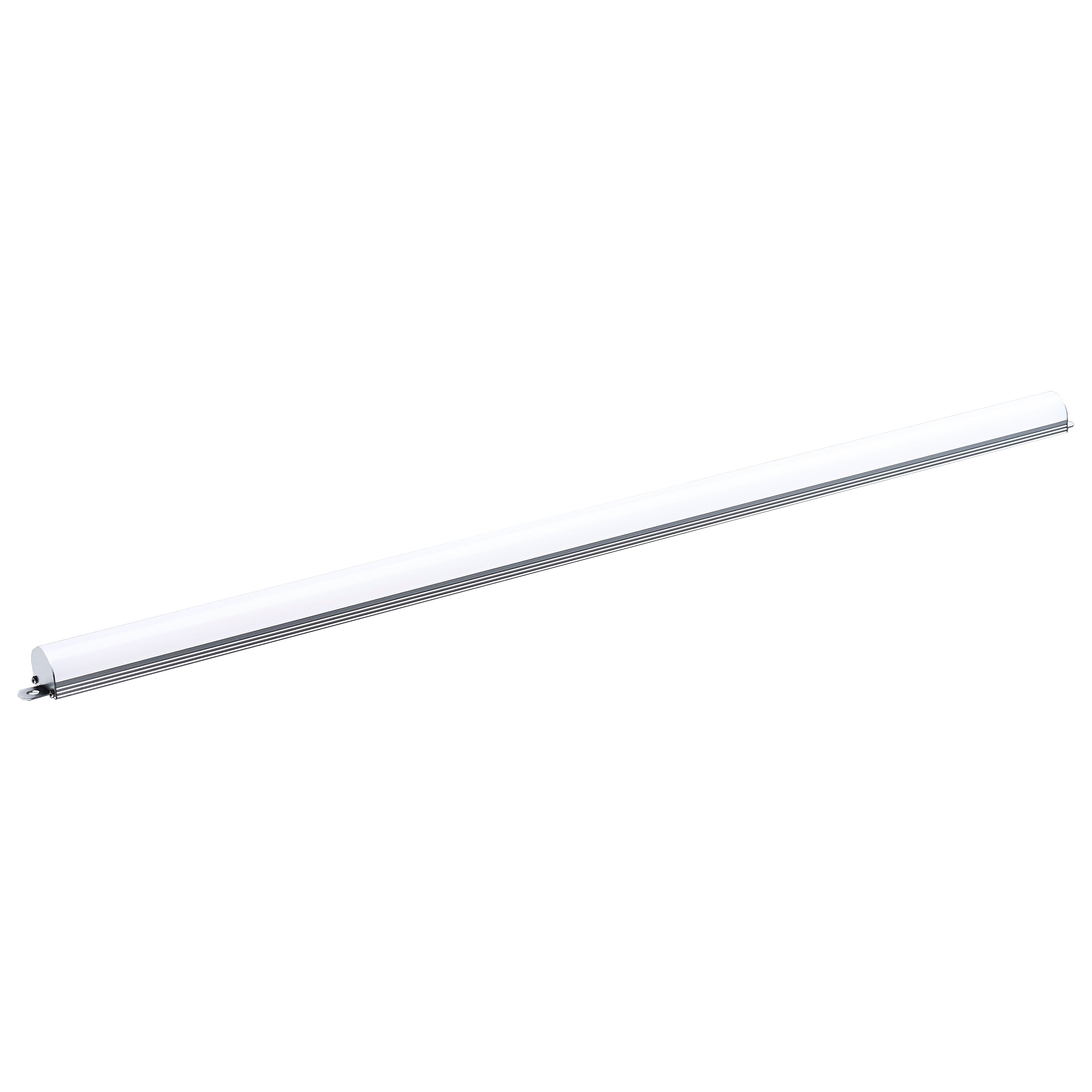

  • 2 Foot, 3 Light Bars Aluminum & PC Construction
  • 0-10V Dimmable

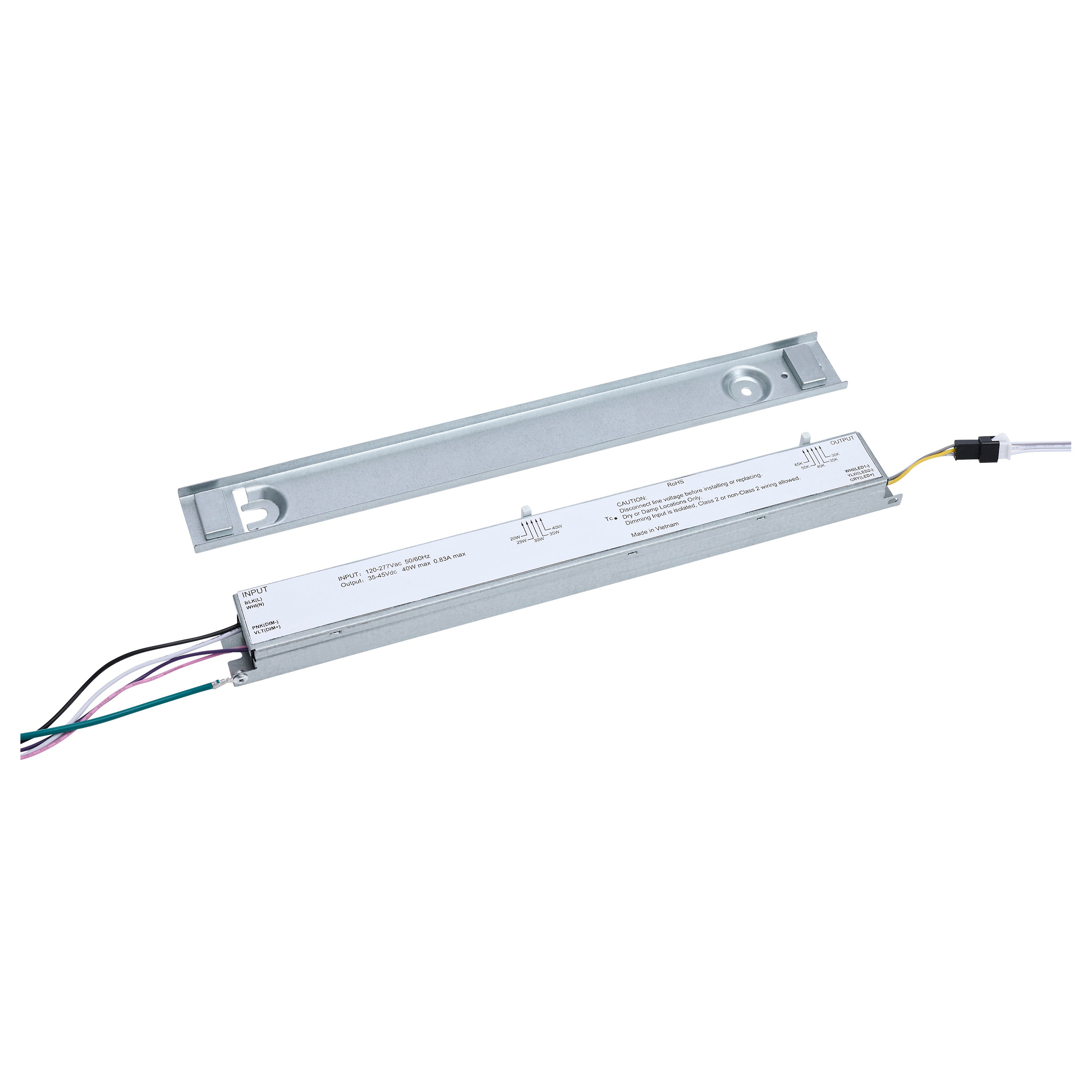

  • Fully Pre-Wired Driver
  • Quick & Easy Magnetic Installation
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
