Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 45W/60W/80W
Lumens 6972L-11904L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Bronze
Beam Angle 90x100
HID Equivalent 100W-250W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B2-U0-G1
Fixture Type Wall Pack
Photocell Yes - Bypassable
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) 8.97%
Surge Protection Built-in surge protection - 4KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Opaque
Width 12.61 IN
Height 6.86 IN
Weight 5.73 lbs
Lens / Diffuser Impact Resistant PC
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +104F (-40C to +40C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 45/60/80 Watt - 3K/4K/5K CCT Selectable LED Full Cutoff Wall Pack - 120-277 Volt - Bronze Finish when your project calls for a LED wall pack suited to warehouses, retail buildings and other properties needing wall-mounted exterior lighting. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for outdoor wall lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

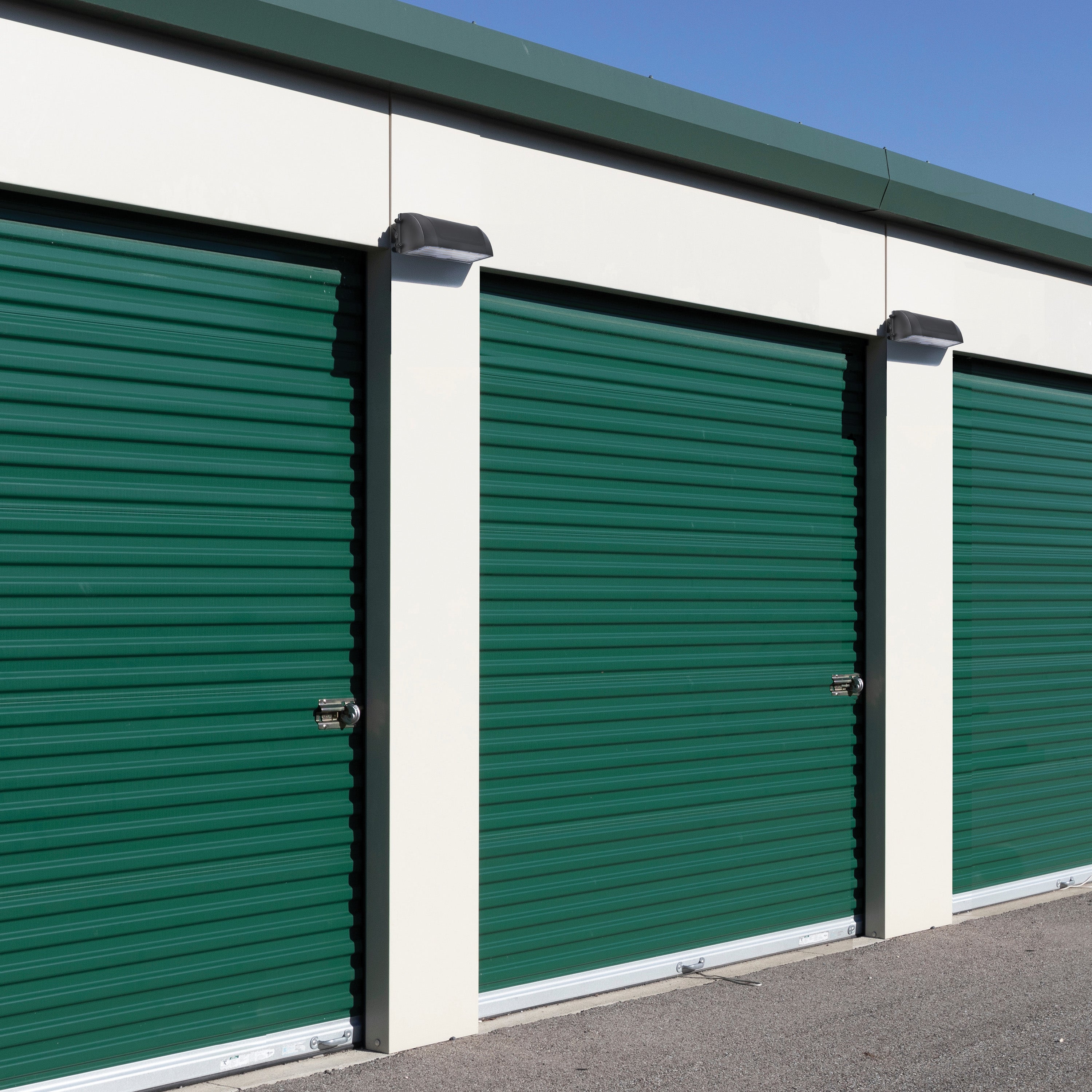

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. That is especially useful in building perimeters, loading areas, walkways, parking areas and commercial entrances. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED wall pack, this option is well suited to projects involving commercial wall pack light, perimeter lighting fixture and other coordinated lighting upgrades.

Works well for facility managers and electrical contractors upgrading commercial building lighting. In replacement and new-installation projects where wall-mounted site lighting is preferred, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to buy LED wall packs online, consider 45/60/80 Watt for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

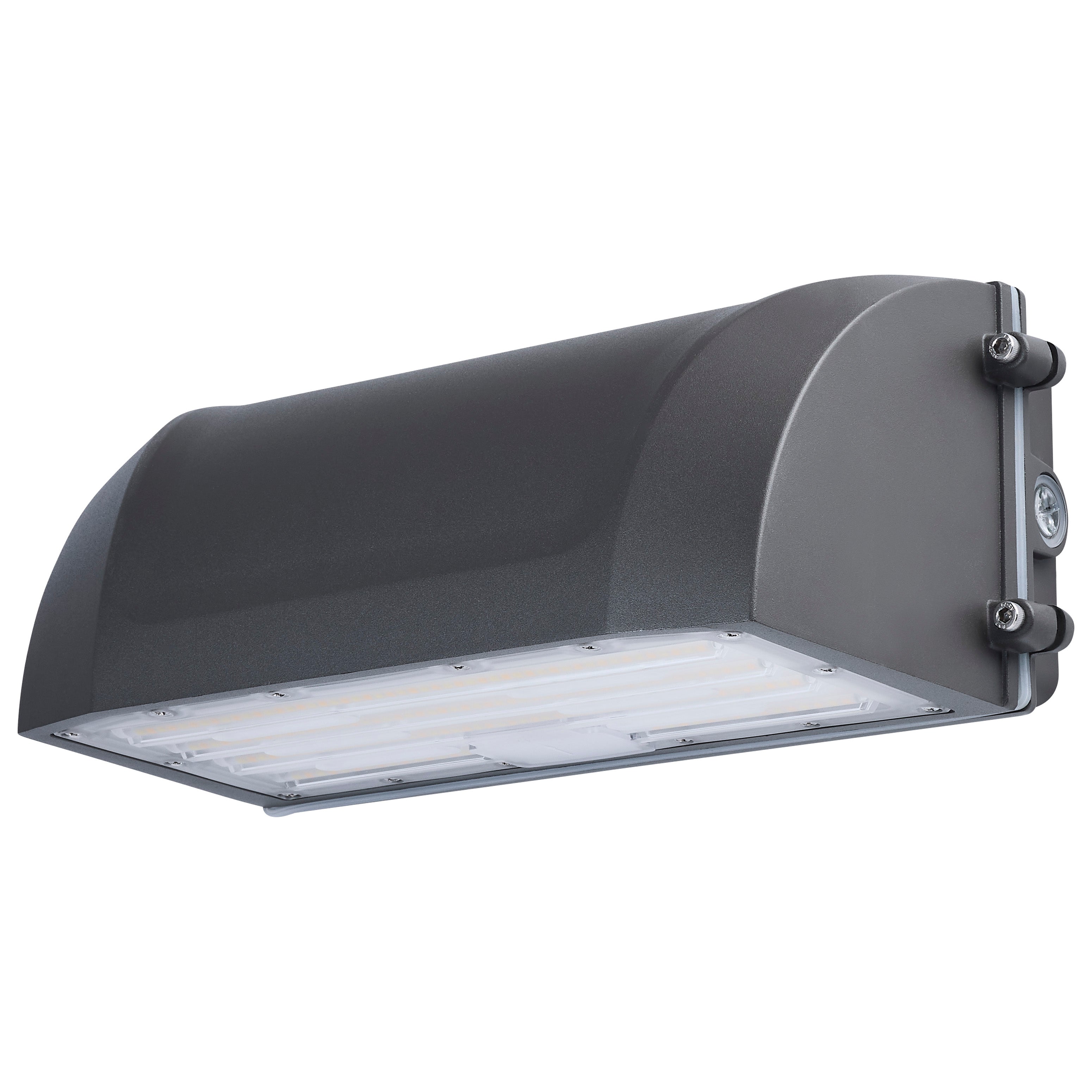

Deliver reliable, energy-efficient outdoor lighting with the 65-941 LED Full Cutoff Wall Pack, designed for versatility and long-term performance. Featuring field-selectable technology, it allows you to choose from three wattages and three color temperatures at installation-providing the flexibility to tailor light output and ambiance to any application. An integrated bypassable photocell offers convenient dusk-to dawn operation, while compatibility with select dimmers enables additional control and energy savings. Constructed from durable die-cast aluminum with a corrosion-resistant bronze finish and paired with an impact-resistant polycarbonate lens, this fixture is built to withstand demanding environments. Ideal for walkways, warehouses, office buildings, schools, and other commercial settings, it delivers dependable illumination with a clean, full cutoff design that minimizes glare and light trespass.

Features :-

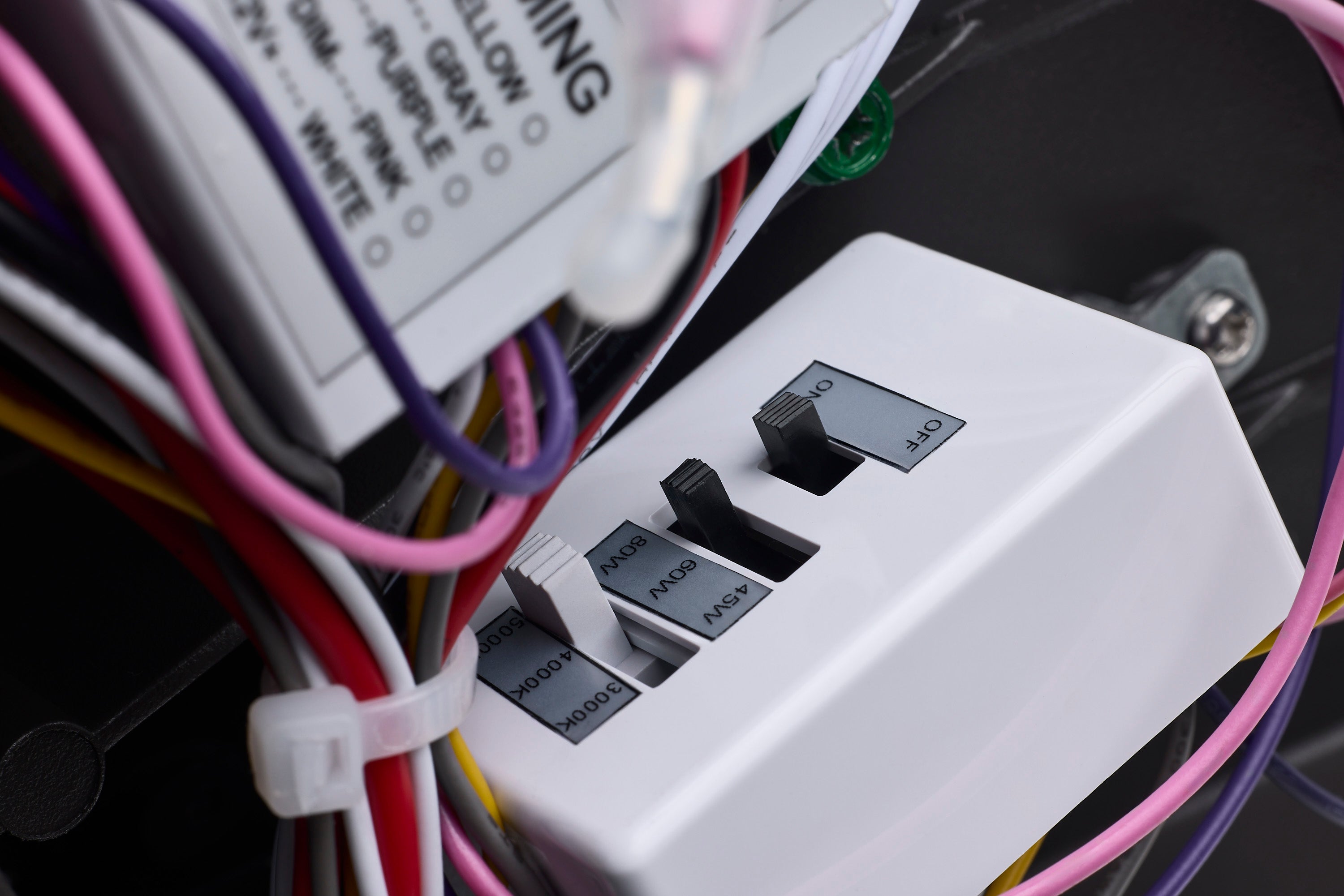

  • 3 Wattage Selectable (80W/60W/45W)
  • 3 CCT Selectable (3000K/4000K/5000K)
  • Range Voltage 120-277V

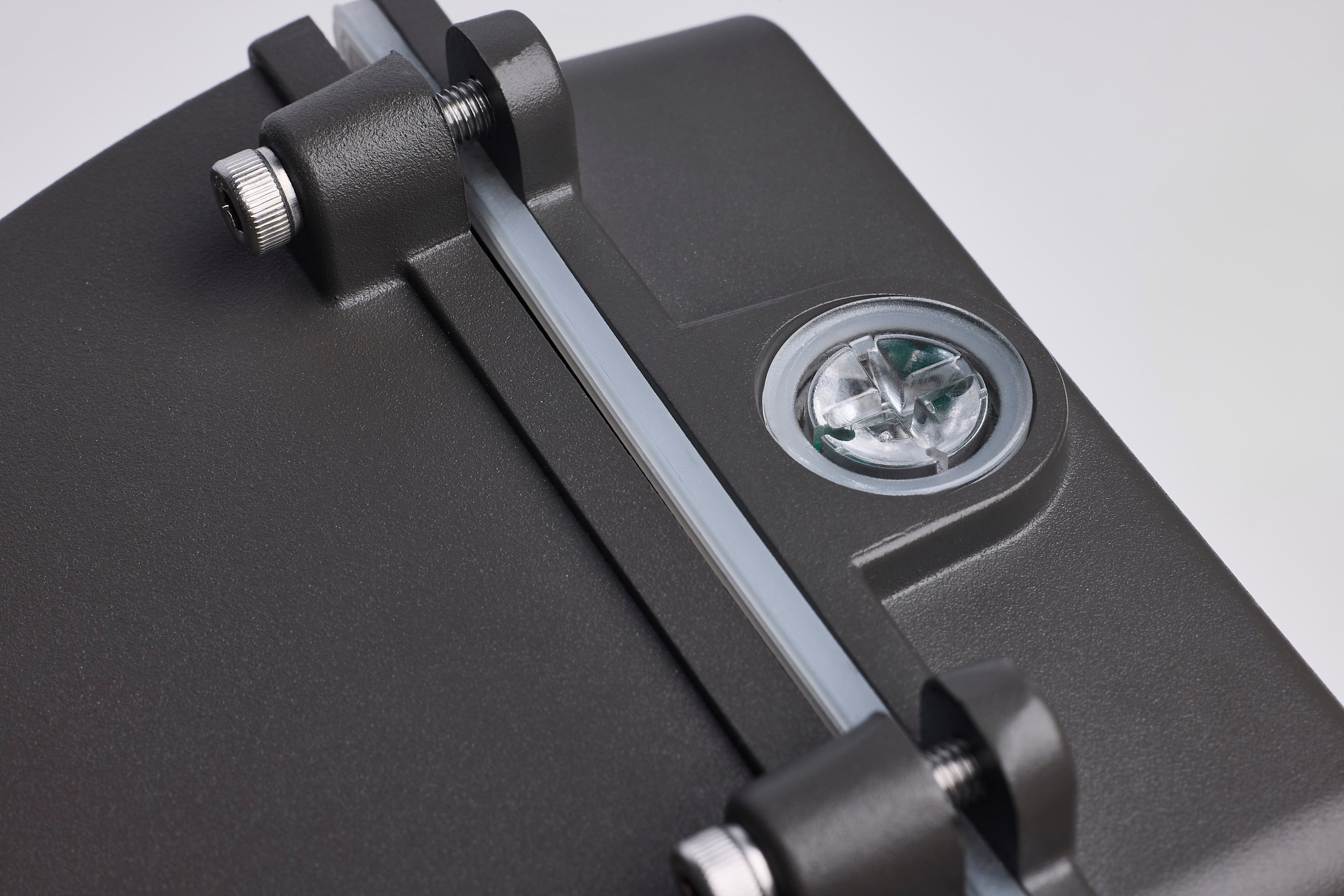

  • Integrated By-Passable Photocell
  • 4kV Surge Protection
  • IP65 & IK08 Rated
  • 0-10V Dimmable
  • 50,000 Life Hours
  • 5 Year Warranty
