Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 45W/60W/80W
Lumens 7243L-12436L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Bronze
Beam Angle 55x105
HID Equivalent 100W-250W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B1-U4-G3
Fixture Type Wall Pack
Photocell Yes - Bypassable
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) 11.60%
Surge Protection Built-in surge protection - 4KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Opaque
Width 12.62 IN
Height 5.83 IN
Weight 3.31 lbs
Lens / Diffuser Impact Resistant PC
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +104F (-40C to +40C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

45/60/80 Watt - 3K/4K/5K CCT Selectable LED Semi Cutoff Wall Pack - 120-277 Volt - Bronze Finish brings the familiar role of a LED wall pack to replacement and new-installation projects where wall-mounted site lighting is preferred. It is a practical choice for customers comparing LED wall pack and outdoor wall lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Helps organize exterior lighting without requiring pole-mounted fixtures in every location. In practical terms, that makes this product relevant for warehouses, retail buildings and other properties needing wall-mounted exterior lighting. It also fits naturally into projects considering outdoor wall lighting and commercial wall pack light, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

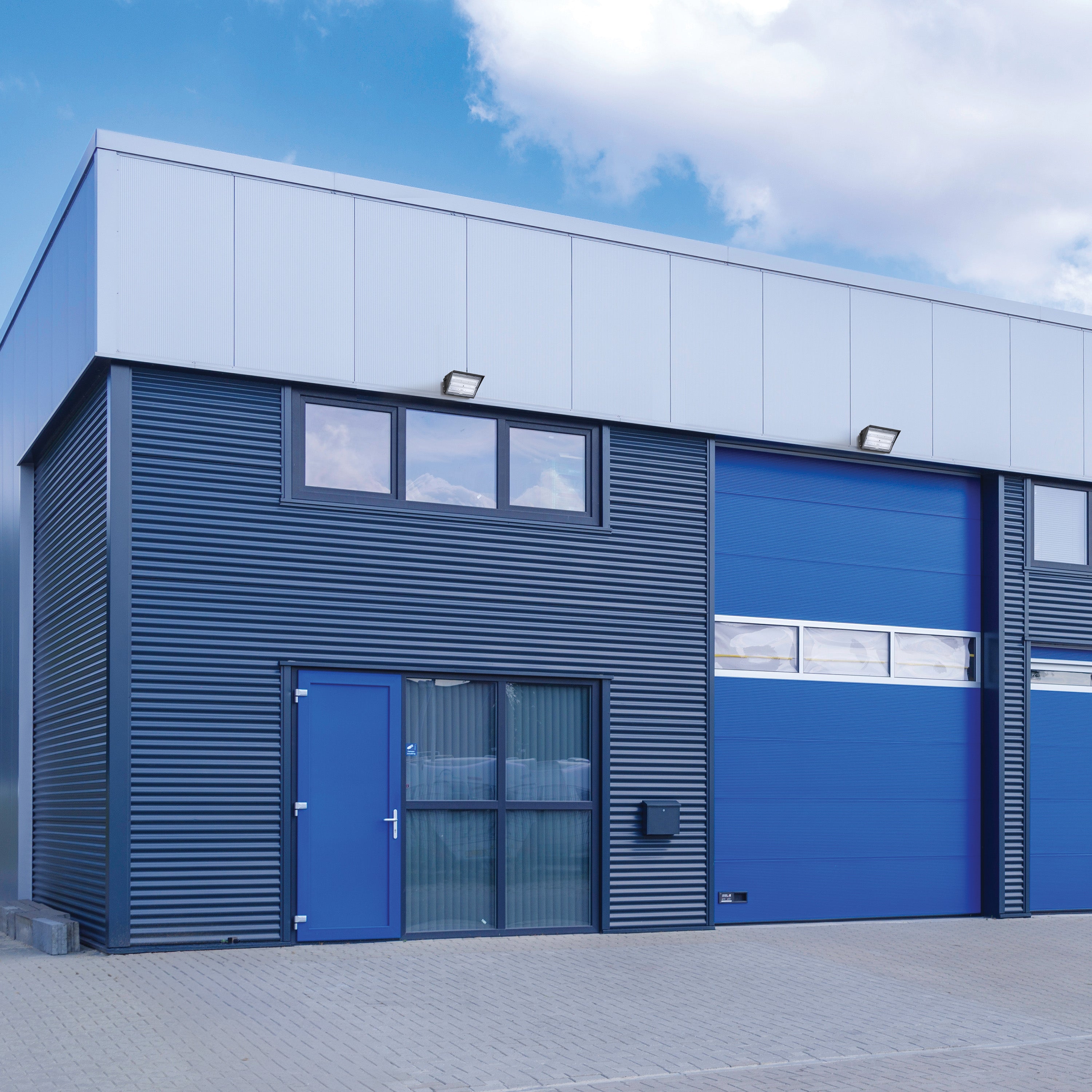

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. This is particularly helpful for building perimeters, loading areas, walkways, parking areas and commercial entrances. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

When it is time to shop commercial exterior wall lights, consider 45/60/80 Watt for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

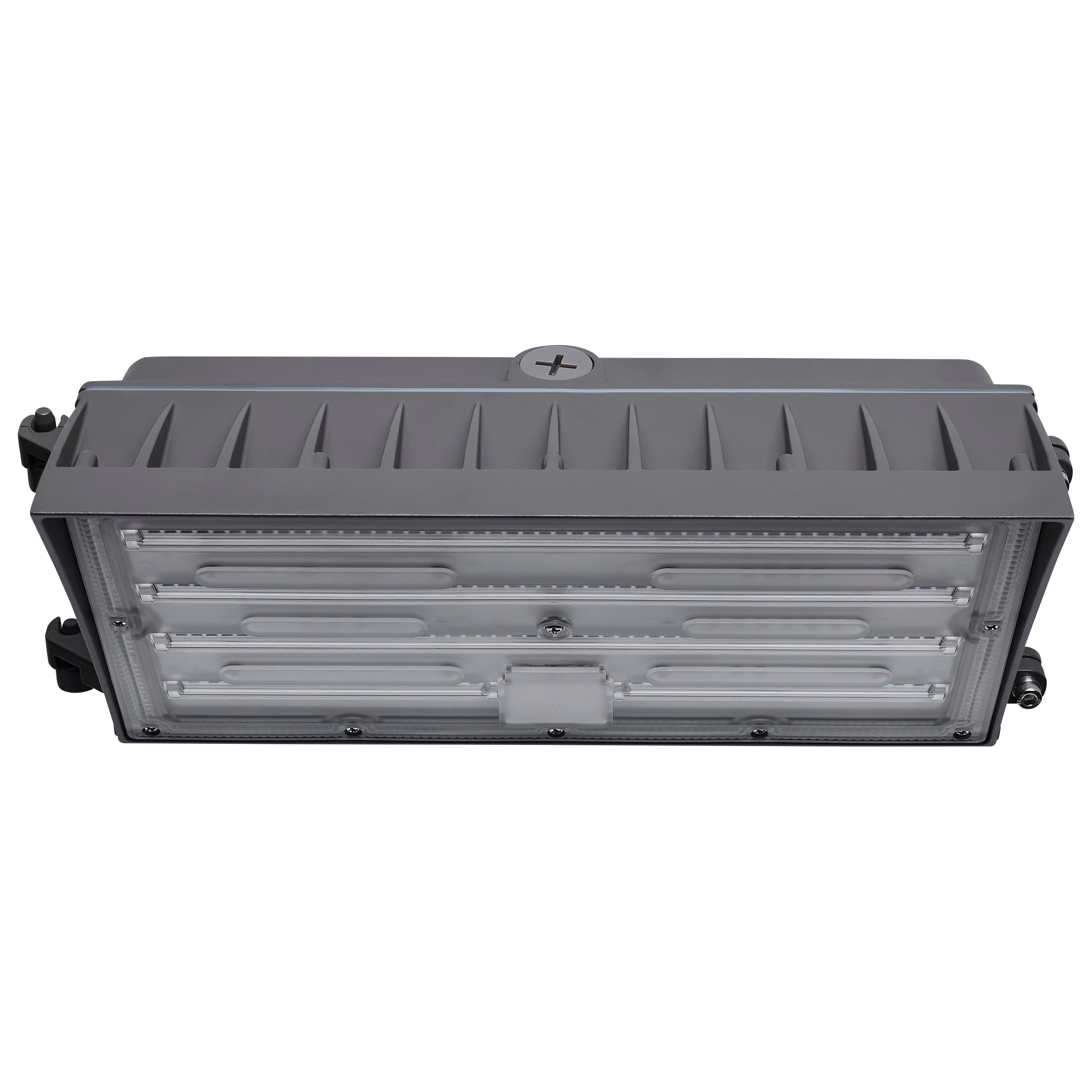

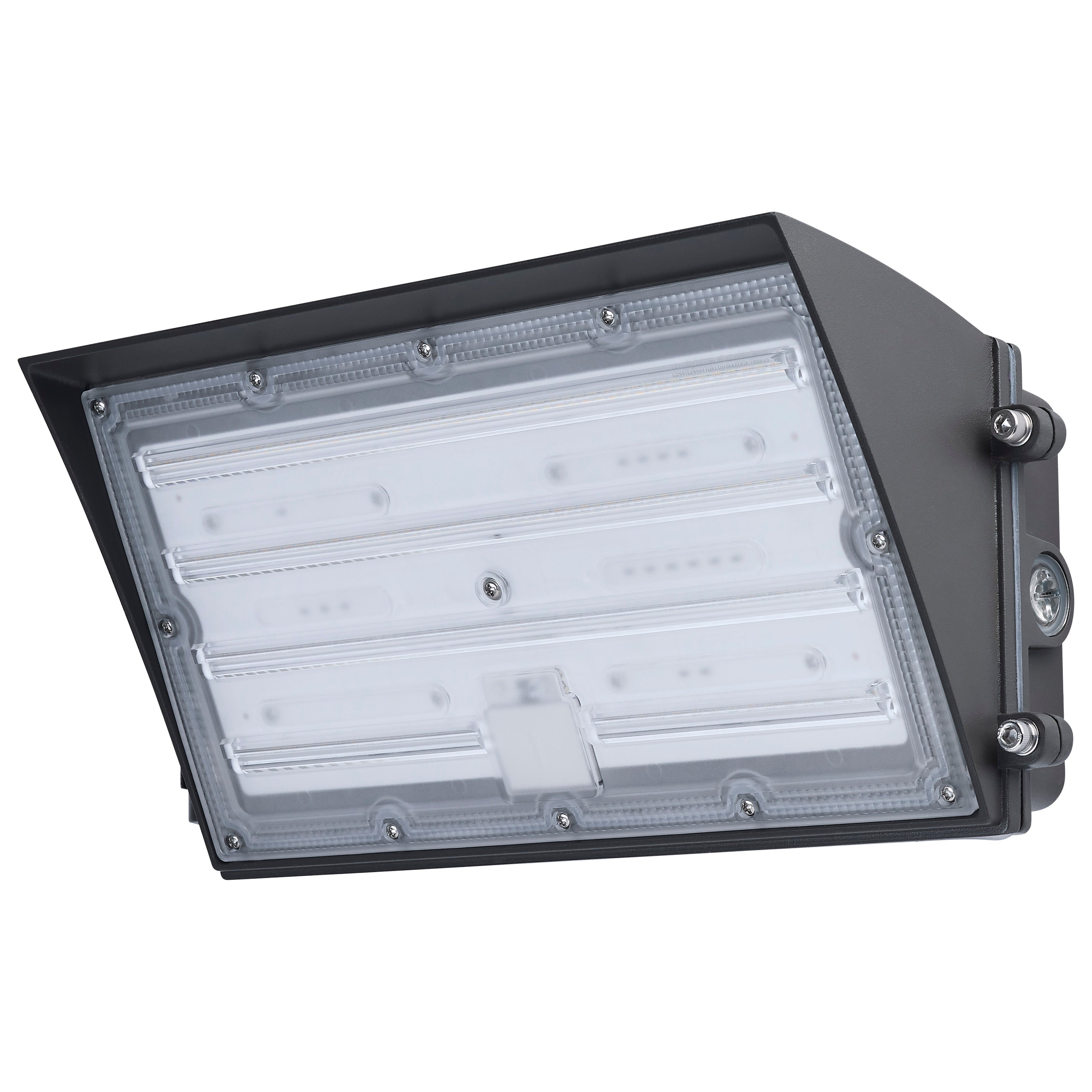

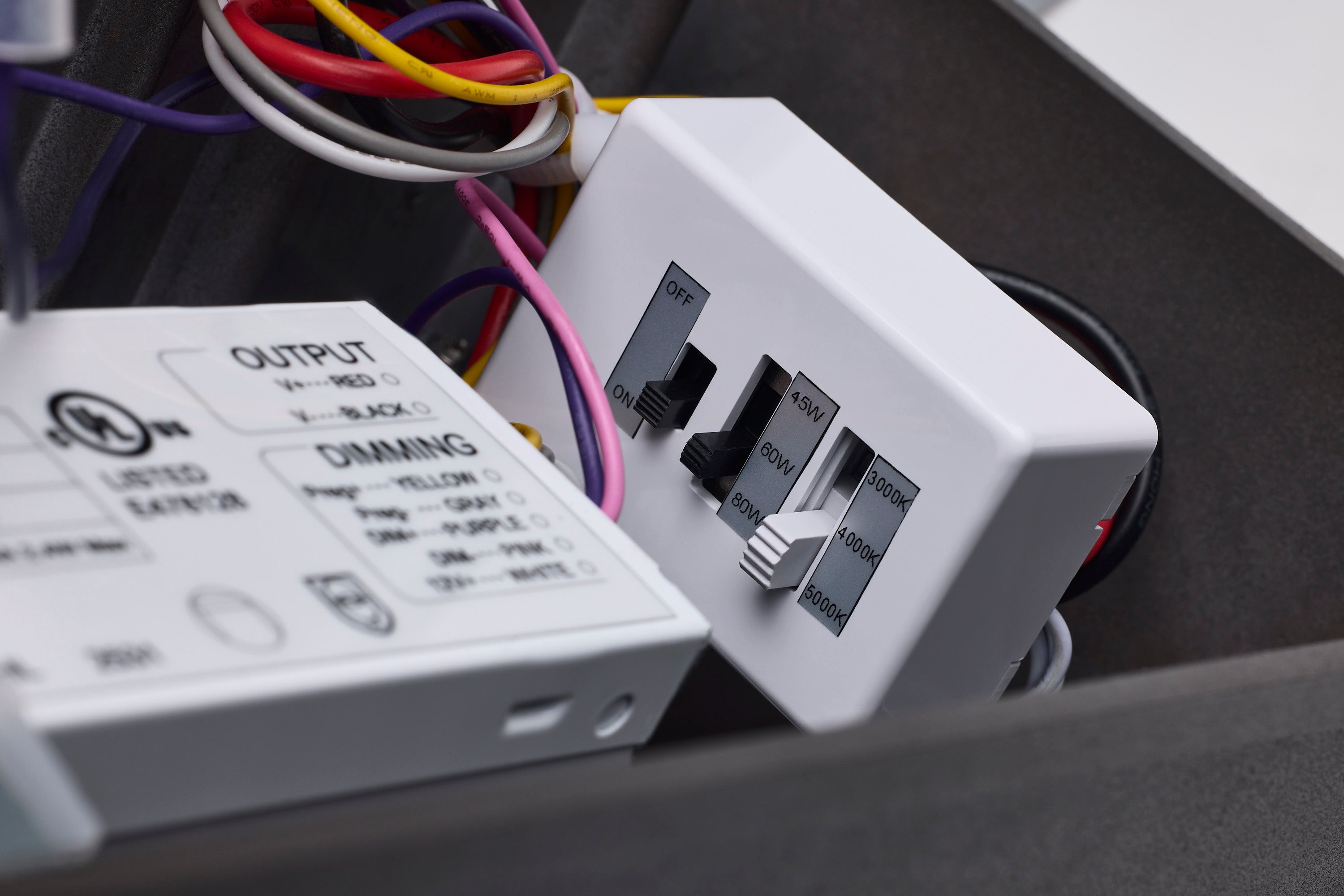

Designed to provide broad, effective illumination for commercial exteriors, the 65-942 LED Semi Cutoff Wall Pack combines performance, flexibility, and durability in one dependable solution. Field-selectable technology allows for on-site customization of light levels and color temperature, making it easy to adapt the fixture to the needs of the space. A built-in, bypassable photocell enables automatic dusk-to-dawn operation, while dimmer compatibility offers additional energy management options. The rugged die-cast aluminum housing with a corrosion-resistant bronze finish and impact-resistant polycarbonate lens ensures long-lasting reliability in demanding outdoor environments. With its semi-cutoff distribution, this fixture delivers wider forward light spread and increased vertical illumination.

Features :-

  • 3 Wattage Selectable (80W/60W/45W)
  • 3 CCT Selectable (3000K/4000K/5000K)
  • Range Voltage 120-277V

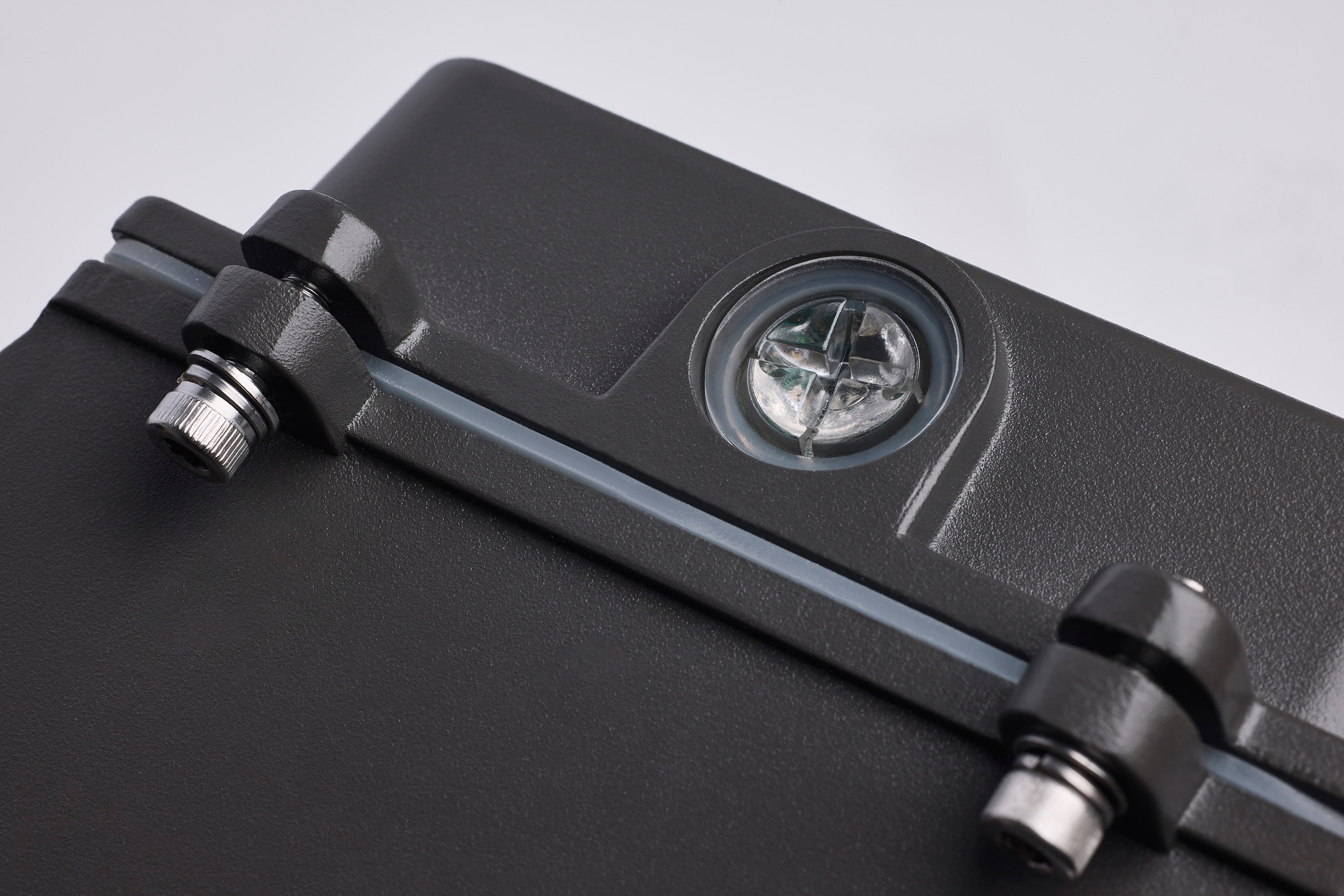

  • Integrated By-Passable Photocell
  • 4kV Surge Protection
  • IP65 & IK08 Rated
  • 0-10V Dimmable
  • 50,000 Life Hours
  • 5 Year Warranty
