Specifications :-

Key Specifications
Bulb Shape / Type T8

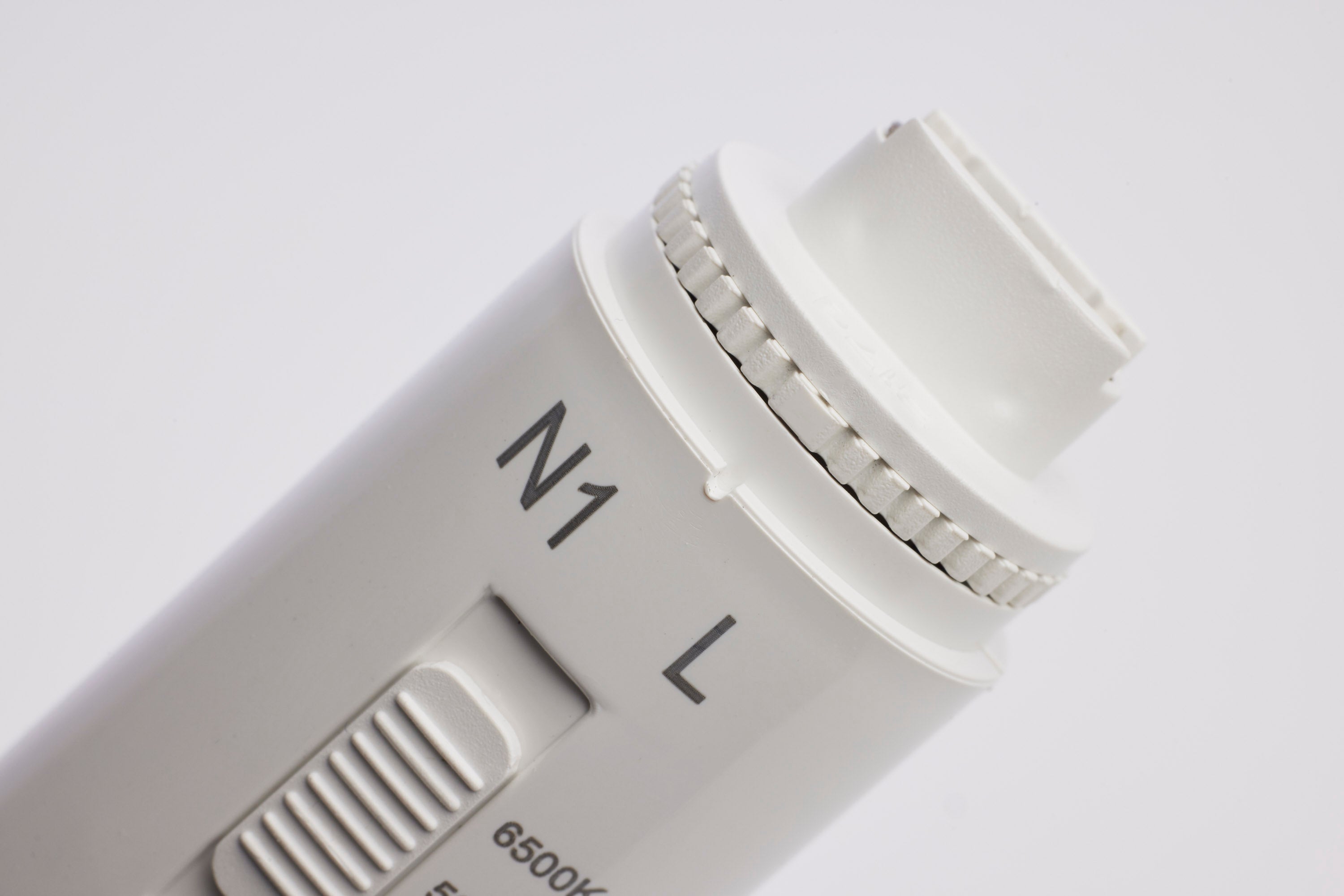

Base Recessed Double Contact HO/VHO

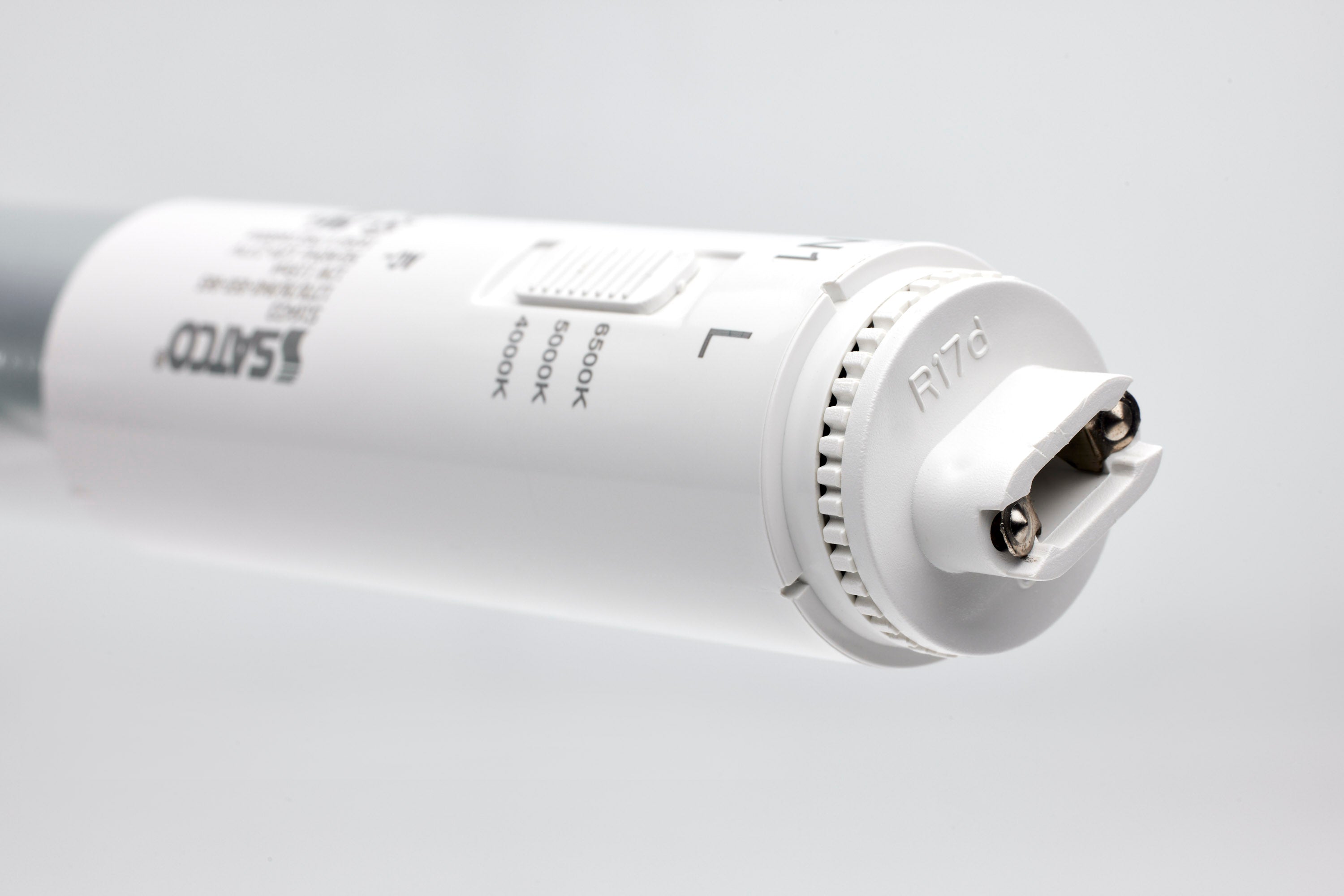

ANSI Base R17d
Incandescent Equivalent 125W
Wattage 45W
Lumens 6300L/6500L/6200L
Color Temperature 4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Non-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 360

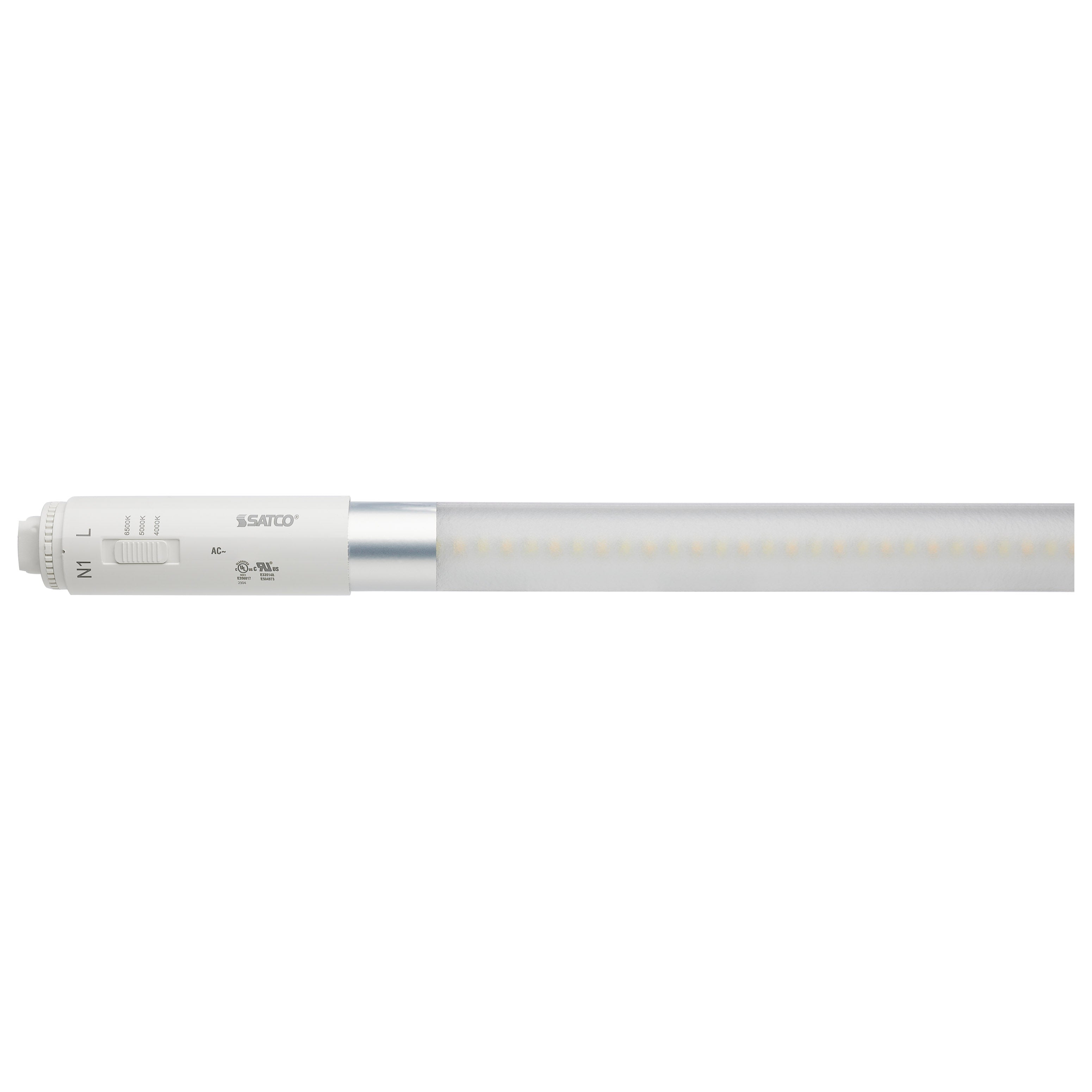

Lamp Type Linear
Wiring / Ballast Type Type B
Operating Position Universal
Nominal Length 117 IN

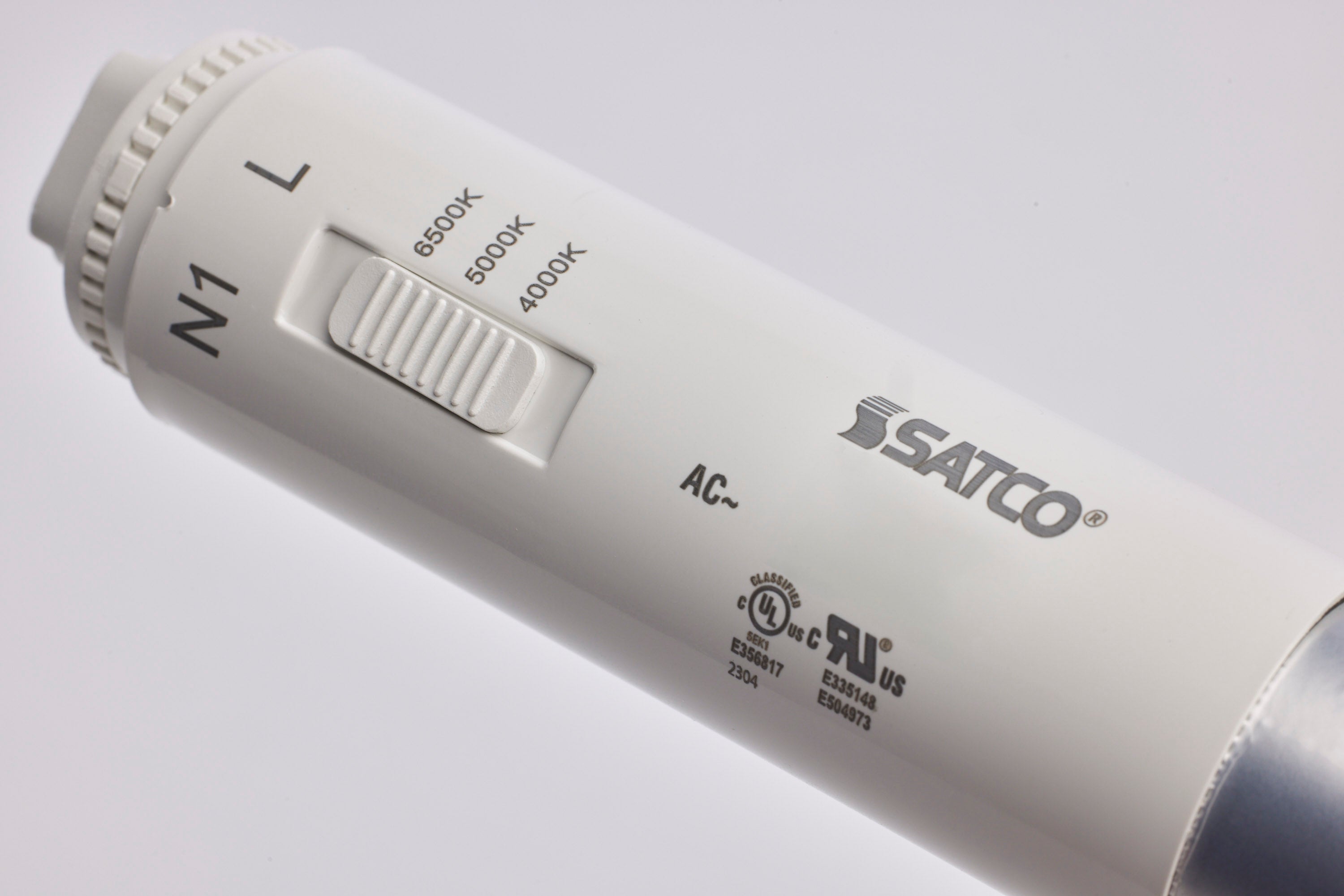

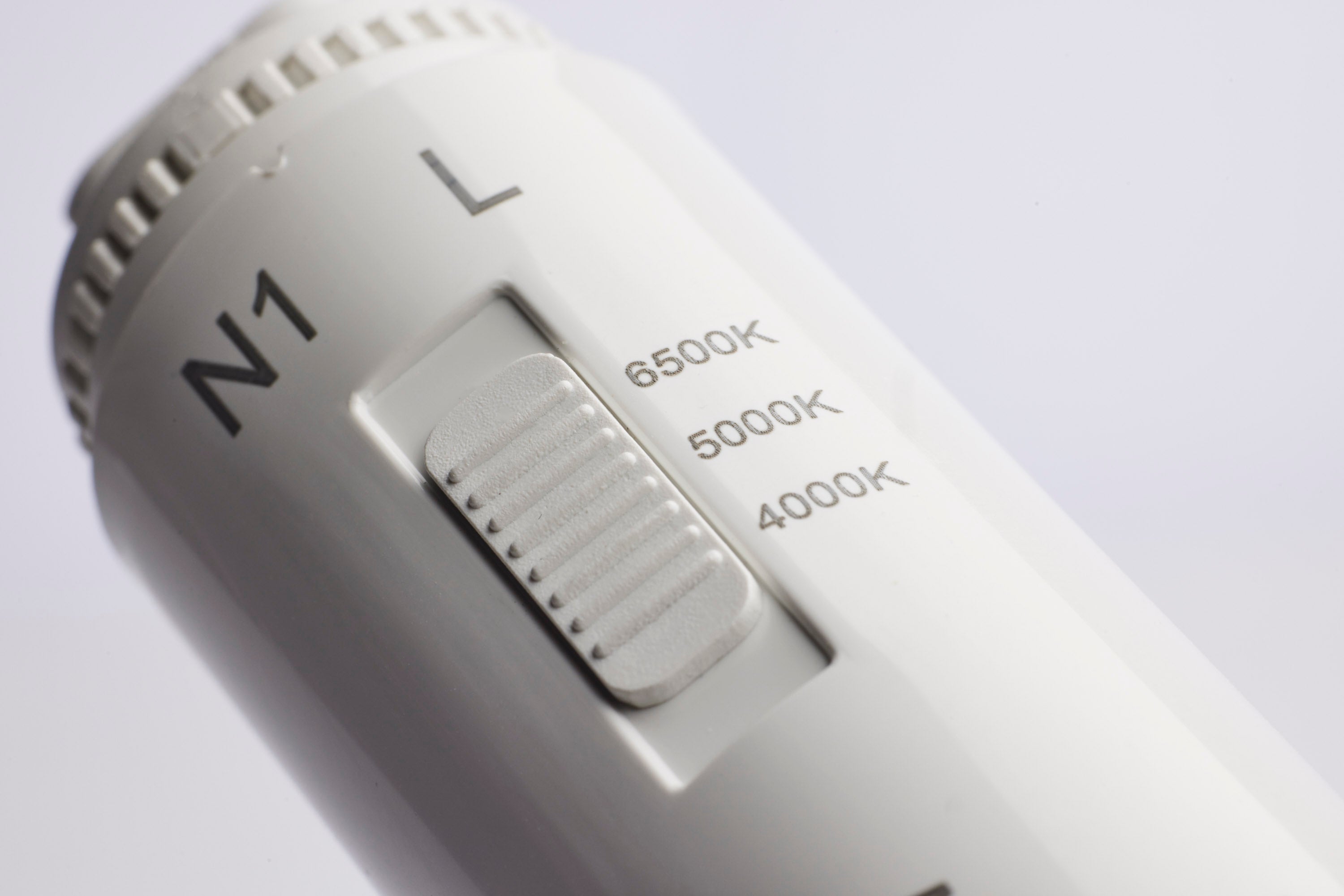

Color Temperature Selectable Yes
Performance
Rated Life 50000 hrs
Light Color Description Cool White to Daylight
Filament Type LED
Electrical
Amperage 0.375-0.162A
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 25%
Surge Protection Built-in surge protection - 1KV
Driver/Ballast Ballast Bypass
Features / Controls
Enclosed Fixture Rated Yes
Ballast Bypass/Direct Wire Ballast Bypass
Construction / Installation
Material Polycarbonate (PC)
Maximum Overall Length 114.81 IN
Maximum Overall Diameter 1.13 IN
Finish/Lens Frost
Weight 1.98 lbs
Lens / Diffuser Plastic
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Enclosed Fixture Enclosed Rated Lamp
IP Rating IP20
Certifications / Compliance
Safety Listing cRUus - Recognized Component, cULus, cULus - Classified
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Choose 45 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass when your project calls for a LED tube replacement suited to offices, schools, retail areas, utility rooms and other spaces with compatible linear lighting. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial LED tube that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports renovation and retrofit work where existing linear fixtures remain in service. In practical terms, that makes this product relevant for commercial maintenance, renovation and relamping programs. It also fits naturally into projects considering T8 LED tube and LED tube light, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Makes it easier to source replacement lamps for large-scale linear lighting maintenance. This is particularly helpful for workspaces and facilities upgrading existing linear lamp systems. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

If you are ready to buy LED tube lights online, 45 Watt T8 LED offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.
