Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 50W/40W/30W
Lumens 6250L/5000L/3750L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Matte White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Troffer
Length 47.81 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cETLus - Classified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Steel
Finish/Lens Frosted
Width 23.81 IN
Height 2 IN
Weight 7.94 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

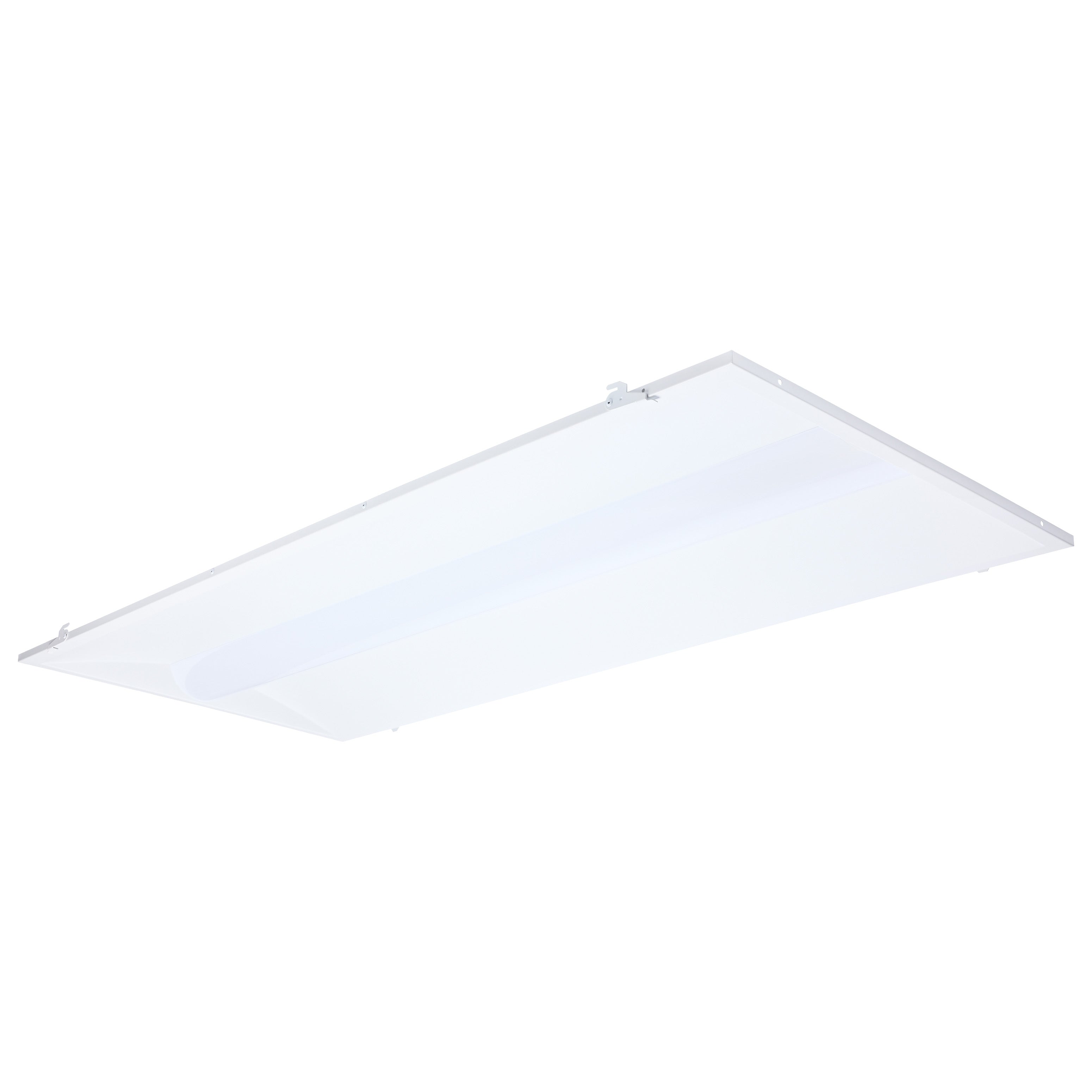

Choose 50/40/30 Watt LED 2x4 Center Basket Troffer Retrofit Kit - 35K/4K/5K CCT - Dimmable - 120-277 Volt - Matte White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial ceiling lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports a clean, organized ceiling layout across larger commercial interiors. That is especially useful in grid-ceiling and general commercial lighting projects. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving drop ceiling lighting, LED panel light and other coordinated lighting upgrades.

Works well when project teams need repeatable fixtures throughout offices or public spaces. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to shop commercial ceiling fixtures, 50/40/30 Watt LED 2x4 Center Basket Troffer Retrofit Kit is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

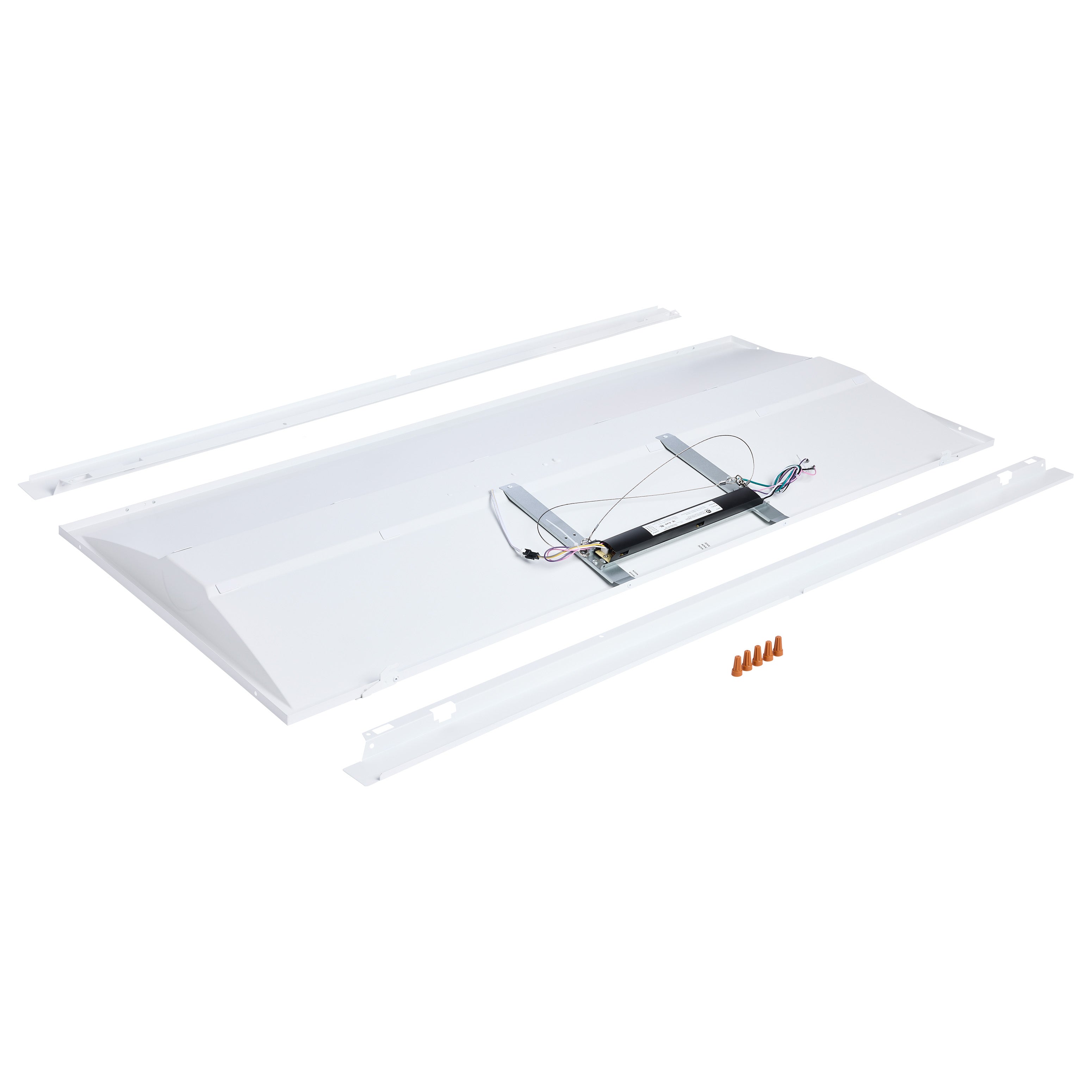

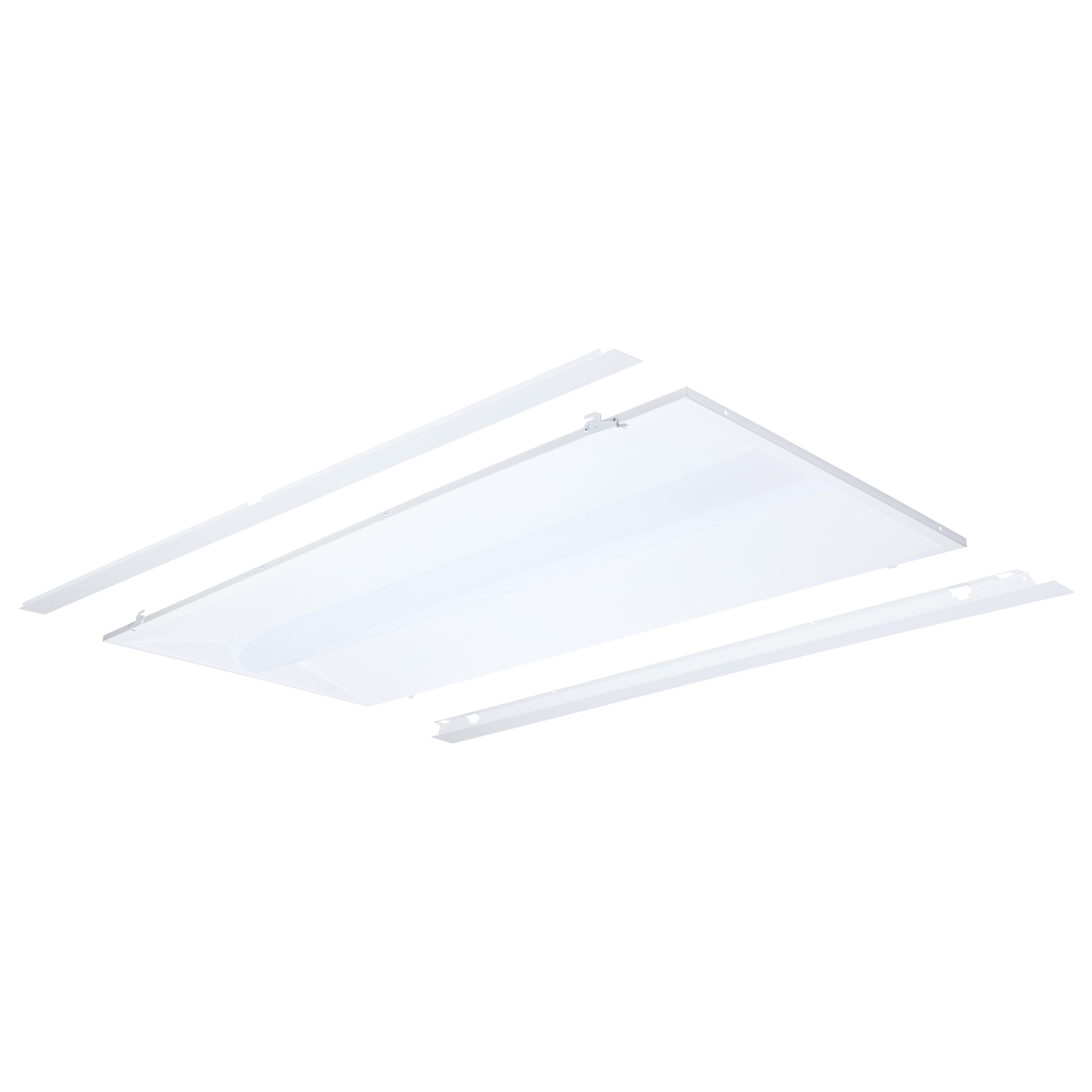

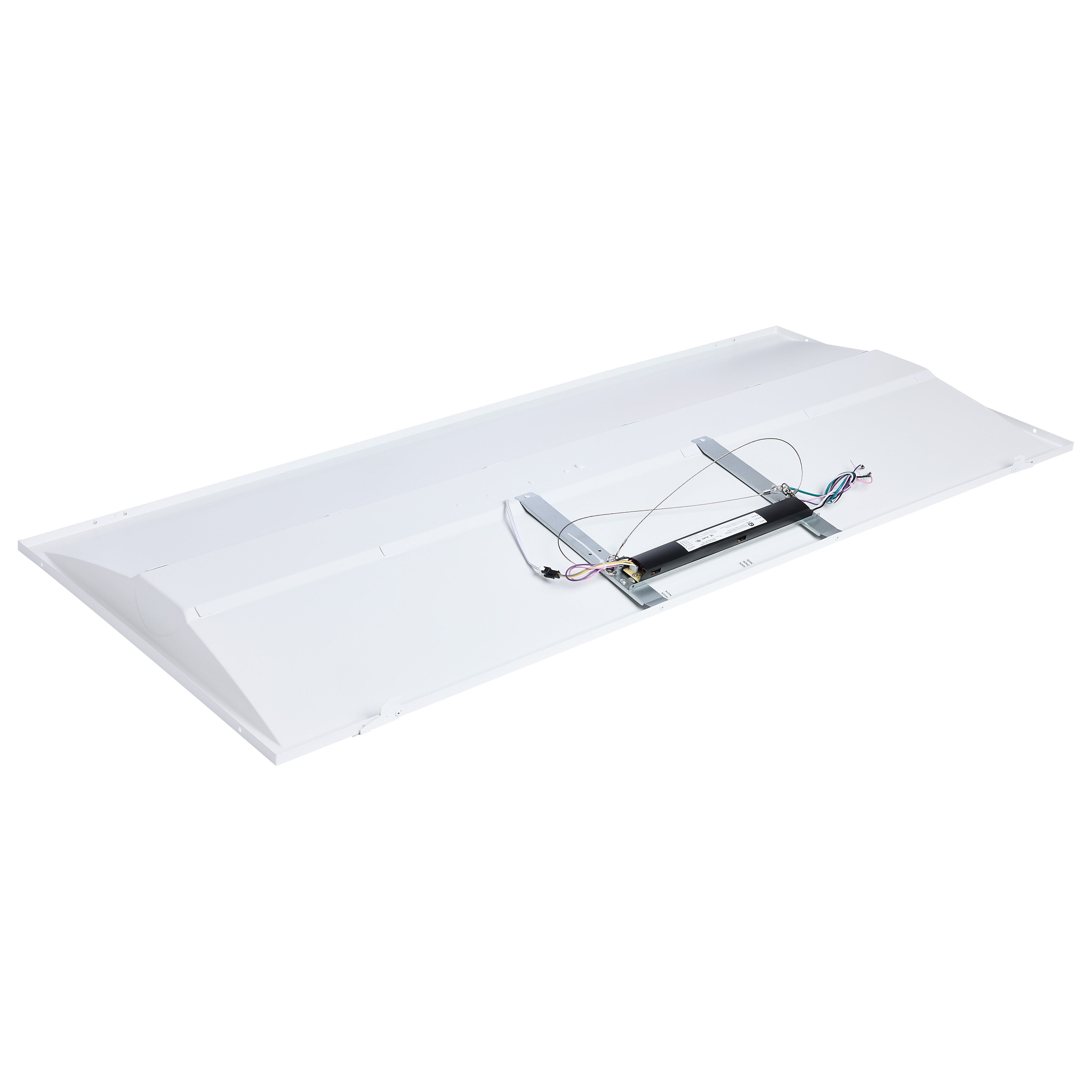

SATCO NUVO's 65-1302 Center Basket Troffer Retrofit Door Kit, in a 2'x4' configuration, is designed to retrofit into existing troffer housings to upgrade legacy fluorescent fixtures with modern LED performance. By utilizing the original fixture body, this retrofit kit reduces installation time while eliminating the need to remove and discard the existing housing. The fixture features selectable wattage and CCT, allowing installers to tailor light output and color temperature on site. Operating on 120���������������������������277V with 0���������������������������10V dimming, it delivers efficient illumination. An integrated safety tether supports the door assembly during installation, simplifying wiring and setup. Durable steel construction and a polycarbonate lens ensure dependable performance backed by a 50,000-hour rated life and 5-year warranty.

Features :-

  • Field Selectable (3 wattages and 3 CCT)
  • Reduces Upgrade Material Waste
  • 2x4-Foot Steel Construction
  • 0-10V Dimmable
  • Integrated Safety Tether
  • IC Rated
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
