Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 50W/45W/40W/35W/30W
Lumens 6250L/5625L/5000L/4375L/3750L
Color Temperature 3000K/3500K/4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Silver
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 41.73 IN
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Daylight
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 1KV
Features / Controls
Enclosed Fixture Rated Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum
Finish/Lens Frosted
Width 0.93 IN
Height 1.19 IN
Weight 1.6 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit - 3000K/3500K/4000K/5000K/6500K CCT Selectable - 2-Bars - 4 Feet - 120-277 Volt - Silver Finish brings the familiar role of a commercial ceiling light to grid-ceiling and general commercial lighting projects. It is a practical choice for customers comparing LED panel light and drop ceiling lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports a clean, organized ceiling layout across larger commercial interiors. In practical terms, that makes this product relevant for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It also fits naturally into projects considering drop ceiling lighting and commercial ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Works well when project teams need repeatable fixtures throughout offices or public spaces. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to order office LED lighting for renovation projects, 50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

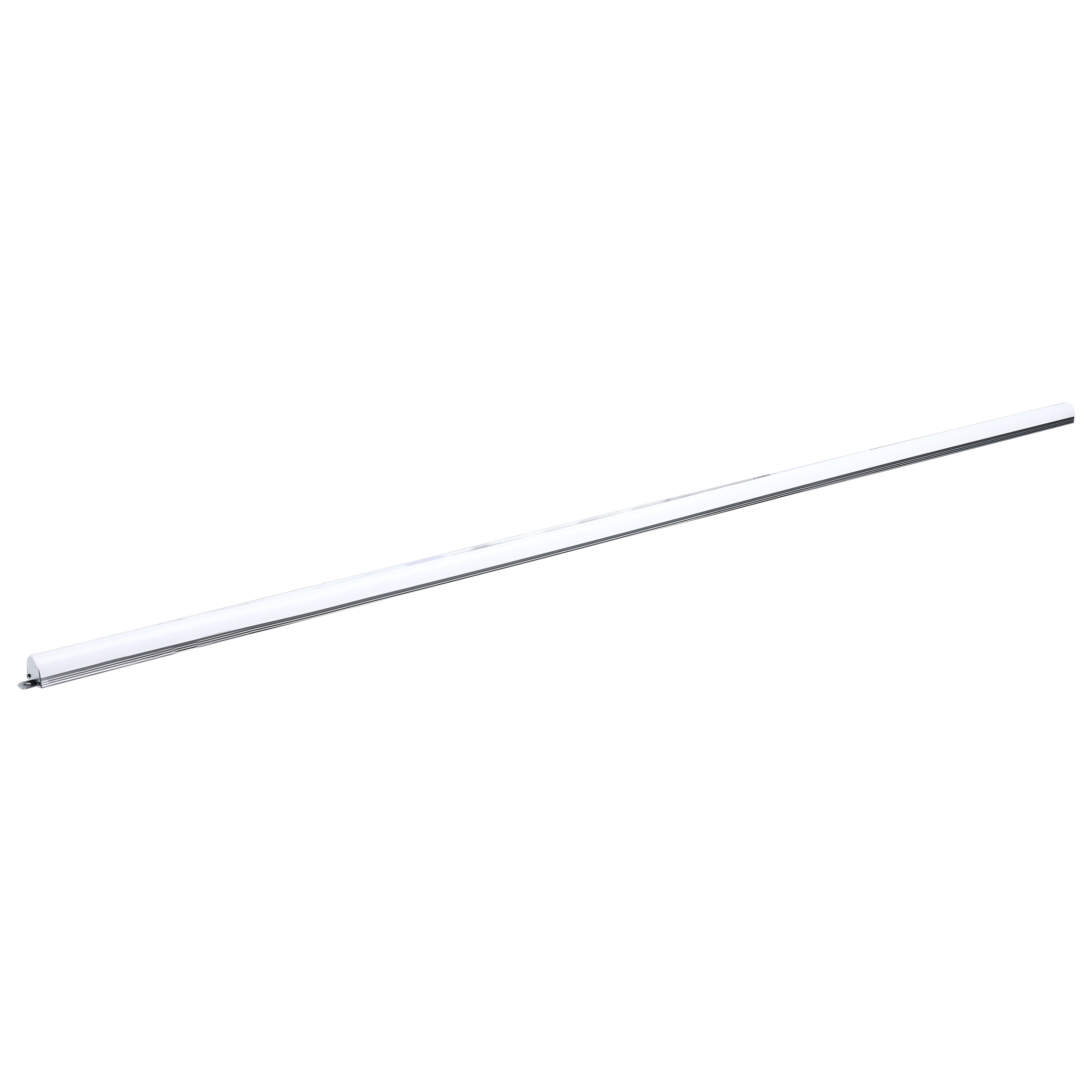

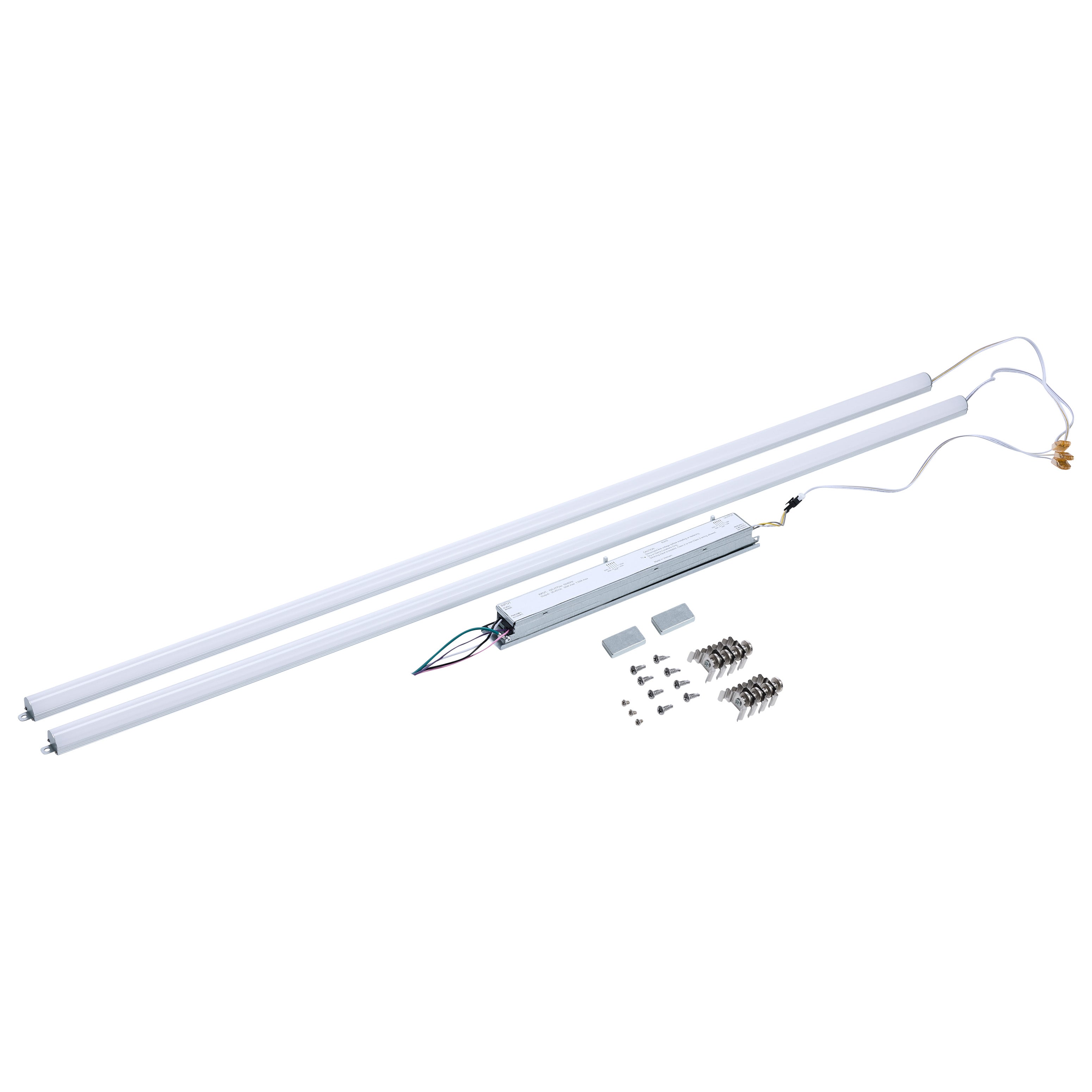

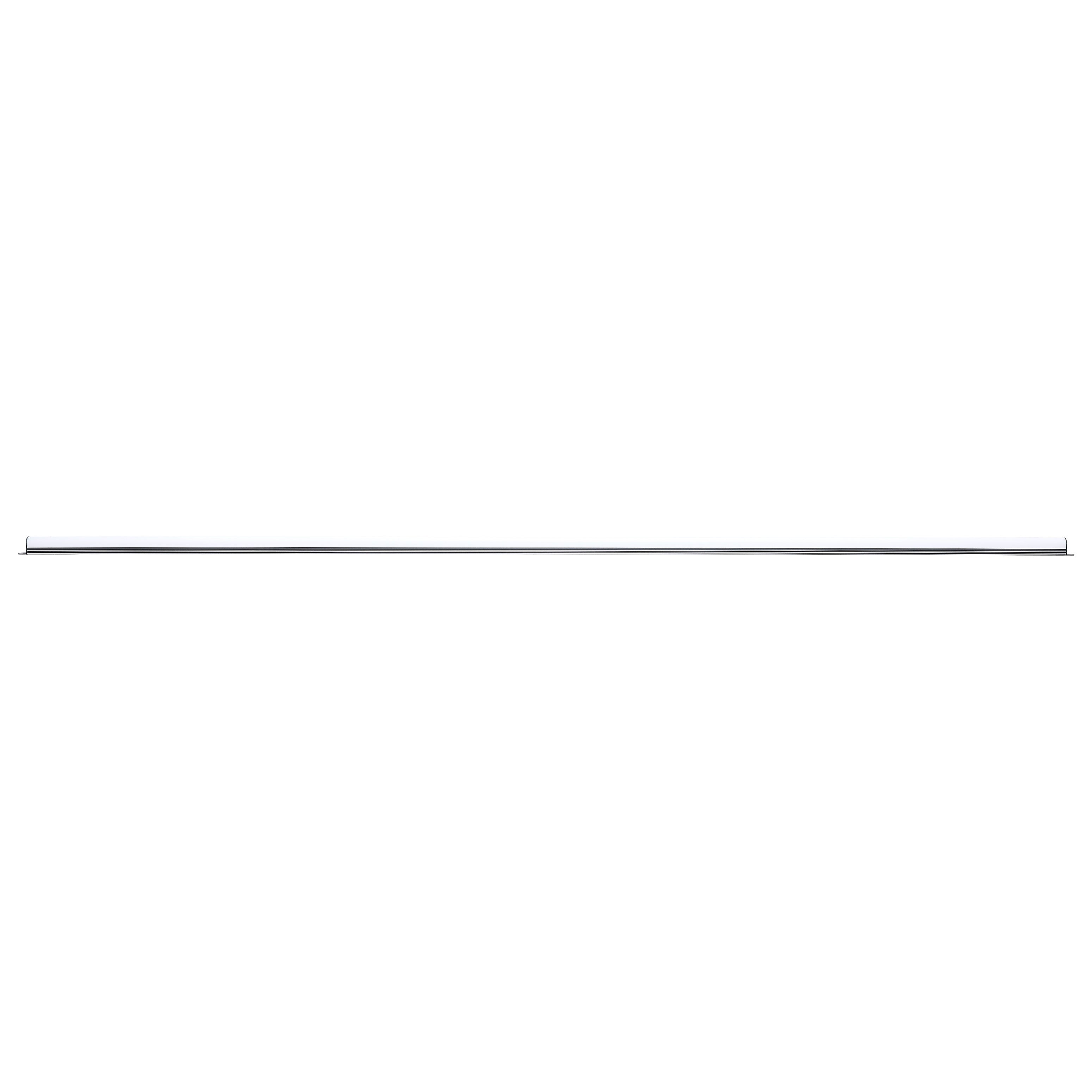

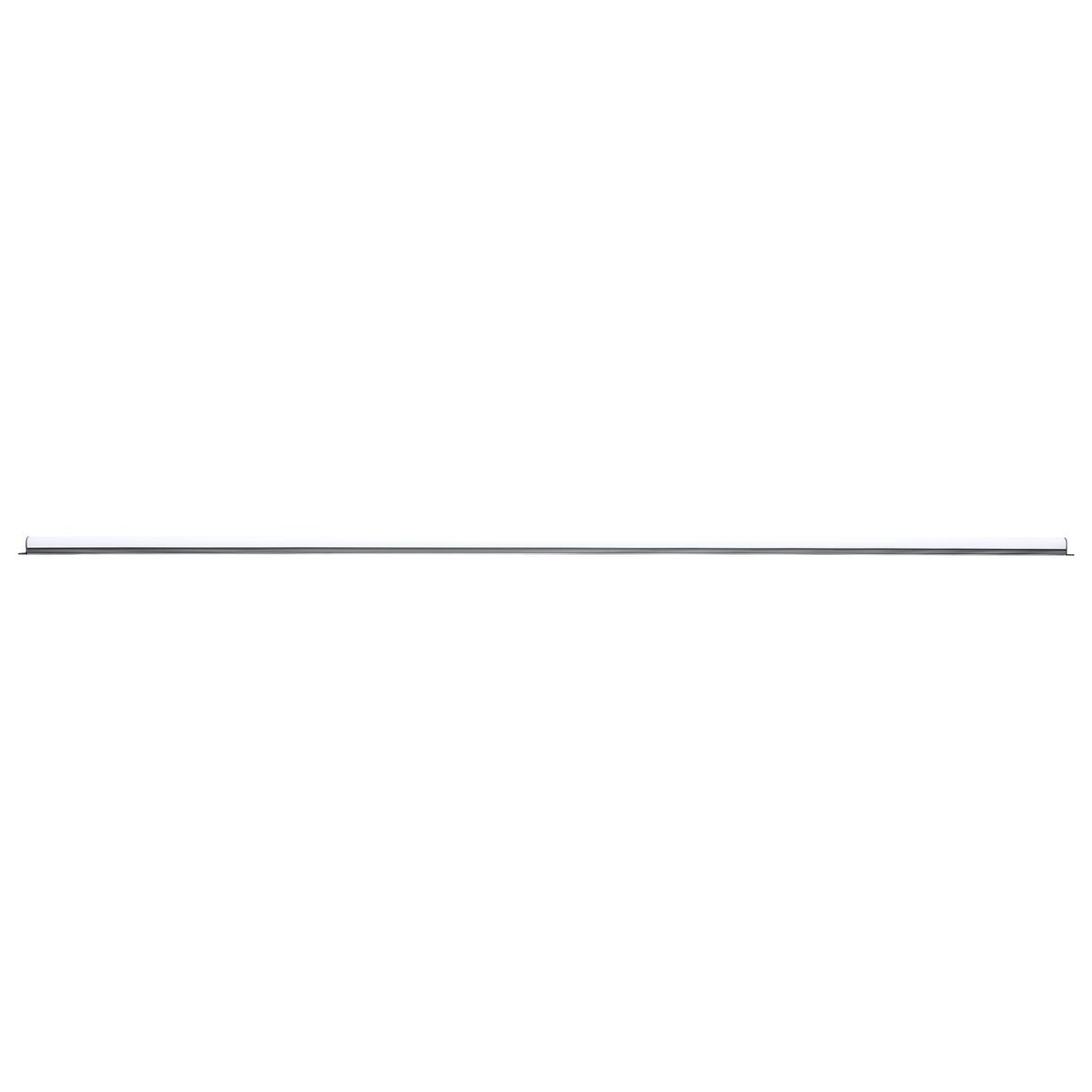

SATCO NUVO's 65-1334 4-foot Retrofit Lightbar Kit with two LED bars offers a highly flexible solution for converting fluorescent fixtures to efficient LED lighting. Designed to replace 2 x 32W T8 lamps, this kit features selectable wattages from 30W to 50W and selectable CCT from 3000K to 6500K, allowing illumination to be tailored during installation. Suitable for a variety of existing troffers, strips, wraps, and vapor tight fixtures, the durable aluminum housing and frosted polycarbonate lens provide long-lasting performance with even light distribution. With 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this retrofit kit delivers dependable illumination for commercial applications.

Features :-

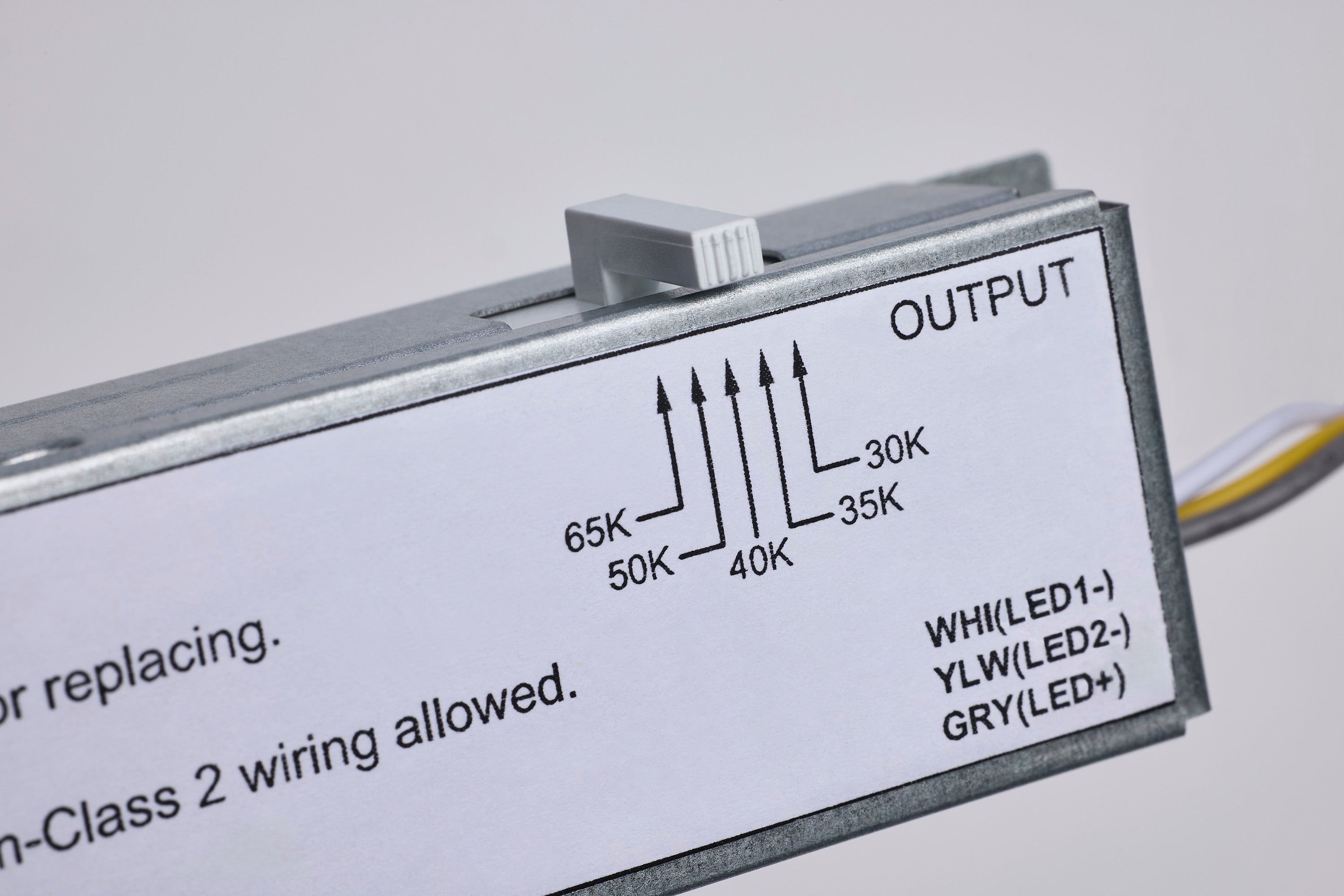

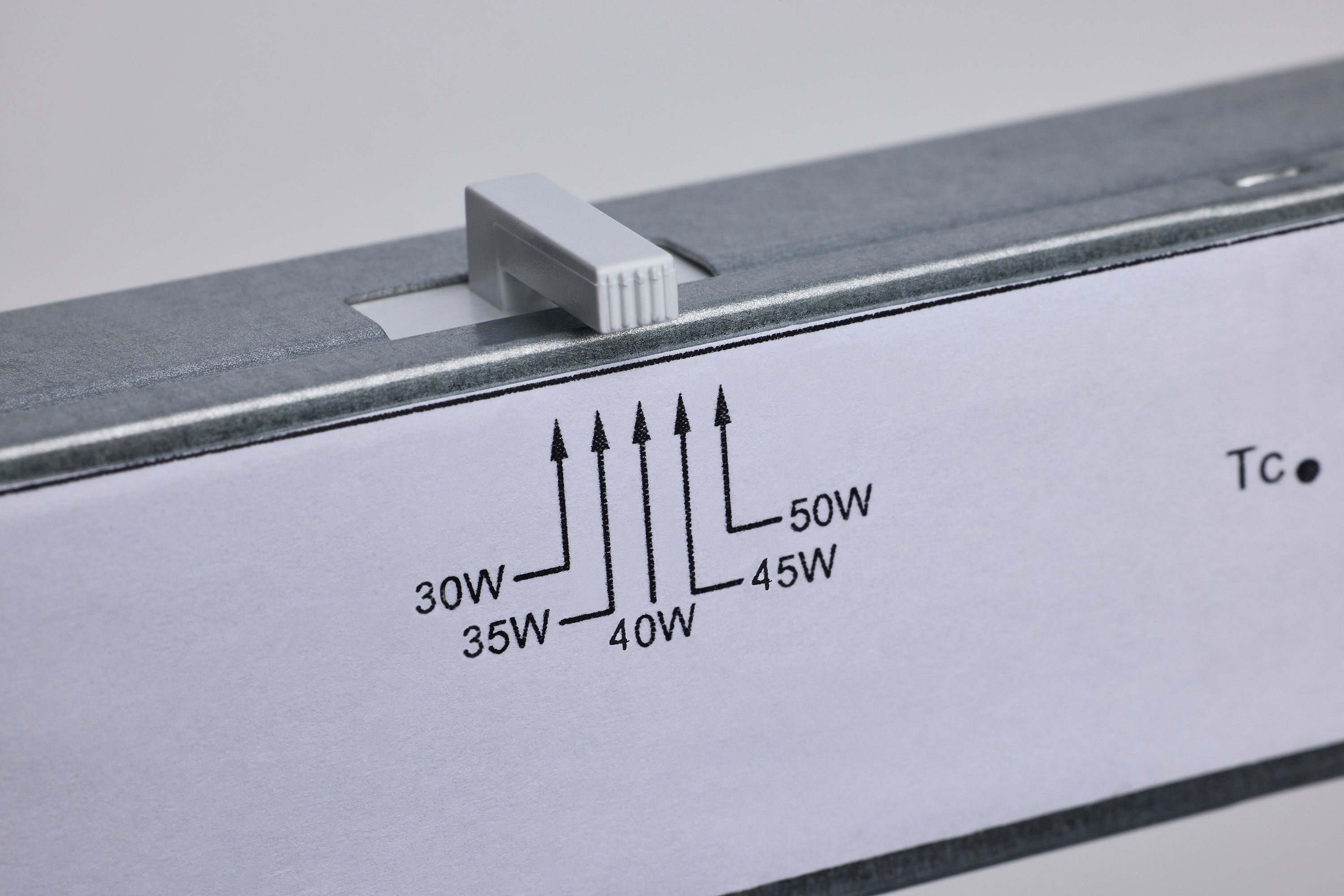

  • Field Selectable (5 wattages and 5 CCT)
  • Reduces Upgrade Material Waste

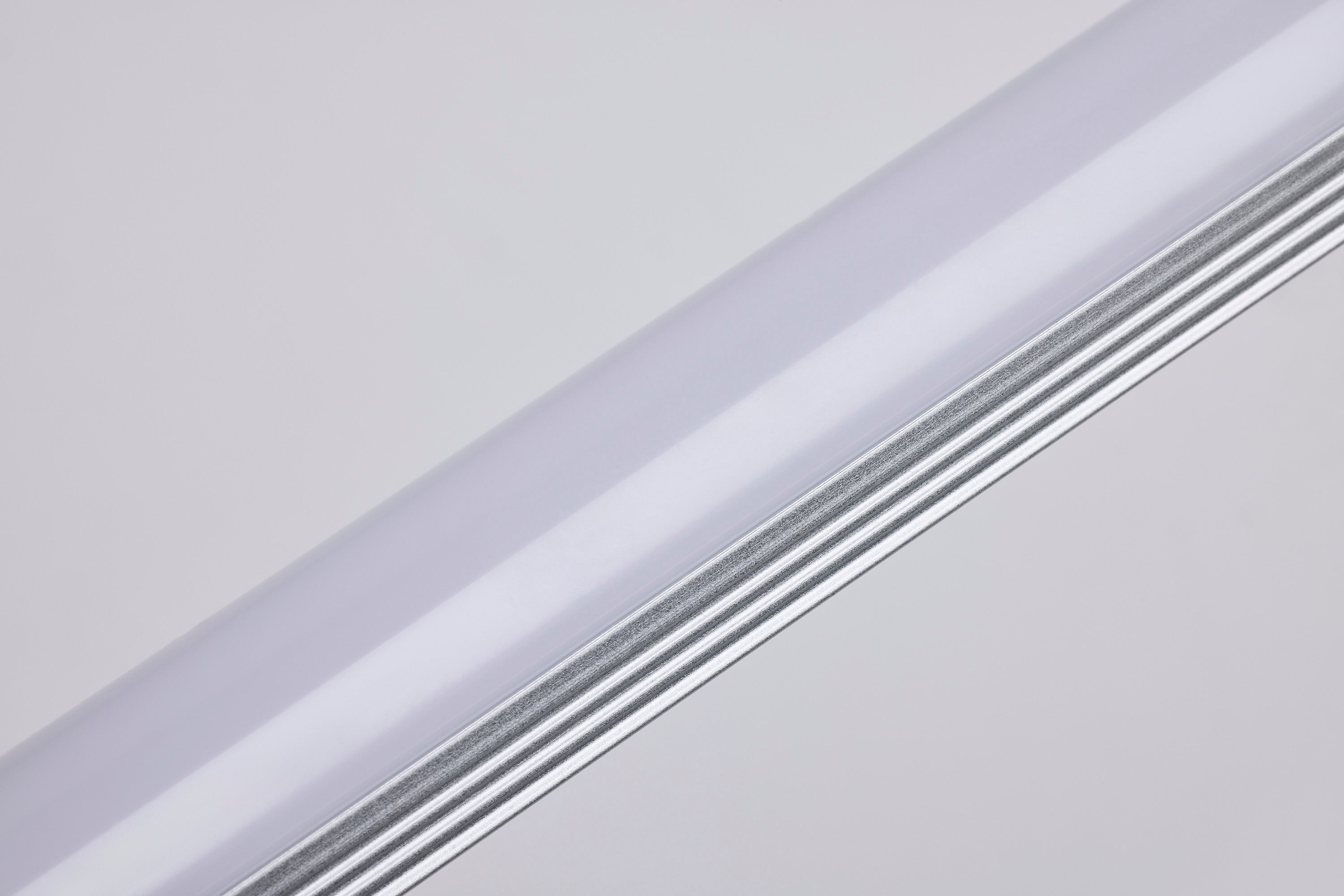

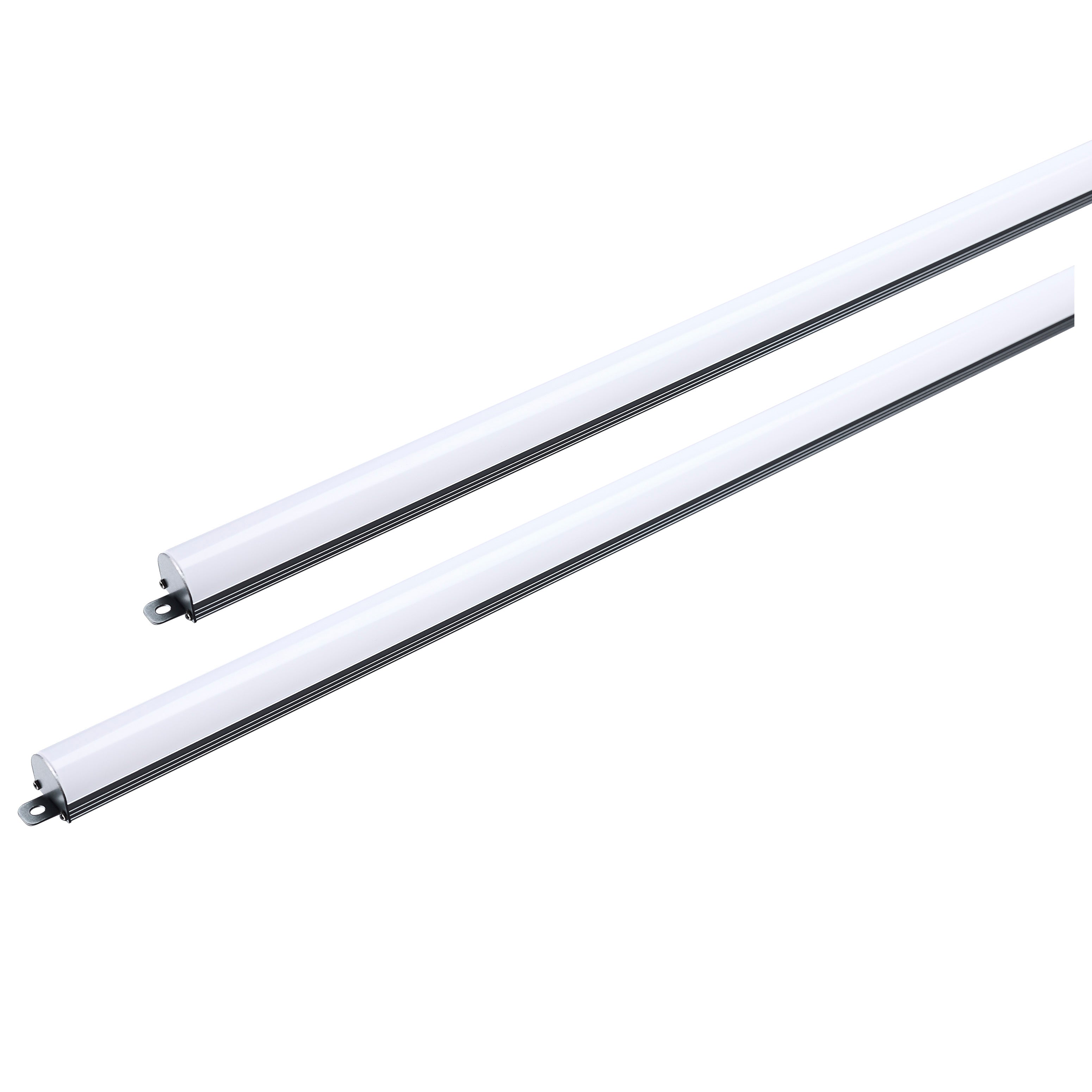

  • 4 Foot, 2 Light Bars Aluminum & PC Construction
  • 0-10V Dimmable

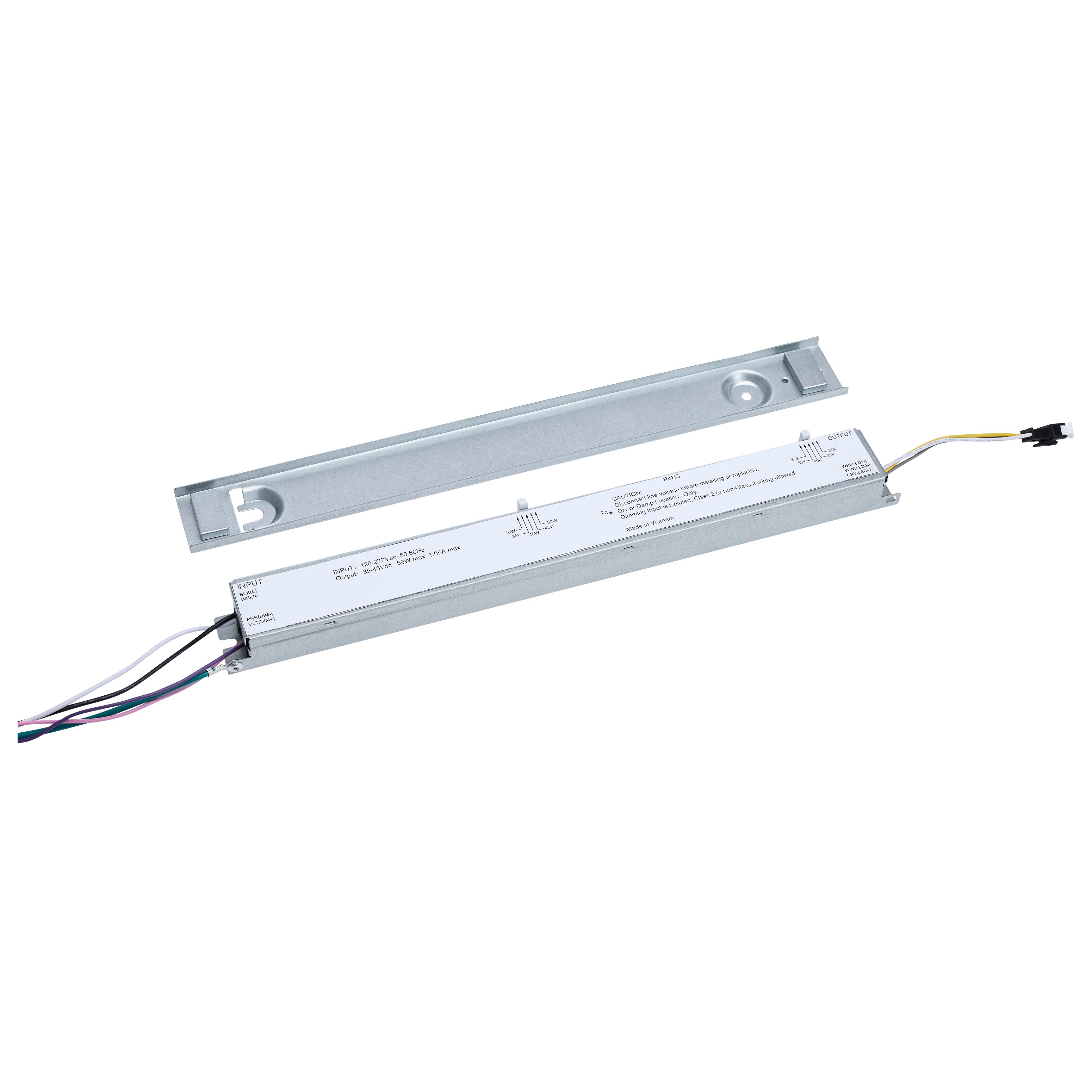

  • Fully Pre-Wired Driver
  • Quick & Easy Magnetic Installation
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
