Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 50W/45W/40W/35W/30W
Lumens 6250L/5625L/5000L/4375L/3750L
Color Temperature 3000K/3500K/4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Silver
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 3x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 41.73 IN
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Daylight
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 1KV
Features / Controls
Enclosed Fixture Rated Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum

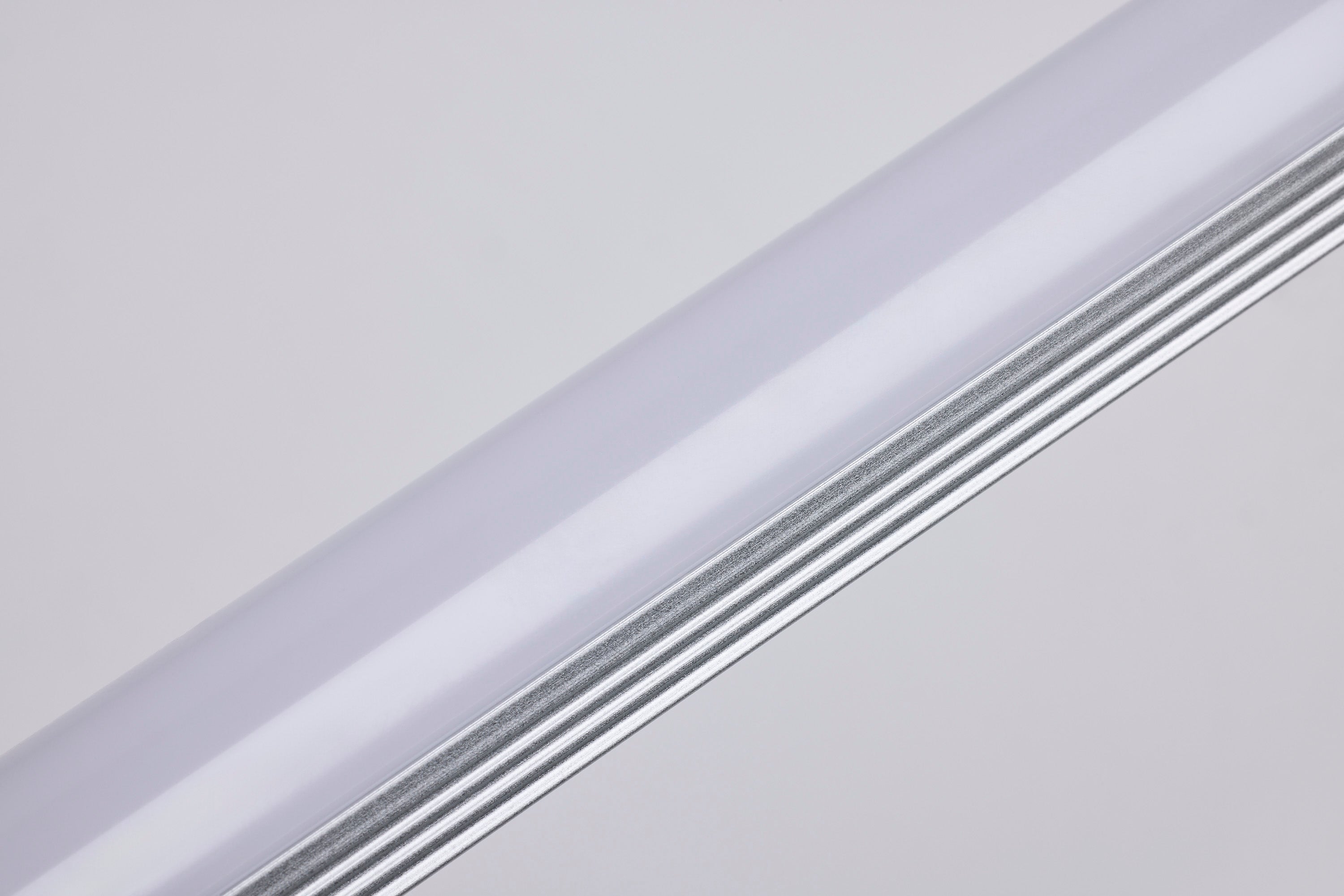

Finish/Lens Frosted
Width 0.93 IN
Height 1.19 IN
Weight 2.1 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

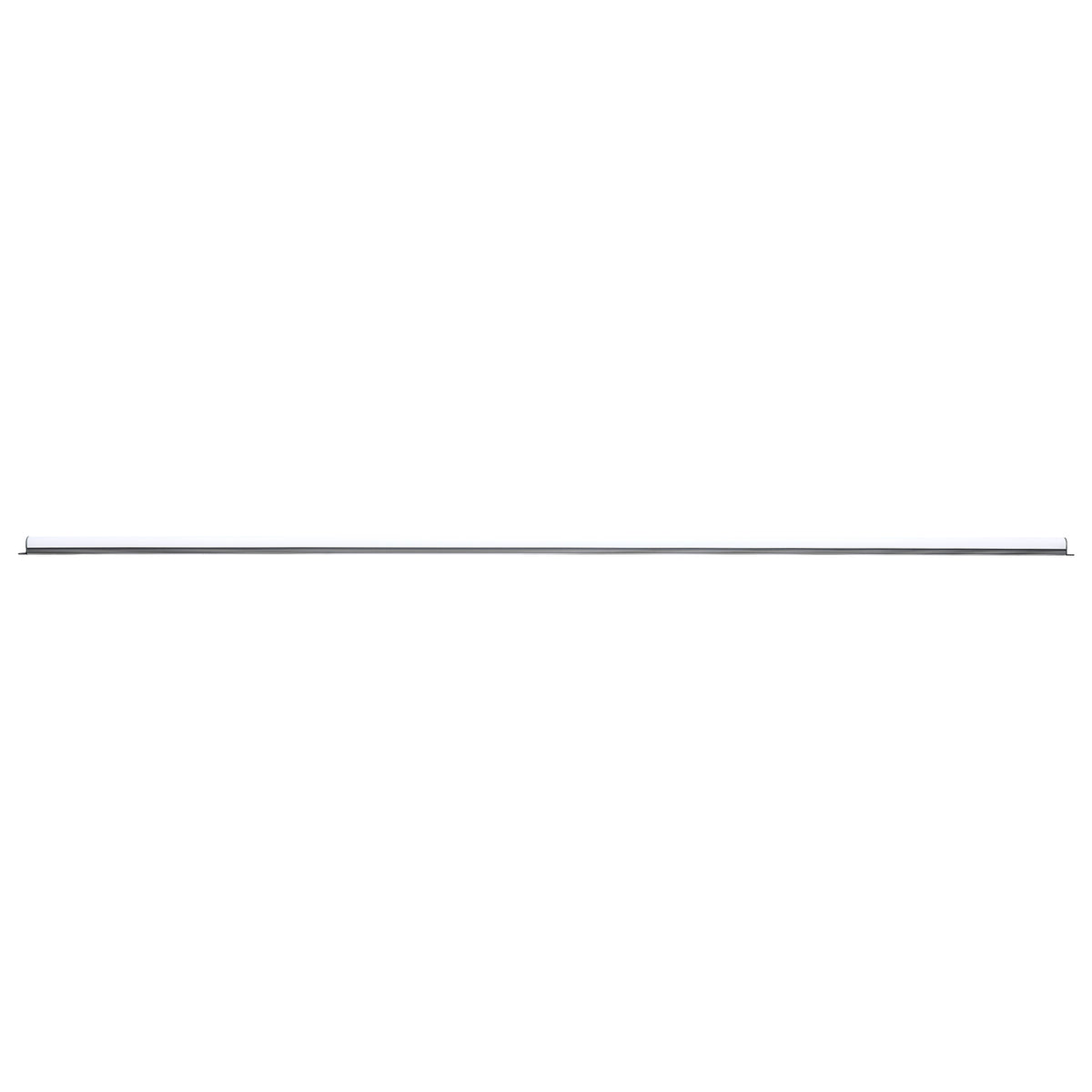

Choose 50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit - 3000K/3500K/4000K/5000K/6500K CCT Selectable - 3-Bars - 4 Feet - 120-277 Volt - Silver Finish when your project calls for a commercial ceiling light suited to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for office LED light fixture that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It also fits naturally into projects considering LED panel light and drop ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Supports a clean, organized ceiling layout across larger commercial interiors. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to shop commercial ceiling fixtures, 50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

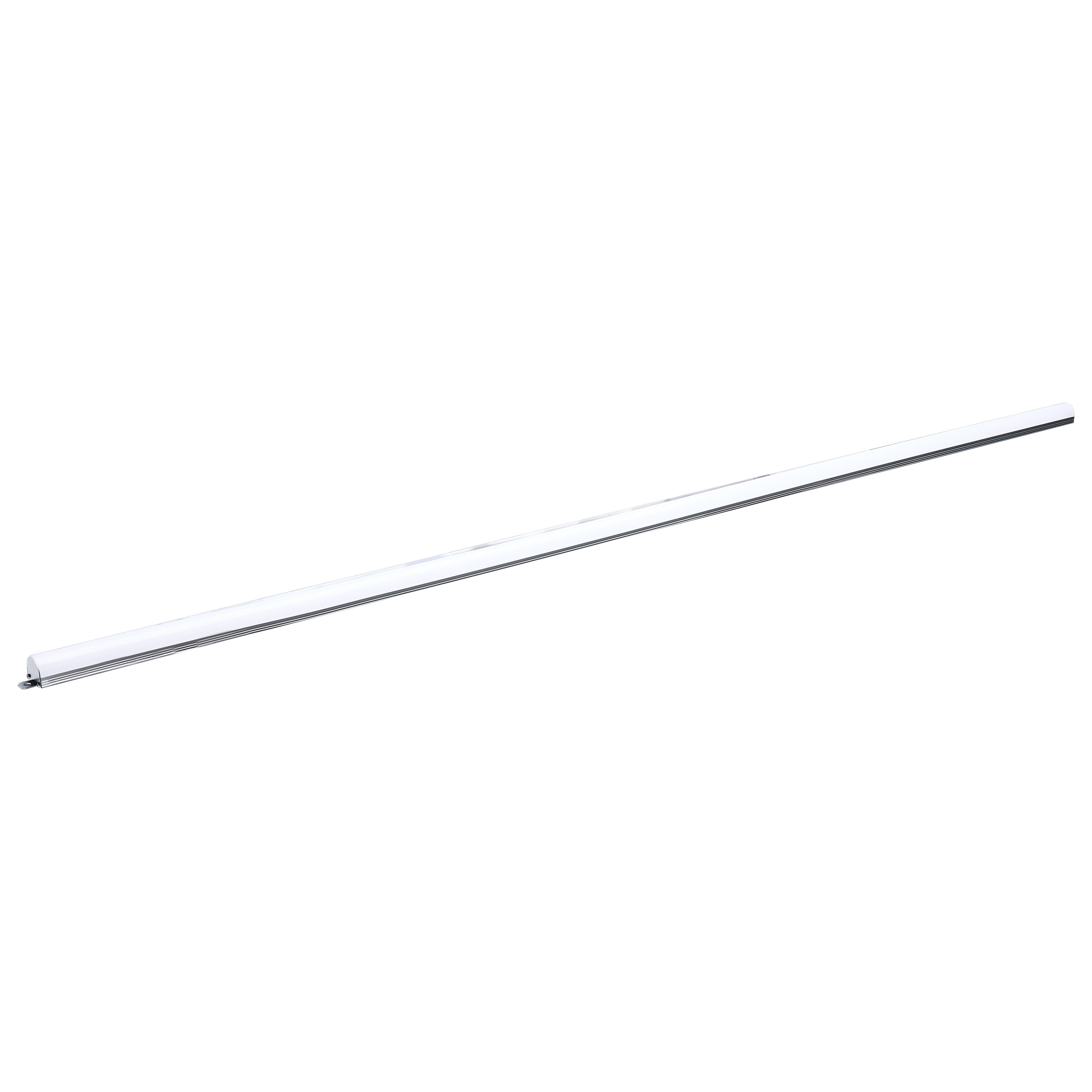

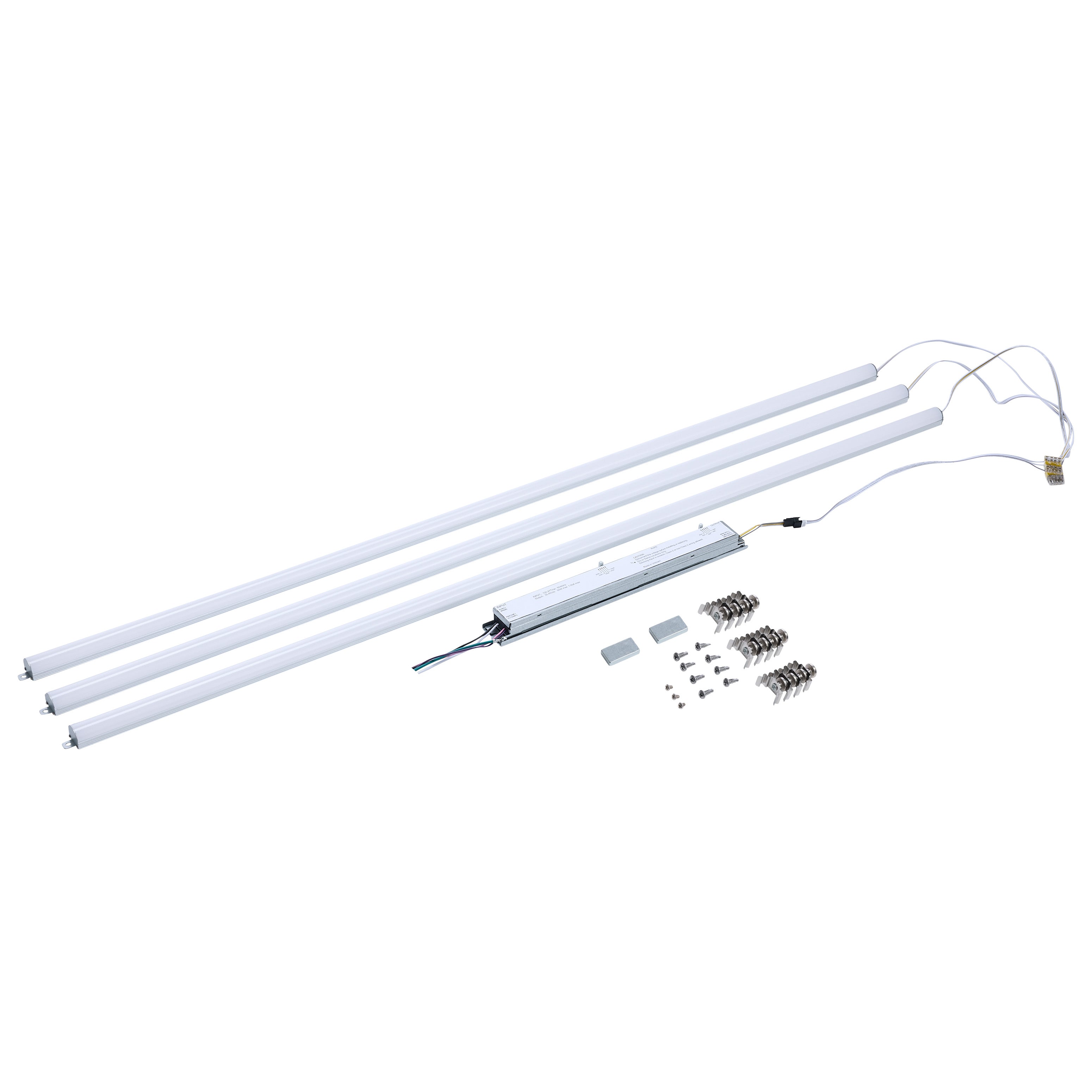

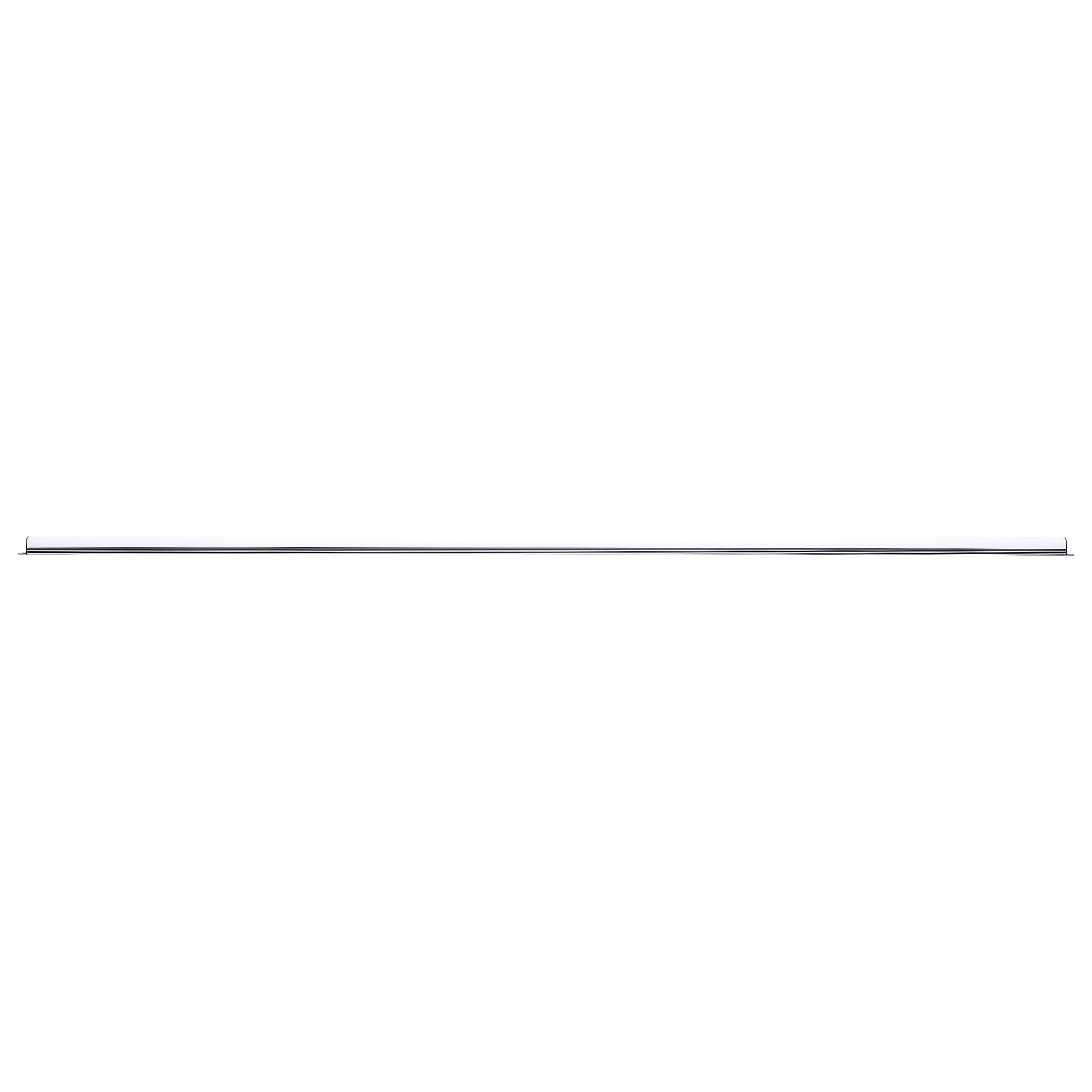

SATCO NUVO's 65-1336 4-foot Retrofit Lightbar Kit with three LED bars delivers a versatile LED upgrade solution for existing fluorescent fixtures. Designed to replace 3 x 32W T8 lamps, this kit includes selectable wattages from 30W to 50W and selectable CCT from 3000K to 6500K for adaptable illumination across a range of applications. Compatible with troffers, strips, wraps, and vapor tight housings, the durable aluminum construction and frosted polycarbonate lens provide reliable performance and smooth, even lighting. Complete with 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this kit offers long-term efficiency and flexibility.

Features :-

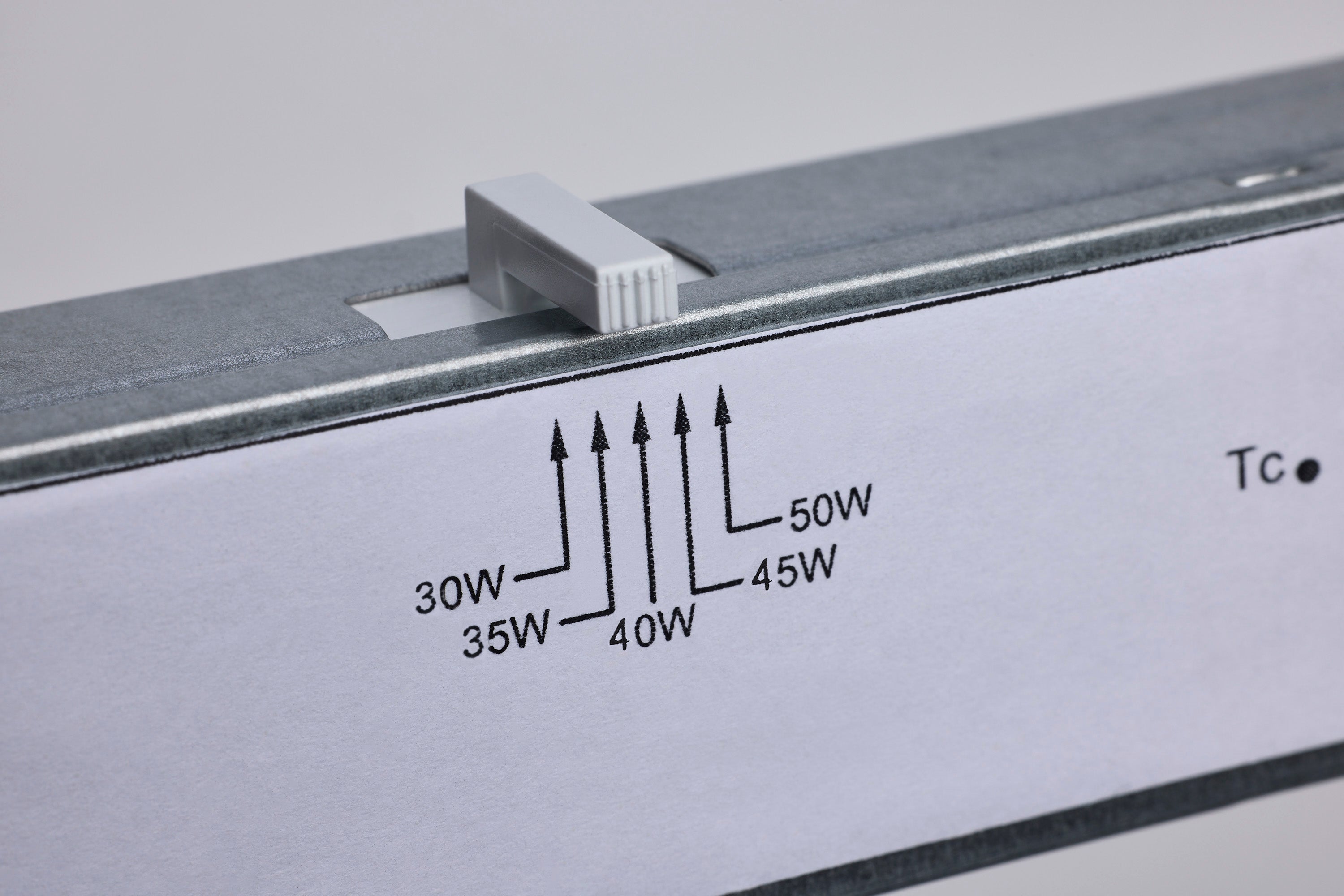

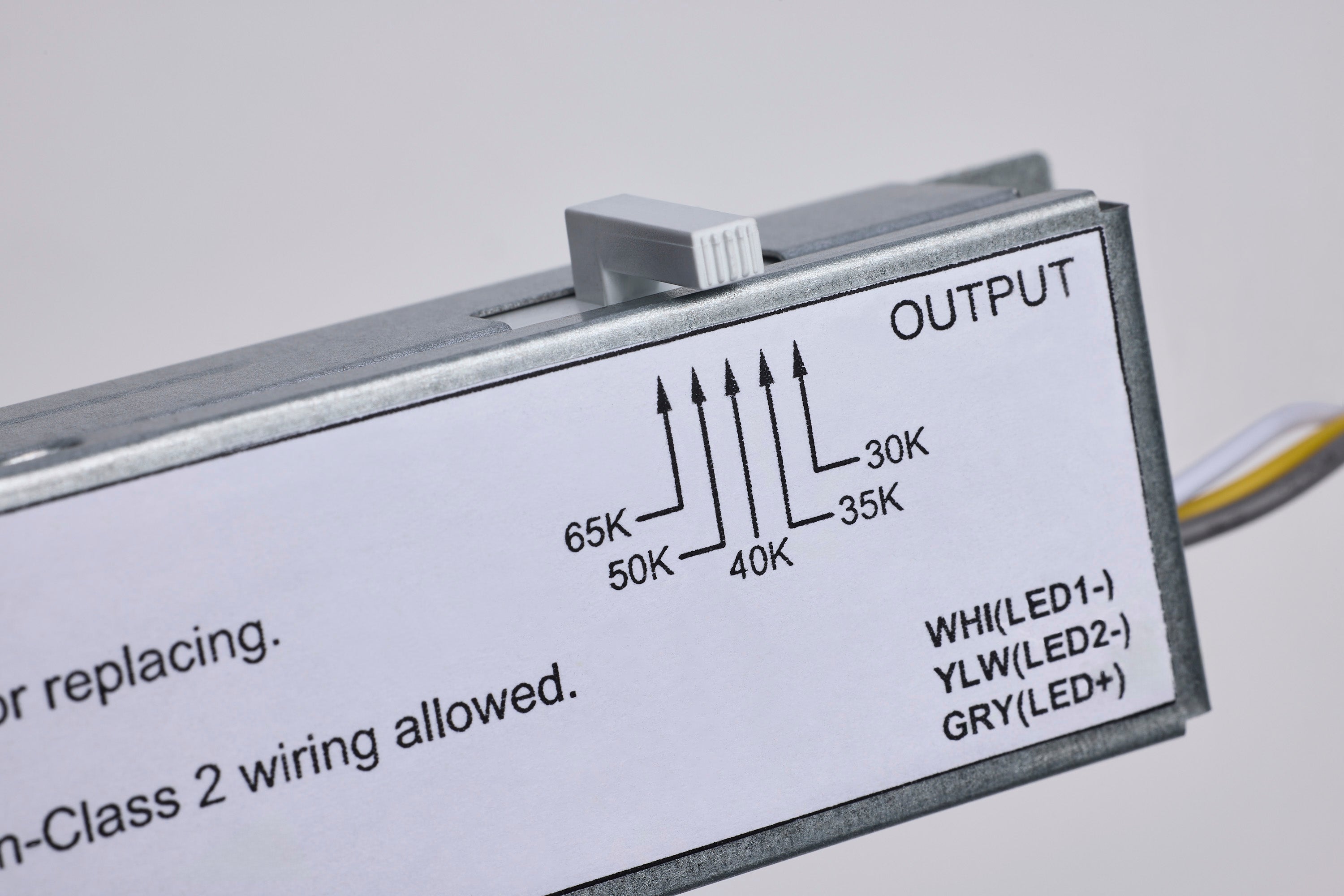

  • Field Selectable (5 wattages and 5 CCT)
  • Reduces Upgrade Material Waste

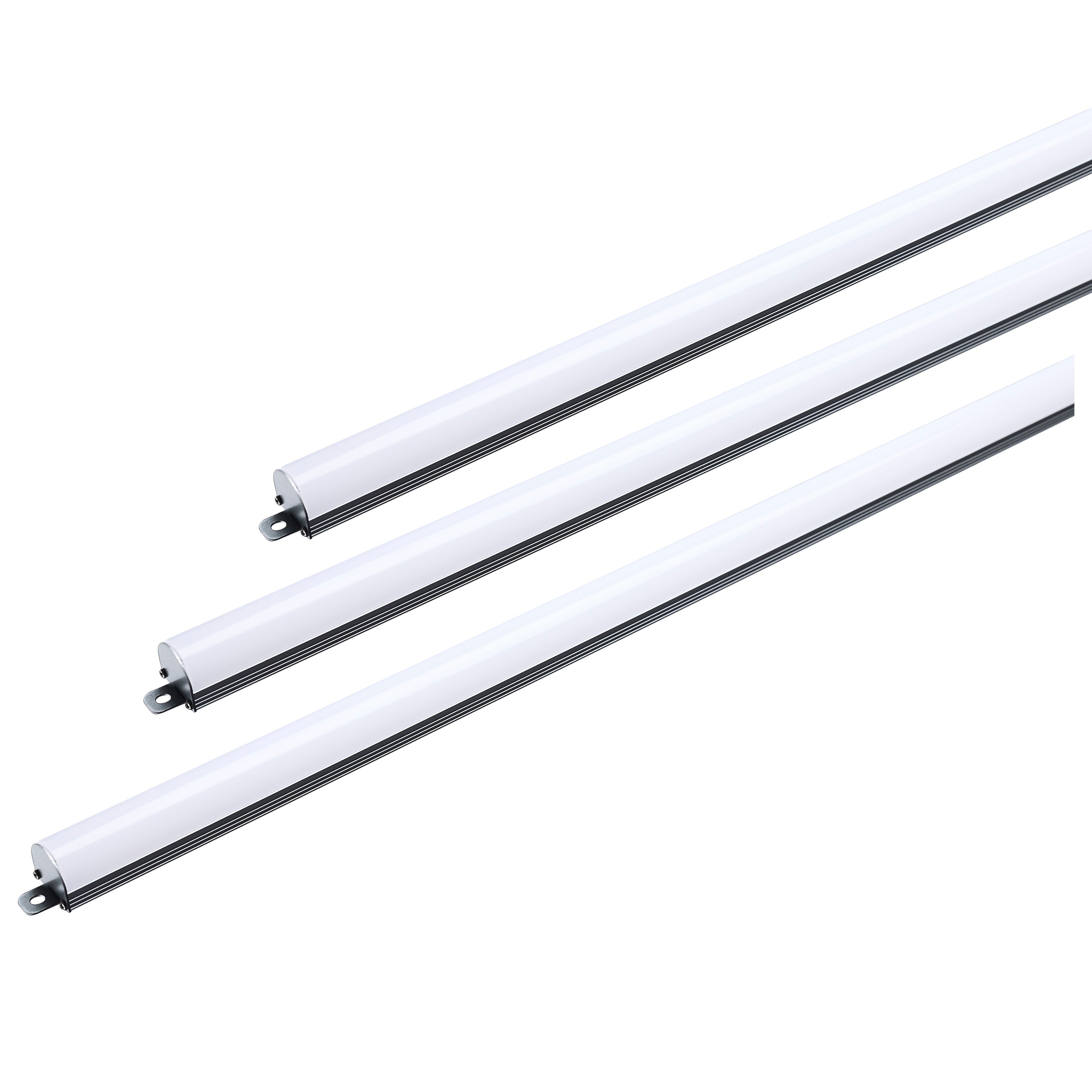

  • 4 Foot, 3 Light Bars Aluminum & PC Construction
  • 0-10V Dimmable

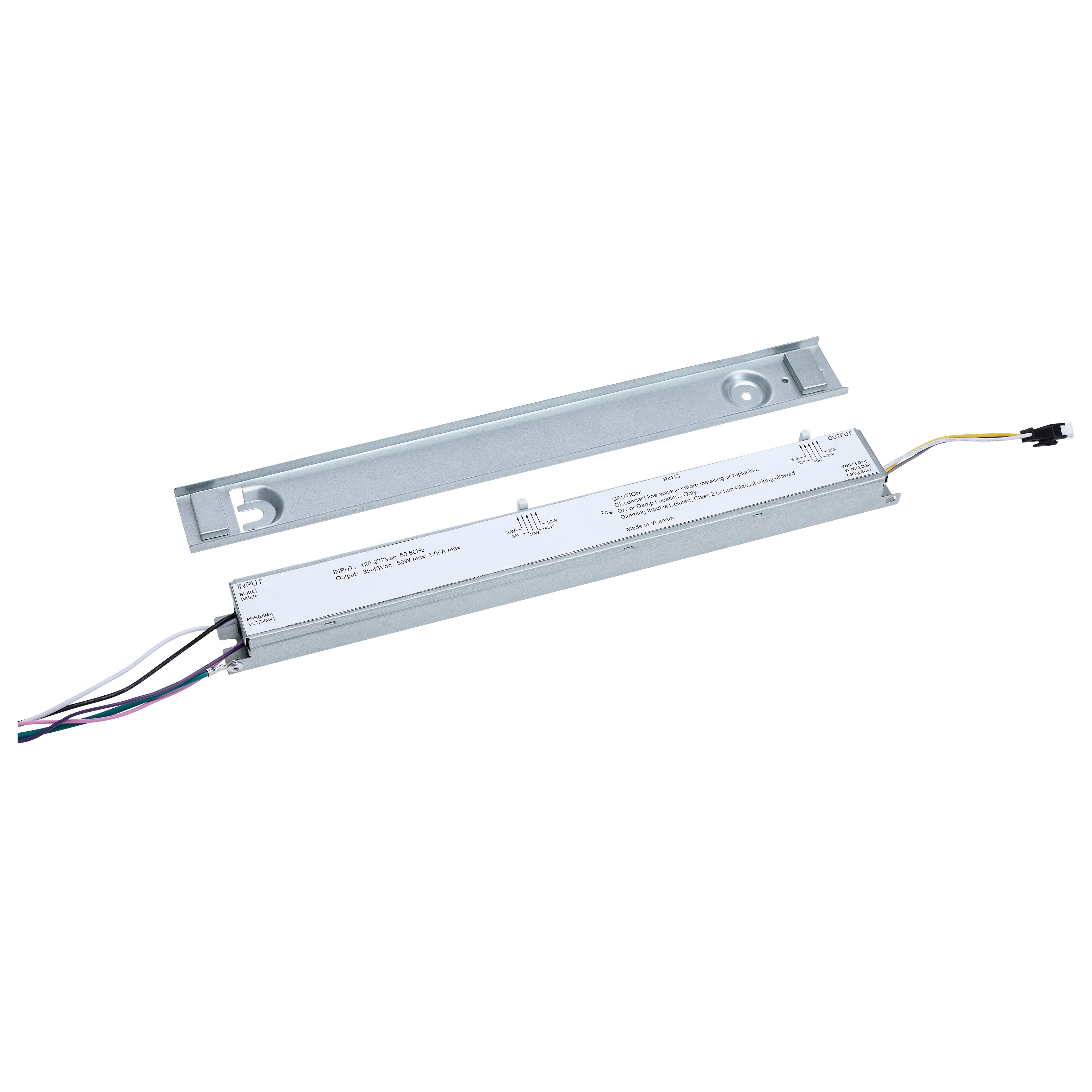

  • Fully Pre-Wired Driver
  • Quick & Easy Magnetic Installation
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
