Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 50W/45W/40W/35W/30W
Lumens 6250L/5625L/5000L/4375L/3750L
Color Temperature 3000K/3500K/4000K/5000K/6500K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Silver
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 4x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 41.73 IN
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Daylight
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 1KV
Features / Controls
Enclosed Fixture Rated Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum
Finish/Lens Frosted
Width 0.93 IN
Height 1.19 IN
Weight 2.6 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +113F (-20C to +45C)
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit - 3000K/3500K/4000K/5000K/6500K CCT Selectable - 4-Bars - 4 Feet - 120-277 Volt - Silver Finish is a commercial ceiling light intended for renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting LED troffer light for a specific room, fixture or property application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In practical terms, that makes this product relevant for grid-ceiling and general commercial lighting projects. It also fits naturally into projects considering commercial ceiling lighting and office LED light fixture, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Works well when project teams need repeatable fixtures throughout offices or public spaces. For offices, classrooms, retail spaces, healthcare environments and other commercial interiors, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

When it is time to shop commercial ceiling fixtures, consider 50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

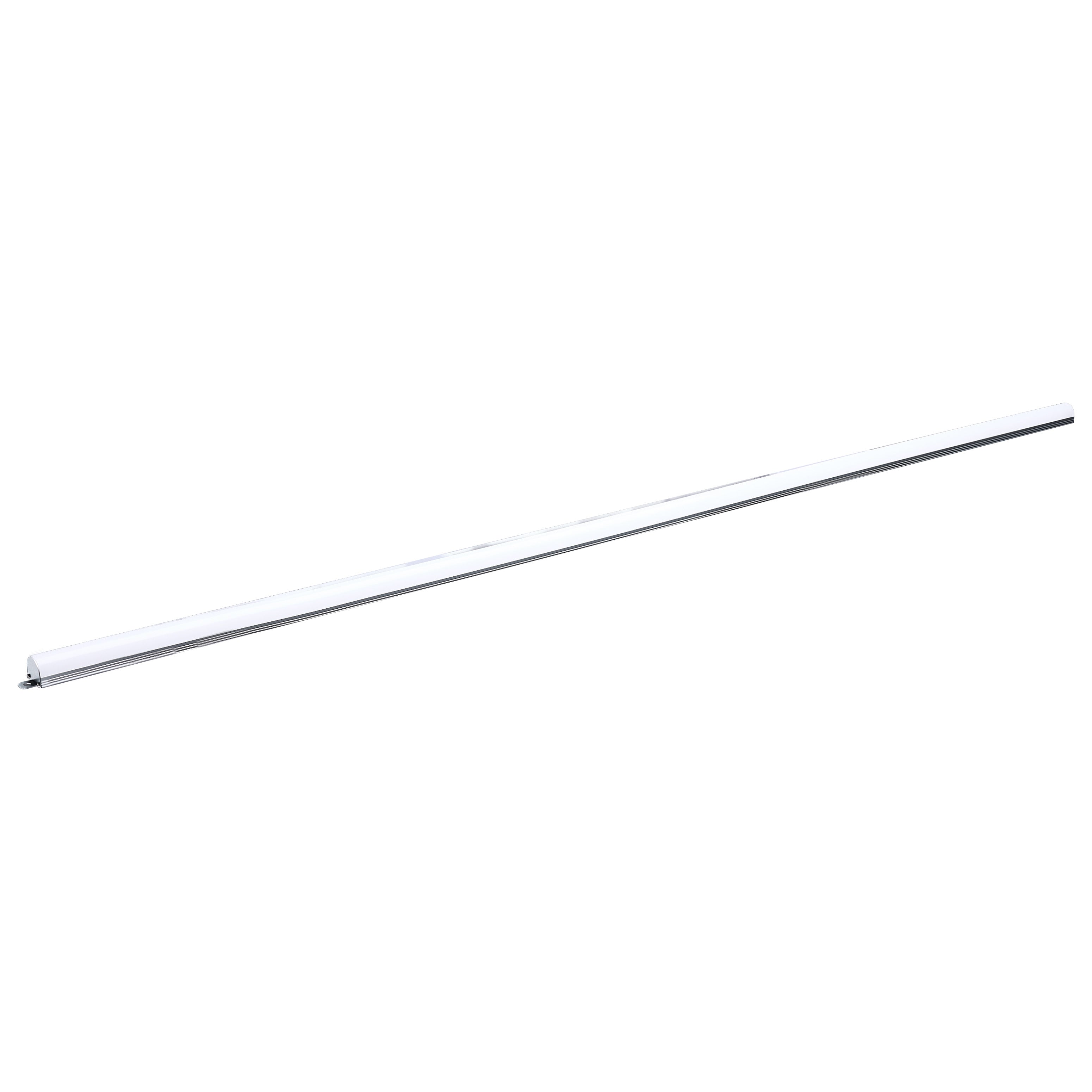

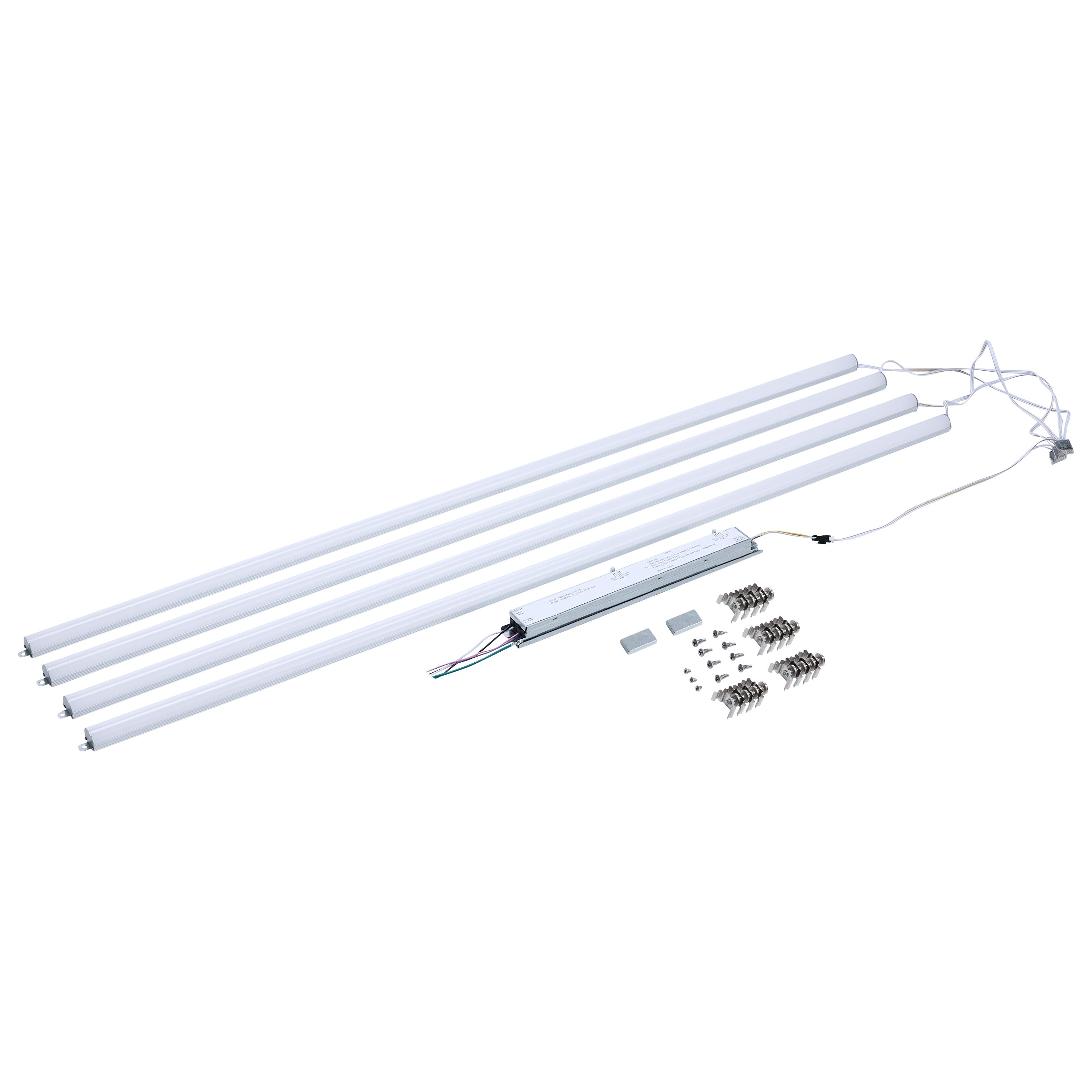

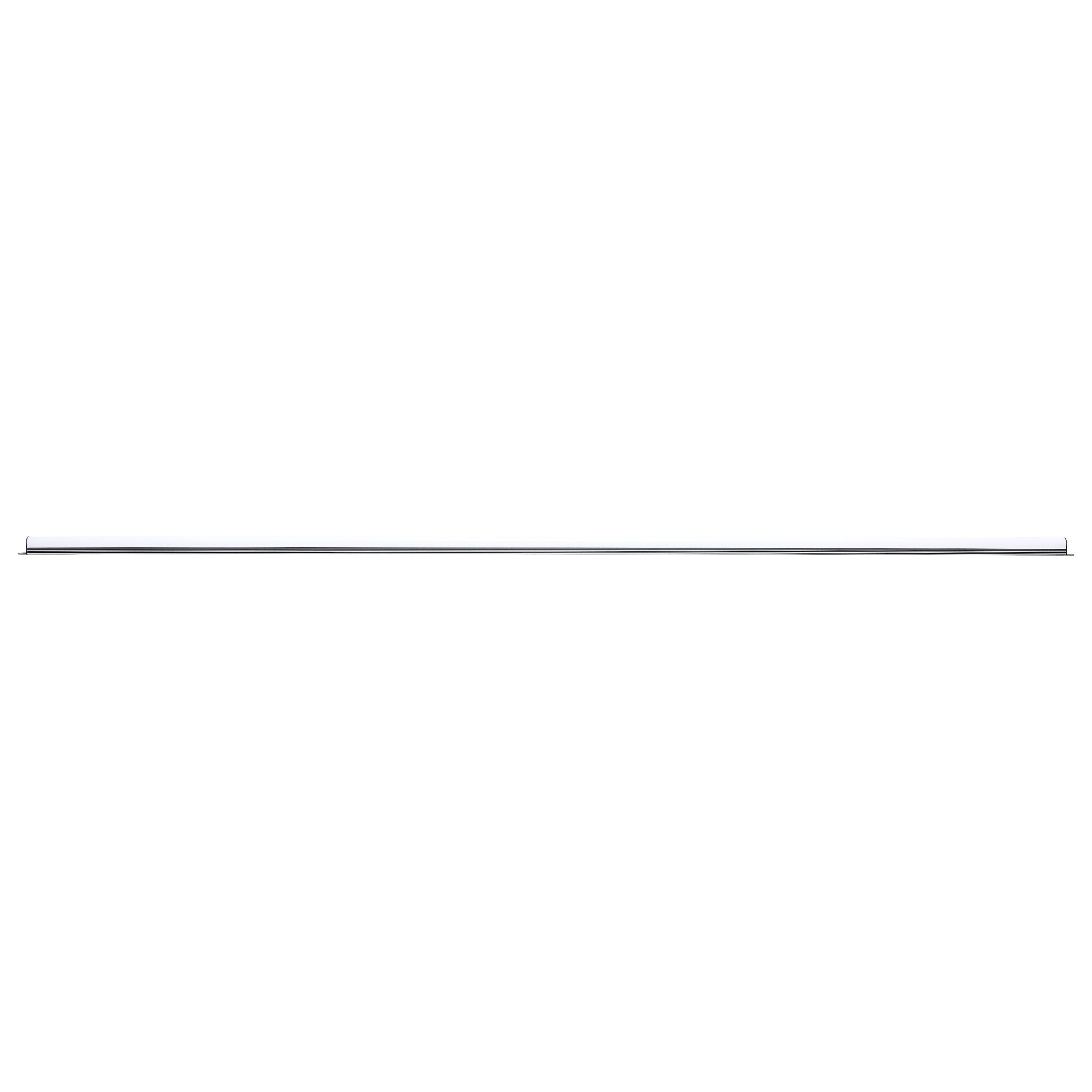

SATCO NUVO's 65-1337 4-foot Retrofit Lightbar Kit with four LED bars provides a powerful and flexible LED retrofit solution for existing fluorescent fixtures. Designed to replace 4 x 32W T8 lamps, this kit offers selectable wattages from 30W to 50W and selectable CCT from 3000K to 6500K for customized illumination at installation. Engineered for use in troffers, strips, wraps, and vapor tight fixtures, the durable aluminum housing and frosted polycarbonate lens ensure lasting durability and even light distribution. Featuring 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this retrofit kit delivers dependable, high-quality illumination for commercial environments.

Features :-

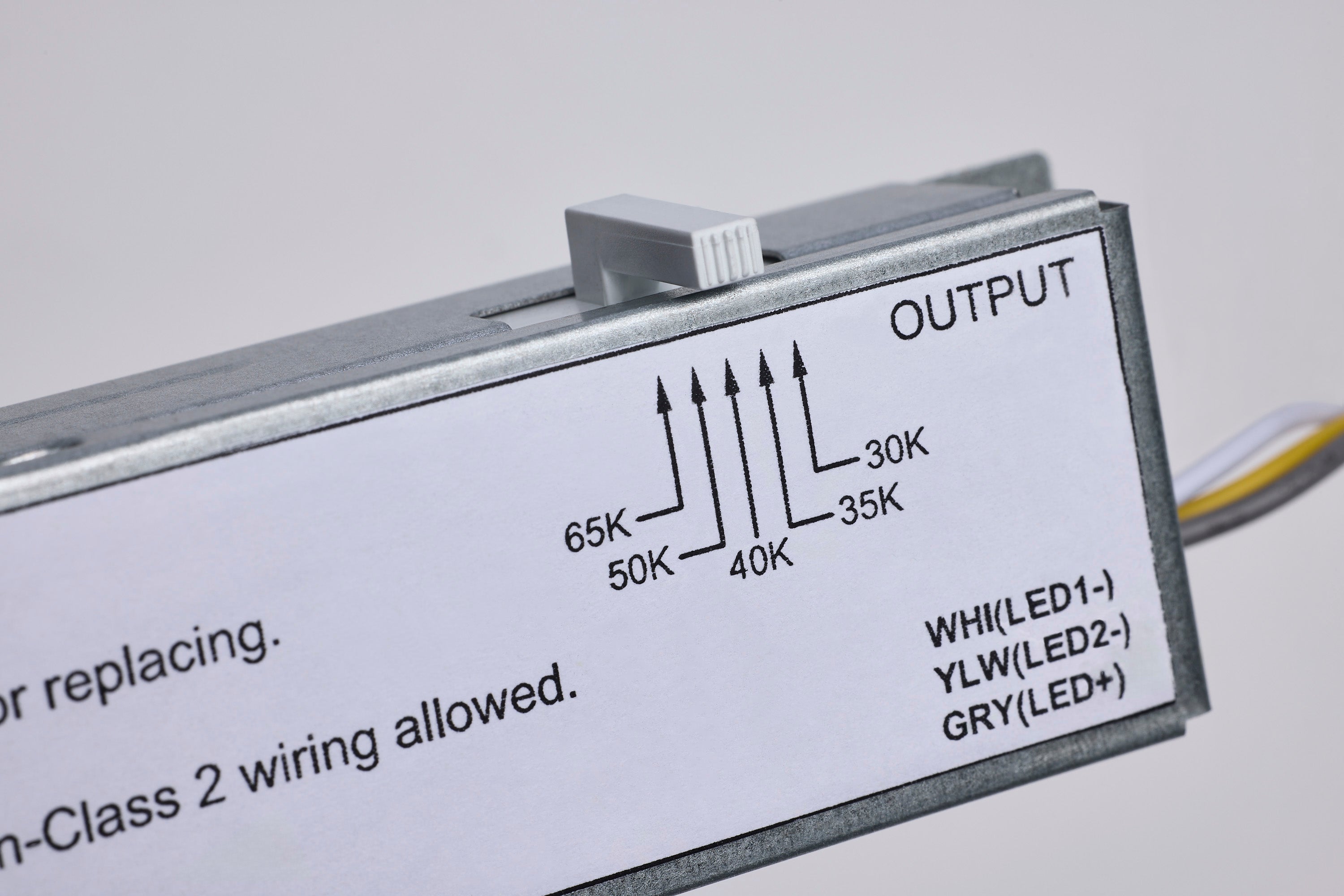

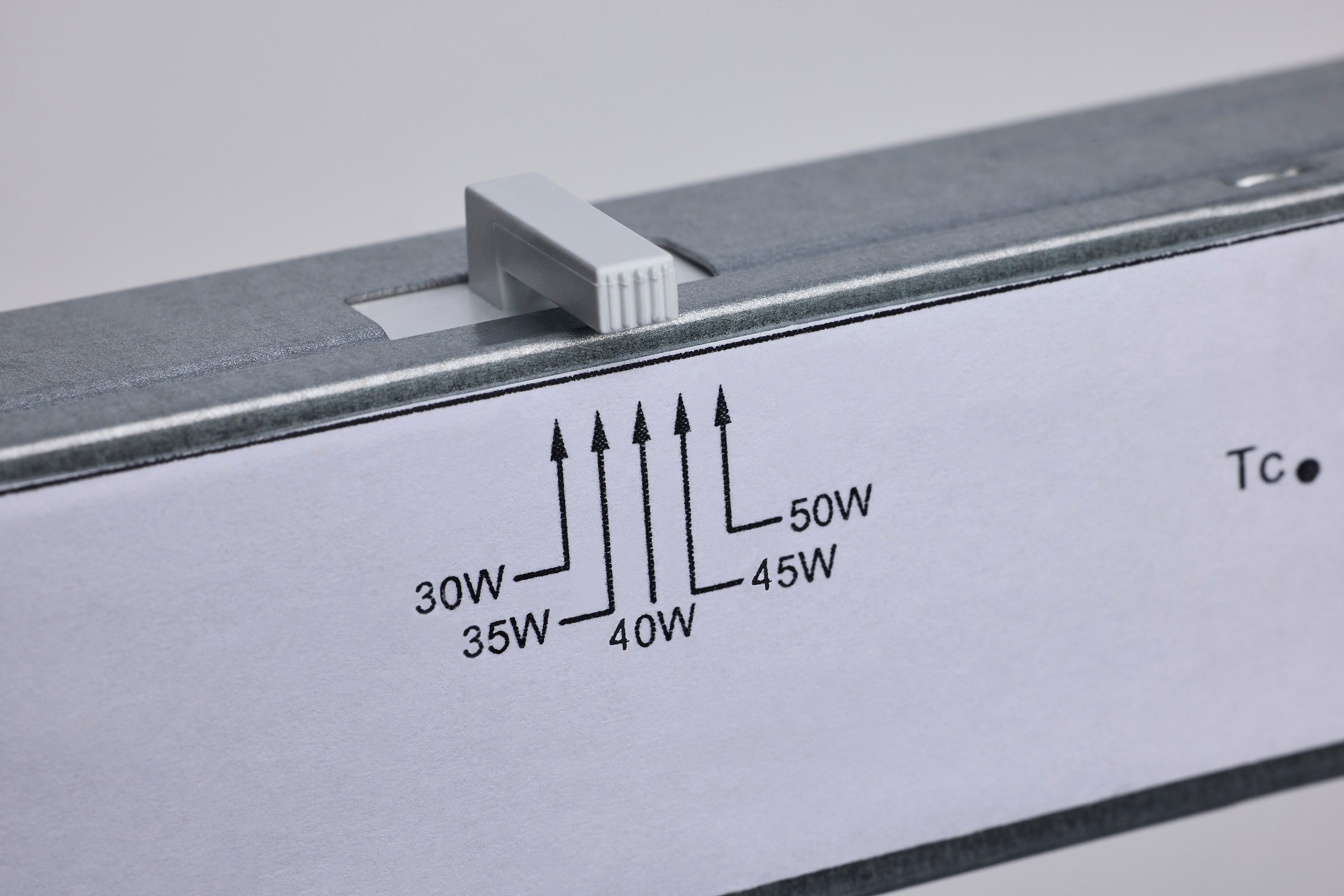

  • Field Selectable (5 wattages and 5 CCT)
  • Reduces Upgrade Material Waste

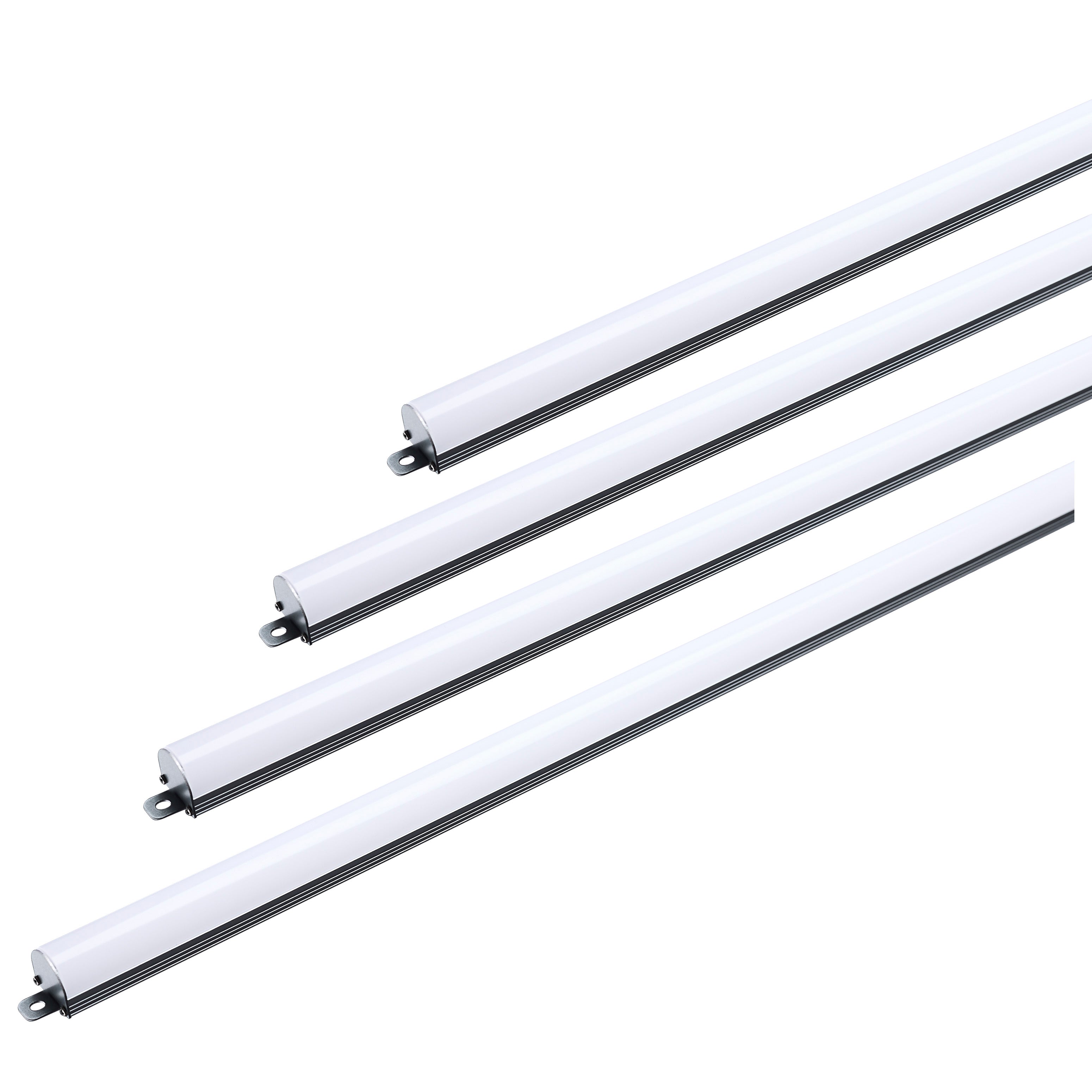

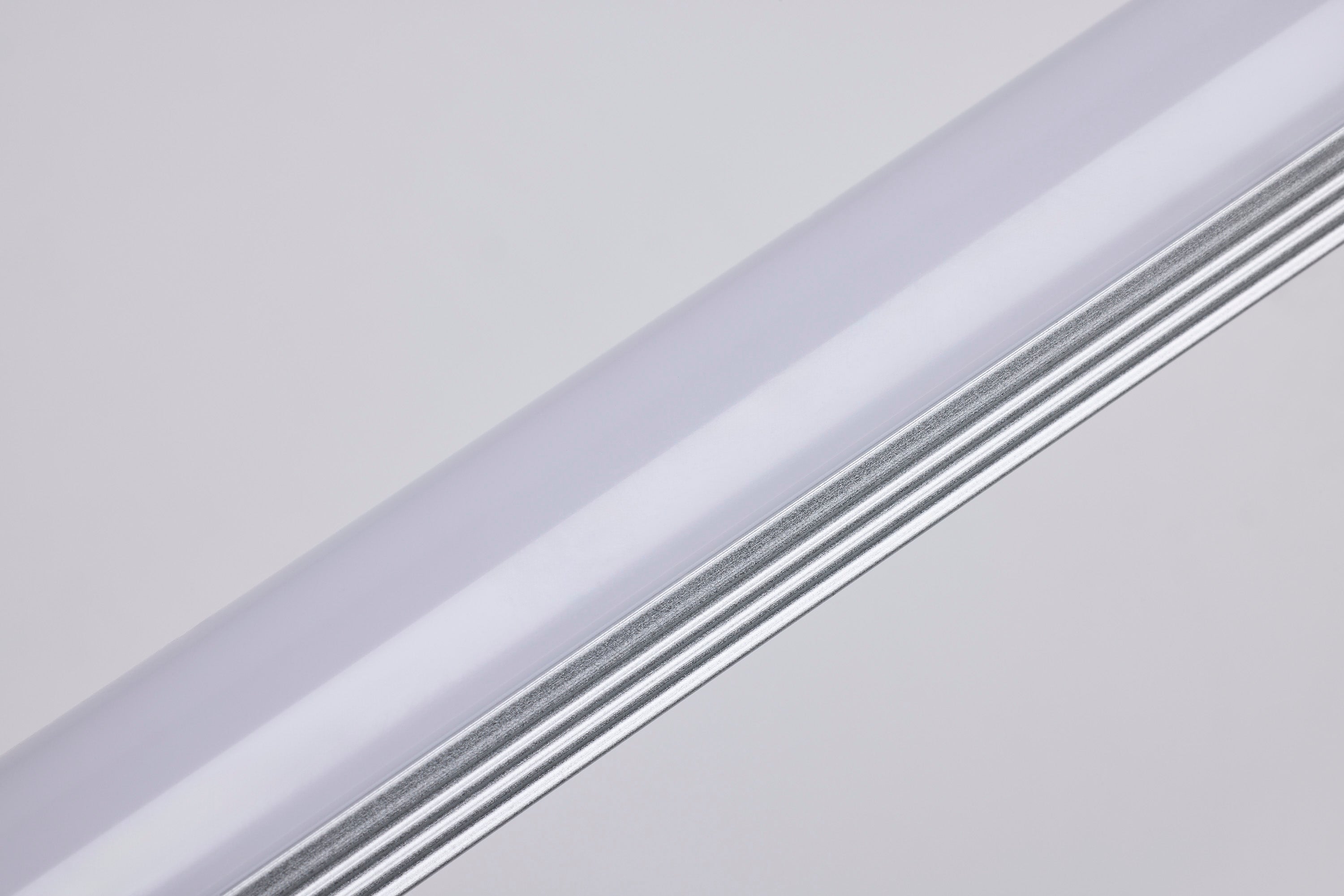

  • 4 Foot, 4 Light Bars Aluminum & PC Construction
  • 0-10V Dimmable

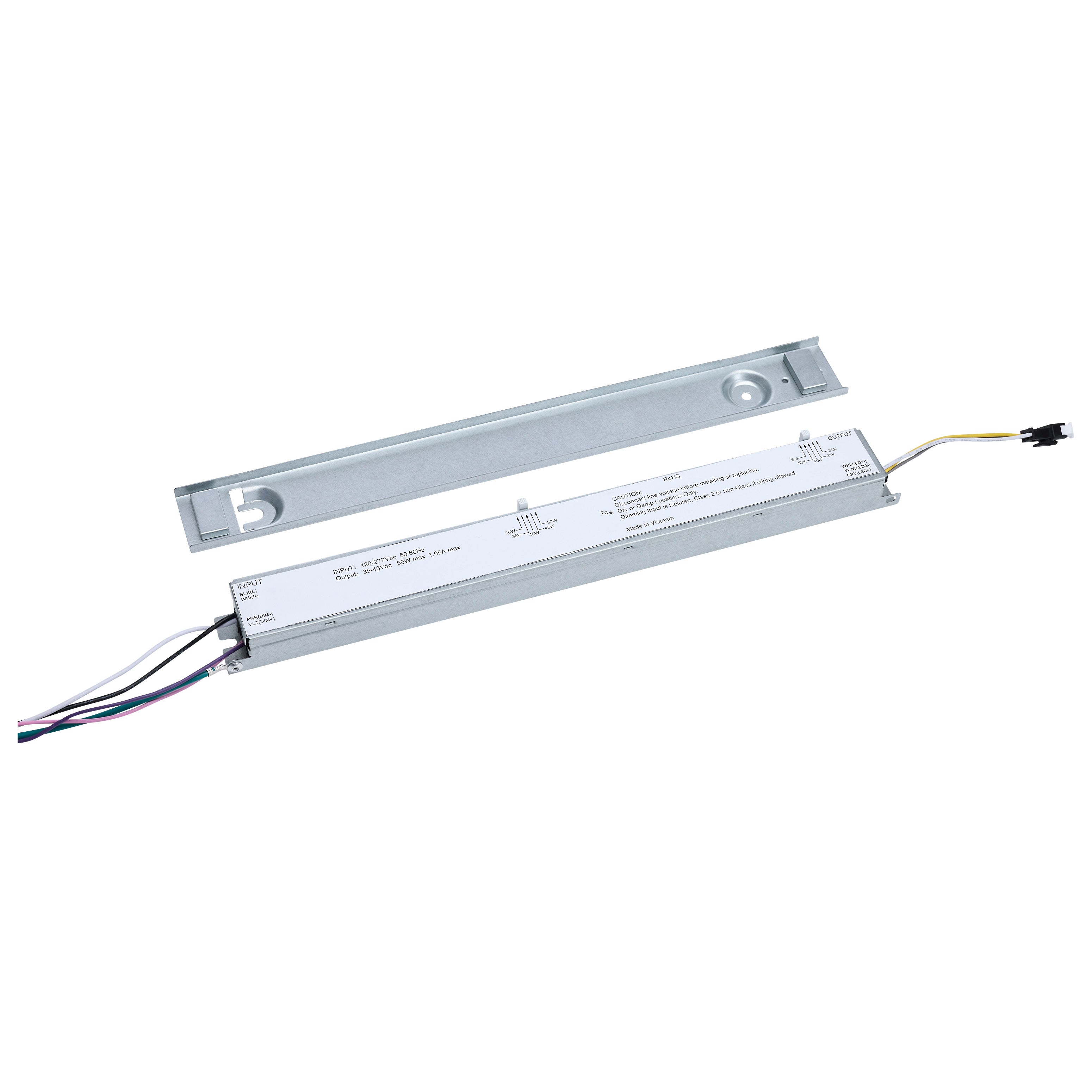

  • Fully Pre-Wired Driver
  • Quick & Easy Magnetic Installation
  • Damp Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
