Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 60W/40W/29W
Lumens 4225L-9193L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish Bronze
Beam Angle 60/90/110
HID Equivalent 75W-175W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B2-U3-G5
Fixture Type Wall Pack
Length 14.36 IN
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Listed
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Clear
Width 14.36 IN
Height 9.3 IN
Weight 8.2 lbs
Lens / Diffuser Borosilicate Glass
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Location Rating Wet
Operating Temperature -40F to +122F (-40C to +50C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 60/40/29 Wattage Selectable LED Wall Pack -3K/4K/5K CCT Selectable - 60/90/110 Beam Angle Selectable - 120-347 Volt - Bronze Finish when your project calls for a LED wall pack suited to replacement and new-installation projects where wall-mounted site lighting is preferred. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for building exterior light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well for facility managers and electrical contractors upgrading commercial building lighting. In practical terms, that makes this product relevant for warehouses, retail buildings and other properties needing wall-mounted exterior lighting. It also fits naturally into projects considering LED wall pack and perimeter lighting fixture, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

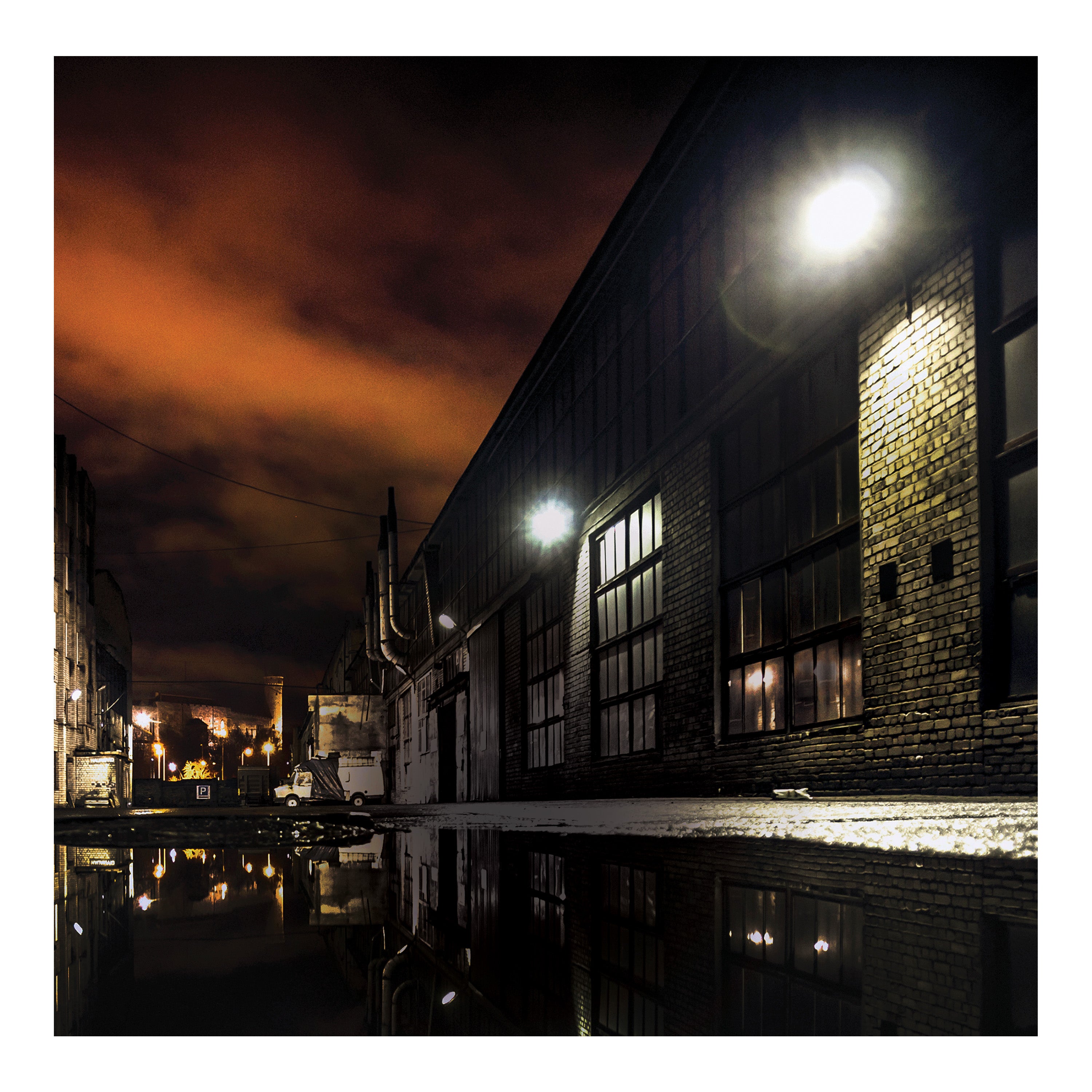

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. For building perimeters, loading areas, walkways, parking areas and commercial entrances, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

If you are ready to shop commercial exterior wall lights, 60/40/29 Wattage Selectable LED Wall Pack -3K/4K/5K CCT Selectable offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

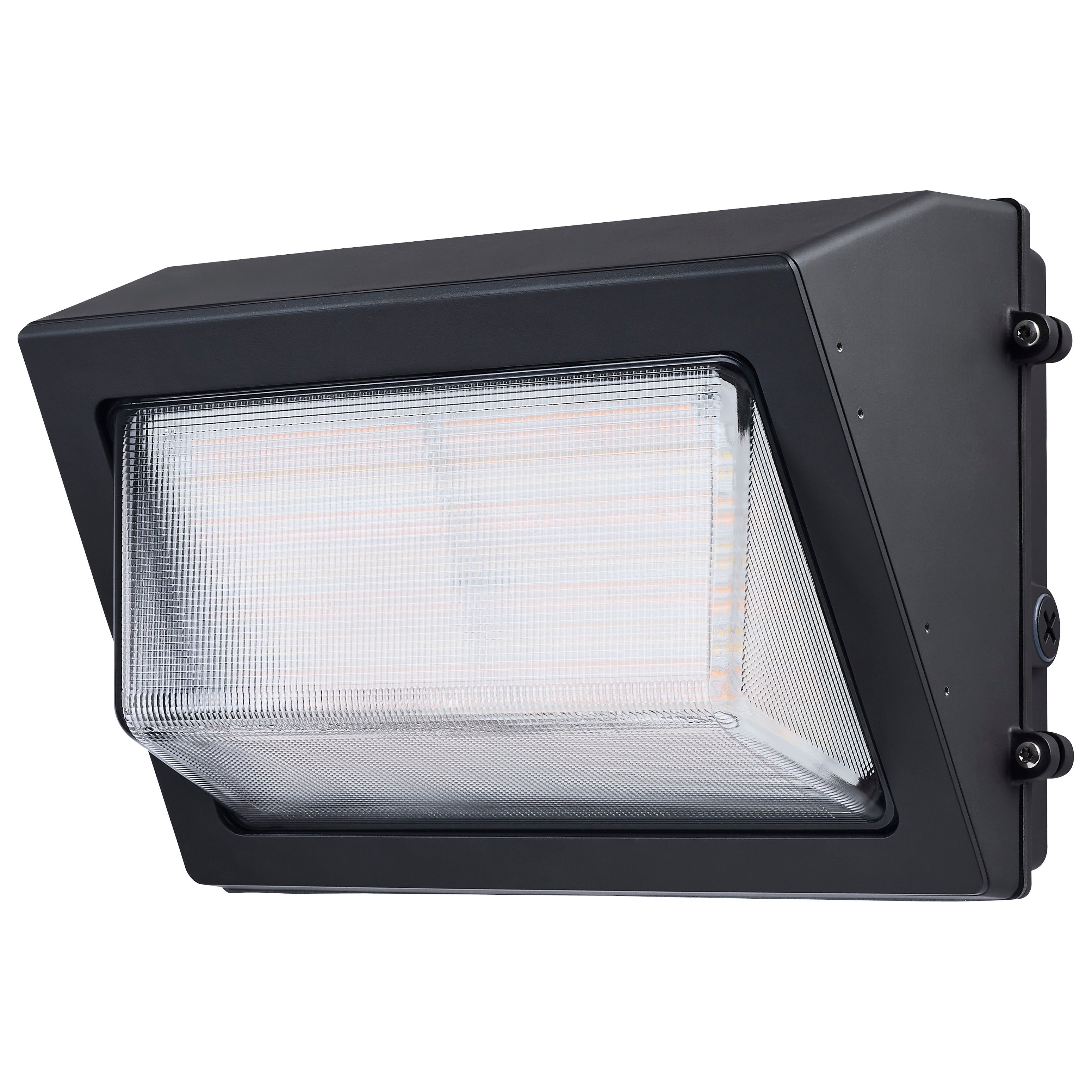

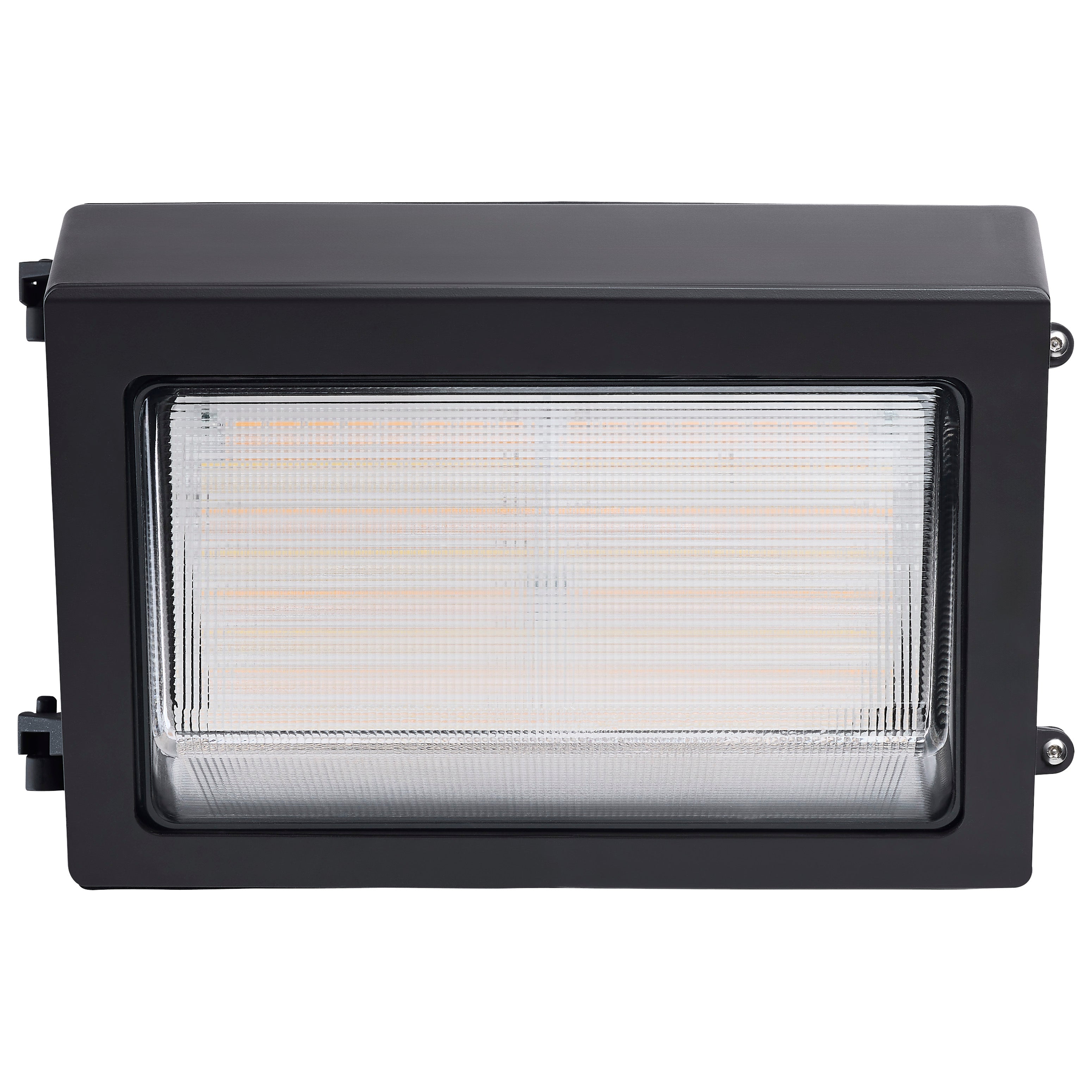

The SATCO NUVO 65-1500 LED Wall Pack delivers efficient, targeted exterior lighting for commercial and industrial perimeter applications. Beam selectable optics provide 60-degrees, 90-degrees, or 110-degrees distributions, while field-selectable wattage options of 29W, 40W, or 60W produce lumen outputs ranging from 4,225 to 9,193 lumens with efficacy up to 153 LPW. Selectable CCTs of 3000K, 4000K, and 5000K allow tailored illumination to suit site requirements. Constructed with a die-cast aluminum housing, borosilicate glass lens, and an integrated bypassable photocell, the fixture operates on a universal 120���������������������������347V input. IP65 and IK08 rated, wet-location suitable, DLC 6.0 Listed, and 0���������������������������10V dimmable, it offers a 50,000-hour rated life and a 5-year warranty.

Features :-

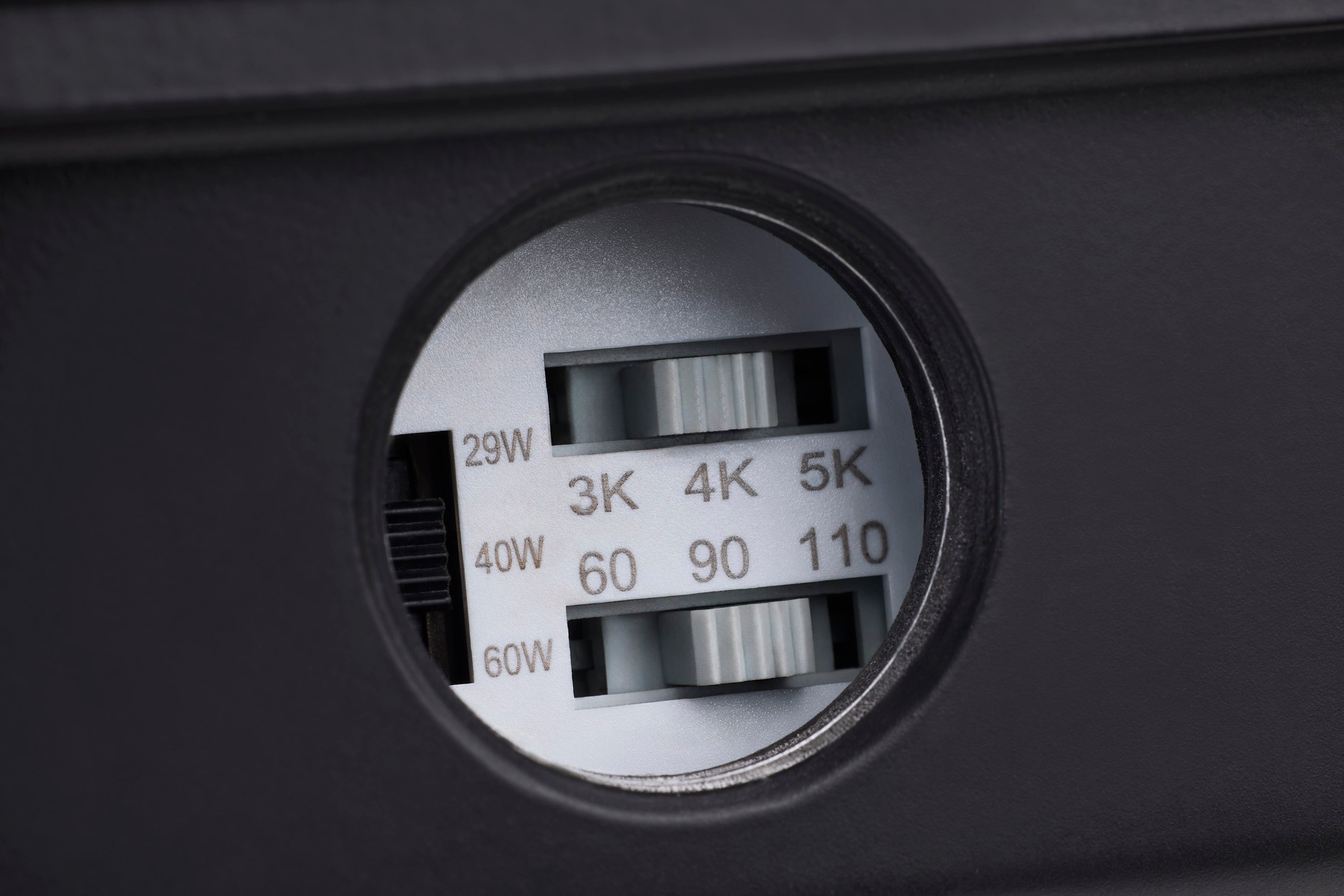

  • Beam Selectable (60-degrees/90-degrees/110-degrees)
  • 3 CCT Selectable (3000K/4000K/5000K)
  • 3 Wattage Selectable (60W/40W/29W)
  • 6kV Surge Protection
  • IP65 Rated
  • Die-Cast Aluminum Housing with Borosilicate Glass

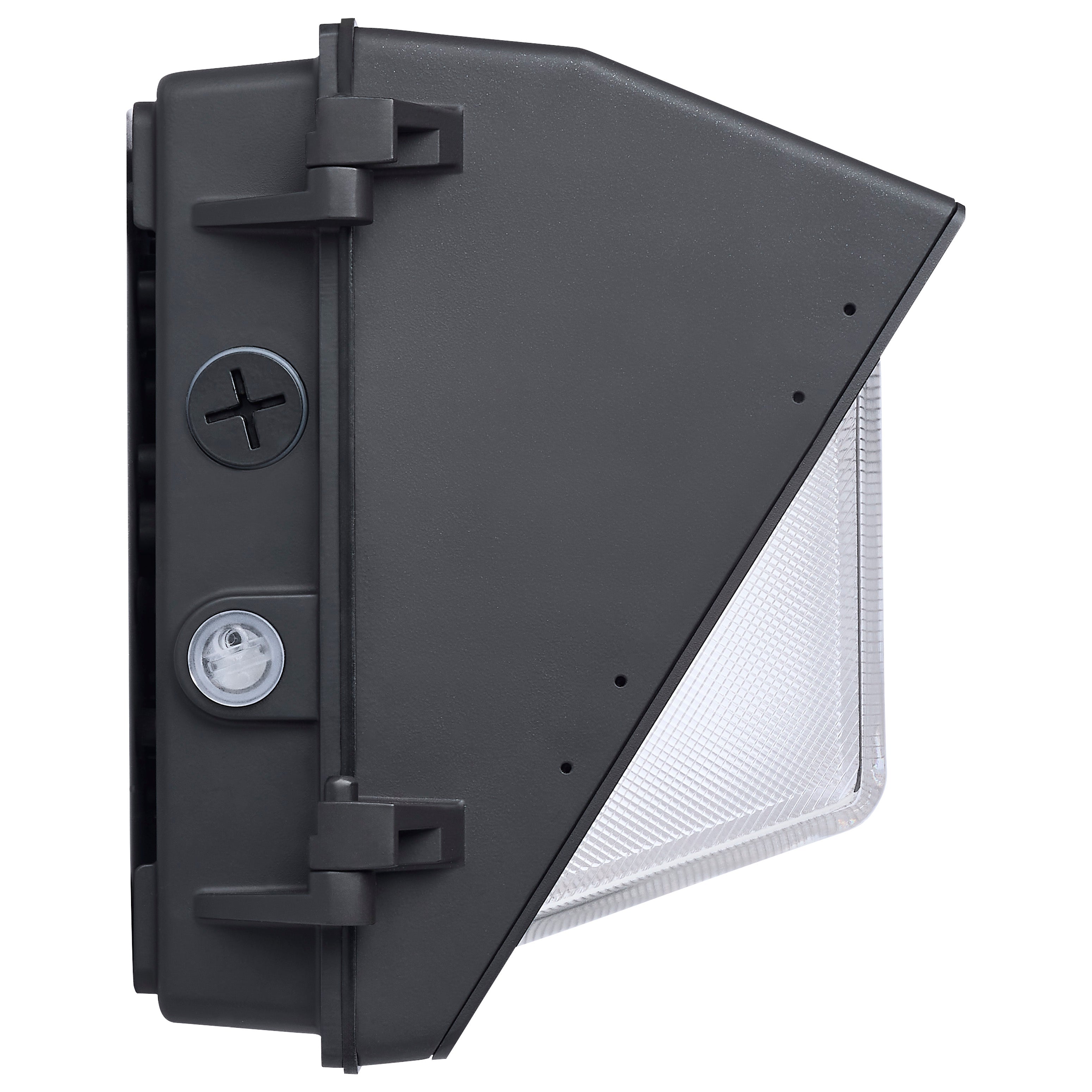

  • Integrated By-Passable Photocell
  • 120-347V Range Voltage and 0-10V Dimmable
  • 50,000 Life Hours
  • 5 Year Warranty
