Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 40W
Wattage 8W
Lumens 500L-600L
Color Temperature 2700K/3000K/3500K/4000K/5000K/3000K-2000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V
Finish White
Beam Angle 36
Shape Square
Color Temperature Selectable Yes
Fixture Type Track Head

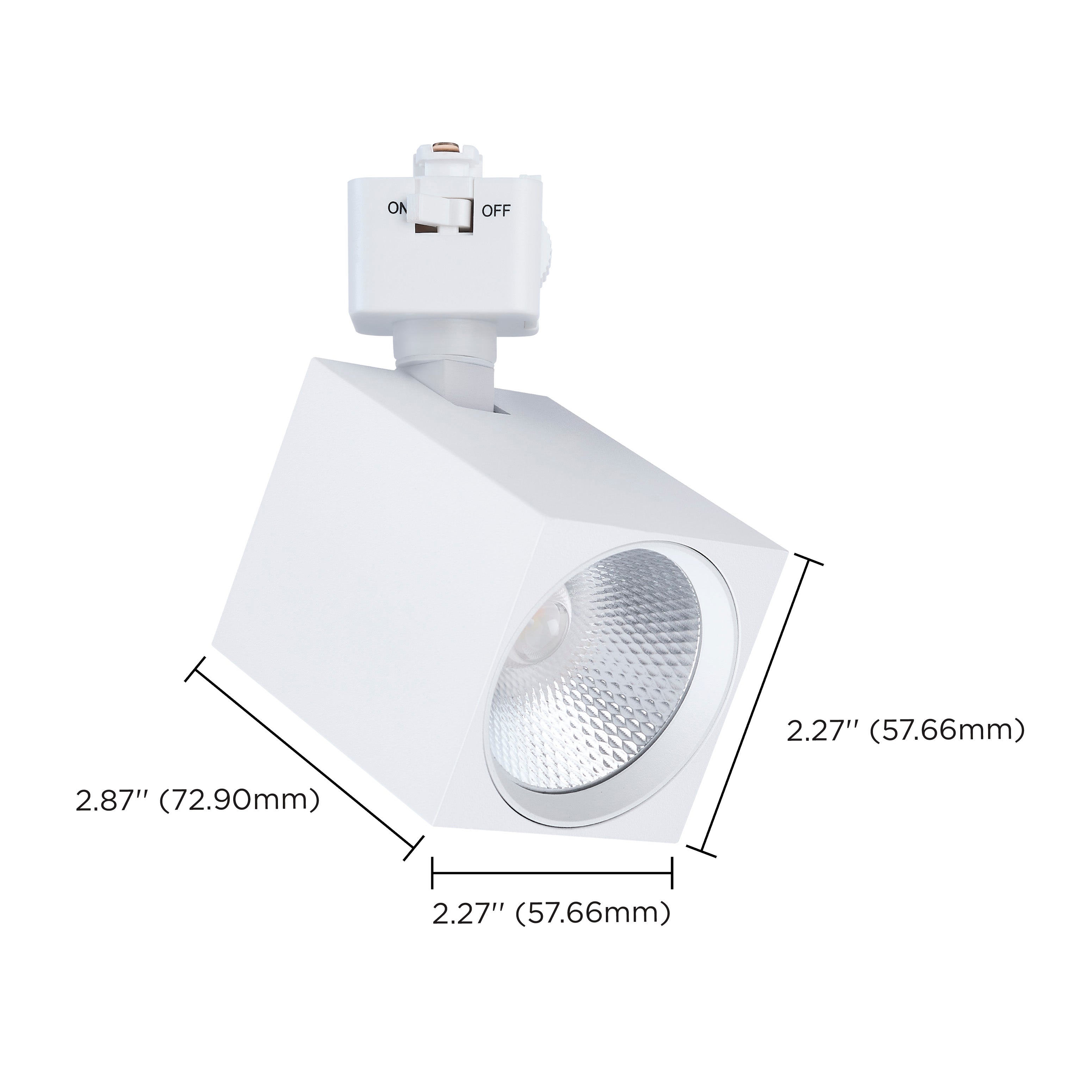

Length 2.87 IN
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light, Warm Dimming
Safety Listing cETLus
Electrical
Frequency 60Hz
Power Factor >0.92
Total Harmonic Distortion (THD) <100%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
Triac/Elv/Mlv Forward or Reverse Phase, 120V only
Construction / Installation
Material Aluminum
Finish/Lens Clear
Width 2.28 IN
Height 2.28 IN
Weight 0.82 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Connector or Adapter
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

8 Watt LED Track Head - 2700K/3000K/3500K/4000K/5000K CCT Selectable - Dim to Warm - H Style - 36 Degree Beam Angle - 120 Volt - White - Square is a track lighting intended for wall washing, artwork lighting, task illumination and focused room lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting track lighting for a specific room, fixture or property application.

Makes it easier to aim light toward displays, artwork, counters or architectural features. That is especially useful in commercial and residential interiors where adjustable lighting helps direct attention. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a track lighting, this option is well suited to projects involving accent lighting fixture, LED track head and other coordinated lighting upgrades.

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. This is particularly helpful for retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

If you are ready to shop track heads and track lighting fixtures, 8 Watt LED Track Head offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

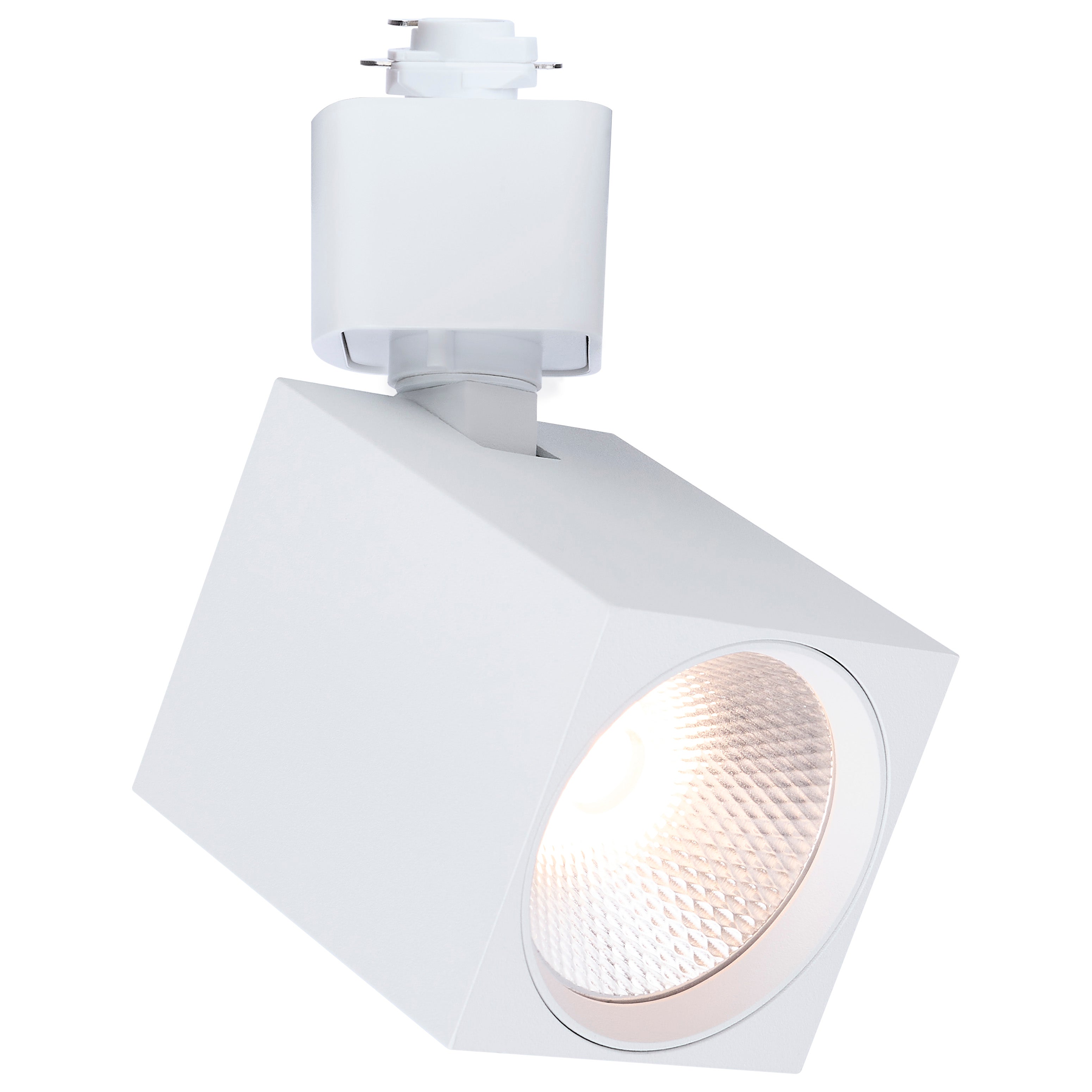

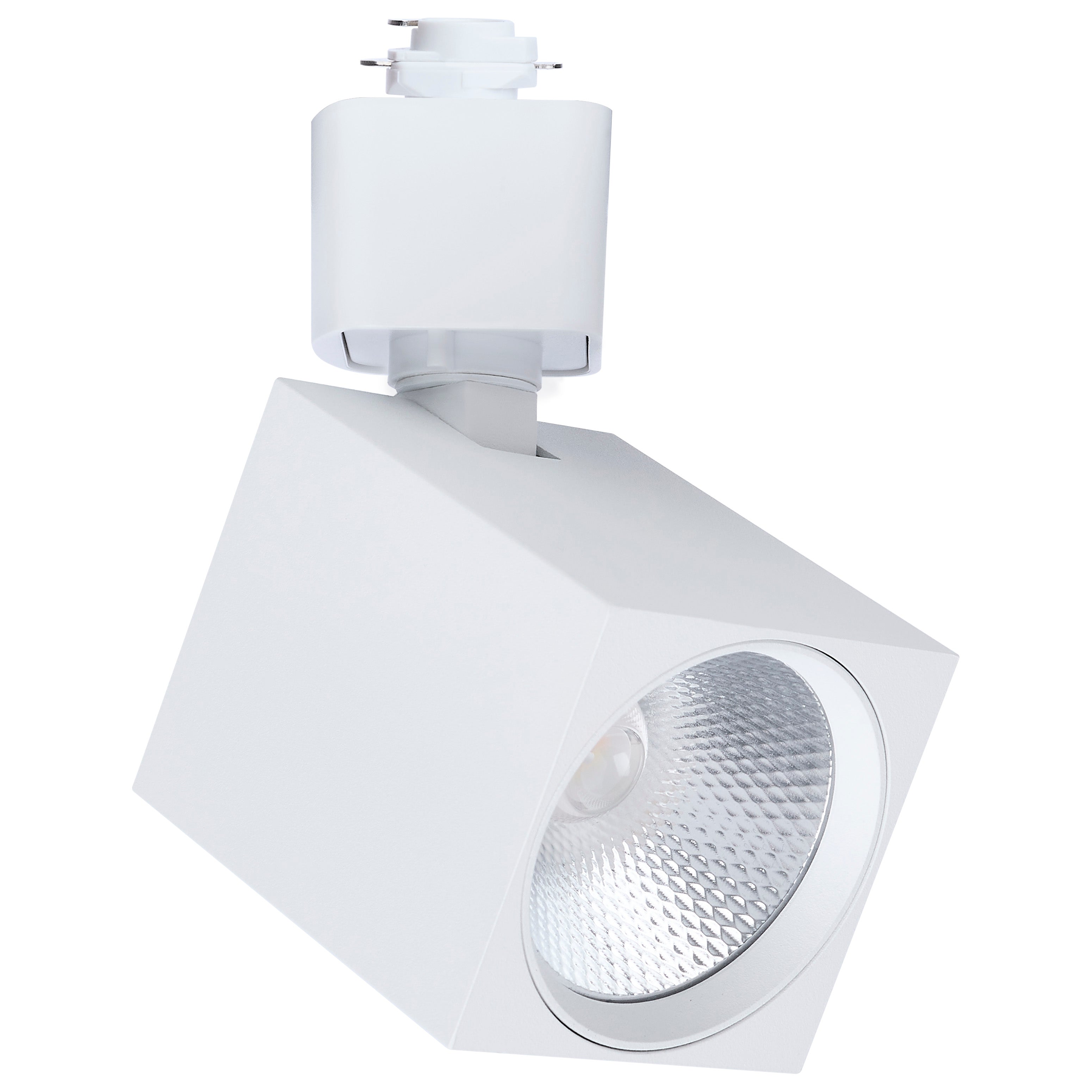

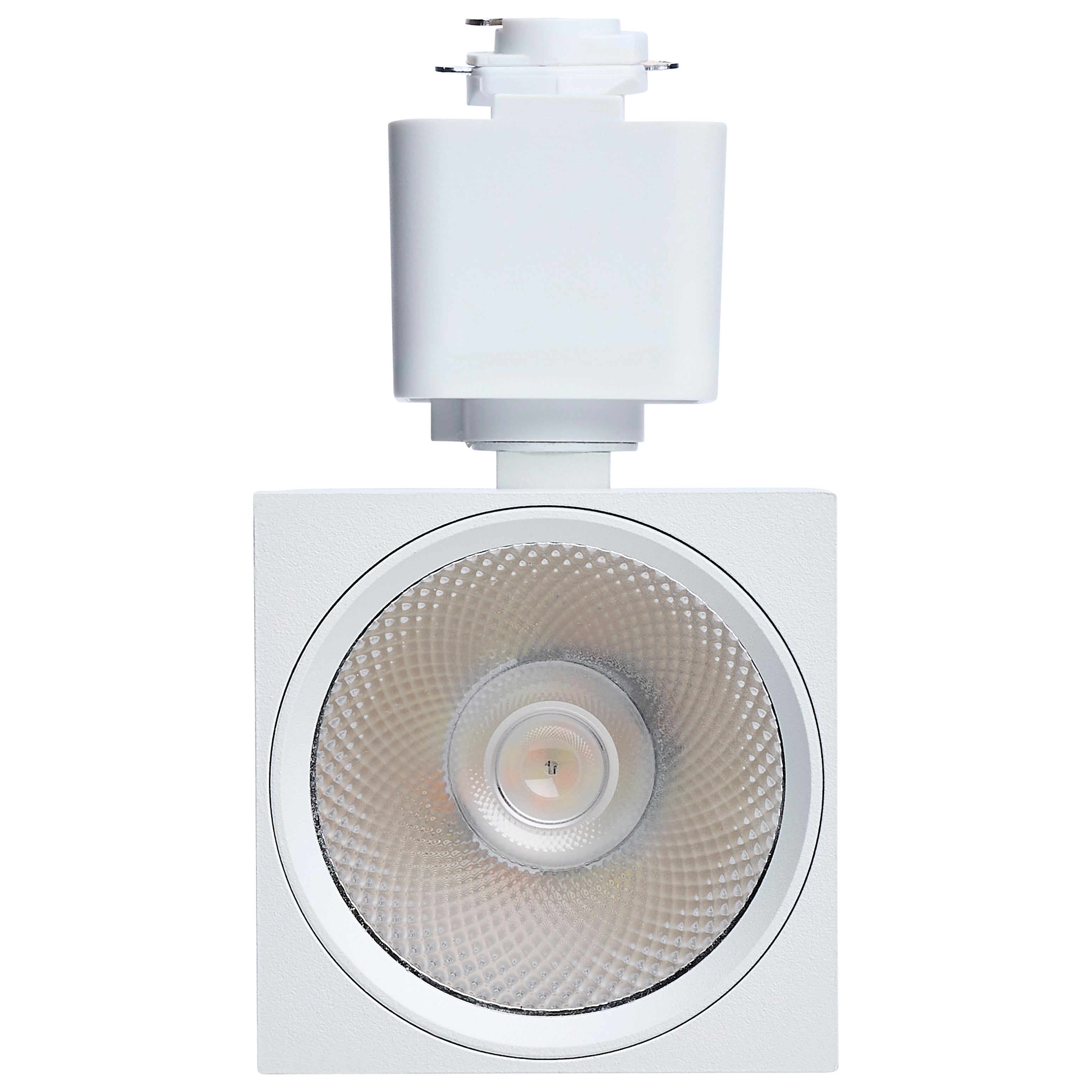

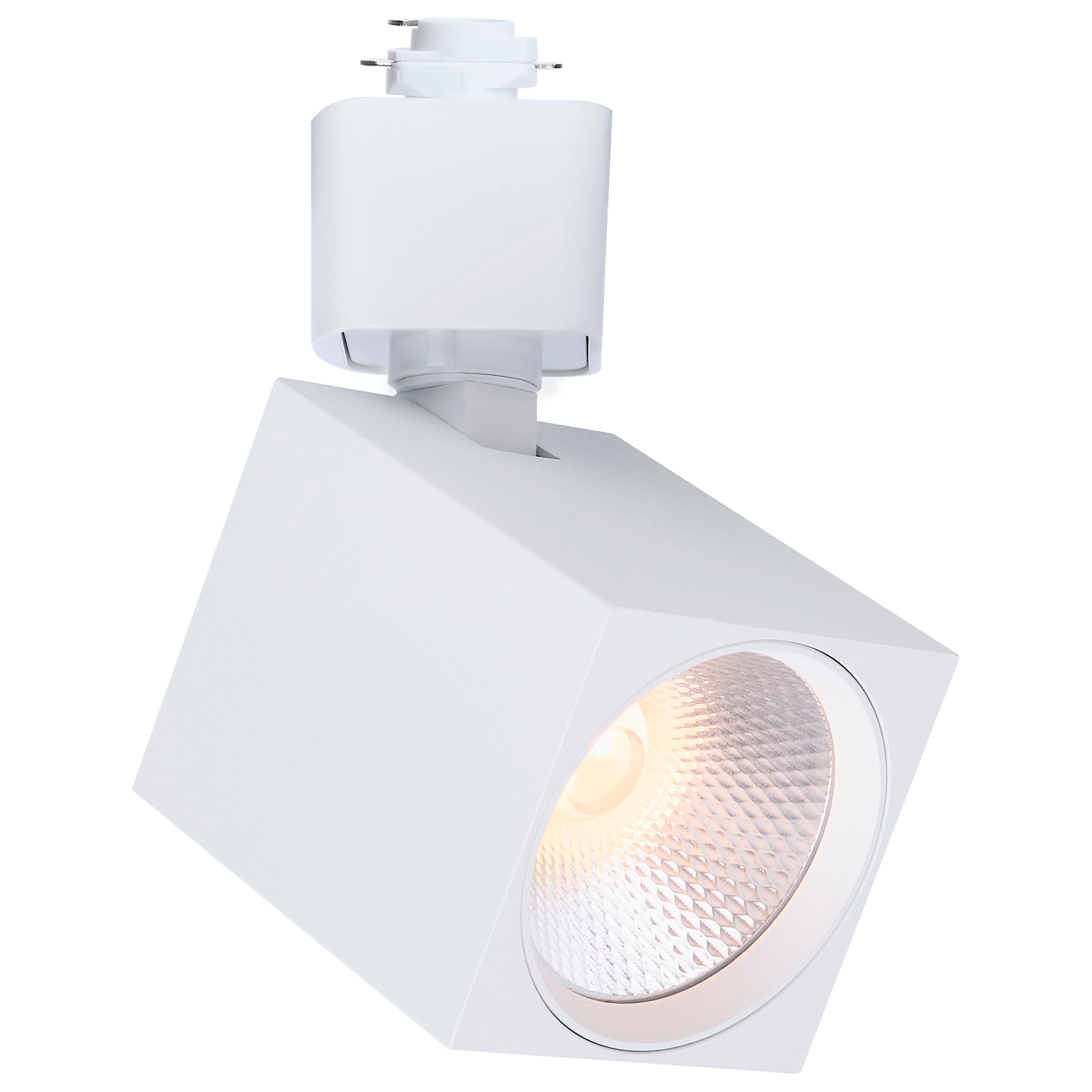

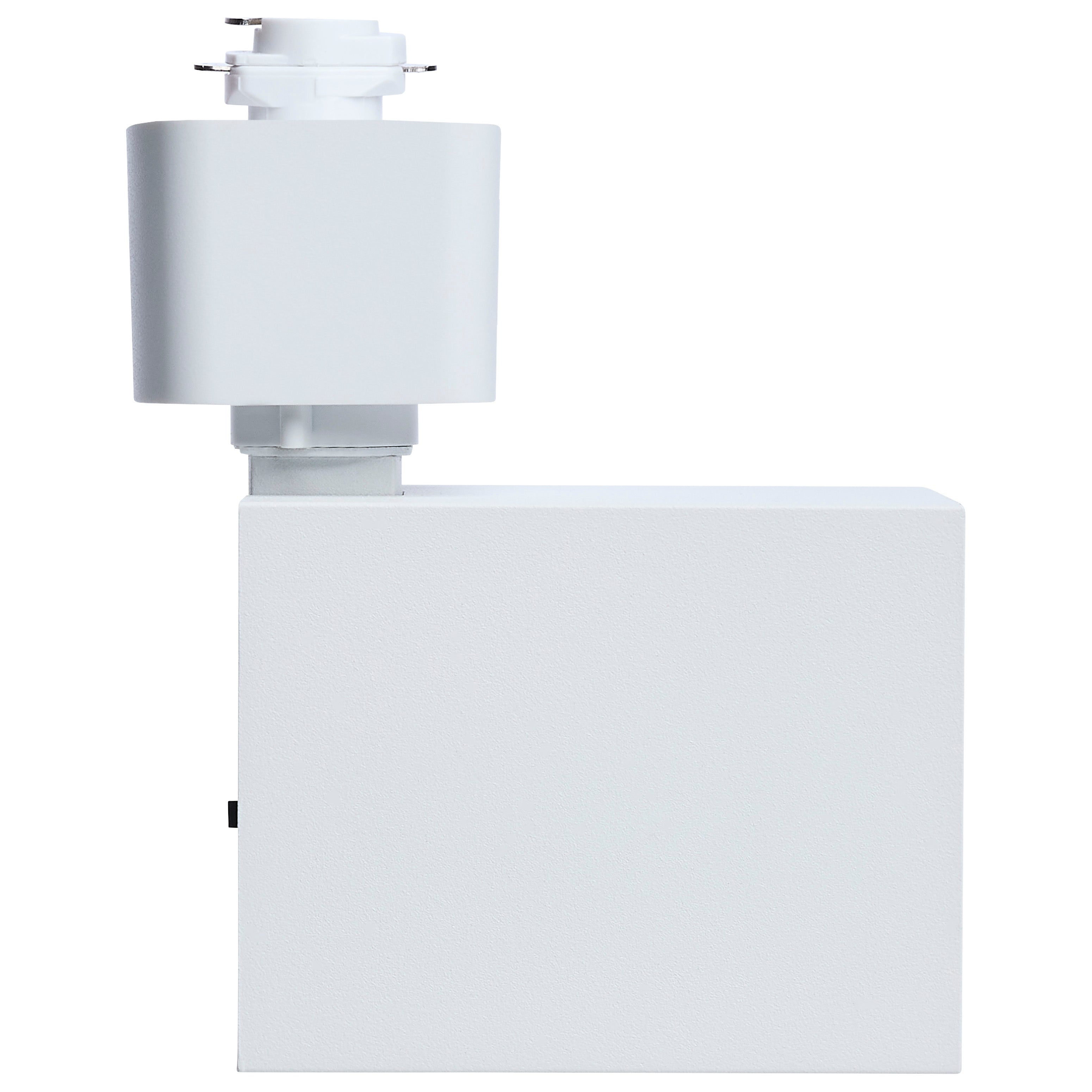

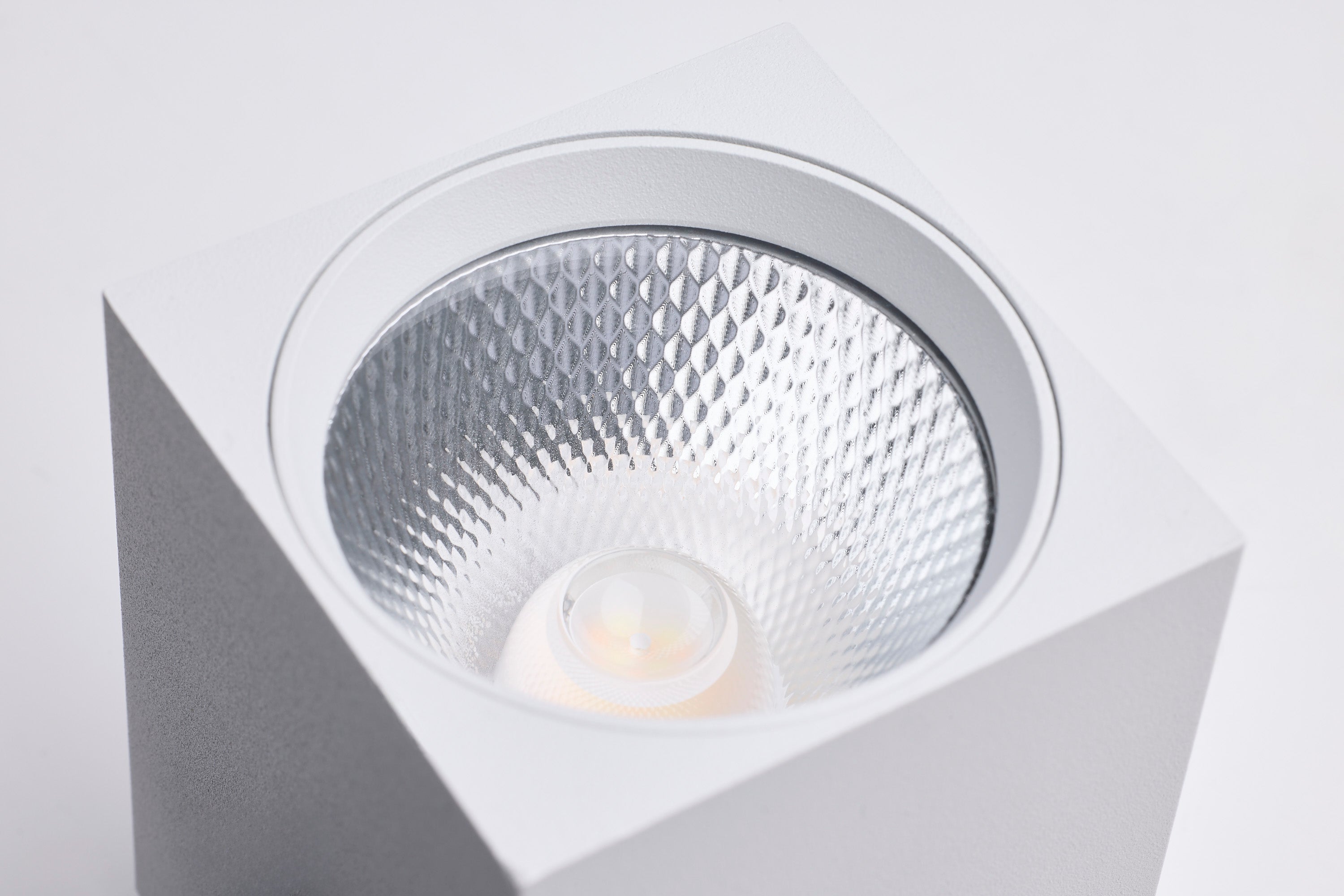

The SATCO NUVO TH751 LED Track Head delivers refined, flexible lighting in an H-style configuration. Featuring a white square housing and a 36-degree beam angle, it offers 5 CCT selectability, Dim to Warm technology, precise aiming, and a prismatic lens for enhanced beam quality.

Features :-

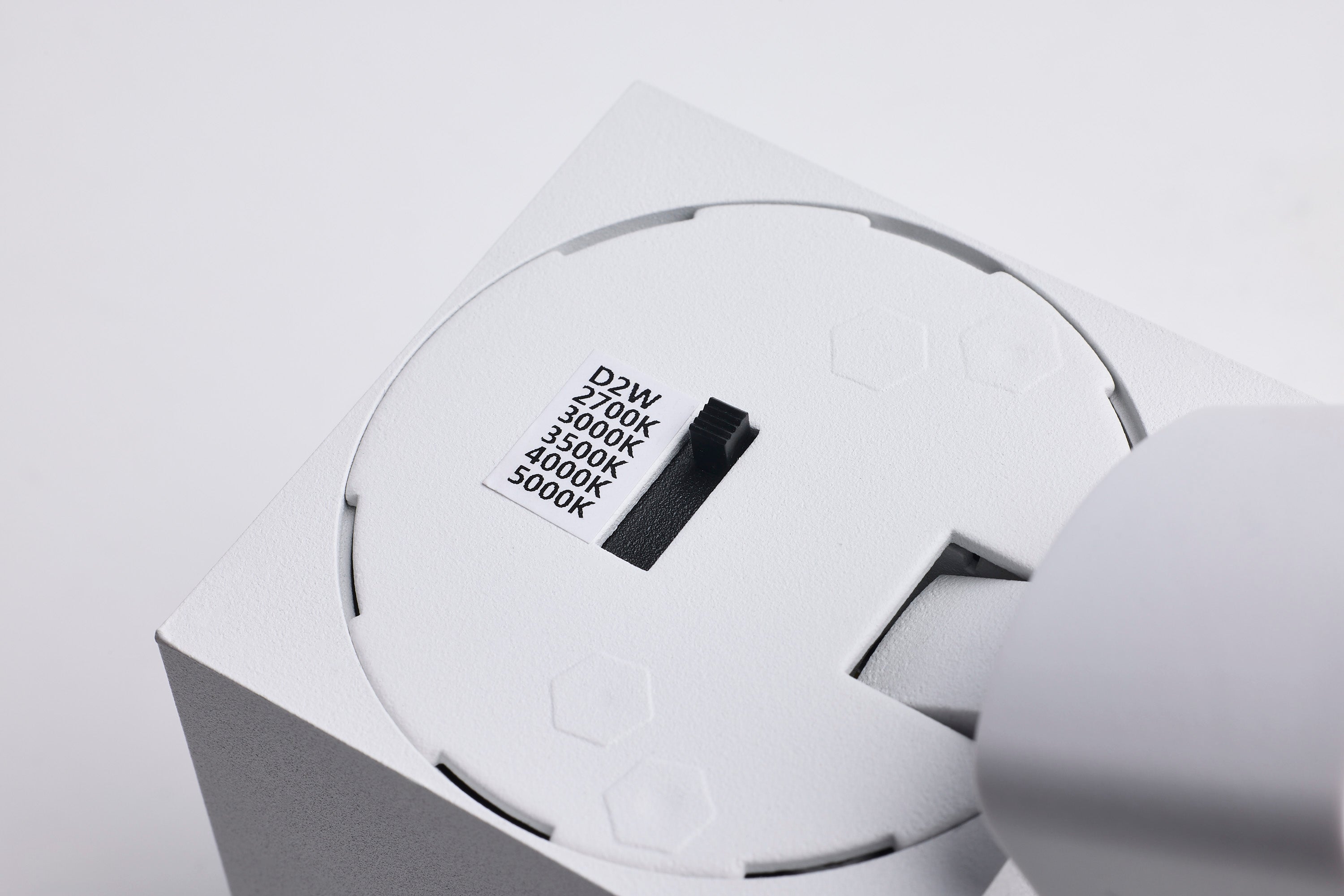

  • 5 CCT Selectable & Dim to Warm
  • 90 CRI High Quality Light
  • 36 Degree Beam Angle
  • H-Style Track Compatible
  • Clean White Finish
  • Phase-Cut dimmable down to 10%
  • T24 Compliant
  • 50,000 Life Hours
  • 3 Year Warranty
