Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 80W/100W/120W
Lumens 12107L-17789L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish Bronze
Beam Angle 106
HID Equivalent 400W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B2-U0-G2
Fixture Type Wall Pack
Photocell Yes - Bypassable
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
Sensor Capability PIR
Motion / Occupancy Sensor PIR
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Opaque

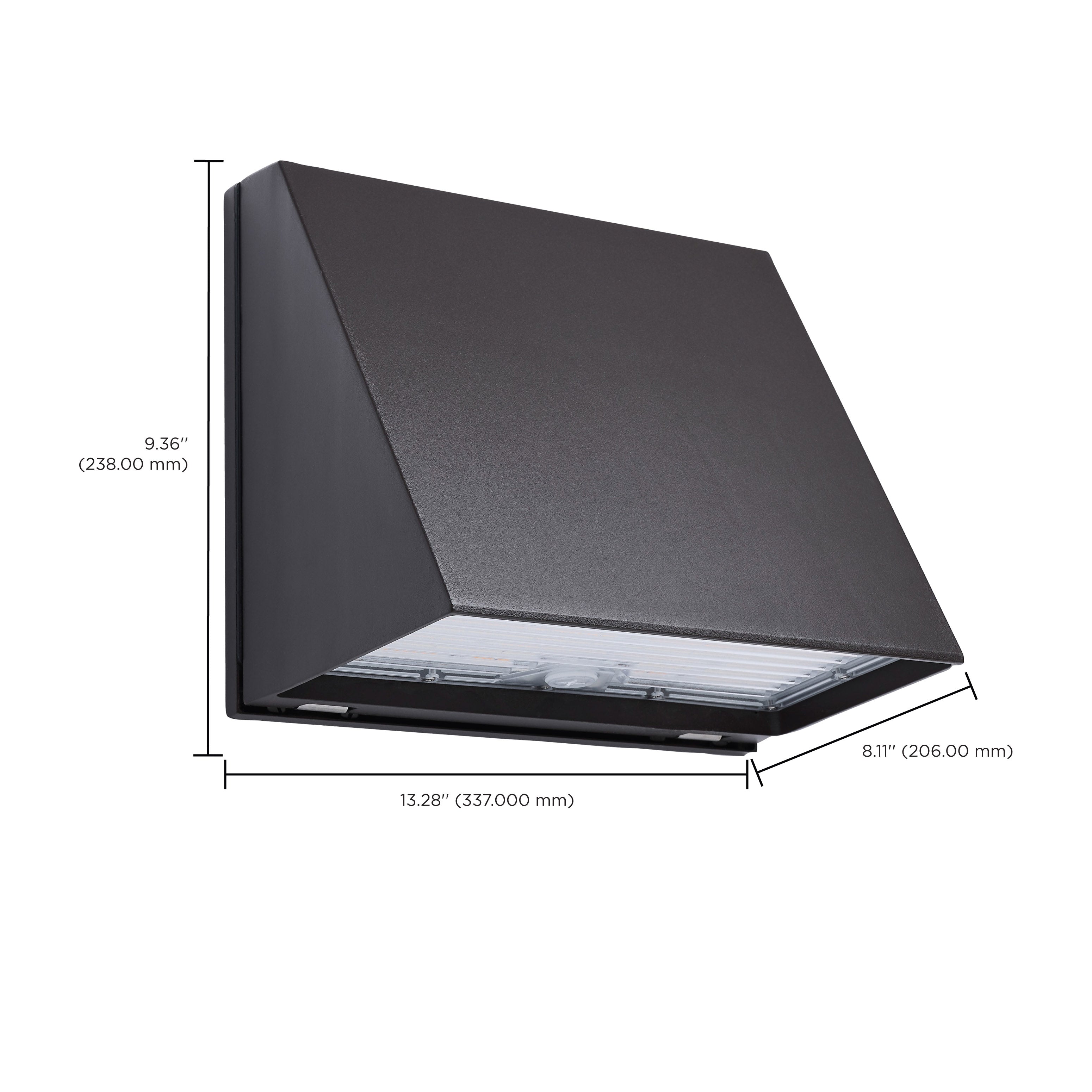

Width 13.28 IN
Height 9.36 IN
Weight 9.74 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +122F (-40C to +50C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose 80/100/120 Watt LED Cutoff Wall Pack - 3K/4K/5K CCT - Field Selectable - Bronze - 120-347 Volt when your project calls for a LED wall pack suited to replacement and new-installation projects where wall-mounted site lighting is preferred. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for perimeter lighting fixture that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well for facility managers and electrical contractors upgrading commercial building lighting. It is well suited to building perimeters, loading areas, walkways, parking areas and commercial entrances, where lighting needs to support the space rather than distract from it. This makes the product a practical outdoor wall lighting choice for customers also considering commercial wall pack light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Helps organize exterior lighting without requiring pole-mounted fixtures in every location. In warehouses, retail buildings and other properties needing wall-mounted exterior lighting, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to buy LED wall packs online, 80/100/120 Watt LED Cutoff Wall Pack offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

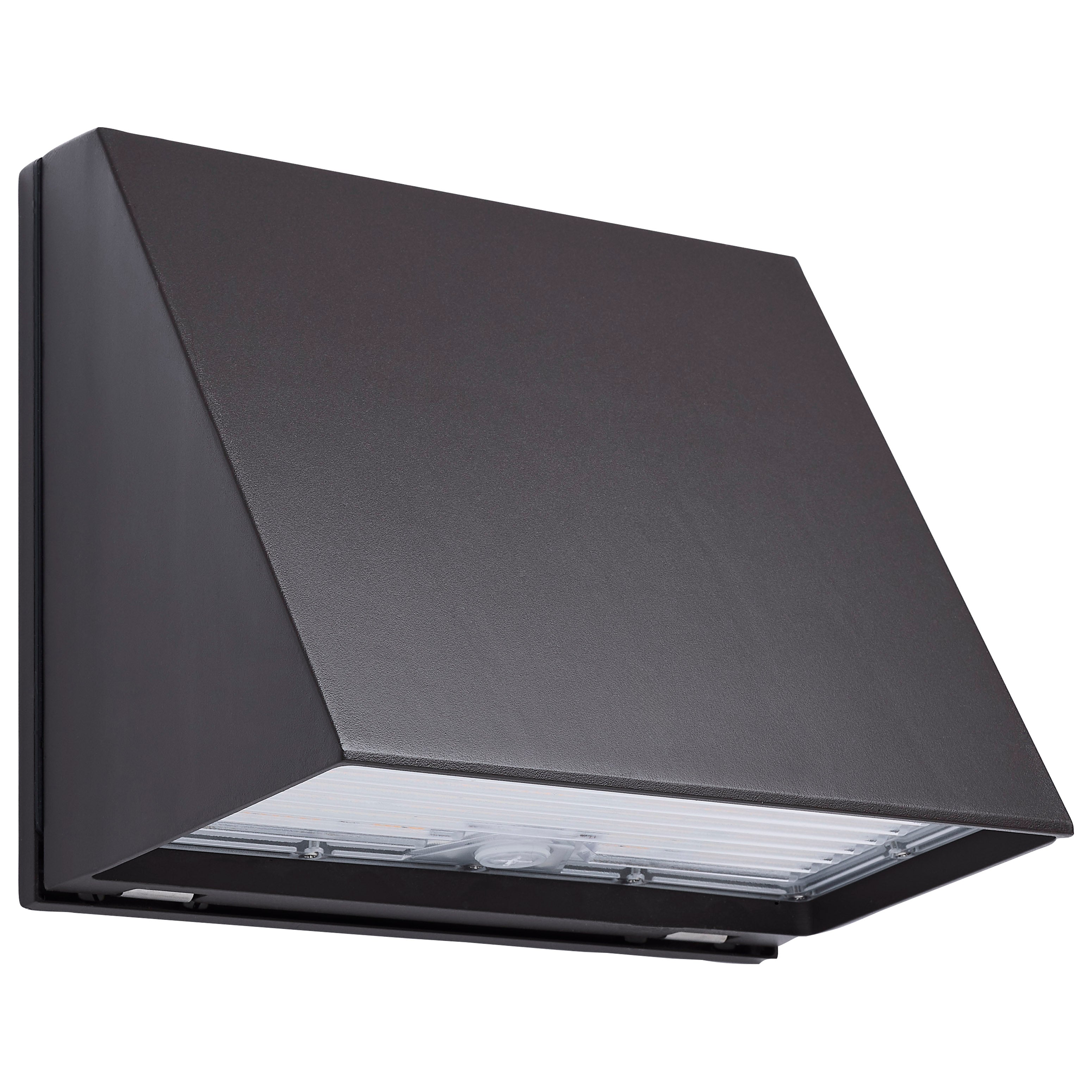

Illuminate outdoor spaces with SATCO NUVO's 65-556 architecturally styLED LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 80W, 100W, and 120W, delivering a maximum output of 17,789 lumens-equivalent to a 400W traditional source. A by-passable photocell and built-in sensor port provide added control, with optional sensors (sold separately) for customizable detection. The durable bronze die-cast aluminum housing complements building exteriors, while field-selectable CCT offers additional flexibility. Designed for longevity, it is wet-location rated, IP65 rated, and lasts 50,000 hours. Backed by DLC Premium certification and a 5-year warranty, this wall pack delivers reliable, adaptable illumination.

Features :-

  • Full Cutoff with Zero Uplight
  • B2-U0-G2 Rating

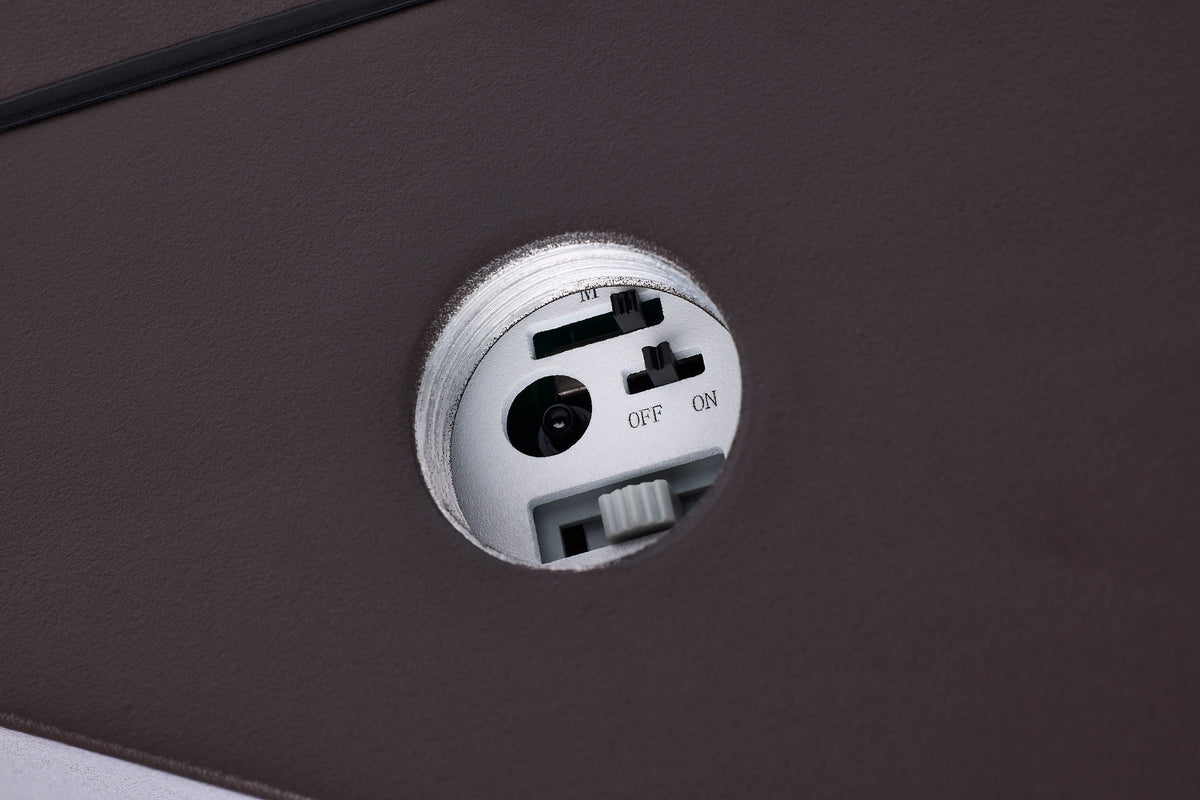

  • CCT and Wattage Selectable

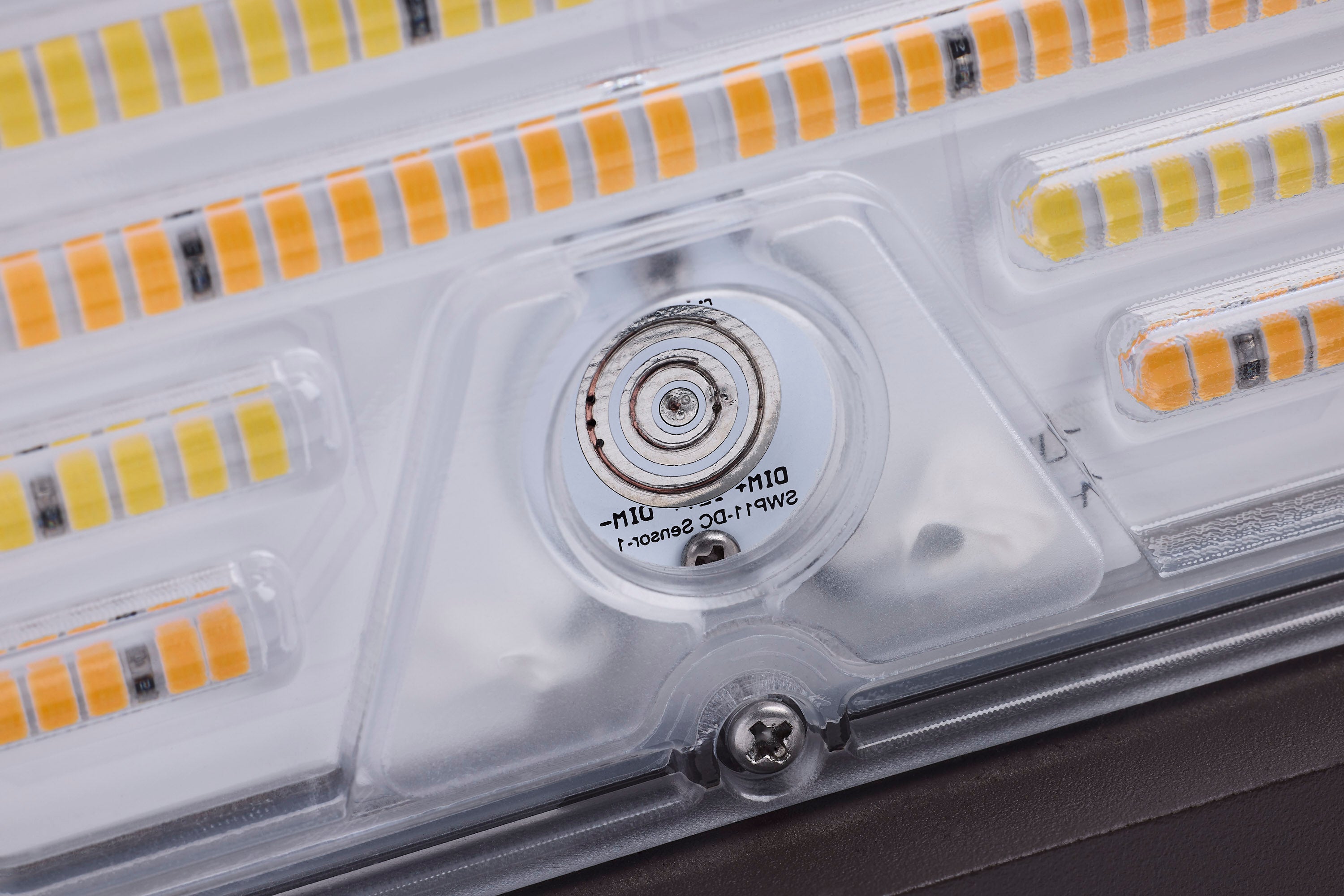

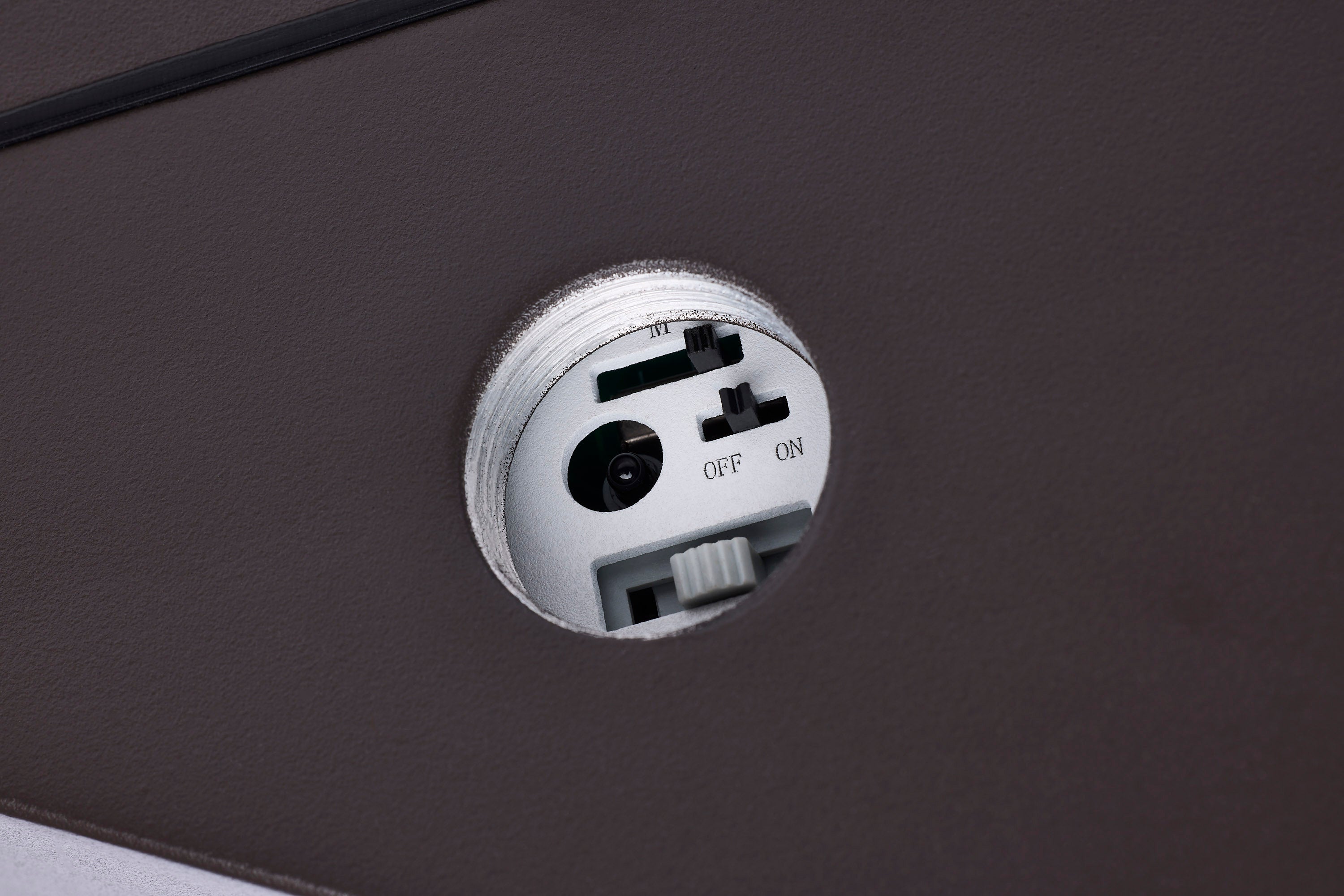

  • Integrated Sensor Port
  • Integrated By-passable Photocell
  • Range Voltage 120-347V
  • IP65 Rated
  • Bronze Die-Cast Aluminum Housing
  • 50,000 Hour Functional Life
  • 5 Year Warranty
