Specifications :-

Key Specifications
Fixture Type Commercial Retrofit Downlight
Wattage 10/17/21W
Lumens 1000/1800/2500 Lms
Color Temperature 2700/3000/3500/4000/5000K
Color Rendering Index (CRI) 90
Dimmable Yes
Voltage 120-277V
HID Equivalent 150
Beam Angle 80 Degrees +/- 10Deg
Shape Round

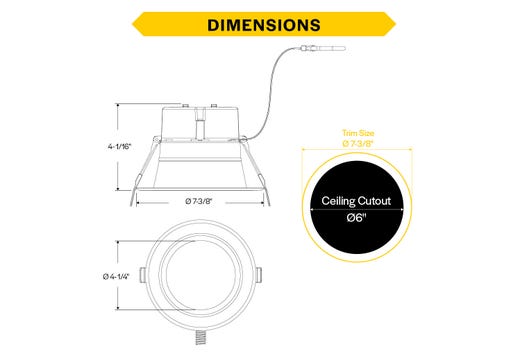

Size 6in
Performance
Rated Life 50,000 Hrs
Electrical
Power Factor 0.9
Dimming Triac/ELV or 0-10V
Features / Controls
Wattage Selectable Yes
Color Temperature Selectable Yes
Construction / Installation
Finish White
Material Powder Coated Steel Reflector
Weight 1.5 Lbs
Lens / Diffuser Diffused, Textured Polycarbonate Lens
Mounting Type Mouse Trap Steel Spring Clips. Install with or without existing frame.
Environment / Ratings
Application Office Parks, Commercial Buildings, Commercial Maintenance Facilities, K-8 Schools, Colleges and Universities, Architectural building entrances, Big Box Retail Stores
Location Rating Wet
Operating Temperature -20C (-4F) to 40C (104F)
IP Rating IP65
Certifications / Compliance
Safety Listing ETL Listed / TAA
ENERGY STAR Yes
Title 24 / JA8 Yes
RoHS Compliant Yes
FCC Compliant Yes
Downloads / Pro Data
Warranty 5 Years

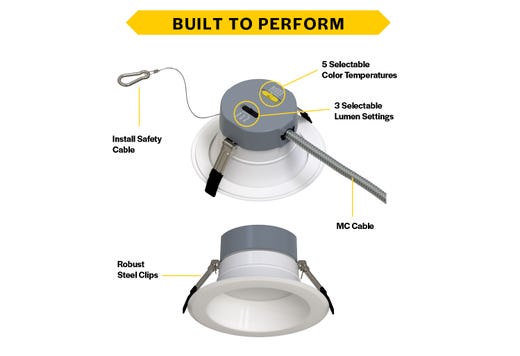

Halco's Retrofit Commercial Downlights are a quick, easy, and convenient way to reinvent commercial lighting spaces. Color temperatures and light output can be chosen before or after installation with the flip of a switch. There is Noneed to worry about what type of dimming is currently being used in the space as the integral fixture driver for the CDL Series can dim using either 0-10V or ELV/Triac phase cut protocols. When emergency lighting is needed, the CDLEM family offers an aesthetically pleasing integral emergency battery backup solution. The robust spring clips and quick connect metal clad cables makes installation of the fixture and battery backup a breeze and the low profile combination test switch and charging indicator light eliminate large, unsightly ceiling and fixture mounted buttons. White and Haze colored reflectors, combined with all the other fixture options of the CDL family complete the look and make your commercial retrofit lighting projects a success.

Key Features

  • Dual Dimming Universal 120-277V (0-10V) or 120V TRIAC/ELV
  • IP65, Wet Location, Energy Star, Title 24, FCC, ETL, Rohs

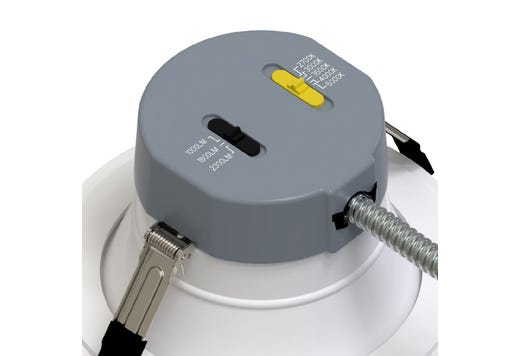

  • Lumen and Color Temp (5 CCT's) Selectable
  • White Reflector and White Flange/Trim
  • Mouse Trap Universal Steel Spring Clips
  • Can or Canless Installation

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the Commercial Retrofit Downlight, 6in, Lumen and CCT Select, 120-277V, Dimmable TRIAC/ELV & 0-10V, White Reflector, White Flange

What lighting applications should buyers consider first for this 80° beam 120-277V LED downlight during project planning?

What technical output details matter most when comparing this LED downlight with similar LED lighting options?

What electrical requirements should contractors check before integrating this LED downlight into a lighting project?

How can customers order this selectable wattage 120-277V LED downlight confidently after reviewing electrical and installation specifications?
