Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 15W/20W/25W
Lumens 1950L-3500L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
HID Equivalent 100W-150W
Shape Rectangle
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B1-U3-G1
Fixture Type Strip Light
Length 24 IN
Photocell Has Photocell
Mounting Type Ceiling/Wall
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 10.60%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming, Bi-Level Dimmable
Construction / Installation
Material Steel
Finish/Lens White

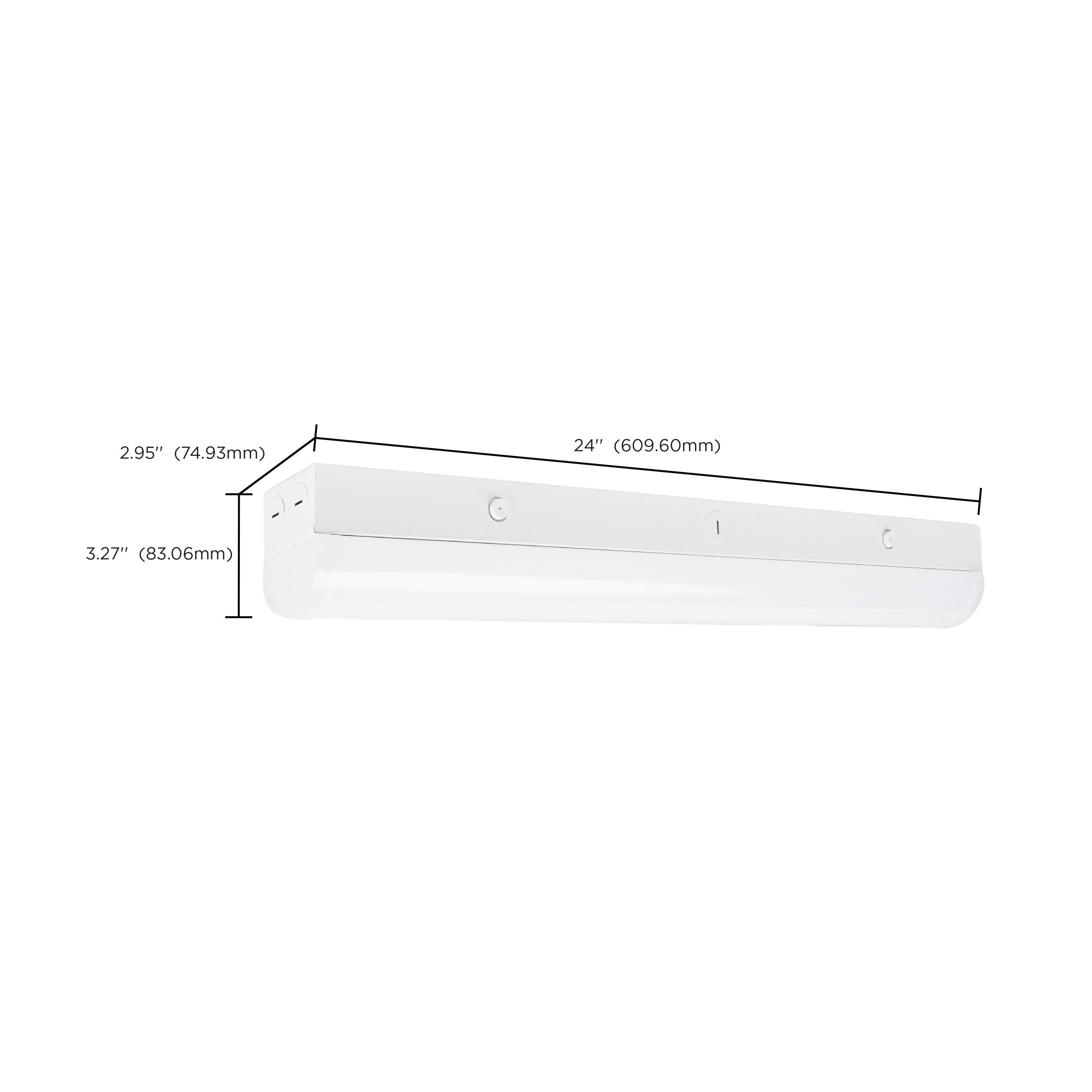

Width 2.95 IN
Height 3.27 IN
Weight 2.31 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -4F to +140F (-20C to +60C)
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

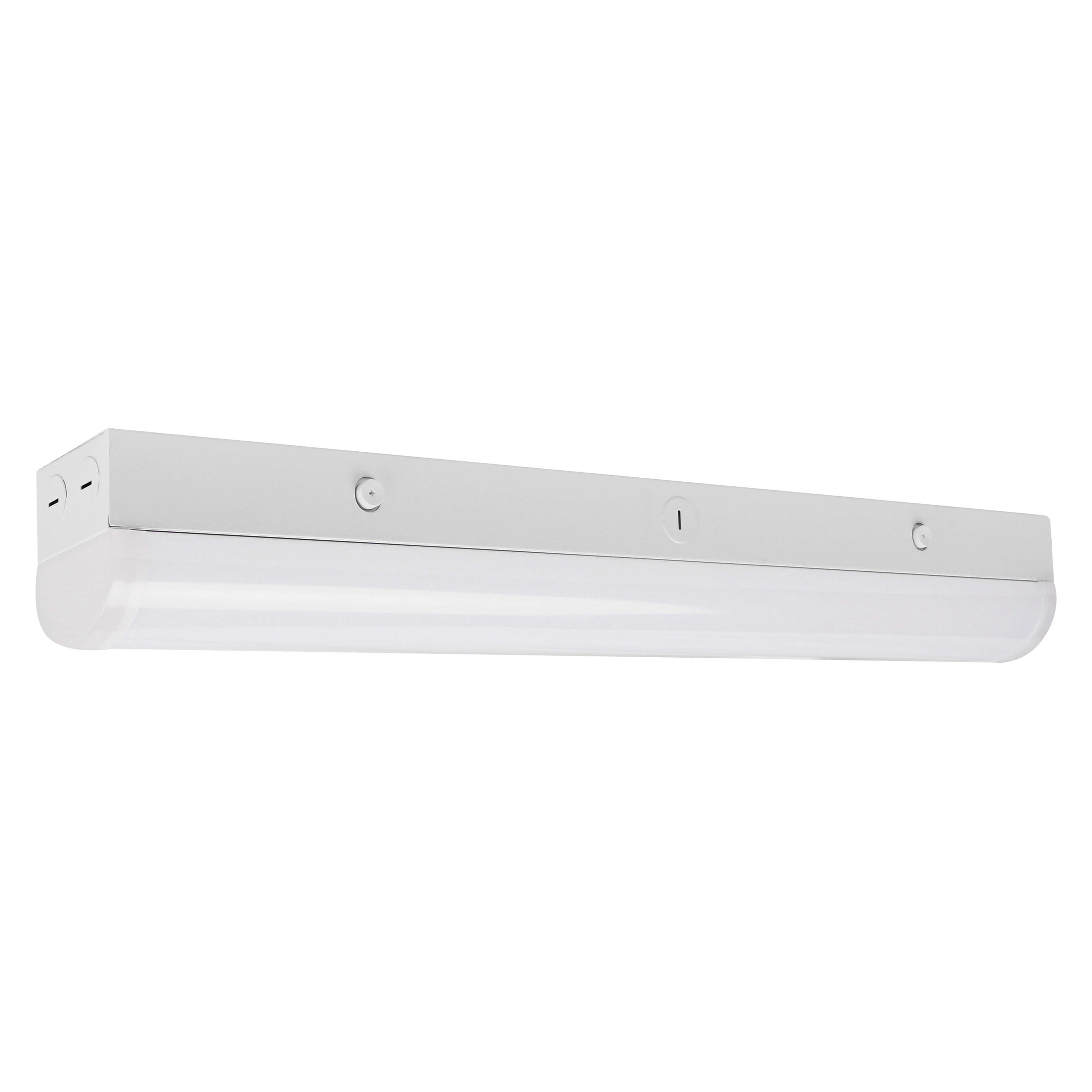

LED 2 ft. - Linear Strip Light - 15/20/25 Watt - 35K/40K/50K CCT Selectable - White Finish - 120-277V - Integrated EM & Sensor brings the familiar role of a linear LED fixture to workshops, utility rooms, garages, storage areas, corridors and general commercial interiors. It is a practical choice for customers comparing linear LED light and LED strip light fixture for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

A useful choice for contractors and facility teams standardizing linear fixtures across a property. It is well suited to commercial and light-industrial spaces that benefit from continuous linear illumination, where lighting needs to support the space rather than distract from it. This makes the product a practical LED strip light fixture choice for customers also considering shop light fixture as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Creates a straightforward lighting layout that is easy to repeat across longer rooms or work areas. In maintenance replacements, renovations and new projects using simple overhead linear lighting, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to order commercial linear lighting fixtures, LED 2 ft. is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

SATCO NUVO's new 65-698R1 linear strip light, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT selectable technology. This 2 foot, 15/20/25 wattage selectable version will offer both function and value with a quick release button for easy set-up, and additional options like emergency battery backup, microwave, and PIR sensors. So much versatility in one great solution!

Features :-

  • Flicker Free Driver
  • CCT Selectable (3500K/4000K/5000K)
  • Quick Release Feature for Easy Opening and Installation
  • Integrated EM (4W/90 Minute Run Time)
  • Integrated Microwave Sensor with Bi-level Dimming and On/Off Capabilities
  • 5 Year Warranty
  • Multiple Mounting Options
  • 2KV Surge Protection
