Specifications :-

Key Specifications
Wattage 20/30/40W
Lumens 2500/3750/5000 Lms
Color Temperature 3500/4000/5000K
Color Rendering Index (CRI) 80
Dimmable Yes
Voltage 120-277V
Size 2x2
Fixture Type 2x2 Troffer
Mounting Type Other Mount options sold separately
Performance
Rated Life 50000 hrs
Electrical
Frequency 50/60hz
Power Factor 0.9
Dimming 0-10V
Features / Controls
Color Temperature Selectable Yes
Wattage Selectable Yes
Emergency Backup Yes
Construction / Installation
Finish White
Material Steel
Length 25.6 In
Width 5.12 In
Height 25.8 In
Weight 12.2 Lbs
Lens / Diffuser Polycarbonate
Environment / Ratings
Application Offices, Hospitals, Commercial applications, New construction or retrofit installations
Location Rating Damp
Operating Temperature -20C (-4F) to 40C (104F)
IP Rating IP40
Certifications / Compliance
Safety Listing ETL Listed
RoHS Compliant Yes
DLC DLC 5.1 Listed
Downloads / Pro Data
Warranty 5 Years

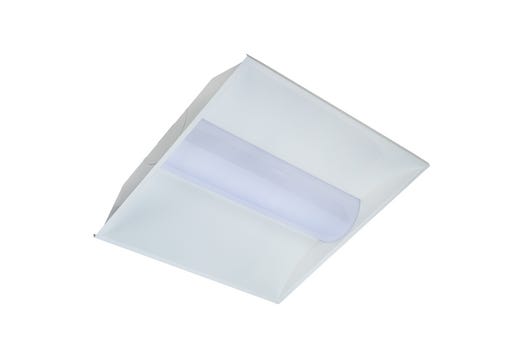

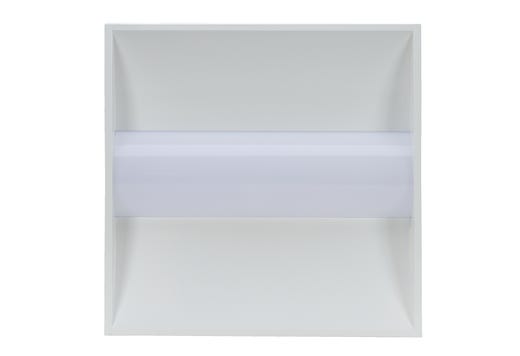

Topaz Center Basket Troffers are now power and color temperature selectable for even more versatility. Choose from three popular wattage and CCT configurations at installation to create the ideal atmosphere for any commercial application. Further enhance energy savings and control the ambiance of offices, hospitals and retail locations with our optional dimmer.

Key Features

  • 3 wattage Levels and 3 CCT choices in a single fixture, offering functionality of 9 SKUs in 1 fixture
  • Center basket with deep arc shape volumetric design for uniform and smooth light distribution
  • Strong steel housing, white frame with polycarbonate lens

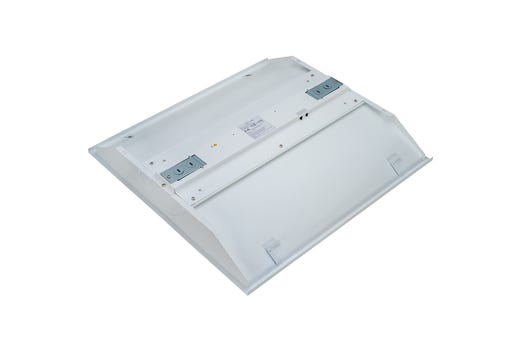

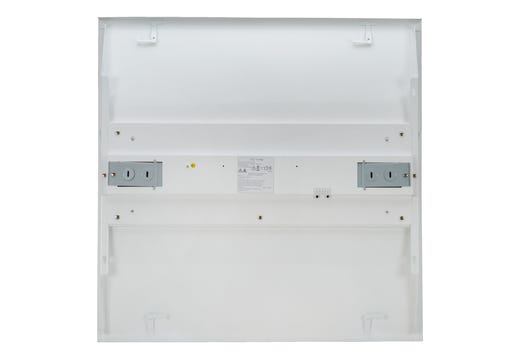

  • Spacious junction box for easy wiring and installation
  • Universal Input Voltage 120-277V
  • Compatible with 15/16in and 9/16in drop ceiling or surface mount installation*
  • Pre-installed clips to safely secure fixture to the T-grid
