Specifications :-

Key Specifications
Fixture Type Adjustable Wallpack
Wattage 45/60/75W
Lumens 6060/7570/9440 Lms
Color Temperature 3000/4000/5000K
Color Rendering Index (CRI) 84
Dimmable Yes
Voltage 120-277V
Performance
Rated Life 50000 hrs
Electrical
Frequency 50/60hz
Power Factor 0.9
Dimming 0-10V
Features / Controls
Wattage Selectable Yes
Color Temperature Selectable Yes
Controls Photocell Included
Photocell Yes
Construction / Installation
Finish Bronze
Material Die-cast aluminum housing
Length 13.2 In
Width 10.43 In
Height 6.7 In
Weight 5.8 Lbs
Lens / Diffuser IK10 Impact Resistant Polycarbonate
Environment / Ratings
Application Commercial and residential Security lighting Perimeter lighting Warehouses Condos - Apartments Hotels
Location Rating Wet
Operating Temperature -40C (-40F) to 45C (113F)
IP Rating IP65
IK IK10
Certifications / Compliance
Safety Listing ETL Listed
DLC DLC 5.1 Premium
Downloads / Pro Data
Warranty 5 Years

For precise, dark-sky-friendly illumination that cuts down on excessive glare and brightness, the polycarbonate glass can be adjusted up or down 90 degrees. Up to nine distinct illumination configurations are possible with the three wattage options and the three color temperature options of 3000K, 4000K, and 5000K. This unit turns on or off during the day due to its integrated dusk to dawn photocell. This unit have four NPT 12in threaded hubs for additional accessories or conduit and a sturdy aluminum shell in addition to being made to weather the environment.

Key Features

  • Power Selectable - 3 Wattage / Lumen Choices
  • CCT Selectable Switch 3000K, 4000K, 5000K

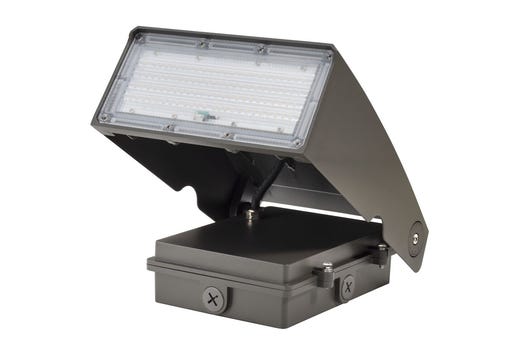

  • Adjusts up to 90 Degree for precise illumination
  • Die cast aluminum housing with IK10 rated impact resistant polycarbonate lens
  • Integrated dusk-to-dawn photocell
  • Four NPT 1/2in threaded hubs
