Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 450W
Wattage 150W
Lumens 19736L
Color Temperature 5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 277V-480V
Finish Bronze
HID Equivalent 320W
Light Distribution B5-U3-G2
Fixture Type Area Light
Length 20.71 IN
Photocell Optional
Mounting Type Wall/Pipe Arm
Performance
Rated Life 50000 hrs
Light Color Description Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 4KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Width 12.4 IN
Height 3.11 IN
Weight 8.08 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor, Outdoor
Location Rating Wet
Operating Temperature -40F to +113F (-40C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose LED Area Light Type V - 150W - Bronze Finish - 5000K - 277-480V when your project calls for a LED area light suited to parking lots, drive lanes, commercial properties, walkways and general site-lighting layouts. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for site lighting fixture that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A practical product family for property owners replacing or expanding exterior area lighting. It is well suited to retail centers, warehouses, campuses and exterior property areas, where lighting needs to support the space rather than distract from it. This makes the product a practical shoebox light choice for customers also considering parking lot light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports organized outdoor illumination plans for vehicle and pedestrian areas. For new construction and retrofit projects that need broad outdoor coverage from pole-mounted or site fixtures, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to order commercial site lighting fixtures, LED Area Light Type V is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

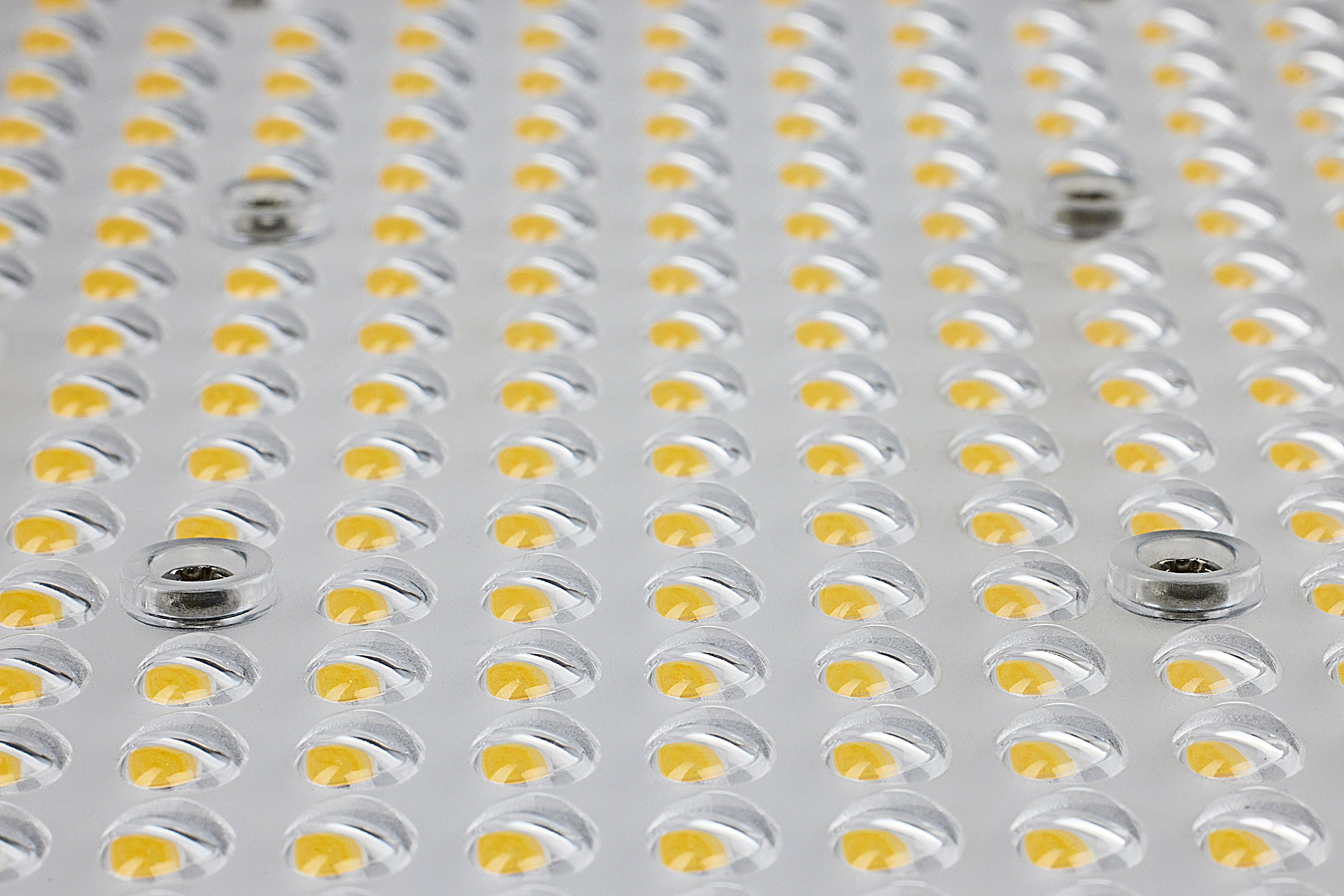

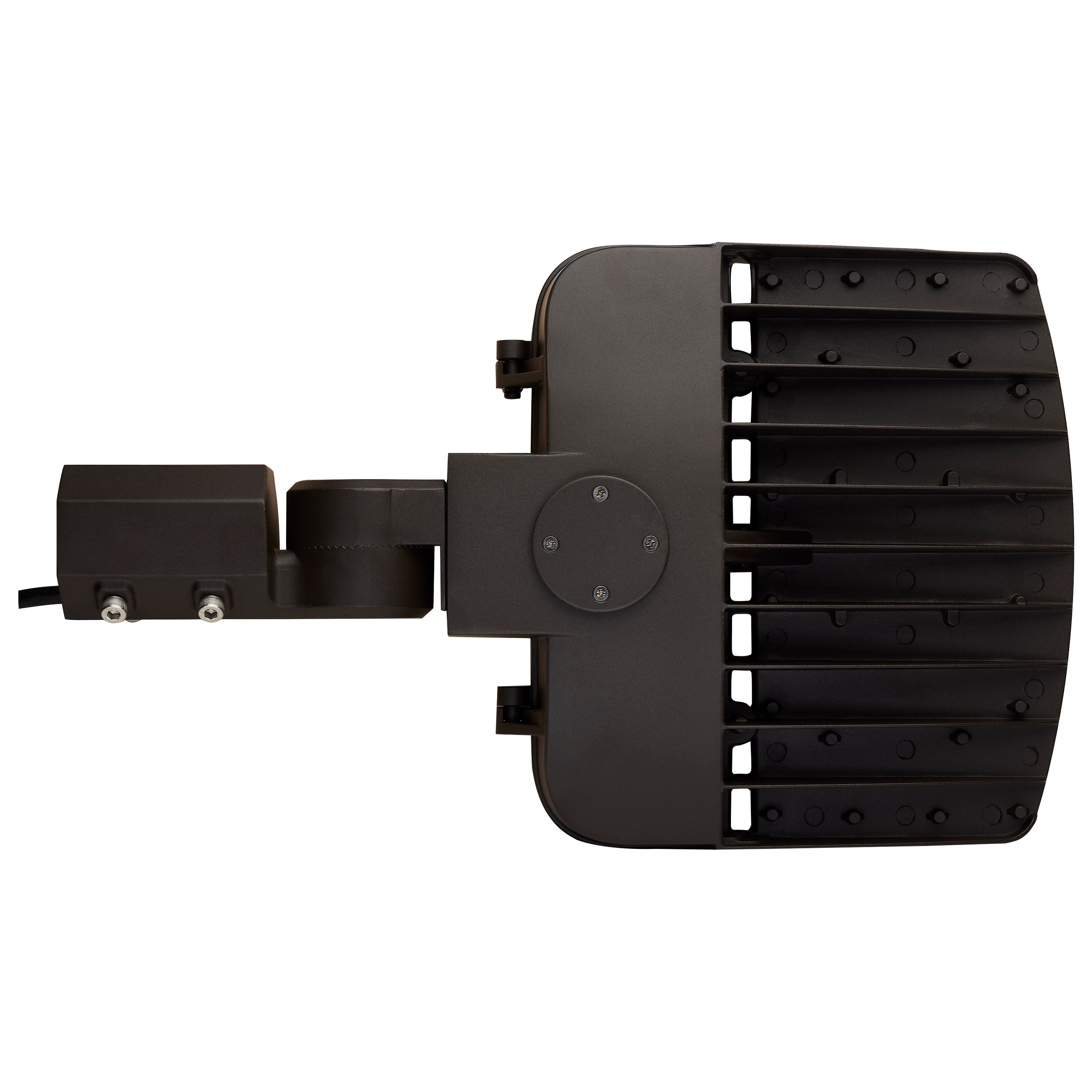

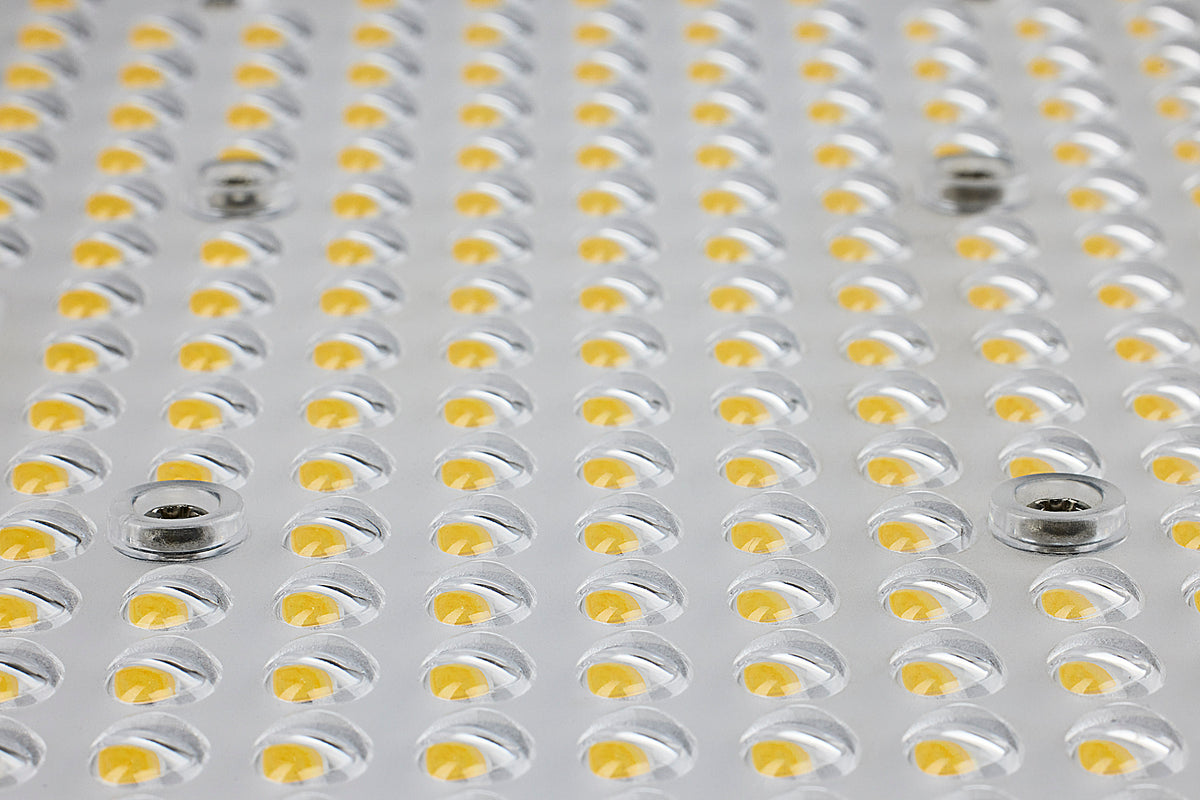

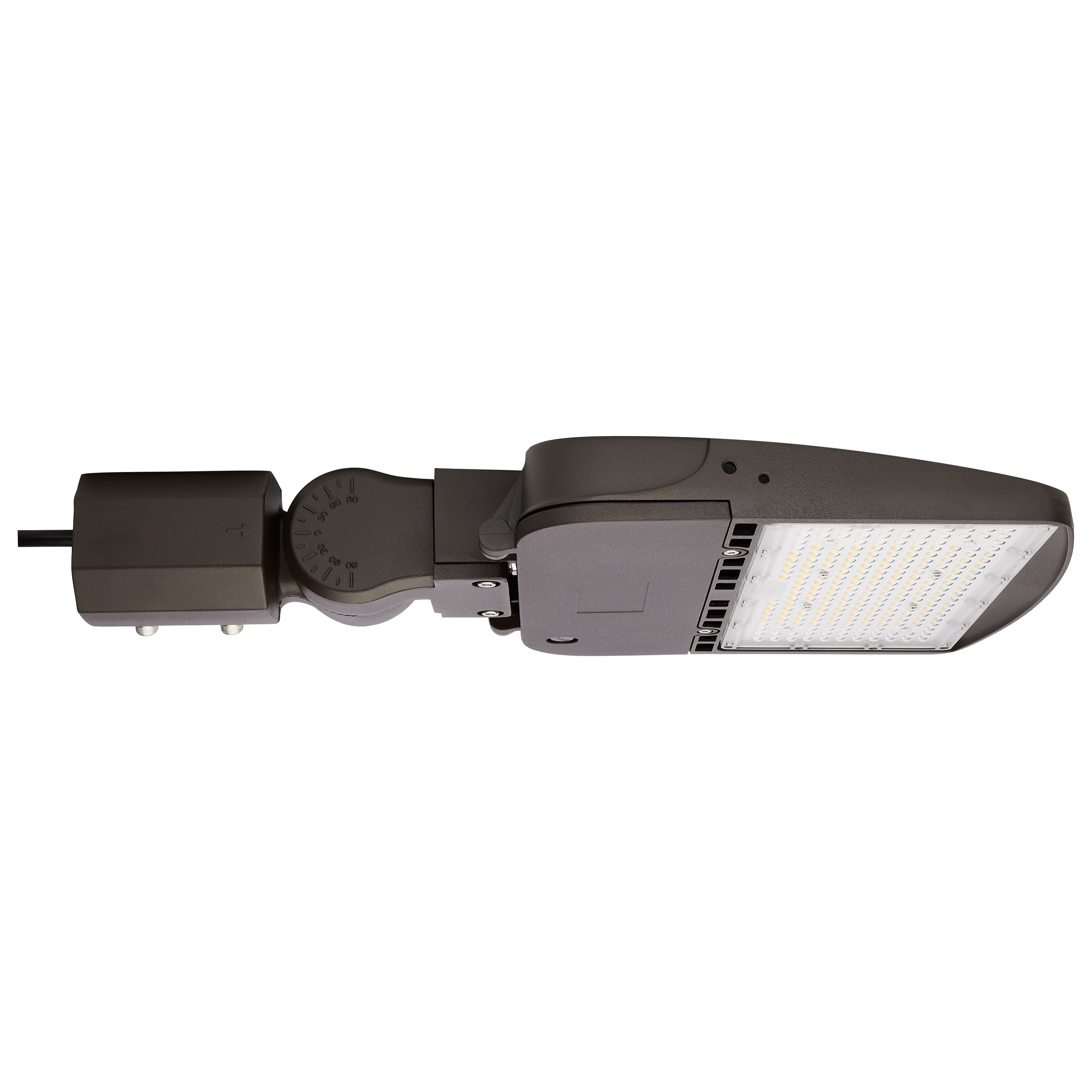

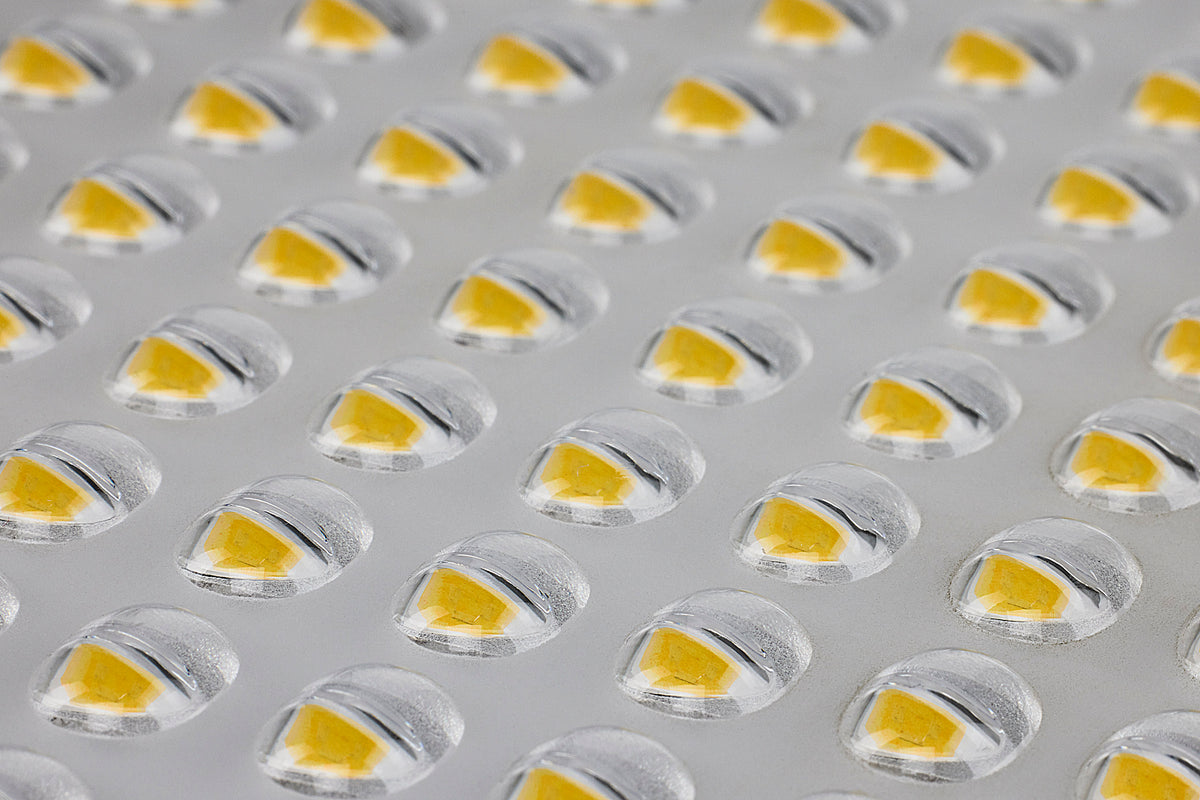

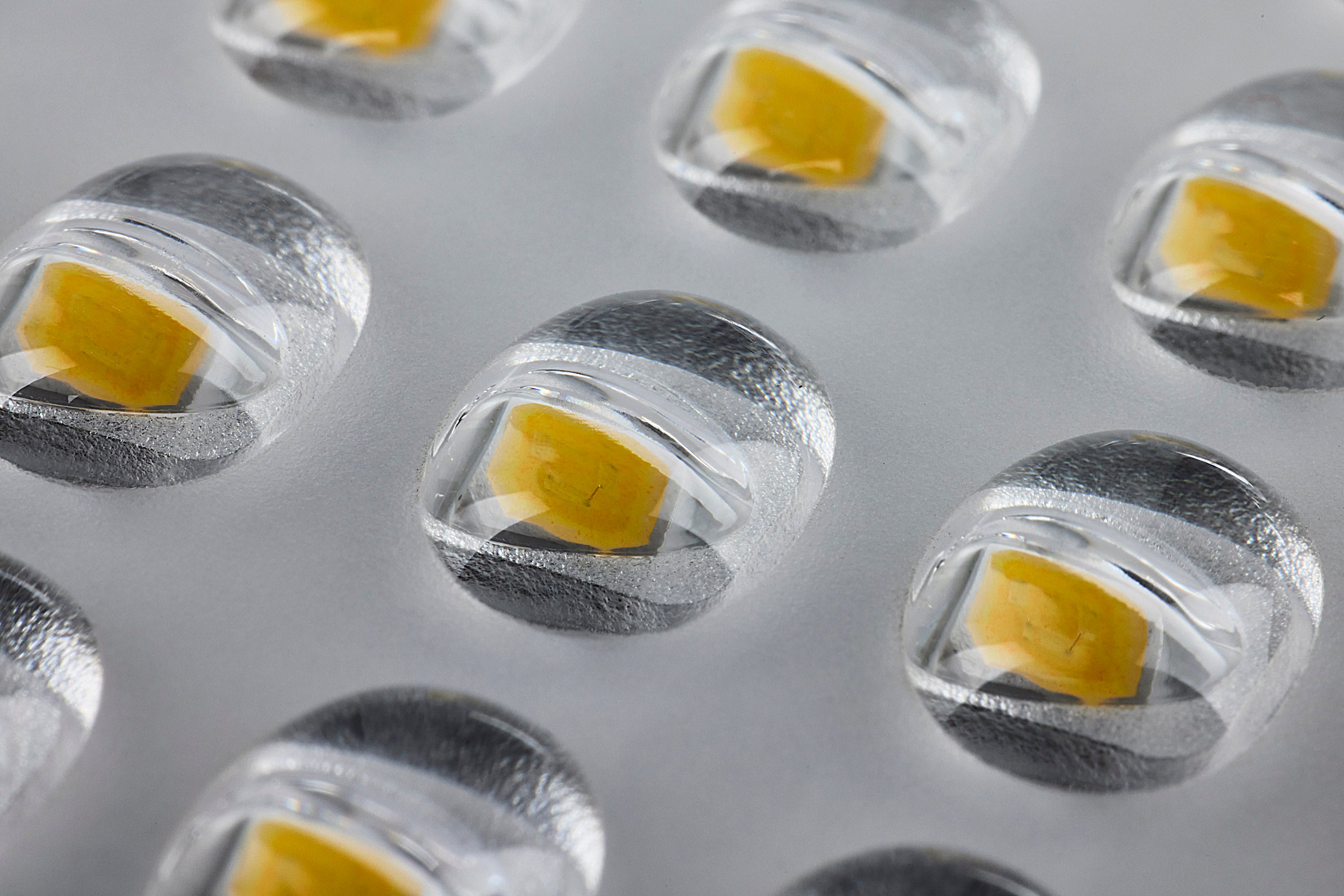

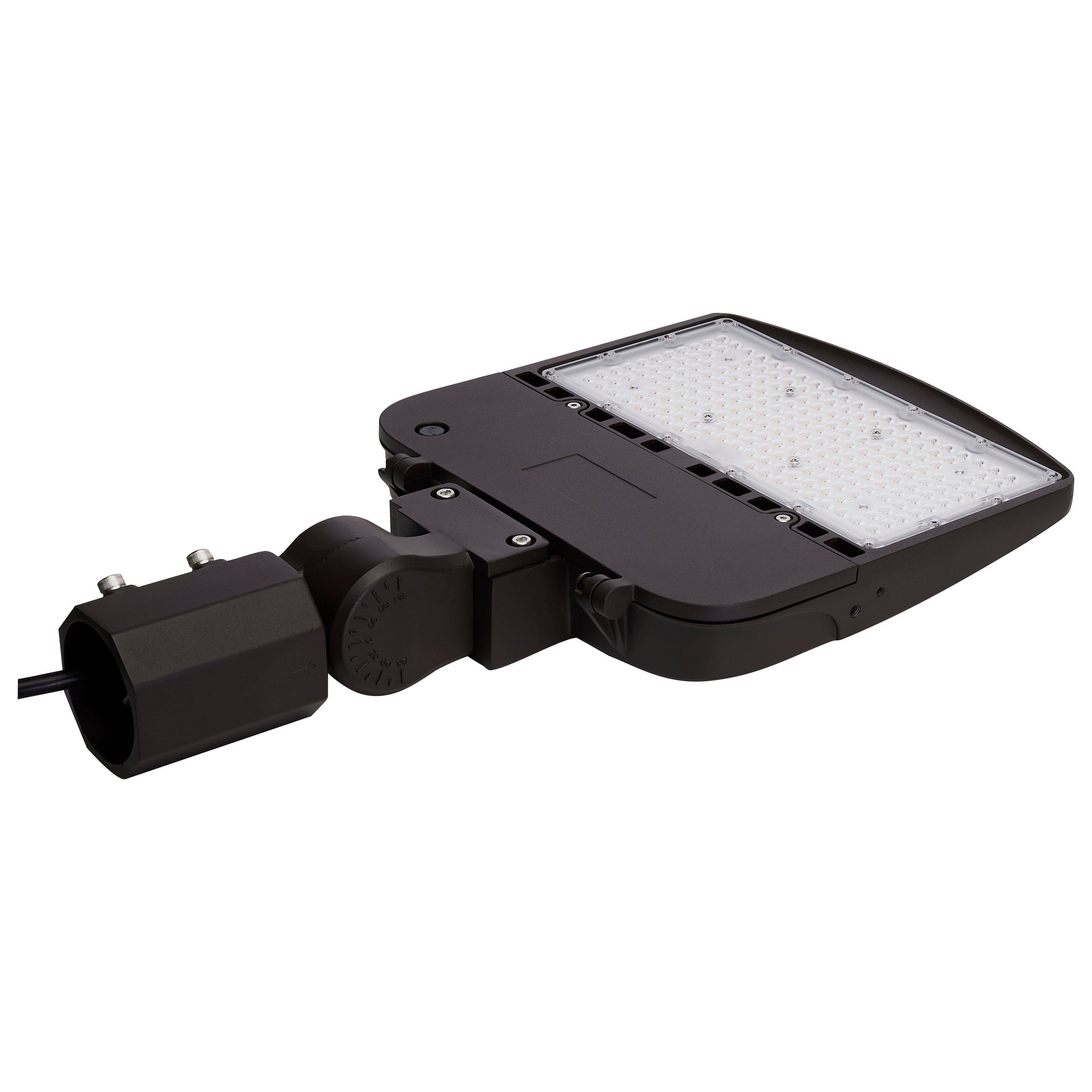

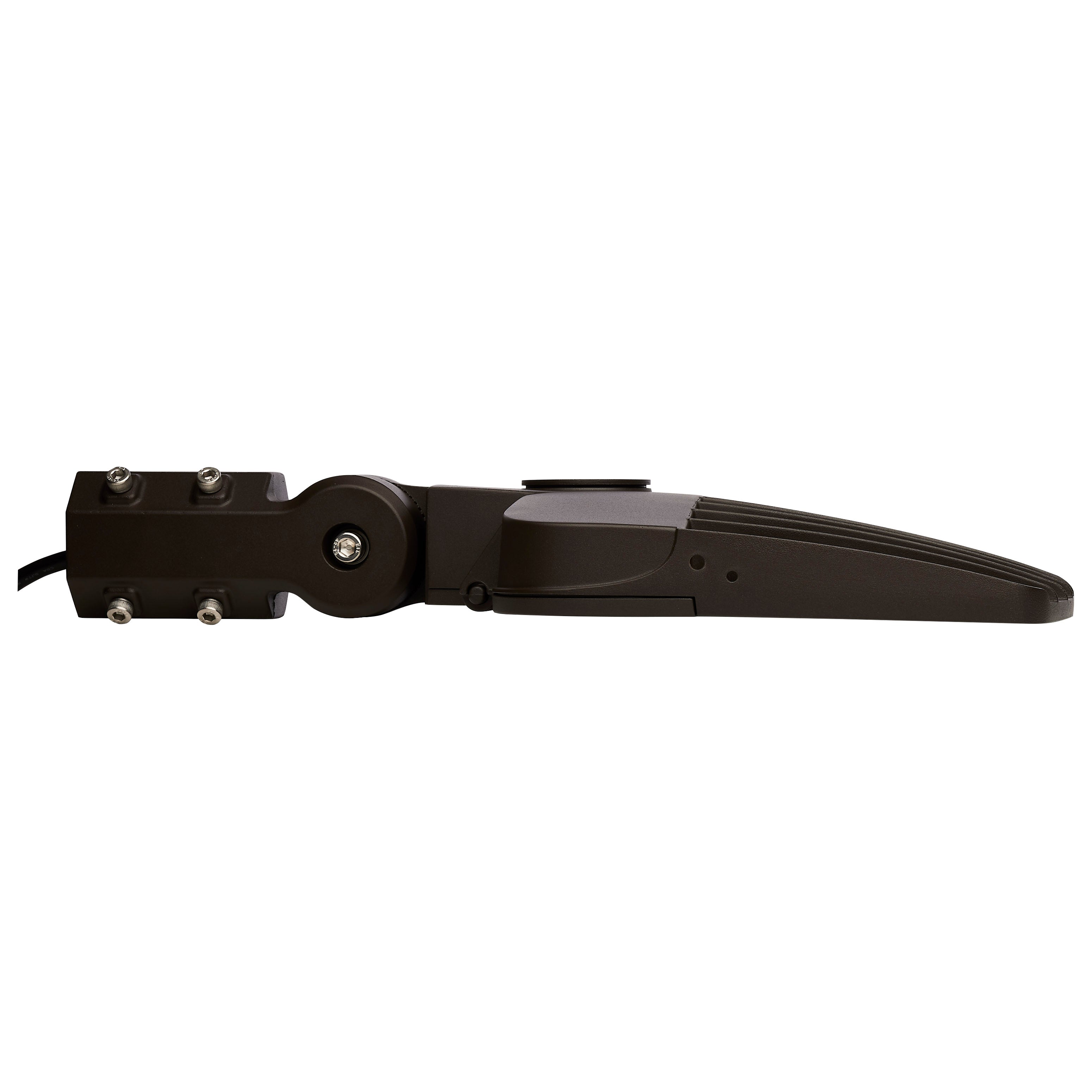

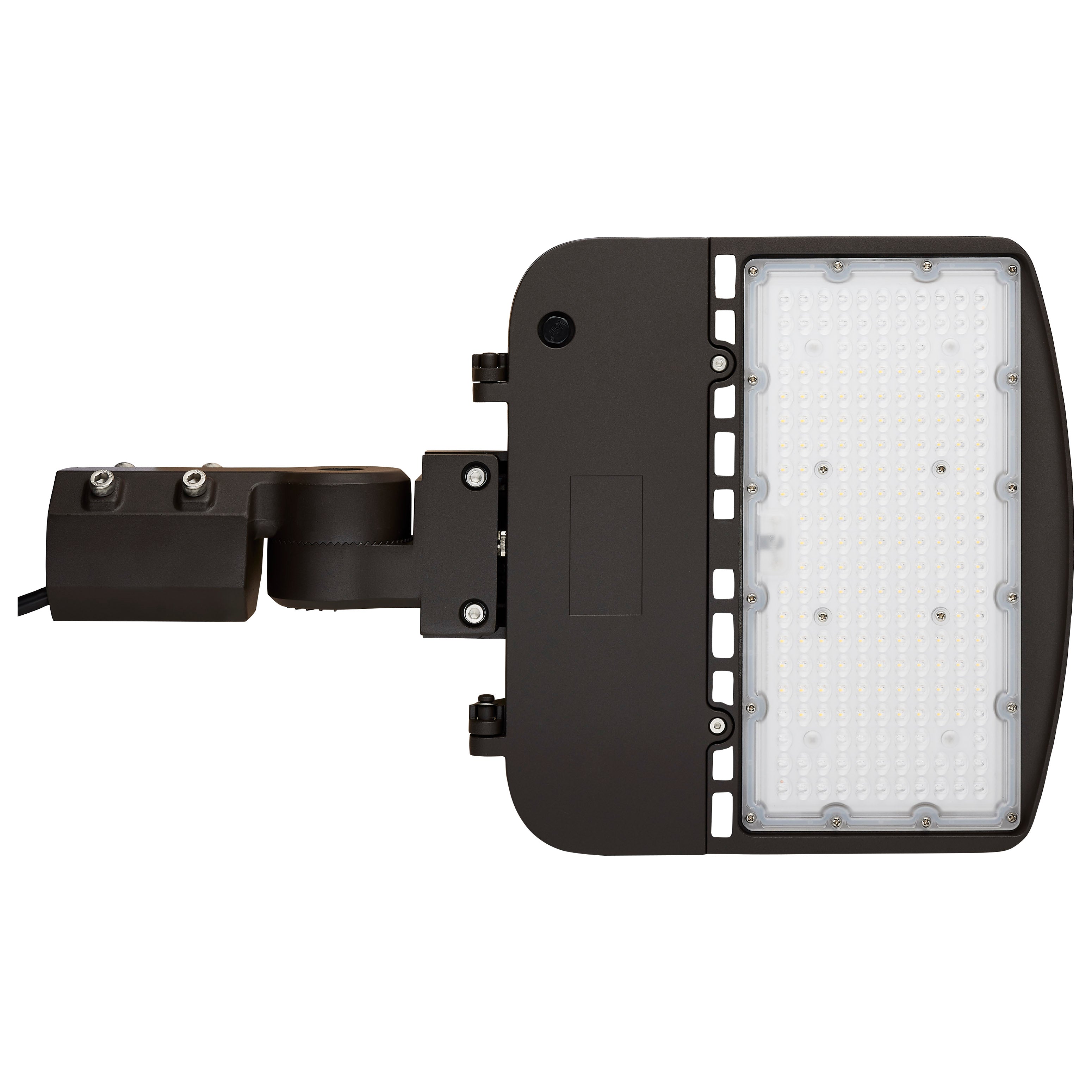

SATCO NUVO's 65-863-5 150W LED Area Light Type V provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.

Features :-

  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish
  • Slip-fitter mount included
  • IP65 Rated
  • Multiple mounting options available
  • Add-on sensors available
  • TYPE V Lighting Distribution
  • 4KV Built-In Surge Protection
  • 5-Year Warranty
