Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 2000W
Wattage 240W
Lumens 31481L
Color Temperature 4000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 277V-480V
Finish Bronze
HID Equivalent 500W
Light Distribution B5-U3-G2
Fixture Type Area Light
Length 30.28 IN
Photocell Optional
Mounting Type Wall/Pipe Arm
Performance
Rated Life 50000 hrs
Light Color Description Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection - 4KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Width 12.39 IN
Height 3.11 IN
Weight 11.93 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor, Outdoor
Location Rating Wet
Operating Temperature -40F to +113F (-40C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose LED Area Light Type V - 240W - Bronze Finish - 4000K - 277-480V when your project calls for a LED area light suited to retail centers, warehouses, campuses and exterior property areas. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for parking lot light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well for contractors and facility teams planning commercial site-lighting upgrades. That is especially useful in new construction and retrofit projects that need broad outdoor coverage from pole-mounted or site fixtures. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED area light, this option is well suited to projects involving site lighting fixture, commercial outdoor lighting and other coordinated lighting upgrades.

A practical product family for property owners replacing or expanding exterior area lighting. In parking lots, drive lanes, commercial properties, walkways and general site-lighting layouts, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to buy LED area lights online, consider LED Area Light Type V for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

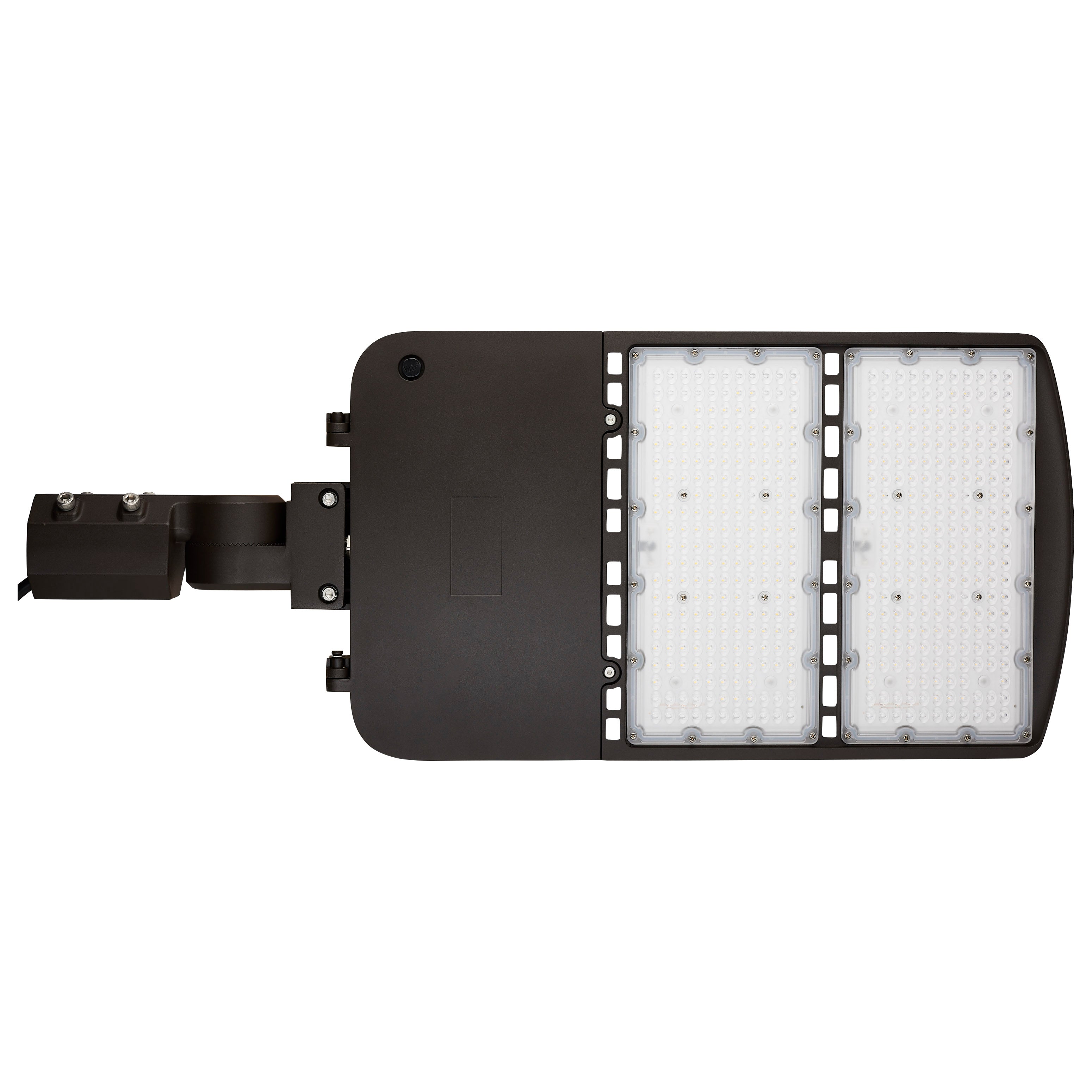

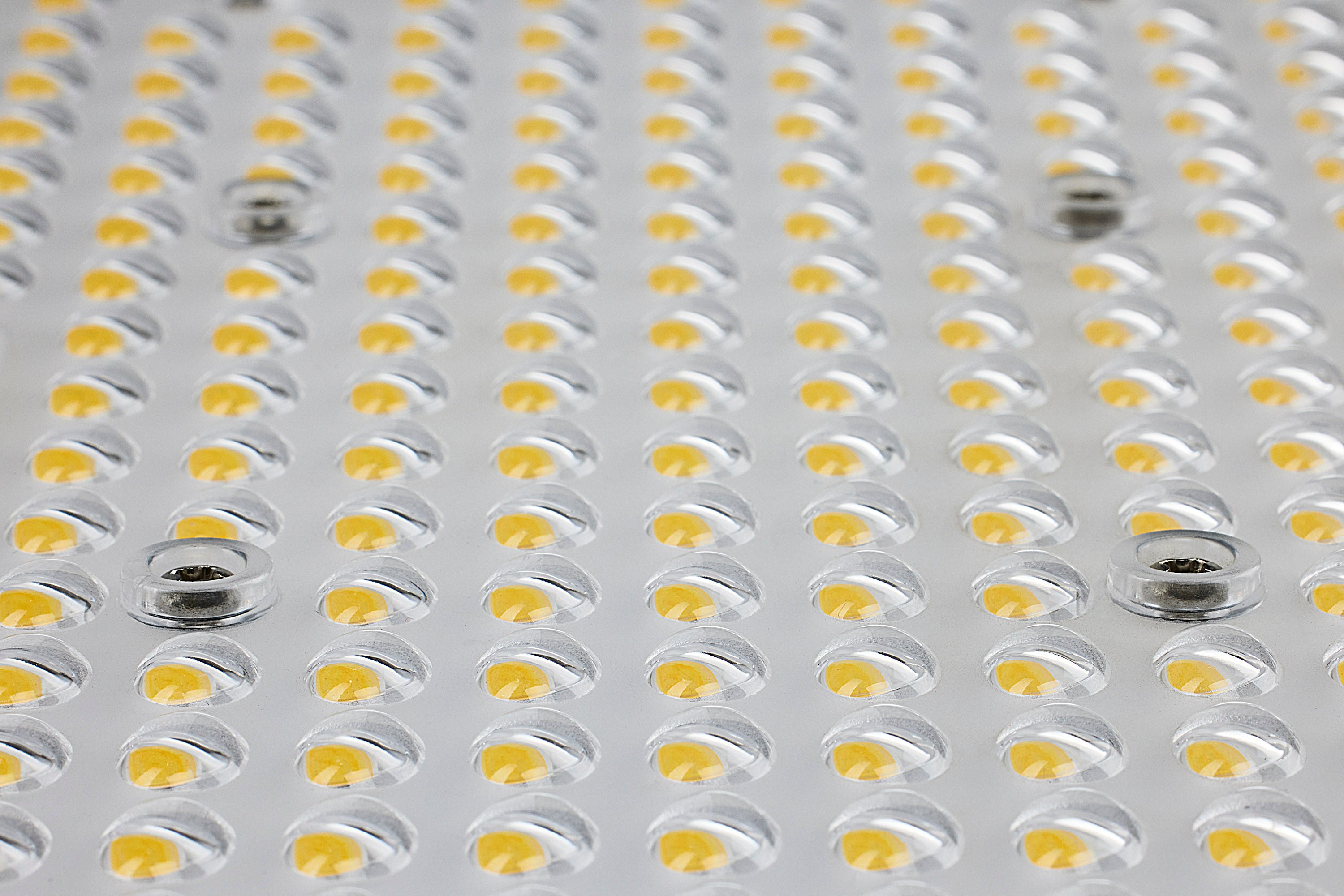

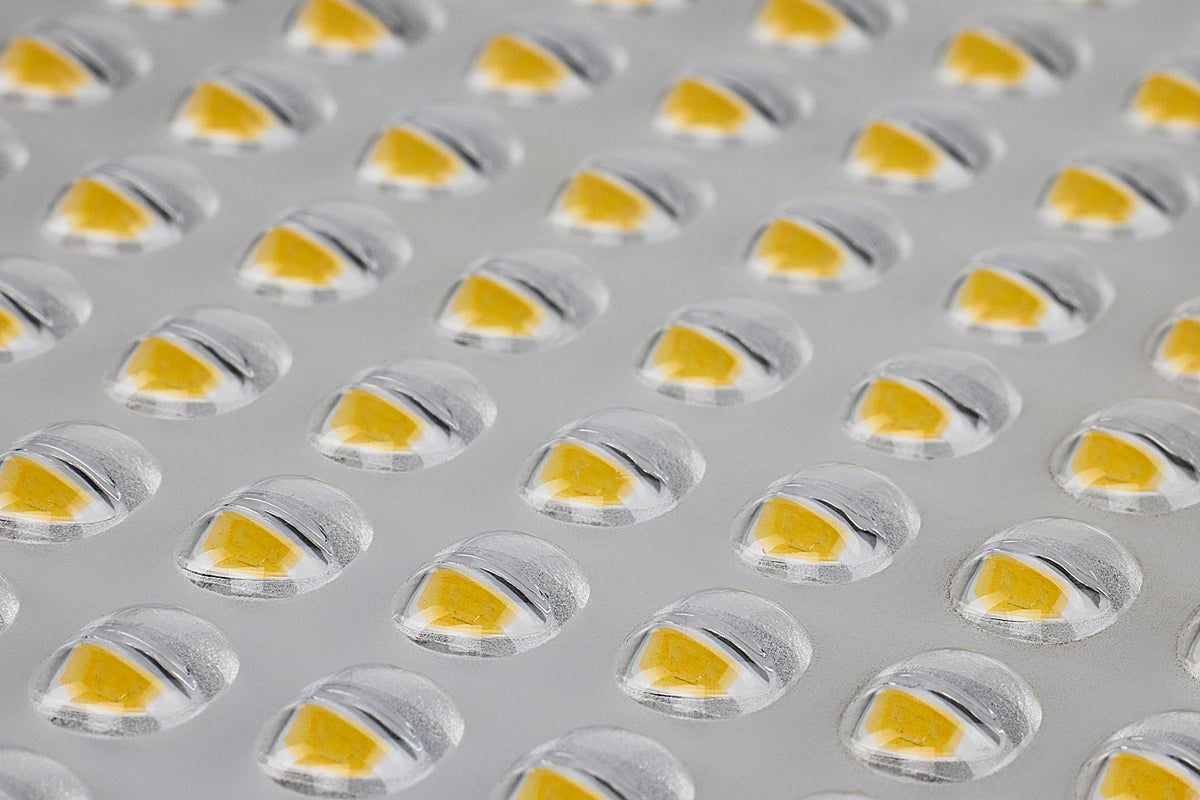

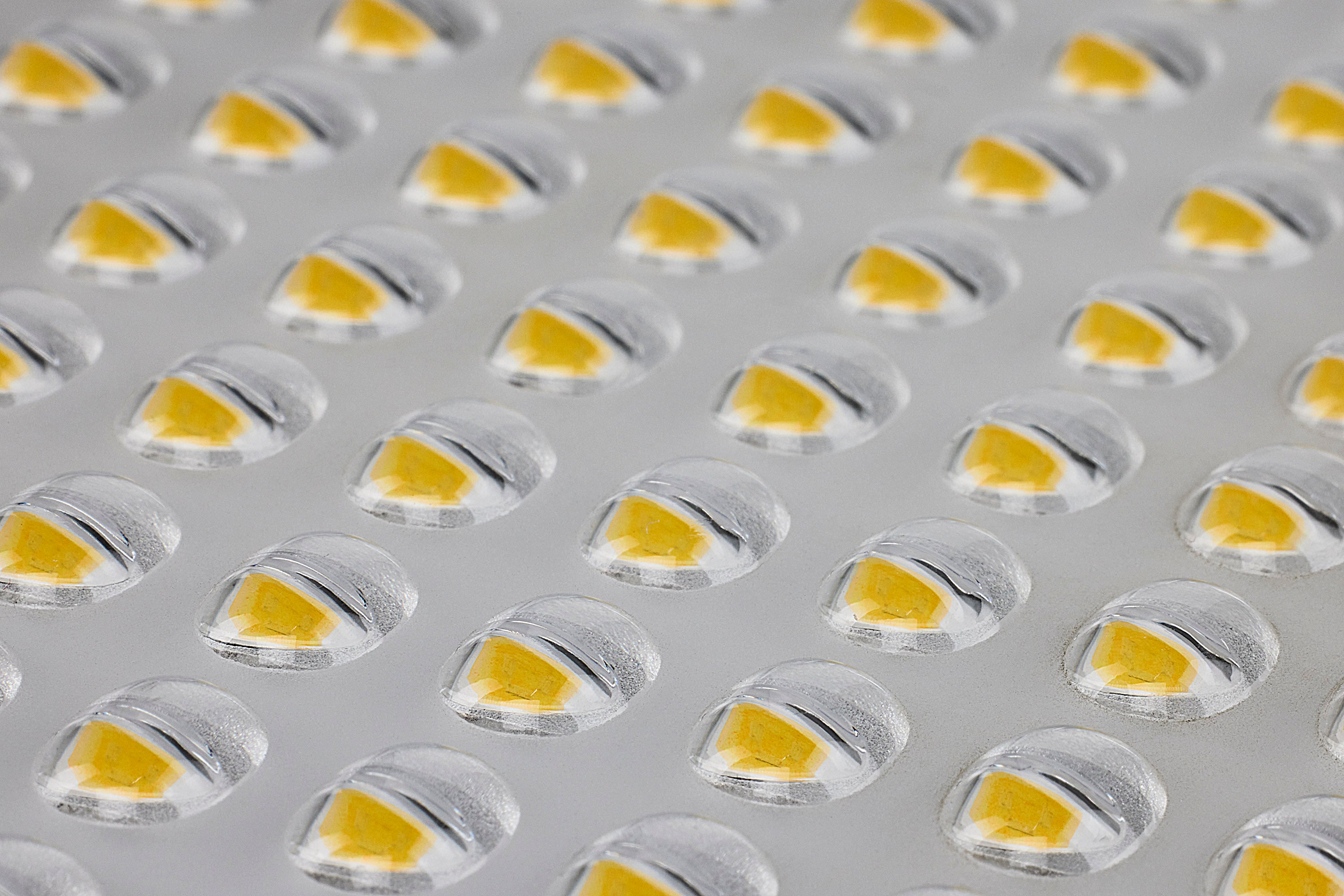

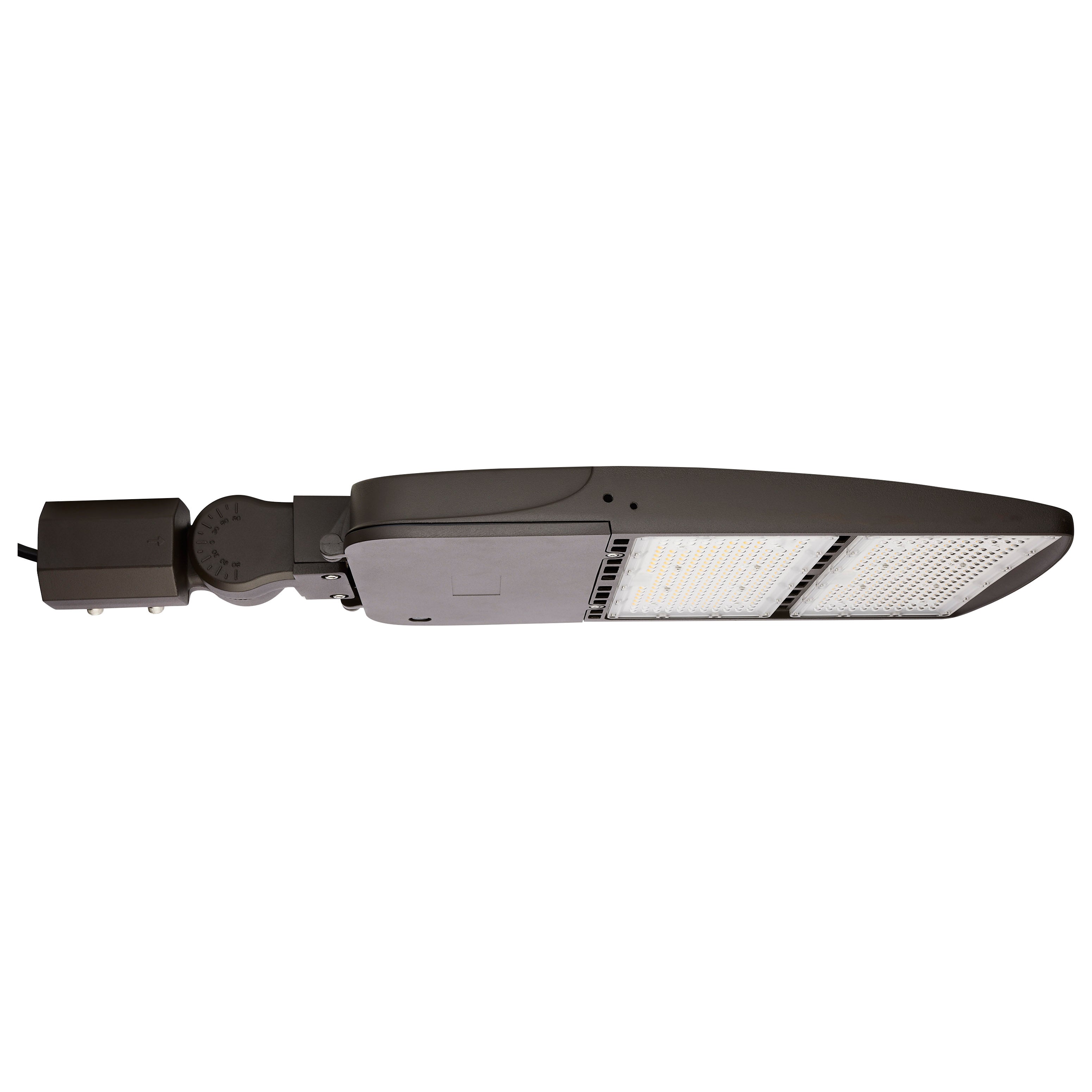

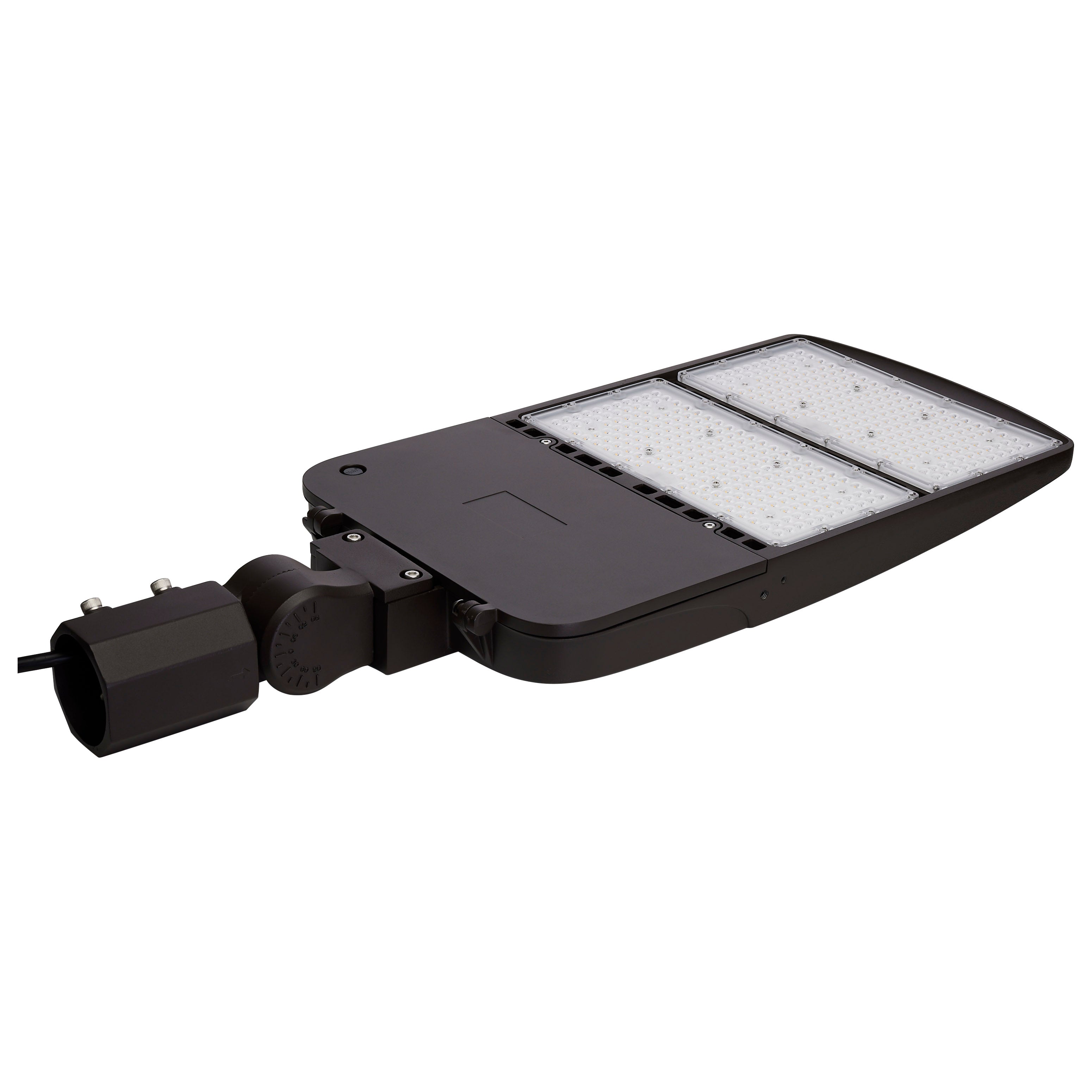

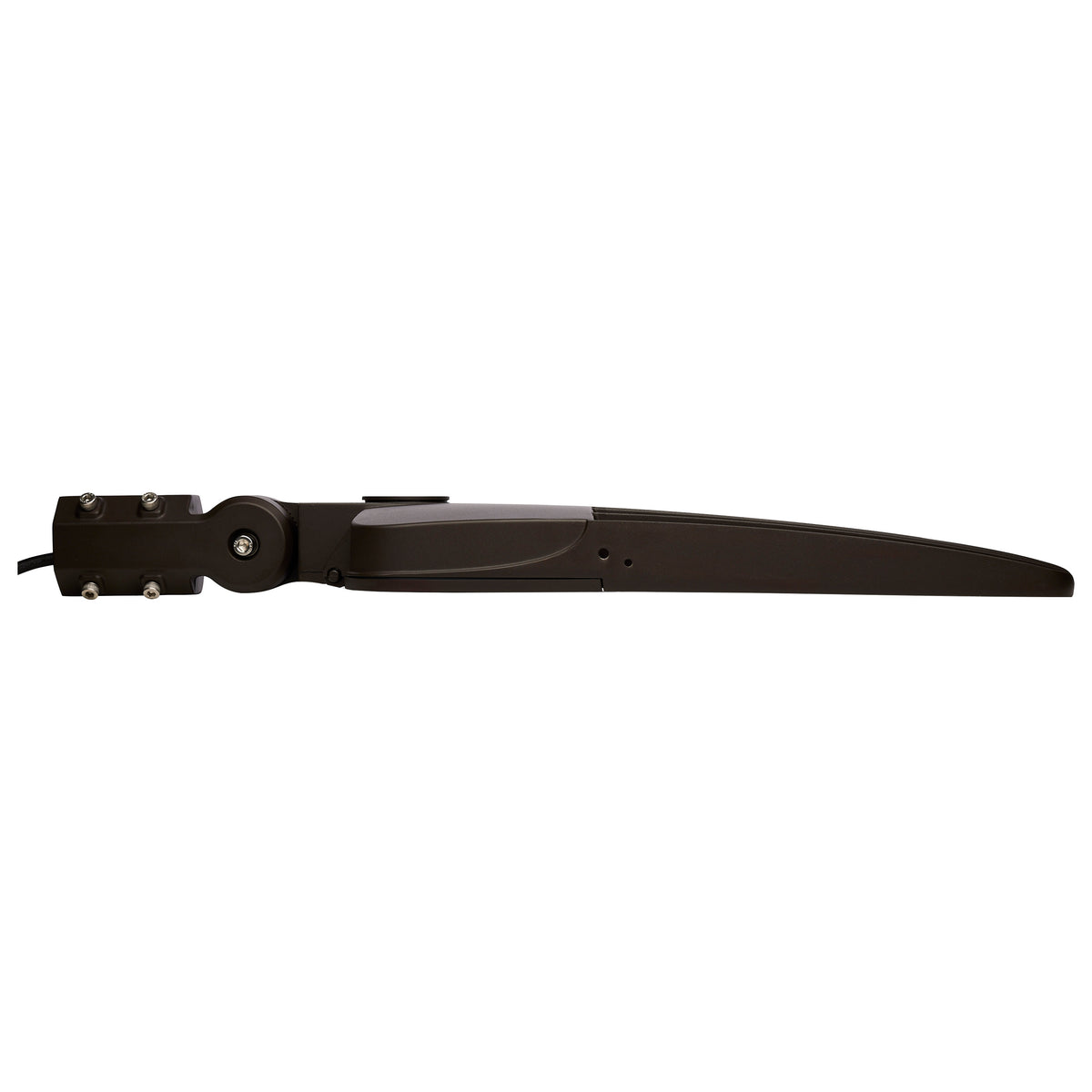

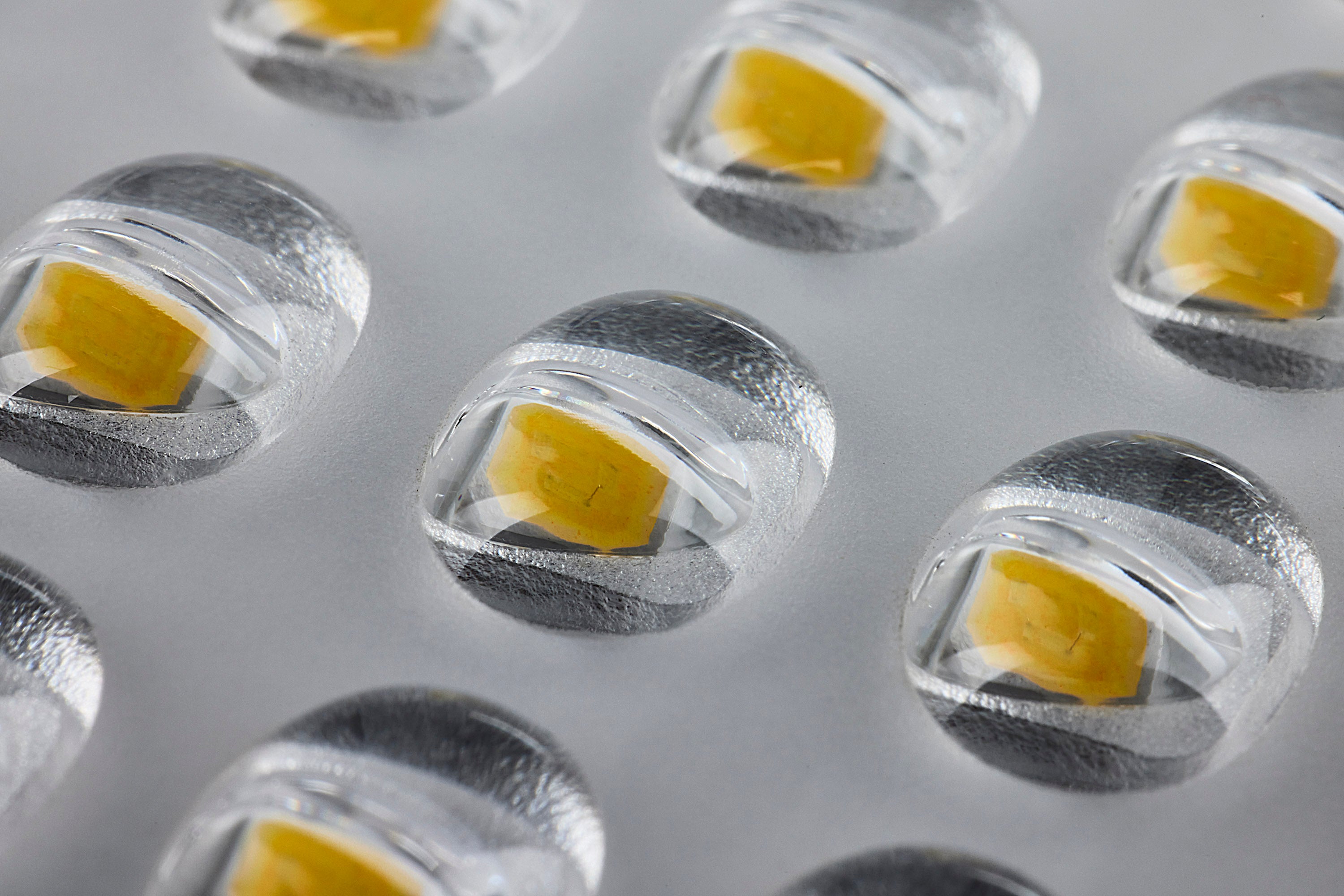

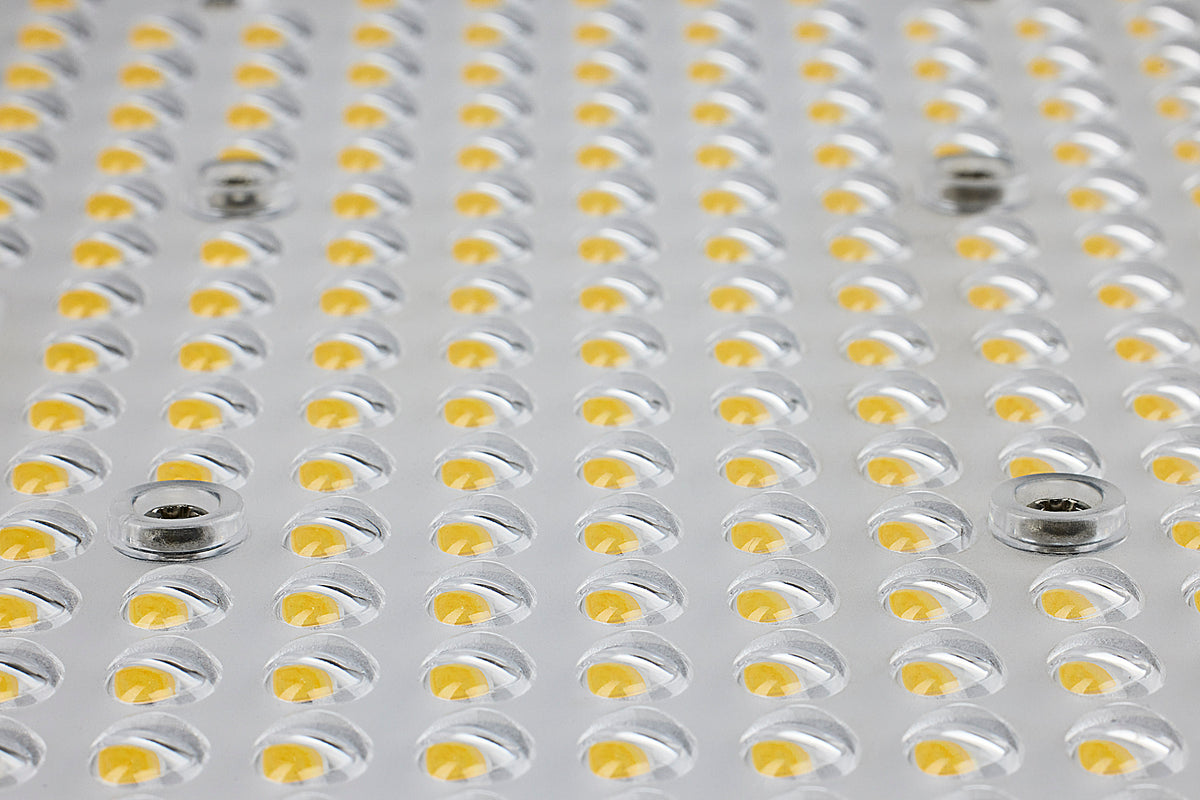

SATCO NUVO's 65-866-5 240W LED Area Light Type V provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.

Features :-

  • Maintenance free - no bulb to change

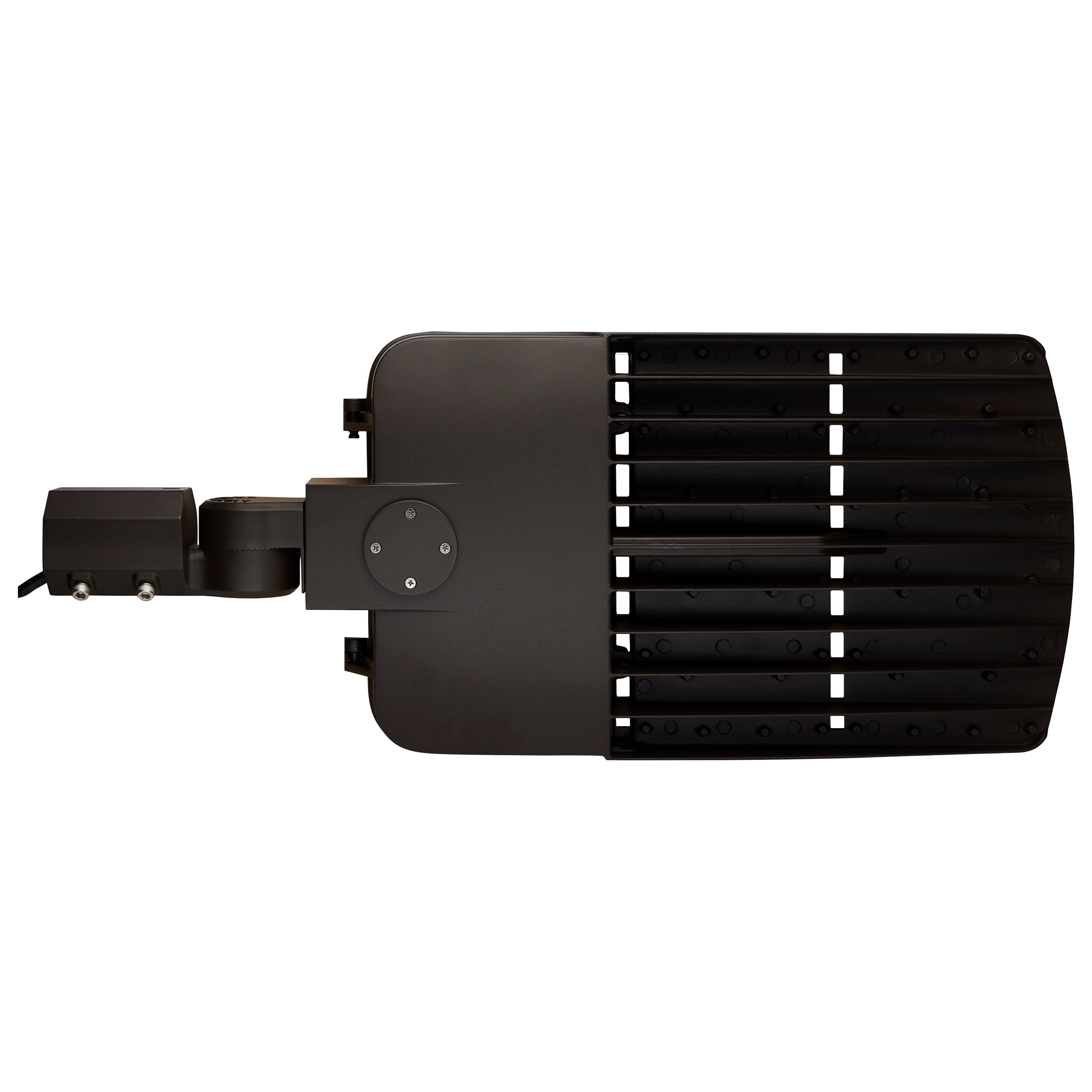

  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish

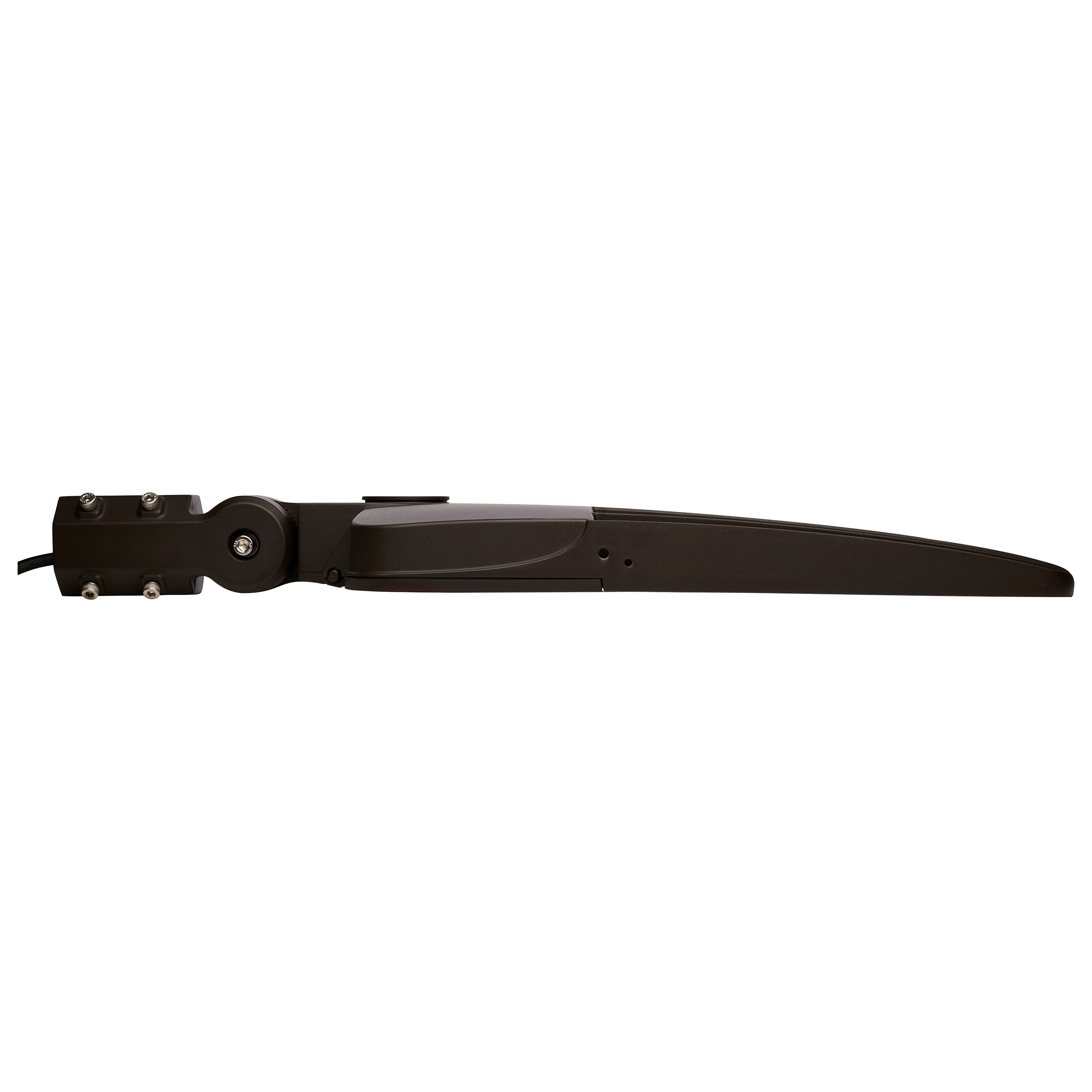

  • Slip-fitter mount included
  • IP65 Rated
  • Multiple mounting options available
  • Add-on sensors available
  • TYPE V Lighting Distribution
  • 4KV Built-In Surge Protection
  • 5-Year Warranty
