Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W-150W
Wattage 20W/30W/40W
Lumens 2200L-4600L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 23.75 IN
Photocell No Photocell
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 9%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel

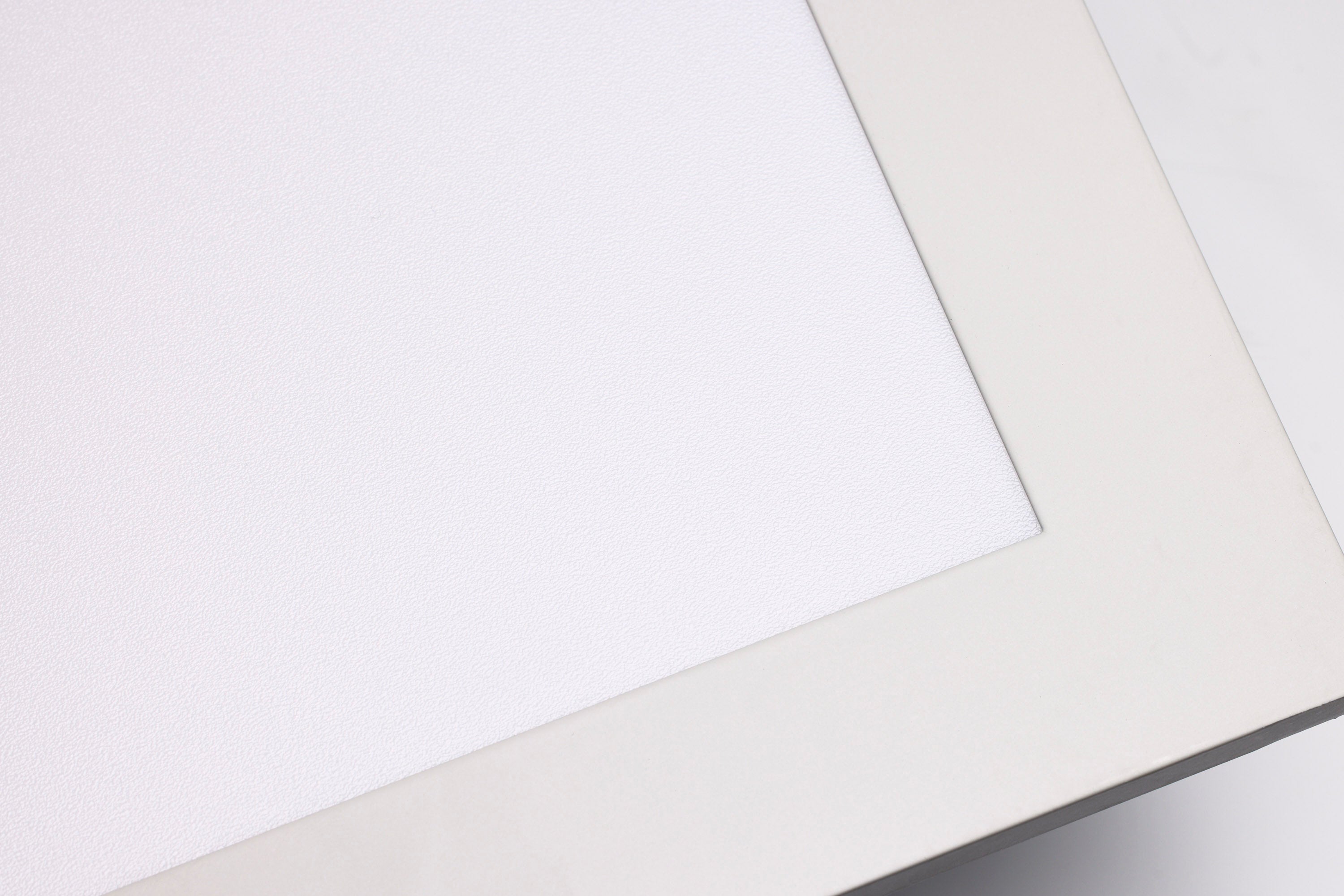

Finish/Lens Frost
Width 23.75 IN
Height 1.5 IN
Weight 4.85 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

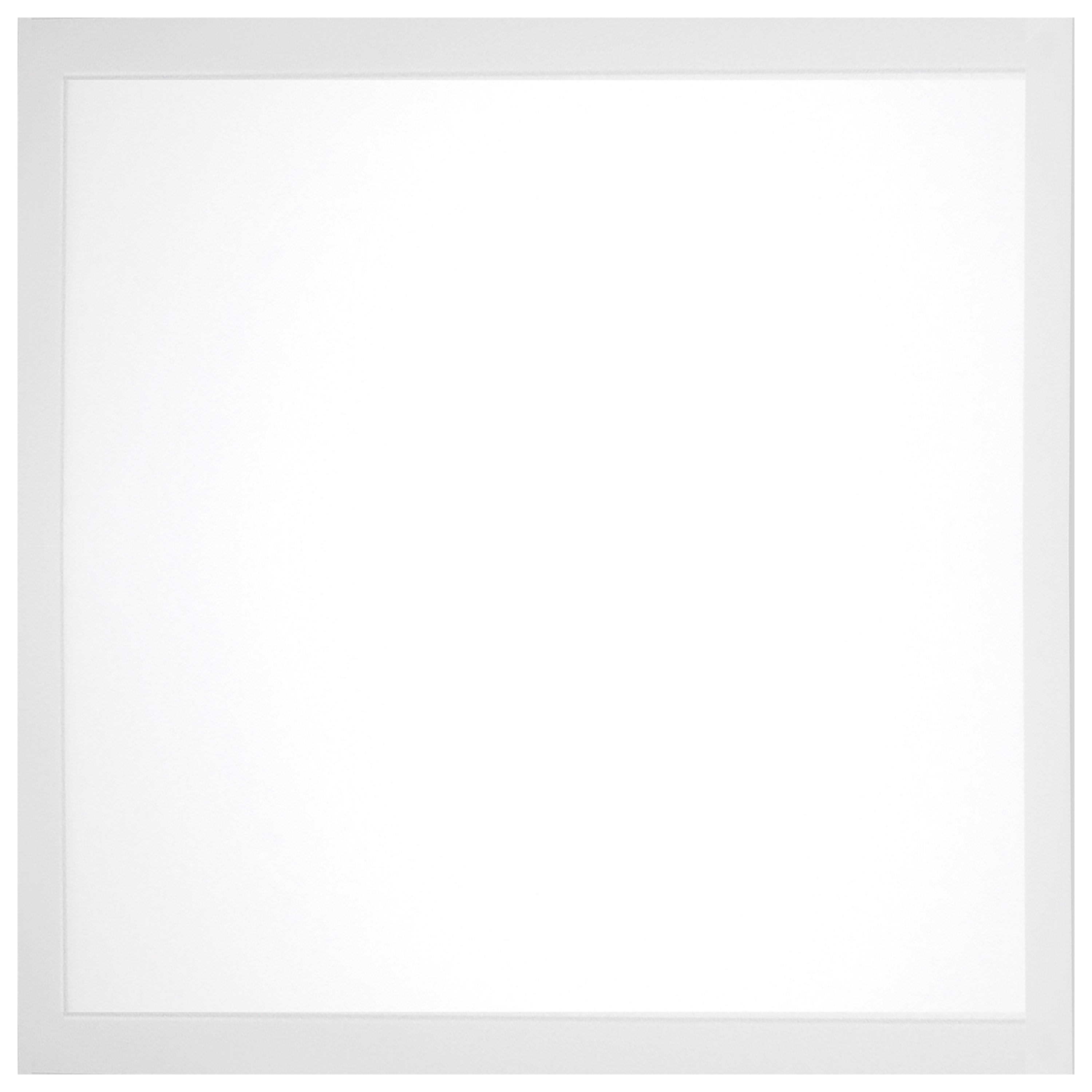

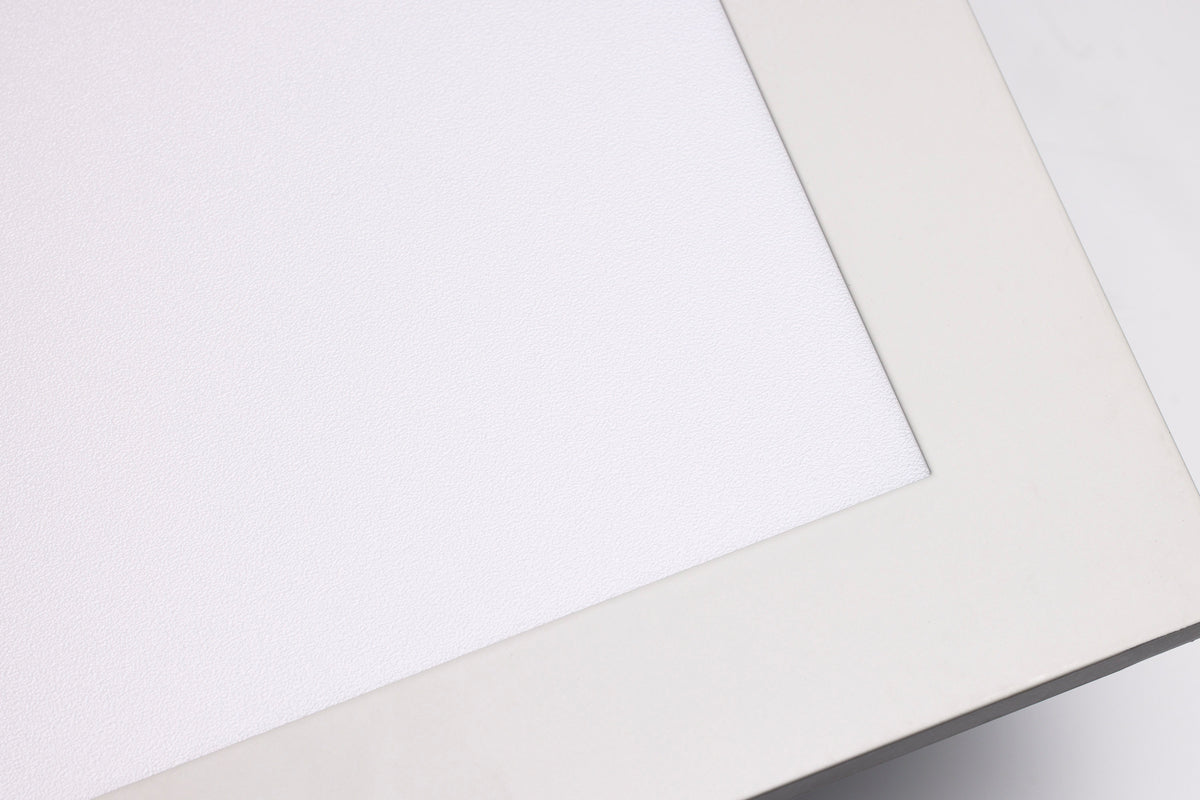

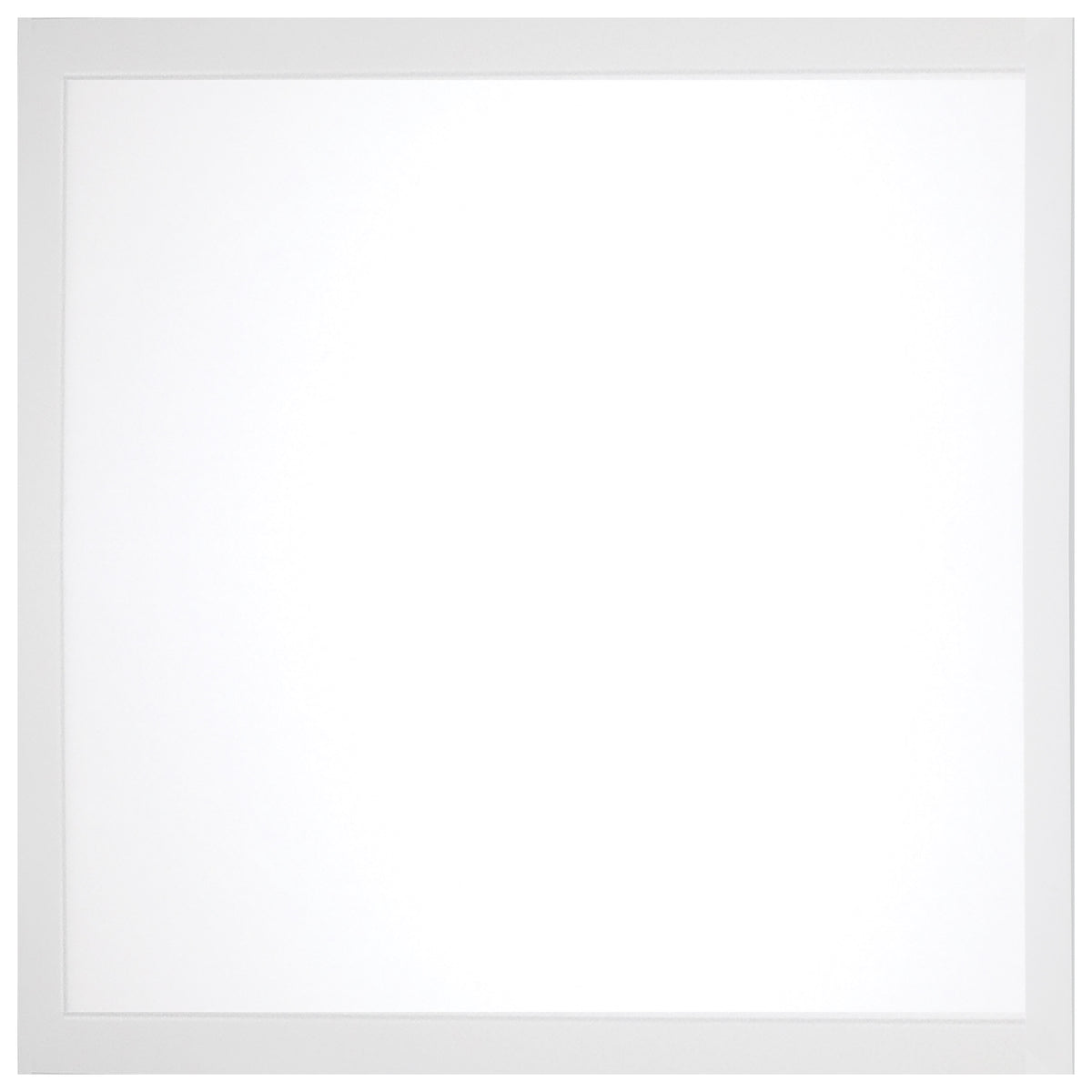

LED Backlit Flat Panel - 2 ft. x 2 ft. - Wattage and CCT Selectable - 120-277 Volt - ColorQuick Technology - PowerQuick Technology - White Finish is a commercial ceiling light intended for grid-ceiling and general commercial lighting projects. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting drop ceiling lighting for a specific room, fixture or property application.

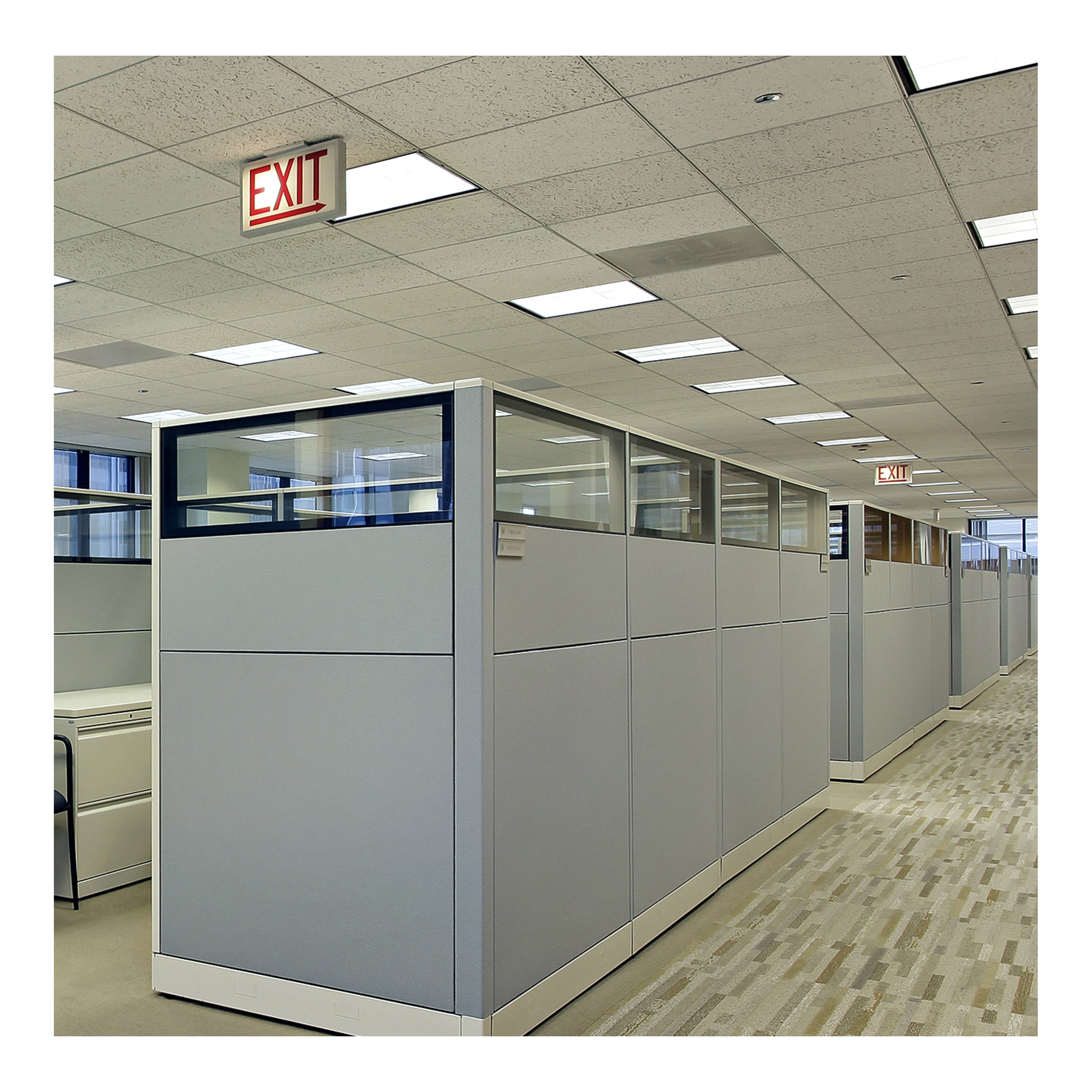

Supports a clean, organized ceiling layout across larger commercial interiors. In practical terms, that makes this product relevant for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It also fits naturally into projects considering office LED light fixture and LED panel light, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. For renovations, tenant improvements and facility upgrades that need consistent overhead illumination, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to shop commercial ceiling fixtures, LED Backlit Flat Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

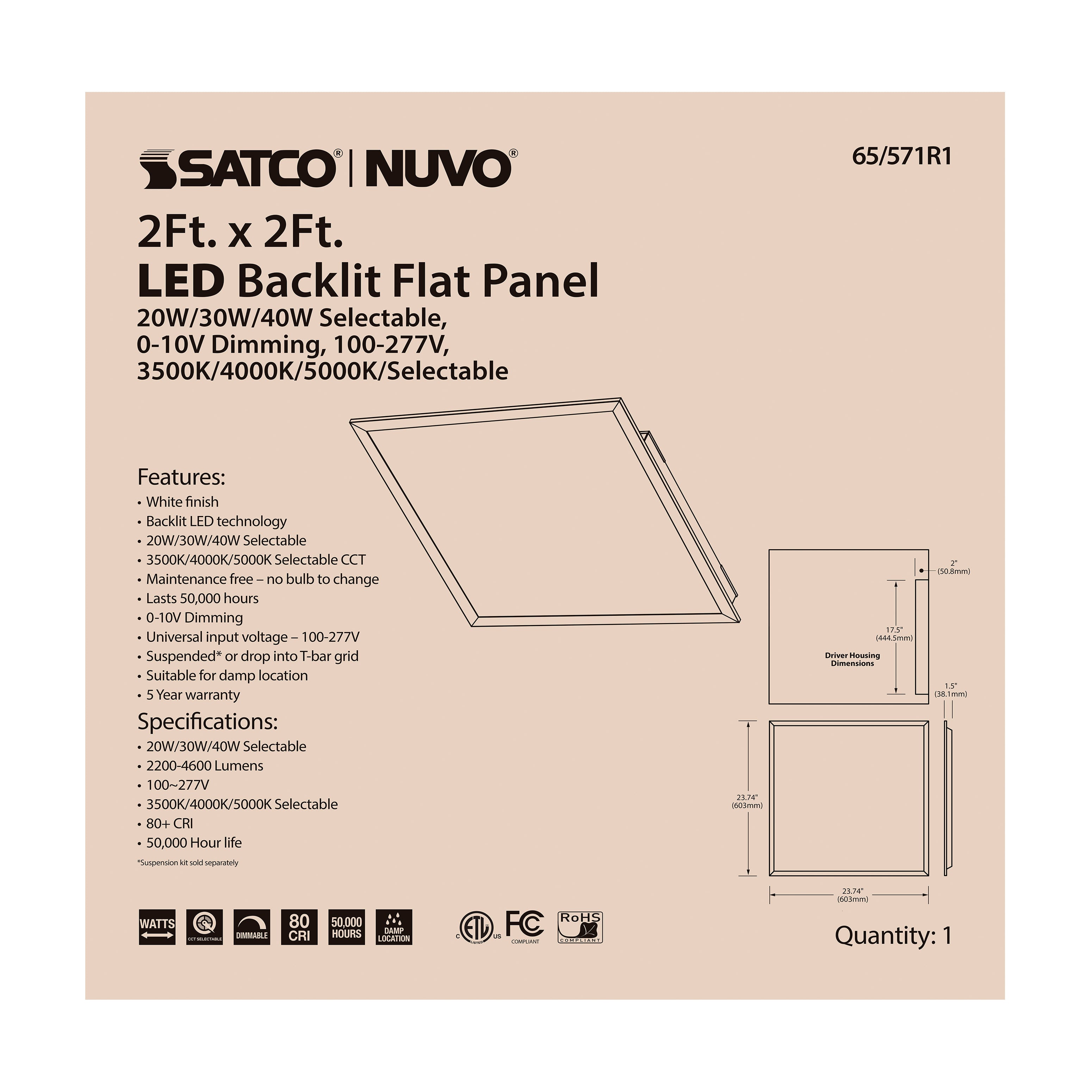

SATCO NUVO's LED Backlit 2x2 Flat Panel 65-571R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

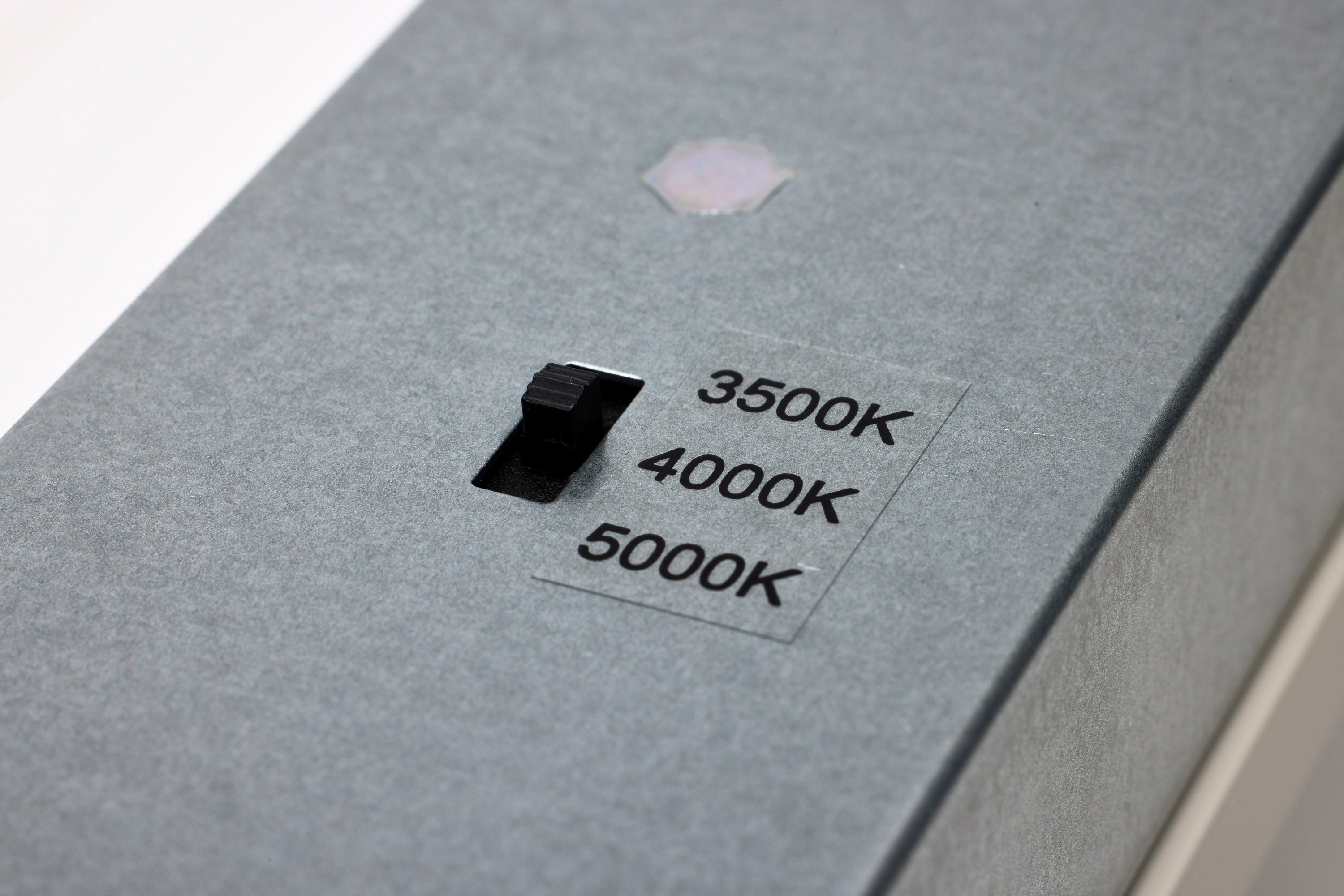

  • 3500K/4000K/5000K CCT Selectable

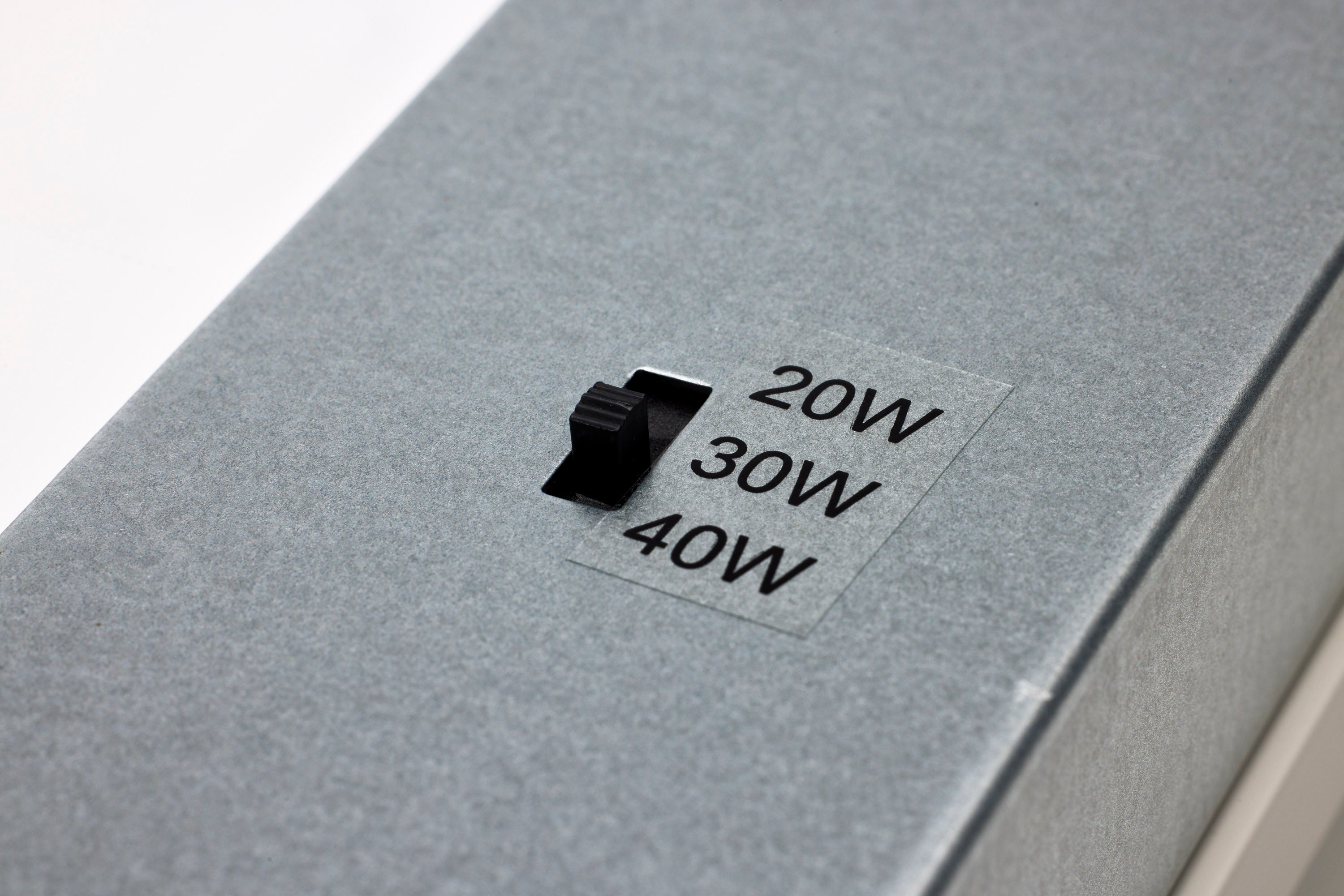

  • 20W/30W/40W Wattage Selectable
  • Backlit LED Technology
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the LED Backlit Flat Panel - 2 ft. x 2 ft. - Wattage and CCT Selectable - 120-277 Volt - ColorQuick Technology - PowerQuick Technology - White Finish

What lighting environments are appropriate for this flat panel with 120-degree/ceiling specifications and its intended application?

Which electrical checks matter for this flat panel using 120V-277V input with Integrated base connection?

How does the 120-degree beam and 2200/4600-lumen output shape coverage from this flat panel during typical installations?

Where should shoppers buy this flat panel with L:23.75inW:23.75inH:1.50in/2-foot specifications when planning their next lighting installation?
