Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W-150W
Wattage 20W/30W/40W
Lumens 2200L-4600L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 23.75 IN
Photocell No Photocell
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 19%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel
Finish/Lens Frost
Width 23.75 IN
Height 1.5 IN
Weight 4.85 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

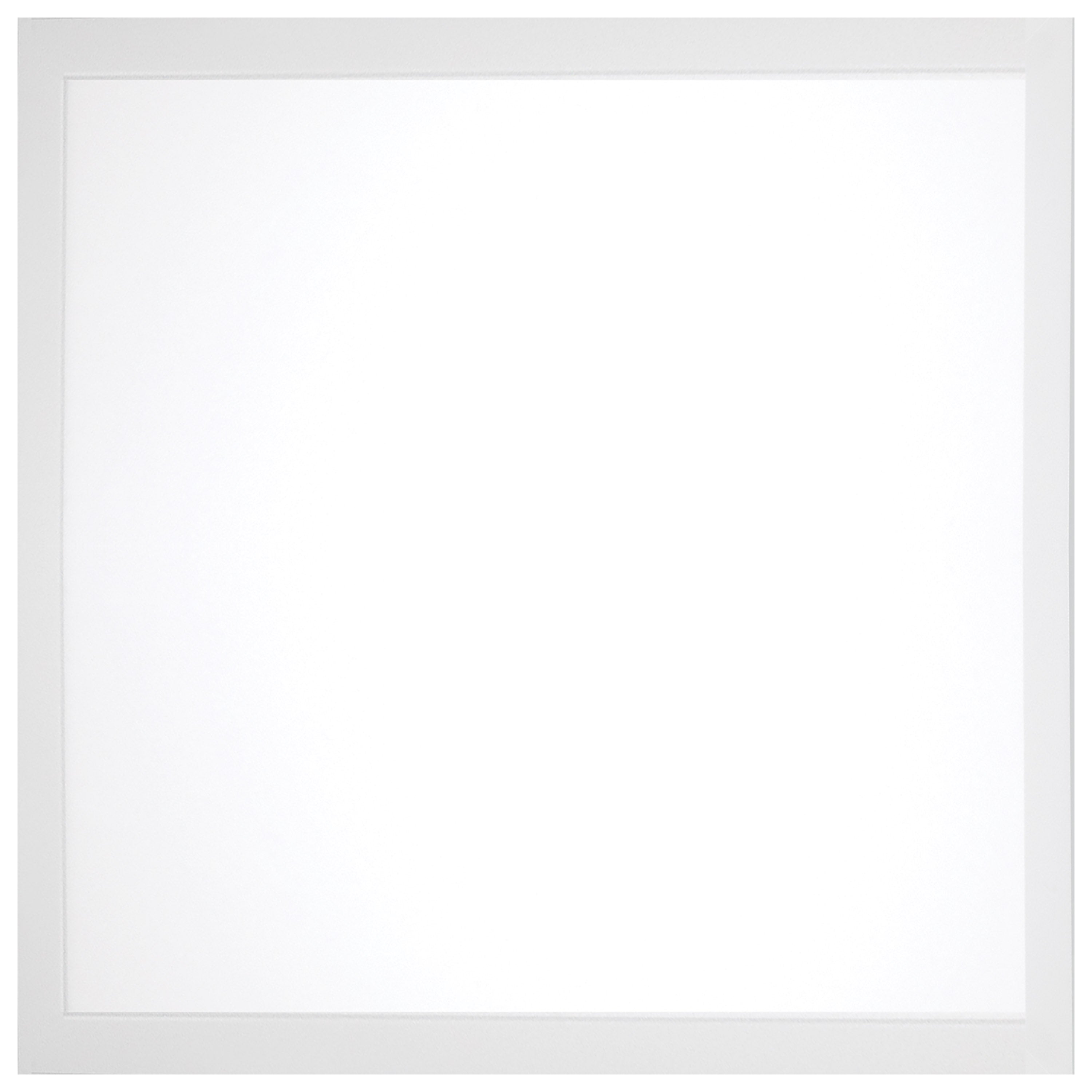

LED Backlit Flat Panel - 2 ft. x 2 ft. - Wattage and CCT Selectable - 120-347 Volt - ColorQuick Technology - PowerQuick Technology - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing commercial ceiling lighting and drop ceiling lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

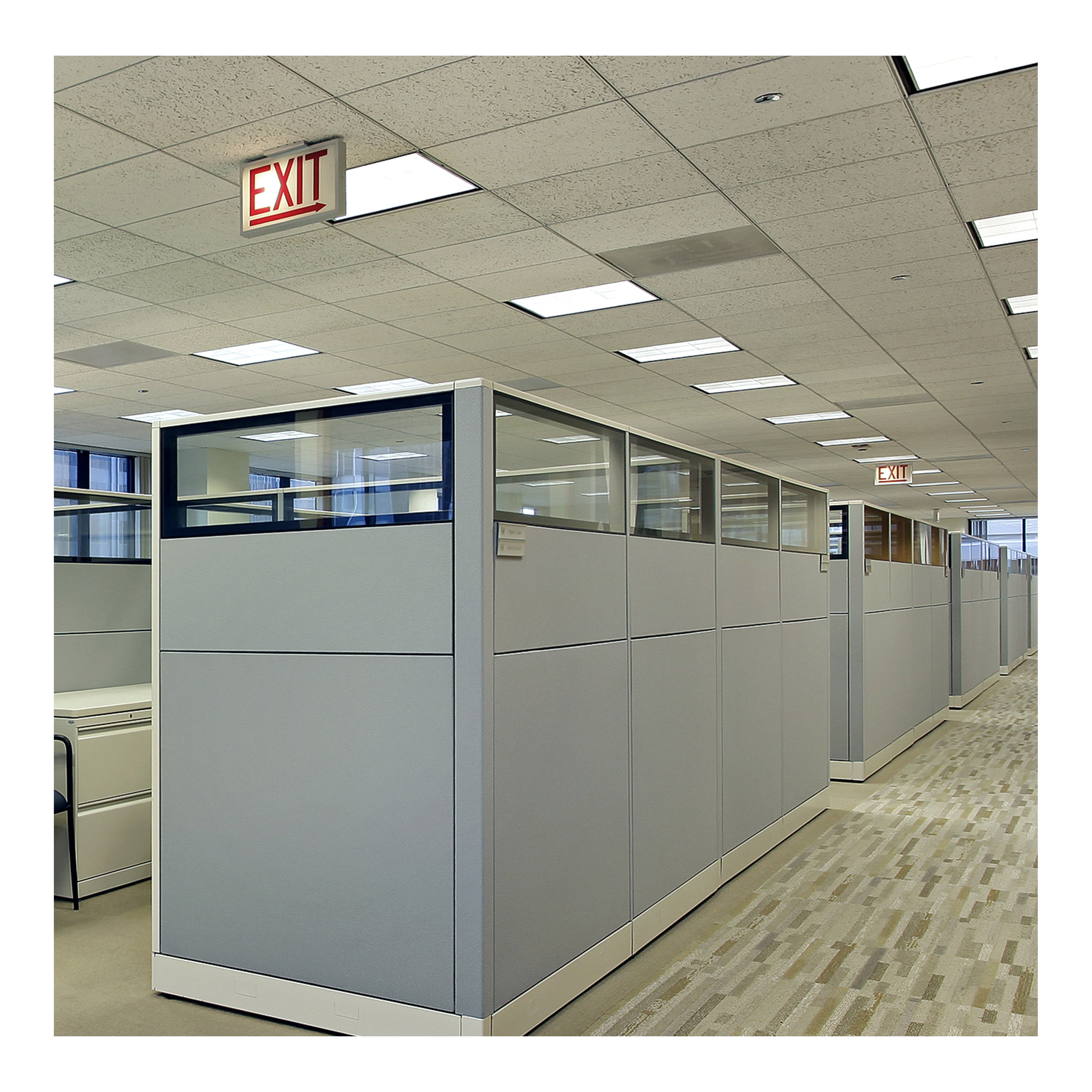

Works well when project teams need repeatable fixtures throughout offices or public spaces. It is well suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination, where lighting needs to support the space rather than distract from it. This makes the product a practical drop ceiling lighting choice for customers also considering LED panel light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to buy LED panel and troffer lights online, consider LED Backlit Flat Panel for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

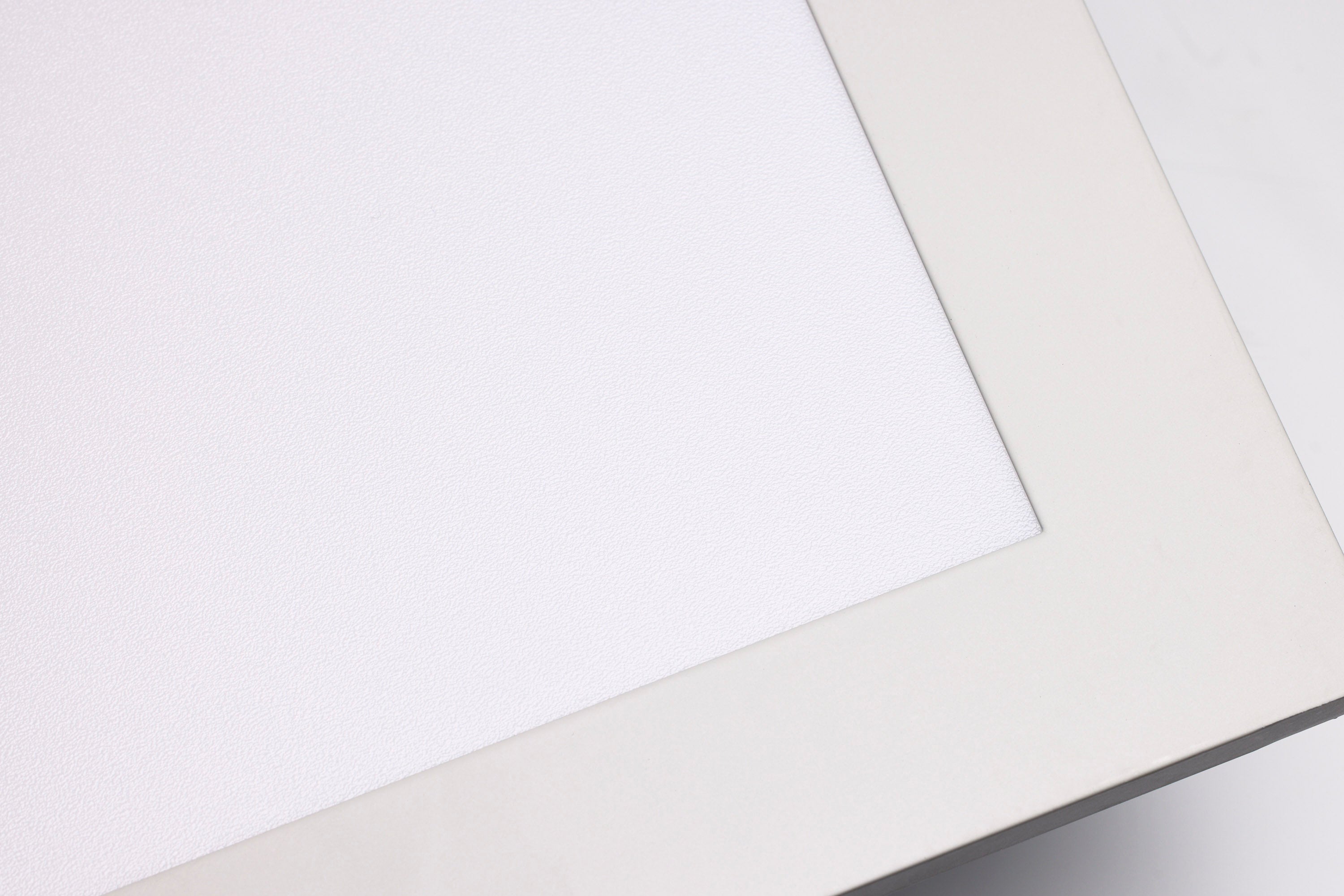

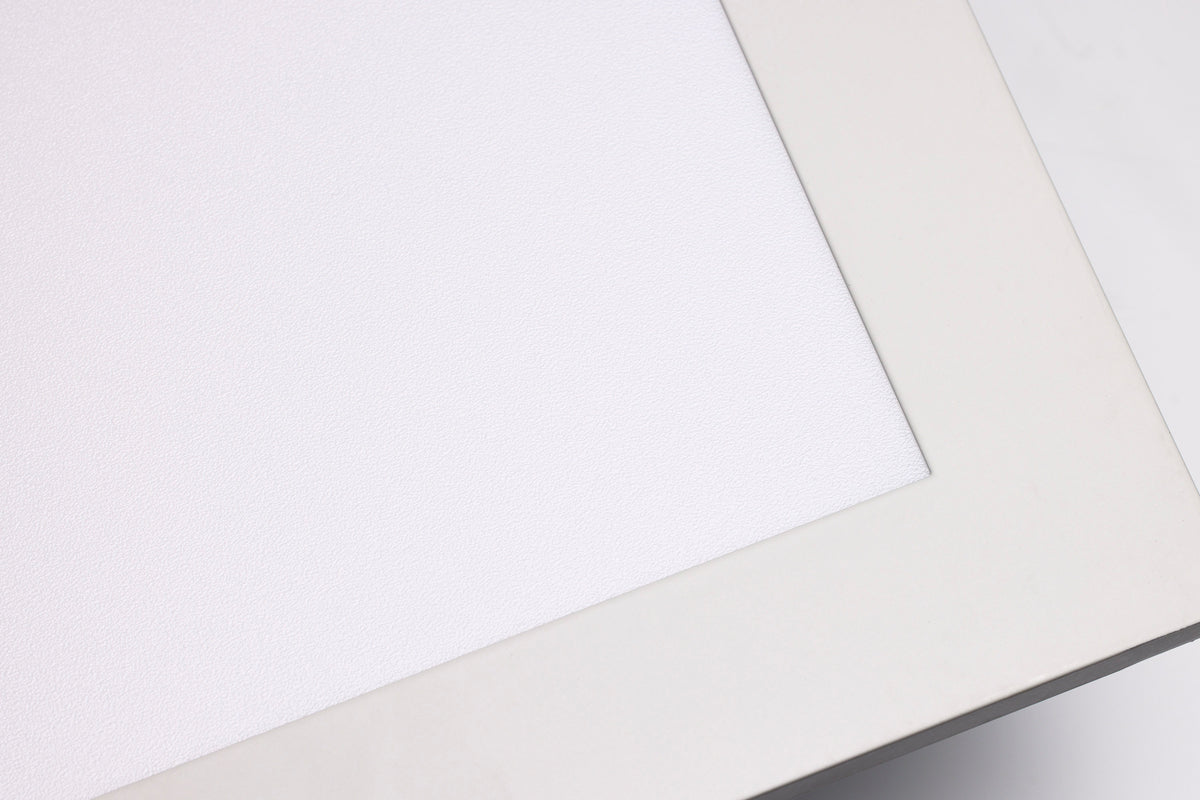

SATCO NUVO's LED Backlit 2x2 Flat Panel 65-581R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

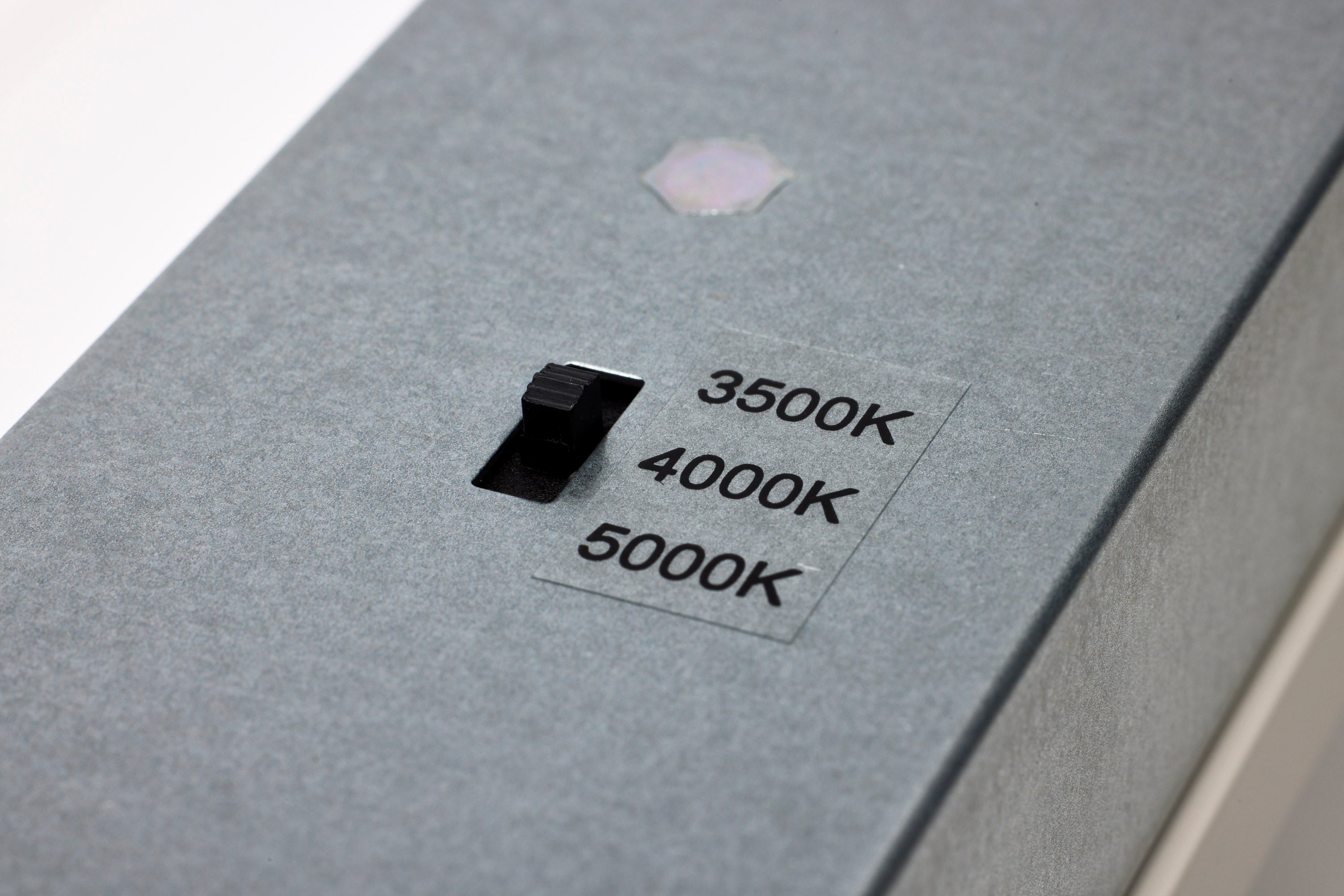

  • 3500K/4000K/5000K CCT Selectable

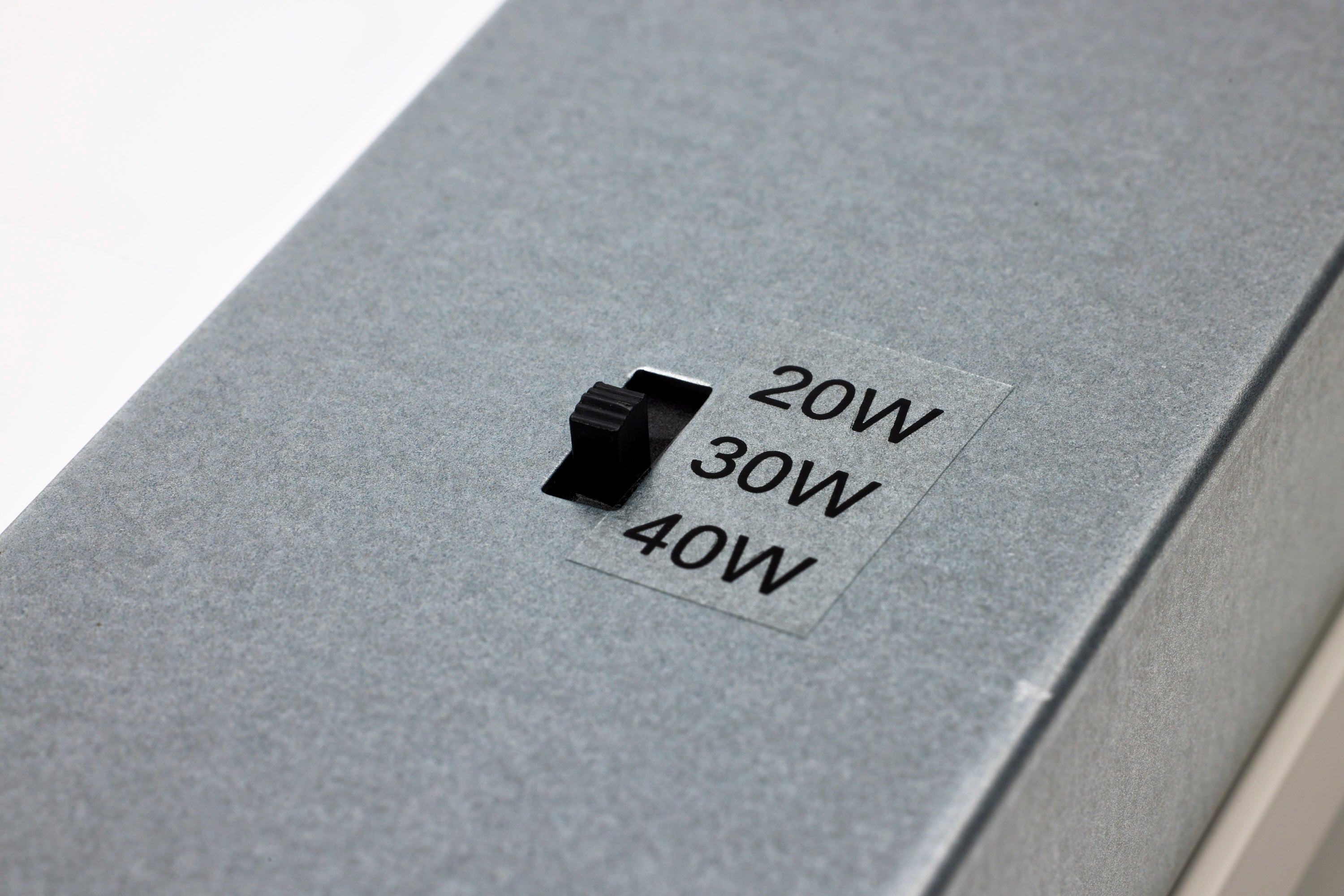

  • 20W/30W/40W Wattage Selectable
  • Higher 120-347 Voltage Range
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
